Table Top
1 pc
Allen Bolt
Ø1/4"*38mm
Lock Washer
Ø1/4*11mm
16 pcs
Flat Washer
Ø1/4 x 19 mm
This page lists all the contents included in the box.
Please take the time to identify the hardware as
well as the individual components to this product.
As you unpack and prepare for assembly, place
the contents on a carpeted or padded area to
protect them from damage.
Leg Shelf
Allen Key
4 mm
16 pcs
2 pcs
1 pc
16 pcs2 pcs
ASSEMBLY INSTRUCTION
Anti-tipping HW
1 set
X-BASE BOX SOFA TABLE TV STAND

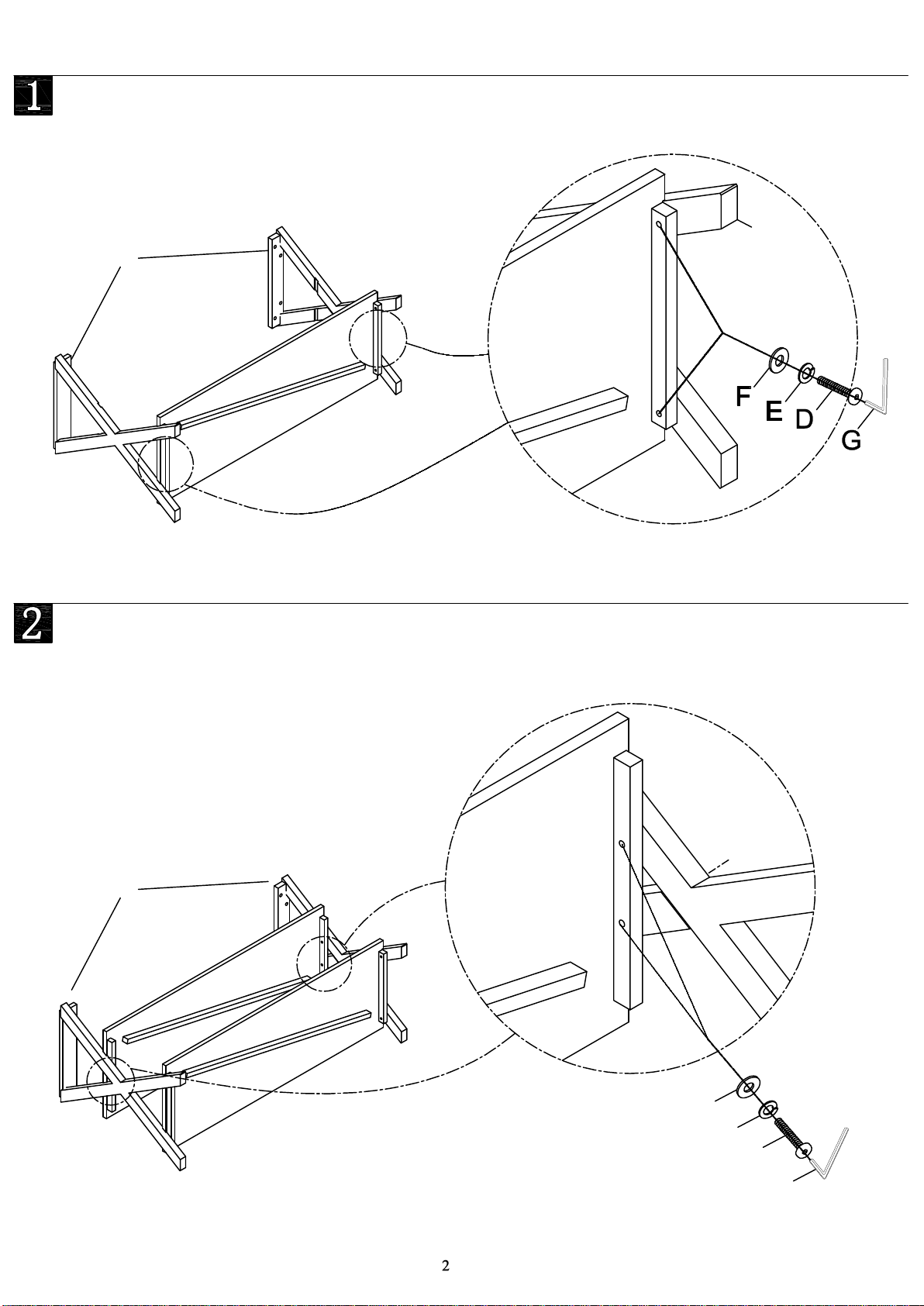

Attached two Legs(B) to the Shelf(C). Use Bolt(D) Lock Washer(E) and Flat Washer(F) on holes
of two Shelfs(C). Turn the Allen Key(G) in Bolt(D).
Attached the Shelf(C) to the two Legs(B). Use Bolt(D) Lock Washer(E) and Flat Washer(F) on
holes of two Shelfs(C). Turn the Allen Key(G) in Bolt(D).
C
F
E
D
G
C
B
B
C
B
C
B
C
Attached two Legs(B) to the Table Top(A). Use Bolt(D) Lock Washer(E) and Flat Washer(F) on
holes of two Legs(B). Turn the Allen Key(G) in Bolt(D).
D
C
C
Cleaning & Care
Treat surface with care. Surface is resistant to scratches but is not scratch resistant. Clean surfaces with a dry
or damp soft cloth. Do not use abrasive cleaners. Hardware may loosen over time. Periodically check that all
connections are tight.
Attach Anti-tipping hardware(H) to wall: Attach bracket (vertically) to wall using 2 of the screws
provided; Attach bracket (horizontally) to furniture back (directly below top) with 2 of the screws
provided. Place bracket as close to center of furniture back as possible in relation to wall stud
and the desired position in the room; Move furniture to its final position. Thread the strap through
bracket, pull it tight.
