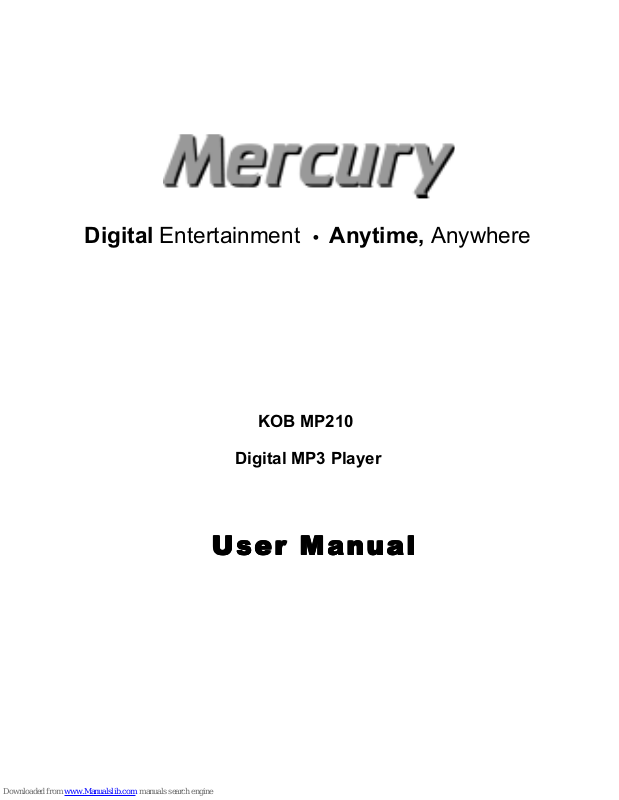

Mercury KOB MP210 User Manual
Digital MP3 Player
Digital Entertainment Anytime, Anywhere
User ManualUser Manual
User ManualUser Manual
User Manual
KOB MP210
Introduction ................................................................................3
Precautions .............................................................................................. 3
In the Package ......................................................................................... 4
Player Overview ....................................................................................... 5
Basic Operation..........................................................................6
Use as MP3 Player .................................................................................. 6
Use as Portable USB Storage ................................................................. 6
Inserting Battery ....................................................................................... 7
Installing the Device ................................................................................. 8
Operating Instruction ................................................................................ 9
LED Indicator ........................................................................................... 9
Software Installation ................................................................ 10
Listening to Music.................................................................... 12
File Management ...................................................................... 14
Formatting MP3 Player ............................................................ 15
Firmware Recovery .................................................................. 16
Troubleshooting ....................................................................... 18
Specification ............................................................................. 19
Copyright Notice
© Copyright 2000-2003, Kobian Group
All rights reserved.
All brand and product names are trademarks and/ or registered trademarks of their respective companies.
Products and specification are subject to change without notice.
Rev. 1.0
Table of Content
3
Introduction
Precautions
4
Introduction
In the Package
1. Main Unit
2. Stereo Earphone
3. Mini-USB Cable
4. CD for Driver Installation
5. User Manual
5
Front View
Side View 2
Play/Stop
Volume +
LED Indicator
Volume -
Side View 1
Earphone
USB Connecion Port
Lock
Top / Bottom View
EQ mode
Battery Compartment
Introduction
Player Overview
6
Basic Operation
Use as MP3 Player
Mercury MP3 player is the Multi-Codec player which support MP3 & WMA format.
- Plug the player into any computer USB port, activate the "Window Explorer"
- Drag and drop your MP3 files straight into the player (how many files you can store
is decided by the memory size of the player you choose. You can store about 32-50
tracks MP3 if you choose 128MB internal memory).
- Unplug it from the computer, insert one AAA Alkaline battery and plug in the earphone,
press the PLAY/STOP to power on. You can control it easily refer to the instruction of
operating
Use as Portable USB Storage
Mercury MP3 player can be used as a portable USB storage solely (USB1.1). If your
operating system is Window Me, Windows 2000, Window XP, the MP3 player is
plug and play.
- When you plug the MP3 player into the computer USB port, it will be recognized
as a removable storage automatically on the desktop.
- And now, you can operate this freely and exchange files with computer.
If your operating system is lower version as Window 98SE, Windows 95 etc.,
please install the driver CD or download from our website www.kobian.com
Be sure to disconnect the Digital MP3 player and PC safely, you should
click the Safety Unplug button at the right bottom corner of the Task Bar.
NOTE: Only the Play/Stop key is functional when used as removable storage.
