Introduction 4

Instrument Cluster 10

Warning and control lights 10 Gauges 15

Entertainment Systems 20

AM/FM stereo with CD 20 AM/FM stereo cassette with CD 23 AM/FM stereo with cassette and in-dash six CD 28

Climate Controls 34

Manual heating and air conditioning 34 Automatic temperature control 35 Rear window defroster 37

Lights 38

Headlamps 38 Turn signal control 41 Bulb replacement 43

Driver Controls 49

Windshield wiper/washer control 49 Steering wheel adjustment 50 Power windows 61 Mirrors 62 Speed control 63 Message center 72

Locks and Security 78

Keys 78 Locks 78 Anti-theft system 86

Table of Contents

Seating and Safety Restraints 91

Seating 91 Safety restraints 96 Airbags 110 Child restraints 121

Tires, Wheels and Loading 132

Tire Information 132 Changing tires 137 Lug Nut Torque 143 Vehicle loading 153 Trailer towing 159 Recreational towing 162

Driving 163

Starting 163 Brakes 167 Traction control 170 Air suspension 172 Transmission operation 173

Roadside Emergencies 180

Getting roadside assistance 180 Hazard flasher switch 181 Fuel pump shut-off switch 181 Fuses and relays 182 Jump starting 190 Wrecker towing 195

Customer Assistance 196

Reporting safety defects (U.S. only) 204

Cleaning 205

Table of Contents

Maintenance and Specifications 211

Engine compartment 212 Engine oil 213 Battery 217 Engine Coolant 219 Fuel information 225 Air filter(s) 239 Part numbers 240 Refill capacities 241 Lubricant specifications 242

Accessories 248

Index 250

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Mercury. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Drive your new vehicle at least 500 miles (800 km) before towing a trailer.

Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

Introduction

SPECIAL NOTICES

Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s

Guide.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Introduction

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS)

in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger air bag.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this

Owner’s Guide for all other required information and warnings.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Powertrain Malfunction Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

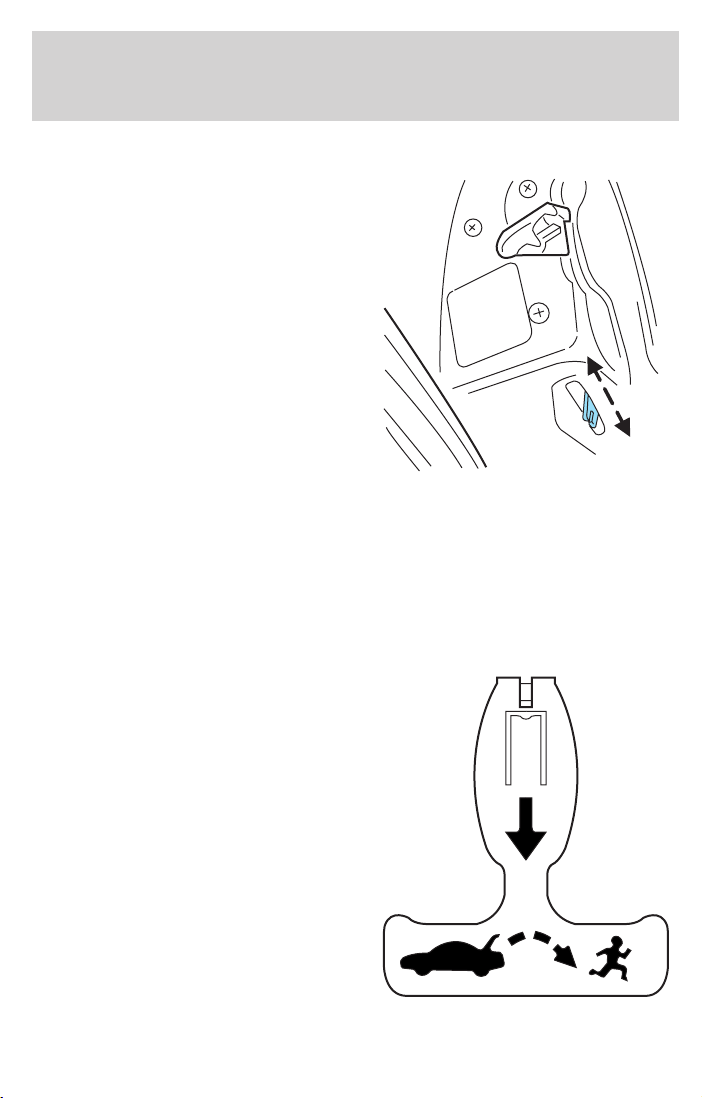

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Jack

Check fuel cap Low tire warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster

Optional instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.

Check engine: The Check engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the

CHECK

ENGINE

Instrument Cluster

Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Electronic throttle control:

Illuminates when the engine has defaulted to a ’limp-home’ operation. Report the fault to a dealer at the earliest opportunity.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check engine warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter.

Brake system warning light:

• Standard instrument cluster

CHECK

FUEL

CAP

BRAKE

• Optional instrument cluster

To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

Instrument Cluster

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated.

Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt, refer to the Seating and Safety Restraints chapter.

Charging system: Illuminates when the battery is not charging properly.

ABS

AIR

BAG

Engine oil pressure (if equipped): Illuminates when the oil

pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Specifications chapter.

Engine coolant temperature:

Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

Instrument Cluster

Never remove the coolant reservoir cap while the engine is

running or hot.

Traction control娂 AdvanceTrac威 active (if equipped): Illuminates

when the Traction control娂 system is active. It will be lit for a minimum of four seconds or for the duration of the Traction Control娂 event, refer to the Driving chapter for more information.

Air suspension (if equipped):

• Standard instrument cluster

• Optional instrument cluster

Illuminates when the air suspension is turned OFF, the load limit is exceeded or the air suspension system requires servicing.

Low fuel (if equipped):

Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter for more information).

O/D off:

• Standard instrument cluster

• Optional instrument cluster

Illuminates when the overdrive function of the transmission has been turned OFF using the

CHECK

AIR SUSPENSION

LOW WASHER FLUID

TRUNK AJAR LTR/100 km

CHECK

AIR SUSPENSION

LOW WASHER FLUID

TRUNK AJAR LTR/100 km

AIR

SUSP

OVERDRIVE OFF

LOW

FUEL

O/D

OFF

OVERDRIVE OFF

DOOR AJAR

MILES

/GAL

DOOR AJAR

MILES

/GAL

Instrument Cluster

transmission control switch (TCS), refer to the Driving chapter. If the light flashes steadily, have the system serviced immediately.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

MESSAGE CENTER INDICATOR LIGHTS (IF EQUIPPED)

Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Door ajar: Illuminates when one of the doors is not completely shut and the ignition is turned to ON. With the ignition ON, this light will flash six times (if a door is open). With the ignition in RUN position, a tone will sound for one second (if a door is open).

Low washer fluid: Momentarily illuminates when the ignition is turned to ON and will stay on when the windshield washer fluid is low.

SPEED CONTROL

CHECK

LOW WASHER FLUID

CHECK

LOW WASHER FLUID

AIR SUSPENSION

OVERDRIVE OFF

TRUNK AJAR LTR/100 km

AIR SUSPENSION

OVERDRIVE OFF

TRUNK AJAR LTR/100 km

DOOR AJAR

MILES

/GAL

DOOR AJAR

MILES

/GAL

Trunk ajar: If the trunk is not completely closed, this light comes on when you turn the ignition to ON. With the ignition ON, this light will flash five times and sound a tone for one second, then the light remains on (if the trunk is open).

CHECK

AIR SUSPENSION

OVERDRIVE OFF

LOW WASHER FLUID

TRUNK AJAR LTR/100 km

DOOR AJAR

MILES

/GAL

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Instrument Cluster

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

GAUGES

Standard instrument cluster gauges

Instrument Cluster

Optional instrument cluster gauges

Speedometer: Indicates the current vehicle speed.

• Standard instrument cluster

100

120

0000000

MPH km/h

0000

140

160

180

200

10 0

11 0

12 0

• Optional instrument cluster

Engine coolant temperature gauge:

• Standard instrument cluster

km/h

MPH

TEMP

Instrument Cluster

• Optional instrument cluster

Indicates engine coolant temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool, refer to What you

should know about fail-safe cooling in the Maintenance and specifications chapter.

Never remove the coolant reservoir cap while the engine is

running or hot.

Odometer: Registers the total miles (kilometers) of the vehicle.

• Standard instrument cluster

O R

0000000

MPH km/h

100

120

140

0000

160

180

200

10 0

11 0

12 0

• Optional instrument cluster

Refer to Electronic Message Center in the Driver Controls chapter on how to switch the display from Metric to English.

km/h

MPH

Instrument Cluster

Trip odometer: Registers the miles (kilometers) of individual journeys.

• Standard instrument cluster

To reset, depress the control.

MPH km/h

100

120

0000000

0000

140

160

180

200

10 0

11 0

12 0

• Optional instrument cluster

Refer to Electronic Message Center in the Driver Controls chapter for Trip A and Trip B features.

Battery voltage gauge (if equipped): Indicates the battery

voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range (as indicated by arrows), have the vehicle’s electrical system checked as soon as possible.

km/h

MPH

VOLTS

Instrument Cluster

Engine oil pressure gauge (if equipped): Indicates engine oil

pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle

OIL

falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct,

have your vehicle checked at your dealership or by a qualified technician.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

• Standard instrument cluster

FUEL

• Optional instrument cluster

A minimum of four gallons must be added or removed from the fuel tank in order for the gauge to instantaneously update. If less than four gallons is added, the gauge will take between five and ten minutes to update.

Refer to Filling the tank in the

Maintenance and Specifications

chapter for more information.

Entertainment Systems

AM/FM STEREO SINGLE CD PREMIUM AUDIO SYSTEM (IF EQUIPPED)

1. CD slot: Insert a CD, label side up. With the ignition on, the radio will begin play when a CD is inserted. If the ignition is off, press CD prior to inserting a disc. Do not force a disc into the system as damage could result.

2. SEEK: Press to access the next

) or previous ( ) radio

( station or CD track. Press and hold

to advance/reverse in the current CD track.

3. TUNE: Press to manually go up

) or down ( ) the radio

( frequency.

4. MUTE: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume.

Entertainment Systems

5. Eject: Press to eject the CD. If the disc is not removed within the allotted time, the system will automatically reload the CD and begin play. Note: The eject function will work when the ignition is turned off.

6. BASS: Press BASS; then press decrease/increase the level of bass

output.

TREB (Treble): Press TREB; then press decrease/increase the level of treble

output.

7. BAL (Balance): Press BAL; then press the left/right speakers.

SEL to

SEL to shift sound to

FADE: Press FADE; then press rear/front speakers.

8. SEL: Use with Bass, Treble, Balance, Fade and other menu functions.

9. MENU: Press MENU to access the following functions:

Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until

compression status is displayed. Press compression feature when COMPRESS OFF is displayed. Press SEL

again to disable the feature when COMPRESS ON is displayed. When activated, the compression icon will appear in the display.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press

MENU until AUTOSET appears in the display. Press toggle ON/OFF. When the six strongest stations are filled, the station

stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

SEL to shift sound to the

SEL to enable the

SEL to

Entertainment Systems

When activated, AUTOSET will momentarily appear in the display when any of the preset controls are pressed.

Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting.

Press MENU to access and use The level will appear in the display.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Press hours/minutes. Press MENU again to disengage clock mode.

Note: The menu selections will remain in the display for approximately 10 seconds, at which time the display will return to the previous mode. You may also exit the menu options by pressing any other audio control.

10. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns.

11. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition turned off, you may press the volume control to momentarily view the clock.

12. CD: Press to enter CD mode if a CD is already present in the system. In radio mode, the CD icon will appear in the display if a CD is loaded into the system.

13. AM: Press to select the AM frequency.

SEL to manually decrease/increase the

SEL to adjust the volume setting.

14. FM: Press to select the FM frequency. Press repeatedly to toggle between FM1 and FM2.

15. SHUF (Shuffle): Press to play all tracks on the current CD in random order. Press again to stop.

Entertainment Systems

16. SCAN: Press SCAN to hear a brief sampling of radio stations or CD tracks. Press again to stop.

PREMIUM/AUDIOPHILE SATELLITE COMPATIBLE AM/FM STEREO SINGLE CD/CASSETTE SYSTEM (IF EQUIPPED)

1. CD slot: Insert a CD, label side up. With the ignition on, the radio will begin to play a CD once inserted. With the ignition off, the CD control must be pressed before inserting the disc. Failure may result in damage to the CD and/or audio system.

2. CD eject: Press to eject a CD. If the disc is not removed within the alloted time, the system will automatically reload the CD and begin play. Note: The eject function will work when the ignition is turned off.

Entertainment Systems

3. BASS: Press BASS; then press decrease/increase the level of bass

output.

TREB (Treble): Press TREB; then press decrease/increase the level of treble

output.

4. BAL (Balance): Press BAL; then press sound to the left/right speakers.

FADE: Press FADE; then press sound to the rear/front speakers.

5. Phone/mute: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume.

6. SEL/TEXT: Use with Bass, Treble, Balance, Fade and other menu functions.

TEXT: TEXT is only available when equipped with Satellite radio. Your Audiophile radio may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer

installed satellite kit available only in the continental United States.

7. MENU: Press MENU repeatedly to access RDS on/off. Press

SEL-TEXT to toggle RDS on/off. Press MENU again to access Program type mode or Show Type/Name mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.)

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio

SEL-TEXT to

SEL-TEXT to shift

Entertainment Systems

stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired.

FIND Program type: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. With RDS ON, press MENU until the program type menu is displayed.

One of the various program types will appear. Press to scroll through music types. Press SEEK or SCAN to search for a

station playing the requested music category. Show TYPE: Selects between displaying the station’s call letters or

music format when RDS is enabled. Press and hold MENU until SHOW XX appears in the display. Press TYPE.

Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU repeatedly until

compression status is displayed. Press enable the compression feature when COMPRESS OFF is displayed. Press COMPRESS ON is displayed. When activated, the compression icon will

appear in the display.

Occupancy mode (Available only on Audiophile audios): Press MENU repeatedly until occupancy mode appears in the display.

Press occupancy mode.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press MENU

repeatedly until AUTOSET appears in the display. Press to toggle ON/OFF. When the six strongest stations are filled, the station

stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. When activated, AUTOSET will momentarily appear in the display when any of the preset controls are pressed.

Press MENU repeatedly to access and use the volume setting. The level will appear in the display.

SEL-TEXT control again to disable the feature when

SEL-TEXT to select ALL, DRIVER or REAR SEAT

SEL-TEXT to select NAME or

SEL-TEXT control to

SEL/TEXT to adjust

SEL-TEXT

Entertainment Systems

Dolby: Works in tape mode to reduces tape noise and hiss. Press MENU until DOLBY XX appears in the display. Press toggle ON/OFF.

The Dolby威 noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

Setting the clock: Press MENU repeatedly until SELECT HOUR or SELECT MINS is displayed. Press

SEL-TEXT to manually

decrease/increase the hours/minutes. Press MENU again to disengage clock mode.

8. Cassette: Insert a cassette facing to the right.

9. TUNE: Press to manually go up or down the radio frequency.

CAT: CAT is only available when equipped with Satellite Radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit not available in Canada.

10. Side 1–2: Press to access the next side of the cassette tape. The display will indicate whether TAPE 1orTAPE2isplaying.

11. SEEK: Press to access the next/previous radio station, tape selection or CD track.

12. REW (Rewind): Press to rewind in tape or CD mode.

SEL-TEXT to

REW

FF (Fast forward): Press to fast forward in tape or CD mode.

Entertainment Systems

13. SCAN: Press SCAN to hear a brief sampling of radio stations, selections or CD tracks. Press again to stop.

14. SHUF (Shuffle): Press to play the tracks on the current CD in random order. Press again to stop.

15. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns.

16. AM/FM: Press to toggle between AM/FM1/FM2 modes.

17. Tape eject: Press to eject the tape.

18. CD/TAPE: Press to toggle between CD and TAPE mode. In radio and tape mode, the CD icon will appear in the display if a CD is loaded into the system.

19. SAT: Your system may be equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your dealer. Detailed satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit not available in Canada.

20. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels. Note: With the ignition turned off, you may press the volume control to momentarily view the clock.

Entertainment Systems

AUDIOPHILE AM/FM STEREO IN-DASH SIX CD SOUND SYSTEM (IF EQUIPPED)

1. CD slot: To insert a CD, press LOAD. When the system is ready, insert a CD, label side up.

2. SEEK: Press to access the next/previous radio station or CD track. Press and hold to advance/reverse in the current CD track.

3. TUNE/CAT: Press to manually go up or down the radio frequency.

TEXT is only available when equipped with Satellite radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed satellite kit available only in the

continental United States.

Entertainment Systems

4. MUTE: Press to mute the playing media. Press again to return to the playing media or turn the volume control to adjust the volume.

5. Eject: Press to eject CD(s) when the ignition is on or off. Numbers will illuminate in the display indicating which CD slots are loaded with CDs. To eject a specific CD, press eject and the corresponding preset number. If no preset is selected, the system will eject the currently selected CD. Press and hold to eject all loaded discs.

Note: If the CD is not removed within 15 seconds, the system will reload the disc and begin play if the system is on.

6. BASS: Press BASS; then press decrease/increase the level of bass

output.

TREB (Treble): Press TREB; then press decrease/increase the level of treble

output.

7. BAL (Balance): Press BAL; then press sound to the left/right speakers.

SEL-TEXT to

SEL-TEXT to shift

FADE: Press FADE; then press SEL-TEXT to shift sound to the

rear/front speakers.

8. SEL-TEXT: Use with Bass, Treble, Balance, Fade and other menu functions.

TEXT: TEXT is only available when equipped with Satellite radio. Your system may be equipped with Satellite ready capability. The kit to enable Satellite reception is available through your dealer. Detailed Satellite instructions are included with the dealer installed kit. Dealer installed

satellite kit available only in the continental United States.

Entertainment Systems

9. MENU: Press MENU repeatedly to access RDS on/off.

Use RDS on/off. Press MENU again to access Program type mode or Show

Type mode. (MENU must be pressed within 10 seconds to proceed to the next RDS mode.)

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired.

One of the various program types will appear. Press to scroll through music types. Press SEEK or SCAN to search for a

station playing the requested music category.

Show TYPE: Selects between displaying the station’s call letters or music format when RDS is enabled. Press MENU until SHOW XX appears in the display. Press to select NAME or TYPE.

Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until

compression status is displayed. Press compression feature when COMPRESS OFF is displayed. Press the SEL

control again to disable the feature when COMPRESS ON is displayed. When activated, the compression icon will illuminate in the display.

Occupancy mode (Available on Audiophile audios only): Press MENU until occupancy mode appears in the display. Press select ALL, DRIVER or REAR SEAT occupancy mode.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Press

MENU until AUTOSET appears in the display. Press to toggle ON/OFF. When the six strongest stations are filled, the station

stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. When activated, AUTOSET will appear in the display when any of the preset controls are pressed.

SEL-TEXT to toggle

SEL-TEXT

SEL-TEXT to enable the

SEL-TEXT to

SEL-TEXT

Entertainment Systems

Press MENU to access and use setting. The level will appear in the display.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Press hours/minutes. Press MENU again to disengage clock mode.

10. Memory presets: To set a station: Select frequency band, tune to a station, press and hold a preset button until sound returns. In CD mode, press to select a specific CD to play.

11. On/Off/Volume: Push to turn on/off; turn to adjust the volume levels.

Note: With the ignition off, you may press the volume control to momentarily view the clock.

12. LOAD: Press to load a CD. Press LOAD and a specific preset to load in that particular slot. Available slots are indicated by small flashing indicators in the display.When the system is ready to accept a disc, LOAD CD X will appear in the display. Load the CD. Press and hold to autoload up to 6 discs.

Note: Ensure that the system is ready to accept the CD. Do not force the disc into the CD slot as damage could result.

13. AM/FM: Press repeatedly to toggle between AM/FM1/FM2 mode.

SEL-TEXT to increase/decrease the

SEL-TEXT to adjust the volume

14. CD: Press to enter CD mode. Press CD and a preset to select a specific CD to play.

15. SHUF (Shuffle) /SCAN: Press SCAN to hear a brief sampling of radio stations or CD tracks on the current CD. Press again to stop.

SHUF (Shuffle): Press and hold to play the CD tracks in random order for the CD currently being played. Press again to stop.

Entertainment Systems

RADIO FREQUENCIES

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz

FM- 87.7, 87.9–107.7, 107.9 MHz

RADIO RECEPTION FACTORS

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CASSETTE/PLAYER CARE

Do:

• Use only cassettes that are 90 minutes long or less.

• Tighten very loose tapes by inserting a finger or pencil into the hole

and turning the hub.

• Remove loose labels before inserting tapes.

• Allow tapes which have been subjected to extreme heat, humidity or

cold to reach a moderate temperature before playing.

• Clean the cassette player head with a cassette cleaning cartridge after 10–12 hours of play to maintain good sound/operation.

Don’t:

• Expose tapes to direct sunlight, extreme humidity, heat or cold.

• Leave tapes in the cassette player for a long time when not being

played.

Entertainment Systems

CD/CD PLAYER CARE

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Insert more than one disc into each slot of the CD changer magazine.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.

AUDIO SYSTEM WARRANTY AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

1. Fan speed adjustment: Controls

the volume of air circulated in the vehicle.

2. Temperature selection:

Controls the temperature of the airflow in the vehicle.

3. Air flow selections: Controls the direction of the airflow in the

vehicle. See the following for a brief description on each control.

MAX A/C: Uses recirculated air to cool the vehicle. Air flows from the instrument panel vents only. This mode will help prevent unpleasant odors from entering the vehicle.

NORM A/C: Uses outside air to cool the vehicle. Air flows from the instrument panel vents only.

VENT: Distributes outside air through the instrument panel vents.

OFF: Outside air is shut out and the fan will not operate.

FLOOR: Distributes outside air through the floor vents.

MIX: Distributes outside air through the windshield defroster vents, floor

vents and side window demisters.

: Distributes outside air through the windshield defroster vents and

the side window demisters.

1 2 3

VENT

MIX

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

position.

• To reduce humidity build up inside the vehicle: do not drive with the air flow selector in the OFF or MAX A/C position.

• Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

Climate Controls

To aid in side window defogging/demisting in cold weather:

1. Select NORM A/C.

2. Adjust the temperature control to maintain comfort.

3. Set the fan speed to HI.

4. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) SYSTEM (IF EQUIPPED)

11 1 2 310

OUTSIDE TEMP AUTOMATIC

MAX A/C

NORM A/C

VENT FLOOR FLR • DEF DEF

AUTO

OFF

9 8 7 6 5 4

1. OFF: Outside air is shut out and

the fan will not operate.

2. AUTOMATIC: Press

AUTOMATIC and select the desired temperature using the temperature controls. The system will automatically determine fan speed, airflow location, and outside or recirculated air to heat or cool the vehicle to the selected temperature. The fan speed will remain automatic unless the thumbwheel is turned.

Climate Controls

3. Fan speed: Turn to manually

increase or decrease fan speed.

4. Defrost:

vents and the side window demisters.

5. Floor/defrost: Distributes outside air through the windshield

defroster vents, floor vents and the side window demisters.

6. Floor: Distributes outside air through the floor vents.

7. Vent: Distributes outside air through the instrument panel vents.

8. Norm A/C: Uses outside air to cool the vehicle . Air flows from the

instrument panel vents only.

9. Max A/C: Uses recirculated air to cool the vehicle. Air flows from the

instrument panel vents only. This mode will help prevent unpleasant odors from entering the vehicle.

10. Outside Temp: Press to display

the outside temperature. It will remain in the display until pressed again. The temperature will be most accurate when the vehicle is in motion.

11. Temperature control: Press this control to select the temperature.

The display window indicates the selected temperature.

Fahrenheit/Celsius temperature: Press MAX A/C and DEF simultaneously to toggle between Fahrenheit and Celsius temperature.

The set point temperatures in Celsius will be displayed in half-degree increments.

Operating tips

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the air flow selector in the OFF or MAX A/C position.

• Under normal weather conditions, do not leave the air flow selector in MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” using the outside air inlet vents.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

Distributes outside air through the windshield defroster

position.

Climate Controls

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

To aid in side window defogging/demisting in cold weather:

1. Select NORM A/C.

2. Adjust the temperature control to maintain comfort.

3. Set the fan speed to HI.

4. Direct the outer instrument panel vents towards the side windows.

To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER

The rear defroster control is located on the instrument panel.

Press the rear defroster control to clear the rear window of thin ice and fog. A small LED will illuminate when the rear defroster is activated.

The ignition must be in the ON position to operate the rear window defroster.

The defroster turns off automatically after a predetermined amount of time or when the ignition is turned to the OFF position. To manually turn off the defroster, press the control again.

Activating the rear window defroster will also activate the heated mirrors (if equipped). For more information refer to Heated outside mirrors in the Driver Controls chapter.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

Lights

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for a predetermined period of time after the ignition switch is turned to OFF.

• To turn autolamps on, rotate the

control counterclockwise to the next position from OFF.

• To turn autolamps off, rotate the control clockwise past OFF to the

parking lamp position

The headlamps will turn on under the following conditions:

1. Headlamp switch is turned to the “headlamps on position”.

2. With the ignition in ON or START, wipers turned on and the headlamp switch in the autolamp position.

, then back to OFF.

Daytime running lamps (DRL) (if equipped)

Turns the lowbeam headlamps on with a reduced output. To activate:

• the key must be in the ON position,

• the parking brake released, and

• the headlamp control is in the OFF or Parking lamps position.

Lights

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel during headlamp and parklamp operation.

• Rotate the thumbwheel from left to right to brighten the instrument panel.

• Rotate the thumbwheel from right to left to dim the instrument panel.

Domelamp Control

The panel dimmer control also controls the domelamp operation.

• Rotate the thumbwheel fully to the right, past detent to activate the domelamp.

Lights

• In order to turn off the domelamp, rotate the thumbwheel to the left.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant. If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

Vertical aim adjustment

1. Park the vehicle directly in front of a wall or screen on a level surface,

approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) Center height of lamp to

ground

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height of the

headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

3. Turn on the low beam headlamps to illuminate the wall or screen and

open the hood.

4. On the wall or screen you will

observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted.

Lights

To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

5. Locate the vertical adjuster on

each headlamp. Usinga4mm wrench, turn the adjuster either clockwise (to adjust down) or counterclockwise (to adjust up). The horizontal edge of the brighter light should touch the horizontal reference line.

6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS

NON-ADJUSTABLE.

7. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

The flash rate of the turn signal will speed up considerably if the left or right turn lamp bulb (front or rear) is burned out.

Cornering lamps

When the turn signal is used and the headlamps are on, the cornering lamps will light either the right or left side depending on the direction of the turn.

Lights

MAP/COURTESY LAMPS

The courtesy lamps light when:

• any door is opened.

• the instrument panel dimmer

switch is rotated past the detent.

• the UNLOCK control of the remote entry controls is pressed and the ignition is OFF.

The reading lamps can be turned on by pressing the rocker controls next to each lamp.

If equipped with Remote Keyless Entry, the courtesy lamp will illuminate whenever any door is opened and will remain on for 25 seconds after the door is shut or when the ignition is turned to the ON position.

With overhead console

With overhead console and moon roof

To turn on the map lamps, press the map lamp control.

Lights

REAR COURTESY/READING LAMPS

Rotate the lens to illuminate the lamp. With the lens in the flat position, the courtesy lamp lights when:

• Any door is opened.

• The panel dimmer thumbwheel is

rotated fully to the right past detent.

BULB REPLACEMENT

Headlamp Condensation

The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Trade Number

Headlamp 9007 Park, turn and sidemarker lamp (front) 3157 AK (amber) Cornering lamp (front) 3156K Tail, stop, turn and sidemarker lamp (rear) 3157K Backup lamp 3156K License plate lamp 168

Lights

Function Trade Number

High-mount brakelamp 912 Luggage compartment lamp 212-2 Rear reading lamp 578 Map lamp 906 Visor vanity lamp - Slide on Rail system

(SOR) Dual floorwell lamp 906 Glove compartment 168 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer.

Replacing the interior bulbs

Check the operation of all bulbs frequently.

Replacing headlamp bulbs

To remove the headlamp bulb:

1. Make sure the headlamp control is in the OFF position, then open the

hood.

2. Remove the three pin type retainers and the radiator sight shield.

3. Disconnect the electrical

connector.

4. Remove the headlamp retainer

bolts and the headlamp assembly.

5. Remove the headlamp bulb

protective cover.

6. Remove the bulb retaining ring by

rotating it counterclockwise to free it from the bulb socket and slide the ring off of the plastic base. Keep the ring to retain the new bulb.

7. Disconnect the electrical

connector from the bulb.

8. To install, reverse the removal

procedure. (Re-aiming the headlamps may be necessary. For additional information refer to the headlamp aiming section of the owner’s guide.)

Lights

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Note: If the bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used.

Note: The headlamp bulb should not be removed from the headlamp until just before a replacement bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn the headlamps on with the bulb removed.

Lights

Replacing front parking/cornering/turn signal lamp bulbs

The park/turn/cornering lamp bulbs can be replaced without removing the headlamp assembly.

1. Make sure headlamp switch is in OFF position, then open the hood.

2. Remove the three pin type retainers and the radiator shield.

3. Loosen the parking lamp attachments, on the back side of the lamp, and pull the lamp assembly forward.

4. Remove the bulb from the side turn lamp assembly.

5. Disconnect the electrical connector from the bulb and replace the bulb.

Note: The parking lamp/turn signal bulbs should not be removed from the lamp until just before a replacement bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn the lamps on with the bulb removed.

6. To install, reverse the order of the removal procedure.

Replacing tail lamp/brake/turn lamp bulbs

The tail lamp, the brake lamp and the turn signal lamp bulbs are located in the tail lamp assembly. Follow the same steps to replace either bulb.

1. Make sure headlamp switch is in OFF position, then open the trunk and remove plastic retainer to expose the lamp assembly hardware.

2. Carefully pull the carpet away to expose the plastic retainer.

3. Remove three nut and washer assemblies and the lamp assembly from the vehicle.

4. Remove the bulb socket by rotating it counterclockwise, then pulling it out of the lamp assembly.

Lights

5. Pull the bulb from the socket and push in the new bulb.

6. Install the bulb socket into the lamp assembly by rotating it clockwise.

7. Install the lamp assembly on the vehicle with three nut and washer assemblies ensuring the washers on the nuts are flush with the body to prevent water from entering the trunk.

8. Install the plastic retainer and carefully push the carpet back in to place.

Replacing license plate lamp bulbs

1. Make sure headlamp switch is in OFF position, then remove two screws, grommets and the license plate lamp assembly from the trunk lid.

2. Carefully pull the bulb from the socket and push in the new bulb.

3. Install the lamp assembly on trunk lid with two grommets, ensuring the grommets are pushed all the way in to the trunk lid and secure with two screws.

Replacing backup lamp bulbs

1. Make sure headlamp switch is in OFF position, then open trunk and remove bulb socket from the trunk lid by turning counterclockwise.

2. Pull the bulb straight out of the socket and push in the new bulb.

3. Install the bulb socket in trunk lid by turning clockwise.

Lights

Replacing high-mount brakelamp bulbs

1. Make sure headlamp switch is in OFF position, then remove two screws from the lamp assembly.

2. Carefully lift the lamp assembly up for access to the bulbs.

3. Carefully pull the bulb socket out of the lamp assembly.

4. Pull the bulb straight out of the socket and push in the new bulb.

To install, reverse the removal procedure.

Overhead console lamps

To remove and replace the lamps in the overhead console:

1. Make sure the headlamp switch is in the OFF position and remove the overhead console from the headliner by pulling it straight down.

2. Remove the bulb socket from the back of the lamp housing by pulling it straight out.

3. Remove the bulb from the socket by pulling straight out.

Install the new bulb in reverse order.

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Windshield washer: Push the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick push and hold: the wipers will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Windshield wiper/washer features

The exterior lamps will turn on with the ignition on, Headlamp control in the Autolamp position and the windshield wipers are turned on.

Changing the wiper blades

1. Pull the wiper arm away from the

glass one to two inches and proceed to step 2.

2. Pull the retainer clip of the blade

up and slide the blade off the wiper arm pin.

3. To attach the new wiper blade,

pull the retainer clip of the blade up and slide the blade into the wiper arm pin, then push down the retainer clip to lock position..

4. Clean blades and glass as recommended in Cleaning chapter and

replace wiper blades at least once per year or before winter for optimum performance

Driver Controls

Poor wiper quality can sometimes be improved by cleaning the wiper blades, refer to Windows and wiper blades in the Cleaning chapter.

To prolong the life of the wiper blades, it is highly recommended to scrape off the ice on the windshield before turning on the wipers. The layer of ice has many sharp edges and can damage the micro edge of the wiper rubber element.

TILT STEERING WHEEL

To adjust the steering wheel:

1. Pull and hold the steering wheel

release control toward you.

2. Move the steering wheel up or

down until you find the desired location.

3. Release the steering wheel

release control. This will lock the steering wheel in position.

Never adjust the steering wheel when the vehicle is moving.

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamp.

Driver Controls

Slide on rod feature (if equipped)

Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.

Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

OVERHEAD CONSOLE WITHOUT MOON ROOF (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package. Some of the features in the overhead console include a compass and HomeLink威. To program the Homelink威, refer to Homelink威 Wireless Control System it this chapter.

Electronic compass display (if equipped)

Compass: The compass display is contained in the overhead console.

The vehicle heading is displayed as one of N, NE, E, SE, S, SW, W and NW.

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in or on the vehicle may also affect compass accuracy. Adjustments may need to be made to the zone and calibration of the compass.

Compass zone adjustment

1. Determine which magnetic zone

you are in by referring to the zone map.

2. Turn the ignition to the ON

position.

123

14 13

6 7 8 9 1011

Driver Controls

3. Press and hold the MODE control

until VAR appears in the display, then release. The display should show the current zone number.

4. Press the MODE control until the

desired zone number appears. The display will flash and then return to normal operation. The zone is now updated.

Compass calibration adjustment

Perform this adjustment in an open area free from steel structures and high voltage lines:

1. Press and hold the MODE control

until CAL appears in the display (approximately eight seconds) and release.

2. Drive the vehicle slowly (less

than 5 km/h [3 mph]) in circles until CAL indicator turns off in about 2–3 complete circles.

3. The compass is now calibrated.

OVERHEAD CONSOLE WITH MOON ROOF (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package. Some of the features in the overhead console include Compass, Homelink, and Moon Roof controls.

Compass mode

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.

1. Turn ignition to the ON position.

2. Start the engine.

Driver Controls

3. From a blank display press and

release the MODE button once. The directional heading will be displayed.

Note: If the compass is de-calibrated, CAL will be displayed in the right corner of the display. Refer to “Calibration mode” in this section for more details.

4. The overhead console displays the compass heading in one of eight

directions: NORTH, NORTHEAST, EAST, SOUTHEAST, SOUTH, SOUTHWEST, WEST, and NORTHWEST.

Zone variation mode

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. A correct zone setting will eliminate compass heading error.

To set the compass zone:

1. Press and release the MODE

button until the compass directional heading is displayed.

2. Hold down the MODE button for

5 seconds to enter zone mode. The display will read PRESS RESET TO SET ZONE XX where XX is the current zone.

3. Release the MODE button.

Driver Controls

4. Determine which magnetic zone

you are in by referring to the zone map.

5. Repeatedly press and release the

RESET button to scroll through the

zones 1–15 until the desired zone is displayed.

6. Press the MODE button to save

the new zone setting and return to the compass normal mode.

Note: The compass exits the zone setting mode and returns to its previous setting after one minute of no activity.

Note: If power is interrupted during the zone setting process, the compass resets to the same zone it was set to before the zone change process was started.

Calibration mode

For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.

To calibrate the compass:

1. Press and release the MODE

button until the compass directional heading is displayed.

123

6 7 8 9 1011

14 13

2. Hold down the MODE button for

10 seconds to enter the calibration mode. The display will read PRESS RESET TO DECAL.

3. Release the MODE button.

Driver Controls

4. Press the RESET button to

de-calibrate the compass. The display will read CIRCLE SLOWLY TO CALIBRATE for a few seconds and then display a direction with CAL displayed on the right side.

5. Drive the vehicle in a tight circle

in a magnetically clean area such as an open parking lot.

6. Slowly drive the vehicle in a circle (less than 3 mph [5 km/h]). This

will take up to three circles to complete calibration.

7. The correct compass heading will be displayed when the compass is

calibrated. Note: If the RESET button is not pressed, the compass will exit

calibration mode after three minutes of no activity and the original calibration data will be restored.

Note: If power is interrupted during the calibration process, the compass resets to the original calibration data from before the calibration process started.

HomeLink姞 wireless control system (if equipped)

The HomeLink威 Wireless Control System, located on the overhead console, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting. When programming your HomeLink威 Wireless Control System to a garage door or gate, be sure that people and objects are out of the way to prevent potential harm or damage. Do not use the HomeLink威 Wireless Control System with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information, contact HomeLink威 at: www.homelink.com or 1–800–355–3515. Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLink威 equipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed HomeLink威 buttons be erased for security purposes, refer to Programming in this section.

Driver Controls

Programming

Do not program the HomeLink威 with the vehicle parked in the garage.

Note: Some vehicles may require the ignition switch to be turned to the

second (or “ACC”) position for programming and/or operation of the HomeLink威. It is also recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLink威 for quicker training and accurate transmission of the radio-frequency signal.

1. Press and hold the two outside

buttons. The message CLEARING CHANNELS will appear on the HomeLink威 display.

• After about 20 seconds, the message CHANNELS CLEARED will appear.

Do not repeat step one to program additional hand-held transmitters to the remaining two HomeLink威 buttons. This will erase previously programmed hand-held transmitter signals into HomeLink威.

2. Position the end of your hand-held transmitter 1–3 inches (2–8 cm)

away from the HomeLink威 button you wish to program (located on your overhead console) while keeping the display in view.

Driver Controls

3. Simultaneously press and hold

both the HomeLink威 and hand-held transmitter button. The message CHANNEL “X” (1,2 or 3) TRAINING will appear on the display. Do not

release the buttons until step 4 has been completed.

Some entry gates and garage door openers may require you to replace step 3 with procedures noted in the “Gate Operator and Canadian Programming” section for Canadian residents.

4. When the message CHANNEL “X”

(1,2 or 3) TRAINED appears on the display, release both the HomeLink威 and hand held transmitter buttons.

• DID NOT TRAIN will be displayed if the channel did not properly train.

5. Press and hold the just-trained HomeLink威 button and observe the

HomeLink威 house icon on the display. If the indicator light(s) underneath the house icon are constant, programming is complete and your device should activate when the HomeLink威 button is pressed and released. Note: To program the remaining two HomeLink威 buttons, begin with step 2 in the “Programming” section — do not repeat step 1.

Driver Controls

If the indicator light(s) underneath the house icon blink rapidly for two seconds and then turn to a continuous light, proceed with steps 6 through 8 to complete programming of a rolling code equipped device.

6. At the garage door opener receiver (motor-head unit) in the garage,

locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit).

7. Press and release the “learn” or “smart” button. (The name and color

of the button may vary by manufacturer.) Note: There are 30 seconds in which to initiate step eight.

8. Return to the vehicle and firmly press, hold for two seconds and

release the HomeLink威 button. Repeat the press/hold/release sequence again, and, depending on the brand of the garage door opener (or other rolling code equipped device), repeat this sequence a third time to complete the programming.

HomeLink威 should now activate your rolling code equipped device. To program additional HomeLink威 buttons begin with step 2 in the “Programming” section. For questions or comments, please contact HomeLink at www.homelink.com or 1–800–355–3515.

Gate operator & Canadian programming

During programming, your hand-held transmitter may automatically stop transmitting — not allowing enough time for HomeLink威 to accept the signal from the hand-held transmitter.

After completing steps 1 and 2 outlined in the “Programming” section, replace step 3 with the following:

Note: If programming a garage door opener or gate operator, it is advised to unplug the device during the “cycling” process to prevent overheating.

• Continue to press and hold the HomeLink威 button (note step 3 in the “Programming” section) while you press and release — every two seconds (“cycle”) your hand-held transmitter until the frequency signal has been accepted by the HomeLink威. The message CHANNEL “X” (1,2 or 3) TRAINING will appear on the display.

• Proceed with step 4 in the “Programming” section.

Driver Controls

Operating the HomeLink姞 Wireless Control System

To operate, simply press and release the appropriate HomeLink威 button. Activation will now occur for the trained product (garage door, gate operator, security system, entry door lock, or home or office lighting etc.). For convenience, the hand-held transmitter of the device may also be used at any time. In the event that there are still programming difficulties, contact HomeLink威 at www.homelink.com or

1–800–355–3515.

Erasing HomeLink姞 buttons

To erase the three programmed buttons (individual buttons cannot be erased):

• Press and hold the two outside buttons. The message CLEARING CHANNELS will appear on the HomeLink威 display.

• After about 20 seconds, the message CHANNELS CLEARED will appear on the display. Do not hold for longer that 30 seconds. HomeLink威 is now in the train (or learning) mode and can be programmed at any time beginning with step 2 in the “Programming” section.

Driver Controls

Reprogramming a single HomeLink姞 button

To program a device to HomeLink威 using a HomeLink威 button previously trained, follow these steps:

1. Press and hold the desired

HomeLink威 button. DO NOT release the button. The display will read CHANNEL “X” (1,2 or 3) TRANSMIT

2. The display will change to

CHANNEL “X” (1,2, or 3) TRAINING after 20 seconds. Without releasing the HomeLink威 button, follow step 2 in the “Programming” section.

For questions or comments, contact HomeLink威 at www.homelink.com or 1–800–355–3515.

AUXILIARY POWER POINT (12VDC)

The auxiliary power point for five passenger vehicles is located in the floor console storage bin. For six passenger vehicles, the auxiliary power point is located under the cup holder and ashtray drawer in the center stack.

Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

Do not use the power point for operating the cigarette lighter element.

The maximum power each power point can supply depends on the fuse rating. For example: a 20A fuse should supply a maximum of 240 Watts, a 15A fuse should supply a maximum of 180 Watts and a 10A fuse should supply a maximum of 120 Watts. Exceeding these limits will result in a blown fuse.

Always keep the power point caps closed when not being used.

Driver Controls

Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

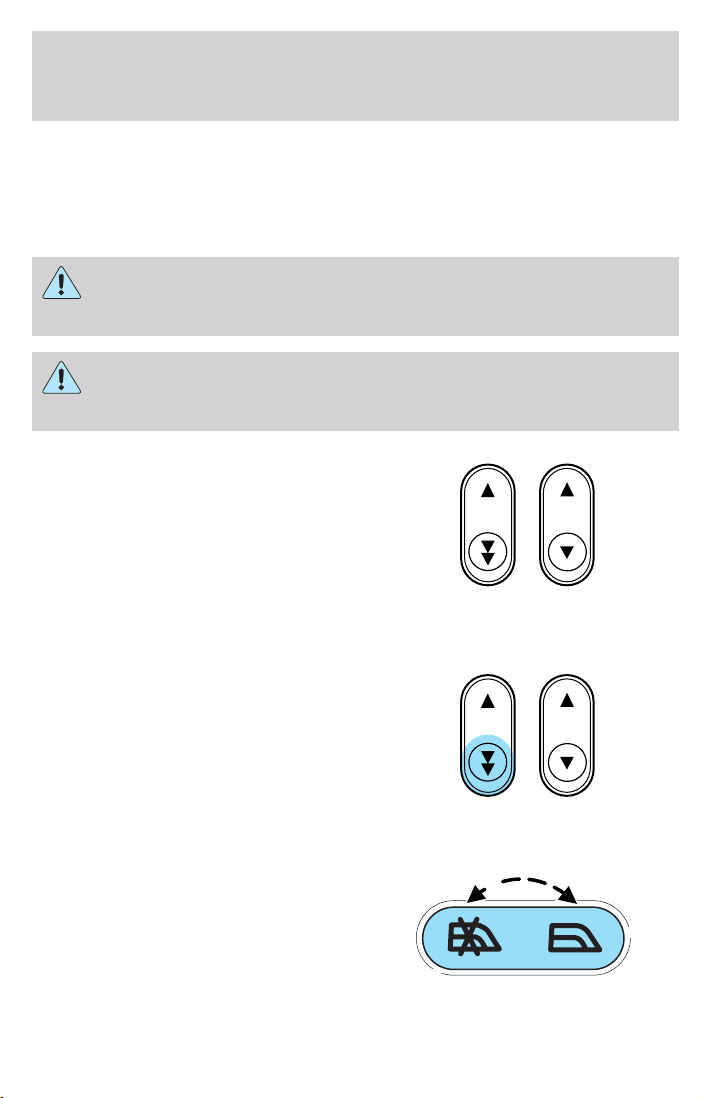

POWER WINDOWS

Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure

themselves.

When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in

the proximity of the window openings.

Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.

One touch down

Allows the driver’s window to open fully without holding the control down. Press completely down on the bottom part of the rocker switch and release quickly. Press the top part of the rocker switch to stop.

Window lock

The window lock feature allows only the driver to operate the power windows.

To lock out all the window controls except for the driver’s press the left side of the control. Press the right side to restore the window controls.

Driver Controls

POWER SIDE VIEW MIRRORS

To adjust your mirrors:

1. Select

mirror or mirror.

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to

lock mirrors in place.

to adjust the left

to adjust the right

Heated outside mirrors

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Fold-away mirrors

Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

Automatic dimming inside rear view mirror (if equipped)

Your vehicle may be equipped with an inside rear view mirror with an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare

(if equipped)

Driver Controls

(darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.

Do not block the sensor on the backside of the inside rear view mirror since this may impair proper mirror performance.

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)

The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position.

Press and hold the rocker control to adjust accelerator and brake pedal.

• Press the right side of the control to adjust the pedals toward you.

• Press the left side of the control to adjust the pedals away from you.

The adjustment allows for approximately 2.5 inches (65 mm) of maximum travel.

Never adjust the accelerator and brake pedal with feet on the pedals while the vehicle is moving.

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a speed of 30 mph (48 km/h) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 30 mph (48 km/h).

Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Driver Controls

Setting speed control

The controls for using your speed control are located on the steering wheel for your convenience.

1. Press the ON control and release

it.

2. Accelerate to the desired speed.

3. Press the SET + control and

release it.

4. Take your foot off the accelerator

pedal.

5. The message “SPEED CONTROL”

(if equipped) will be displayed in the optional instrument cluster.

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.

Disengaging speed control

To disengage the speed control:

• Depress the brake pedal

Disengaging the speed control will not erase previous set speed.

Driver Controls

Resuming a set speed

Press the RESUME control and release it. This will automatically return the vehicle to the previously set speed. The RESUME control will not work if the vehicle speed is not faster than 30 mph (48 km/h).

Increasing speed while using speed control

There are two ways to set a higher speed:

• Press and hold the SET + control until you get to the desired speed, then release the control. You can also use the SET + control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1 mph (1.6 km/h).

• Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET + control.

Reducing speed while using speed control

There are two ways to reduce a set speed:

• Press and hold the SET - control until you get to the desired speed, then release the control. You can also use the SET control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1 mph (1.6 km/h).

Driver Controls

• Depress the brake pedal until the desired vehicle speed is reached, press the SET + control.

Turning off speed control

There are two ways to turn off the speed control:

• Depress the brake pedal. This will not erase your vehicle’s previously set speed.

• Press the speed control OFF control.

Note: When you turn the speed control or the ignition off, your speed control set speed memory is erased.

STEERING WHEEL CONTROLS (IF EQUIPPED)

Audio control features

In Radio mode:

• Press NEXT to select the next preset station within the current radio band.

In Tape mode:

• Press NEXT to listen to the next selection on the tape.

In CD mode:

• Press NEXT to listen to the next track on the disc.

Driver Controls

In any mode:

• Press VOL + or - to adjust the volume.

Climate control features

• Press TEMP + or - to adjust temperature.

MOON ROOF (IF EQUIPPED)

To open the moon roof:

• Press and hold the control forward to raise the moon roof to the vent position (when the glass panel is closed).

• For one-touch operation, press the control rearward and release; this will fully open the moon roof.

• To stop one-touch operation at the desired position, press the control in any direction and release.

To close the moon roof:

• Press and hold the control forward.

• To close from the vent position, press and hold the control rearward.

Driver Controls

Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt themselves.

When closing the moon roof, you should verify that it is free of obstructions and ensure that children and/or pets are not in the

proximity of the moon roof opening.

HOMELINK姞 WIRELESS CONTROL SYSTEM (IF EQUIPPED)

When programming your HomeLink威 Wireless Control System to a garage door or gate, be sure that people and objects are out of

the way to prevent potential harm or damage.

Do not use the HomeLink威 Wireless Control System with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information, contact HomeLink威 at: www.homelink.com or 1–800–355–3515.

Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLink威 equipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed Homelink威 buttons be erased for security purposes, refer to Programming in this section.

Programming

Do not program HomeLink威 with the vehicle parked in the garage.

Note: Some vehicles may require the ignition switch to be turned to the

Driver Controls

1. Press and hold the two outside

buttons releasing only when the indicator light begins to flash after 20 seconds. Do not repeat Step 1 to program additional hand-held transmitters to the remaining two HomeLink威 buttons. This will erase previously programmed hand-held transmitter signals into HomeLink威.

2. Position the end of your

hand-held transmitter 1–3 inches (2–8 cm) away from the HomeLink威 button you wish to program (located on your overhead console) while keeping the indicator light in view.

3. Simultaneously press and hold

both the HomeLink威 and hand-held transmitter button. Do not release

the buttons until Step 4 has been completed.

Some entry gates and garage door openers may require you to replace Step 3 with procedures noted in the “Gate Operator and Canadian Programming” section for Canadian residents.

4. The indicator light will flash slowly and then rapidly. Release both

buttons when the indicator light flashes rapidly. (The rapid flashing light indicates acceptance of the hand-held transmitters’ radio frequency signals.)

5. Press and hold the just-trained HomeLink威 button and observe the

indicator light. If the light is constant, programming is complete and your device should activate when the HomeLink威 button is pressed and released. Note: To program the remaining two HomeLink威 buttons, begin with Step 2 in the “Programming” section — do not repeat Step 1.

Note: If the indicator light blinks rapidly for two seconds and then turns to a continuous light, proceed with Steps 6 through 8 to complete programming of a rolling code equipped device.

6. At the garage door opener receiver (motor-head unit) in the garage,

locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit).

Driver Controls

7. Press and release the “learn” or “smart” button. (The name and color

of the button may vary by manufacturer.)

Note: There are 30 seconds in which to initiate Step 8.

8. Return to the vehicle and firmly press, hold for two seconds and

HomeLink威 should now activate your rolling code equipped device. To program additional HomeLink威 buttons begin with Step 2 in the “Programming” section. For questions or comments, please contact HomeLink at www.homelink.com or 1–800–355–3515.

Gate Operator & Canadian Programming

During programming, your hand-held transmitter may automatically stop transmitting — not allowing enough time for HomeLink威 to accept the signal from the hand-held transmitter.

After completing Steps 1 and 2 outlined in the “Programming” section, replace Step 3 with the following:

Note: If programming a garage door opener or gate operator, it is advised to unplug the device during the “cycling” process to prevent overheating.

• Continue to press and hold the HomeLink威 button (note Step 3 in the “Programming” section) while you press and release — every two seconds (“cycle”) your hand-held transmitter until the frequency signal has been accepted by the HomeLink威. The indicator light will flash slowly and then rapidly after HomeLink威 accepts the radio frequency signal.

• Proceed with Step 4 in the “Programming” section.

Driver Controls

Operating the HomeLink姞 Wireless Control System

Erasing HomeLink姞 buttons

To erase the three programmed buttons (individual buttons cannot be erased):

• Press and hold the two outer HomeLink威 buttons until the indicator light begins to flash-after 20 seconds. Release both buttons. Do not hold for longer that 30 seconds.

HomeLink威 is now in the train (or learning) mode and can be programmed at any time beginning with Step 2inthe“Programming” section.

Reprogramming a single HomeLink姞 button

To program a device to HomeLink威 using a HomeLink威 button previously trained, follow these steps:

1. Press and hold the desired HomeLink威 button. Do NOT release the

button.

2. The indicator light will begin to flash after 20 seconds. Without

releasing the HomeLink威 button, follow Step 2 in the “Programming” section.

For questions or comments, contact HomeLink威 at www.homelink.com or 1–800–355–3515.

Driver Controls

ELECTRONIC MESSAGE CENTER (IF EQUIPPED)

The electronic message center only works when the ignition is in the ON position.

The message center allows you to:

• see problems such as door ajar, air suspension, trunk ajar, washer fluid low

• see how many kilometers/miles you can drive before running out of fuel

• see when overdrive has been deactivated

• monitor the average fuel economy

• check the distance traveled during a trip on either Trip A or Trip B

• monitor the average speed

Selectable features

Reset

Press this control to reset the selected message center function to zero. The only functions which can be reset are:

• AVG ECON

• TRIP A or TRIP B

• AVG SPEED

CHECK

AIR SUSPENSION

OVERDRIVE OFF

LOW WASHER FLUID

TRUNK AJAR LTR/100 km

DISTANCE TO EMPTY

TRIP

RESET E/M SELECT

TRIP

DOOR AJAR

MILES

/GAL

AVG FUEL

ECONOMY

AVG

SPEED

Driver Controls

E/M

Press this control to switch the electronic instrument cluster display and the message center display from metric to English units.

Select

Each press of the SELECT control will select a different function.

• Press the right side of the control to advance the function to the right.

• Press the left side of the control to advance the function to the left.

To reset any function:

1. Push either the right or left side of the SELECT control to choose the

desired function.

2. Press the RESET control and the

selected message center function will be reset to zero.

RESET E/M SELECT

Driver Controls

Message center functions

DISTANCE TO EMPTY (DTE)

This function estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling to allow this feature to correctly detect the added fuel.

The DTE function will flash for 5 seconds and sound a tone for 1 second when you have approximately:

• 50 miles (80 km) left before you run out of fuel

• 25 miles (40 km )

• 10 miles (16 km)

The message center will remain in the DTE function until the SELECT control is pressed to change functions.

DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.

If “CO” or “CS” is displayed, there is a problem with the fuel indication system and you should contact your dealer for service as soon as possible.

AVG FUEL ECONOMY (average fuel economy)

Select this function to display your average fuel economy in miles/gallon or liters/100 km.

If you calculate your average fuel economy by dividing miles traveled by gallons used, your figure may be different than displayed for the following reasons:

• your vehicle was not perfectly level during fill-up

• differences in the automatic shut-off points on the fuel pumps at

service stations

DISTANCE TO EMPTY

TRIP

RESET E/M SELECT

DISTANCE TO EMPTY

TRIP

AVG FUEL

ECONOMY

AVG

SPEED

AVG FUEL

ECONOMY

AVG

SPEED

Driver Controls

• variations in top-off procedure from one fill-up to another

• rounding of the displayed values to the nearest 0.1 gallons (liter)

Press the RESET control while AVG ECON is displayed to reset the function.

The average displayed is the average since the last reset.

TRIP A and TRIP B

These two functions allow you to see how far you have traveled since you last reset. Trip A and Trip B are completely independent and must be reset individually.

To reset either trip feature to zero, press the RESET control while the appropriate trip distance feature (TRIP A or TRIP B) is displayed.

RESET E/M SELECT

DISTANCE TO EMPTY

TRIP

DISTANCE

TO EMPTY

TRIP

RESET E/M SELECT

TRIP

AVG FUEL

ECONOMY

AVG

SPEED

AVG FUEL

ECONOMY

AVG

SPEED

AVG SPEED (average speed)

Select this function to display your average speed in miles per hour or kilometers per hour.

DISTANCE

TO EMPTY

TRIP

AVG FUEL

ECONOMY

AVG

SPEED

Your vehicle must be moving to calculate your average speed. When your vehicle is not moving, the average speed is displayed at 0 miles (0 kilometers) per hour.

Driver Controls

INTERIOR TRUNK CONTROL

The remote trunk release control is located on the driver’s door trim panel and can be operated at any time.

You can render the switch inoperable by locking the button with your master key.

CELL PHONE USE

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle.

The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

CENTER CONSOLE (IF EQUIPPED)

Your vehicle may be equipped with a variety of console features. These include:

• Utility compartment

• Power point (inside storage bin)

• Cupholders

• Air vents to the rear seating positions (heat only)

Use only soft cups in the cupholder. Hard objects can injure you

in a collision.

POSITIVE RETENTION FLOOR MAT

Position the driver floor mat so that the eyelet is over the pointed end of the retention post and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.

Driver Controls

Locks and Security

KEYS

The vehicle is equipped with a master (black) key and valet (gray) key lock system. The master key will access doors, trunk, glove box, ignition and remote trunk release. The valet key will access doors and ignition only. Before using this key, lock the trunk remote control to disable the Trunk remote control on the drivers door, then lock the glove compartment with your master key.

POWER DOOR LOCKS

Press control to unlock all vehicle doors.

Press control to lock all vehicle doors.

Smart locks (if equipped)

With the key in any ignition position, and either the driver’s or passenger’s door open, the doors cannot be locked using the power door lock switches.

The vehicle may still be locked with the key in the ignition, and performing one of the following actions:

• Pressing the manual lock button on the door.

• Operating the remote entry transmitter (if equipped).

• Operating the keyless entry keypad (if equipped).

• Operating the driver’s door with a key.

Locks and Security

Childproof door locks

When these locks are set, the rear doors cannot be opened from the inside. The rear doors can be opened from the outside when the doors are unlocked.

The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

Move lock control up to engage the childproof lock. Move control down to disengage childproof locks.

INTERIOR LUGGAGE COMPARTMENT RELEASE

Your vehicle is equipped with a mechanical interior luggage compartment release handle that provides a means of escape for children and adults in the event they become locked inside the luggage compartment.

Adults are advised to familiarize themselves with the operation and location of the release handle.

To open the luggage compartment door (lid) from within the luggage compartment, pull the illuminated “T” shaped handle and push up on the trunk lid. The handle is composed of a material that will glow for hours in darkness following brief exposure to ambient light.

The “T” shaped handle will be located either on the luggage compartment door (lid) or inside the luggage compartment near the tail lamps.

Locks and Security

Keep vehicle doors and

luggage compartment locked and keep keys and remote transmitters out of a child’s reach. Unsupervised children could lock themselves in the trunk and risk injury. Children should be taught not to play in vehicles.

On hot days, the temperature in the trunk or vehicle interior can

rise very quickly. Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat-related injuries, including brain damage. Small children are particularly at risk.

REMOTE ENTRY SYSTEM (IF EQUIPPED)

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Locks and Security

The remote entry system allows you to lock or unlock all vehicle doors without a key.

The remote entry features operate with the ignition in any position, except in the 3 (ON) , with the transmission not in either P (Park) or N (Neutral).

If there are problems with the remote entry system, make sure to take ALL remote entry transmitters with you to the dealership in order to aid in troubleshooting the problem.

Unlocking the doors

1. Press and release to unlock the driver’s door. Note: The interior lamps will illuminate.

2. Press

Locking the doors

Press once to lock all the doors. The doors will lock upon first press.

Press vehicle was successfully locked. Note: If all vehicle doors are closed upon the second press of the parklamps/taillamps will flash once to confirm the successful locking.

Upon the second press of the horn will chirp twice and the park/taillamps will flash twice to warn that successfully locking was not complete.

Deactivating/activating the horn chirp and flash confirmation feature

The horn chirp and flash confirmation feature can be turned on/off through the following procedure using the power door locks:

Complete Steps 1-7 within 30 seconds or you must repeat the procedure. Wait 30 seconds before repeating the procedure.

1. Turn the ignition to the 4 (ON) position.

2. Press the power door unlock control on the door panel three times.

and release again within five seconds to unlock all the doors.

again within three seconds to receive confirmation that the

, the horn will chirp once and the

, if any door is not securely closed the

Locks and Security

3. Cycle the ignition from the 4 (ON) to the 3 (OFF) position.

4. Press the power door unlock control three times.

5. Turn the ignition to the 4 (ON) position. The doors will lock and unlock.

6. With the ignition still in the 4 (ON) position, press the unlock control twice.

7. After a five to ten second delay, the door locks will cycle lock/unlock to confirm successful programming.

8. After having waited the necessary time for the programming to confirm, turn the ignition to the 3 (OFF) position.

Sounding a panic alarm

Press panic alarm only works with the ignition in the 1 (OFF/LOCK) position.

Press deactivate the alarm by turning the ignition to the 2 (ACCESSORY) or 3 (ON) position.

Opening the trunk

Press once to open the trunk.

• Ensure that the trunk is closed and latched before driving your vehicle. Failure to properly latch the trunk may cause objects to fall out or block the driver’s rear view.

This feature will not work with the transmission out of P (Park) or N (Neutral) if the ignition is in either the 2 (ACC) or 3 (ON) position.

on the remote transmitter to activate the alarm. Note: The

a second time to deactivate the alarm. You may also

Replacing the battery

The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent.

Locks and Security

To replace the battery:

1. Twist a thin coin between the two

halves of the remote entry transmitter near the key ring. DO NOT TAKE THE RUBBER COVER AND CIRCUIT BOARD OFF THE FRONT HOUSING OF THE REMOTE ENTRY TRANSMITTER.

2. Do not wipe off any grease on the

battery terminals on the back surface of the circuit board.

3. Remove the old battery. Note: Please refer to local regulations when

disposing of transmitter batteries.

4. Insert the new battery. Refer to the diagram inside the remote entry

transmitter for the correct orientation of the battery. Press the battery down to ensure that the battery is fully seated in the battery housing cavity.

5. Snap the two halves back together.

Note: Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Replacing lost transmitters

Take all your vehicle’s transmitters to your dealer if service is required.

If a remote transmitter has been lost and you would like to remove it from the vehicle’s memory, or you would like to purchase additional remote transmitters and have them programmed to your vehicle:

• Take all your vehicle’s transmitters to your dealer for programming, or

• Perform the following programming procedure yourself:

Locks and Security

Place the key in the ignition and cycle from 1 (OFF/LOCK) to 3 (ON) eight times in rapid succession within 10 seconds. After doors lock/unlock, press any control on all transmitters (up to four). After pressing the control on each remote transmitter, the door will lock and unlock. If programming multiple remote transmitters, you must press the control buttons on each remote transmitter within 7 seconds of each other to remain in programming mode. When completed, turn the ignition to 1 (OFF/LOCK).

All transmitters must be programmed at the same time.

• When completed, turn the ignition to the 1 (OFF/LOCK) position and wait at least 20 seconds in order to use the recently programmed transmitter(s).

• All transmitters must be programmed during the same programming cycle. A transmitter that is not programmed within the same programming cycle will be erased and will no longer operate your vehicle’s locks. If this occurs, you will have to reprogram all the transmitters again, as you cannot just “add” a transmitter.

Illuminated entry

The interior lamps illuminate when the remote entry system is used to unlock the door(s) or sound the personal alarm.

The illuminated entry system will turn off the interior lights if:

• the ignition switch is turned to the 2 (ACCESSORY) or 4 (START) positions, or

• the remote transmitter unlock control is pressed, or

• after 25 seconds of illumination.

The dome lamp control must not be set to the off position for the illuminated entry system to operate.

The inside lights will not turn off if:

• they have been turned on with the dimmer control, or

• any door is open.

The battery saver will shut off the interior lamps 30 minutes after the last door is closed, or after 10 minutes if the last door is left open.

Locks and Security

Autolock (if equipped)

This feature automatically locks all vehicle doors when:

• all doors are closed,

• the ignition is in the 3 (ON) position,

• the brake pedal is depressed,

• you shift into any gear.

Relock

The autolock feature repeats when:

• the ignition is in the 3 (ON) position,

• a door is opened and closed,

• the transmission is placed in R (Reverse) or any drive gear, and then

• the brake pedal is depressed and then released.

Deactivating/activating the autolock feature

Before following the procedure, make sure that the ignition is in the 3 (OFF) position and all vehicle doors are closed.

Automatic door locks can also be turned on/off through the following procedure:

You must complete Steps 1-7 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait at least 30 seconds.

1. Turn the ignition to the 3 (ON) position.

2. Press the power door unlock control on the door panel three times.

3. Turn the ignition from the 3 (ON) to the 1 (OFF/LOCK) position.

4. Press the power door unlock control three times.

5. Turn the ignition back to the 3 (ON) position.

6. The door locks will lock/unlock to confirm programming mode is

entered/active.

7. With the ignition still in the 3 (ON) position, press the unlock control

once. After a five to ten second delay, the door will lock/unlock to confirm successful programming.

8. After having waited the necessary time for the programming to

confirm, turn the ignition to the 1 (OFF/LOCK) position.

Once disabled, the autolock feature can be enabled by repeating the procedure in Steps 1–8.

Locks and Security

KEYLESS ENTRY SYSTEM (IF EQUIPPED)

With the keyless entry keypad, you can:

• lock or unlock the vehicle doors without using the key.

• open the trunk.

See also Remote entry system in this chapter for more information. Your vehicle has a factory-set 5–digit code that operates the keyless

entry system. You can also program your own 5–digit personal entry code.

The factory-set code is located:

• On the owner’s wallet card in the glove compartment,

• Taped to the computer module, or

• At your dealer.

When using the keyless entry keypad, press the middle of each button in order to ensure a good activation.

Programming a personal entry code

You can program up to three personal codes to unlock your vehicle. These codes do not replace the permanent code that the dealership gave you.

To create your own personal entry code:

1. Enter the factory set code. Note: The keypad will illuminate when

pressed.

2. Within five seconds press 1 • 2 on the keypad to enter the

programming mode.

3. Enter your personal 5-digit code. Each number must be entered

within five seconds of each other.

4. Press 1 • 2 to store the first personal code.

5. The doors will lock then unlock to confirm programming of the new

code.

To store a second personal code:

1. Enter the factory set code.

2. Within five seconds press 1 • 2 on the keypad to enter the

programming mode.

1 2

4567890

Locks and Security

3. Enter a second personal 5-digit code. Each number must be entered

within five seconds of each other.

4. Press 3 • 4 to store the second personal code.

5. The doors will again lock then unlock to confirm programming of the

new code.

To store a third personal code:

1. Enter the factory set code.

2. Within five seconds press 1 • 2 on the keypad to enter the

programming mode.

3. Enter a third personal 5-digit code. Each number must be entered

within five seconds of each other.

4. Press 5 • 6 (or 7 • 8, or 9 • 0, or wait five seconds) to store the third

personal code.

5. The doors will again lock then unlock to confirm programming of the

new code.

Tips:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

• The factory set code will work even if you have set your own personal

code.

• If you set a second personal code it will erase your first personal code.

Erasing personal code

To erase all of the personal entry codes programmed to a vehicle:

1. Enter the factory-set code.

2. Press and release 1 • 2 within 5 seconds of step 1.

3. Press and hold 1 • 2 for two seconds. All of the vehicle doors will lock

and then unlock to confirm erasure.

Unlocking the doors and releasing the trunk with the keyless entry system

To unlock the driver door, enter either the factory-set code or personal code (each digit pressed within 5 seconds of prior digit). The interior lamps will illuminate.

• To unlock all doors, enter the factory-set code or personal code (driver door unlocks) and press 3 • 4 within five seconds.

Locks and Security

• To release the trunk, enter the factory-set code or personal code (driver door unlocks) and press 5 • 6 within five seconds.

After the factory-set code or personal code has been entered, you can unlock all doors (press 3 • 4) and release the trunk (press 5 • 6) as long as the controls are pressed within 5 seconds of each other.

Locking doors with the keyless entry system

It is not necessary to enter the factory-set code prior to locking all doors. To lock the doors, press 7 • 8 and press 9 • 0 at the same time.

SECURILOCK姟 PASSIVE ANTI-THEFT SYSTEM

SecuriLock娂 passive anti-theft system is an engine immobilization system. This system is designed to help prevent the engine from being started unless a coded key programmed to your vehicle is used. The use of the wrong type of coded key may lead to a “no-start” condition.

Your vehicle comes with two coded keys (or three, if your vehicle is equipped with the valet feature); additional coded keys may be purchased from your dealer. The dealer can program your spare keys to your vehicle or you can program the keys yourself. Refer to Programming spare keys for instructions on how to program the coded key.

Note: The SecuriLock娂 passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues. You need to prevent these objects from touching the coded key while starting the engine. These objects will not cause damage to the coded key, but may cause a momentary issue if they are too close to the key when starting the engine. If a problem occurs, turn the ignition to the 1 (OFF/LOCK) position, remove all objects on the key chain away from the coded key and restart the engine.

Theft indicator

The theft indicator is the flashing red indicator located on the dash panel.

• When the ignition is in the 1 (OFF/LOCK) position, the indicator will flash once every 2 seconds to indicate the SecuriLock娂 system is functioning as a theft deterrent.

Locks and Security

• When the ignition is in the 3 (ON) position, the indicator will glow for 3 seconds to indicate normal system functionality.

If a problem occurs with the SecuriLock娂 system, the indicator will flash rapidly or glow steadily when the ignition is in the 3 (ON) position. If this occurs, the vehicle should be taken to an authorized dealer for service.

Automatic arming

The vehicle is armed immediately after switching the ignition to the 1 (OFF/LOCK) position.

The theft indicator on the instrument panel will flash every two seconds when the vehicle is armed.

Automatic disarming

Switching the ignition to the 3 (ON) position with a coded key disarms the vehicle.

• The theft indicator on the instrument panel will illuminate for three seconds and then go out.

• If the theft indicator stays on for an extended period of time or flashes rapidly, have the system serviced by your dealer.

Replacement keys

If your keys are lost or stolen and you don’t have an extra coded key, you will need to have your vehicle towed to a dealership. The key codes need to be erased from your vehicle and new coded keys will need to be programmed.

Replacing coded keys can be very costly. Store an extra programmed key away from the vehicle in a safe place to help prevent any inconveniences. Please visit an authorized dealer to purchase additional spare or replacement keys.

Locks and Security

Programming spare keys

A maximum of eight keys can be coded to your vehicle. Only SecuriLock娂 keys can be used. To program a coded key yourself, you will need two previously programmed coded keys (keys that already operate your vehicle’s engine) and the new unprogrammed key(s) readily accessible for timely implementation of each step in the procedure.

If two previously programmed coded keys are not available, you must bring your vehicle to your dealership to have the spare coded key(s) programmed.

Please read and understand the entire procedure before you begin.

1. Insert the first previously

programmed coded key into the ignition and turn the ignition from 1 (OFF/LOCK) to the 3 (ON) position (maintain ignition in 3 (ON) for at least one second).

2. Turn ignition to 1 (OFF/LOCK)

and remove the first coded key from the ignition.

3. Within ten seconds of removing

the first coded key, insert the second previously programmed coded key into the ignition and turn the ignition from 1 (OFF/LOCK) to the 3 (ON) position (maintain ignition in 3 (ON) for at least one second but no more than ten seconds).

4. Turn the ignition to 1 (OFF/LOCK) and remove the second coded key

from the ignition.

5. Within twenty seconds of removing the second coded key, insert the

new unprogrammed key (new key) into the ignition and turn the ignition from 1 (OFF/LOCK) to the 3 (ON) position (maintain ignition in 3 (ON) for at least one second). This step will program your new key.

6. To program additional new unprogrammed key(s), wait at least 20

seconds and repeat this procedure from Step 1.

If successful, the new coded key(s) will start the vehicle’s engine and the theft indicator will illuminate for three seconds and then go out.

If not successful, the new coded key(s) will not start the vehicle’s engine and the theft indicator will flash on and off. You may repeat Steps 1 through 6. If failure repeats, bring your vehicle to your dealership to have the new spare key(s) programmed.

Seating and Safety Restraints

SEATING

Adjustable head restraints

Your vehicle’s seats are equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of a rear collision. To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible. Refer to the following to raise and lower the head restraints.

The head restraints can be moved up and down.

Push control to lower head restraint.

Adjusting the front manual seat (if equipped)

Never adjust the driver’s seat or seatback when the vehicle is moving.

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

Seating and Safety Restraints

Lift handle to move seat forward or backward.

Pull lever up to adjust seatback.

Using the manual recline function (if equipped)

Never adjust the driver’s seat or seatback when the vehicle is moving.

Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop.

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Seating and Safety Restraints

To adjust the front seatback using the manual recliner:

• Lift and hold the handle located on the side of the seat.

• Lean against the seatback to adjust it to your desired position. You can recline the seat back or bring it forward.

• Release the handle when the desired position has been reached.

Using the power lumbar support (if equipped)

The power lumbar control is located on the outboard side of the seat.

Press one side of the control to adjust firmness.

Press the other side of the control to adjust softness.

Heated seats (if equipped)

To operate the heated seats:

• Push the indicated side of the control for maximum heat.

• Push again to deactivate.

• Push the indicated side of the

control for minimum heat.

• Push again to deactivate.

The heated seat module resets at every ignition run cycle. While the ignition is in the ON position, activating the high or low heated seat switch enables heating mode. When activated, they will turn off automatically when the ignition is turned to the OFF position.

The indicator light will illuminate when the heated seats have been activated.

Seating and Safety Restraints

Adjusting the power front seats – door mounted controls (if equipped)

The controls for the power seats are located on the inside of each front door.

Never adjust the driver’s seat or seatback when the vehicle is moving.

Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop.

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the

event of a collision.

Press the control to recline the seatback forward or backward.

Seating and Safety Restraints

Press to move the seat forward or backward.

Press to move the front portion of the seat cushion up or down.

Press to move the rear portion of the seat cushion up or down.

Seating and Safety Restraints

Seat mounted cup holders and armrest storage compartment (if equipped)

Your vehicle is equipped with cup holders in the rear seat armrest. To access the cup holders, rotate armrest into use position.

Use only soft cups in the cupholder. Hard objects can injure you in a collision.

SAFETY RESTRAINTS

Personal Safety System姟

The Personal Safety System娂 provides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of airbag-related injuries. The system is able to analyze different occupant conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations.

Your vehicle’s Personal Safety System娂 consists of the following items:

• Driver and passenger dual-stage airbag supplemental restraints

• Driver and front passenger side airbags (if equipped)

• Front safety belts with pretensioners, energy management retractors,

and safety belt usage sensors

• Driver’s seat position sensor

• Front crash severity sensor

• Front passenger sensing system

• Restraints Control Module (RCM) with impact and safing sensors

• Restraint system warning light and back-up tone

• The electrical wiring for the airbags, crash sensor(s), safety belt

pretensioners, front safety belt usage sensors, driver seat position sensor, and indicator lights

Seating and Safety Restraints

How does the Personal Safety System姟 work?

The Personal Safety System娂 can adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant conditions. A collection of crash and occupant sensors provides information to the Restraints control module (RCM). During a crash, the RCM activates the safety belt pretensioners and/or either one or both stages of the dual-stage airbag supplemental restraints based on crash severity and occupant conditions.

The fact that the pretensioners or airbags did not activate for both front seat occupants in a collision does not mean that something is wrong with the system. Rather, it means the Personal Safety System娂 determined the accident conditions (crash severity, belt usage, etc.) were not appropriate to activate these safety devices. Front airbags and pretensioners are designed to activate only in frontal and near-frontal collisions, not rollovers, side-impacts, or rear-impacts unless the collision causes sufficient longitudinal deceleration.

Driver and passenger dual-stage airbag supplemental restraints

The dual-stage airbags offer the capability to tailor the level of airbag inflation energy. A lower, less forceful energy level is provided for more common, moderate-severity impacts. A higher energy level is used for the most severe impacts. Refer to Airbag supplemental restraints section in this chapter.

Front crash severity sensor

The front crash severity sensor enhances the ability to detect the severity of an impact. Positioned up front, it provides valuable information early in the crash event on the severity of the impact. This allows your Personal Safety System娂 to distinguish between different levels of crash severity and modify the deployment strategy of the dual-stage airbags and safety belt pretensioners.

Driver’s seat position sensor

The driver’s seat position sensor allows your Personal Safety System娂 to tailor the deployment level of the driver dual-stage airbag based on seat position. The system is designed to help protect smaller drivers sitting close to the driver airbag by providing a lower airbag output level.

Front passenger sensing system

For airbags to do their job they must inflate with great force, and this force can pose a potentially deadly risk to occupants that are very close to the airbag when it begins to inflate. For some occupants, like infants

Seating and Safety Restraints

in rear-facing child seats, this occurs because they are initially sitting very close to the airbag. For other occupants, this occurs when the occupant is not properly restrained by seat belts or child safety seats and they move forward during pre-crash braking. The most effective way to reduce the risk of unnecessary injuries is to make sure all occupants are properly restrained. Accident statistics suggest that children are much safer when properly restrained in the rear seating positions than in the front.

Air bags can kill or injure a child in a child seat. NEVER place a

rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.

Always transport children 12 years old and under in the back

seat and always properly use appropriate child restraints.

The front passenger sensing system can automatically turn off the front passenger front airbag when a rear facing child seat, a forward facing child seat, or a booster seat is detected. Even with this technology, parents are STRONGLY encouraged to always properly restrain children in the rear seat. The sensor also turns off the airbag when the passenger seat is empty to prevent unnecessary replacement of the airbag(s) after a collision.

When the front passenger seat is occupied and the sensing system has turned off the passenger’s frontal airbag, the “pass airbag off” indicator will light and stay lit to remind you that the front passenger frontal airbag is off. See Front passenger sensing system in the airbags section of this chapter.

Front safety belt usage sensors

The front safety belt usage sensors detect whether or not the driver and front outboard passenger safety belts are fastened. This information allows your Personal Safety System娂 to tailor the airbag deployment and safety belt pretensioner activation depending upon safety belt usage. Refer to Safety belt section in this chapter.

Front safety belt pretensioners

The safety belt pretensioners at the front outboard seating positions are designed to tighten the safety belts firmly against the occupant’s body during a frontal or near-frontal collision. This maximizes the effectiveness

Seating and Safety Restraints

of the safety belts and helps properly position the occupant relative to the airbag to improve protection. The safety belt pretensioners can be either activated alone or, if the collision is of sufficient severity, together with the airbags.

Front safety belt energy management retractors

The front outboard safety belt energy management retractors allow webbing to be pulled out of the retractor in a gradual and controlled manner in response to the occupant’s forward momentum. This helps reduce the risk of force-related injuries to the occupant’s chest by limiting the load on the occupant. Refer to Energy management feature section in this chapter.

Determining if the Personal Safety System姟 is operational

The Personal Safety System娂 uses a warning light in the instrument cluster or a back-up tone to indicate the condition of the system. Refer to the Warning light section in the Instrument cluster chapter. Routine maintenance of the Personal Safety System娂 is not required.

The Restraints control module (RCM) monitors its own internal circuits and the circuits for the airbag supplemental restraints, crash sensor(s), safety belt pretensioners, front safety belt buckle sensors, and the driver seat position sensor. In addition, the RCM also monitors the restraints warning light in the instrument cluster. A difficulty with the system is indicated by one or more of the following.

• The warning light will either flash or stay lit.

• The warning light will not illuminate immediately after ignition is

turned on.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and warning light are repaired.

If any of these things happen, even intermittently, have the Personal Safety System娂 serviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision.

Safety restraints precautions

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

Seating and Safety Restraints

To reduce the risk of injury, make sure children sit in the back seat where they can be properly restrained.

Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from

injury in a collision.

All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an airbag

supplemental restraint system (SRS) is provided.

It is extremely dangerous to ride in a cargo area, inside or

outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.

In a rollover crash, an unbelted person is significantly more likely

to die than a person wearing a safety belt.

Each seating position in your vehicle has a specific safety belt

assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder.

3) Never use a single belt for more than one person.

Always transport children 12 years old and under in the back

seat and always properly use appropriate child restraints.

Safety belts and seats can become hot in a vehicle that has been

closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

100

Mercury GRAND MARQUIS 2005 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

Emission warranty

Service Data Recording

Event Data Recording

Special instructions

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

Instrument Cluster

WARNING LIGHTS AND CHIMES

MESSAGE CENTER INDICATOR LIGHTS (IF EQUIPPED)

GAUGES

Entertainment Systems

AM/FM STEREO SINGLE CD PREMIUM AUDIO SYSTEM (IF EQUIPPED)

PREMIUM/AUDIOPHILE SATELLITE COMPATIBLE AM/FM STEREO SINGLE CD/CASSETTE SYSTEM (IF EQUIPPED)

AUDIOPHILE AM/FM STEREO IN-DASH SIX CD SOUND SYSTEM (IF EQUIPPED)

RADIO FREQUENCIES

RADIO RECEPTION FACTORS

CASSETTE/PLAYER CARE

CD/CD PLAYER CARE

AUDIO SYSTEM WARRANTY AND SERVICE

Climate Controls

MANUAL HEATING AND AIR CONDITIONING SYSTEM (IF EQUIPPED)

Operating tips

ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) SYSTEM (IF EQUIPPED)

Operating tips

REAR WINDOW DEFROSTER

Lights

HEADLAMP CONTROL

Autolamp control

Daytime running lamps (DRL) (if equipped)

High beams

Flash to pass

PANEL DIMMER CONTROL

AIMING THE HEADLAMPS

Vertical aim adjustment

TURN SIGNAL CONTROL

Cornering lamps

MAP/COURTESY LAMPS

REAR COURTESY/READING LAMPS

BULB REPLACEMENT

Headlamp Condensation

Replacing exterior bulbs

Using the right bulbs

Replacing the interior bulbs

Replacing headlamp bulbs

Replacing front parking/cornering/turn signal lamp bulbs

Replacing tail lamp/brake/turn lamp bulbs

Replacing license plate lamp bulbs

Replacing backup lamp bulbs

Replacing high-mount brakelamp bulbs

Overhead console lamps

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper/washer features

Changing the wiper blades

TILT STEERING WHEEL

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

OVERHEAD CONSOLE WITHOUT MOON ROOF (IF EQUIPPED)

OVERHEAD CONSOLE WITH MOON ROOF (IF EQUIPPED)

Compass mode

Zone variation mode

Calibration mode

Programming

Gate operator & Canadian programming

AUXILIARY POWER POINT (12VDC)

POWER WINDOWS

One touch down

Window lock

POWER SIDE VIEW MIRRORS
