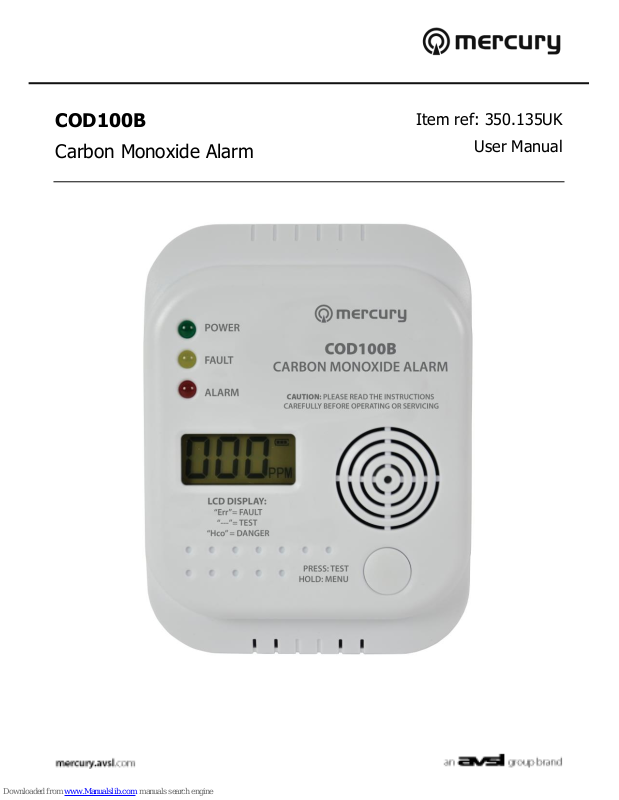

Mercury COD100B User Manual

COD100B

Carbon Monoxide Alarm

Item ref: 350.135UK

User Manual

350.135UK User Manual

Thank you for choosing this Mercury carbon monoxide alarm. This alarm is design to protect
you and your family from carbon monoxide poisoning. Any household or indoor area that has
a fireplace or combustion appliance will have an increasing chance of rising carbon monoxide
levels, especially in older buildings where ventilation is lacking. Please read through the
following manual carefully on how to correctly install, operate and maintain the device, and
also for action to be taken in the event of detection of dangerous CO levels.

Product Specifications:

Apparatus

Type B

Batteries

3 x AA (supplied)

Alarm level

85dB @ 1m

Sensor

Electromechanical

Static working current

80uA

Operating temperature

0°C to 45°C

Storage temperature

-20ºC to 50ºC

Humidity

0 to 90% RH

Lifetime

7 years from first use

Dimensions

120 x 87 x 40mm

Weight

220g (incl. batteries)

Product layout:

350.135UK User Manual

1. Power LED indicator

2. Fault LED indicator

3. Alarm LED indicator

4. LCD display

5. Alarm output

6. Test/Menu button

7. Back cover catch

8. Battery compartment

Installation:

Start up:

Remove the alarm from the packaging and slide the back cover downwards to reveal the
battery compartment. Insert 3 x AA batteries (supplied) to the correct polarity, the alarm will
beep once and all 3 LEDs will flash to indicate power up. When the LCD display on the front
starts to display information, the alarm is successfully powered and has start working.

Location:

For houses and buildings with multiple rooms, it is recommended to install one alarm per
room. If not possible then at least one alarm per level. It is advised to locate the alarm near
the potential source of CO, such as rooms with a boiler, fireplace or gas oven. For optimum
detection, the alarm needs to be installed at least 1.5m above the ground, 0.3m below the
ceiling and 1.5m from the corner of the room.

DO NOT locate alarm:

 Next to a window or a door.
 On the floor where unit may get kicked or damaged.
 Behind fans, air-con units or any sort of ventilation.
 Contained spaces such as inside a cupboard.
 Behind furniture or curtains, alarms must not be obstructed.
 Cold or hot environments. (no less than 0ºC or no more than 45°C)
 Dusty areas, this may block the sensor.
 Too close to an open flame, this can leave carbon deposits on the sensor, reduce its

sensitivity and give false readings.

 Directly above a heater or cooking appliance.
 Where a lot of moisture is present, e.g. bathroom or above a sink.
 Outdoors, this alarm is designed for indoor use only.
