Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Mercury. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 5

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed to allow parts to adjust themselves to other parts.

Drive your new vehicle at least 500 miles (800 km) before towing a trailer.

Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 6

Introduction

SPECIAL NOTICES

Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 7

Introduction

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS)

in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger air bag.

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this

Owner’s Guide for all other required information and warnings.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 8

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Traction Control AdvanceTrac娂

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Rear Window Defrost/Demist

Page 9

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Jack

Check fuel cap Low tire warning

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 10

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause extensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.

Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 11

Instrument Cluster

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check engine warning light to come on, refer to Fuel filler cap in the Maintenance and Specification chapter.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated.

Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

ABS

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 12

Instrument Cluster

Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

Check transaxle: Illuminates when a transaxle problem has been detected and shifting may be restricted. If the light remains on, have the system serviced immediately.

Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and specifications chapter.

Engine coolant temperature:

Displays when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to

Engine coolant in the Maintenance and specifications

chapter.

Never remove the coolant recovery cap while the engine is

running or hot.

Traction Control娂 or AdvanceTrac娂 active (if equipped): Displays when the

Traction Control娂 is active, refer to the Driving chapter for more information.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 13

Instrument Cluster

Traction Control娂 or AdvanceTrac娂 off light (if equipped): Illuminates when the

Traction Control娂 has been disabled (by the driver or as a result of a system failure). Refer to the Driving chapter for more information.

Low tire warning: Illuminates when the low tire warning system is enabled. If the light remains on while driving, the tire pressure should be checked, refer to Low tire warning in the Maintenance and Specifications chapter.

Low fuel: Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

Speed control: Illuminates when the speed control is engaged. Turns off when the speed control system is disengaged.

Low washer fluid: Displays when the windshield washer fluid is low.

TRAC

OFF

Door ajar: Displays which door or the liftgate is open.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 14

Instrument Cluster

Bulb warning: Displays which bulb is burned out. Depress the RESET control to clear.

High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Turn signal warning chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 0.8 km (1/2 mile).

GAUGES

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 15

Instrument Cluster

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and

“C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is

running or hot.

Odometer: Registers the total kilometers (miles) of the vehicle.

Refer to Message Center in the Drivers Controls chapter on how to switch the display from Metric to English.

Trip odometer: Registers the kilometers (miles) of individual journeys.

To reset, press and hold the message center RESET button for three seconds to reset.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 16

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

The arrow near the fuel pump icon indicates which side of the vehicle the fuel filler door is located.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 17

Entertainment Systems

PREMIUM IN-DASH SIX CD SOUND SYSTEM (IF EQUIPPED)

/ Tuner: Press to

1. manually go up or down the radio

frequency. Also use in menu mode to select various settings.

2. Phone/mute: Press to mute the playing media. Press again to return to the playing media.

3. Menu: Press to toggle through the following modes:

Treble: Press to adjust the treble setting. Use

Bass: Press to adjust the bass setting. Use

Balance: Press to adjust the audio between the left and right speakers.

Use

Fade: Press to adjust the audio between the front and rear speakers.

Use

/ / SEEK .

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 18

Entertainment Systems

Speed sensitive volume: Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU

to access and use

Setting the clock: Your vehicle is equipped with an in-dash clock; Refer to “Setting the clock” in the Driver Controls chapter for further information.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press

MENU to access. Use

When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

4. Aux: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed.

5. Seek: Press to access the next strong station or track.

6. Text: In CD mode, press to display the track name, artist name and disc name (if available).

7. Shuffle: Press to play tracks in random order.

/ / SEEK to adjust.

/ / SEEK to set.

8. Comp (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level.

9. Repeat: Press to repeat the current CD track.

10. Fast forward: Press to manually advance in a CD track.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 19

Entertainment Systems

11. Rewind: Press to manually reverse in a CD track.

12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.

13. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop.

14. Seek: Press to access the previous strong station or track.

15. AM/FM: Press to select AM/FM frequency band.

16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last.

18. LOAD: Press to load a CD. Press and hold to autoload up to six CDs.

19. CD eject: Press to eject a CD. Press and hold to auto eject all CDs present in the system.

20. CD slot: Insert a CD label side up.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 20

Entertainment Systems

AM/FM STEREO WITH CASSETTE/CD (IF EQUIPPED)

/ Tuner: Press to

1. manually go up or down the radio

frequency. Also use in menu mode to select various settings.

2. Seek:Press to access the next strong station or track.

3. Phone/mute: Press to mute the playing media. Press again to return to the playing media.

4. Menu: Press to toggle through the following modes:

Treble: Press to adjust the treble setting. Use

Bass: Press to adjust the bass setting. Use

Balance: Press to adjust the audio between the left and right speakers.

Use

/ / SEEK .

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 21

Entertainment Systems

Fade: Press to adjust the audio between the front and rear speakers.

Use

Speed sensitive volume: Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise. Press MENU

to access and use

Setting the clock: Your vehicle is equipped with an in-dash clock. Refer to “Setting the clock” in the Driver Controls chapter for further information.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 . Press

MENU to access. Use

When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.

Clean tape reminder: After 20 hours of cassette operation, the radio will notify you that it is time to clean the cassette player head. After cleaning the player head, you can clear the reminder through menu control and selecting YES.

Dolby:

Use

reduction system is manufactured under license from Dolby Laboratories Licensing Corporation. Dolby威 and the double-D symbol are registered trademarks of Dolby威 Laboratories Licensing Corporation.

5. AUX: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed. To return to radio mode, press AM/FM.

6. Tape eject: Press to eject a tape.

/ / SEEK .

/ / SEEK to adjust.

/ / SEEK to set.

Dolby威 noise reduction: Reduces tape noise and hiss.

/ / SEEK to cycle Dolby ON/OFF. The Dolby威 noise

7. Text: In CD mode, displays track title, artist name, and disc title (if available).

8. Shuffle: Press to play CD tracks in random order.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 22

Entertainment Systems

9. Compress (Compression): In CD mode, brings soft and loud CD passages together for a more consistent listening level.

10. Repeat: Press to repeat the current CD track.

11. Fast forward: Press to manually advance in a CD track.

12. Rewind: Press to manually reverse in a CD track.

13. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.

14. Tape: Insert a tape facing to the right.

15. Tape direction: Press to enter tape mode. Press while in play mode to change which side of the tape is playing.

16. AM/FM: Press to select AM/FM frequency band.

17. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

18. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 23

Entertainment Systems

19. CD eject: Press to eject a CD.

20. CD slot: Insert a CD label side up.

21. Seek:Press to access the previous strong station or track.

22. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop.

FAMILY ENTERTAINMENT DVD SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Family Entertainment System (FES), refer to the DVD System Supplement for further information.

AUXILIARY AUDIO CONTROLS (IF EQUIPPED)

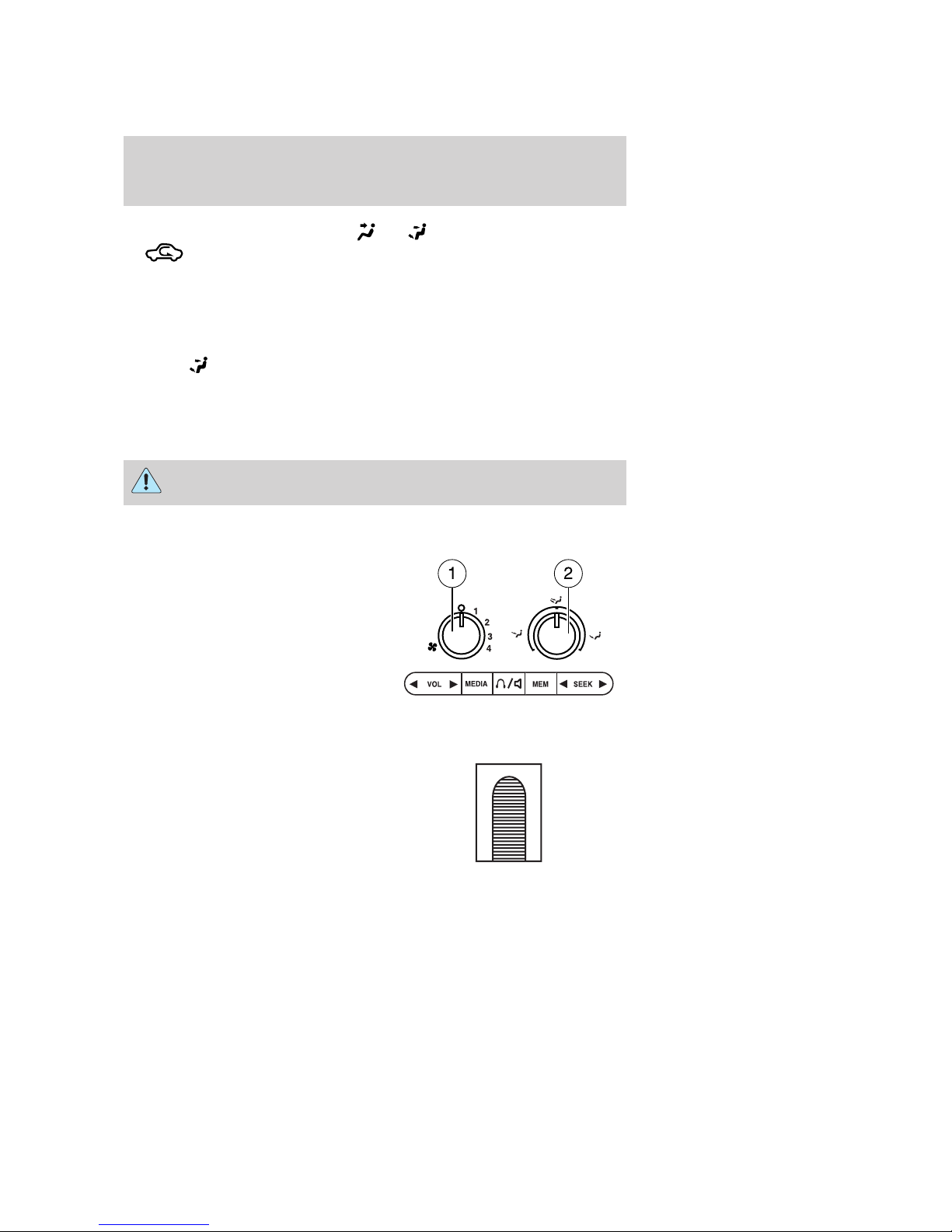

Your vehicle may be equipped with auxiliary audio controls. This feature allows the front and middle seat passengers to listen to different media sources (radio, cassette, CD or DVD) simultaneously. (However, the front and middle-seat passengers cannot listen to two different radio stations at the same time.)

1. Volume: Press to increase/decrease volume control.

2. Media: Press to select from different playing medias.

/ : Press to activate dual

3. play mode and enable the rear seat

passengers to hear audio through the headphones. Press again to deactivate.

4. MEM: Press consecutively to scroll through the preset stations, change tape side (if equipped), or to change discs on multiple disc radios (if equipped).

5. SEEK: Press cassette selection or CD track.

/ to access the next/previous strong radio station,

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 24

Entertainment Systems

When the rear seat controls are activated, rear seat passengers can use the controls to change the playing media for all passengers (Single Play mode). In this mode, all speakers will play audio from the same media source for all passengers to hear.

If there is a discrepancy between the rear seat controls and the front audio controls (such as both trying to listen to the same playing media), the front audio system will receive the desired selection.

To activate Dual Play mode (rear seat passengers listen to a different playing media than the front seat passengers):

• Press the speaker/headphone control.

• Press MEDIA to change audio sources (for headphone mode only).

• Use the SEEK, VOLUME and MEMORY controls to make adjustments

to the playing media.

PARENTAL CONTROL

Simultaneously press the radio preset controls 3 and 5 to enable/disable the rear seat audio controls as well as the Family Entertainment DVD system (if equipped).

DUAL PLAY MODE

Press

/ on the rear seat audio

controls or simultaneously press the radio preset controls 2 and 4 to enable/disable dual play.

During dual play, the rear vehicle speakers will be deactivated and the wired headphones (if equipped) will become active. Two different medias can be played in the vehicle simultaneously:

• The driver can select a media from the main radio face (radio, tape, CD or DVD if equipped) and listen using the front speakers.

• Rear seat passengers may listen to a different media source than the front passengers (radio, tape, CD or DVD if equipped) using 3.5 mm wired headphones (not included) that shall be plugged into the headphone icon jacks on the rear audio control face. Infrared headphones are included in vehicles equipped with the Family Entertainment System and shall only be used to listed to the media (DVD or CD) that is playing in the Family Entertainment System. Wireless headphones will not play audio from any other sources (AM, FM, tape, or Radio CD).

COMPRESS

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 25

Entertainment Systems

The front and rear seat passengers cannot listen to two different radio stations at the same time.

RADIO FREQUENCIES

AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz

FM- 87.7, 87.9–107.7, 107.9 MHz

RADIO RECEPTION FACTORS

There are three factors that can affect radio reception:

• Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

CASSETTE/PLAYER CARE

Do:

• Tighten very loose tapes by inserting a pen or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Allow tapes which have been subjected to extreme heat, humidity or

cold to reach a moderate temperature before playing.

• Clean the cassette player head with a cassette cleaning cartridge after 10–12 hours of play to maintain good sound/operation.

Don’t:

• Use cassettes that are longer than 90 minutes.

• Expose tapes to direct sunlight, extreme humidity, heat or cold.

• Leave tapes in the cassette player for a long time when not being

played.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 26

Entertainment Systems

CD/CD PLAYER CARE

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• For vehicles equipped with a six disc CD changer, don’t insert more than one disc into each slot of the CD changer magazine.

• Clean using a circular motion.

CD units are designed to play commercially pressed 12 cm (4.75 in) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your dealer for further information.

AUDIO SYSTEM WARRANTY AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 27

Climate Controls

DUAL ZONE MANUAL HEATING AND AIR CONDITIONING SYSTEM WITH REAR PASSENGER COMPARTMENT CLIMATE CONTROL (IF EQUIPPED)

1. Air flow selections: Controls

the direction of the airflow in the vehicle. See the following for a brief description on each control.

MAX A/C: Distributes recirculated air through the instrument panel vents only to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle.

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel vents and the floor

vents.

O (OFF): Outside air is shut out and the climate system is turned off.

: Distributes air through the floor vents.

: Distributes air through the windshield defroster vents and floor

vents.

: Distributes outside air through the windshield defroster vents. Can

be used to clear thin ice or fog from the windshield.

Auxiliary climate control operation: Turn the front air flow control (1) to any position except O (OFF).

2. R

or to adjust the rear fan speed from the front control. The rear fan speed settings available are 4, 3, 2, 1 and O (OFF).

3. REAR: Press to enable the control located in the rear seat. Press

again to turn the auxiliary system off.

auxiliary system and to set the desired rear cabin airflow temperature with the front control. The rear cabin airflow temperature will match the driver airflow temperature setting when only the center rear temperature

light (

Rear fan speed control: Press to enable the auxiliary system

REAR Rear temperature control: Press to enable the

REAR ) is illuminated. The rear cabin airflow temperature

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 28

Climate Controls

will be warmer or cooler than the driver airflow temperature setting when more than one rear temperature light ( illuminated.

Refer to Rear window defroster later in this chapter for more information.

in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation engages automatically with selection of MAX A/C or can be engaged manually in any other airflow selection except

automatically in all airflow selections except MAX A/C.

7. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in MAX A/C,

8. Fan speed adjustment: Controls the volume of air circulated in the

vehicle.

9. Left temperature selection: Controls the temperature of the airflow

to the driver in the front of the vehicle.

10. Right temperature selection: Controls the temperature of the

airflow to the passenger in the front of the vehicle.

Operating tips

• To reduce fog build up on the windshield during humid weather, place

• To reduce humidity build up inside the vehicle: do not drive with the

• Do not put objects under the front seats that will interfere with the

• Remove any snow, ice or leaves from the air intake area at the base of

• For maximum cooling performance (MAX A/C):

In the MAX A/C mode:

• Move the temperature control selector to the coldest setting.

• Set the fan to the highest speed initially, then adjust to maintain

Rear defrost: Press to activate/deactivate rear window defrost.

Recirculated air: Press to activate/deactivate air recirculation

. Recirculation may turn off

and .

the air flow selector in the

airflow selector in the OFF or with recirculated air engaged.

airflow to the back seats.

the windshield.

passenger comfort.

position.

REAR )is

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 29

Climate Controls

In the and modes:

• Move the temperature control selector to the coldest setting.

• Select A/C and recirculated air

colder airflow.

• Set the fan to the highest speed initially, then adjust to maintain passenger comfort.

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Set the temperature control to full heat.

4. Set the fan speed to the highest setting.

5. Direct the outer instrument panel vents towards the side windows.

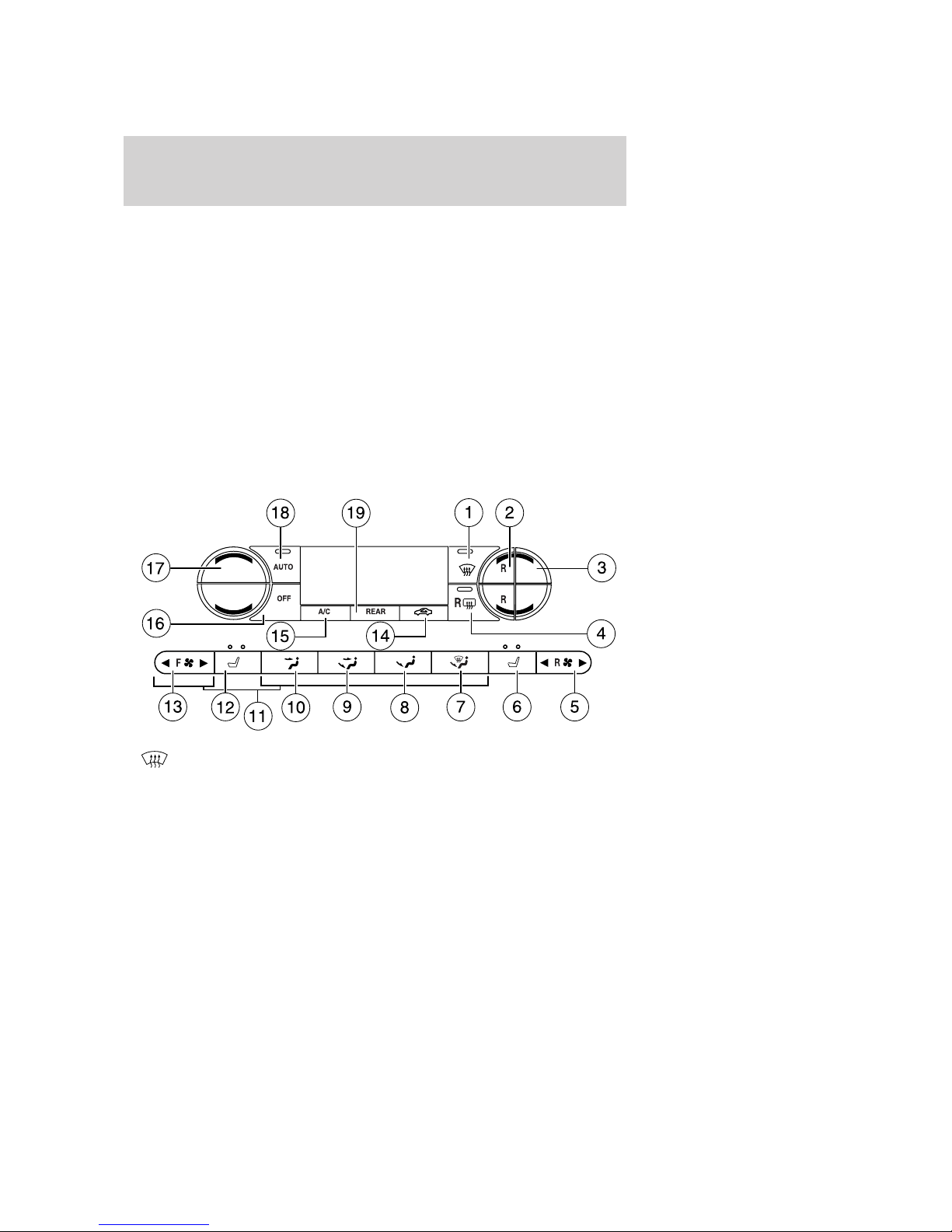

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH REAR PASSENGER COMPARTMENT CLIMATE CONTROL (IF EQUIPPED)

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

. Use with A/C to provide

vents. Can be used to clear thin ice or fog from the windshield.

2. Rear temperature control: Press to enable the auxiliary system and

set the desired rear cabin airflow temperature with the front control. The

Defrost: Distributes outside air through the windshield defroster

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 30

Climate Controls

rear cabin airflow temperature will match the driver airflow temperature setting when only the center rear temperature bar (REAR)is illuminated. The rear cabin airflow temperature will be warmer or cooler than the driver airflow temperature setting when more than one rear temperature bar (REAR) is illuminated.

3. Passenger temperature control: Press to increase/decrease the

temperature for the passenger in the front of the vehicle.

defroster. Refer to Rear window defroster later in this chapter for more information.

5. R

or to adjust the rear fan speed from the front control. The rear fan speed settings available are 4, 3, 2, 1 and O (OFF).

in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air can be engaged manually in any airflow selection except may turn off automatically in all airflow selections.

7. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO, , and .

Rear defrost: Press to activate/deactivate the rear window

Rear fan speed control: Press to enable the auxiliary system

Recirculated air: Press to activate/deactivate air recirculation

. Recirculated air

vents.

10.

vents.

11.

12. Manual override controls: Allows you to change the system

operation. To return to full automatic control, press AUTO.

13. F

decrease the fan speed. To return to full automatic control, press AUTO.

14. OFF: Outside air is shut out and the climate system is turned off.

15. Driver temperature control: Press to increase or decrease the

temperature on the driver side of the cabin. Sets the passenger side

: Distributes air through the windshield defroster vents and floor

: Distributes air through the floor vents.

: Distributes air through the instrument panel vents and the floor

: Distributes air through the instrument panel vents.

Front fan speed control: Press to manually increase or

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 31

Climate Controls

temperature also when DUAL is disengaged. Note: The recommended vehicle cabin setting is between 72°F (22°C) and 75°F (24°C).

• Dual temperature control: Press and hold AUTO to engage/disengage separate passenger side temperature control.

16. AUTO: Press to engage full automatic operation, and select the

desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

17. REAR: Press to enable the control located in the rear seat. Press

again to turn the auxiliary system off.

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH HEATED SEATS AND REAR PASSENGER COMPARTMENT CLIMATE CONTROL (IF EQUIPPED)

vents. Can be used to clear thin ice or fog from the windshield.

2. Rear temperature control: Press to enable the auxiliary system and

set the desired rear cabin airflow temperature with the front control. The rear cabin airflow temperature will match the driver airflow temperature setting when only the center rear temperature bar (REAR)is illuminated. The rear cabin airflow temperature will be warmer or cooler than the driver airflow temperature setting when more than one rear temperature bar (REAR) is illuminated.

Defrost: Distributes outside air through the windshield defroster

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 32

Climate Controls

3. Passenger temperature control: Press to increase/decrease the

temperature for the passenger in the front of the vehicle.

defroster. Refer to Rear window defroster later in this chapter for more information.

5. R

or to adjust the rear fan speed from the front control. The rear fan speed settings available are 4, 3, 2, 1 and O (OFF).

heat setting (2 indicator lights). Press again to activate the low heat setting (1 indicator light). Press again to deactivate the passenger heated seat.

floor vents.

vents.

10.

11. Manual override controls: Allows you to change the system

operation. To return to full automatic control, press AUTO.

12.

heat setting (2 indicator lights). Press again to activate the low heat setting (1 indicator light). Press again to deactivate the passenger heated seat.

13. F

decrease the fan speed. To return to full automatic control, press AUTO.

14.

recirculation in the vehicle cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculated air can be engaged manually in any airflow selection except selections.

15. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO,

Rear defrost: Press to activate/deactivate the rear window

Rear fan speed control: Press to enable the auxiliary system

Passenger heated seat control: Press once to activate the high

:Distributes air through the windshield defroster vents and the

: Distributes air through the floor vents.

: Distributes air through the instrument panel vents and the floor

: Distributes air through the instrument panel vents.

Driver heated seat control: Press once to activate the high

Front fan speed control: Press to manually increase or

Recirculated air: Press to activate/deactivate air

. Recirculated air may turn off automatically in all airflow

, and .

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 33

Climate Controls

16. OFF: Outside air is shut out and the climate system is turned off.

17. Driver temperature control: Press to increase or decrease the

temperature on the driver side of the cabin. Sets the passenger side temperature also when DUAL is disengaged. Note: The recommended vehicle cabin setting is between 72°F (22°C) and 75°F (24°C).

• Dual temperature control: Press and hold AUTO to engage/disengage separate passenger side temperature control.

18. AUTO: Press to engage full automatic operation, and select the

19. REAR: Press to enable the control located in the rear seat. Press

again to turn the auxiliary system off.

DUAL AUTOMATIC TEMPERATURE CONTROL WITH HEATED AND COOLED SEATS AND REAR PASSENGER COMPARTMENT CLIMATE CONTROL (IF EQUIPPED)

vents. Can be used to clear thin ice or fog from the windshield.

2. Rear temperature control: Press to enable the auxiliary system and

Defrost: Distributes outside air through the windshield defroster

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 34

Climate Controls

illuminated. The rear cabin airflow temperature will be warmer or cooler than the driver airflow temperature setting when more than one rear temperature bar (REAR) is illuminated.

3. Passenger temperature control: Press to increase/decrease the

temperature for the passenger in the front of the vehicle.

defroster. Refer to Rear window defroster later in this chapter for more information.

5. R

or to adjust the rear fan speed from the front control. The rear fan speed settings available are 4, 3, 2, 1 and O (OFF).

heat setting (2 indicator lights). Press again to activate the low heat setting (1 indicator light). Press again to deactivate the passenger heated seat.

cool setting (2 indicator lights). Press again to activate the low cool setting (1 indicator light). Press again to deactivate the passenger cooled seat.

8. DUAL: Press to engage/disengage separate passenger side

temperature control.

distribution modes listed below. The selected mode will be shown in the display.

vents.

10.

heat setting (2 indicator lights). Press again to activate the low heat setting (1 indicator light). Press again to deactivate the passenger heated seat.

11.

cool setting (2 indicator lights). Press again to activate the low cool setting (1 indicator light). Press again to deactivate the passenger cooled seat.

Rear defrost: Press to activate/deactivate the rear window

Rear fan speed control: Press to enable the auxiliary system

Passenger heated seat control: Press once to activate the high

Passenger cooled seat control: Press once to activate the high

Airflow direction control: Press to toggle through the air

: Distributes air through the instrument panel vents.

: Distributes air through the instrument panel and the floor vents.

: Distributes air through the floor vents.

: Distributes air through the windshield defroster vents and the floor

Driver heated seat control: Press once to activate the high

Driver cooled seat control: Press once to activate the high

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 35

Climate Controls

12. F Front fan speed control: Press to manually increase or

decrease the fan speed. To return to full automatic control, press AUTO.

13. OFF: Outside air is shut out and the climate system is turned off.

14. Driver temperature control: Press to increase or decrease the

temperature on the driver side of the cabin. Sets the passenger side temperature also when DUAL is disengaged. Note: The recommended vehicle cabin setting is between 72°F (22°C) and 75°F (24°C).

15. AUTO: Press to engage full automatic operation, and select the

16. A/C: Press to activate/deactivate air conditioning. Use with

recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO,

17. REAR: Press to enable the control located in the rear seat. Press

again to turn the auxiliary system off.

18.

Recirculated air: Press to activate/deactivate air

. Recirculated air may turn off automatically in all airflow

, and .

OPERATING TIPS

• To reduce fog build up on the windshield during humid weather, place the air flow selector in the

• To reduce humidity build up inside the vehicle: do not drive with the airflow selector in the OFF or with recirculated air engaged.

• Do not put objects under the front seats that will interfere with the airflow to the back seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• For maximum cooling performance (MAX A/C):

In AUTO mode, press AUTO control and set to desired temperature.

position.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 36

Climate Controls

In manual override control, select or , A/C and recirculated air

highest speed initially, then adjust to maintain passenger comfort.

• To improve the A/C cool down, drive with the windows slightly open for 2–3 minutes after starting the vehicle or until the vehicle has “aired out.”

To aid in side window defogging/demisting in cold weather:

1. Select

2. Select A/C.

3. Modulate the temperature control to maintain comfort.

4. Set the fan to the highest speed.

5. Direct the outer instrument panel vents towards the side windows.

AUXILIARY CLIMATE CONTROL (IF EQUIPPED)

1. Fan speed: Turn to select the

desired fan speed.

2. Temperature/mode selection:

The distribution of air from the overhead and floor registers is based on the temperature selected. Turn to select for comfort.

To use the rear climate controls, ensure that REAR is pressed on the main climate control face.

TEMPERATURE SENSOR (IF EQUIPPED)

Your vehicle may be equipped with a temperature sensor grid. This sensor works together with the Automatic Temperature Control system (if equipped) to help ensure the cabin remains at the desired temperature.

Do not place items over the temperature sensor grid. This may cause improper operation of the system.

and set the temperature to 60°F (16°C). Set the fan to the

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 37

Climate Controls

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and works to clear the rear window of fog and thin ice. If equipped, the heated outside mirrors also operate with this control to remove snow, mist and ice from the side mirrors.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

CABIN AIR FILTER

Your vehicle is equipped with a Cabin air filter. The cabin air filter restricts the entry of airborne dust and pollen particles. The filter is located just in front of the windshield under the cowl vent screen on the passenger side of the vehicle.

For more information, or to replace the filter, see your Ford, Lincoln or Mercury Dealer.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 38

Lights

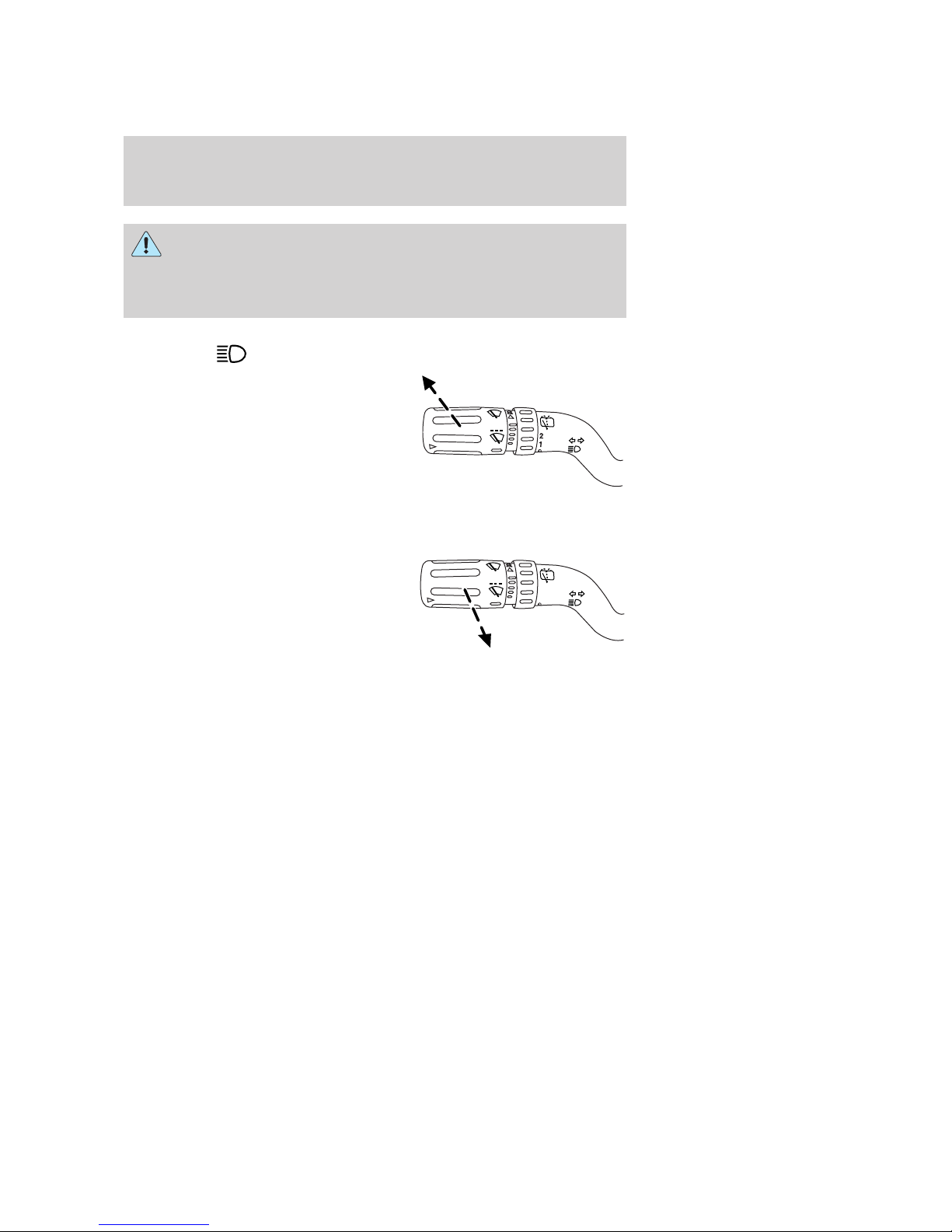

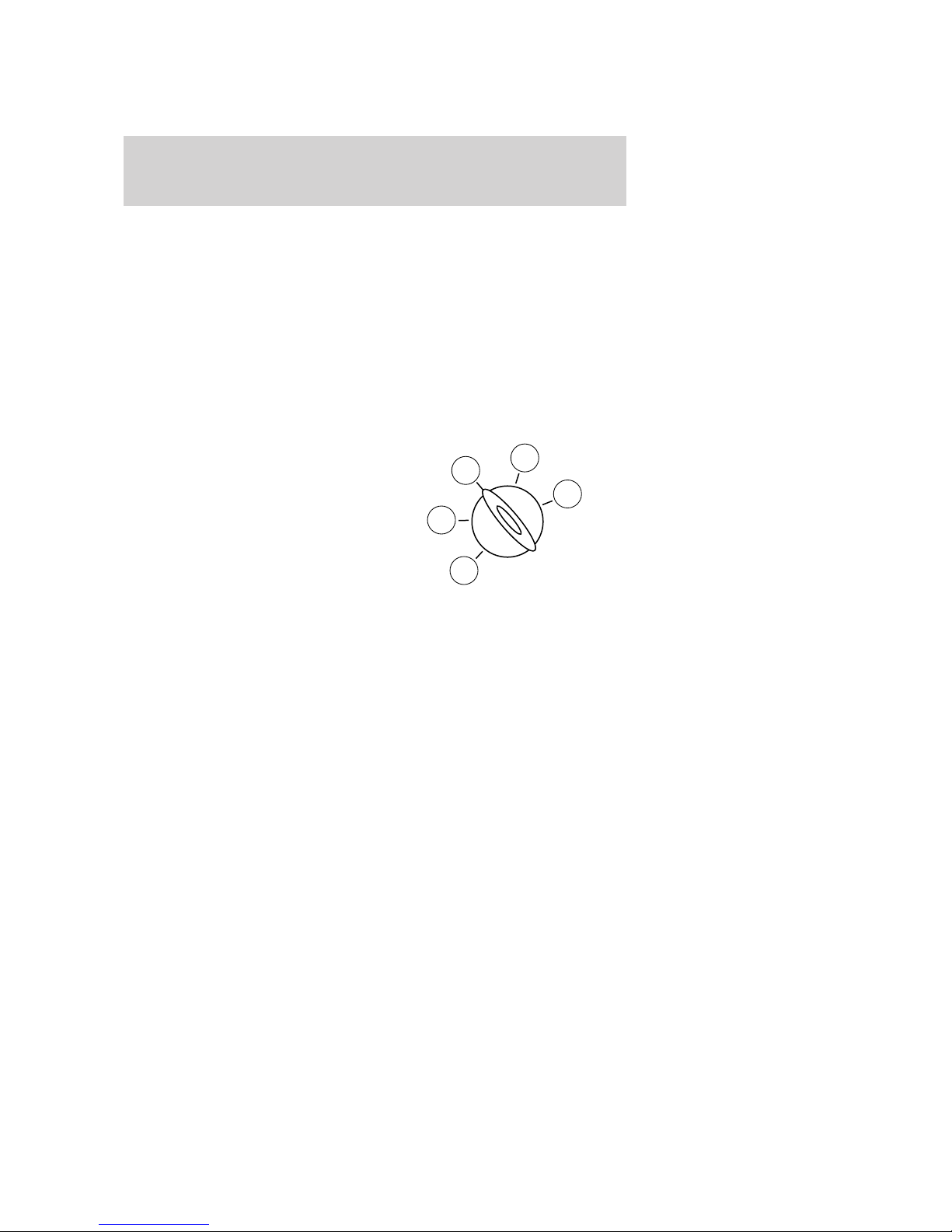

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

PULL

Note: Some vehicles may be equipped with a headlamps on with wipers feature. In order for this feature to work:

• the igniton must be in run and the front wipers must be on greater

than 10 seconds except during a mist wipe or while the wipers are on to clear washer fluid during a wash condition.

• the headlamps and park lamps must be turned off when the ignition is

in off or accessory position, or the front wipers are off for more than 30 seconds while the ambient light level is at daytime brightness.

Foglamp control

The foglamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions:

• Parking lamps

• Low beams

• Autolamps

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 39

Lights

Autolamp control (if equipped)

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for a fixed period of time after the ignition switch is turned to OFF.

• To turn autolamps on, rotate the

control counterclockwise.

• To turn autolamps off, rotate the control clockwise to OFF.

Autolamps - Programmable exit delay

Programmable exit delay allows for the change of the length of the autolamp exit delay. Once in the programming mode, the headlamps and parklamps will turn on to indicate the start of the time desired.

To program the auto lamp exit time delay:

1. Start with the ignition in OFF and the autolamps selected.

2. Deselect the auto lamps.

3. Put the ignition in RUN.

4. Put the ignition in OFF.

5. Select the autolamps.

• Note: Steps 2 through 5 must be performed within a 10 second

period.

• At this point, the headlamps and park lamps will turn on.

6. Deselect the auto lamps after the desired auto lamp delay time (maximum of 3 minutes).

• At this point, the headlamps and park lamps will turn off.

Daytime running lamps (DRL) (if equipped)

Turns the lowbeam headlamps on with a reduced output. To activate:

• the key must be in the ON position,

• the headlamp control is in the OFF, parking lamps or autolamp

position,

• and the transmission must be out of PARK.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 40

Lights

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.

Battery saver

The battery saver will shut off the exterior lamps and interior lamps, except the hazard warning lamps if activated, 10 minutes after the ignition control has been turned off. The battery saver will extend the time-out period for courtesy lamps to 30 minutes if the liftgate is ajar or the dome lamp is on via manual activation using the dome lamp switch or the headlamp switch, whichever is provided. The system will not turn off the parking lamps if the headlamp control is in the PARK position. For interior lights, refer to Illuminated entry in the Locks and security chapter.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 41

Lights

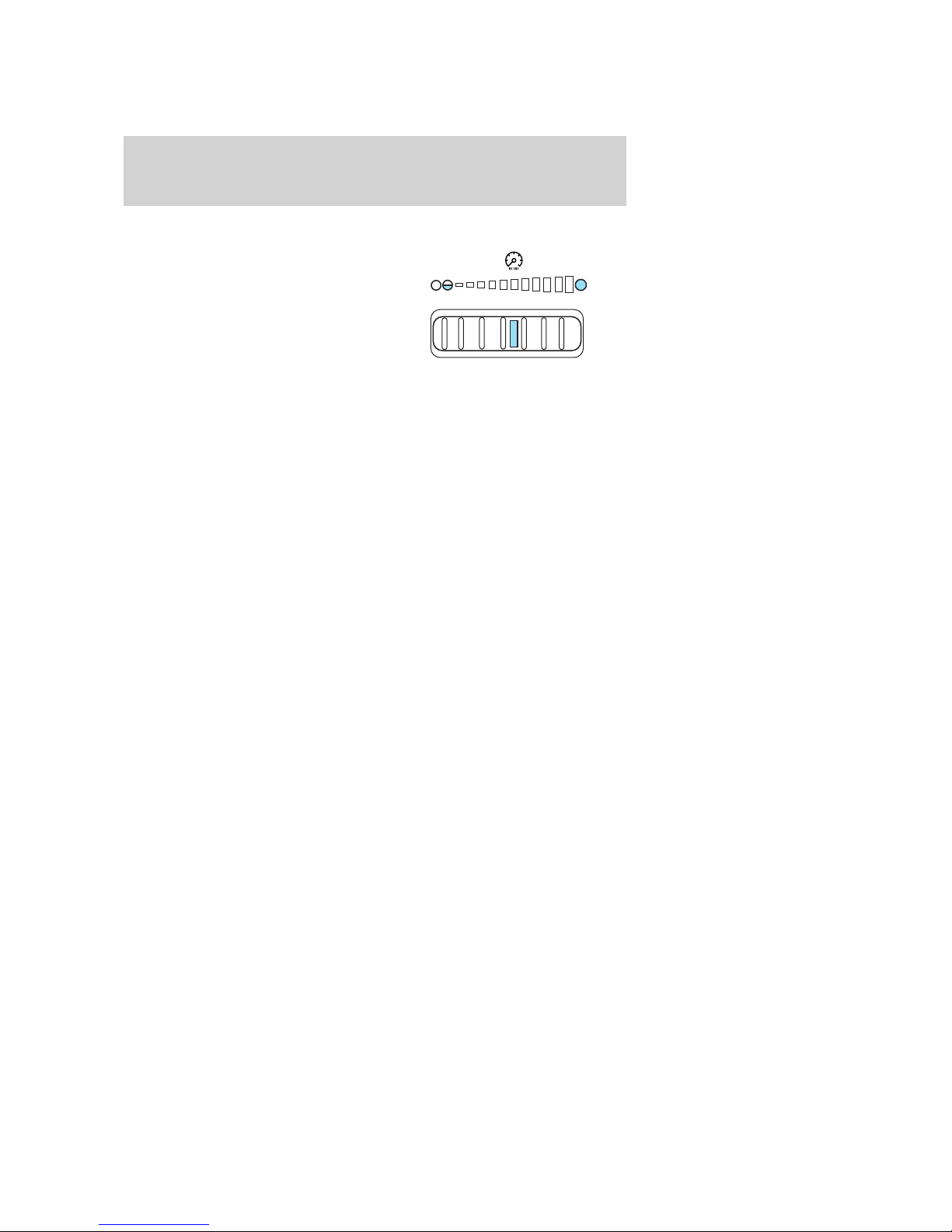

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel during headlight and parklamp operation.

• Rotate the thumbwheel from left to right to brighten the instrument panel.

• Rotate the thumbwheel from right to left to dim the instrument panel.

Your vehicle also contains a feature called “sleeping baby mode”—in which the dome lamps will remain off and only the lower lamps will illuminate. This lighting mode can be activated by rotating the thumbwheel to the first left detent position (as denoted by the half filled circle above).

Domelamp Control

The panel dimmer control also controls the domelamp operation.

• Rotate the thumbwheel fully to the right, past detent to activate the domelamp.

• In order to turn off the domelamp, rotate the thumbwheel to the left.

The dome lamp will not illuminate if the control switch is in the OFF position.

AIMING THE HEADLAMPS

The headlamps on your vehicle are properly aimed at the assembly plant.

If your vehicle has been in an accident the alignment of your headlamps should be checked by a qualified service technician.

You will need one #2 Phillips screwdriver to make the adjustments.

Vertical aim adjustment

1. Park the vehicle on a level surface approximately 7.6 meters (25 feet)

from a vertical wall or screen directly in front of it.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 42

Lights

• (1) Eight feet

• (2) Center height of lamp to

ground

• (3) Twenty five feet

• (4) Horizontal reference line

2. Measure the height from the center of your headlamp to the ground

and mark a 2.4 meter (8 foot) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). The center of the lamp is marked by a 0.5 mm circle on the headlamp lens.

3. Turn on the low beam headlamps to illuminate the wall or screen and

open the hood.

4. On the wall or screen you will

observe a light pattern with high intensity flat segments at the top edge of the pattern. If the flat edges are not at the horizontal reference line, the beam will need to be adjusted.

5. Locate the vertical adjuster on

each headlamp, then use a No. 2 Phillips screwdriver to turn the adjuster either counterclockwise (to adjust up) or clockwise (to adjust down) positioning the horizontal edge of the high intensity light on the horizontal reference line.

6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS

NON-ADJUSTABLE.

7. Close the hood and turn off the lamps.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 43

Lights

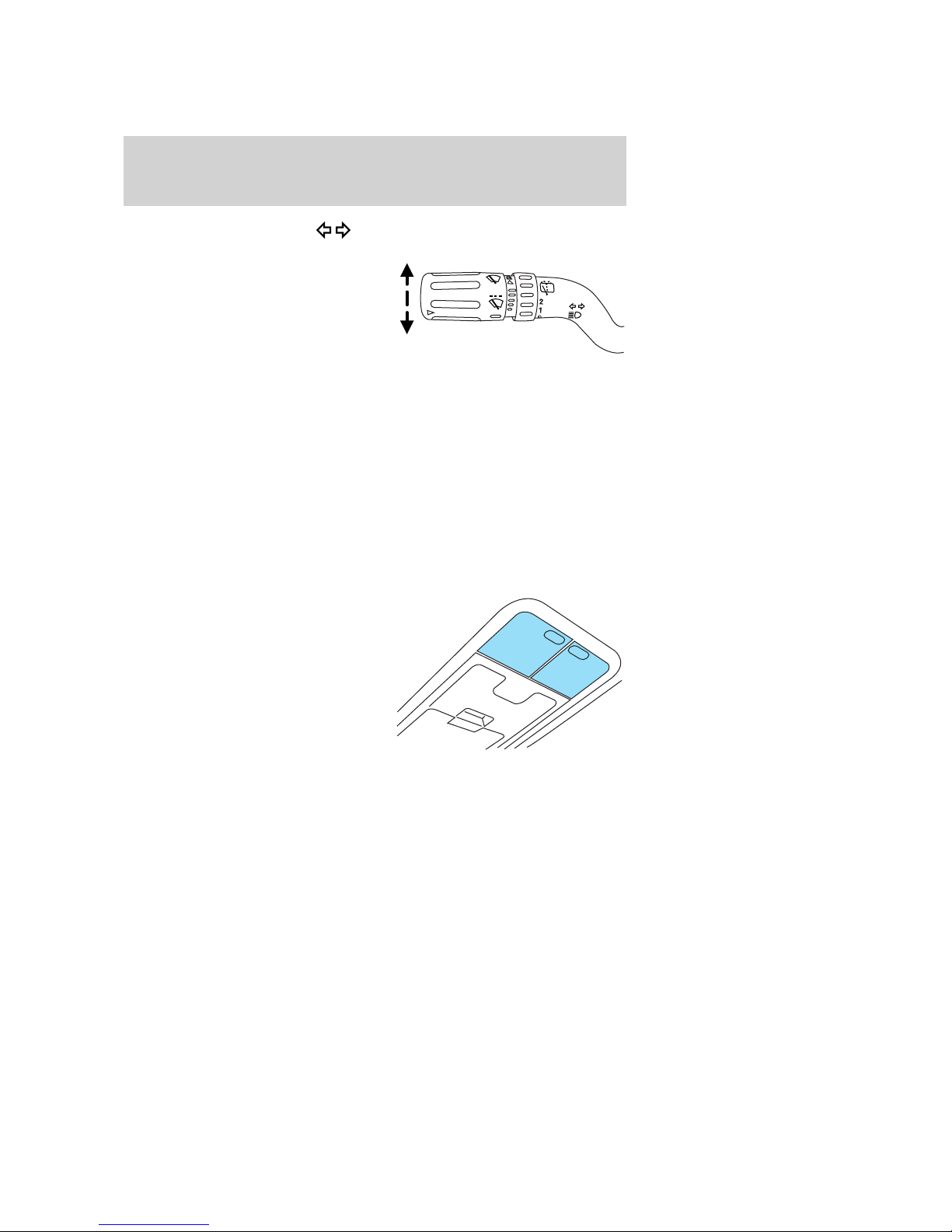

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

INTERIOR LAMPS

The interior lights illuminate when:

• any door is opened (and the operation switch is in the middle position).

• the instrument panel dimmer switch is moved to the passenger side position (right position).

• any of the remote entry controls are pressed and the ignition is OFF (an the operation switch is in the middle position).

Map lamps (if equipped)

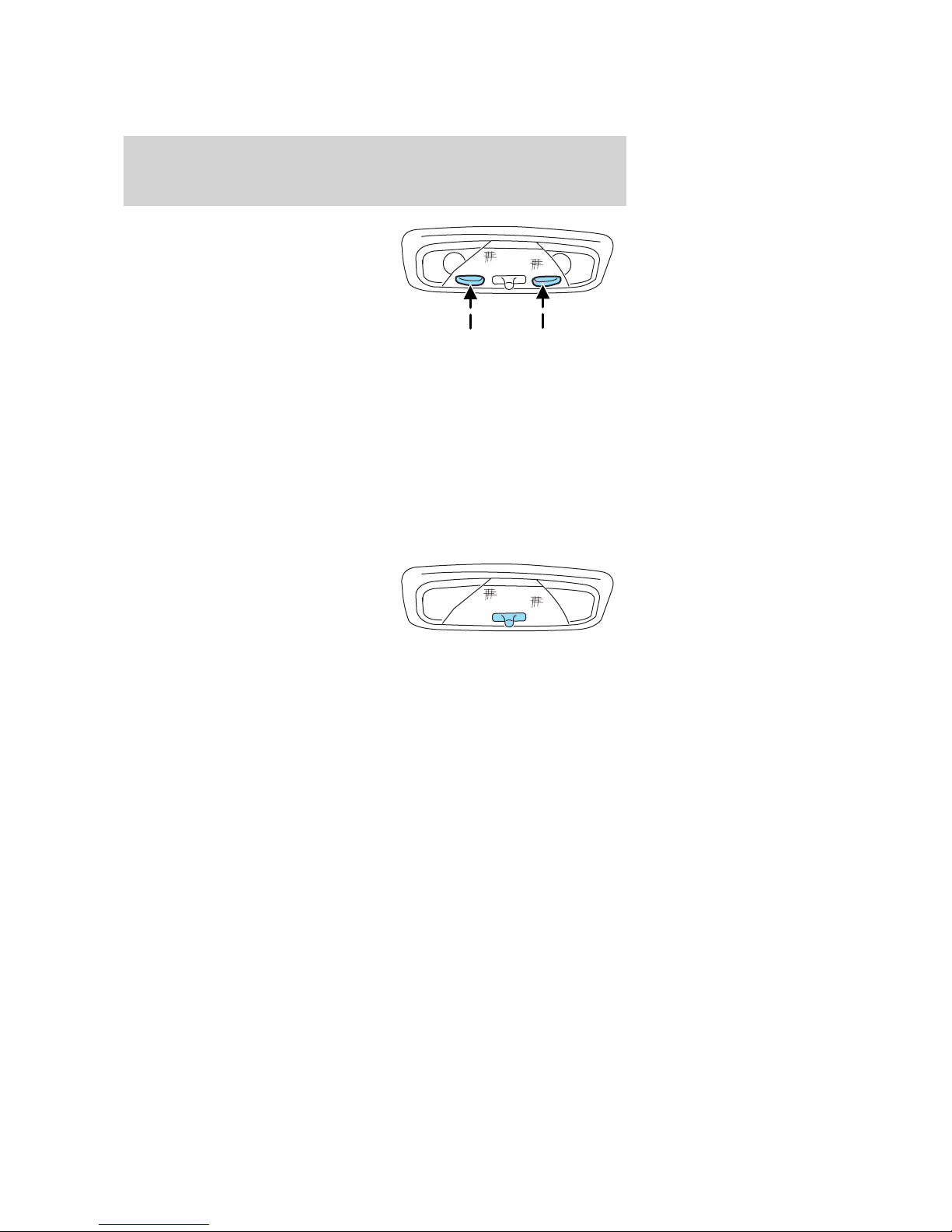

The map lamps and controls are located on the center overhead console. Press the raised portion on each lens to activate the lamps.

Second row & third row dome and map lamps (if equipped)

The second row dome and map lamps are located overhead, above the second row passenger seats.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 44

Lights

The dome lamp will stay on if the panel dimmer control is moved to the passenger side position. When the control is in the middle position, the lamp will only come on when a door is opened. If the control is moved to the driver’s side position, the lamp will not come on at all.

The dome lamp will illuminate whenever a front door is opened. If either front door has been opened from the outside, the lamp will remain on for 20 seconds after the door is shut. If any other door has been opened from the inside, the lamp will shut off immediately after the door is closed.

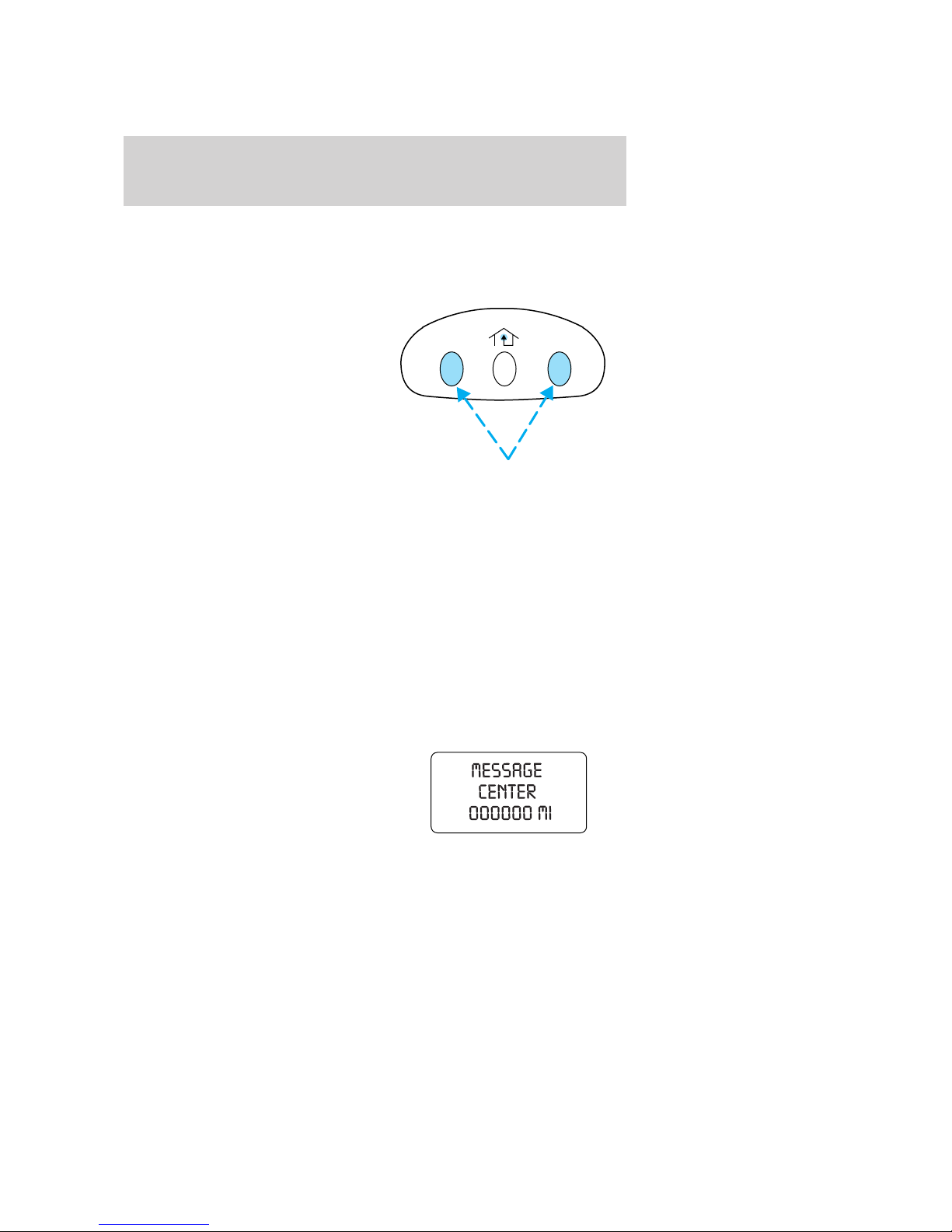

To activate the map lamps, press the control on either side of the center operation switch.

Dome lamps (if equipped)

The front dome lamp is located overhead between the driver and passenger seats.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 45

Lights

Cargo lamp

The cargo lamp will stay on if the control is moved to the driver side position. When the control is in the middle position, the lamp will only come on when a door is opened. If the control is moved to the passenger’s side position, the lamp will not come on at all.

With the ignition key in the ACCESSORY or ON position, the rear cargo lamp can be turned ON or OFF by sliding the control.

BULBS

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Trade Number

Headlamps H13 Front park/turn lamps 3457 AK (amber) Front side marker lamps 904NA (amber) Fog lamps H1 LL Rear license plate lamps W5WL High-mount brake lamp LEDs (see dealer) Rear tail/stop/turn lamps 3157K Backup lamps 3156K Dome lamp (first row) 10W sofitte Cargo lamp 10W sofitte Map lamps (second row) H6W Dome lamp (third row) 10W sofitte

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 46

Lights

Function Trade Number

Map lamps (overhead console) 906 Stepwell lamp T-562 Front seat footwell 194 Front door mounted courtesy lamp 168 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer.

Replacing headlamp bulbs

To remove the headlamp bulb:

1. Make sure headlamp switch is in the OFF position, then open the

hood.

2. Remove the two retainer pins to

release the headlamp assembly and pull headlamp assembly forward to expose the back of the bulb.

3. Disconnect the electrical

connector from the bulb by pulling rearward and unlock the bulb by rotating it counterclockwise.

Handle a halogen headlamp

bulb carefully and keep out of children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

Install the new bulb(s) in reverse order.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 47

Lights

Replacing front parking/turn/sidemarker signal bulbs

1. Make sure the headlamp switch is in the OFF position and open the hood.

2. Remove the two headlamp retaining pins to release the headlamp assembly, then pull the headlamp assembly forward to expose the bulb socket.

3. To remove the side marker bulb, turn the bulb socket counterclockwise, and pull the bulb straight out of the socket.

4. To remove the parking/turn bulb, turn the socket on the bottom of the headlamp assembly counterclockwise and pull the bulb straight out of the socket.

Install the new bulb(s) in reverse order.

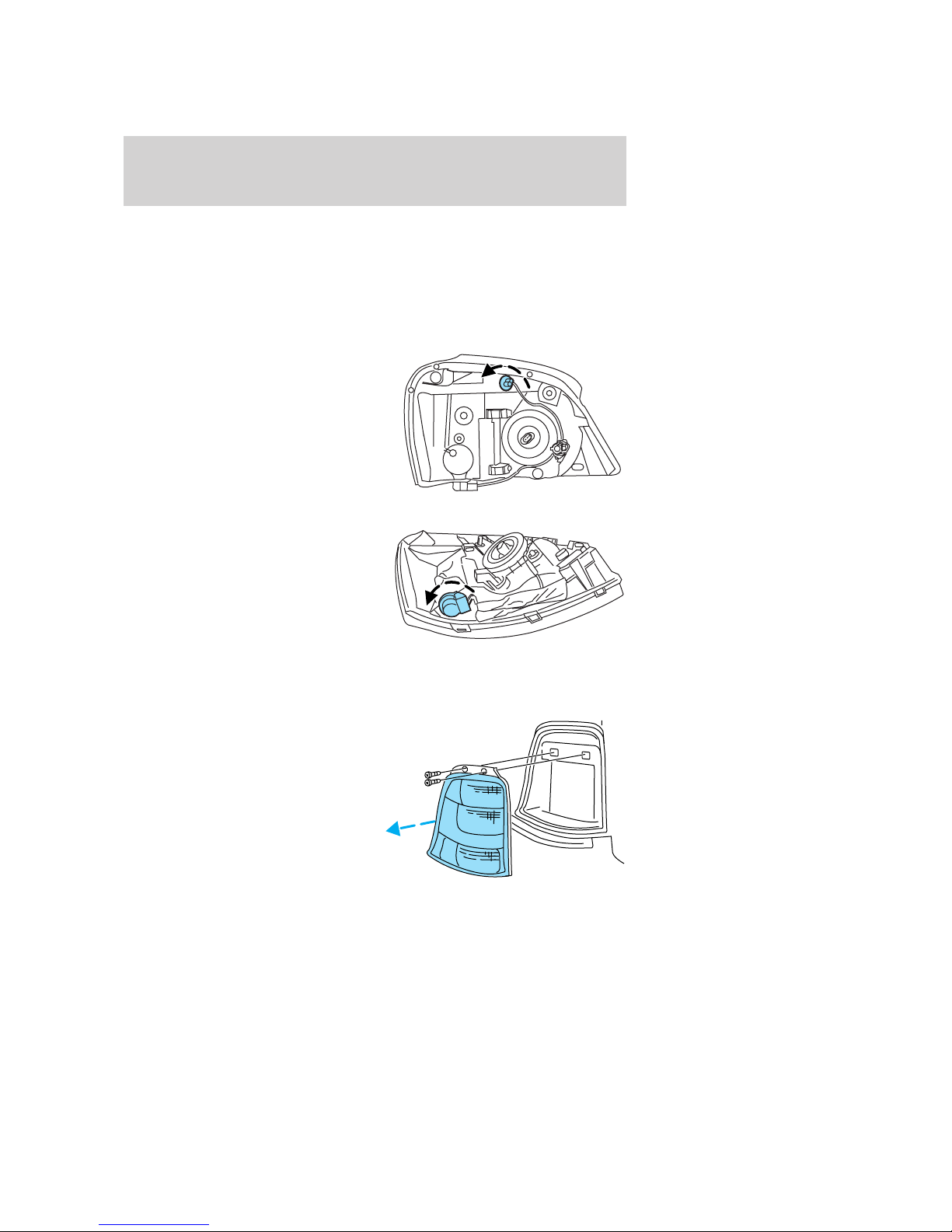

Replacing tail lamp/backup/turn lamp bulbs

1. Make sure the headlamp switch is in the OFF position and open the liftgate to expose the tail lamp assembly, then remove the retaining screws for the lamp assembly.

2. Carefully remove the lamp assembly.

3. Rotate bulb socket counterclockwise and remove from lamp assembly.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 48

Lights

4. Pull bulb straight out of socket and push in new bulb.

Install the new bulb(s) in reverse order.

Replacing high-mount brakelamp bulbs

For bulb replacement, see a dealer or qualified technician.

Replacing license plate lamp bulb

The license plate bulbs are located in the license plate housing assembly on the liftgate. To change the license plate bulbs:

1. Make sure the headlamp switch is in the OFF position.

2. Remove the license lamp screw from the assembly.

3. Pull the lamp down and twist the bulb socket counterclockwise. Remove the bulb socket from the lamp.

4. Pull out the old bulb and push in the new bulb.

5. Install the bulb socket in the lamp assembly by turning it clockwise.

6. Install the lamp assembly and secure it with the retaining screw.

Replacing foglamp bulbs

1. Make sure the foglamp switch is in the OFF position.

2. Remove the bulb socket from the foglamp by turning counterclockwise.

3. Disconnect the electrical connector.

Install the new bulb in reverse order.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 49

Driver Controls

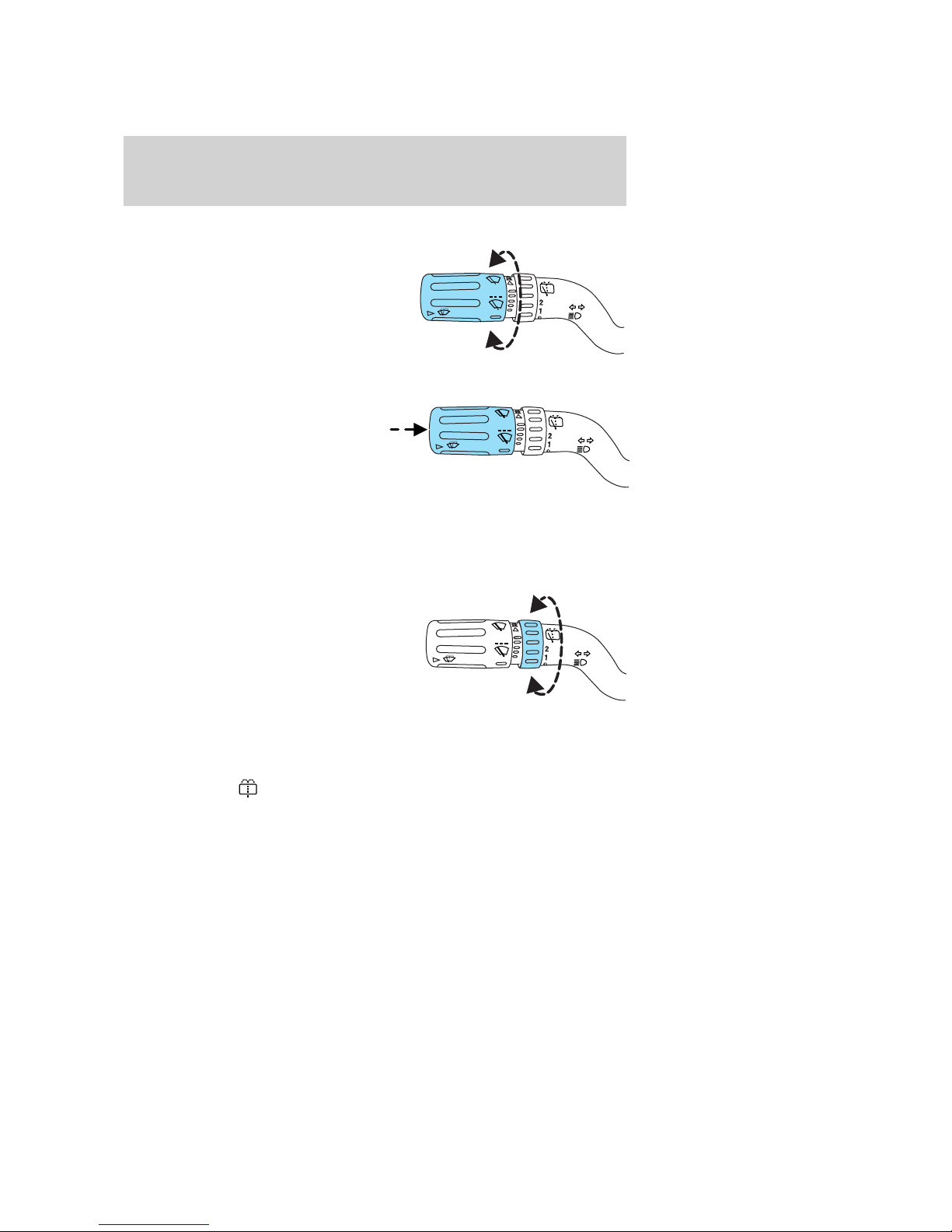

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.

Windshield washer: Push the end of the stalk:

• briefly: causes a single swipe of the wipers without washer fluid.

• a quick push and hold: the wipers will swipe three times with washer fluid.

• a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

Rear window wiper/washer controls

For rear wiper operation, rotate the rear window wiper and washer control to the desired position. Select:

INT 2 — One second interval rear wiper.

INT 1 — Ten second interval rear wiper.

OFF — Rear wiper and washer off.

For rear wash cycle, rotate (and hold as desired) the rear wiper/washer control to either

From either position, the control will automatically return to the INT2 or OFF position.

position.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 50

Driver Controls

Changing the wiper blades

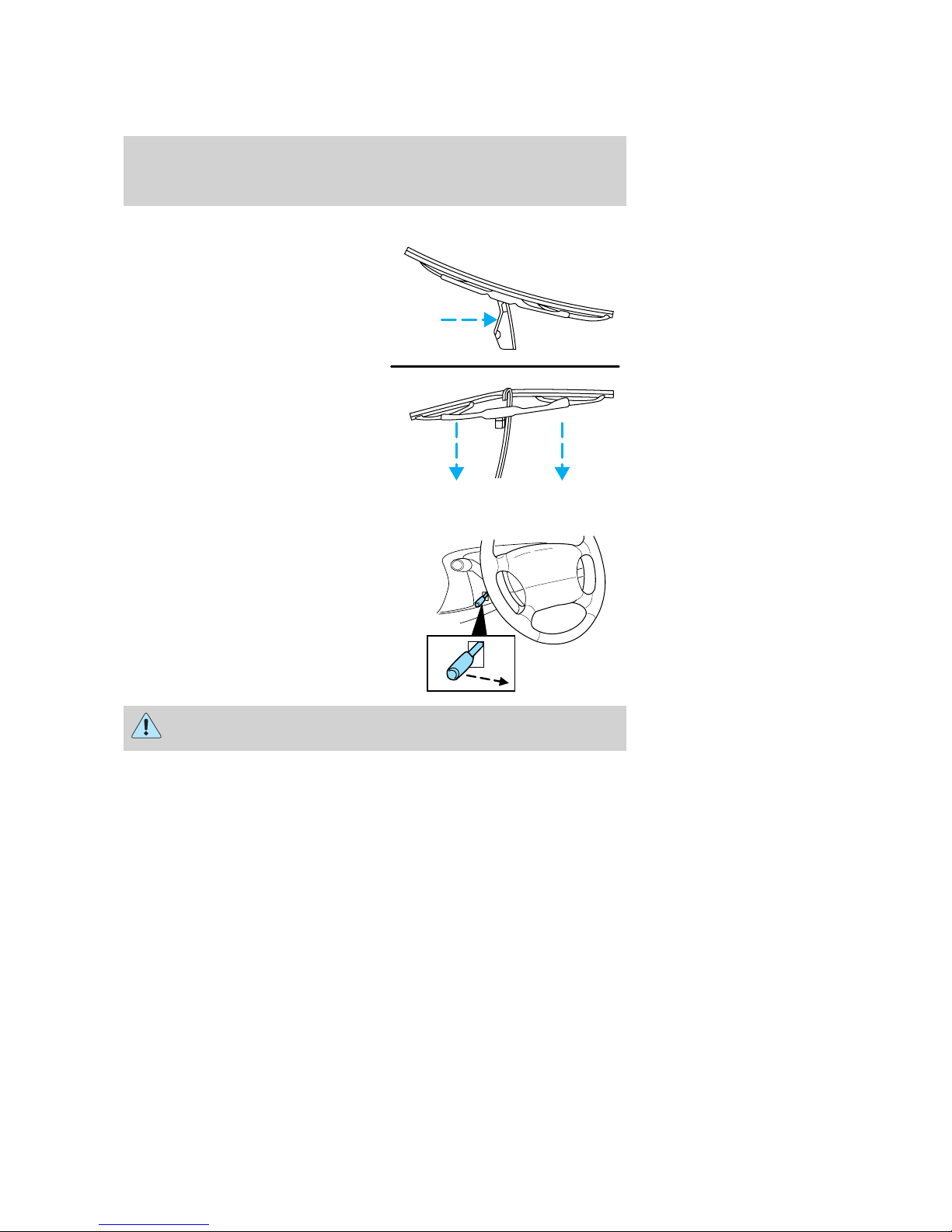

1. Pull the wiper arm away from the

vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.

2. Attach the new wiper to the

wiper arm and press it into place until a click is heard.

3. Replace wiper blades every 6

months for optimum performance.

TILT STEERING WHEEL

To adjust the steering wheel:

1. Pull and hold the steering wheel

release control toward you.

2. Move the steering wheel up or

down until you find the desired location.

3. Release the steering wheel

release control. This will lock the steering wheel in position.

Never adjust the steering wheel when the vehicle is moving.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 51

Driver Controls

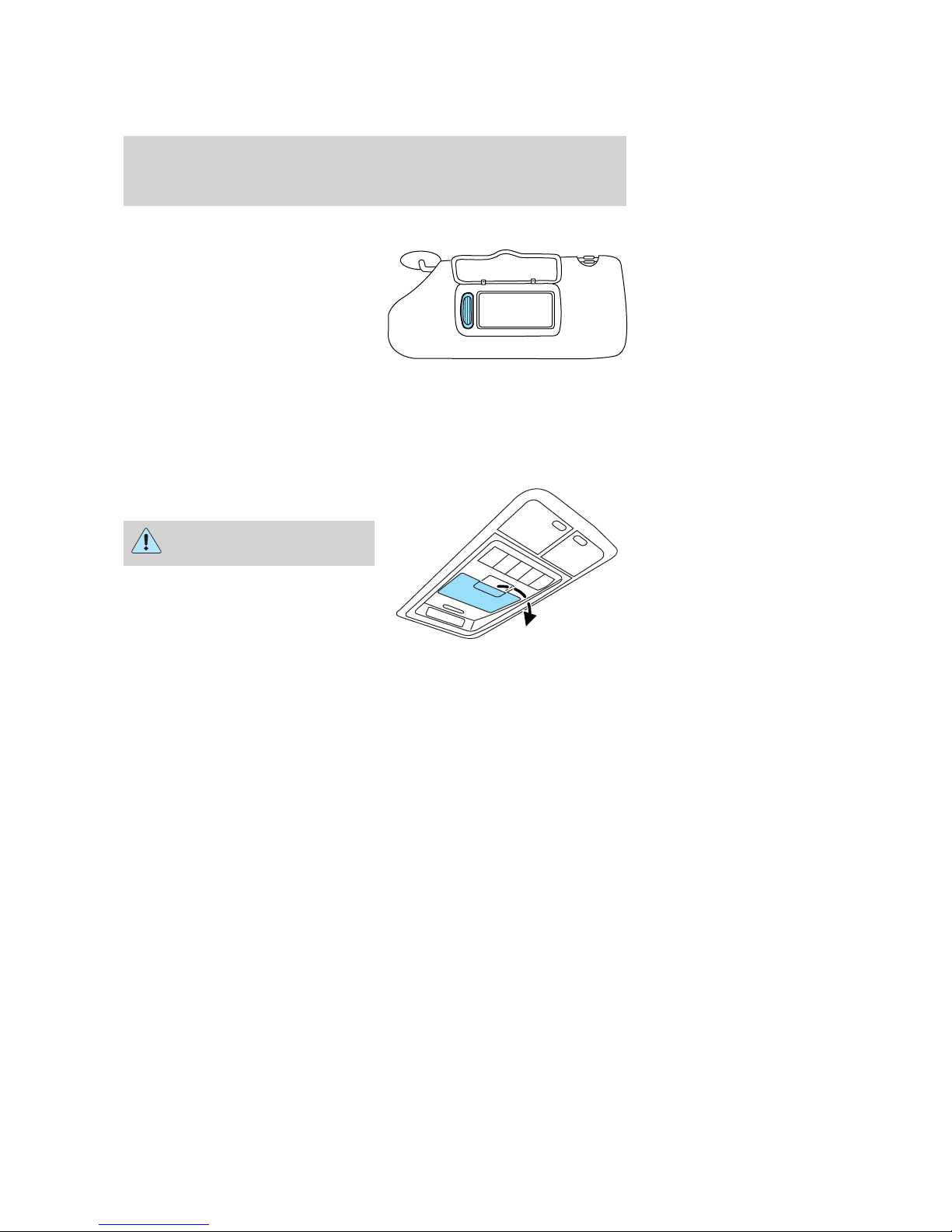

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the visor mirror lamp. The visor will slide back and forth on the rod for increased sunlight coverage.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.

Conversation mirror

The conversation mirror allows the driver to view the rear seating area.

This does not replace the rear view mirror.

Refer to Power Sliding Doors (PSD)(if equipped) in this chapter for operation of doors.

Electronic compass/temperature display (if equipped)

The overhead console may have an electronic compass and outside air temperature display. The compass heading and outside air temperature are displayed together - side by side. The display, as a whole, can be turned on or off by pressing the momentary push-button on the overhead console. When the vehicle is turned off, the electronics display will remember the last display state.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 52

Driver Controls

Outside air temperature

The temperature can be displayed in either Centigrade or Fahrenheit. This is controlled via the Message Center. Please refer to the Message Center in this chapter to change from English to metric. The ignition key must be in the ON or ACCESSORY position.

If the outside temperature falls below 3°C (38°F), the display will alternate from “ICE” to the outside temperature at a two second rate for one minute.

Compass

The vehicle heading is displayed as one of N, NE, E, SE, S, SW, W and NW.

The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in or on the vehicle may also affect compass accuracy. Adjustments may need to be made to the zone and calibration of the compass.

Zone variation mode

1. Determine which magnetic zone

you are in by referring to the zone map.

2. Turn the ignition to the ON

position.

123

14 13

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

6 7 8 9 1011

Page 53

Driver Controls

3. Press and hold the momentary

push-button for approximately 4 seconds, until VAR is displayed, then release it. (Pressing the momentary push-button for 8 seconds de-calibrates the compass—see Compass

Calibration Mode).

4. Press the button to increment the

VAR number to the desired VAR number. Wait 5 seconds without button activity and the compass will return to the heading mode.

Note: If there is no button activity for 5 seconds, the compass writes the displayed zone VAR number to memory and exits Zone Variation Mode

Compass calibration mode

1. Press the momentary push button

and hold it for more than 8 seconds. After 8 seconds, CAL is displayed, then release it.

Note: After button release CAL will be displayed with a heading. The compass is now de-calibrated and enters the Initial AutoCal Mode.

2. Drive the vehicle in a tight circle

in a magnetically clean area such as an open parking lot. Drive at a rate not faster than 15 seconds per circle (5 MPH).

Note: Look for a parking lot away from buildings, light posts, manhole covers, sewer and drainage grates and other metallic objects. Some magnetic objects may be hidden underground. Look for signs of underground utilities, water mains or other industrial structures. The parking lot should be level and have a smooth surface. Blacktop is preferred over cement as a cement surface often contains iron reinforcing bars or metallic mesh that could interfere with the calibration process.

• The CAL indication will turn off when the calibration process is complete, leaving the compass heading on the display.

Note: This process normally takes about 1 if magnetic noise is present or if the circles are driven too fast.

⁄2circles but may take longer

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 54

Driver Controls

SLIDING DOOR OPERATION

Manual door operation

If equipped with a Power Sliding Door (PSD), turn the Power Door Lockout control on the overhead console to the OFF position. Refer to the Disabling power operation of the PSD section in this chapter for more information.

Note: Before unlatching the left side door, verify that the fuel fill door is closed. The left hand door will not open if the fuel door is open.

Slide the door carefully in a controlled manner to the full open position. At the end of travel, firmly push the door against the bump stop to engage the hold open mechanism to restrain the door. When operating the door on a gradient, special care should be taken to manually control the opening and closing speed of the door.

If the door is allowed to slide open or closed unrestrained, personal injury or damage to the door could result.

When closing the sliding door, keep the head, hands and other body parts of vehicle occupants out of the path of the closing door. Slide the door closed in a careful, controlled manner.

When closing the sliding doors, you should verify they are free of

obstructions and ensure that children and/or pets are not in the proximity of the sliding door openings. Injury could result if body parts are caught or pinched in an uncontrolled sliding door.

Manual door operation when vehicle is stopped or parked on a downhill grade

In some cases it may be necessary to have someone hold the door while rear seat passengers are entering or exiting the vehicle. The hold open mechanism will restrain the door open when the vehicle is parked on moderate downhill grades. On more severe grades,

the operator should ensure that the open door is stable and secure against the stop, before allowing passengers to enter or exit the vehicle or before loading/unloading cargo.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 55

Driver Controls

Vehicle operation with the door in the open position is not

recommended. Abrupt vehicle acceleration or deceleration could cause

the door to move suddenly and could result in injury or damage to the door.

If the vehicle is parked on a downhill grade, the door could slam

shut and could result in injury or damage to the door. Ensure that the open door is secure against the stop before allowing passengers to enter or exit the vehicle.

Power Sliding Door (PSD) (if equipped)

With this option, you can open and close the sliding door(s) with the controls inside your vehicle.

Opening and closing the PSD

The sliding door must be unlocked for the PSD to power open.

The PSD will operate without the key in the ignition. The transaxle must be in PARK to open the PSD, when the key is in the ignition and turned to the ON position.

The fuel filler door must be closed for the left door to operate. The Power Door Lockout Control is located in the overhead console.

When opening or closing the sliding doors, you should verify

they are free of obstructions and ensure that children and/or pets are not in the proximity of the sliding door openings. Injury could result if body parts are caught or pinched in an uncontrolled sliding door.

With the Power Door Lockout Control in the ON position, either sliding door can be opened or closed by:

• pushing and releasing the overhead console right or left hand control. Pressing this control will also simultaneously unlock all doors.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 56

Driver Controls

• pushing and releasing the right or left hand second row passenger control. The control(s) are located on the trim panel in front of the sliding door.

• manually pulling the inside or outside sliding door handle.

• by manually moving the door when the door is in the open position. Manually pull the door about 6 inches in the desired direction of travel. The power door assist will take over and complete the open or close operation.

• operating the remote transmitter. Refer to the Remote entry system section in this chapter. Operating the transmitter will also simultaneously unlock the doors.

Pressing any of the switches, overhead console, second row passenger, or remote transmitter while the door is moving will cause the door to either reverse direction or stop depending on the position and direction of movement of the door.

Disabling PSD power operation

Pressing the Power Door Lockout Control to the OFF position prevents power operation of the PSD using the rear seat control(s), inside or outside handle or by manually moving the door. With the PSD rear controls disabled, the door(s) can be opened manually with the inside or outside handles. With the Power Door Lockout control in the OFF position, the overhead console right and left hand controls and the Remote Entry System remain functional. Disabling the PSD may be desirable to prevent power operation of the door by rear seat passengers or if manual operation of the door is desired or necessary when the vehicle is stopped or parked on a steep downhill grade.

Refer to the Manual operation of the sliding door section in this chapter for more information.

With the child safety lock engaged, the inside handle operation will always be disabled regardless of the position of the Power Door Lockout control. Refer to the Sliding door child safety lock section in this chapter for more information. The trim mounted rear seat control and the outside handle remain functional for power operation.

Safety/Obstructions

If anything obstructs the Power Sliding Door while it is power closing or opening, the door will automatically reverse or stop depending on the position of the door, provided it meets sufficient resistance.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 57

Driver Controls

Resetting the PSD

The power sliding door may operate incorrectly or not at all because of the following conditions:

• a low voltage or dead battery

• the door is left opened for more than 6 hours

• the battery is disconnected

• the PSD Passenger compartment fuse panel fuse (fuse #11) is

removed or blown. Refer to Fuses and relays in the Roadside Emergencies chapter.

If any of the above conditions has occurred, perform the following steps to reset the PSD so that electronics can relearn the open and closed positions:

1. Check to see if PSD is securely closed.

2. Make sure the gearshift is in (P) Park.

3. Push the PSD control on the overhead console to open the door.

4. Wait five (5) seconds and close the door by pressing the PSD control

on the overhead console.

5. Wait five (5) seconds and repeat Steps 3 and 4 then go on to step 6.

6. Repeat steps 3–5 for opposite door.

If the door still does not operate correctly:

7. Ensure the ignition is in the OFF position

8. Remove the PSD fuse (fuse #11) from the passenger fuse panel and

leave it out for thirty (30) seconds. Refer to the chapter on Fuses and Relays. Refer to Fuses and relays in the Roadside emergencies chapter.

9. Reinstall the fuse and wait ten (10) seconds.

10. Repeat steps 1–6 above.

If the door still does not operate correctly, see your dealer for service.

Sliding Door Child Safety Lock

Your vehicle is equipped with a sliding door child safety lock that helps prevent passengers from operating the sliding door by using the inside door handle, refer to the Child safety locks section in this chapter.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

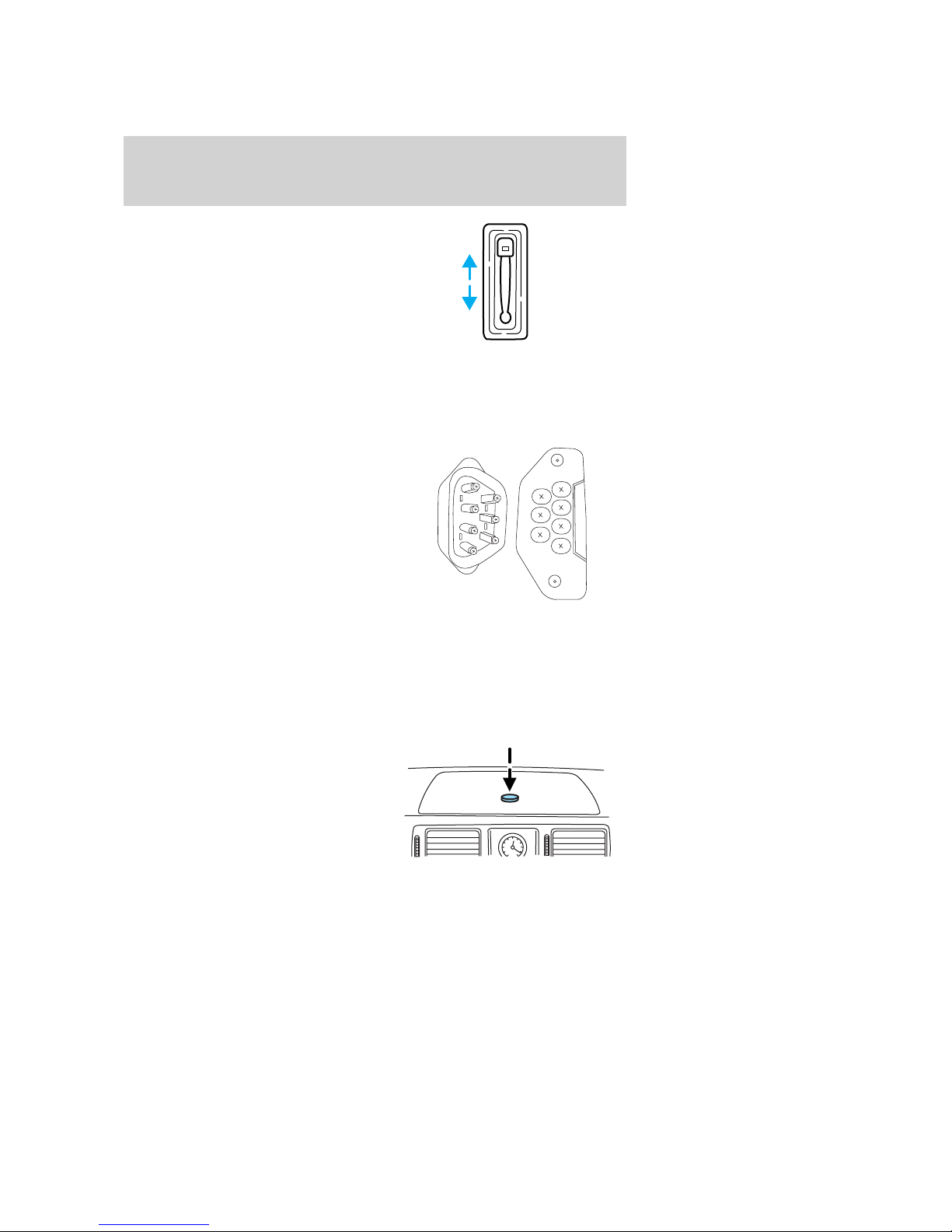

Page 58

Driver Controls

To open the sliding door when the child safety lock is on:

• Unlock the sliding door and open the door from the outside.

• Press the right or left hand control on the overhead console or the remote to open the door.

• The second row passenger switch will still be functional to open the door. To prevent the second row passenger from operating the PSD, turn the Power Door Lockout control to the OFF position.

Cleaning the Sliding Door Contacts

The sliding door contact switches provide electrical information between the sliding door and body, which control the power locks and the power sliding door (if equipped). Care should be taken while using waxes or polishes to avoid contaminating the electrical contact surfaces. Beverage and other spills on the surfaces should be cleaned immediately with a soap and water solution and dried with a clean towel. Never use any abrasives or dielectric grease on the contact surfaces. Periodically wiping the surfaces with a soft clean cloth or paper towel will help remove oxidation due to normal use. Refer to the Scheduled Maintenance Guide for additional information.

INSTRUMENT PANEL STORAGE COMPARTMENT

The storage compartment may be used to secure sunglasses or similar sized objects. Press the control to open the storage compartment.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

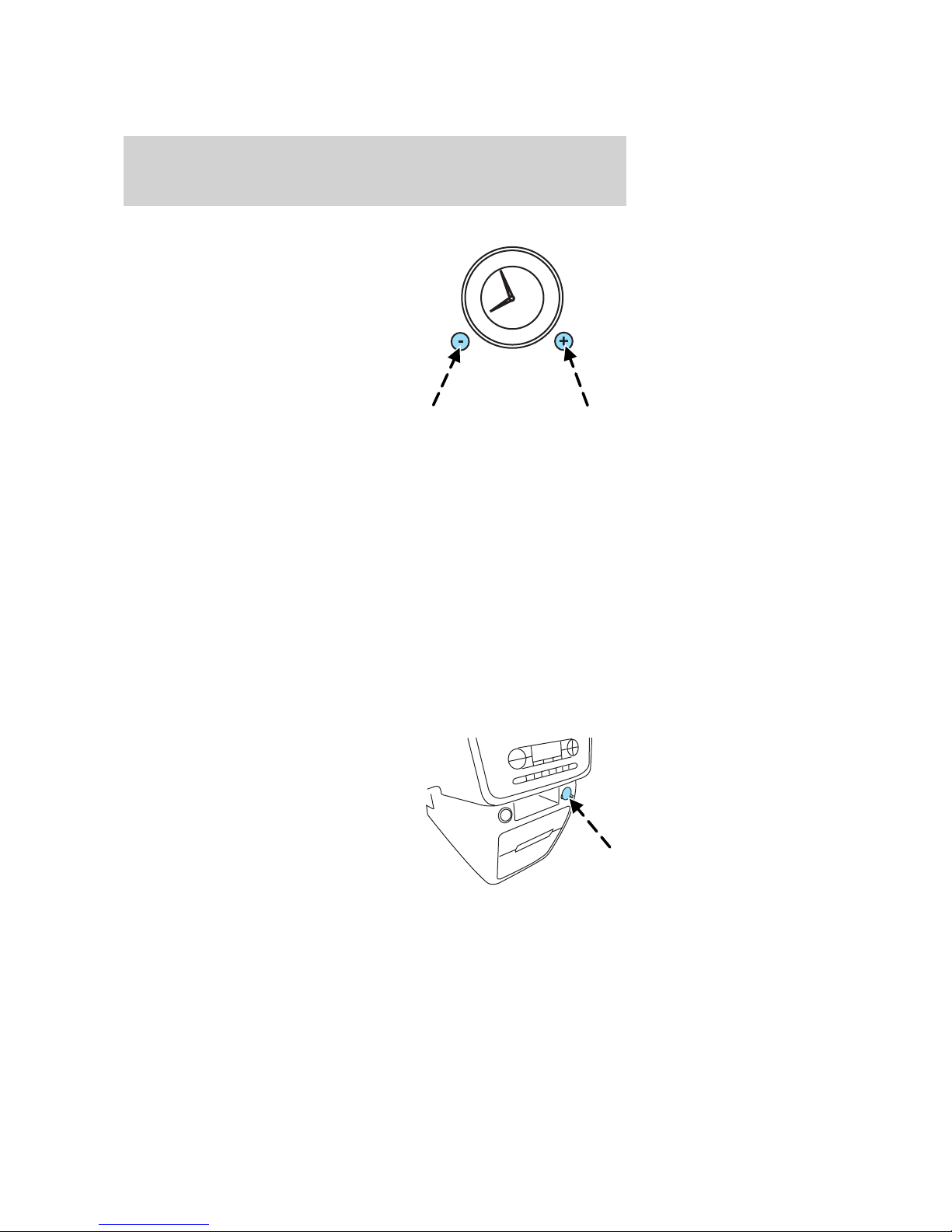

Page 59

Driver Controls

CLOCK (IF EQUIPPED)

Press the right + control to move the time display forward.

Press the left - control to move the time display backwards.

AUXILIARY POWER POINT

Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.

Do not plug optional electrical accessories into the cigarette lighter. Use the power point.

Do not use the power point for operating the cigarette lighter element.

The Maximum power each power point can supply depends on the fuse rating. For example: a 20A fuse should supply a maximum of 240 Watts, a 15A fuse should supply a maximum of 180 Watts and a 10A fuse should supply a maximum of 120 Watts. Exceeding these limits will result in a blown fuse.

Always keep the power point caps closed when not being used.

There are up to three auxiliary power points in the following locations:

• Located on the instrument panel.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 60

Driver Controls

• Located next to the second row seat.

• Located on the right trim panel in the rear cargo area.

POWER WINDOWS

When closing the power

windows, you should verify they are free of obstructions and ensure that children and/or pets are not in the proximity of the window openings.

Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 61

Driver Controls

One touch down

Allows the driver’s window to open fully without holding the control down. Press completely down on the bottom part of the rocker switch and release quickly. Press the top part of the rocker switch to stop.

Accessory delay

With accessory delay, the window switches and radio may be used for up to ten minutes after the ignition switch is turned to the OFF position or until either front door is opened.

Power vent windows

The power vent windows are operated by a single switch located on the instrument panel. Press and hold the bottom of the switch to open or the top of the switch to close both vent windows.

A sound will be heard when opening and closing the vent windows. This is a normal noise that informs you the windows are operating.

MIRRORS

Automatic dimming inside rear view mirror (if equipped)

Your vehicle may be equipped with an inside rear view mirror with an auto-dimming function. The electronic day/night mirror will change from the normal state to the non-glare state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse)(when the mirror is on) to ensure a bright clear view when backing up.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 62

Driver Controls

Do not block the sensor on the backside of the inside rear view mirror since this may impair proper mirror performance.

Will automatically adjust (darken) to minimize glare.

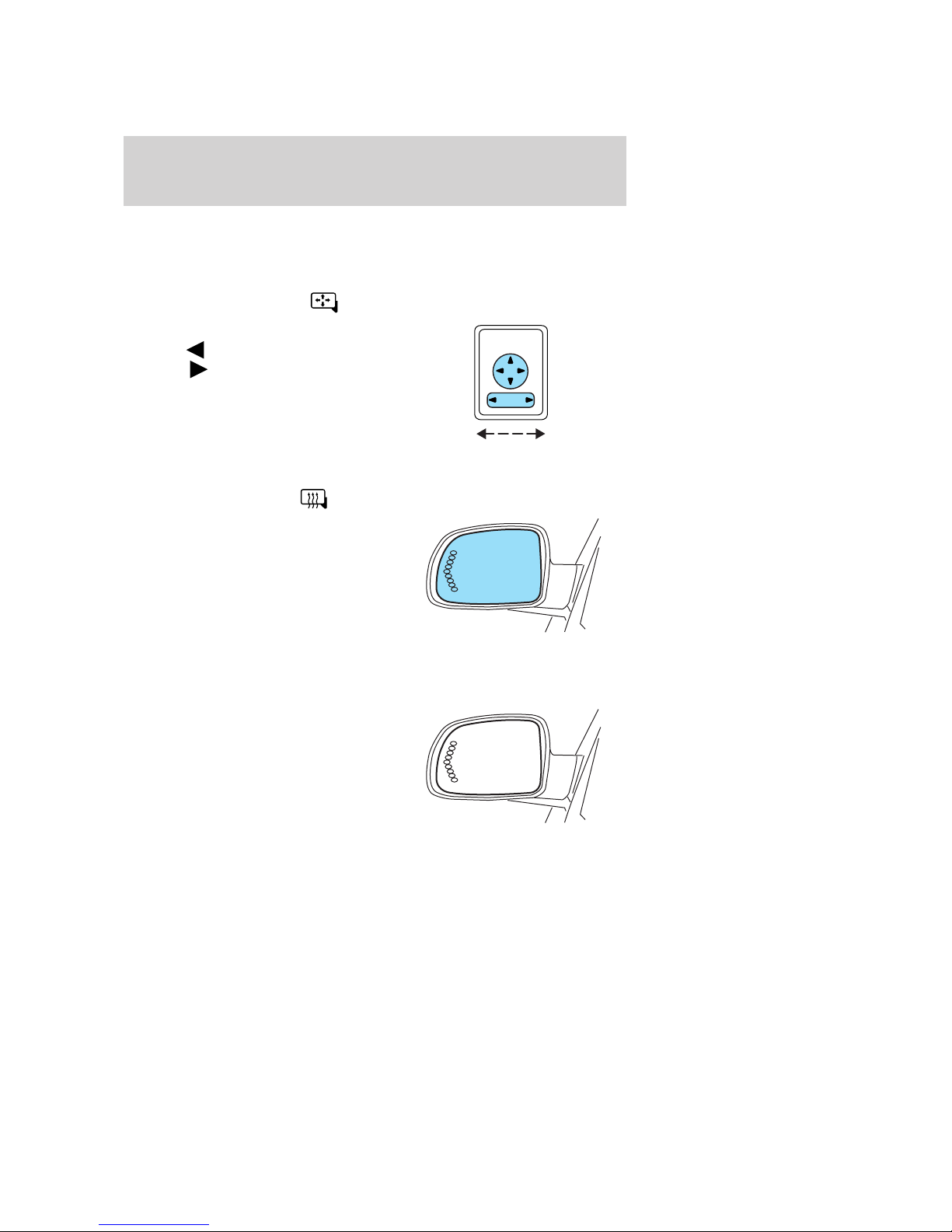

Power side view mirrors

To adjust your mirrors:

1. Select to adjust the left mirror or

mirror.

2. Move the control in the direction you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

to adjust the right

Heated outside mirrors

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Signal indicator mirrors (if equipped)

When the turn signal is activated, the appropriate mirror will show a blinking yellow arrow. When the park lamps are on, the blinking arrow will be dimmer.

The arrow provides an additional warning to other drivers that your vehicle is about to turn.

When the sliding door is open, the indicator in the appropriate mirror will flash indicating people may be entering/exiting the vehicle.

(if equipped)

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 63

Driver Controls

Fold-away mirrors

Pull the side mirrors in carefully when driving through a narrow space, like an automatic car wash.

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)

The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position.

Press and hold the rocker control to adjust accelerator and brake pedal toward you or away from you.

The adjustment allows for approximately 73 mm (2.8 inches) of maximum travel.

Never adjust the accelerator and brake pedal with feet on the

pedals while the vehicle is moving.

SPEED CONTROL

With speed control set, you can maintain a speed of 48 km/h (30 mph) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 48 km/h (30 mph).

If your vehicle is equipped with AdvanceTrac娂 system, the speed control will automatically disengage when the road conditions change. When driving conditions permit you can return to speed control by pressing RESUME on the speed control. For more information on the AdvanceTrac娂 system see AdvanceTrac娂 Stability Enhancement System section in the Driving chapter.

Do not use the speed control in heavy traffic or on roads that

are winding, slippery or unpaved.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 64

Driver Controls

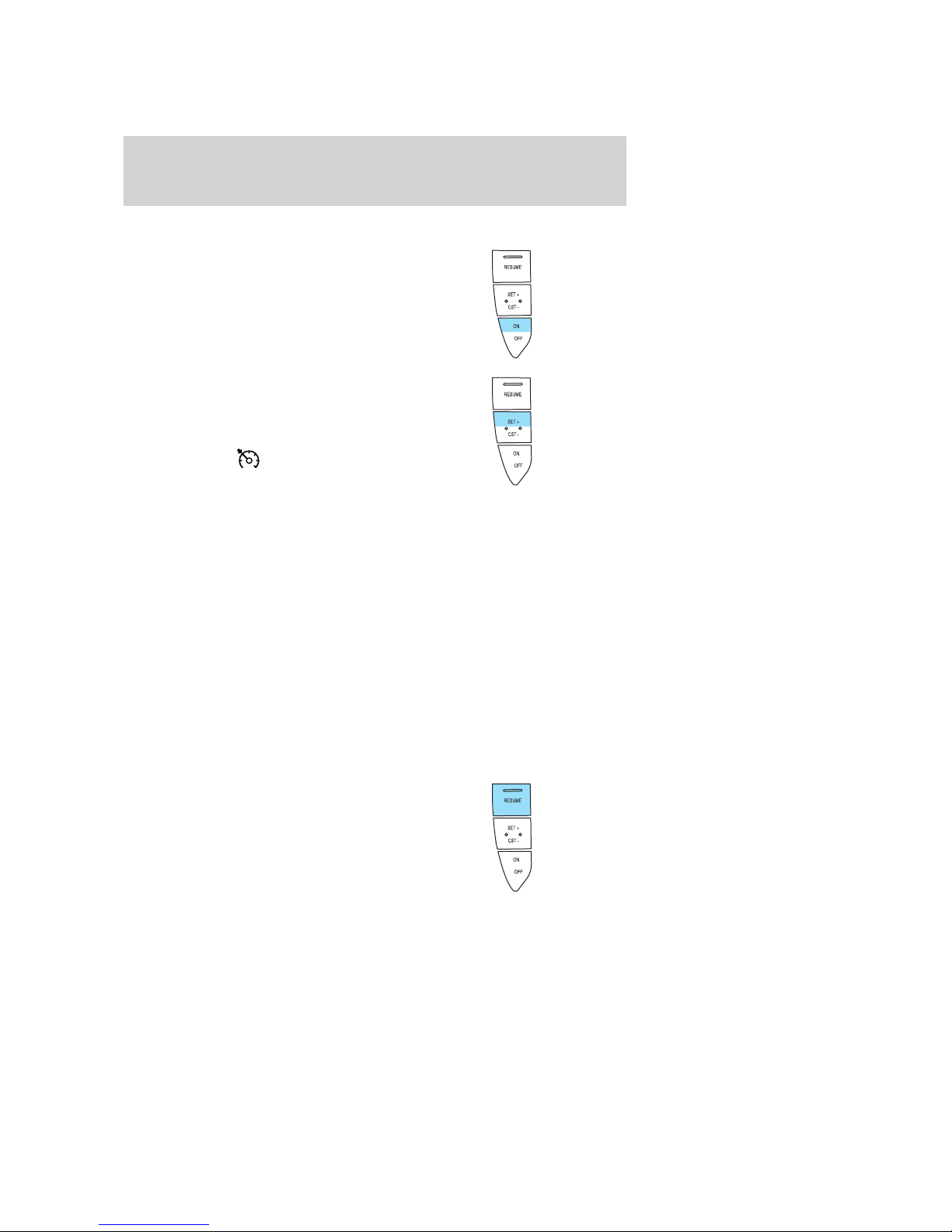

Setting speed control

The controls for using your speed control are located on the steering wheel for your convenience.

1. Press the ON control and release it.

2. Accelerate to the desired speed.

3. Press the SET + control and release it.

4. Take your foot off the accelerator pedal.

5. The indicator instrument cluster will turn on.

Note:

• Vehicle speed may vary momentarily when driving up and down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage.

light on the

Disengaging speed control

To disengage the speed control:

• Depress the brake pedal

Disengaging the speed control will not erase previous set speed.

Resuming a set speed

Press the RESUME control and release it. This will automatically return the vehicle to the previously set speed. The RESUME control will not work if the vehicle speed is not faster than 48 km/h (30 mph).

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 65

Driver Controls

Increasing speed while using speed control

There are two ways to set a higher speed:

• Press and hold the SET + control until you get to the desired speed, then release the control. You can also use the SET + control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1.6 km/h (1 mph).

• Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET + control.

Reducing speed while using speed control

There are two ways to reduce a set speed:

• Press and hold the CST - control until you get to the desired speed, then release the control. You can also use the CST control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1.6 km/h (1 mph).

• Depress the brake pedal until the desired vehicle speed is reached, press the SET + control.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

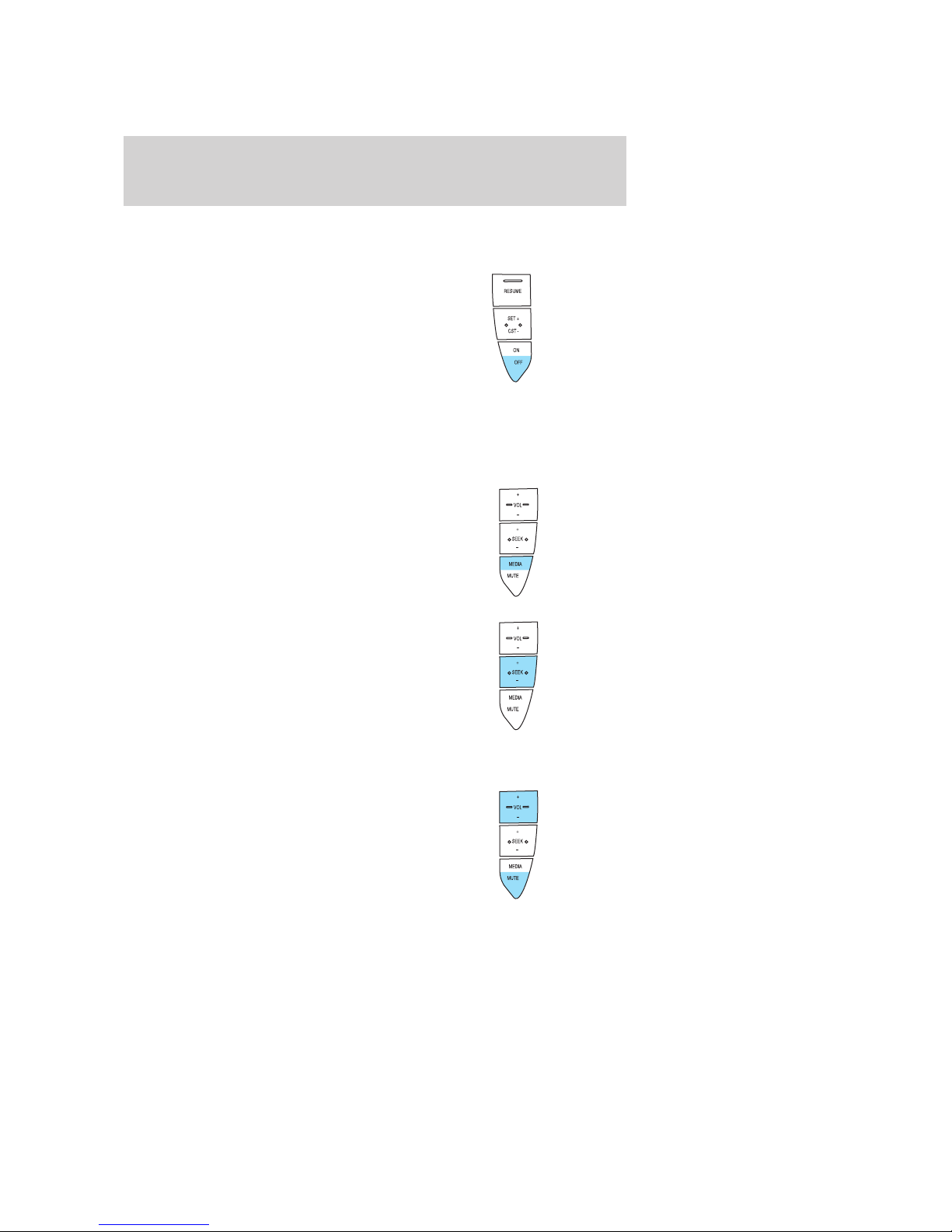

Page 66

Driver Controls

Turning off speed control

There are two ways to turn off the speed control:

• Depress the brake pedal. This will not erase your vehicle’s previously set speed.

• Press the speed control OFF control.

Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

STEERING WHEEL CONTROLS (IF EQUIPPED)

RADIO CONTROL FEATURES

• Press MEDIA to select AM, FM1, FM2, TAPE or CD (if equipped).

In Radio mode:

• Press SEEK to access the next/previous strong station.

In Tape mode:

• Press SEEK to listen to the next selection on the tape.

In CD mode:

• Press SEEK to listen to the next track on the disc.

In any mode:

• Press VOL up or down to adjust the volume.

• Press MUTE to mute the volume.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 67

Driver Controls

CENTER CONSOLE (IF EQUIPPED)

Your vehicle may be equipped with a variety of console features. These include:

• Utility compartment

CELL PHONE USE

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle.

The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

POSITIVE RETENTION FLOOR MAT (IF EQUIPPED)

To install floor mats that have a retention post:

Position the floor mat so that the eyelet is over the pointed end of the retention post and rotate forward to lock in. Make sure that the mat does not interfere with the operation of the accelerator or the brake pedal. To remove the floor mat, reverse the installation procedure.

To install floor mats that have a screw in retainer:

1. Move the driver’s seat to the most rearward position

2. Position the driver’s side floor mat with the rear of the mat against left (outboard) front edge of seat track mounting bracket.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 68

Driver Controls

3. Use a screwdriver to screw locator post into vehicle carpeting. Exert pressure while turning to pierce the carpeting.

When installed properly, the locator will not screw down tightly, but will rotate freely.

Use only Ford original Equipment floor mats. Do not stack multiple floor mats over the Ford original equipment floor mats as they are not positively retained.

HOMELINK姞 WIRELESS CONTROL SYSTEM (IF EQUIPPED)

The HomeLink威 Wireless Control System, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most current transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting.

When programming your HomeLink威 Wireless Control System to

a garage door or gate, be sure that people and objects are out of the way to prevent potential harm or damage.

Do not use the HomeLink威 Wireless Control System with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information, contact HomeLink威 at: www.homelink.com or 1–800–355–3515.

Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLink威 equipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed Homelink威 buttons be erased for security purposes, refer to Programming in this section.

Programming

Do not program HomeLink威 with the vehicle parked in the garage.

Note: Your vehicle may require the ignition switch to be turned to the

ACC position for programming and/or operation of the HomeLink威.Itis also recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLink威 for quicker training and accurate transmission of the radio-frequency signal.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 69

Driver Controls

1. Press and hold the two outside buttons releasing only when the red light begins to flash after 20 seconds. Do not repeat step one to program additional hand-held transmitters to the remaining two HomeLink威 buttons. This will erase previously programmed hand-held transmitter signals into HomeLink威.

2. Position the end of your hand-held transmitter 2–8cm(1–3 inches) away from the HomeLink威 button you wish to program (located on your visor) while keeping the red light in view.

3. Simultaneously press and hold both the HomeLink威 and hand-held transmitter button. Do not release

the buttons until step 4 has been completed.

Some entry gates and garage door openers may require you to replace step 3 with procedures noted in the “Gate Operator and Canadian Programming” in this section for Canadian residents.

4. The red light will flash slowly and then rapidly. Release both buttons when the red light flashes rapidly. (The rapid flashing light indicates acceptance of the hand-held transmitters’ radio frequency signals.)

5. Press and hold the just-trained HomeLink威 button and observe the red light. If the light is a constant red, programming is complete and your device should activate when the HomeLink威 button is pressed and released. Note: To program the remaining two HomeLink威 buttons, begin with step 2 in the “Programming” section — do not repeat step 1.

Note: If the red light blinks rapidly for two seconds and then turns to a continuous red, proceed with steps 6 through 8 to complete programming of a rolling code equipped device.

6. At the garage door opener receiver (motor-head unit) in the garage, locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit).

7. Press and release the “learn” or “smart” button. (The name and color of the button may vary by manufacturer.)

Note: There are 30 seconds in which to initiate step eight.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 70

Driver Controls

8. Return to the vehicle and firmly press, hold for two seconds and release the HomeLink威 button. Repeat the press/hold/release sequence again, and, depending on the brand of the garage door opener (or other rolling code equipped device), repeat this sequence a third time to complete the programming.

HomeLink威 should now activate your rolling code equipped device. To program additional HomeLink威 buttons begin with step 2 in the “Programming” section. For questions or comments, please contact HomeLink at www.homelink.com or 1–800–355–3515.

Gate Operator & Canadian Programming

During programming, your hand-held transmitter may automatically stop transmitting — not allowing enough time for HomeLink威 to accept the signal from the hand-held transmitter.

After completing steps 1 and 2 outlined in the “Programming” section, replace step 3 with the following:

Note: If programming a garage door opener or gate operator, it is advised to unplug the device during the “cycling” process to prevent overheating.

• Continue to press and hold the HomeLink威 button (note step 3 in the

“Programming” section) while you press and release — every two seconds (“cycle”) your hand-held transmitter until the frequency

signal has been accepted by the HomeLink威. The red indicator light will flash slowly and then rapidly after HomeLink威 accepts the radio frequency signal.

• Proceed with step 4 in the “Programming” section.

Operating the HomeLink姞 Wireless Control System

To operate, simply press and release the appropriate HomeLink威 button. Activation will now occur for the trained product (garage door, gate operator, security system, entry door lock, or home or office lighting etc.). For convenience, the hand-held transmitter of the device

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

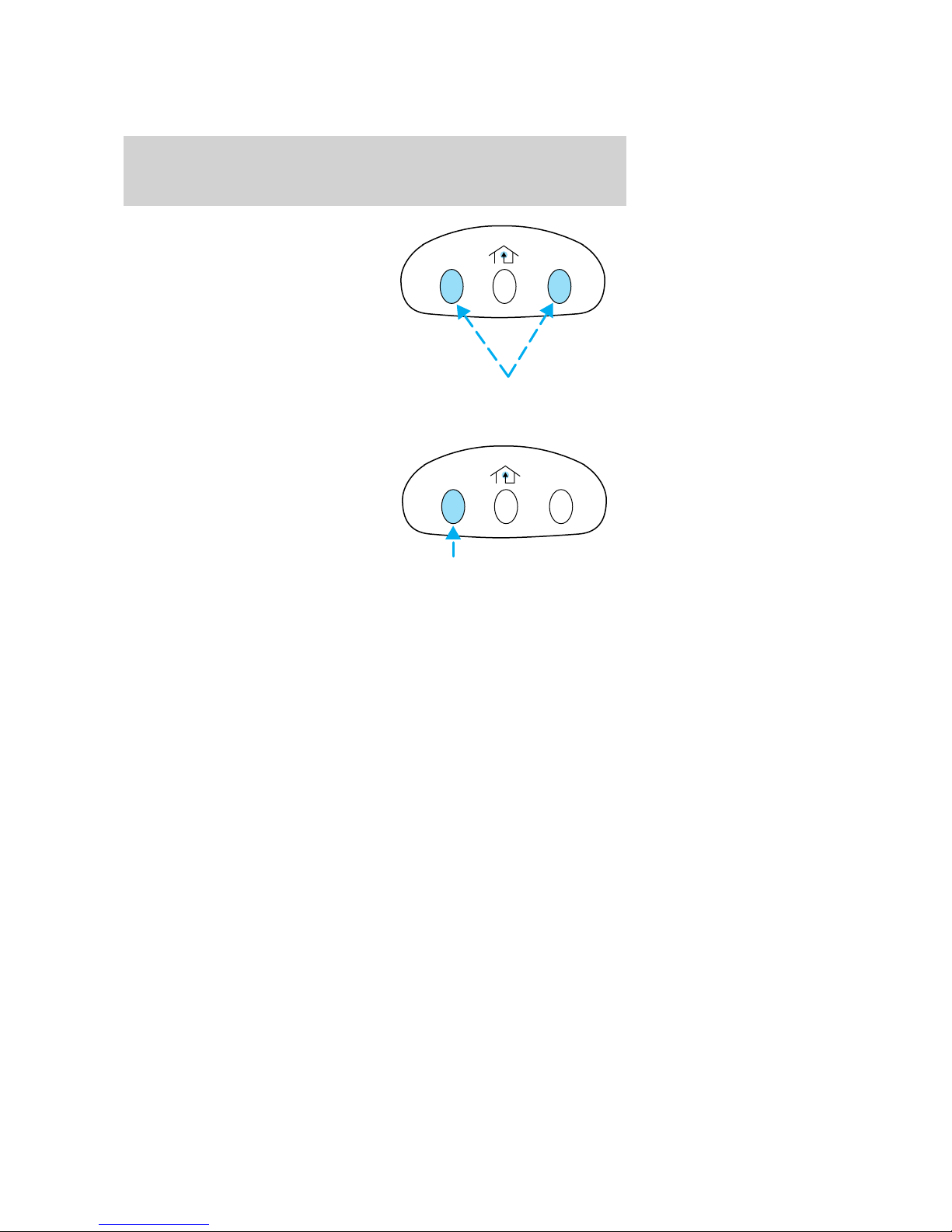

Page 71

Driver Controls

may also be used at any time. In the event that there are still programming difficulties, contact HomeLink威 at www.homelink.com or

1–800–355–3515.

Erasing HomeLink姞 buttons

To erase the three programmed buttons (individual buttons cannot be erased):

• Press and hold the two outer

HomeLink威 buttons until the red indicator light begins to flash-after 20 seconds. Release both buttons. Do not hold for longer that 30 seconds.

HomeLink威 is now in the train (or learning) mode and can be programmed at any time beginning with step 2inthe“Programming” section.

Reprogramming a single HomeLink姞 button

To program a device to HomeLink威 using a HomeLink威 button previously trained, follow these steps:

1. Press and hold the desired HomeLink威 button. Do NOT release the button.

2. The red indicator light will begin to flash after 20 seconds. Without releasing the HomeLink威 button, follow step 2 in the “Programming” section.

For questions or comments, contact HomeLink威 at www.homelink.com or 1–800–355–3515.

MESSAGE CENTER

With the ignition in the ON position, the message center, located on your instrument cluster, displays important vehicle information through a constant monitor of vehicle systems. You may select display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings followed by an indicator chime.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 72

Driver Controls

Selectable features

Reset

Press this control to select and reset functions shown in the INFO menu and SETUP menu.

Info menu

This control displays the following options:

• Odometer

• Distance to Empty

• Trip Odometer

• Average Fuel Economy

• Trip Elapsed Drive Time

• Display On/Off (top two lines)

Odometer/Trip Odometer

Refer to Gauges in the Instrument Cluster chapter.

Distance to empty (DTE)

Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling to allow this feature to correctly detect the added fuel.

DTE is calculated using a running average fuel economy, which is based on your recent driving history of 800 km (500 miles). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.

INFO

SETUP

RESET

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 73

Driver Controls

Average Fuel Economy (AFE)

Select this function from the INFO menu to display your average fuel economy in 100 km/liters or miles/gallon.

If you calculate your average fuel economy by dividing liters of fuel used by 100 kilometers traveled (miles traveled by gallons used), your figure may be different than displayed for the following reasons:

• your vehicle was not perfectly level during fill-up

• differences in the automatic shut-off points on the fuel pumps at

service stations

• variations in top-off procedure from one fill-up to another

• rounding of the displayed values to the nearest 0.1 liter (gallon)

1. Drive the vehicle at least 8 km (5 miles) with the speed control system engaged to display a stabilized average.

2. Record the highway fuel economy for future reference.

It is important to press the RESET control after setting the speed control to get accurate highway fuel economy readings.

Trip elapsed drive time

Select this function from the INFO menu to display your trip elapsed drive time. When selected the display will accumulate when the key is in the RUN position.

1. Press the INFO control until the message center display shows the TRIP TIME XX:XX:XX.

2. Hold the RESET control down for two seconds to clear display.

Display on/off

Select this function from the INFO menu to turn the upper two lines of the message center display OFF or ON.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 74

Driver Controls

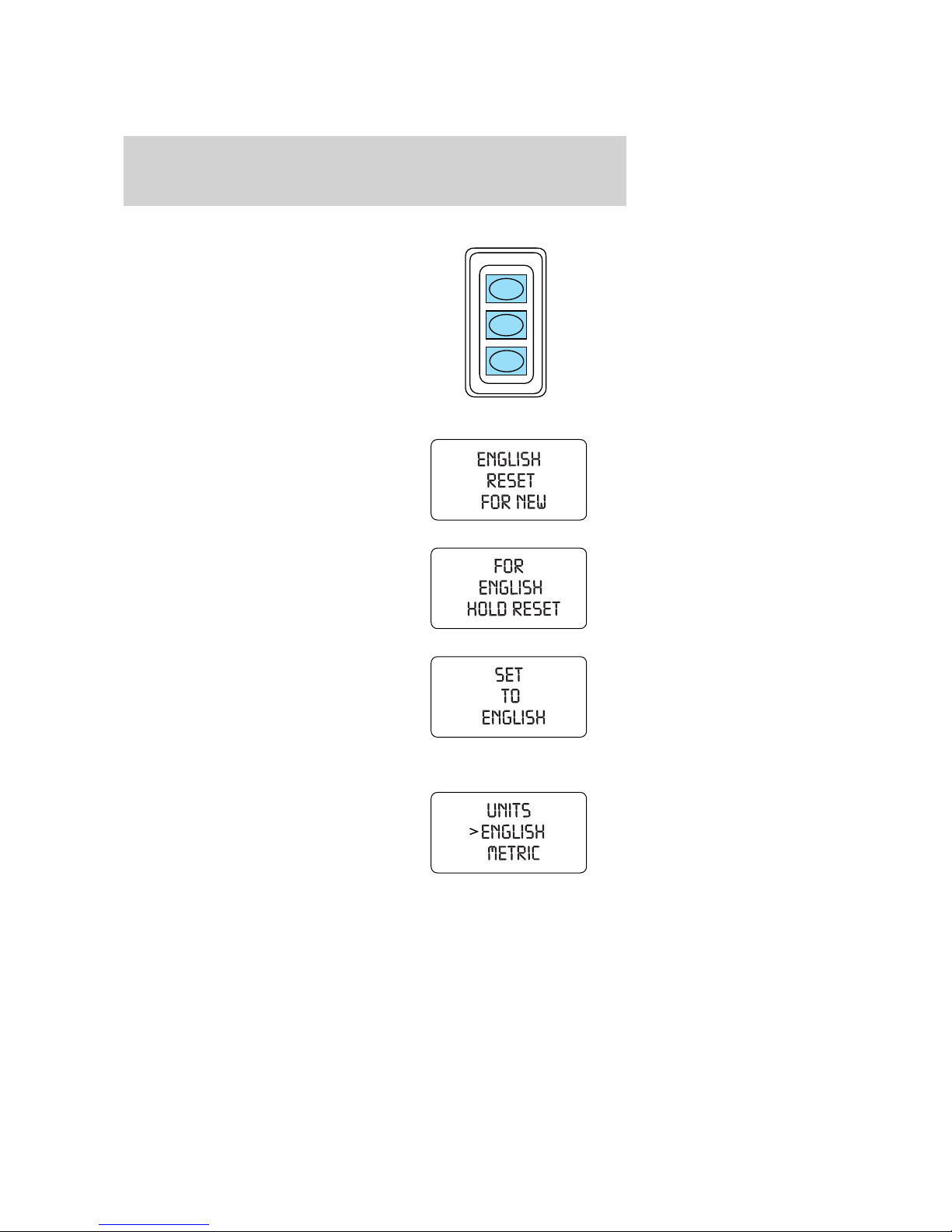

Setup menu

Press this control for the following displays:

• Language

• Units (English/Metric)

• System Check

Language

1. Select this function from the SETUP menu for the current language to be displayed.

2. Pressing the RESET control cycles the message center through each of the language choices.

INFO

SETUP

RESET

3. Press and hold the RESET control for 2 seconds to set the language choice.

Units (English/Metric)

1. Select this function from the SETUP menu for the current units to be displayed.

2. Press the RESET control to change from English to Metric.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 75

Driver Controls

System check

Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for three seconds.

Pressing the RESET control cycles the message center through each of the systems being monitored.

The sequence of the system check report is as follows:

1. Oil life in XX%

2. Charging system

3. Washer fluid level

4. Brake fluid level

5. Doors and liftgate status

6. Exterior lamps status

7. Traction Control娂 status

8. Tire inflation status

9. Fuel level status (hold to reset to relearn)

10. Distance to empty

System warnings

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for 4 seconds.

The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.

Warning messages that have been reset are divided into three categories:

• They will reappear on the display ten minutes from the reset.

• They will not reappear until an ignition OFF-ON cycle has been

completed.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 76

Driver Controls

• Warning returns upon another event. This acts as a reminder that these warning conditions still exist within

the vehicle.

Driver’s door ajar Warning cannot be reset Passenger door ajar Left rear door ajar Right rear door ajar Transmission overheated Warning returns after 10 minutes Check traction control (if

equipped) Park brake set Check brake system Reduce engine power Stop engine safely Liftgate ajar Warning returns after the ignition key Check left park lamp Check right park lamp Check left headlamp Check fuel cap Check right headlamp Check left turn lamp Washer fluid low Check right turn lamp Change oil soon Check brake lamps Check tires Warning returns upon another event Turn signal on reminder

DRIVER’S DOOR AJAR. Displayed when the driver’s door is not completely closed.

PASSENGER DOOR AJAR. Displayed when the passenger side door is not completely closed.

LEFT REAR DOOR AJAR. Displayed when the driver’s rear door is not completely closed.

RIGHT REAR DOOR AJAR. Displayed when the passenger side rear door is not completely closed.

is turned from OFF to ON

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 77

Driver Controls

LIFTGATE AJAR. Displayed when the liftgate is not completely closed. TRANSMISSION OVERHEATED. Indicates the transmission is

overheating. This warning may appear when towing heavy loads or when driving in a low gear at a high speed for an extended period of time. Stop the vehicle as soon as safely possible, turn off the engine and let it cool. Check the transmission fluid and level. Refer to Transmission fluid in the Maintenance and specifications chapter. If the warning stays on or continues to come on, contact your dealer for transmission service as soon as possible.

PARK BRAKE SET. Displayed when the manual park brake is set. If the warning stays on after the park brake is released, contact your dealer as soon as possible.

CHECK BRAKE SYSTEM. Displayed when the braking system is not operating properly. If the warning stays on or continues to come on, contact your dealer as soon as possible.

REDUCED ENGINE POWER. Displayed when the engine temperature exceeds safe driving operating range and the vehicle limits engine power to prevent engine damage.

STOP ENGINE SAFELY. Displayed when the engine temperature exceeds safe driving operating range and the engine must be shut down to prevent damage. Stop the vehicle as soon as possible and turn off the engine. If this warning stays on, contact your dealer as soon as possible.

CHECK BRAKE LAMPS. Displayed when the brake lamps are activated and at least one is burned out. Check the lamps as soon as possible and have the burned out lamp replaced. The center high-mount brakelamp is not monitored.

CHECK LEFT OR RIGHT HEADLAMPS. Displayed when the headlamps are activated and at least one is burned out. Check the lamps as soon as possible and have the burned out lamp replaced. Refer to Replacing headlamp bulbs in the Lights chapter.

CHECK LEFT OR RIGHT PARK LAMPS. Displayed when the park lamps are activated and at least one is burned out. Check the lamps as soon as possible and have the burned out lamp replaced.

CHECK LEFT OR RIGHT TURN LAMPS. Displayed when the turn signals are activated and at least one is burned out. Check the lamps as soon as safely possible and have the burned out lamp replaced.

CHECK TRACTION CONTROL (if equipped). Displayed when the Traction Control娂 system is not operating properly. If this warning stays on, contact your dealer for service as soon as possible. For further information, refer to Traction control娂 in the Driving chapter.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 78

Driver Controls

CHECK FUEL CAP. Displayed when the fuel filler cap is not properly installed. Check the fuel filler cap for proper installation. Refer to Fuel filler cap in the Maintenance and specifications chapter.

CHECK TIRES. Displayed when low tire pressure is detected in one or more tires. Refer to Checking the tire pressure in the Maintenance and specifications chapter.

TURN SIGNAL ON REMINDER. Displayed when the turn signal is activated and the vehicle is driven more that 0.8 km (1/2 mile).

WASHER FLUID LOW. Indicates the washer fluid reservoir is less than one quarter full. Check the washer fluid level. Refer to Windshield washer fluid in the Maintenance and specifications chapter.

CHANGE OIL SOON. Displayed when the engine oil life remaining is 5 percent or less. When oil life left is between 5% and 0%, the CHANGE OIL SOON message will be displayed. When oil life left reaches 0%, the OIL CHANGE REQUIRED message will be displayed.

An oil change is required whenever indicated by the message center. USE ONLY RECOMMENDED ENGINE OILS.

To reset the oil monitoring system to 100% after each oil change [approximately 8 000 km (5 000 miles) or 180 days] perform the following:

1. Press the SETUP control to access the System Check function.

2. Press and release the RESET control to display “OIL LIFE XX% HOLD RESET NEW”.

3. Press and hold the RESET control for 2 seconds to display “IF NEW OIL HOLD RESET”.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

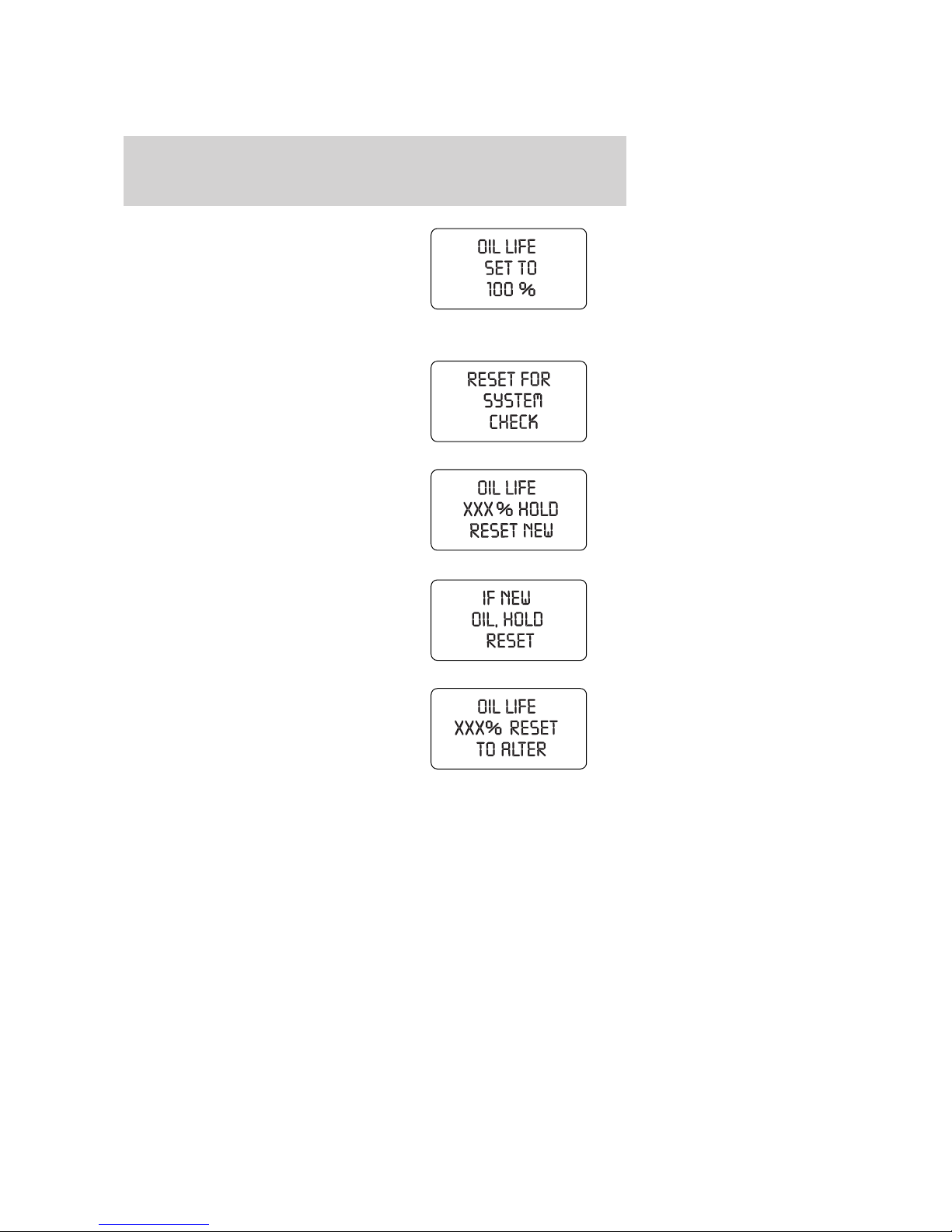

Page 79

Driver Controls

4. Press and hold the RESET control to display “OIL LIFE SET TO 100%”. Your oil life is now reset.

To reset the oil monitoring system to your personalized oil life %:

1. Press the SETUP control to access the System Check function.

2. Press and release the RESET control to display “OIL LIFE XX% HOLD RESET NEW”.

3. Press and hold the RESET control for 2 seconds to display “IF NEW OIL HOLD RESET”.

4. Release the RESET control momentarily, then press RESET and SETUP controls at the same time to activate a service mode which will display “OIL LIFE XX% RESET TO ALTER”.

5. Press RESET until you find your personalized OIL LIFE XX%.

6. With your personalized OIL LIFE XX% displayed, press SETUP to continue the system check.

DATA ERR. These messages indicate improper operation of the vehicle network communication between electronic modules.

• Fuel Computer

• Oil life

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 80

Driver Controls

• Charging system

• Door sensor

• Liftgate sensor

• Exterior lamps

• Traction control

• Washer fluid

• Brake Fluid

Contact your dealer as soon as possible if these messages occur on a regular basis.

LIFTGATE

Unlock the liftgate (but not release it) with the power door lock system and remote entry key fob.

To open the liftgate, pull the liftgate handle rearward.

• Do not open the liftgate in a garage or other enclosed area with a low ceiling. If the liftgate is opened, the liftgate could be damaged against a low ceiling.

• Do not leave the liftgate open while driving. Doing so could cause serious damage to the liftgate and its components as well as allowing carbon monoxide to enter the vehicle.

Make sure that the liftgate door is closed to prevent exhaust

fumes from being drawn into the vehicle. This will also prevent passengers and cargo from falling out. If you must drive with the liftgate door open, keep the vents open so outside air comes into the vehicle.

POWER LIFTGATE (PLG) (IF EQUIPPED)

With this option, you can power open or close the liftgate with the provided controls.

• overhead console button

• key fob button

• outside release handle

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 81

Driver Controls

• liftgate trim-mounted switch (closing)

Opening and Closing the PLG:

The PLG controls will operate without having the key in the ignition. The transaxle must be in PARK to power operate the PLG, when the key is in the ignition and turned to the RUN position. When the liftgate is being power closed, a chime will sound three times before the liftgate begins to power close. A single chime indicates a problem with the close request.

WARNING: Make sure all persons are clear of the power liftgate

area before using the power liftgate controls to open or close the liftgate.

Keep the keys out of the reach of children. Do not allow children

to play on or near an open or moving power liftgate.

Exercise care, when power opening or closing the PLG in a garage or other enclosed area with a low ceiling or close to a wall/garage door. The PLG could be damaged from the contact.

Do not attempt to manually force the PLG to travel faster than the power system will permit.

When power operating the PLG at temperatures below 32° F(0° C), the PLG may stop about 5 inches from the full open position. The PLG can be fully opened by pushing it upward to the maximum open position.

The Power Door Lockout Control is located in the overhead console. With the control in the OFF position, power operation is disabled from the liftgate handle and from the liftgate trim switch. The overhead console switch and Key fob will operate the liftgate regardless of the position of the lockout switch.

To power open or close the PLG from the Overhead console:

1. Press and release the control to power open the PLG.

2. Press and release the control again to power the PLG closed.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 82

Driver Controls

To power open or close the PLG with the Key fob:

1. Press this control twice within three seconds to power open the PLG. The interior lamps will illuminate.

2. Press this control another two times within three seconds to close the PLG and turn off the interior lights.

Refer to Remote Entry System in the Locks and security chapter.

To power open the PLG with outside release handle:

1. Ensure that the Power Door Lockout Control in the overhead console is ON.

2. Ensure that the PLG is unlocked, using the key fob or power door unlock. Refer to Remote Entry System in the Locks and security chapter.

3. Pull up on the liftgate handle to engage the power assist feature. Release the handle as soon as the PLG begins to power open.

Note: Continued force applied after unlatching may activate the obstacle detection feature and stop the power system. For the best performance allow the power system to open the PLG after releasing the handle.

To power close the PLG from the liftgate trim switch:

1. Ensure the Power Door Lockout Control is in the ON position.

2. Press and release the control on the bottom of the liftgate trim panel to engage the power assist feature. If a single chime is heard, check to be sure that the Power Door Lockout Switch is set to ON and that the the transaxle is in Park.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 83

Driver Controls

To operate the PLG manually:

1. Disable the liftgate power function by placing the Power Door Lockout Control in the OFF position.

2. Open and close the liftgate as you would a standard liftgate. Note: In case of operation in extreme cold -40° F (-40° C), or on an

extreme inclines, manual operation of the liftgate is suggested.

Safety/Obstructions

If anything obstructs the PLG while it is power opening or closing, the PLG will automatically reverse or stop depending on the position of the liftgate, provided it meets sufficient resistance. If the PLG encounters an obstacle while closing, the PLG will reverse to full open. Once the obstacle is removed, the PLG can be again closed under power. If the PLG encounters an obstacle while opening, the PLG will stop when it encounters a solid obstacle. Close the liftgate manually and remove the obstruction. Normal operation can then be resumed.

Resetting the PLG:

The power liftgate may not operate properly if any of the following conditions occur

• a low voltage or dead battery

• disconnected battery

• the liftgate has been left open or unlatched for more than six (6)

hours

If any of these conditions occur, the PLG must be reset. To reset the PLG:

1. Manually close and fully latch the liftgate.

2. Power open the liftgate by using the keyfob or overhead console button.

3. Once the liftgate is fully open, close the liftgate using the power switch on the liftgate, keyfob or overhead console button.

Liftgate ajar signal

If the liftgate is not fully latched, you will receive a “LIFTGATE AJAR” message on the instrument panel. If you see this message, check the liftgate to ensure it is fully latched.

Make sure the liftgate is closed to prevent exhaust fumes from

being drawn into the vehicle. If you must drive with the liftgate open, keep the climate control vents open so that fresh outside air circulates through the vehicle.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

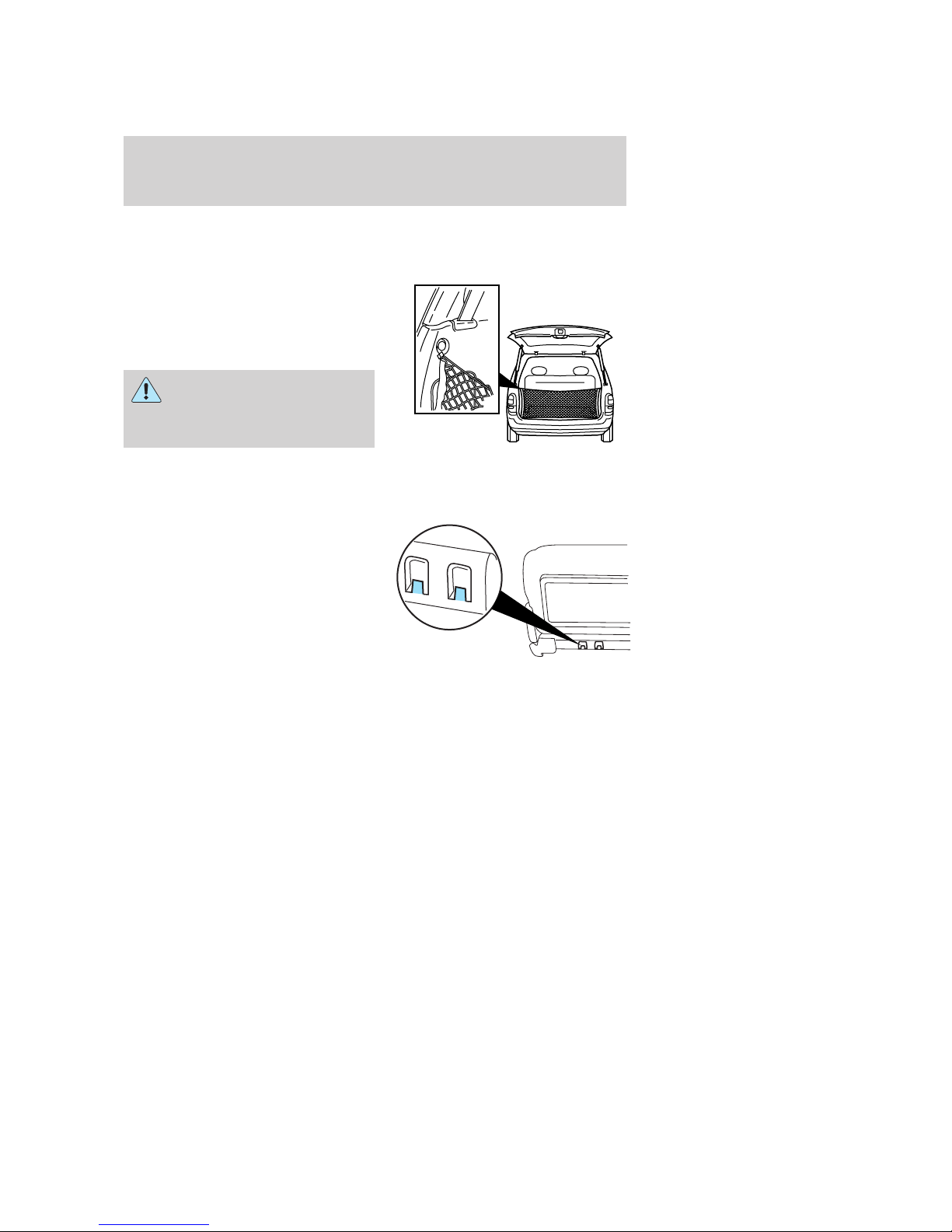

Page 84

Driver Controls

CARGO AREA FEATURES

Cargo net (if equipped)

The cargo pouch net secures lightweight objects in the cargo area. Attach the net to the anchors provided. Do not put more than 22 kg (50 lbs.) in the net.

The cargo net is not

designed to restrain objects during a collision or heavy braking.

Utility hooks

The utility hooks can be used to hang small items. Do not hang more than 12 kg (20 lbs.) on each of the hooks. The hooks are not designed to restrain objects during a collision.

LUGGAGE RACK (IF EQUIPPED)

Maximum load is 75 kg (165 lbs) on the roof rack structure, or 45 kg (100 lbs) on the roof panel, evenly distributed. If it is not possible to distribute the load, position it as far rearward as possible.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

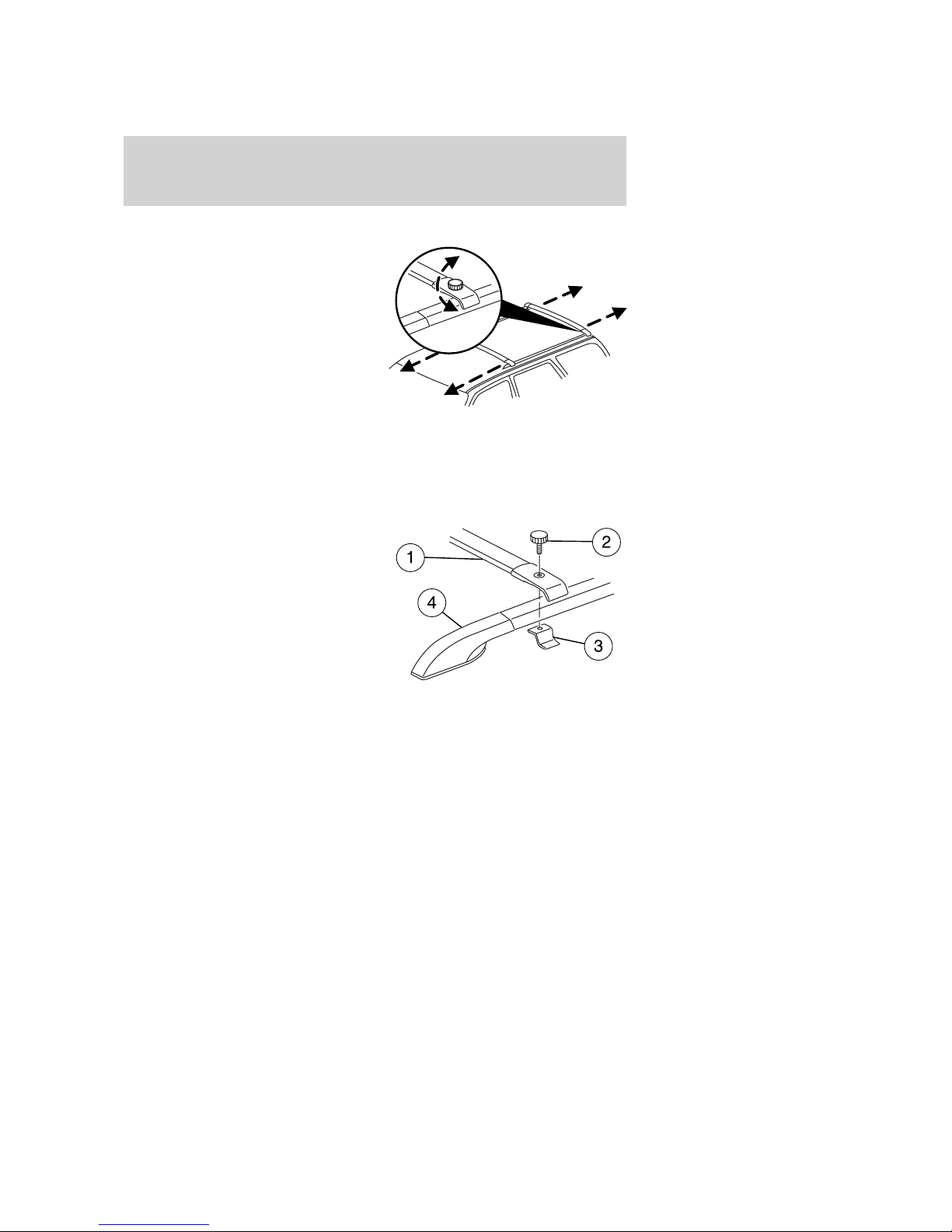

Page 85

Driver Controls

To adjust the cross-bar (if equipped) position:

1. Loosen the thumbwheel at both ends of the cross-bar (both cross-bars are adjustable).

2. Slide cross-bar to the desired location and tighten the thumbwheel at both ends of the cross-bar.

To remove the cross-bar (if equipped) assembly:

1. Loosen the thumbwheel (2) at both ends of the cross-bar (1) and slide the cross-bar (1) to the end of the side rails (4).

2. Remove the two thumbwheels (2), clamps (3) and cross-bar (1) from the side rails (4).

To install the cross-bar (if equipped) assembly:

Note: Ensure that both cross-bars

are installed with the arrow, located on the bottom of the cross-bar end, facing towards the front of the vehicle.

1. Position the cross bar (1) on the side rails (4) with the arrow facing towards the front of the vehicle.

2. Align the clamps (3) under the side rails (4) and install the thumbwheels (2) through the cross bar (1) and side rails (4) into the clamps (3). Repeat steps 1 and 2 to install the other cross-bar.

Note: When the cross-bars are not in use, remove or move the cross-bars to the back of the roof rack for optimum wind noise.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 86

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.

You should always carry a second key with you in a safe place in case you require it in an emergency.

Refer to SecuriLock娂 Passive Anti-Theft System for more information.

POWER DOOR LOCKS

Press control to unlock all doors. Note: When the perimeter alarm is armed, the power door locks “inhibit” state is enabled and this switch is disabled.

Press control to lock all doors.

Memory lock

If you lock your doors with the power lock switch, the keyless entry system or the remote entry transmitter while the sliding door is open, the door will automatically lock after it is closed.

Smart locks (if equipped)

This feature prevents you from locking yourself out of the vehicle if your key is still in the ignition.

When you open the driver’s door and you lock the vehicle with the power door lock control, all the doors will lock, then the driver’s door will automatically unlock reminding you that your key is still in the ignition.

The vehicle can still be locked, with the key in the ignition, using the manual lock button on the door, locking the driver’s door with a key, by simultaneously pressing button 7 • 8 and the 9 • 0 controls on the remote entry keypad (if equipped), or using the lock button on the remote entry transmitter (if equipped).

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 87

Locks and Security

Childproof door locks

• When these locks are set, the sliding doors cannot be opened with the inside handle.

• The sliding doors can be opened from the outside when the doors are unlocked.

The childproof lock controls are located on front edge of each sliding door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.

• Move lock control up to engage the childproof lock feature.

• Move control down to disengage childproof lock feature.

If your vehicle is equipped with power sliding door(s), refer to the Power sliding door section of this chapter for more information on how the childproof locks operate with this system.

REMOTE ENTRY SYSTEM

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

The typical operating range for your remote entry transmitter is approximately 10 meters (33 feet). A decrease in operating range could be caused by:

• weather conditions,

• nearby radio towers,

• structures around the vehicle, or

• other vehicles parked next to your vehicle.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 88

Locks and Security

• 3–button remote

• 5–button remote

• 6–button remote

The remote entry system allows you to:

• lock or unlock all vehicle doors and liftgate without a key.

• unlock/open a righthand power sliding door and/or lefthand power

sliding door (if equipped).

• activate the personal alarm.

• arm and disarm the perimeter anti-theft system (if equipped).

If there is any potential remote keyless entry problem with your vehicle, ensure ALL remote entry transmitters are taken to your authorized dealer to aid in troubleshooting.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 89

Locks and Security

Unlocking the doors

1. Press and release to unlock the driver’s door. Note: The interior

lamps will illuminate and the anti-theft system (if equipped) will disarm.

2. Press

and the liftgate.

Opening/closing power sliding doors (if equipped)

• 5–button remote

• 6–button remote

and release again within three seconds to unlock all doors

• Press this control twice within three seconds to open the power sliding door. The interior lamps will illuminate.

• Press this control another two times within three seconds to close the power sliding door and turn off the interior lights.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 90

Locks and Security

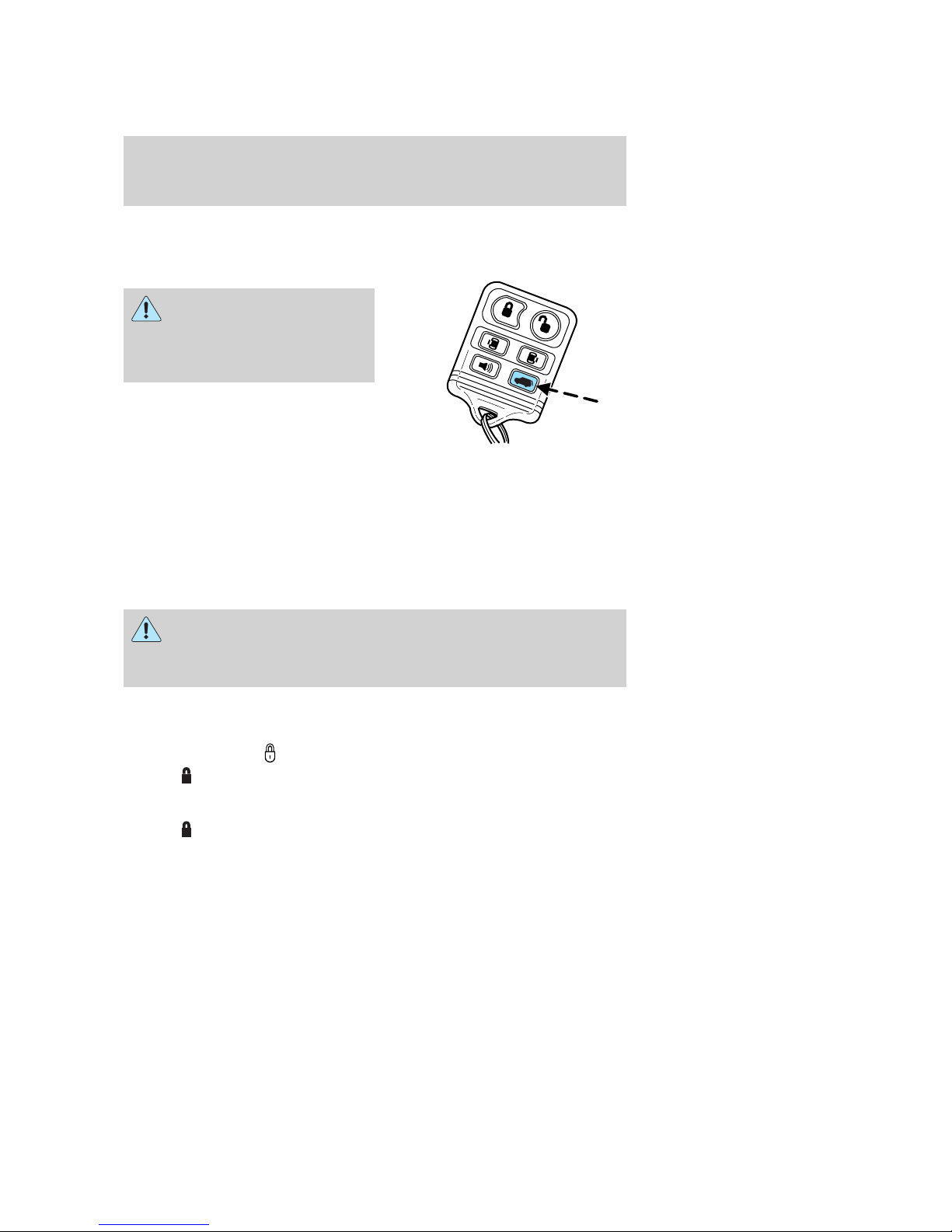

Opening power liftgate (PLG) (if equipped)

Press the control twice within three seconds to power open the power liftgate. The interior lamps will illuminate.

Make sure all persons are

clear of the power liftgate area before using the power liftgate controls to open or close the liftgate.

Press the control another two times within three seconds to close the power liftgate and turn off the interior lights.

If anything obstructs the power liftgate while it is power opening or closing, the power liftgate will automatically reverse or stop depending on the position of the liftgate, provided it meets sufficient resistance. If the power liftgate encounters an obstacle while closing, the power liftgate will reverse to full open. Once the obstacle is removed, the power liftgate can be again closed under power. If the power liftgate encounters an obstacle while opening, the power liftgate will stop when it encounters a solid obstacle. Close the liftgate manually and remove the obstruction. Normal operation can then be resumed.

Make sure the power liftgate is closed to prevent exhaust fumes

from being drawn into the vehicle. If you must drive with the liftgate open, keep the climate control vents open so that fresh outside air circulates through the vehicle.

For more information regarding the operation of the power liftgate, refer to Power liftgate (PLG) (if equipped) in the Driver Controls chapter.

Locking the doors

1. Press and release to lock all the doors and liftgate. The parking lamps will flash once if all doors, the liftgate and the hood are closed and locked.

2. Press doors and liftgate are closed and locked. Note: The doors will lock again,

the horn will chirp once, and the parking lamps will flash once more. If any of the doors, the liftgate or the hood are not properly closed, the

horn will make two quick chirps.

and release again within three seconds to confirm that all the

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 91

Locks and Security

Sounding a panic alarm

Press signals will flash, and the interior lamps will illuminate.

Press again or turn the ignition to the 4 (ON) or the 1 (ACCESSORY) position to deactivate.

Replacing the battery

The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent.

To replace the battery:

1. Twist a thin coin between the two halves of the remote entry transmitter near the key ring. DO NOT TAKE THE RUBBER COVER AND CIRCUIT BOARD OFF THE FRONT HOUSING OF THE REMOTE ENTRY TRANSMITTER.

2. Do not wipe off any grease on the battery terminals on the back surface of the circuit board.

3. Remove the old battery. Note:Please refer to local regulations when disposing of transmitter batteries.

4. Insert the new battery. Refer to the diagram inside the remote entry transmitter for the correct orientation of the battery. Press the battery down to ensure that the battery is fully seated in the battery housing cavity.

5. Snap the two halves back together. Note: Replacement of the battery will not cause the remote transmitter

to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

to activate the alarm. The alarm will cycle the horn, the turn

Replacing lost remote entry transmitters

If you would like to have your remote entry transmitter reprogrammed because you lost one, or would like to buy additional remote entry

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 92

Locks and Security

transmitters, you can either reprogram them yourself, or take all remote entry transmitters to your authorized dealer for

reprogramming.

How to reprogram your remote entry transmitters

You must have all remote entry transmitters (maximum of four) available before beginning this procedure.

To reprogram the remote entry transmitters:

1. Ensure the vehicle is electronically unlocked.

2. Put the key in the ignition.

3. Turn the key from the 3 (OFF) position to 4 (ON).

4. Cycle eight times rapidly (within 10 seconds) between the 3 (OFF) position and 4 (ON). Note: The eighth turn must end in the 4 (ON) position.

5. The doors will lock, then unlock, to confirm that the programming mode has been activated.

6. Within 20 seconds press any button on the remote entry transmitter. Note: If more than 20 seconds have passed you will need to start the procedure over again.

7. The doors will lock, then unlock, to confirm that this remote entry transmitter has been programmed.

8. Repeat Step 6 to program each additional remote entry transmitter.

9. Turn the ignition to the 3 (OFF) position after you have finished programming all of the remote entry transmitters.

10. The doors will lock, then unlock, to confirm that the programming mode has been exited.

Illuminated entry

The interior lamps illuminate when the key in the driver’s door lock cylinder, the keyless entry system or the remote entry transmitter is used to unlock the door(s), power sliding doors (if equipped) or liftgate.

The illuminated entry system will turn off the interior lights if:

• the ignition switch is turned to the 4 (ON) position, or

• the keyless entry system or the remote entry transmitter lock control

is pressed, or

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 93

Locks and Security

• after 25 seconds of illumination. The panel dimmer control must not be set to the off position for the

illuminated entry system to operate. The inside lights will not turn off if:

• they have been turned on with the panel dimmer control, or

• any door, power sliding door (if equipped) or the liftgate is open.

The battery saver will shut off the interior lamps 30 minutes after the last door is closed, even if the panel dimmer control is left on.

Illuminated exit

• The interior lights will illuminate when the key is removed from the ignition.

• When the headlamp control is on the “sleeping baby mode”, only the lower interior lights will illuminate.

The system automatically turns off after 25 seconds. The panel dimmer control must not be set to the off position for the illuminated exit to operate.

Perimeter lamps illuminated entry (if equipped)

The exterior lamps illuminate when the vehicle is unlocked using the remote entry transmitter, keyless keypad, or the driver’s door key lock cylinder. The following items will illuminate:

• Puddle lamps

• Head lamps

• Park lamps

• Tail lamps

The system will automatically turn off if:

• the vehicle is locked using the remote entry system, the keyless entry keypad or a key in the driver’s door key cylinder, or

• the ignition is turned to the 4 (ON) position, or

• after 25 seconds of illumination.

Deactivating/activating perimeter lamps

You may enable/disable this feature by having your vehicle serviced by your authorized dealer.

You may also perform the following power door lock sequence to enable/disable the perimeter lamps feature:

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 94

Locks and Security

1. Turn the ignition to the 4 (ON) position, then press the power door

unlock control 3 times.

2. Turn the ignition to the 3 (OFF) position, then press the power door

unlock control 3 times.

3. Turn the ignition to 4 (ON) position. Completing the sequence within

30 seconds enters a program mode and is confirmed by a horn chirp. Activating or deactivating perimeter lighting once in program mode is accomplished by:

• Pressing the power door unlock control twice within five seconds. At this point, perimeter lighting will be activated if it was previously deactivated, and deactivated if it was previously activated. Confirmation of perimeter lighting being activated is provided by a short horn chirp followed by a long horn sound; Confirmation of perimeter lighting being deactivated is provided by a short horn chirp only.

• Exiting the program mode is accomplished by turning the ignition to any position other than the 4 (ON) position, or two minutes elapsing since the program mode was entered.

Note: The puddle lamps cannot be deactivated. Performing this deactivation procedure will only deactivate the head, park and tail lamps.

Autolock

This feature automatically locks all vehicle doors when:

• all doors are closed,

• the ignition is in the 4 (ON) position,

• the brake is pressed before reaching 5 km/h (3 mph), and

• the vehicle is traveling more than 5 km/h (3 mph).

Relock

The autolock feature repeats when:

• an “autolock” occurrence has already taken place,

• the brake is depressed while vehicle speed is less than 5 km/h

(3 mph),

• all vehicle doors become closed again, and

• the vehicle speed increases to 5 km/h (3 mph), or greater.

Deactivating/activating the autolock feature

The deactivating/activating the autolock feature can be turned off by the keyless entry keypad (if equipped) on your door, driver configuration mode or by your dealer.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 95

Locks and Security

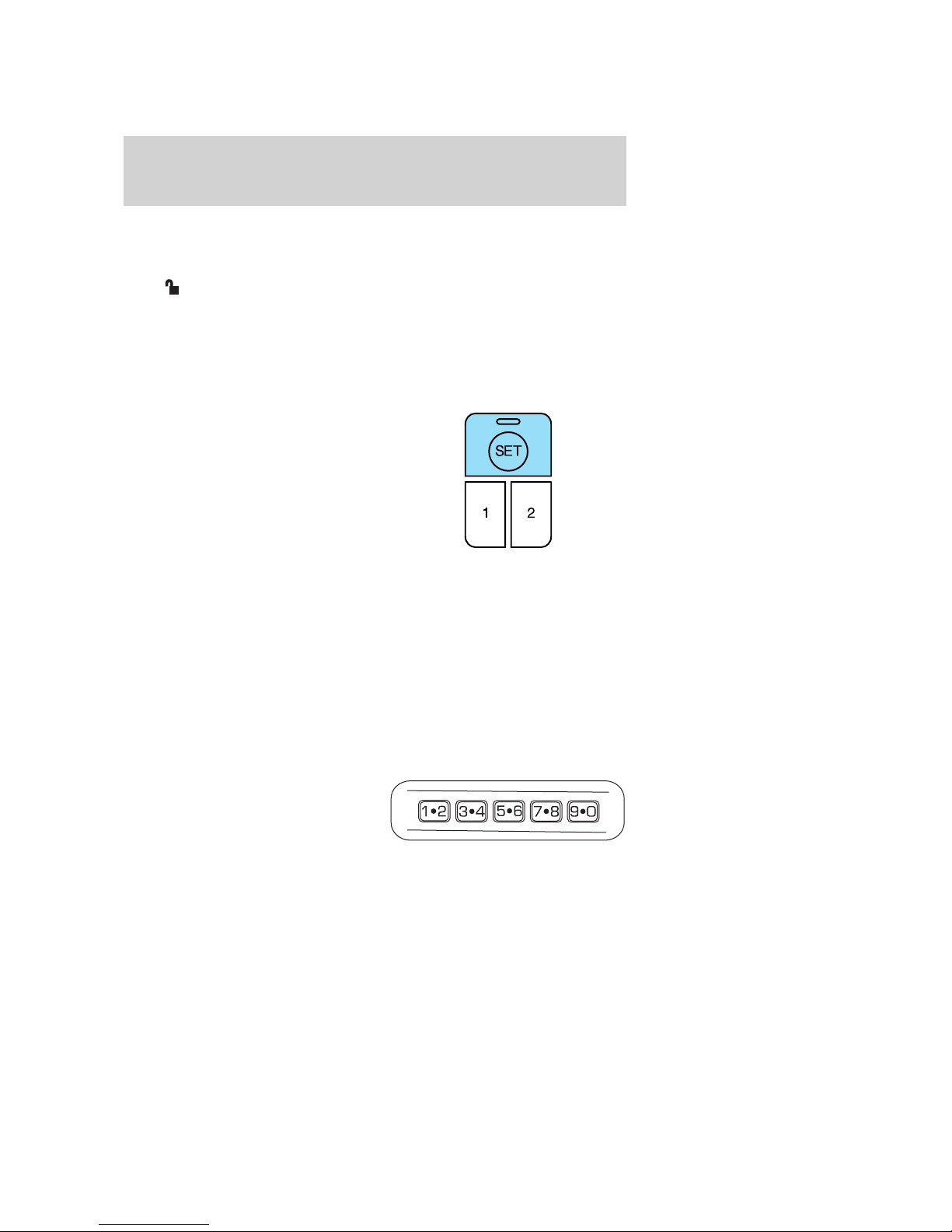

Memory feature (if equipped)

The remote entry system allows you to recall the memory seat/side view mirrors/adjustable pedals feature.

Press adjustable pedals to the desired memory position.

Associating the remote transmitter with the memory feature

To activate this feature:

1. Position the driver’s seat, side view mirrors and adjustable pedals to

the positions you desire.

2. Press the SET control on the

door next to the window inside from the mirror.

3. Within 5 five seconds, press any

control on the remote transmitter and then press the 1 or 2 control on the driver’s door panel to associate with the Driver 1 or Driver 2 positions.

4. Repeat this procedure for another

remote transmitter if desired.

Disassociating the memory feature from the remote transmitter

To deactivate this feature:

1. Press the SET control on the driver’s door panel.

2. Within 5 five seconds, press any control on the remote transmitter

which you would like to deactivate and then press the SET control on the driver’s door panel again.

3. Repeat this procedure for another remote transmitter if desired.

to automatically move the driver seat, side view mirrors and

KEYLESS ENTRY SYSTEM (IF EQUIPPED)

You can use the keyless entry keypad to:

• lock or unlock the doors without using a key.

• activate or deactivate the autolock feature.

• open and close the right and left power sliding doors (if equipped).

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 96

Locks and Security

• recall memory seat/side view mirrors/adjustable pedals position Driver 1 or Driver 2 (if equipped).

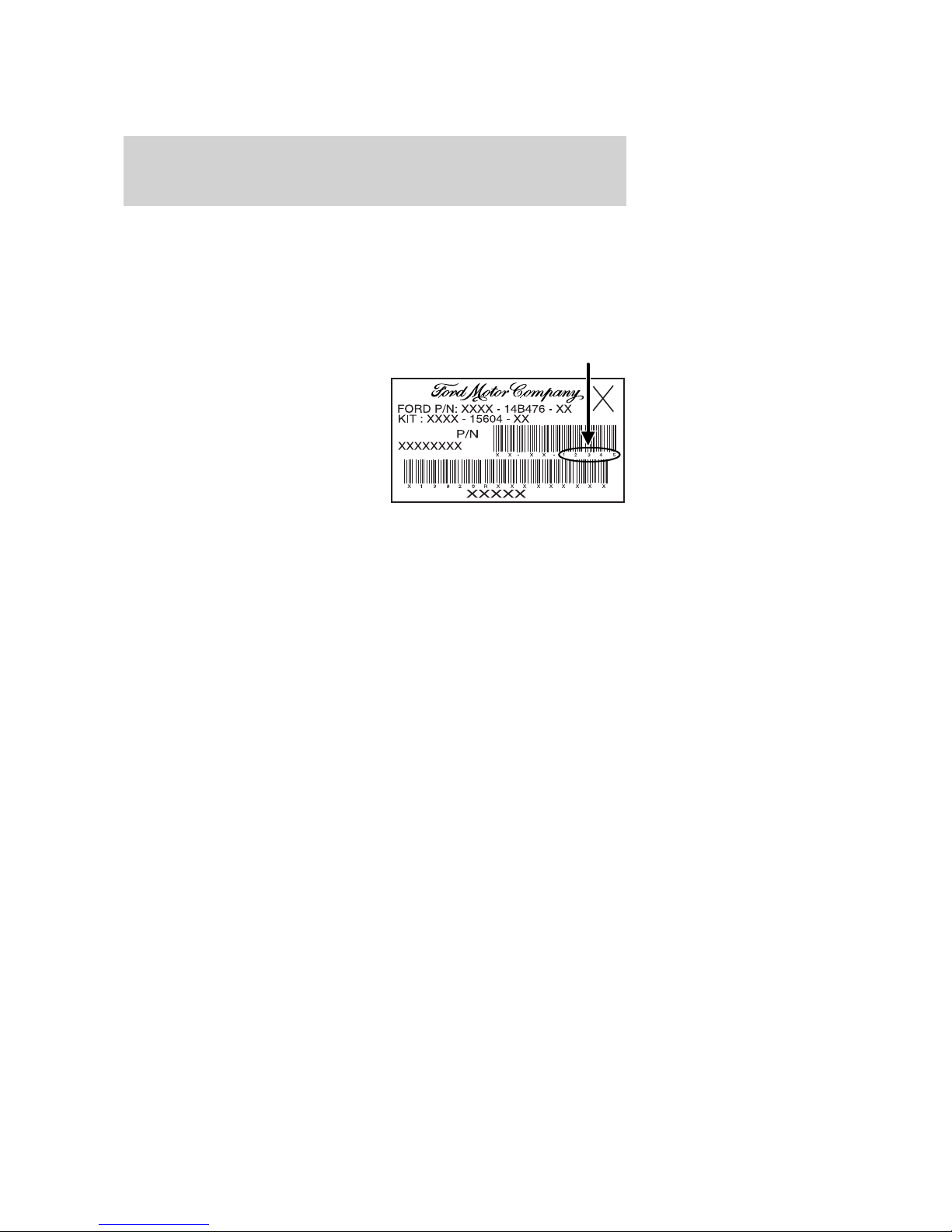

The keypad can be operated with the factory set 5–digit entry code; this code is located:

• on the owner’s wallet card in the glove box,

• marked on the passenger compartment fuse panel (located below and

to the left of the steering, near the brake pedal),

• and is available from your authorized dealer.

You can also create your own 5–digit personal entry code.

When pressing the controls on the keypad, press the middle of the controls to ensure a good activation.

Programming a personal entry code

To create your own personal entry code(s):

1. Enter the factory set code. Note: The driver’s door will unlock.

2. Within five seconds press and release the 1 • 2 on the keypad. Note:

The lock motors will cycle, locked then unlocked.

3. Enter your personal 5-digit code. Each number must be entered

within five seconds of each other.

4. Enter a sixth digit if you wish to have the personal entry code recall

memory position Driver 1 or Driver 2 (if equipped with the memory seat/side view mirrors/adjustable pedals feature). Note: The lock motors will cycle, locked then unlocked.

• Press 1 • 2 to recalls the Driver 1 position.

• Press 3 • 4 to recalls the Driver 2 position.

5. After five seconds of keypad inactivity, programming mode is exited.

All of the vehicle doors will lock and unlock to confirm the code has been stored. Each memory feature driver position (Driver 1 or Driver 2) can be associated with only one personal code. The factory-set code cannot be associated with a memory recall position.

You can program up to three personal codes; these codes do not replace the factory-set code.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 97

Locks and Security

Tips for setting codes:

• The factory set code cannot be erased or changed.

• The factory code will work even after you have set your own personal

codes.

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

Erasing personal code

1. Enter the factory set 5–digit code.

2. Within five seconds of entering the factory code, press and release the

1 • 2 control. The door locks will lock and quickly unlock to confirm entry into the programming mode.

3. Within five seconds of Step 2, press and hold the 1 • 2 for two

seconds to erase the customer programmed code. The programming mode is exited after five seconds of keypad inactivity.

The door locks will lock and quickly unlock to confirm programming mode has been exited.

The personal code is now erased and only the factory set 5–digit code will work.

Unlocking and locking the doors using keyless entry

To unlock the driver’s door, enter the factory set 5-digit code or your personal code. Each number must be pressed within five seconds of each other. The keyless entry keypad will illuminate after pressing the first control on the keypad.

To unlock all doors, press the 3 • 4 control within five seconds.

To lock all doors, press the 7 • 8 and the 9 • 0 at the same time. You do not need to enter the keypad code first. Note: The interior lamps

will turn off.

To open (or close) the power sliding doors (if equipped), press the 5 • 6 control within five seconds to open (or close) the left power sliding door or the 9 • 0 control in order to open (or close) the right power sliding door.

Deactivating/reactivating the autolock feature using the keypad

Your vehicle comes with the autolock feature activated. To deactivate/reactivate this feature:

1. Turn the ignition to the 3 (OFF) position.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 98

Locks and Security

2. Close all the doors.

3. Enter the 5-digit entry code.

4. Press and hold the 7 • 8. While holding the 7 • 8, press the 3 • 4.

5. Release the 3 • 4.

6. Release the 7 • 8.

The horn will chirp once when the system has been successfully deactivated.

The horn will chirp twice (one short and one long chirp) when the system has been successfully reactivated.

To deactivate/reactivate the autolock feature using the power door unlock control

You must close all the vehicle doors and complete steps 1-7 within 30 seconds or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait 30 seconds.

1. Turn the ignition key to the 4 (ON) position.

2. Press the power door unlock control three times.

3. Turn the ignition key from the 4 (ON) position to the 3 (OFF)

position.

4. Press the power door unlock control three times.

5. Turn the ignition back to the 4 (ON) position. The horn will chirp.

6. Press the unlock control, then press the lock control. The horn will

chirp once if autolock was deactivated or twice (one short and one long chirp) if autolock was activated.

7. Turn the ignition to the 3 (OFF) position. The horn will chirp once to

confirm the procedure is complete.

SECURILOCK姟 PASSIVE ANTI-THEFT SYSTEM

SecuriLock娂 passive anti-theft system is an engine immobilization system. This system is designed to prevent the engine from being started unless a coded key programmed to your vehicle is used. The SecuriLock娂 passive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.

Theft indicator

The theft indicator is located on top of the instrument panel.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 99

Locks and Security

• When the ignition is in the 3 (OFF) position, the indicator will flash once every 2 seconds to indicate the SecuriLock娂 system is functioning as a theft deterrent.

• When the ignition is in the 4 (ON) position, the indicator will glow for 3 seconds to indicate normal system functionality.

If a problem occurs with the SecuriLock娂 system, the indicator will flash rapidly or glow steadily when the ignition is in the 4 (ON) position. If this occurs, the vehicle should be taken to an authorized dealer for service.

Key information

Your vehicle is supplied with two coded keys (or three keys, if the valet feature is available). Only a coded key will start your vehicle.

Spare coded keys may be purchased from an authorized Ford dealer. An authorized Ford dealer can also program your coded key, or you can do it yourself. Refer to Programming spare keys in this chapter.

The following items may prevent the vehicle from starting:

• Large metallic objects.

• Electronic devices on the key chain that can be used to purchase

gasoline or similar items.

• A second key on the same key ring as the coded key.

If any of these items are present, you need to prevent these objects from touching the coded key while starting the engine. These objects cannot damage the coded key, but may cause a momentary “no start” condition if they are too close to the key when starting the engine. If a problem occurs, turn the ignition to the 2 (OFF) position and restart the engine with all other objects on the key ring held away from the ignition key. Check to make sure the coded key is an approved Ford coded key.

If your keys are lost or stolen, you will need to do the following:

• Use your spare key to start the vehicle, or

• Have your vehicle towed to an authorized Ford dealer or a locksmith.

The key codes will need to be erased from your vehicle and new codes will need to be re-coded.

Replacing coded keys can be very costly and you may want to store an extra programmed key away from the vehicle in a safe place to prevent an unforeseen inconvenience.

The correct coded key must be used for your vehicle. The use of the wrong coded key may lead to a “no start” condition.

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Page 100

Locks and Security

If an unprogrammed key is used in the ignition, it will cause a “no start” condition.

Programming spare keys

A maximum of eight keys can be coded to your vehicle. Only SecuriLock娂 keys can be used. To program a coded key yourself, you will need two previously programmed coded keys (keys that already operate your vehicle’s engine) and the new unprogrammed key(s) readily accessible for timely implementation of each step in the procedure.

If two previously programmed coded keys are not available, you must bring your vehicle to your dealership to have the spare coded key(s) programmed.

Please read and understand the entire procedure before you begin.

1. Insert the first previously

programmed coded key into the ignition and turn the ignition from the 3 (OFF) position to the 4 (ON) position [maintain ignition in 4 (ON) for at least three seconds, but no more than ten seconds].

2. Turn ignition from the 4 (ON)

position back to the 3 (OFF) position in order to remove the first coded key from the ignition.

3. Within ten seconds of removing the first coded key, insert the second

previously programmed coded key into the ignition and turn the ignition from the 3 (OFF) position to the 4 (ON) position [maintain ignition in the 4 (ON) position for at least three seconds but no more than ten seconds].

4. Turn the ignition from the 4 (ON) position back to the 3 (OFF)

position in order to remove the second coded key from the ignition.

5. Within 10 seconds of removing the second coded key, insert the new

unprogrammed key (new key/valet key) into the ignition and turn the ignition from the 3 (OFF) position to the 4 (ON) position [maintain ignition in the 4 (ON) position for at least three seconds, but no more than ten seconds]. This step will program your new key to a coded key.

6. To program additional new unprogrammed key(s), repeat this

procedure from step 1.

If successful, the new coded key(s) will start the vehicle’s engine and the theft indicator will illuminate for three seconds and then go out.

100

2004 Monterey (mty) Owners Guide (post-2002-fmt) USA English (fus)

Mercury 2004 Monterey Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
