Bulletin IN-EDAW
Series EDA Electronic Pressure Controller
Specifications - Installation and Operating Instructions
DWYER INSTRUMENTS, INC.
Phone: 219/879-8000 www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, IN 46360, U.S.A. Fax: 219/872-9057 e-mail: info@dwyer-inst.com
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
C
ONTENTS
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Model Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
nstallation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 – 5
U
npacking and Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
E
lectrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 18
Front Panel Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Set Points & Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 - 8
Alternation (Lead/Lag) Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
P
rogramming Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 - 11
M
ain Menu Selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
M
enus and Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 - 18
Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Operation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Output Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 – 15
Display Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Test Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Failsafe Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Diagnostic Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
1

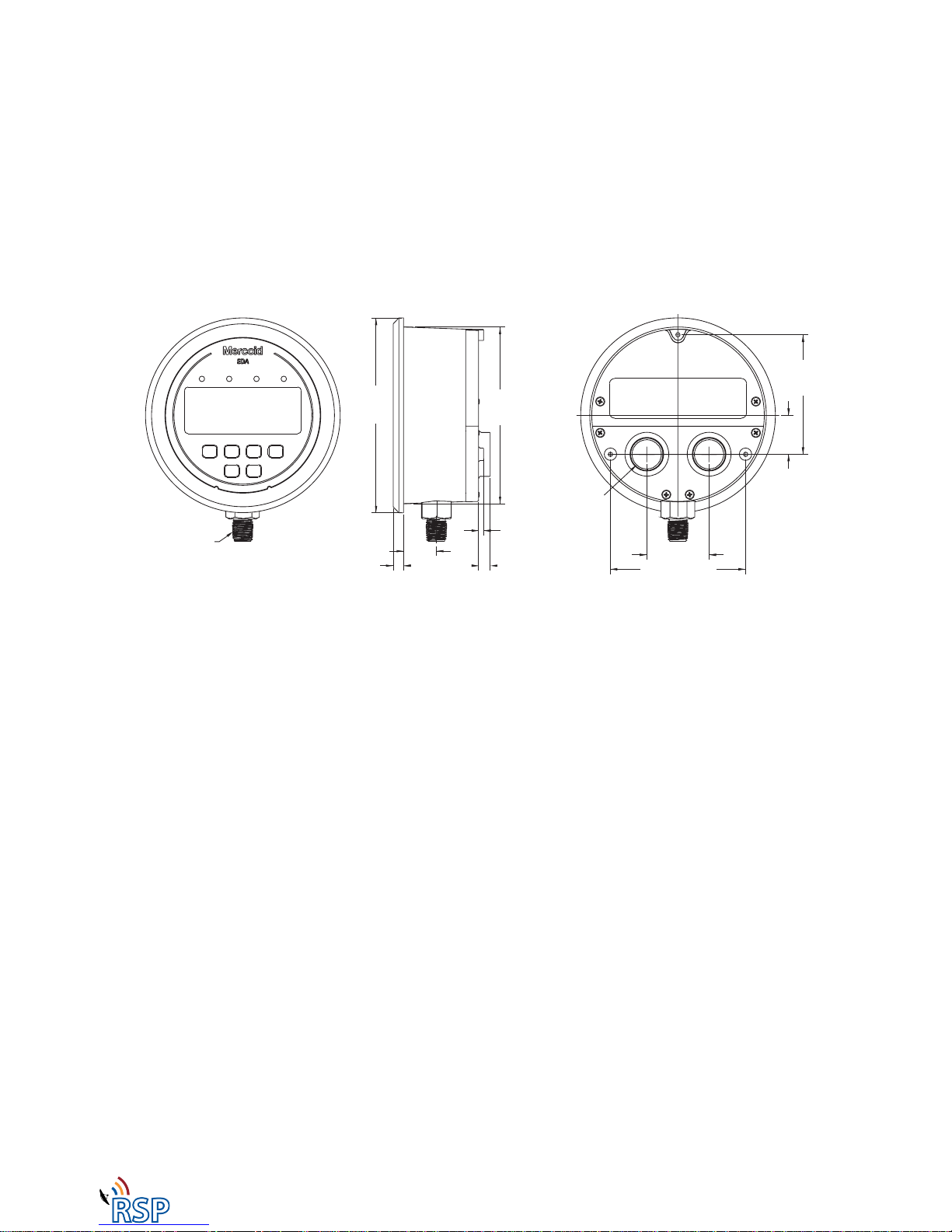

Dimensions
1/4 MALE NPT
WITH 3/4 [19.05]
WRENCHING HEX
9/32 [7.14]
Ø 5
[127.00]
Ø 4-17/32
[115.09]
1
[25.40]
3-1/16
[77.89]
27/32
[21.43]
1-59/64 [26.16]
2X 5/16 [7.93]
3-15/32 [88.11]
1-5/8 [41.28]
[40.88]
3X 1/8 [3.18]
1/2 FEMALE NPT CONDUIT ENTRY
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
2
SPECIFICATIONS Service: Compatible liquids and gases. Wetted Materials: 316L SS. H
ousing: Glass filled plastic.
A
ccuracy: ±1% of F.S. including linearity, hysteresis, and repeatability (indicator and transmitter).
S
tability: < ± 2% of F.S. per year. Pressure Limits: Ranges up to 6,000 psi: 1.5 x range; 8,000 psi range: 10,000 psi. Temperature Limits: Ambient: 20 to 140°F (-6.6 to 60°C); Process: 0 to 176°F (-18 to 80°C). Compensated Temperature Limits: 32 to 122°F (0 to 50°C). Thermal Effect: ±0.05% of F.S./°F. Process Connection: 1/4˝ NPT male, 1/4˝ BSPT male, or 7/16” SAE. Display: 4-digit backlit LCD (Digits: 0.60˝H x 0.33” W). Display Update: 600 ms (dampening set to 1). P
ower Requirements: 12 to 28 VDC ( ) / AC ( ~ ) 50/60 Hz. (Can work at 8 VDC ( ) for 45 seconds). For T5
o
ption: 14 to 30 VDC ( ) / AC ( ~ ) 50/60 Hz.
P
ower Consumption: 2.5 watts. Electrical Connections: Removable terminal blocks with two 1/2˝ female NPS conduit connections. Enclosure Rating: Weatherproof type 4X IP65 (IP65 not evaluated by UL). Unit is rated weatherproof but if unit is
panel mounted, panel will not maintain 4X rating.
Warm Up Time: <10 seconds. Mounting Orientation: Any position. Weight: 1.18 lbs (535 g). Installation Category: II (transient over-voltage). Pollution Degree: 2. Altitude Limit: 6560 ft (2000 m) max. Environment: Intended for indoor and outdoor use. Humidity: 0 to 95% RH up to 104°F (40°C) non-condensing, 10 to 50% at 140°F (60°C) non-condensing.
SWITCH SPECIFICATIONS Switch Type: 2 SPDT relays. Electrical Rating: 5A @ 120/240 VAC ( ~ ) 50/60 Hz, 1A @ 28 VDC ( ). Repeatability: ±1% of FS (switching only). Set Points: Adjustable 0-100% of FS. Switch Indication: External LED for each relay on the front panel. Switch Reset: Manual or automatic.
TRANSMITTER SPECIFICATIONS Output Signal: 4 – 20 mA, 1 - 6 VDC ( ), 1 - 5 VDC ( ), 0 - 5 VDC ( ), or 0 - 10 VDC ( )(direct or
reverse output selection).
Minimum Excitation: 14 VDC ( ). Zero and Span Adjustments: Menu scalable within the range.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
3
Model Number Chart
Display
The EDA has two displays: a lower larger display and a smaller upper display. The Home Display is the normal dis­play while the control is in operation if there are no errors or functions active. The Home display will indicate the process variable at the current condition with the lower display and the selected pressure units for the process vari­able with the upper display. When programming the unit both displays are also used. The Programming Chart in this instruction manual indicates what both displays show while programming the unit. For programming descriptions in this instruction manual the format used is “lower display – upper display”. For example Ctrl – 1SP shows that Ctrl would be in the lower display and 1SP would be in the upper display.
When the user presses the E key to edit an item’s value the upper display will flash “EDIT” and the lower display will blink. When the user presses the E key to then save the edit to the value the upper display will flash “SAVE” and the lower display will stop blinking.
Example S
eries
H
ousing
P
rocess
Connection
Electrical Connection R
ange
Transmitter Output
Options
E
DA
E
DA
W
N
1
B
1
A1
E1
0
1 02 03 04 05 0
6 0
7 08 09 10 11* 12*
T0 T1 T2 T3 T4 T5
STW NIST 23444
EDAW-N1E1-01T0-SST Electronic Pressure Controller W
eatherproof
1
/4˝ NPT male bottom
1
/4˝ BSPT male bottom 7/16˝ SAE male bottom Two 1/2˝ female NPT conduit connections 0 – 30” Hg vacuum 0 – 20 psi 0 – 60 psi 0 – 100 psi 0
– 150 psi 0
– 300 psi 0
– 600 psi 0 – 1000 psi 0 – 1500 psi 0 – 3000 psi 0 – 6000 psi 0 – 8000 psi None 4 to 20 mA 1 to 5 VDC 0 to 5 VDC 1 to 6 VDC 0 to 10 VDC Stainless Steel Tag NIST Certificate Special Cleaning
*Not UL listed.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
4
1.0 INSTALLATION
1.1 UNPACKING
R
emove the EDA from the shipping carton and inspect for damage. If damage is found, notify the carrier immediate-
l
y.
1.2 MOUNTING
The EDA can be pipe, panel, or surface mounted. For pipe mounting thread the unit into a mating female fitting on the pipe. Use a wrench on the 3/4˝ hex at the base of the housing to tighten the unit to the mating fitting. Do not t
hread the unit in by force on the housing. For panel mounting the unit fits into a 4-13/16” (122.24 mm) panel cut out.
I
nsert the unit into the panel opening and secure in place with the machine screws and adaptors provided with the
u
nit as shown in Figure 1 below. Maximum panel thickness is 1/8” (3.5 mm) with supplied screws. For surface mount­ing, panel mount the unit into the A-370 mounting bracket (See the Dwyer catalog or website for ordering details) also shown in Figure 1. The unit can also be directly surface mounted, as shown in Figure 2, with the proper panel cutout for the conduit entrances. Support the pressure connection hex with a wrench if attaching a fitting to the unit in the case of panel or flush mounting so that the pressure connection does not twist. Use a small amount of plumber’s tape or other suitable sealants to prevent leaks around fitting.
Figure 1: Panel Mounting and Mounting in A-370 Bracket
Figure 2: Surface Mounting
A-370 MOUNTING BRACKET
EDAW
SEAL
3X MOUNTING
LUG
3X 4-20 X 3/8 SCREWS
3X 6-20 X 2-1/4 SCREWS
3X 4-20 X 3/8 SCREWS
3X ø 1/8 [3.18]
3-1/16 [77.89]
MOUNTING
HOLE DEPTH
3/8 [9.53]
1-5/8
[41.28]
3-15/32 [88.11]
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
1.3 ELECTRICAL CONNECTIONS
CAUTION: POWER MUST BE OFF WHILE WIRING CONNECTIONS ARE BEING MADE. CAUTION: Do not exceed the specified supply voltage rating. Permanent damage not covered by the warranty m
ay result.
C
AUTION: To maintain type 4X rating of the enclosure, 1/2 NPT conduit fittings must have a UL type 4X out-
d
oor rating.
Note: Installation must be made in accordance with local codes and regulations. When fishing wire through the conduit
c
onnection do not allow the wire to touch or press on components on the boards. Damage to the circuitry may result.
Electrical connections are made to the removable terminal blocks inside the enclosure. Remove the top back cover, do not remove bottom cover. Feed stripped and tinned leads through the conduit opening and connect them as shown in Figure 3. The EDA provides two 1/2˝ NPT female ports for conduit connection. The conduit connections must be made such that condensation is not allowed to enter the sensor housing. If necessary install a conduit breather drain in a sep­a
rate conduit body to prevent buildup of moisture. It is recommended that shielded twisted pair wire be used for the
t
ransmitter output option if the potential exists for interference from external noise sources. When replacing top back
cover tighten screws to 2 ±.25 in. lbs.
Figure 3: Wiring
An external power supply of 12-28 VDC/AC with minimum current capability of 200 mA must be used to power the unit. The power supply connection is not polari­ty sensitive so the positive and negative connections may be made to either termi­nal of CONN9 terminal block. For voltage output option, connect the volt­age receiver (-) to terminal 1 and voltage receiver (+) to terminal 2 of the CONN10 terminal block. For current output option, connect the current receiver (-) to terminal 3 and current receiver (+) to terminal 4 of CONN10 terminal block. DO NOT APPLY EXTERNAL POWER TO CONN10 TER­MINALS - PERMANENT DAMAGE NOT COVERED BY WARRANTY WILL RESULT.
Loads can be connected to connectors CONN7 and CONN8 terminal blocks based on the Control settings:
• For single set point mode (CtrL-1SP), connect the Load to SP1 relay (CONN7).
• For two set points mode (CtrL-2SP), connect the Load1 to SP1 relay (CONN7) and Load2 to SP2 relay (CONN8).
• For single set point and alarm mode (CtrL-SPAL), connect the Load1 to SP1 relay
(CONN7) and Load2 to ALARM relay (CONN8).
Wiring
An external switch or circuit breaker should be added to during the installation as a disconnecting device. The switch or circuit breaker must meet the requirements of IEC 60947-1 and IEC 60947-3, shall disconnect all current carrying conductors, and shall not interrupt the protective earth ground. The disconnecting switch or circuit breaker must be marked or labeled with the symbols “I” for on and “O” for off, per IEC 60417-5007 & IEC 60417-5008 and shall be marked as “Disconnecting Device”. Do not position the PLS in a space where it is difficult to operate the disconnecting device that provides power. 300V @ 90°C 18 AWG/0.75 mm
2
wiring with PVC or equivalent insulation with 94-V0 or FV­0 flammability rating is recommended for the switch outputs and power. Terminal blocks rated for 16-22 solid or strand­ed copper conductor. 6 lb in is suggested tightening torque.
5
S
P1
RELAY
5A 250 VAC FOR LOADS USING 120/240 VAC POWER 1A 32 VDC FOR LOADS USING 30 VDC POWER
375 mA 250 VAC
LOAD 1
LOAD 2
LINE
INPUT
12 TO 30 VDC/AC POWER
S
P2 OR ALARM
RELAY
Description
Direct current Alternating current Protective conductor terminal On (supply) Off (supply)
Symbol
Explanation of Symbols:
~
Publication
IEC 50417 - 5031 IEC 50417 - 5032 IEC 50417 - 5019 IEC 50417 - 5007 IEC 50417 - 5008
As a permanently installed piece of equipment, a power disconnect switch, circuit breaker, or other
approved disconnect device must be installed in close proximity to the installed board and within easy reach of the operator. This disconnect device must include a label indicating its function as a mains disconnect. A circuit breaker or fuse device is recommended (see Figure 3).
WARNING
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
6
2. OPERATING INSTRUCTIONS
2
.1 FRONT PANEL & KEY FUNCTIONS
Figure 4: Front Panel Functions
Key Functions
HOME POSITION FUNCTION MAIN MENU FUNCTION
ITEM FUNCTION
Enter into items
Peak/Valley resets
display to present value.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
7
2.2 SET POINTS & ALARMS
Setting Set Points and Alarms
Set Point Adjustment
Adjusting the set points is quick and simple. Instead of setting a set point and dead band, simply adjust SP1H, Set Point 1 High, and SP2H, Set Point 2 High, for the desired relay turn on point, and then adjust SP1L, Set Point 1 Low, and SP2L, Set Point 2 Low, for the desired relay turn off point.
In the above graph, an instrument with a 100 psi range would have the SP1 relay turn ON at 80 psi and OFF at 40 psi. SP1H sets the relay turn ON point, and SP1L sets the relay turn OFF point.
The hot key provides direct access to the Set Point and Alarm settings.
The Set Point and Alarm settings that are displayed are based upon the Control (CtrL) menu item.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
8
Relay Action
The relays outputs normally function in the direct acting mode, which means the relays turn ON with an increase in pressure. SP1 and SP2 may be configured to act as reverse acting relays (refer to the CtrL menu item). When set for reverse acting, SP1H and SP2H set the relay turn OFF point, and SP1L and SP2L set the relay turn ON point. The above graph demonstrates direct and reverse action on process (pressure) change.
Alternating (Lead/Lag) Operation
The EDA is designed to easily operate a pair of pumps in an alternating operation to minimize pump wear. The unit has programmable on and off set points for pump one and two. If the lead/lag feature is turned off then the relays remain attached to their corresponding set points, SP1H and SP1L control relay 1 (pump 1) and SP2H and SP2L control relay 2 (pump 2). There is no alternating function.
If lead/lag feature is turned on then the relays will alternate with set points SP1H and SP1L to SP2H and SP2L with every cycle of set points. The Last relay turned off will be last relay turned on with the next cycle. On the first cycle on increase of pressure, assuming direct acting, the SP1 relay (pump 1) will come on and then on further increase of pressure the SP2 relay (pump 2) will come on. On the subsequent decrease of pressure the SP2 relay (pump 2) will come off and then the SP1 relay (pump 1) will come off. When pressure increases on the next cycle the relay used on the last cycle for SP2 will now be used for SP1, so that SP1 now controls pump 2 and SP2 now controls pump 1. Even if SP2 is not used on the pressure cycle the relays still alternate on next cycle.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
9
2
.3 PROGRAMMING CHART
MENU MAP
HOME
MAIN MENUS
ITEMS SETTINGS
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
10
HOME
M
AIN MENUS ITEMS SETTINGS
CONTROL MODE SELECTION
ITEMS PRESENT WHEN “CtrL” SET TO “1SP”, “2SP” OR “SPAL”
ITEMS PRESENT W
HEN “CtrL” SET
T
O “2SP”
ITEMS PRESENT WHEN “CtrL” SET TO “SPAL”
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
11
HOME
SEE PAGE 17.
MAIN MENUS ITEMS SETTINGS
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
12
2.4 MAIN MENU SELECTIONS
M
enu Selections
P
ress the MENU button to start the menu so that the upper right displays reads MENU. Press the ▼ key to advance
to the next menu item. You can press the ▲ key to go back to the previous menu. Press the E key to enter a menu.
SECr Security Menu
Lock out access to set point and alarm settings, or lock out access to all settings.
O
PEr Operation Menu
S
elect pressure units, zero the display, and turn the backlight on or off.
Out Output Menu
Select relay mode of operation, alternating function, time delay, and lamp indication.
d
iS Display Menu
Monitor and adjust display related settings: Peak, Valley and Dampening.
AdU Advanced Functions Menu
Modify advanced function parameters: transmitter output scaling, direct or reverse output setting, calibration, or restoring factory default calibration.
tESt Test Menu
Simulate input over the range without pressure to test switch and transmitter output function.
FAIL Failsafe Menu
Set the relay and transmitter outputs to certain preset values when failsafe conditions occur. Error codes will show on the display indicating the problem. User chooses if relay is de­energized, energized, or no action taken. With transmitter option, user chooses an output of 3.6 mA, 22 mA, or no action taken.
Menus and Values
SECr Security Menu
SECr When the security item is selected, the present security level is displayed in the upper right hand
display. To change the security level, adjust the number displayed to the password value in the Password Table, shown below, by pressing the ▲ or ▼ key and then pressing the E key at the desired security level.
The password values shown in the table cannot be altered, so retain a copy of these pages for future reference.
Security Level Displayed
1 2
3
4
Access
All menus access Menu Access SP/AL Locked SP/AL Access Menus Locked All settings locked
Password Value to Enter
10 70
90
111
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
13
OPEr Operation Menu
U
nit Pressure Units
W
ith the display reading Unit - PSI, press the E key. The upper display will blink. Press the ▼ key to
c
hange unit then press E key to save the new unit.
PSI Pounds per square inch FS % of full scale OZIN Ounces per square inch C
MWC Centimeters of water column
M
PA Megapascals
B
AR Bar MBAR Millibar KPA Kilopascals FTWC Feet of water column KGCM Kilograms per square centimeter MMHG Millimeters of mercury INWC Inches of water column INHG Inches of mercury
Pressure Range vs. Available Units
ZERO Auto Zero
Note: DO NOT apply any pressure when performing this function. With the display
reading xx - ZERO, press the E key. The upper display will blink. Press E again to zero the display. The display will read 0.0 if the zero offset is less than ±5% of full scale.
bCLt Backlight
ON Backlight always on. OFF Backlight always off. 30 Backlight stays on for 30 minutes. 10 Backlight stays on for 10 minutes. 5 Backlight stays on for 5 minutes. 2 Backlight stays on for 2 minutes.
PSI
-14.70
20.00
60.0
100.0
150.0
300.0 600 1000 1500 3000 6000 8000
KG/CM2
-1.033
1.406
4.22
7.03
10.55
21.09
42.2
70.3
105.5
210.9 422 562
BAR
-1.013
1.379
4.14
6.89
10.34
20.68
41.4
68.9
103.4
206.8 414 551
INHg
-29.93
40.7
122.2
203.6
305.4 611 1222 2036 3054
FTWC
-33.94
46.1
138.4
230.7
346.0 692 1384 2307 3460
KPA
-101.4
137.9 414 689 1034 2068
MPA
-0.101
0.1379
0.414
0.689
1.034
2.068
4.14
6.89
10.34
20.68
41.4
55.1
INWC
-407.3 554 1663 2771
MBAR
-1013 1379
CMWC
-1034 1406
MMHg
-761 1035 3105
OZ/IN2
-235.2
320.0 960 1600 2400
% FS
100 100 100 100 100 100 100 100 100 100 100 100
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
14
O
Ut Output Menu
C
trL Control Mode
1SP Single set point. 2SP Two fully independent set points. SPAL Single set point and alarm.
1
SP SP1, Set Point 1, Reverse or Direct Acting
D
IR Direct. Relay turns on with increasing pressure. R
EV Reverse. Relay turns on with decreasing pressure.
DEL1 SP1, Set Point 1, Time Delay
Sets the amount of time a set point condition must be continuously met before the set point condition is recognized. The DEL1 delay is adjustable from 0-60 seconds.
L
Ed1 SP1, Set Point 1, Lamp
OFF The SP1 LED on the front panel turns OFF when the SP1 relay turns OFF.
The SP1 LED on the front panel turns ON when the SP1 relay turns ON.
ON The SP1 LED on the front panel turns ON when the SP1 relay turns OFF.
The SP1 LED on the front panel turns OFF when the SP1 relay turns ON.
The following SP2 function values are only activated when CtrL is set to 2SP:
2SP SP2, Set Point 2, Reverse or Direct Acting
DIR Direct. Relay turns on with increasing pressure. REV Reverse. Relay turns on with decreasing pressure.
DEL2 SP2, Set Point 2, time delay
Sets the amount of time a set point condition must be continuously met before the set point condition is recognized. The DEL2 delay is adjustable from 0-60 seconds.
LEd2 SP2, Set Point 2, Lamp
OFF The SP2 LED on the front panel turns OFF when the SP2 relay turns OFF.
The SP2 LED on the front panel turns ON when the SP2 relay turns ON.
ON The SP2 LED on the front panel turns ON when the SP2 relay turns OFF.
The SP2 LED on the front panel turns OFF when the SP2 relay turns ON.
LdL9 Relay Alternation (See page 8)
OFF There is no alternating function. ON Relays will alternate with set points SP1H/L and SP2H/L with every cycle of set
points. 2SP control mode only.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
15
The following alarm function menu items are activated when CtrL is set to SPAL:
D
ELA Alarm Delay
S
ets the amount of time an alarm condition must be continuously met before the alarm condition is recognized. The alarm delay is adjustable from 0 - 60 seconds.
LEdA Alarm Lamps
OFF The ALLO LED or ALHI LED on the front panel turns OFF when the alarm relay
t
urns OFF. The ALLO LED or ALHI LED on the front panel turns ON when the
a
larm relay turns ON.
O
N The ALLO LED or ALHI LED on the front panel turns ON when the alarm relay
turns OFF. The ALLO LED or ALHI LED on the front panel turns OFF when the alarm relay turns ON.
AL Alarm Type (see Alarm Adjustment below)
H
IGH High alarm only. LOW Low alarm only. HILO For a high and low guard band type alarm. Share the same relay output.
Alarm Adjustment
Alarm settings are dependent upon the selected alarm type. The EDA pressure controller alarm may be configured as a High Alarm, Low Alarm, or High/Low Alarm. Alarm settings may be set to anywhere within the range of the instrument. The dead bands of the alarms are fixed at 1% of full scale.
ALrE Alarm Reset
AUTO Automatic reset. HOLD Manual reset. An alarm is reset by pressing the RST key on the front panel.
ALiH Low Alarm Inhibit
OFF Alarm inhibit is off. ON Alarm inhibit is on.
Note: If ALiH is selected ON, a low alarm condition is suspended upon power up until the process value passes
through the alarm set point once.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
16
d
iS Display Menu
PEAK Peak
The Peak feature stores the highest pressure reading the instrument has measured since the last reset or power up. At power up PEAK is reset to the present pressure reading. To manually r
eset the PEAK value, press the RST (RESET) key while in PEAK.
V
ALY Valley
The Valley feature stores the lowest pressure reading the instrument has measured since the last reset or power up. At power up VALY is reset to the present pressure reading. To manually reset the VALY value, press the RST (RESET) key while in VALY.
D
AMP Dampening
A
djust from 1-15. Dampening stabilizes the display from instabilities due to things such as vibration a
nd excessive pressure fluctuations. The dampening setting adjusts the amount of readings that are averaged for each display update. Adjust the dampening value until the display reads a stable value for the application.
AdU Advanced Menu
POL, Process Output Low, and POH, Process Output High are used to scale the transmitter output for a unit with
the output option of 4 to 20 mA, 0-5 VDC, 0-10 VDC, 1-5 VDC, or 1-6 VDC. Below shows with 4 to 20 mA output option.
POL Process Output Low
Set to the desired display reading for the 4 mA output. May be set from 2% below minimum scale up to POH.
POH Process Output High
Set to the desired display reading for the 20 mA output. May be set from POL to 2% above maximum scale.
CAL – ZERO Zero Calibration
DO NOT apply any pressure when performing this function. With the display reading CAL - ZERO, press the E key. The upper display will blink. Press the E key again to complete the zeroing of the instrument or press the MENU key to cancel.
CAL – FS Full-scale Calibration
With the display reading CAL - FS, apply full-scale pressure to the unit, press the E key. The upper display will blink. Press the E key again to complete the calibration or press the MENU key to cancel.
trAn sets the transmitter output option function for a unit with the output option of 4 to 20 mA, 0-5 VDC, 0-10 VDC, 1-5 VDC, or 1-6 VDC. Below shows with 4 to 20 mA output option.
trAn
DIR Direct Output. 4 mA output at zero, 20 mA output at full scale pressure. REV Reverse Output. 20 mA output at zero, 4 mA output at full scale pressure.
CAL - DFLT Factory Default Calibration
With the display reading CAL - DFLT, press the E key. The upper display will blink. Press E again to restore the original factory calibration values or press the MENU key to cancel.
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
tESt Test Menu
t
ESt When selected the unit simulates a pressure input over the range to test the programming and output
f
unction. To start an automatic simulated cycling through the pressure range press the E key. This test will run continually until the E key is pressed again. To manually adjust the simulated pressure press the ▲ or ▼ key to adjust the pressure value. To exit tESt press the MENU key.
FAIL Failsafe Menu
T
he Failsafe menu is used to set the relay and transmitter outputs to certain preset values when failsafe conditions
o
ccur. Error codes will show on the display indicating the problem. See Diagnostic Error Messages on the next page.
rEL Relay Output Failsafe Condition
OPEN The relay is de-energized upon failsafe condition. The NO contacts will be
opened, and the NC contacts will be closed.
C
LSE The relay is energized upon failsafe condition. The NO contacts will be closed,
and the NC contacts will be opened.
NORM No change applied to the relay upon failsafe condition.
OUtP sets the transmitter output option failsafe condition for a unit with the output option of 4 to 20 mA, 0-5 VDC,
0-10 VDC, 1-5 VDC, or 1-6 VDC. See below chart of transmitter output action according to output signal type.
OUtP Transmitter Output Failsafe Condition
LOW Transmitter output goes to low failsafe condition. HIGH Transmitter output goes to high failsafe condition. NORM No change applied to transmitter output upon failsafe condition.
FrEs Failsafe reset
AUTO Automatic reset - Failsafe is reset automatically when the failsafe error condition
is removed.
HOLD Manual reset - Failsafe is reset when the MENU key is pressed.
17
Output signal
LOW HIGH
4-20 mA
3.6 mA 22 mA
0-5 VDC
-0.125 VDC
5.625 VDC
0-10 VDC
-0.250 VDC
11.250 VDC
1–6 VDC
0.875 VDC
6.625 VDC
1-5 VDC
0.9 VDC
5.5 VDC
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
DWYER INSTRUMENTS, INC.
Phone: 219/879-8000 www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, IN 46360, U.S.A. Fax: 219/872-9057 e-mail: info@dwyer-inst.com
©Copyright 2013 Dwyer Instruments, Inc.
Printed in U.S.A. 6/13
FR# 76-443725-00 Rev.4
4. DIAGNOSTIC ERROR MESSAGES
5. MAINTENANCE/REPAIR
Upon final installation of the Series EDA, inspect and clean with water or damp cloth at regular intervals. The Series EDA is not field serviceable and should be returned if repair is needed (field repair should not be attempted and may void warranty.
6. WARRANTY/RETURN
Refer to “Terms and Conditions of Sales” in our catalog and on our website. Contact customer service to receive a Return Goods Authorization number before shipping the product back for repair. Be sure to include a brief descrip­tion of the problem plus any additional application notes.
D
isplay
Err1
Err2
E
rr3
E
rr4
Err5
Meaning
L
ow temperature limit
A
temperature below 0°F has been applied to the sensor
H
igh temperature limit A temperature above 180°F has been applied to the sensor Sensor failure The micro-controller is receiving invalid signal from the sensor Over pressure limit P
roof pressure have been exceeded K
eypad short
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
