5. Move the Volk iNview Retinal Imager towards
the patient keeping the red reflex centered
on the display.

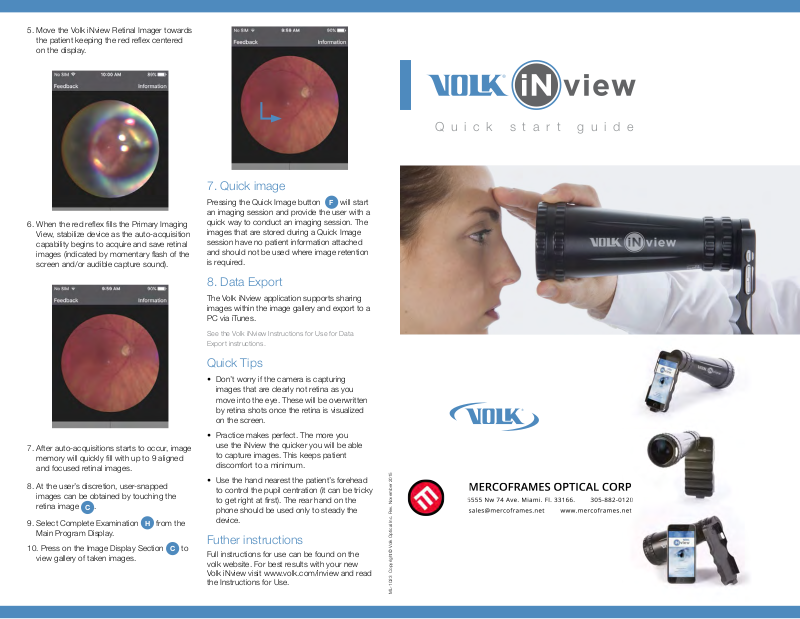

Quick start guide
6. When the red reflex fills the Primary Imaging
View, stabilize device as the auto-acquisition
capability begins to acquire and save retinal
images (indicated by momentary flash of the
screen and/or audible capture sound).
7. After auto-acquisitions starts to occur, image
memory will quickly fill with up to 9 aligned
and focused retinal images.
8. At the user’s discretion, user-snapped
images can be obtained by touching the
retina image C.
9. Select Complete Examination H from the
Main Program Display.
10. Press on the Image Display Section
view gallery of taken images.
to
C
7. Quick image
Pressing the Quick Image button F will start
an imaging session and provide the user with a
quick way to conduct an imaging session. The
images that are stored during a Quick Image
session have no patient information attached
and should not be used where image retention
is required.
8. Data Export
The Volk iNview application supports sharing
images within the image gallery and export to a
PC via iTunes.
See the Volk iNview Instructions for Use for Data
Export instructions.
Quick Tips
• Don’t worry if the camera is capturing
images that are clearly not retina as you
move into the eye. These will be overwritten
by retina shots once the retina is visualized
on the screen.
• Practice makes perfect. The more you
use the iNview the quicker you will be able
to capture images. This keeps patient
discomfort to a minimum.
• Use the hand nearest the patient’s forehead
to control the pupil centration (it can be tricky
to get right at first). The rear hand on the
phone should be used only to steady the
device.
Futher instructions
Full instructions for use can be found on the
volk website. For best results with your new
Volk iNview visit www.volk.com/inview and read
the Instructions for Use.
This Quick Start Guide provides instruction to start up and
begin imaging with the Volk iNview retinal imager.
For full instructions refer to the Volk iNivew IFU on the Volk website.
®
ML-1023 Copyright © Volk Optical Inc. Rev. November 2015
Page 2
1. Setup
For personal iOS device
a. Visit the App Store on your
Apple device and download
the application Volk iNview.
b. Place your device into the
iNview indirect lens holder.
Volk iNview
Packaged iOS device
a. Charge the device fully before use.
b. Power on the iPod touch using the Sleep
button located on top of the electronic
camera device.
c. Connect the camera WiFi your local network.
Note - Full instructions to connect to WiFi can be
found on the Apple website at www.apple.com.
2. Start the application
Press on the application icon to start the
app.
3. Choose Patient Data
Encryption mode
On first start up of the application you
will be presented with the choice to use
the application in either HIPAA compliant
encrypted mode or unencrypted mode.
4. Application Guide
A B
C
D
F G
H
A. Let us know your thoughts.
B. View guides and helpful content to using
your new Volk iNview.
C. Main Imaging Display.
D. New Patient Imaging Session.
E. View exisiting imaging sessions or begin a
new session on an existing patient.
F. Take quick imaging sessions on patients
without storing results.
G. Export data within application to PC.
H. Complete Exam/Calibrate Camera.
5. Calibrating the Camera
The camera focus and alignment must be
calibrated before imaging a patient for the first
time.
Calibrate camera using the button located at
the bottom of the Main Program Display and
follow the onscreen instructions.
6. Imaging
It is advised to practice on a model eye or
compliant volunteer before using on patients for
the first time in order to familiarise yourself with
using the Volk iNview.
1. Select either New Patient or Existing Patient
from the Main Program Display.
a. If New Patient – enter either the patient ID
or first name/last name/birth date of the
patient.
E
b. If Existing Patient – select patient starting
from the Patient Record Identifier Display.
2. Select Image Left Eye (for new patient) or
New Exam (for existing patient).
3. Position the Volk iNview Retinal Image
approximately 100mm from the patient’s eye.
• The device can be used according to user
preference with either the left or right hand
at the front.
• The front hand should be placed on the lens
grip at the very front of the device for the
best control.
4. Center the red reflex on the display.
