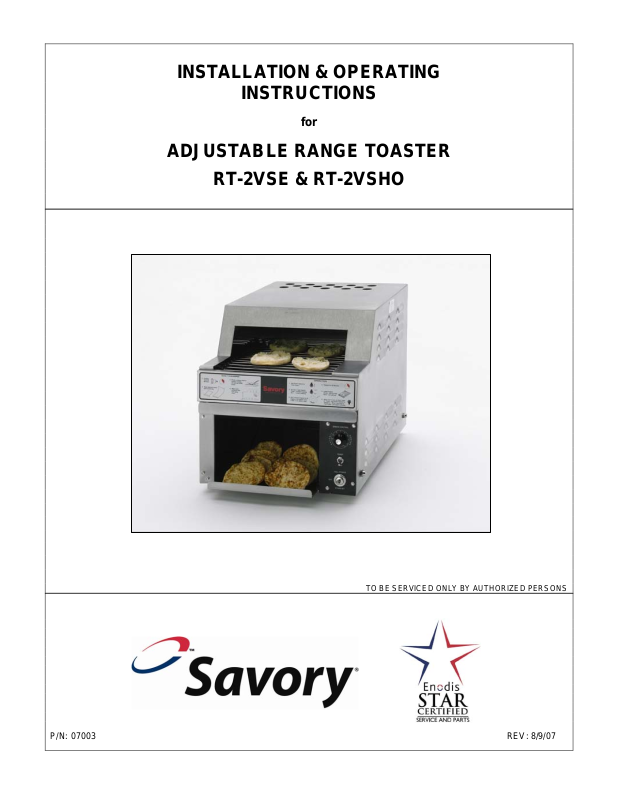

INSTALLATION & OPERATING
INSTRUCTIONS
for
ADJUSTABLE RANGE TOASTER
RT-2VSE & RT-2VSHO
TO BE SERVICED ONLY BY AUTHORIZED PERSONS
P/N: 07003 REV: 8/9/07
BEFORE INSTALLATION
NOTE: Upon receipt of this unit, immediately unpack and inspect for possible concealed shipping d amage. If unit
is found to be damaged, save all packing materials and contact your delivery carrier within 5 days. Refer to
“Shipping Damage Instructions” enclosed for detailed instructions. Failure to follow these in structions will negate
Merco Savory’s or your ability to file claims and receive compensation for shipping damage.
This manual contains important safety and installation-operation instructions. Require all operators to read this
manual before using the unit. Failure to follow the instructions contained in this manual may cause injury, damage
to the unit, and will void the warranty.
INSTALLATION
Install this unit in the most convenient location for ease of cleaning, maintenance and general operation. Avoid
installing in locations with drafts, close proximity to grease or vapor-producing appliances or other high ambient
heat equipment. Allow approximately 1” clearance on sides and back of unit for proper air circulation. Allow
sufficient overhead clearance for proper heat dissipation. This toaster must be level for proper operation and
comes equipped with 1” adjustable legs for this purpose. (See enclosed instructi on sheet for details.)
Before operating this unit, be sure that the following two components are properly installed:
1. The reflector tray is installed below the lower heating elements before shipping. It merely slides under the
conveyor belt. NOTE: Proper toasting cannot be performed if reflector tray is not installed.
2. The toast receiving tray is packaged separately and must be installed before operating this unit. Slide the
receiving tray into the toaster cavity below the control panel, making sure the slotted end is towards the back.
Place the slotted end over the two protruding pins located at the rear of the toaster cavity
(see figure 1).
This toaster must be used with proper
voltage as specified on the unit data
plate located on the rear panel of
toaster. Use of any other voltage or
altering plug will damage unit, void
warranty, and may cause injury.
!
WARNING!
ELECTRICAL SPECIFICATIONS – RT-2VSE
VOLTAGE
(Volts AC)
208 15.4 3.2 50/60 1 3’ NEMA 6-20P
220 14.5 3.2 50/60 1 3’ NEMA 6-20P
240 13.3 3.2 50/60 1 3’ NEMA 6-20P
AMPERAGE
(Amps)
MAX. POWER
(KW)
FREQUENCY
(HZ)
PHASE
CORD
(Attached)
PLUG
(Attached)
ELECTRICAL SPECIFICATIONS – RT-2VSHO
VOLTAGE
(Volts AC)
208 19.5 4.0 50/60 1 3’ NEMA 6-30P
220 18.4 4.0 50/60 1 3’ NEMA 6-30P
240 16.9 4.0 50/60 1 3’ NEMA 6-30P
AMPERAGE
(Amps)
MAX. POWER
(KW)
FREQUENCY
(HZ)
PHASE
CORD
(Attached)
PLUG
(Attached)
RT-2VSE & RT-2VSHO Ops Manual
2
CONTROL PANEL FEATURES
SPEED CONTROL – Located at the upper portion of the control panel, this control regulates the speed of the
conveyor belt. If product is too dark, rotate this control counter-clockwise to a higher number. If product is too light,
rotate control clockwise to a lower number.
BUN-TOAST SWITCH – Press “Toast” for two-sided toasting or “Bun” for one-sided toasting.
MAIN POWER ON/OFF SWITCH – Located below the Bun-Toast Switch, this switch supplies power to the toaster.
The switch must be in the “On” position to operate the toaster.
TOASTING BREAD PRODUCTS
Toasting bread products may seem to be a simple process but the results can be easily affected by a number of
factors. The first consideration is the type of product being toasted. Varieties of bread such as whole wheat, rye,
white, english muffins, bagels and buns have different requirements to become perfectly toasted. Dryness or
moisture content of the bread (mostly described as “freshness,” with more moisture bei ng the fresher), sugar
content and the thickness of the slice or bun all play a predominate role during toasting.
Your RT-2VSE or RT-2VSHO toaster is designed to accommodate these varieties of bread products by adjusting
the conveyor speed to create lighter or darker toasting and to allow for toasting thicker products that contain more
moisture such as english muffins or fresh bagels. It is normal to operate the toaster in the lower ranges of the
speed control to perform toasting of these more difficult products.
Certain breads that contain fruit and nuts may require more attention. Loose pieces can fall on the heating
elements or into the conveyor mechanism and cause premature wear on the toaster. It is reco mmended that loose
pieces be removed before placing the bread on the conveyor.
Since it is nearly impossible to predetermine what conveyor speed produces perfect results, some experimentation
is necessary with all types of bread you will be toasting. Once all varieties of product have been tried and the
proper settings found, document the results and refer to them when toasting. Remember that allowances for
freshness might require additional adjustments.
When toasting a high volume of product, as in peak periods, additional adjustments may be required when demand
is reduced to an occasional toast order. If the toaster is operating, without bread passing through the conveyor,
heat builds up within the “empty” toaster. The occasional toast order now will brown more rapidly and may require
turning conveyor speed to a higher number to compensate. Conversely, when toasting occasional ord ers and
changing to high volume may require slowing the conveyor because the higher volume of bread actually cools
down the toaster.
When going through these transitional periods, adjust conveyor speed faster or slower accordingly. It is suggested
that you set the conveyor speed at a lower number for thicker products or when the toaster is co ol to a higher
number when toasting thinner products or when the toaster has been idle for a period of time.
OPERATING INSTRUCTIONS
IMPORTANT NOTICE: This unit is equipped with a 3-way On/Off Power Mode Switch. When switching from one
power to another, it is necessary to release pressure on the switch lever when moving through the OFF posit ion.
1. Set Power Switch to “FULL POWER” position.
2. Set Bun/Toast Switch to “Toast” for two-sided toasting or to “Bun” for one-sided toasting.
3. Set Speed Control to #5.
4. Allow a 20 minute warm-up period.
5. After warm-up period has elapsed, set Speed Control for desired setting. Some experimentation will be
necessary to obtain the desired results for individual products. Recommended initial setting can range from #3
to #6. Whole grain, rye and other products with low sugar content will require a lower conveyor speed setting
than would white flour products to produce medium toast color.
6. Place product on conveyor belt side by side. When toasting bun halves – place cut side up. If finished product
is too dark, increase Speed Control to a higher number. If product is too light, decrease Speed Control to a
lower number.
7. When toaster is not in constant use, set Bun/Toast Switch to “Toast” position and Power Switch to “Stand-
By.” When returning to Full Power position for normal operation mode, allow 5 minute warm-up period before
resuming toasting operation.
RT-2VSE & RT-2VSHO Ops Manual
3
CLEANING INSTRUCTIONS
UNPLUG TOASTER AND ALLOW TO COOL BEFORE ATTEMPTING ANY CLEANING PROCEDURES.
!
amount of grease or dirt is allowed to collect, a non-abrasive cleaner (hot sudsy water) may be used. DO NOT
allow water or cleaning compounds to contact the internal parts, especially the switches on the control panel.
Remove receiving tray/delivery chute and reflector tray daily to remove crumbs which may collect. The non-stick
coated conveyor belt should be wiped with a soft damp cloth daily to remove any food particles whi ch may collect.
DO NOT use abrasive cleaners on the conveyor belt.
Merco Savory toasters are designed for easy cleaning. The stainless steel outer case requires nothing
more than a daily wiping with a soft damp cloth to retain its lustrous finish. If, however, an excessive
SCHEMATICS
IMPORTANT: Use this wiring diagram for RT-2VSE models with Serial Number #RT0019224 and after.
IMPORTANT: Use this wiring diagram for RT-2VSHO models with Serial Number #RT001 9224 and after.
RT-2VSE & RT-2VSHO Ops Manual
4
LIMITED WARRANTY FOR COMMERCIAL PRODUCTS
LIMITED WARRANTY
Merco/Savory LLC, ("Merco”) warrants this product to be free from defects in material and workmanship for a period of:
• One (1) year from the date the product is installed or eighteen (18) months from the date of shipment from our facility, whichever comes
first.
• Heating elements only – two (2) year warranty against burnout (excluding breakage) from date of shipment from our facility.
• Hot Food Server products only – one (1) year labor, two (2) years parts from the date of shipment from our facility.
During the warranty period, Merco shall, at Merco’s option, repair, or replace parts determined by Merco to be defective in material or
workmanship, and with respect to services, shall re-perform any defective portion of said services. The foregoing shall be the sole obligation of
Merco under this Limited Warranty with respect to the equipment, products, and services. With respect to equipment, materials, parts and
accessories manufactured by others, Merco’s sole obligation shall be to use reasonable efforts to obtain the full benefit of the manufacturer’s
warranties. M e rc o shall have no liab i li t y, wh e t h er i n contract, tort, negligence, or otherwise, with respect to non-Merco manufactured products.
WHO IS COVERED
This Limited Warranty is available only to the original purchaser of the product and is not transferable.
EXCLUSIONS FROM COVERAGE
• Repair or replacement of parts required because of misuse, improper care or storage, negligence, alteration, accident, use of incompatible
supplies or lack of specified maintenance shall be excluded
• Normal maintenance items, inclu ding b ut no t limit e d to , lig ht bulbs, fuses, gaskets, O-rings, interior and exterior finishes, lubrication, de-
liming, broken glass, etc.
• Failures caused by improper or erratic voltages
• Improper or unauthorized repair
• Changes in adjustment and calibration after ninety (90) days from equipment installation date
• This Limited Warranty will not apply to any parts subject to damage beyond the control of Merco, or to equipment whi ch has been subject to
alteration, misuse or improper installation, accidents, damage in shipment, fire, floods, power changes, other hazards or acts of God that are
beyond the control of Merco.
• This Limited Warranty does not apply, and shall not cover any products or equipment manufactured or sold by Merco when such products
or commercial equipment is installed or used in a residential or non-commercial application. Installations not within the applicable building or
fire codes render this Limited Warranty and any responsibility or obligations associated therein null and void. This includes any damage,
costs, or legal actions resulting from the installation of any Merco commercial cooking equipment in a non-commercial application or
installation, where the equipment is being used for applications other than those approved for by Merco.
LIMITATIONS OF LIABILITY
The preceding paragraphs set forth the exclusive remedy for all claims based on failure of, or defect in, products or services sold hereunder,
whether the failure or defect arises before or during the warranty period, and whether a claim, however instituted, is based on contract, indemnity,
warranty, tort (including negligence), strict liability, implied by statute, common-law or otherwise , and Merco its servants and agents shall not be
liable for any claims for personal injuries, incidental or consequential damages or loss, howsoever caused. Upon the expiration of the warranty
period, all such liability shall terminate. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES,
WHETHER WRITTEN, ORAL, IMPLIED OR STATUTORY. NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
PARTICULAR PURPOSE SHALL APPLY. MERCO DOES NOT WARRANT ANY PRODUCTS OR SERVICES OF OTHERS.
REMEDIES
The liability of Merco for breach of any warranty obligation hereunder is l i mi t e d to: (i) the repair or repla ce m e nt of the equipment on which the
liability is based, or with respect to services, re-performance of the services; or (ii) at Merco’s option, the refund of the amount paid for said
equipment or services.
Any breach by Merco with respect to any item or u nit of equipment or services shall be deemed a breach with respect to that it em or unit or
service only
WARRANTY CLAIM PROCEDURE
Customer shall be responsible to:
• Immediately advise the Dealer or Merco’s Authorized Service Agent of the equipment serial number and the nature of the problem.
• Verify the problem is a factory responsibility. Improper installation or misuse of equipment, are not covered under this Limited
Warranty.
• Cooperate with the Service Agency so that warranty service may be completed during normal working hours.
• Travel Time not to exceed two hours and mileage not to exceed one hundred (100) miles.
• Portable equipment weighting less than ninety (90) pounds must be delivered to the Service Agent at Customer’s expense.
GOVERNING LAW
This Limited Warranty shall be governed by the laws of the state of Delaware, USA, exclud ing th e i r con f lict s o f law principles. The United Nations
Convention on Contracts for the International Sale of Goods is hereby excluded in its entirety from application to this Limited Warranty
Merco Savory LLC
1111 North Hadley Road
Fort Wayne, Indiana 46804
USA
www.mercosavory.com
RT-2VSE & RT-2VSHO Ops Manual
5
Merco Savory, LLC
1111 North Hadley Road
Fort Wayne, IN 46804
United States of America
Telephone: (260) 459-8200
U.S. Facsimile: (888) 790-8193
Int’l Facsimile: (260) 436-0735
Technical Support Hotline: (800) 678-9511
www.mercosavory.com
RT-2VSE & RT-2VSHO Ops Manual
