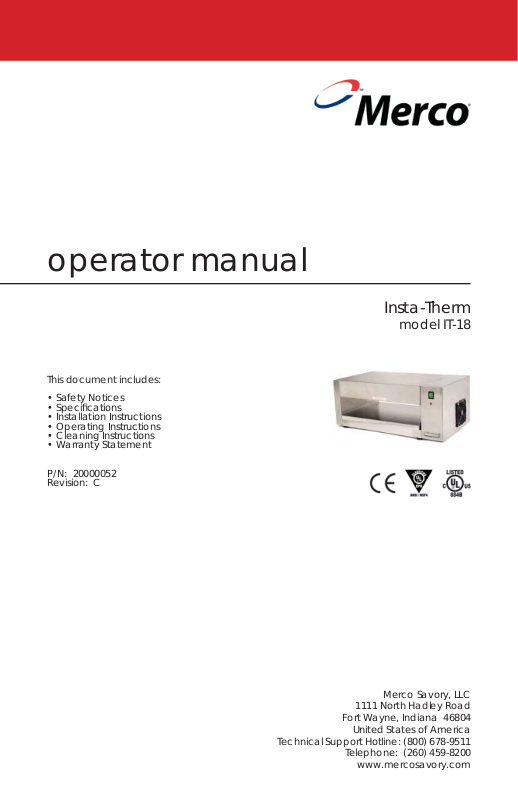

Merco IT-18 Installation Manual

operator manual

This document includes:

• Safety Notices

• Specifi cations

• Installation Instructions

• Operating Instructions

• Cleaning Instructions

• Warranty Statement

P/N: 20000052
Revision: C

Insta-Therm

model IT-18

Merco Savory, LLC

1111 North Hadley Road

Fort Wayne, Indiana 46804

Technical Support Hotline: [phone]

United States of America

Telephone: [phone]

www.mercosavory.com

BEFORE INSTALLATION

Upon receipt of this unit, immediately unpack and remove any protective packaging to inspect for possible concealed
shipping damage. If unit is found to be damaged, save all packing materials and contact your delivery carrier within fi ve
(5) days. If there is apparent damage:

In U.S.A. and Canada: Arrangements should be made to fi le a claim against the carrier as Interstate Commerce Regula-
tions require that the claim must be initiated by the consignee.

In Other Countries: Freight terms will be developed and extended on an individual basis.
Failure to follow these instructions will negate Merco’s or your ability to fi le claims and receive compensation for shipping

damage.

SITE PREPARATION

WARNING:

Choose a well-ventilated location. Place the unit on a non-combustible table or counter capable of supporting the weight
of the unit. The power supply must be in accordance with the specifi cations on the data plate located on the rear of the
unit. It should be installed on a dedicated service line with no other equipment on the circuit. The unit must be positioned
so that the units’ plug is accessible. (For CE units only, if the power cord is damaged it should only be replaced by the
manufacturer or an Authorized Service Agent during the warranty period.)

KEEP THIS UNIT FREE AND CLEAR OF COMBUSTIBLE MATERIALS. DO NOT PLACE
THIS UNIT ON A COMBUSTIBLE SURFACE!

ELECTRICAL SPECIFICATIONS

PART NO. MODEL VOLT HZ. WATTS AMPS PHASE CORD/PLUG WEIGHT

16001* IT-18 208 60 2340 11.25 Single 6’ NEMA 6-20P 47 lbs. / 21.3 kg.
16003** IT-18 230 50 2280 9.91 Single CEE 7/7 47 lbs. / 21.3 kg.
16005 IT-18 208 60 2340 11.25 Single 6’ NEMA 6-20P 47 lbs. / 21.3 kg.

* 50% Stand-by Energy Saving Mode.
** CE Approved Unit.
