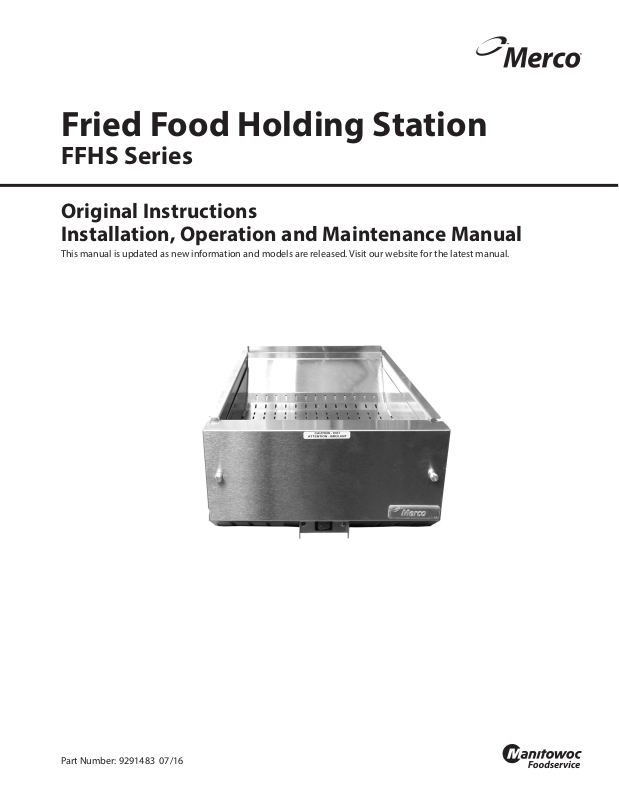

Merco FFHS-32 Installation Manual

Fried Food Holding Station

FFHS Series

Original Instructions
Installation, Operation and Maintenance Manual

This manual is updated as new information and models are released. Visit our website for the latest manual.

Part Number: 9291483 07/16

Safety Notices

Warning

n

Read this manual thoroughly before operating, installing
or performing maintenance on the equipment. Failure
to follow instructions in this manual can cause property
damage, injury or death.

DANGER

Keep power cord AWAY from HEATED surfaces. DO NOT
immerse power cord or plug in water. DO NOT let power
cord hang over edge of table or counter.

DANGER

Do not install or operate equipment that has been
misused, abused, neglected, damaged, or altered/
modified from that of original manufactured
specifications.

Warning

n

Authorized Service Representatives are obligated to
follow industry standard safety procedures, including,
but not limited to, local/national regulations for
disconnection / lock out / tag out procedures for all
utilities including electric, gas, water and steam.

Warning

n

This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
concerning use of the appliance by a person responsible
for their safety. Do not allow children to play with this
appliance.

Warning

n

This product contains chemicals known to the State
of California to cause cancer and/or birth defects or
other reproductive harm. Operation, installation, and
servicing of this product could expose you to airborne
particles of glasswool or ceramic fibers, crystalline
silica, and/or carbon monoxide. Inhalation of airborne
particles of glasswool or ceramic fibers is known to the
State of California to cause cancer. Inhalation of carbon
monoxide is known to the State of California to cause
birth defects or other reproductive harm.

Warning

n

Do not use electrical appliances or accessories other
than those supplied by the manufacturer.

Warning

n

Use caution when handling metal surface edges of all
equipment.

Note

Proper installation, care and maintenance are
essential for maximum performance and trouble-free
operation of your equipment. Visit our website www.
mtwkitchencare.com for manual updates, translations,
or contact information for service agents in your area.

Warning

n

Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Never use flammable oil soaked cloths or combustible
cleaning solutions, for cleaning.

Section 1
General Information

Section 2
Installation

Section 3
Operation

Table of Contents

Model Numbers .................................................................................................................. 5

Serial Number Location ..................................................................................................... 5

Warranty Information ........................................................................................................ 5

Regulatory Certifications ..................................................................................................5

Location ..............................................................................................................................7

Weight of Equipment .........................................................................................................7

Clearance Requirements ....................................................................................................8

Dimensions ......................................................................................................................... 8

Cutout Installation Dimensions ........................................................................................8

Electrical Service ................................................................................................................ 9

Voltage .......................................................................................................................................................9

Ground Fault Circuit Interrupter .......................................................................................................9

Rated Amperages, Horsepower, Voltage & Power Cord Chart ...............................................9

Section 4
Maintenance

Section 5
Troubleshooting

Start Up Instructions ........................................................................................................ 11

Serving Food Product Instruction ..................................................................................11

Cleaning and Sanitizing Procedures ...............................................................................13

General .................................................................................................................................................... 13

Daily Cleaning Instructions .............................................................................................................. 14

Stainless Steel Cleaning .................................................................................................................... 14

Troubleshooting Chart ....................................................................................................15

Sequence Of Operation ...................................................................................................15

Part Number: 9291483 07/16 3

Table of Contents (continued)

THIS PAGE INTENTIONALLY LEFT BLANK

4 Part Number: 9291483 07/16

Section 1

General Information

Model Numbers

NOTE: This manual covers standard units only. If you have a
custom unit, consult the technical service department.

Item/SKU Model Model Description

FFHS10A-C1G11 FFHS-10 Counter Top
FFHS16A-C1G11 FFHS-16 Counter Top
FFHS16A-D1G11 FFHS-16 Drop In
FFHS16F-C1G11 FFHS-16 Counter Top
FFHS16H-D1G11 FFHS-16 Drop In
FFHS27A-C1G11 FFHS-27 Counter Top
FFHS27A-D1G11 FFHS-27 Drop In
FFHS32A-D1G11 FFHS-32 Drop In

Serial Number Location

Fried Food Holding Station serial numbers are located on
the data plate that also includes the model number. The
data plate is located on the rear of the unit.

Always have the serial number of your unit available
when calling for parts or service.

Warranty Information

• Register your product for warranty,

• Verify warranty information,

• View and download a copy of your warranty,

@ www.mercoproducts.com/Service#Warranty

Regulatory Certifications

Models are certified by:

•

•

•

Underwriters Laboratories Sanitation

Underwriters Laboratories (UL)

Underwriters Laboratories of Canada (CUL)

Part Number: 9291483 07/16 5
