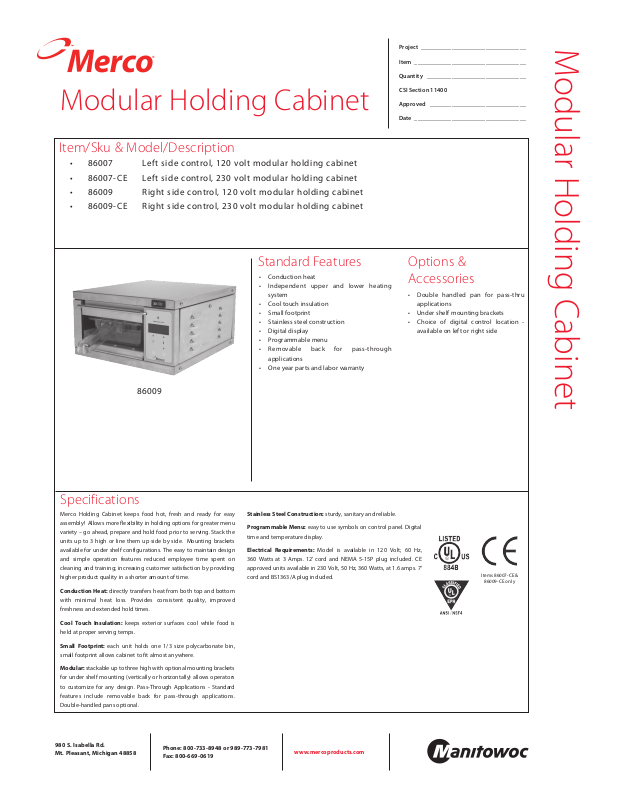

Merco 86007-CE User Manual
Modular Holding Cabinet
Item/Sku & Model/Description
• 86007 Left side control, 120 volt modular holding cabinet
• 86007-CE Left side control, 230 volt modular holding cabinet
• 86009 Right side control, 120 volt modular holding cabinet
• 86009-CE Right side control, 230 volt modular holding cabinet
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
Modular Holding Cabinet
86009
Specifications
Merco Holding Cabinet keeps food hot, fresh and ready for easy
assembly! Allows more flexibility in holding options for greater menu
variety – go ahead, prepare and hold food prior to serving. Stack the
units up to 3 high or line them up side by side. Mounting brackets
available for under shelf configurations. The easy to maintain design
and simple operation features reduced employee time spent on
cleaning and training; increasing customer satisfaction by providing
higher product quality in a shorter amount of time.
Conduction Heat: directly transfers heat from both top and bottom
with minimal heat loss. Provides consistent quality, improved
freshness and extended hold times.
Cool Touch Insulation: keeps exterior surfaces cool while food is
held at proper serving temps.
Small Footprint: each unit holds one 1/3 size polycarbonate bin,
small footprint allows cabinet to fit almost anywhere.
Modular: stackable up to three high with optional mounting brackets
for under shelf mounting (vertically or horizontally) allows operators
to customize for any design. Pass-Through Applications - Standard
features include removable back for pass-through applications.
Double-handled pans optional.
Standard Features
• Conduction heat
• Independent upper and lower heating
system
• Cool touch insulation
• Small footprint
• Stainless steel construction
• Digital display
• Programmable menu
• Removable back for pass-through
applications
• One year parts and labor warranty
Stainless Steel Construction: sturdy, sanitary and reliable.
Programmable Menu: easy to use symbols on control panel. Digital
time and temperature display.
Electrical Requirements: Model is available in 120 Volt; 60 Hz,
360 Watts at 3 Amps. 12’ cord and NEMA 5-15P plug included. CE
approved units available in 230 Volt, 50 Hz, 360 Watts, at 1.6 amps. 7’
cord and BS1363/A plug included.
Options &
Accessories
• Double handled pan for pass-thru
• Under shelf mounting brackets
• Choice of digital control location -
applications
available on left or right side
Items 86007-CE &
86009-CE only
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.mercoproducts.com
12.25”
(31cm)
12.25”
(31cm)
Plan View
86007 & 86007-CE
11.00”
(28cm)
Elevation View
86007 & 86007-CE
16.95”
(43cm)
16.95”
(43cm)
Plan View
86009 & 86009-CE
11.00”
(28cm)
Elevation View
86009 & 86009-CE
6.05”
6.33”
(15cm)
(16cm)
Plan View
All Items
Specifications
Item/Sku
Model/
Description
Control Side V-Hz-Ph Amps Watts Plug Type Ship Weight
86007 MHC-1 Left 120-60-1 3.0 360 NEMA 5-15P 10lbs/5kg
86007-CE MHC-1 Left 230-50-1 1.6 360 BS 1363/A 10lbs/5kg
86009 MHC-1 Right 120-60-1 3.0 360 NEMA 5-15P 10lbs/5kg
86009-CE MHC-1 Right 230-50-1 1.6 360 BS 1363/A 10lbs/5kg
Modular Holding Cabinet
Merco reserves the right to make changes to the design or specications without prior notice.
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.mercoproducts.com
Printed in the U.S.A.
DSMOMHC1
12/13
