TS690 & TS690ID
Intruder Alarm Control Panels
_
~
Engineers menu 2
Select option :-
_
~
OPEN
_
~
Engineers menu 2
Select option :-
_
~
_
~
OPEN
1A
D
C
B
2 3
7
6
5
4
8 9
0
ENT
ESC
_
~
SYSTEM OPEN
17:30 01 Jan
SILEN TZ ON E OM IT
CH IMENE W CO D E 24 Hr OMIT
W AL K TESTB ELL TES TPar t Set
Par t Set
Part Set
RE SET
1
A
B
C
D
2 3
4 5 6
7
ENT ESC
8 0 9
Se tt in g the S yst em
En t er yo ur p a s s c o de X XX X
th en le a v e t h e p r o tec t ed a re a .
Unsetting the Sys te m
G o di r e ct ly to t h e k e yp ad an d
en te r y ou r p a s sc od e X XX X .
Resetting
En t er yo ur p a s s c o de X XX X f o llo w e d
by E N T th e n 3 . Te leph o n e y ou r a l ar m
c o m pan y a nd foll o w th ei r i nst r uct io ns .
!
Se e U se r Ma nua l
FUL L S ET
Operators Manual
Contents
Set Date . . . . . . . . . . . . . . . 27
System Overview
Setup New Users . . . . . . . . . . . 28
Introduction . . . . . . . . . . . . . . 3
User Types . . . . . . . . . . . . . 28
Remote Keypads. . . . . . . . . . . . 4
Alter Chime Circuits . . . . . . . . . . 30
Arming Station . . . . . . . . . . . 4
Alter Shunt Group . . . . . . . . . . . 31
LED Keypad . . . . . . . . . . . . . 4
Print System Log. . . . . . . . . . . . 32
Starburst Keypad . . . . . . . . . . 5
Set-up Part Sets . . . . . . . . . . . . 33
LCD Keypad . . . . . . . . . . . . 5
View Log . . . . . . . . . . . . . . . 34
Log Event Codes . . . . . . . . . . . 35
Operating Your Alarm System
Enable Remote Service. . . . . . . . 37
Introduction . . . . . . . . . . . . . . 6
Initiate Service Call . . . . . . . . . . 38
Passcodes . . . . . . . . . . . . . 6
Circuit Text (LCD Only). . . . . . . . . 39
User Types. . . . . . . . . . . . . . 6
User Menus . . . . . . . . . . . . . 6
Fault Finding
Banner Message . . . . . . . . . . 6
Display Messages. . . . . . . . . . . 40
Engineer on site . . . . . . . . . . . 6
Full Setting The System . . . . . . . . . 7
System Records
Unsetting the system . . . . . . . . . . 8
User Record. . . . . . . . . . . . . . 43
Part Setting The System . . . . . . . . . 9
Detection Circuit Record . . . . . . . 43
Unsetting After an Alarm . . . . . . . 10
Service Record . . . . . . . . . . . . 45
Resetting After an Alarm . . . . . . . 11
System Details . . . . . . . . . . . . 46
User Reset . . . . . . . . . . . . . 11
Installer Information . . . . . . . . . . 46
Engineer Reset. . . . . . . . . . . 11
Notes . . . . . . . . . . . . . . . . . 47
Remote Reset . . . . . . . . . . . 12
User Menu 1
Introduction . . . . . . . . . . . . . . 13
Bell Test
. . . . . . . . . . . . . . . . 14
Walk Test . . . . . . . . . . . . . . . 15
Remote Reset
. . . . . . . . . . . . . 16
Change Passcode
. . . . . . . . . . 17
Enable Chime . . . . . . . . . . . . 18
Isolate/Re-instate Shunt Group
. . . . 19
Isolating a Shunt Group . . . . . . 19
Re-instating a Shunt Group . . . . 20
Omit Circuits . . . . . . . . . . . . . 21
Silent Set . . . . . . . . . . . . . . . 23
Full Set and Part Set
. . . . . . . . . . 23
User Menu 2
Introduction . . . . . . . . . . . . . . 24
View Circuits . . . . . . . . . . . . . 25
Set Clock
. . . . . . . . . . . . . . . 26
2
System Overview
Introduction
The TS690 and TS690ID are advanced security alarm control systems using state of the art
electronics to provide comprehensive but flexible protection for both domestic and
commercial premises. The system comprises of a number of components linked to a
central control unit which is concealed from view but accessible for maintenance. The
TS690 can monitor from 6 to 14 detection circuits whereas the TS690ID can monitor from 2
to 38 detection circuits.
Both systems can be operated from up to four remote keypads which may be one of four
types. Detection devices such as door contacts or movement sensors are allocated to
detection circuits which are identified on the remote keypad displays.
A modem can also be connected to the alarm system via the telephone line to allow
remote interrogation, programming and resetting of alarms. This feature is known as
“Downloading”and isnormally performedby the installationcompanyor centralstation.
Each alarm installation is specific to the site and its occupier and may differ from other
TS690/TS690ID installations. This manual describes in detail all the functions and
procedures available to the user, however, not all these may be relevant to the way your
system is set up. To avoid unnecessary operating errors please discuss the details of the
alarm system with your installation company before attempting to use it. Also ensure that
installation company complete the system record sheets at the back of this manual.
3
Remote Keypads
Your alarm system can be operated from one or more remote keypads, which will have
been strategically located within the protected premises. The remote keypads may be
one of four types.
Arming Station
The remote arming station can only be used to full set, part set and unset your alarm
system.
Green Power Indicator - Flashes if no
mains power is present. Steady when
mains power is present.
Red Function Indicator - Can be
programmed by the alarm company,
to indicate a fault, set or part-set etc.
Keyboard - Used for operating your
alarm system.
Cover - Fold-down cover with quick
guide operating instructions.
LED Keypad
1A
D
C
B
2
3
7
6
5
4
8 9
0
ENT
ESC
_
~
SILENTZONE OM IT
CH IMENE W CODE 24 Hr OMIT
WALK TESTBELL TES TPart Set
Part Set
Part Set
RE SET
1
A
B
C
D
2 3
4 5 6
7
ENT ESC
8 0 9
Se tt ing th e Syst em
Ent er y our pa s s code XXXX
th en lea ve th e pr o tec t ed a re a.
Unse tting the Syste m
Go di r e ct ly to t he ke yp ad and
en ter y ou r p asscod e XXX X .
Rese tting
Ent er y our pa s s code XXXX f ollow ed
by EN T the n 3. Te l ep h on e you r a lar m
c om pan y and foll ow th eir i nstr uct io ns .
!
See Use r Manual
FULL S ET
The LED remote keypad can be used to full set, part set and unset the alarm system. It also
can be used for limited programming functions.
LED Display - Used to show the system
time along with other system messages.
Green Power Indicator - Flashes if no
mains power is present. Steady when
mains power is present.
Red Function Indicator - Can be
programmed by the alarm company,
to indicate a fault, set or part-set etc.
Keyboard - Used for operating your
alarm system.
Cover - Fold-down cover with quick
guide operating instructions.
1A
D
C
B
2
3
7
6
5
4
8 9
0
ENT
ESC
_
~
OPEN
SILENTZONE OM IT
CH IMENE W CODE 24 Hr OMIT
WALK TESTBELL TES TPart Set
Part Set
Part Set
RE SET
1
A
B
C
D
2 3
4 5 6
7
ENT ESC
8 0 9
Se tt ing th e Syst em
Ent er y our pa s s code XXXX
th en lea ve th e pr o tec t ed a re a.
Unse tting the Syste m
Go di r e ct ly to t he ke yp ad and
en ter y ou r p asscod e XXX X .
Rese tting
Ent er y our pa s s code XXXX f ollow ed
by EN T the n 3. Te l ep h on e you r a lar m
c om pan y and foll ow th eir i nstr uct io ns .
!
See Use r Manual
FULL S ET
4
Remote Keypads
Starburst Keypad
The Starburst remote keypad can be used to full set, part set and unset the alarm system. It
also can be used for limited programming functions.
Starburst Display - Used to show the
system time along with other system
messages.
Green Power Indicator - Flashes if no
mains power is present. Steady when
mains power is present.
Red Function Indicator - Can be
programmed by the alarm company,
to indicate a fault, set or part-set etc.
Keyboard - Used for operating your
alarm system.
Cover - Fold-down cover with quick
guide operating instructions.
LCD Keypad
1A
D
C
B
2
3
7
6
5
4
8 9
0
ENT
ESC
_
~
OPEN
SILENTZONE OM IT
CH IMENE W CODE 24 Hr OMIT
WALK TESTBELL TES TPart Set
Part Set
Part Set
RE SET
1
A
B
C
D
2 3
4 5 6
7
ENT ESC
8 0 9
Se tt ing th e Syst em
Ent er y our pa s s code XXXX
th en lea ve th e pr o tec t ed a re a.
Unse tting the Syste m
Go di r e ct ly to t he ke yp ad and
en ter y ou r p asscod e XXX X .
Rese tting
Ent er y our pa s s code XXXX f ollow ed
by EN T the n 3. Te l ep h on e you r a lar m
c om pan y and foll ow th eir i nstr uct io ns .
!
See Use r Manual
FULL S ET
The LCD remote keypad is a full function keypad and can be used to program, test, set
and unset the alarm system.
LCD Display - Used to show the system
time along with other system messages.
Green Power Indicator - Flashes if no
mains power is present. Steady when
mains power is present.
Red Function Indicator - Can be
programmed by the alarm company,
to indicate a fault, set or part-set etc.
Keyboard - Used for operating your
alarm system.
Cover - Fold-down cover with quick
guide operating instructions.
1A
D
C
B
2
3
7
6
5
4
8 9
0
ENT
ESC
_
~
SYSTEM OPEN
17:30 01 Jan
SILENTZONE OM IT
CH IMENE W CODE 24 Hr OMIT
WALK TESTBELL TES TPart Set
Part Set
Part Set
RE SET
1
A
B
C
D
2 3
4 5 6
7
ENT ESC
8 0 9
Se tt ing th e Syst em
Ent er y our pa s s code XXXX
th en lea ve th e pr o tec t ed a re a.
Unse tting the Syste m
Go di r e ct ly to t he ke yp ad and
en ter y ou r p asscod e XXX X .
Rese tting
Ent er y our pa s s code XXXX f ollow ed
by EN T the n 3. Te l ep h on e you r a lar m
c om pan y and foll ow th eir i nstr uct io ns .
!
See Use r Manual
FULL S ET
5
Operating Your Alarm System
Introduction
Passcodes
Access to the system is gained by entering a 4 digit passcode. Every time you wish to use
the system your passcode must be entered correctly.
User Types
The TS690 and TS690ID can have up to 15 separate users each user is assigned a
passcode, and a user level. The user level defines what the user can access within the user
menus, for a definition of each user level see “Set-up New Users” page 28.
User Menus
The system has 2 users menus, with each menu having between 9 and 10 options. User
menu 1 is accessed by entering your passcode followed by the [ENT] key. Access to user
menus and options will depend on your user level. When a menu option is selected you
may abandon the option by pressing the [ESC] key. To leave the user menus and return the
system to its original state simply keep pressing the [ESC] key until the display shows “OPEN”.
Banner Message
The banner message is normally shown on the top line of display when the system is unset
or full set. This message is configured by your alarm company and is usually set to the alarm
company's name.
Engineer on site
When your alarm company has an engineer on site and is logged into the system, the
keypads will show “ENGINEER ON SITE”. You can continue to operate the system as normal,
if required. The message is automatically cleared when a user passcode is entered.
6
Full Setting The System
The full setting procedure can be initiated from any remote keypad (if more than one is
fitted). Before attempting to full set the alarm system ensure that all movement detectors
are unobstructed and all doors, and windows are secure.
SYSTEM OPEN
17:30 01 Jan
Press ENT to
Select Functions
Please Exit Now.
Time left > 0035
SYSTEM SET
17:31 01 JAN
? ? ? ?
LCD Remote
1
2
Starburst Remote
? ? ? ?
LED Remote
? ? ? ?
OPEN
Func.
0035
SET
3
1
2
3
1
2
3
1. From the unset (open) mode enter your passcode.
2. After 5 seconds the exit sounder will start and the display will show the remaining exit
time.
3. Leave the premises by the designated exit route, close the final door and press the
exit terminator button (if fitted). The system is fully set when the exit sounder stops.
To abandon the setting process any time, simply re-enter your passcode.
If the display shows “9999" at step 2 the system is configured set by exit
terminator or on closure of the last exit circuit.
NOTES
If an attempt is made to full set the system whilst one or more circuits are
active (such as a door being open) the display at step (2) will indicate the
circuit(s) that are in fault and internal sounder generates an interrupted
tone. The fault must be cleared before the setting procedure can be
completed. If the fault is still present at the end of the exit time an internal
alarm will begenerated. If fitted,the externalstrobe lightwillflash indicating
that the system has “Failed to set”. To prevent this alarm simply re-enter your
passcode before the exit timer expires.
7
Unsetting the system
The unsetting of the alarm system can be performed at any remote keypad.
SYSTEM OPEN
17:30 01 JAN
Enter Your Code
Time left > 0015
? ? ? ?
1
2
? ? ? ? ? ? ? ?
OPEN
0015
1
2
1
2
LCD Remote Starburst Remote
LED Remote
1. Enter the premises via the prescribed entry route and proceed directly to the remote
keypad. The internal sounders generate an interrupted tone. The display will show the
remaining entry time.
2. Enter your 4 digit passcode before the entry timer expires. The internal sounders will
stop and the display will show “SYSTEM OPEN”. After 5 seconds the “SYSTEM OPEN”
message will disappear and the display will show the time, (date and banner text,
LCD only).
If the entry time is exceeded an alarm is generated from the internal
sounders and the “Second Entry” timer isstarted. Ifat the end ofthe “Second
Entry” timer the alarm system has not been unset a full alarm condition will
occur. If the alarm company has set the “Second Entry”timer to zero the full
NOTES
alarm will occur when the first entry timer expires.
Ifduring the entryprocedure the user strays from the prescribed entry route
and activates a detection circuit a full alarm will occur (internal sounders
and external sounders). If the alarm system is fitted with a remote signalling
device this will also be triggered.
The alarm system can be programmed with an “Abort” feature which will
allow the system to transmit an abort signal to your alarm receiving centre.
On receiving this signal your alarm receiving centre will cancel any police
action. This feature is controlled by time delay (normally set to 90 seconds).
Following a full alarm condition you mustenter your passcode with this time
period in order to send the abort signal, if you fail to enter your passcode
before the timer expires police action will be taken.
8
Part Setting The System
The TS690 and TS690ID can have up to three predefined part set configurations. Each
configuration allows the alarm system to set with one or more circuits isolated. Normally the
alarm company will configure each part set option, however the master user may also
configure the part sets, providing the alarm company has programmed the alarm system
to allow this facility.
SYSTEM OPEN
17:30 01 Jan
Press ENT to
Select Functions
Press ENT to
Do part set A ?
Please Exit Now.
Time left > 0035
Part Set A
17:31 01 JAN
?
A B C A B C A B C
? ? ?
1
2
? ? ? ? ? ? ? ?
OPEN
Func.
PS. A
0035
P.SET
A
1731
3
4
1
2
3
4
1
2
3
4
or or
or or or or
LCD Remote Starburst Remote
LED Remote
1. From the unset (open) mode enter your passcode.
2. Select the required part set mode by pressing [A], [B] or [C].
3. Either press [ENT] when the display shows the required part set mode or wait for 5
seconds after which the exit sounder will start and the display will show the remaining
exit time.
4. Leave the area by the designated exit route, close the final door and press the exit
terminator button (if fitted). The system is part set when the exit sounder stops.
9
Unsetting After an Alarm
If an alarm has occurred whilst the alarm system is full or part set, the display will indicate
the detection circuit that was triggered when you unset the system. Once the cause of the
alarm has been established the system must be reset, see “Resetting after an alarm” on
page 11.
Enter Your Code
Time Left > 0022
ALARM 03
17:31.02 01/01
? ? ? ?
1
2
? ? ? ? ? ? ? ?
0022
CA.03
1
2
1
2
LOUNGE DETECTOR
17:31.02 01/01
LCD Remote Starburst Remote
LED Remote
1. Enter the premises via the prescribed entry route and proceed directly to the remote
keypad. The internal sounders generate an interrupted tone. The display will show the
remaining entry time.
2. Enter your 4 digit passcode before the entry timer expires. The internal sounders will
stop and the display will show the circuit that caused the alarm.
3. Refer to “Resetting After an Alarm” on page 11.
If circuit text has been programmed then the display on the LCD and
Starburst remote keypads will alternate between the circuit number and
the circuit text at step (2).
NOTES
10
Resetting After an Alarm
Your alarm company will have programmed the system to be either “User Reset”,
“Engineer Reset” or “Remote Reset”, consult your alarm company if you are not sure.
User Reset
If your system has been programmed as user reset, alarms can be reset by any user that
has a valid passcode.
SYSTEM OPEN
17:30 01 Jan
ALARM 03
17:31.02 01/01
? ? ? ?1
? ? ? ? ? ? ? ?
OPEN
CA.03
1 1
ESC ESC ESC
2 2 2
LCD Remote Starburst Remote
LED Remote
From step (3) of “Unsetting After an Alarm”, proceed as follows:
1. Enter your passcode and within 5 seconds press [ESC].
2. The system is now reset and back in the open mode. After 5 seconds the “SYSTEM
OPEN” message will disappear and the display will show the time, (date and banner
text, LCD only).
Engineer Reset
If your system is programmed as engineer reset, alarms can only be reset by your alarm
company.
CALL ENGINEER TO
RESET SYSTEM
ALARM 03
17:31.02 01/01
? ? ? ?
LCD Remote
1
Starburst Remote
? ? ? ?
LED Remote
? ? ? ?
CALL
ENG.
CA.03
1 1
2 2 2
From step (3) of “Unsetting After an Alarm”, proceed as follows:
1. The display will alternate between the circuit that caused the alarm and the “Call
Engineer To Reset System” message. The internal sounders will also generate a beep
every minute to remind you that the system requires resetting.
11
----
Resetting After an Alarm (Cont.)
2. To silence the beeps enter your passcode.
3. Contact your alarm company:
Remote Reset
If your system is programmed as remote reset, alarms can be reset by your alarm
company or via the exchange or unique passcodes.
Remote Reset
Quote > ????
Reply > ----
SYSTEM OPEN
15:30 01 JAN
ALARM 03
17:31.02 01/01
? ? ? ?
2
3
4
? ? ? ? ? ? ? ?
????
OPEN
CA.03
2
3
4
2
3
4
ENT ENT ENT
? ? ? ?
? ? ? ? ? ? ? ?
LCD Remote Starburst Remote
LED Remote
CALL ENGINEER TO
RESET SYSTEM
1
CALL
ENG.
1 1
From step (3) of “Unsetting After an Alarm”, proceed as follows:
1. The display will alternate between the circuit that caused the alarm and the “Call
Engineer To Reset System” message. The internal sounders will also generate a beep
every minute to remind you that the system requires resetting.
2. Enter your passcode, this will silence the beeps and the system will display a unique 4
digit number. Contact your alarm company or alarm receiving centre:
3. You will be asked to report the circumstances of the alarm. If the alarm receiving
centre decides you do not require an engineer, a 4 digit remote reset code will be
given to you.
4. After you have entered the code press the [ENT] key and the system will return to the
open condition.
12
----
User Menu 1
Introduction
User menu 1 is accessed by entering your passcode followed by [ENT]. There are 12 menu
options and access to these options will depend on your access level.
User menu 1
Select Option :-
Sounder. ON> 09
PRESS ESC to end
Walk Test
Press ESC to end
Remote Reset
Quote> 9472
Change pass code
New code > ----
Chime ccts are
Enabled
SYSTEM OPEN
13:30 01 JAN
Omit Circuits
Enter CCT No.>--
Silent Set ?
Enter Group > -
Please Exit Now.
Time left > 0010
Please Exit Now.
Time left > 0010
1 -
ON 9
NONE
9472
ON 1
OPEN
01-A
SIL-
0010
0010
1 1 1
2 2 2
3 3 3
4 4 4
5 5 5
6 6 6
7 7 7
8 8 8
A A A
B B B
C C C
0 0 0
Bell Test Bell Test Bell Test
Walk Test Walk Test Walk Test
Remote Reset Remote Reset Remote Reset
Change Passcode Change Passcode Change Passcode
Enable Chime Enable Chime Enable Chime
Omit Circuits Omit Circuits Omit Circuits
Omit Shunt Group Omit Shunt Group Omit Shunt Group
Silent Set Silent Set Silent Set
Full Set Full Set Full Set
Part Set A,B,C Part Set A,B,C Part Set A,B,C
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
13
Bell Test
This option allows you to periodically test the external sounders (bell and strobe) and
internal sounders. When selectedeachdevice willoperate insequencefor nineseconds.
User menu 1
Select Option :-
SYSTEM OPEN
17:30 01 JAN
SYSTEM OPEN
17:30 01 JAN
Sounder.ON> 09
PRESS ESC to end
BELL...ON> 09
PRESS ESC to end
Strobe.. ON> 09
PRESS ESC to end
1 -
OPEN
OPEN
ON 9
ON 9
ON 9
1 1 1
ESC ESC ESC
1 1 1
2 2 2
3 3 3
4 4 4
User menu 1
Select Option :-
1 -
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
1. From the unset (open) mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [1] to select the bell test option.
3. The internal sounder operates for 9 seconds, then the external sounder operates for 9
seconds, then the external strobe operates for 9 seconds.
4. When all three tests are completed, the display shows user menu 1. To return the
system to the open mode press [ESC].
14
Walk Test
This option allows you to test the function of individual detection circuits without causing an
alarm. As each circuit is activated the circuit number and status are displayed and the
internal sounders generate a two tone “Chime” sound. Once the test has been completed
the tested circuits can be reviewed in numerical order.
User menu 1
Select Option :-
SYSTEM OPEN
17:30 01 JAN
SYSTEM OPEN
17:30 01 JAN
Walk Test
Press ESC to end
Office Window
CCT 14 Active
Office Door
CCT 12 Active
Tested CCTs were
Press ESC to end
1 -
OPEN
OPEN
NONE
14-A
12-A
12-H
2 2 2
ESCESC ESC
ESC ESC ESC
ESCESC ESC
1 1 1
2 2 2
3 3 3
4 4 4
5 5 5
Office Door
CCT 14 Healthy
14-H
Office Door
CCT 12 Healthy
User menu 1
Select Option :-
1 -
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
1. From the unset (open) mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [2] to select the walk test option.
3. Activate detection circuits in turn by opening doors with alarm contacts and walking
in front of movement detectors.
4. When the test has been completed, press the [ESC] key. The display will now
automatically scroll through the circuits that were tested in numerical order. The
current status of the circuit is also displayed. The [ENT] key can be used to scroll
through the tested circuits more quickly, if desired.
15
Walk Test (Cont.)
5. Press [ESC] to leave the walk test option and return to user menu 1. To return the
system to the open mode press [ESC].
Remote Reset
This option allows the user to reset the system after an alarm by using a “Remote Reset”
code. The full procedure is explained in “Resetting After an Alarm” on page 11.
16
----
Change Passcode
This option allows you to change your own passcode. The master users can also add and
delete user passcodes, see “Set-up Users” on page 28.
User menu 1
Select Option :-
SYSTEM OPEN
17:30 01 JAN
SYSTEM OPEN
17:30 01 JAN
Change pass code
New code > ----
Change pass code
New code > 1212
User menu 1
Select Option :-
1 -
OPEN
OPEN
1 -
1212
ENT ENT ENT
4 4 4
ESCESC ESC
1 1 1
2 2 2
3 3 3
4 4 4
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
1. From the unset (open) mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [4] to select the change passcode option.
3. Enter your new passcode then press the [ENT] key. A rising tone indicates
acceptance and the system returns to user menu 1. A low tone indicate an error and
you will be prompted to re-enter your new code.
4. To return the system to the open mode press [ESC].
17

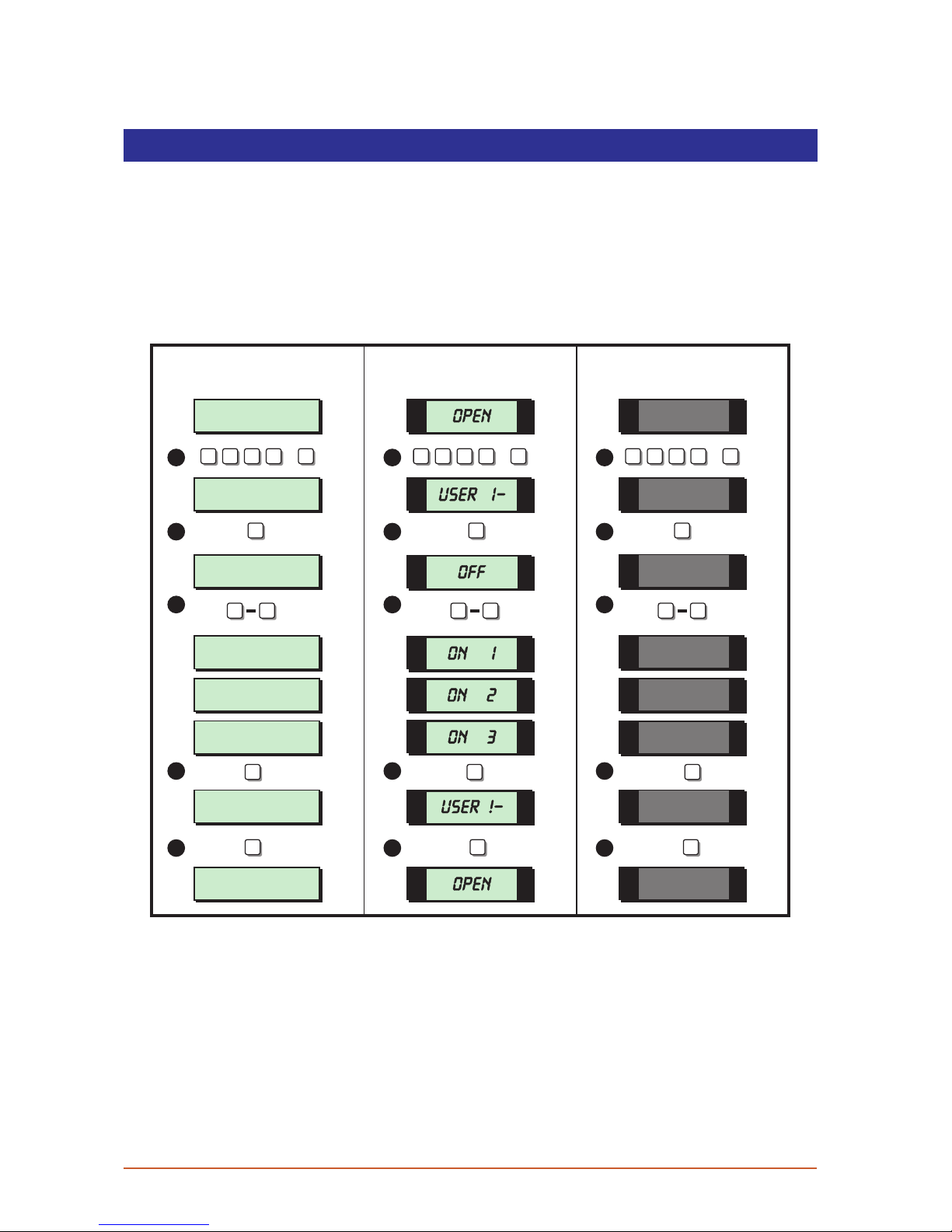

Enable Chime
Detection circuits that have been programmed as “Chime” will generate a two-tone
sound when triggered. This option allows you to select one of the four chime options:
1 Disabled Chime circuits are disabled.
2 Enabled Chime circuits are enabled at all times.
3 Enabled in P/Set Chime circuits are enabled when the system is unset or part set.
4 Enabled in Unset Chime circuits are only enabled when the system is unset.
User menu 1
Select Option :-
SYSTEM OPEN
17:30 01 JAN
SYSTEM OPEN
17:30 01 JAN
Chime ccts are
Disabled
Chime ccts are
Enabled
Chime ccts are
Enabled in P/Set
Chime ccts are
Enabled in Unset
User menu 1
Select Option :-
1 -
OPEN
OPEN
1 -
OFF
ON 1
ON 2
ON 3
5 5 5
ESC ESCESC
ENT ENT ENT
1 1 1
2 2 2
3 3 3
4 4 4
5 5 5
1 4 1 4 1 4
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
1. From the unset (open) mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [5] to select the enable chime option.
3. Select the chime option by pressing keys [1] to [4] or by pressing [B] to alternate
between all 4 option.
4. When the display show the required setting press the [ENT] key to accept. A rising
multi-tone will be heard and the system is returned to user menu 1.
5. To return the system to the open mode press [ESC].
18
Isolate/Re-instate Shunt Group
One or more circuits can be assigned to the shunt group, this is normally done by your
alarm company although the master user can also configure the circuits that are assigned
to the shunt group, see “Alter Shunt Group” on page 31. Once a shunt group has been
defined this option allows the you isolate and re-instate the circuits that are assigned to the
shunt group.
User menu 1
Select Option :-
SYSTEM OPEN
17:30 01 JAN
CCTS ISOLATED
09:45 01 JAN
1 -
OPEN
CCTS
ISOL
6 6 6
1 1 1
2 2 2
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
Isolating a Shunt Group
1. From the unset (open) mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [6] to select the isolate/Re-instate shunt group
option.
3. The system will automatically return to the open mode and the display will indicate
that circuits are isolated.
19
Isolate/Re-instate Shunt Group
User menu 1
Select Option :-
SYSTEM OPEN
17:30 01 JAN
CCTS ISOLATED
09:45 01 JUN
1 -
OPEN
CCTS
ISOL
6 6 6
1 1 1
2 2 2
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
Re-instating a Shunt Group
1. From the “CCT ISOLATED” mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [6] to select the isolate/Re-instate shunt group
option.
3. The system will automatically return to the open mode and the display will indicate
that the system is open.
20
Omit Circuits
Occasionally it may be necessary to omit detection circuits when setting or part setting the
system. This allows the user access to the omitted area(s) when the system is set or part set.
It is also possible to omit 24hr or Auxiliary circuits so that access to these areas can be
obtained when the system is unset.
Only detection circuits that have been programmed by your alarm company as “Omit”
can be selected when using this option.
User menu 1
Select Option :-
User menu 1
Select Option :-
SYSTEM OPEN
17:30 01 JAN
Please Exit Now.
Time Left > 9999
Omit Circuits
Enter CCT No.>-
Office Detector
CCT 03 Armed
Office Detector
CCT 03 Omitted
Store Room PIR
CCT 04 Armed
CCTS ISOLATED
09:45 01 JAN
USER 1-
9999
1 -
1 -
OPEN
9999
01-A
03-A
03-O
04-A
CCTS
ISOL
ENT ENT ENT
ESC ESC ESC
7 7 7
1 1 1
2
3
4
5
6
a
b
2
3
4
5
6
a
b
2
3
4
5
6
a
b
0 A3 C
OR
/
B
0 A B C 0 A B C 0 A B C
B B
0 A3 C
OR
/
0 A3 C
OR
/
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
21
Omit Circuits (Cont.)
1. From the unset (open) mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [7] to select the omit circuits option.
3. Select the circuit you require to omit by either entering the circuit number or by using
the [A] and [C] keys to scroll up and down through the circuits.
4. When the required circuit number is displayed press the [B] key to alternate between
“Armed” and “Omitted”. If a low tone is heard when pressing the [B] key the selected
circuit cannot be omitted.
5. When the display shows the required setting for the selected circuit, press the [ENT]
key to accept. A rising multi-tone will be heard and the display will show the next
available circuit.
6. If required repeat from step (3) for other circuits, When you have selected all the
required circuits, press the [ESC] key.
a) If you have selected 24hr circuits, the system will automatically return to the
unset mode and the display will indicate that circuits are isolated.
b) If you have only selected night circuits, the system will return to user menu 1.
From user menu 1 you must press [0] to full set, [A], [B] or [C] for part set.
If you have selected night circuit to be omitted, you must perform a full or
part setwhilst usermenu is selected. Ifyou return tosystem open allselected
circuits will be cancelled.
NOTES
22
Silent Set
This option you to full set or part set the system silently, i.e. no exit sounder, accept for set
confirmation tone.
1. From the unset (open) mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [8] to select the silent set option.
3. Press [0] to silent full set , [A], [B] or [C] for silent part set.
Full Set and Part Set
User menu 1
Select Option :-
SYSTEM OPEN
17:30 01 JAN
Silent Set ?
Enter Group > -
Please Exit Now .
Time Left > 0025
SYSTEM SET
17:31 01 JAN
1 -
OPEN
SET
17.31
SIL-
0025
8
0
A B C
0
A B C
0
A B C
8 8
1 1 1
2 2 2
3 3 3
? ? ? ?
ENT
+
? ? ? ?
ENT
+
? ? ? ?
ENT
+
LCD Remote Starburst Remote
LED Remote
This option offers an alternative method of full setting and part setting.
1. From the unset (open) mode enter your passcode and press [ENT] to select user
menu 1.
2. Whilst user menu 1 is selected. Press [0] to full set the system or [A], [B] or [C] to part
set the system.
23
----
----
---
User Menu 2
Introduction
User menu 2 is accessed by pressing [ENT] whilst user menu 1 is selected. There are 10
menu options and access to these options will depend on your access level.
User menu 2
Select Option :-
CCT 01 Healthy
Set Clock > ----
Set Date > ----
Setup users
User No. > --
Alter Chime ccts
Enter CCT No.>--
Alter Shunt grp
Enter CCT No.>--
Omit Circuits
Enter CCT No.>--
Configure Omits
for part set A
PASSCODE 01
09:30.05 01/01
CCT 01, (B=Edit)
LCD Remote Starburst Remote
LED Remote
2 -
01 H
Ur--
01-S
01-A
PS. A
Ur01
USE
1 1 1
2 2 2
3 3 3
4 4 4
5 5 5
6 6 6
7 7 7
8 8 8
9 9 9
B B B
View Circuits View Circuits View Circuits
Set Clock Set Clock Set Clock
Set Date Set Date Set Date
Setup User Codes Setup User Codes Setup User Codes
Alter Chime Circuits Alter Chime Circuits Alter Chime Circuits
Alter Shunt Group Alter Shunt Group Alter Shunt Group
Configure Part Set Configure Part Set Configure Part Set
Log Printout Log PrintoutLog Printout
View Event Log View Event Log View Event Log
Circuit Text Circuit Text Circuit Text
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
LCD
24
View Circuits
This option allows you to ascertain the status of each detection circuit, The status for each
circuit may be as follows:
Healthy The normal status of a detection circuit, i.e. door closed or detector healthy.
Active This is the alarm status of a detection circuit, i.e. door open or detector in alarm.
Tamper This is the tamper open circuit status of a detection circuit, i.e. alarm cable cut
or a cover removed from a detector.
Shorted This is the short circuit status of a detection circuit, i.e. alarm cable shorted or
damaged.
User menu 2
Select Option :-
SYSTEM OPEN
17:30 01 JAN
CCT 01 Healthy
CCT 01 Active
SYSTEM OPEN
17:31 01 JAN
LCD Remote Starburst Remote
LED Remote
2 -
OPEN
OPEN
01-H
01-A
ESC ESC ESC ESC ESC ESC ESC ESC ESC
1 1 1
1 1 1
2 2 2
3
4
3
4
3
4
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [1] to select the view circuits option.The display
will show the status of circuit 01.
3. Select the circuit you require to view by either entering the circuit number or by
pressing the [A] and [C] keys to scroll up and down through the circuits.
4. To return the system to the open mode press [ESC] three times.
25
----
Set Clock
This option allows you to adjust the system clock. The clock is used for providing event times
in the event log and is also displayed when the system is unset or full set.
User menu 2
Select Option :-
User menu 2
Select Option :-
SYSTEM OPEN
17:30 01 JAN
Set Clock > ----
Set Clock > 1700
SYSTEM OPEN
17:00 01 JAN
LCD Remote Starburst Remote
LED Remote
2 -
OPEN
2-
OPEN
1700
ENT ENT ENT
ESC ESCESC ESCESC ESC
2
1 7 0 0 1 7 0 0 1 7 0 0
2 2
1 1 1
2 2 2
3
4
3
4
3
4
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [2] to select the set clock option.
3. Enter thenewtimeina 24hrformat, e.g. 1700 for5:00 PM. When thedisplay showsthe
correct time press [ENT] to accept.
4. To return the system to the open mode press [ESC] twice.
26
----
Set Date
This option allows you to set the system date. It is displayed in a date / month format on all
LCD remote keypads.
User menu 2
Select Option :-
User menu 2
Select Option :-
SYSTEM OPEN
17:30 01 JAN
Set Date > ----
Set Date > 1806
SYSTEM OPEN
17:31 18 JUN
2 -
OPEN
2-
OPEN
1806
ENT ENT ENT
ESC ESC ESC ESC ESC ESC
3
1 8 0 6 1 8 0 6 1 8 0 6
3 3
1 1 1
2 2 2
3
4
3
4
3
4
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [3] to select the set date option.
3. Enter the new date in a date/month format, e.g. 1806 for the 18th June. When the
display shows the correct date press [ENT] to accept.
4. To return the system to the open mode press [ESC] twice.
27
Setup New Users
The TS690 and TS690ID allows up to 15 users to operate the alarm system, each user is
assigned a user type and a passcode. User 01 is the master user which has a default
setting of 5678.
User Types
The following user types are available:
1 - Master This user type can full set, part set and unset the system. A master user
also has access to all user menus and options providing the alarm
company has programmed the master user for full access. If the
master user has been programmed for limited access the master
user cannot access user menu 2 option 6 (Alter shunt group) and 8
(Configure Part Sets).
2 - Standard This user type can full set, part set and unset the system. A standard
user also has access to all the options in user menu 1.
3 - Holiday This user type can full set, part set and unset the system. A holiday user
also has access to all the options in user menu 1. However, When the
system is next unset by a master user, the holiday passcode is
automatically deleted from the system.
4 - Set Only This user type operates in the same way as a standard user, except
that it only allows setting and part setting of the system.
5 - Reset Only This user type allows unset alarms such as 24hr, fire, auxiliary to be
silenced and reset. The user type also has access to user menu 1
options 1 to 7.
6 - Duress This user type operates in the same way as a standard user, but when
the passcode is used a silent “Panic Alarm” is transmitted to the alarm
receiving centre.
Ifenabled by your alarm company all users can generate a “Duress”
alarm by entering their passcode with the first two digits reversed
(e.g. for a passcode of 2580 enter 5280 to generate a “Duress”
alarm).
7 - PA Code This user type does not have access to any user menus nor can it be
used to set and unset the system. When this user code is entered a
“Panic Alarm”' is transmitted to the alarm receiving centre and the
external sounder(s) and strobe light(s) are also activated.
8 - Shunt This user type does not have access to any user menus nor can it be
used to set and unset the system. When this user code is entered it will
isolate a predefined group of detection circuits. When the code is
re-entered it will reinstate the group.
This user type is displayed as “Access” on the starburst remote
keypad.
28
----
Setup New Users (Cont.)
User menu 2
Select Option :-
Alter user type
Master
Change pass code
New code > ----
Change pass code
New code > 2580
SYSTEM OPEN
17:30 01 JAN
Setup users
User No. > --
Setup users
User No. > --
Alter user type
Not in use
SYSTEM OPEN
17:31 18 JAN
2 -
OPEN
TYP.1
2580
Ur.--
OPEN
Ur.--
NoTU
ESC ESC ESC ESC ESC ESC ESC ESC ESC
4
0 0 08 8 85 5 52 2 2
ENT ENT ENT
ENT ENT ENT
ENT
0 3
ENT
0 3
ENT
0 3
4 4
1 1 1
2 2 2
3
4
6
3
4
6
3
4
6
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
1 8 1 8 1 8
5 5 5
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [4] to select the set-up new users option.
3. Enter the user number (02 - 15) that you require to set-up, then press [ENT].
4. The display shows the current type assigned for the selected user, to change the user
type press [1] - [8]. When the display show the required user type press [ENT] to
accept.
5. Enter the 4 digit passcode for the selected user, then press [ENT] to accept. A rising
multi-tone indicates the new passcode was accepted. A low tone indicates that the
passcode entered is not available, re-enter, using a different 4 digit code.
6. The system will return to step 3, if required repeat for other users or press [ESC] three
times to return the system to the open mode.
29
Alter Chime Circuits
This option allows you to select which detection circuits will cause a chime tone when
triggered. Once programmed, users that have access to user menu 1 can select one of
the four chime options, see “Enable Chime” on page 18.
User menu 2
Select Option :-
Entrance Door
CCT 06 Chime
Loading Bay Door
CCT 07 Silent
SYSTEM OPEN
17:30 01 JAN
Alter Chime ccts
Enter CCT NO.>--
Entrance Door
CCT 06 Silent
SYSTEM OPEN
17:31 01 JAN
2 -
OPEN
06-C
07-S
OPEN
01-S
06-S
ENT ENT ENT
5
B B B
5 5
1 1 1
2 2 2
3
4
5
3
4
5
3
4
5
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
ESC ESC ESC ESC ESC ESC ESC ESC ESC
0 A6 C
OR
/
0 A6 C
OR
/
0 A6 C
OR
/
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [5] to select the alter chime circuits option.
3. Select the required circuit by either entering the circuit number or by using the [A] and
[C] keys to scroll up and down through the circuits.
4. When the required circuit is displayed, press [B] to alternate between “Silent” and
“Chime”. When the display show the required setting press [ENT] to accept. A rising
multi-tone will be heard and the next available circuit is displayed.
5. Repeat from step 3 for other circuits or press [ESC] three times to return to the open
mode.
30
Alter Shunt Group
This option allows you to define which detection circuits are allocated to the shunt group.
Once assigned to the shunt group all circuits within the group can be isolated by any user
that has access to user menu 1 option 6 (Omit Shunt Group). The shunt group can also be
assigned to a user code (Shunt), this allow the group to be omitted and re-instated by
entering a 4 digit passcode.
User menu 2
Select Option :-
Accounts Office
CCT 09 Omited
Canteen D.Tec
CCT 10 Armed
SYSTEM OPEN
17:30 01 JAN
Alter Shunt Grp
Enter CCT NO.>--
Accounts Office
CCT 09 Armed
SYSTEM OPEN
17:31 01 JAN
2 -
OPEN
09-O
10-A
OPEN
01-A
09-A
ESC
ENT
ESC ESC ESC ESC ESC ESC
ESC
ENT
ESC
ENT
6
B B B
6 6
1 1 1
2 2 2
3
4
5
6
3
4
5
6
3
4
5
6
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
0 A9 C
OR
/
0 A9 C
OR
/
0 A9 C
OR
/
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [6] to select the alter shunt group option.
3. Select the required circuit by either entering the circuit number or by using the [A] and
[C] keys to scroll up and down through the circuits.
4. When the required circuit is displayed, press [B] to alternate between “Armed” and
“Omitted”.
5. When the display show the required setting press [ENT] to accept. A rising multi-tone
will be heard and the next available circuit is displayed.
6. Repeat from step 3 for other circuits or press [ESC] three times to return to the open
mode.
31
---
Print System Log
The system log stores 700 events. If a printer is connected to your alarm system it is possible
to print a selected number of log events.
User menu 2
Select Option :-
User menu 2
Select Option :-
SYSTEM OPEN
17:30 01 JAN
Print System Log
No. events> ---
Print System Log
No. events> 150
SYSTEM OPEN
17:31 01 JAN
2 -
2 -
OPEN
OPEN
150
ENT ENT ENT
7 7 7
1 5 0 1 5 0 1 5 0
1 1 1
2 2 2
3
4
3
4
3
4
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
ESC ESC ESC ESC ESC ESC
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [7] to select the print system log option.
3. Enter the number of events to be printed (001 -700). Press [ENT] to start the printout.
To cancel printout repeat from step 2 and enter “000” for the number of events.
4. To return the system to the open mode press [ESC] twice.
32
Set-up Part Sets
The TS690 and TS690ID can be configured to have up to three parts set modes (Part Set A,
Part Set B and Part Set C). This option allows the master user to configure each part set
mode. Within each part set mode you must designate which circuits will remain armed
and which circuits will be omitted. When the relevant part set mode is selected the system
only arms the circuits that are designated as armed and isolates the circuits that are
designated as omitted.
User menu 2
Select Option :-
Sales Office
CCT 05 Omitted
Canteen Door
CCT 06 Armed
SYSTEM OPEN
17:30 01 JAN
Configure Omits
for part set A
Accounts Office
CCT 01 Armed
SYSTEM OPEN
17:31 01 JAN
2 -
OPEN
05-O
06-A
OPEN
PS-A
01-A
ENT EN T ENT
8
BB B
8 8
1 1 1
2 2 2
3
4
5
7
3
4
5
7
3
4
5
7
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
A
or B or
C A
or B or
C A
or B or
C
ENT ENT ENT
A C
/
A C
/
A C
/
Sales Office
CCT 05 Armed
05-A
ESC ESC ESC ESC ESC ESC ESC ESC ESC
6 6 6
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [8] to select the set-up part sets option.
3. Select the part set mode you require to set-up by pressing [A], [B] or [C] then [ENT].
4. Select the required circuit by either entering the circuit number or by using the [A] and
[C] keys to scroll up and down through the circuits.
33
Setup Part Sets (Cont.)
5. When the required circuit is displayed, press [B] to alternate between “Armed” and
“Omitted”. An armed circuit will remain armed when the system part set, an omitted
circuit will be isolated when the system is part set.
6. When the display show the required setting press [ENT] to accept. A rising multi-tone
will be heard and the next available circuit is displayed.
7. Repeat from step 3 for other circuits or press [ESC] three times to return to the open
mode.
View Log
The TS690 and TS690ID store up to 700 events in the log. This option allows you to view each
event.
User menu 2
Select Option :-
SYSTEM OPEN
07:30 01 JAN
PASSCODE 01
09:30.59 28/04
ALARM 05
06:30.59 28/04
Office Door
06:30.59 28/04
SYSTEM OPEN
17:31 01 JAN
2 -
OPEN
18.04
30.59
OPEN
Ur.01
CA.05
9
BB B
9 9
1 1 1
2 2 2
3
4
5
3
4
5
3
4
5
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
06.30
ESC ESC ESC ESC ESC ESC ESC ESC ESC
A C
/
A C
/
A C
/
B B
B B
Time (hours : min)
Time (hours : min)
Date (day : month)
Date (day : month)
Time (min : sec)
Time (min : sec)
34
View Log (Cont.)
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [9] to select the view log option.
3. The display will show the most recent event, see log event codes. To navigate through
the log, use the [A] and [C] keys to scroll backwards and forwards.
4. The [B] key can be used to display addition information for the select event, the type
ofinformation displayed willdepend onthe remotekeypad type thatisbeing used:
a) When using LCD remote keypads the [B] can be used to display circuit text.
b) When using LED or Starburst remote keypads the [B] can be used to display the
time, date and time (minutes & Seconds).
5. To return the system to the open mode press [ESC] three times.
Log Event Codes
LCD Starburst LED Description
AC OFF
A.C. OFF
PF
Mains power removed.
AC RESTORED
A.C. ON
Pr
Mains power restored
ACTION ALARM
ALM SENT
AA
Alarm activated when system is part-set.
ALARM 01-38
ALARM 01-38
CA.01-38
Full alarm from circuit (01-38).
AUX/BELL TAMPER
AUX TAMP
AT
Auxiliary tamper activated.
AUXILIARY 01-38
AUX 01-38
Au.01-38
Auxiliary circuit activated.
BATTERY FAULT
BATT FLT
BF
Battery fault (voltage below 10.5V).
BELL TESTED
BELL TST
BT
External bell and strobes tested.
CALL BACK No. 01-03
C. BACK 01-03
CB.01-03
Modem making a call back to remote PC.
CCT OMITTED
OMIT'D 01-38
CO.01-38
Circuits omitted by the user at time of Setting.
CCTS ISOLATED
24HR OM'T
CI
24Hr group omitted during the unset condition.
CCTS TESTED 01-38
TEST'D 01-3 8
Tc.01-38
The number of circuits tested during Walk Test.
CODE TAMPER
C.TMP 01-04
PT.01-04
Code tamper from keypad 01-04
COMMS ACTIVE
COM ACT
cA
Plug-on digicom active.
COMMS FAILED
COMS FLT
cF
Plug-on digicom failed to communicate.
COMMS SUCCESSFUL
COMS OK
cc
Plug-on digicom communicated successfully.
DATE CHANGED
DATE CHG
Dc
System Date changed.
DEFAULT CODE
DEFLT 01
DF
User passcode (01) reset to 5678 by the engineer.
DELAY ALARM 01-38
DELAY 01-38
AD.01-38
Delayed alarm during a part-set condition.
DURESS 01-15
DUR'SS 01-15
Du.01-15
Duress alarm from user passcode (01-15).
35
--
Log Event Codes (Cont.)
LCD Starburst LED Description
ENTRY 01-38
ENTRY 01-38
En.01-38
Entry timer started by circuit (01-38).
ENTRY ALARM 01-38
EN.ALM 01-38
EA.01-38
Entry timed-out alarm from circuit (01-38).
FACTORY RESTART
FACT. RST
Fr
System “Factory Restarted”.
FIRE ALARM 01-38
FIRE 01-38
FA.01-38
Fire alarm circuit activated.
FIRST KNOCK 01-38
FIRST 01-38
Fn.01-38
The first activation of a Double Knock circuit.
FUSE BLOWN 01
FUSE 01
FB.01
Control Panel 12V Auxiliary Fuse blown.
KEY POINT 01-38
KEY.SW 01-38
So.01-38
Key point operation from circuit (01-38).
LINE FAULT
LINE FLT
LF
Telephone line fault detected.
LINE RESTORED
LINE OK
Lr
Telephone line fault restored.
MODEM LOCK-OUT
LOCK-OUT
LO
Modem failed to communicate.
NO EVENT
NO EVENT
No log event.
OMITS REMOVED
OMIT REM
Or
Previously omitted circuits reinstated.
ON-SITE RESTART
SITE. RST
Sr
System “On-Site” restart.
PA ALARM 01-38
PA.ALM 01-38
PA.01-38
Panic Alarm circuit activated.
PA CODE 00-15
PANIC 00-15
PC.00-15
Panic Alarm passcode entered (00 = Keypad PA).
PANEL LID TAMPER
LID TAMP
LT
Control panel lid removed.
PART SET A/B/C
P.SET A/B/C
PS.A/B/C
System Part-Set using one of the A, B, or C buttons.
PASSCODE 00-15
USER 00-15
Ur.00-15
User passcode entered. (00-15).
REM REMOVED 01-04
R. REM 01-04
rr.01-04
Remote Keypad removed from system.
REM SERVICE CALL
R.S. CALL
SC
Remote service call via “Lineload” software and PC.
REM TAMPER 01-04
R. TMP 01-04
rT.01-04
Remote Keypad cover removed.
REMOTE ADDED 01-04
R. ADD 01-04
RA.01-04
Remote Keypad added to the system.
REMOTE RESET
REM RST
rc
System reset by “Remote Reset” passcode.
SERVICE CALL END
R.S. END
SE
Remote service call finished.
SERVICE REQUIRED
SERVICE
rS
Service required
SET FAIL
SET FAIL
SF
System failed to Set.
SYSTEM OPEN
SYS OPEN
OP
System fully unset.
SYSTEM RE-ARMED
RE-ARMED
rA
System re-armed all healthy circuits.
SYSTEM SET
FULL SET
FS
System fully set.
TAMPER 00
TAMP'R 00
TA.00
Short circuit on ID loop.
TAMPER 01-38
TAMP'R 01-38
TA.01-38
Tamper alarm from circuit.
TEST CCTS OFF
TEST OFF
To
All circuits taken off “Test”
TEST FAIL 01-38
T. FAIL 01-38
TF.01-38
Circuit failed during “Test”.
TIME CHANGED
TIME CHG
Tc
System time changed
WALK TEST
WALK TST
cT
System “Walk Test” selected.
36
Enable Remote Service
If your alarm system has been fitted with a modem, the alarm company can dial into the
system and remotely read and write data from the control panel. For added security, your
alarm system can be programmed so that a master user has to authorise the writing of
data to the control panel.
User menu 2
Select Option :-
SYSTEM OPEN
09:30 28/04
Remote Call Back
Enabled
Remote Call Back
Disabled
User menu 2
Select option:-
SYSTEM OPEN
09:31 28/04
2 -
OPEN
OPEN
YES
NO
0
BB B
0 0
1 1 1
2 2 2
3
4
5
3
4
5
3
4
5
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
ENT ENT ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
2 -
ESC ESC ESC ESC ESC ESC
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [0] to select the enable remote service option. If
a low tone is heard your system has either been configured so that remote servicing is
always enabled or your system does not have a modem fitted.
3. The display will show the current status of remote servicing (Enabled or Disabled). Press
[B] to alternate between the two options.
4. When the display shows the required setting press [ENT] to accept. A rising multi-tone
will be heard and the system will return to user menu 2.
5. To return the system to the open mode press [ESC] twice.
37
Initiate Service Call
If your alarm system has been fitted with a modem it is possible for a master user to initiate
an upload sequence to a remote site (normally the alarm company). Once the
communication link is established, the remote site can read and write data from the
control panel.
User menu 2
Select Option :-
SYSTEM OPEN
17:30 01 JAN
Call Number 1
0181 12345678
SYSTEM OPEN
17:31 01 JAN
2 -
OPEN
OPEN
No. 1
A A A
1 1 1
2 2 2
3
4
3
4
3
4
LCD Remote Starburst Remote
LED Remote
? ? ? ?
ENT+ ENT
ENT ENT ENT
? ? ? ?
ENT+ ENT
? ? ? ?
ENT+ ENT
1
= Call No.1
2
= Call No.2
3
= Call No.3
1
= Call No.1
2
= Call No.2
3
= Call No.3
1
= Call No.1
2
= Call No.2
3
= Call No.3
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [A] to select the Initiate remote service call
option. If a low tone is heard your system does not have a modem fitted.
3. Press [1] - [3] to select call-back telephone number 1 -3.
4. When the display shows the required telephone number press [ENT] to initiate the
call-back sequence.
5. The system will automatically return to the open mode.
38
Circuit Text (LCD Only)
Each detection circuit can have up to 16 characters of text assigned to it. This option allows
you to program / edit the circuit text.
User menu 2
Select Option :-
SYSTEM OPEN
17:30 01 JAN
Office Detector
CCT 01, (B=Edit)
Office Detector
^CT 01, (B=Edit)
B
1
2
3
5
LCD Remote
? ? ? ?
ENT+ ENT
ENT
A
= Next circuit
B
= Edit text
C
= Previous circuit
Cursor
Use keys to edit text
SYSTEM OPEN
17:31 01 JAN
Office Door
CCT 01, (B=Edit)
ESC ESC ESC
6
7 8
0
9
1 2 3
4 5 6
A B C
ENT ESC
A E I
O U 0 (zero)
Move cursor left Change case Move cursor right
Accept text Space Abandon text editing
Up the alphabet Change cursor Down the alphabet
Text Editing Keys
4
Cursor Types
This is the normal text cursor. Use the text editing
key as shown above.
This is the number cursor. Use the numbered
keys 0 - 9 to enter numeric data.
^
|
1. From the unset (open) mode enter your passcode and press [ENT] twice to select
user menu 2.
2. Whilst user menu 2 is selected. Press [B] to select the circuit text option.
3. Select the required circuit by either entering the circuit number or by using the [A] and
[C] keys to scroll up and down through the circuits.
4. When the display shows the required circuit press [B] to edit the text, the text cursor will
appear at the bottom left hand position on the display.
5. Use the keys to edit the text. When the display shows the required text press [ENT] to
accept.
6. Repeat from step 3 for other circuits or press [ESC] three time to return to the open
mode.
39
A.C. OFF
AUX TAMP
BATT FLT
24HR OM'T
ALARM 05
AUX 06
Fault Finding
Display Messages
Displays Description
There is no mains power to the control panel and the alarm system is now
running on its standby battery. The system will also generate a chime tone
every minute to warn you that the fault exists, to silence the chime tones
simply enter your passcode. If the mains power is not restored you may not
be able to set the alarm system. If the fault persists the standby battery will
eventually run flat. Contact your alarm company for further advice.
A full alarm has occurred from a detection circuit (circuit 05). This message
is normally display after unsetting the alarm system. Before the system can
be set again the alarm system must be reset, see “Resetting After an Alarm”
on page 11.
An auxiliary alarm has occurred from a detection circuit (circuit 06). The type
of alarm is silent and will activate the appropriate outputs. To reset the alarm
simply enter your passcode followed by [ESC].
The control panel auxiliary or bell tamper circuits have been activated. If the
fault is not cleared you will not be able to set the alarm system. To silence the
alarm simply enter your passcode. Contact your alarm company for further
advice.
The alarm system standby battery has developed a fault, normally because
the system mains power is not present. If the fault is not cleared you will not
be able to set the alarm system. To silence the alarm simply enter your
passcode. Contact your alarm company for further advice.
One or more circuits have been isolated from the system. For full details
refer to “Isolate / Re-Instate Shunt Group” on page 19.
AC OFF
17:30 01 Jan
A.C. OFF
PF
ALARM 05
17:30 01 Jan
ALARM 05
CA.05
AUXILIARY 06
17:30 01 Jan
AUX 06
AU.06
AUX/BEL TAMPER
17:30 01 Jan
AUX TAMP
AT
BATTERY FAULT
17:30 01 Jan
BATT FLT
BF
CCTS ISOLATED
17:30 01 Jan
24HR OM'T
CI
40
PA>ALM 08
PANIC 15
FUSE 01
C.TMP 02
DELAY 05
ENTRY 01
FIRE 07
Display Messages (Cont.)
A passcode has been incorrectly entered more than four times at a remote
keypad (keypad 02). To silence the alarm enter a correct passcode. To
reset the alarm simply enter your passcode follows by [ESC].
A delayed full alarm has occurred from a detection circuit (circuit 05). This
message is normally display after unsetting the alarm system. Before the
system can be set again the alarm system must be reset, see “Resetting
After an Alarm” on page 11.
An entry time out alarm has occurred from a detection circuit (circuit 01).
This is normally caused when the entry procedure is started and the system is
not unset before the timer expires. Before the system can be set again the
alarm system must be reset, see “Resetting After an Alarm” on page 11.
A fire alarm has occurred from a detection circuit (circuit 07). The internal
sounder will generate a distinctive fire alarm tone and the external sounder
is pulsed on and off. To silence the alarm simply enter your passcode. To
reset the alarm simply enter your passcode again followed by [ESC].
The auxiliary supply used for powering detection devices has blown its fuse.
You will not be able to set the alarm system until the fault is rectified. Contact
your alarm company for further advice.
A panic alarm (PA) has occurred from a detection circuit (circuit 08). To
silence the alarm simply enter your passcode. Reset the panic alarm
device if required (normally with a key). To reset the alarm simply enter your
passcode again followed by [ESC].
A panic alarm (PA) passcode has been entered at a remote keypad by a
user (user 15). To silence the alarm simply enter your passcode. To reset the
alarm simply enter your passcode again followed by [ESC].
CODE TAMPER 02
17:30 01 Jan
C.TMP 02
PT.02
DELAY ALARM 05
17:30 01 Jan
DELAY 05
AD.05
ENTRY ALARM 01
17:30 01 Jan
ENTRY 01
EA.01
FIRE ALARM 07
17:30 01 Jan
FIRE 07
FA.07
FUSE BLOWN 01
17:30 01 Jan
FUSE 01
FB.01
PA ALARM 08
17:30 01 Jan
PA>ALM 08
PA.08
PA CODE 15
17:30 01 Jan
PANIC 15
PC.15
41
LID TAMP
LINE FLT
R.TMP 01
TAMP'R 02
SET FAIL
BUSY
Display Messages (Cont.)
The lid of the control panel has been removed. If the fault is not cleared you
will not be able to set the alarm system. To silence the alarm simply enter
your passcode. Contact your alarm company for further advice.
Your alarm system is fitted with a remote signalling device which is reporting
a telephone line fault. The system will also generate a chime tone every
minute to warn you that the fault exists, to silence the chime tones simply
enter your passcode. If the fault is not cleared you may not be able to set
the alarm system. If the fault persists, contact your alarm company for
further advice.
The lid of a remote keypad has been removed (remote 01). If the fault is not
cleared you will not be able to set the alarm system. To silence the alarm
simply enter your passcode. Contact your alarm company for further
advice.
The system has failed to set. This normally caused by a circuit being left
open at the time of setting. Check that all circuits are healthy before
attempting to set the alarm system.
Another user is operating the alarm system from another remote keypad.
When they have finished all remote keypads will revert to normal operation.
A tamper alarm has occurred from a detection circuit (circuit 02). Normally
caused by removing the cover from a movement sensor or a break in the
circuit cabling. To silence the alarm simply enter your passcode. If the fault is
not cleared you will not be able to set the alarm system. Contact your alarm
company for further advice.
PANEL LID TAMPER
17:30 01 Jan
LID TAMP
LT
PHONE LINE FAULT
17:30 01 Jan
LINE FLT
LF
REM TAMPER 01
17:30 01 Jan
R.TMP 01
rT.01
SET FAIL
17:30 01 Jan
SET FAIL
SF
SYSTEM IS BUSY
PLEASE WAIT.
BUSY
BUSY
TAMPER 02
17:30 01 Jan
TAMP'R 02
TA.02
42
System Records
User Record
User Type Name
01 Master
02
03
04
05
06
07
08
09
10
11
12
13
14
15
Detection Circuit Record
Circuit Location Omit Chime P.Set A P.Set B P.Set C
01
02
03
04
05
06
07
08
43
Detection Circuit Record (Cont.)
Circuit Location Omit Chime P.Set A P.Set B P.Set C
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
44
Service Record
Date Engineer Action
45
System Details
Entry Time Exit Time
Bell Delay Bell Duration
Full Set By Part Set A by
Part Set B by Part Set C by
Reset by Allow set with line fault
Set with mains off Remote signalling
Downloading User Authorised
Remote 1 Function Indicator
�
Remote 2 Function Indicator �
Remote 3 Function Indicator �
Remote 4 Function Indicator �
Installer Information
Installation Engineer:
Alarm Company:
Address:
Telephone No.:
Alarm Receiving Centre:
Telephone No.:
Date Installed:
46
Notes
47
18905 Drg Number 33:2199:00 Issue 02 Doc 02 July 1998
Loading...
