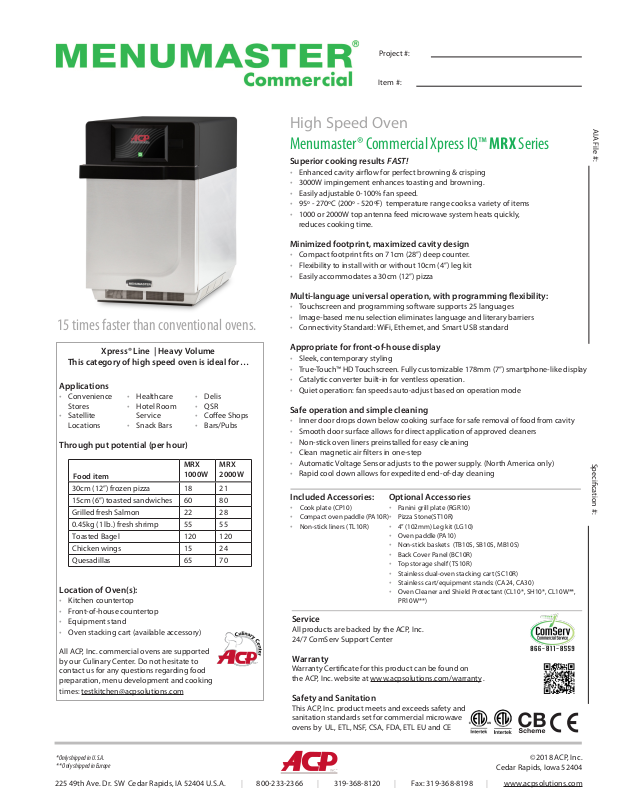

Menumaster MRX 1000W, MRX 2000W Datasheet

Project #:

Item #:

15 times faster than conventional ovens.

Xpress® Line | Heavy Volume

This category of high speed oven is ideal for…

Applications

• Convenience

Stores

• Satellite

Locations

Through put potential (per hour)

Food item

30cm (12”) frozen pizza 18 21 15cm (6”) toasted sandwiches 60 80 Grilled fresh Salmon 22 28

0.45kg (1 lb.) fresh shrimp 55 55 Toasted Bagel 120 120 Chicken wings 15 24 Quesadillas 65 70

Location of Oven(s):

• Kitchen countertop

• Front-of-house countertop

• Equipment stand

• Oven stacking cart (available accessory)

All ACP, Inc. commercial ovens are supported by our Culinary Center. Do not hesitate to contact us for any questions regarding food preparation, menu development and cooking

times: testkitchen@acpsolutions.com

• Healthcare

• Hotel Room

Service

• Snack Bars

• Delis

• QSR

• Coee Shops

• Bars/Pubs

MRX 1000W

MRX 2000W

High Speed Oven

Menumaster® Commercial Xpress IQ™ MRX Series

Superior cooking results FAST!

• Enhanced cavity airow for perfect browning & crisping

• 3000W impingement enhances toasting and browning.

• Easily adjustable 0-100% fan speed.

• 95º - 270ºC (200º - 520ºF) temperature range cooks a variety of items

• 1000 or 2000W top antenna feed microwave system heats quickly,

reduces cooking time.

Minimized footprint, maximized cavity design

• Compact footprint ts on 71cm (28”) deep counter.

• Flexibility to install with or without 10cm (4”) leg kit

• Easily accommodates a 30cm (12”) pizza

Multi-language universal operation, with programming exibility:

• Touchscreen and programming software supports 25 languages

• Image-based menu selection eliminates language and literary barriers

• Connectivity Standard: WiFi, Ethernet, and Smart USB standard

Appropriate for front-of-house display

• Sleek, contemporary styling

• True-Touch™ HD Touchscreen. Fully customizable 178mm (7”) smartphone-like display

• Catalytic converter built-in for ventless operation.

• Quiet operation: fan speeds auto-adjust based on operation mode

Safe operation and simple cleaning

• Inner door drops down below cooking surface for safe removal of food from cavity

• Smooth door surface allows for direct application of approved cleaners

• Non-stick oven liners preinstalled for easy cleaning

• Clean magnetic air lters in one-step

• Automatic Voltage Sensor adjusts to the power supply. (North America only)

• Rapid cool down allows for expedited end-of-day cleaning

Included Accessories:

• Cook plate (CP10)

• Compact oven paddle (PA10R)

• Non-stick liners (TL10R)

Service

All products are backed by the ACP, Inc. 24/7 ComServ Support Center

Warranty

Warranty Certicate for this product can be found on the ACP, Inc. website at www.acpsolutions.com/warranty .

Safety and Sanitation

This ACP, Inc. product meets and exceeds safety and sanitation standards set for commercial microwave ovens by UL, ETL, NSF, CSA, FDA, ETL EU and CE

Optional Accessories

• Panini grill plate (RGR10)

• Pizza Stone(ST10R)

• 4” (102mm) Leg kit (LG10)

• Oven paddle (PA10)

• Non-stick baskets (TB10S, SB10S, MB10S)

• Back Cover Panel (BC10R)

• Top storage shelf (TS10R)

• Stainless dual-oven stacking cart (SC10R)

• Stainless cart/equipment stands: (CA24, CA30)

• Oven Cleaner and Shield Protectant (CL10*, SH10*, CL10W**,

PR10W**)

AIA File #:

Specication #:

*Only shipped in U.S.A. ** Only shipped in Europe

225 49th Ave. Dr. SW Cedar Rapids, IA 52404 U.S.A. | 800-233-2366 | 319-368-8120 | Fax: 319-368-8198 | www.acpsolutions.com

Cedar Rapids, Iowa 52404

Menumaster® Commercial Xpress IQ™ MRX Series | High Speed Oven

743mm

(29-1/4”)

633mm

(25”)

1032mm

1600mm

(63”)

32mm

187mm

(7-5/16”)

side view

back view

(1-1/4”)

32mm

(1-1/4”)

187mm

(7-5/16”)

back view

front view

358mm

(14-1/8”)

321mm

(12-5/8”)

578mm

(22-3/4”)

back view

side view

743mm

(29-1/4”)

32mm

Drawings available from

KCLCADlog -

techs@kclcad.com

633mm

1032mm

(40-5/8”)

(25”)

Dimensions

Exterior

Cavity

Specication #:

Usable Cavity Space

Door Depth

H 578 (22 ¾”)

H 178 (7") W 312 (12 ¼") D 312 (12 ¼")

17.2 liter (0.61 cubic ft.) 1032 (40 ⁄” ), drop down door

Installation Clearances Top: 51 (2”) Sides: 13 (½”) Back: None

Shipping Carton H 635 (25”) W 457 (18” ) D 902 (35 ½”)

W 358 (14 ⁄” ) D† 743 (29 ¼”)

Electrical Conguration

Model#/

UPC Code Power Consumption

MRX2 728028422849

MRX52 728028422887

MRX523 728028422900

MRX2B 728028423259

MRX2SA 728028423273

5950 W, 28.6 A 2000 W* 3000 W

5950 W, 16 A 2000 W* 3000 W

5550 W, 25.8 A 2000 W* 3000 W

North America

EMEA, SEA, LATAM

2× Mag

EMEA, SEA, LATAM

Saudi Arabia

Region

single phase

multi phase

Brazil

single phase

187mm

(7-5/16”)

1600mm

(63”)

Power Output*

Features

Conﬁguration Countertop

Stackable

Yes, with kit

Display 178 (7") Capacitive Touch, High resolution LCD display

USB Port Yes

Connectivity Wi and Ethernet

Program Menu Tab & Multi-level menu capability

Menu Capacity 1200+ items

Max. Cooking Time 99:99

Temperature Range 95º - 270ºC (200º - 520ºF)

Microwave Distribution Rotating antennas, top

Fan Speed 0-100%

Power Levels

Defrost Yes, microwave only, power level 2

Time Entry Option Ye s

Stage Cooking Yes, 4

Catalytic Converter Yes‡

Automatic Voltage Sensor Yes (North America only)

Air Filter 3 removable, with clean lter reminder

Rack

Removable cooking surface

Door Opening Pull down, ergonomic handle

Exterior Finish Stainless steel and Painted Steel

Interior Finish Stainless steel

Weight

Model Type Product Weight Ship weight (approx.)

1× Mag 53 kg (116 lbs.) 61 kg (134 lbs.)

2× Mag 61 kg (134 lbs.) 69 kg (152 lbs.)

Power Source Plug Conﬁguration

208-240V, 60 Hz, 30 A, single phase

230 -240 V, 50 Hz, 32 A, single phase

400V, 50 Hz, WYE, 16 A, 3 phase, 5 wire

220V, 60 Hz, 32 A, single phase

NEMA 6-30

IEC 309

Direct Wire

Cord

Length FrequencyMicrowave Impingement

1.5m (5 ft.)

2.4m (8 ft.)

1.5m (5 ft.)

2.4m (8 ft.)

2450 MHz

North America

single phase

EMEA, SEA, LATAM

single phase

1× Mag

EMEA (UK), SEA

single phase

Australia

single phase

Brazil

single phase

Saudi Arabia

single phase

Also available in colors. For details: www.acpsolutions.com/xpress-iq/color

Measurements are millimeters. Measurements in ( ) are US Standard

AIA File #:

* IEC 60705 Tested

MRX1 728028422825

MRX51 728028422863

MRX51U 728028423006

MRX51A 728028423044

MRX1B 728028423211

MRX1SA 728028423235

3600 W, 18.2 A 1000 W* 3000 W

3680 W, 16 A 1000 W* 3000 W

2450 W, 13 A 1000 W* 3000 W

3250 W, 15 A 1000 W* 3000 W

3550 W, 16.7 A 1000 W* 3000 W

208-240 V, 60 Hz, 20 A, single phase

230 -240 V, 50 Hz, 16 A, single phase

230 -240 V, 50H z, 13 A, single phase

230 -240 V, 50H z, 15 A, single phase

220V, 60 Hz, 16 A, single phase

NEMA 6-20

CEE 7 / 7 “Schuko”

BS1363/A

A53112

NBR 14136

Direct Wire

1.5m (5 ft.)

2450 MHz

† Includes handle ‡ Catalytic convertor lters grease and odors from the air. This product conforms to the Ventless Operation Recommendations set forth by NFPA96 using EPA202 test method EMEA = Europe, the Middle East and Africa; SEA=South East Asia; LATAM=Latin America

Part No. 20218002 Updated 7/23/2018 Original Instructions
