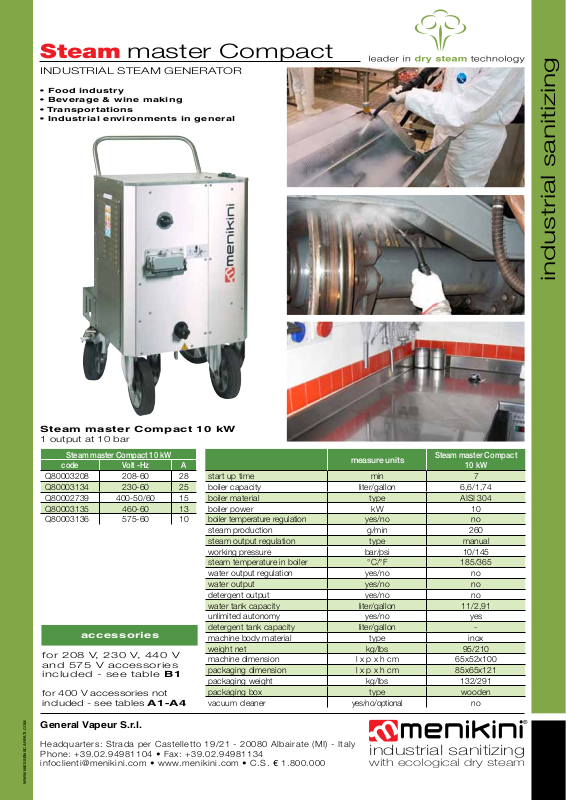

MENIKINI STEAM MASTER 10 COMPACT Datasheet

Steam

master Compact

INDUSTRIAL STEAM GENERATOR

• Food industry

• Beverage & wine making

• Transportations

• Industrial environments in general

industrial sanitizing

Steam master Compact 10 kW

1 output at 10 bar

Steam master Compact 10 kW

code Volt -Hz A

Q80003208 208-60 28
Q80003134 230-60 25
Q80002739 400-50/60 15
Q80003135 460-60 13
Q80003136 575-60 10

accessories

for 208 V, 230 V, 440 V
and 575 V accessories
included - see table B1

for 400 V accessories not
included - see tables

A1-A4

measure units

start up time min 7
boiler capacity liter/gallon 6,6/1,74
boiler material type AISI 304
boiler power kW 10
boiler temperature regulation
steam production g/min 260
steam output regulation type manual
working pressure bar/psi 10/145
steam temperature in boiler

water output regulation yes/no no
water output yes/no no

detergent output yes/no no
water tank capacity liter/gallon 11/2,91
unlimited autonomy yes/no yes
detergent tank capacity liter/gallon ­machine body material type inox
weight net kg/lbs 95/210
machine dimension l x p x h cm 65x52x100
packaging dimension l x p x h cm 85x65x121

packaging weight kg/lbs 132/291
packaging box type wooden

vacuum cleaner

yes/no no

°C/°F 185/365

yes/no/optional

Steam master Compact

10 kW

no

General Vapeur S.r.l.

Headquarters: Strada per Castelletto 19/21 - 20080 Albairate (MI) - Italy

Phone: [phone] • Fax: [phone]
[e-mail] • www.menikini.com • C.S. € 1.800.000

WWW.NIESSENSCARPATI.COM

industrial sanitizing

with ecological dry steam
