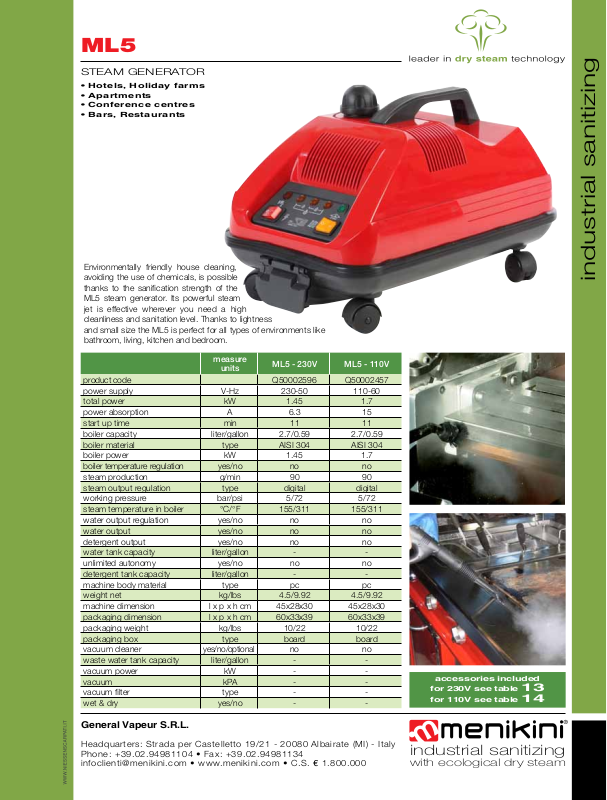

MENIKINI ML5 Datasheet

ML5

STEAM GENERATOR

• Hotels, Holiday farms

• Apartments

• Conference centres

• Bars, Restaurants

Environmentally friendly house cleaning,
avoiding the use of chemicals, is possible
thanks to the sanification strength of the

ML5 steam generator. Its powerful steam
jet is effective wherever you need a high

cleanliness and sanitation level. Thanks to lightness
and small size the ML5 is perfect for all types of environments like
bathroom, living, kitchen and bedroom.

industrial sanitizing

measure

units

product code Q50002596 Q50002457

power supply V-Hz 230-50 110-60
total power kW 1.45 1.7
power absorption A 6.3 15

start up time min 11 11
boiler capacity liter/gallon 2.7/0.59 2.7/0.59
boiler material type AISI 304 AISI 304
boiler power kW 1.45 1.7
boiler temperature regulation yes/no no no
steam production g/min 90 90
steam output regulation type digital digital
working pressure bar/psi 5/72 5/72
steam temperature in boiler °C/°F 155/311 155/311

water output regulation yes/no no no
water output yes/no no no

detergent output yes/no no no
water tank capacity liter/gallon - ­unlimited autonomy yes/no no no
detergent tank capacity liter/gallon - ­machine body material type pc pc
weight net kg/lbs 4.5/9.92 4.5/9.92
machine dimension l x p x h cm 45x28x30 45x28x30
packaging dimension l x p x h cm 60x33x39 60x33x39

packaging weight kg/lbs 10/22 10/22
packaging box type board board

vacuum cleaner

waste water tank capacity liter/gallon - -
vacuum power kW - -

vacuum kPA - ­vacuum filter type - ­wet & dry yes/no - -

yes/no/optional

ML5 - 230V ML5 - 110V

no no

accessories included
for 230V see table
for 110V see table

13

14

General Vapeur S.R.L.

Headquarters: Strada per Castelletto 19/21 - 20080 Albairate (MI) - Italy

Phone: [phone] • Fax: [phone]
[e-mail] • www.menikini.com • C.S. € 1.800.000

industrial sanitizing

with ecological dry steam
