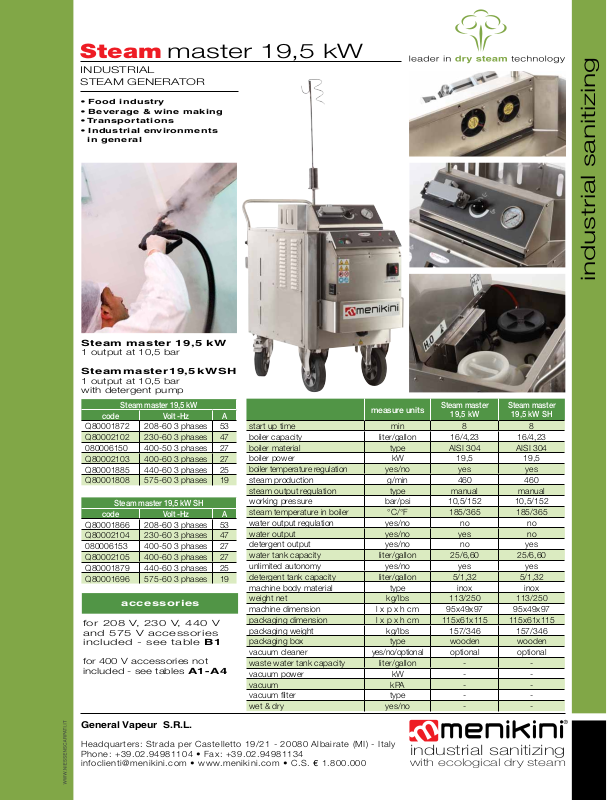

MENIKINI STEAM MASTER PLUS 19, 5 SH, 5 Datasheet

Steam

master 19,5 kW

INDUSTRIAL
STEAM GENERATOR

• Food industry

• Beverage & wine making

• Transportations

• Industrial environments
in general

industrial sanitizing

Steam master 19,5 kW

1 output at 10,5 bar

Steam master 19,5 kW SH

1 output at 10,5 bar

with detergent pump

Steam master 19,5 kW

code Volt -Hz A

Q80001872 208-60 3 phases 53
Q80002102 230-60 3 phases 47
080006150 400-50 3 phases 27
Q80002103 400-60 3 phases 27
Q80001885 440-60 3 phases 25
Q80001808 575-60 3 phases 19

Steam master 19,5 kW SH

code Volt -Hz A

Q80001866 208-60 3 phases 53
Q80002104 230-60 3 phases 47
080006153 400-50 3 phases 27
Q80002105 400-60 3 phases 27
Q80001879 440-60 3 phases 25
Q80001696 575-60 3 phases 19

accessories

for 208 V, 230 V, 440 V
and 575 V accessories
included - see table B1

for 400 V accessories not
included - see tables

A1-A4

measure units

start up time min 8 8
boiler capacity liter/gallon 16/4,23 16/4,23
boiler material type AISI 304 AISI 304
boiler power kW 19,5 19,5
boiler temperature regulation
steam production g/min 460 460
steam output regulation type manual manual
working pressure bar/psi 10,5/152 10,5/152
steam temperature in boiler

water output regulation yes/no no no
water output yes/no yes no

detergent output yes/no no yes
water tank capacity liter/gallon 25/6,60 25/6,60
unlimited autonomy yes/no yes yes
detergent tank capacity liter/gallon 5/1,32 5/1,32
machine body material type inox inox
weight net kg/lbs 113/250 113/250
machine dimension l x p x h cm 95x49x97 95x49x97
packaging dimension l x p x h cm 115x61x115 115x61x115

packaging weight kg/lbs 157/346 157/346
packaging box type wooden wooden

vacuum cleaner

waste water tank capacity liter/gallon - -
vacuum power kW - -

vacuum kPA - ­vacuum filter type - ­wet & dry yes/no - -

yes/no yes yes

°C/°F 185/365 185/365

yes/no/optional

Steam master

19,5 kW

optional optional

Steam master

19,5 kW SH

General Vapeur S.R.L.

Headquarters: Strada per Castelletto 19/21 - 20080 Albairate (MI) - Italy

Phone: [phone] • Fax: [phone]
[e-mail] • www.menikini.com • C.S. € 1.800.000

industrial sanitizing

with ecological dry steam
