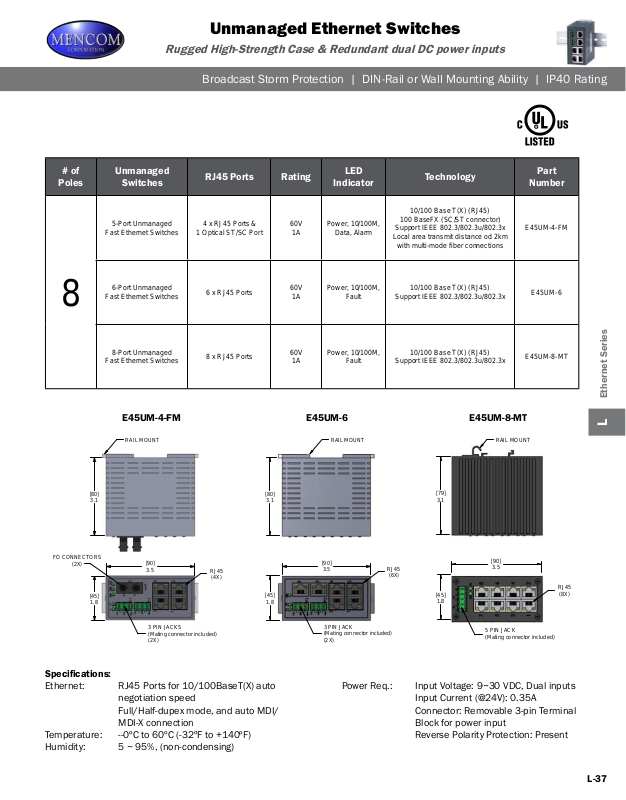

Mencom Unmanaged Ethernet Switches Catalog Page
Unmanaged Ethernet Switches
Rugged High-Strength Case & Redundant dual DC power inputs
Broadcast Storm Protection | DIN-Rail or Wall Mounting Ability | IP40 Rating
# of
Poles
8
Unmanaged
Switches
5-Port Unmanaged
Fast Ethernet Switches
6-Port Unmanaged
Fast Ethernet Switches
8-Port Unmanaged
Fast Ethernet Switches
RJ45 Ports Rating
4 x RJ45 Ports &
1 Optical ST/SC Port
6 x RJ45 Ports
8 x RJ45 Ports
60V
1A
60V
1A
60V
1A
LED
Indicator
Power, 10/100M,
Data, Alarm
Power, 10/100M,
Fault
Power, 10/100M,
Fault
Technology
10/100 Base T(X) (RJ45)
100 BaseFX (SC/ST connector)
Support IEEE 802.3/802.3u/802.3x
Local area transmit distance od 2km
with multi-mode fiber connections
10/100 Base T(X) (RJ45)
Support IEEE 802.3/802.3u/802.3x
10/100 Base T(X) (RJ45)
Support IEEE 802.3/802.3u/802.3x
E45UM-4-FM E45UM-6 E45UM-8-MT
RAIL MOUNT
RAIL MOUNT
Part
Number
E45UM-4-FM
E45UM-6
E45UM-8-MT
Ethernet Series
L
RAIL MOUNT
[80]
3.1
FO CONNECTORS
(2X)
[45]
1.8
[90]
3.5
3 PIN JACKS
(Mating
(2X)
connector included)
RJ45
(4X)
[80]
3.1
[45]
1.8
Specications:
Ethernet: RJ45 Ports for 10/100BaseT(X) auto
negotiation speed
Full/Half-dupex mode, and auto MDI/
MDI-X connection
Temperature: --0ºC to 60ºC (-32ºF to +140ºF)
Humidity: 5 ~ 95%, (non-condensing)
[79]
3.1
[90]
3.5
3 PIN JACK
(Mating
(2X)
connector included)
RJ45
(6X)
[45]
1.8
[90]
3.5
5 PIN JACK
connector included)
(Mating
Power Req.: Input Voltage: 9~30 VDC, Dual inputs
Input Current (@24V): 0.35A
Connector: Removable 3-pin Terminal
Block for power input
Reverse Polarity Protection: Present
RJ45
(8X)
L-37
