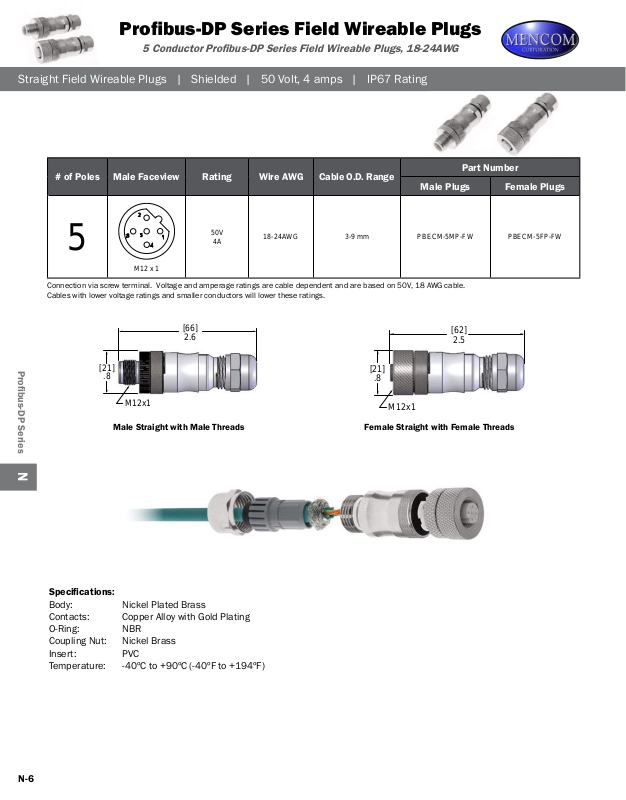

Mencom Profibus-DP Series Field Wireable Plugs Catalog Page

M12x1

Probus-DP Series Field Wireable Plugs

5 Conductor Probus-DP Series Field Wireable Plugs, 18-24AWG

Straight Field Wireable Plugs | Shielded | 50 Volt, 4 amps | IP67 Rating

# of Poles Male Faceview Rating Wire AWG Cable O.D. Range

2

[66]

2.6

50V

4A

18-24AWG 3-9 mm PBECM-5MP-FW PBECM-5FP-FW

[21]

.8

Female Straight with Female ThreadsMale Straight with Male Threads

5

3

5

Connection via screw terminal. Voltage and amperage ratings are cable dependent and are based on 50V, 18 AWG cable.
Cables with lower voltage ratings and smaller conductors will lower these ratings.

Probus-DP Series N

[21]

.8

M12x1

1

4

M12 x 1

Part Number

Male Plugs Female Plugs

[62]

2.5

Specications:

Body: Nickel Plated Brass
Contacts: Copper Alloy with Gold Plating
O-Ring: NBR
Coupling Nut: Nickel Brass

Insert: PVC

Temperature: -40ºC to +90ºC (-40ºF to +194ºF)

N-6
