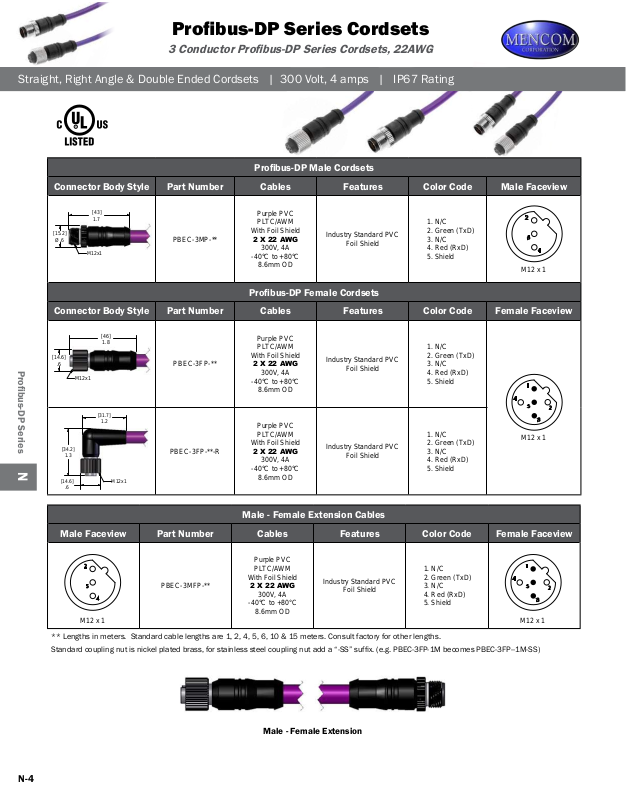

Mencom Profibus-DP Series Cordsets Catalog Page

Probus-DP Series Cordsets

3 Conductor Probus-DP Series Cordsets, 22AWG

Straight, Right Angle & Double Ended Cordsets | 300 Volt, 4 amps | IP67 Rating

Probus-DP Male Cordsets

Connector Body Style Part Number Cables Features Color Code Male Faceview

Probus-DP Series N

[15.2]

Ø.6

[43]

1.7

M12x1

PBEC-3MP-**

Purple PVC
PLTC/AWM

With Foil Shield

2 X 22 AWG

300V, 4A

-40°C to +80°C

8.6mm OD

Industry Standard PVC

Foil Shield

1. N/C

2. Green (TxD)

3. N/C

4. Red (RxD)

5. Shield

2

5

4

M12 x 1

Probus-DP Female Cordsets

Connector Body Style Part Number Cables Features Color Code Female Faceview

[14.6]

.6

[34.2]

1.3

[14.6]

.6

M12x1

[46]

1.8

[31.7]

1.2

PBEC-3FP-**

PBEC-3FP-**-R

M12x1

Purple PVC
PLTC/AWM

With Foil Shield

2 X 22 AWG

300V, 4A

-40°C to +80°C

8.6mm OD

Purple PVC
PLTC/AWM

With Foil Shield

2 X 22 AWG

300V, 4A

-40°C to +80°C

8.6mm OD

Industry Standard PVC

Foil Shield

Industry Standard PVC

Foil Shield

1. N/C

2. Green (TxD)

3. N/C

4. Red (RxD)

5. Shield

1. N/C

2. Green (TxD)

3. N/C

4. Red (RxD)

5. Shield

4

M12 x 1

1

5

2

3

N-4

Male - Female Extension Cables

Male Faceview Part Number Cables Features Color Code Female Faceview

2

5

4

PBEC-3MFP-**

Purple PVC
PLTC/AWM

With Foil Shield

2 X 22 AWG

300V, 4A

-40°C to +80°C

8.6mm OD

Industry Standard PVC

Foil Shield

1. N/C

2. Green (TxD)

3. N/C

4. Red (RxD)

5. Shield

** Lengths in meters. Standard cable lengths are 1, 2, 4, 5, 6, 10 & 15 meters. Consult factory for other lengths.

Standard coupling nut is nickel plated brass, for stainless steel coupling nut add a “-SS” sufx. (e.g. PBEC-3FP-1M becomes PBEC-3FP--1M-SS)

Male - Female Extension

1

4

5

3

M12 x 1M12 x 1

2
