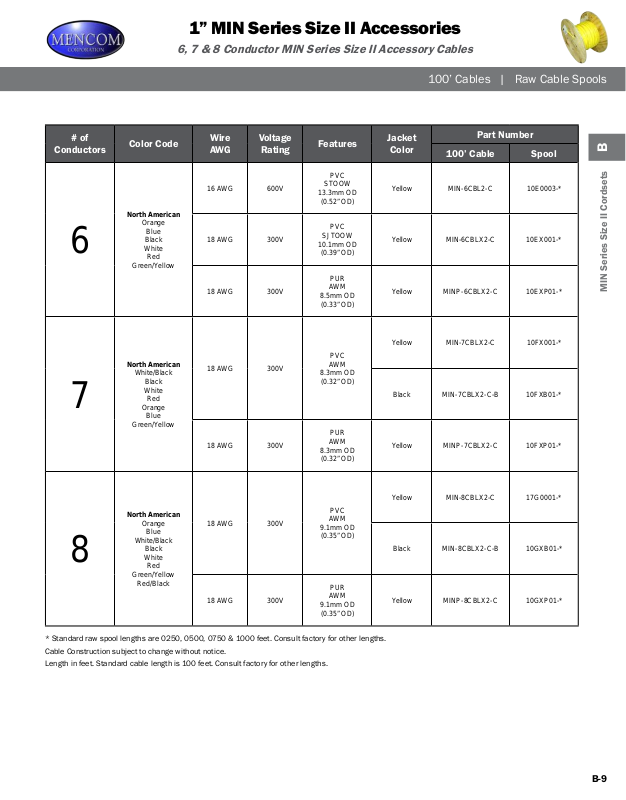

Mencom MIN Series Size II Catalog Page

1” MIN Series Size II Accessories

6, 7 & 8 Conductor MIN Series Size II Accessory Cables

100’ Cables | Raw Cable Spools

# of

Conductors

6

7

Color Code

North American

Orange

Blue
Black
White

Red

Green/Yellow

North American

White/Black

Black
White

Red

Orange

Blue

Green/Yellow

Wire
AWG

16 AWG 600V

18 AWG 300V

18 AWG 300V

18 AWG 300V

18 AWG 300V

Voltage

Rating

Features

PVC

STOOW

13.3mm OD
(0.52” OD)

PVC

SJTOOW

10.1mm OD
(0.39” OD)

PUR

AWM

8.5mm OD
(0.33” OD)

PVC

AWM

8.3mm OD
(0.32” OD)

PUR

AWM

8.3mm OD
(0.32” OD)

Jacket

Color

Yellow MIN-6CBL2-C 10E0003-*

Yellow MIN-6CBLX2-C 10EX001-*

Yellow MINP-6CBLX2-C 10EXP01-*

Yellow MIN-7CBLX2-C 10FX001-*

Black MIN-7CBLX2-C-B 10FXB01-*

Yellow MINP-7CBLX2-C 10FXP01-*

Part Number

100’ Cable Spool

B

MIN Series Size II Cordsets

North American

Orange

Blue

White/Black

Black

8

* Standard raw spool lengths are 0250, 0500, 0750 & 1000 feet. Consult factory for other lengths.

Cable Construction subject to change without notice.

Length in feet. Standard cable length is 100 feet. Consult factory for other lengths.

White

Red

Green/Yellow

Red/Black

18 AWG 300V

18 AWG 300V

PVC

AWM

9.1mm OD
(0.35” OD)

PUR

AWM

9.1mm OD
(0.35” OD)

Yellow MIN-8CBLX2-C 17G0001-*

Black MIN-8CBLX2-C-B 10GXB01-*

Yellow

MINP-8CBLX2-C 10GXP01-*

B-9
