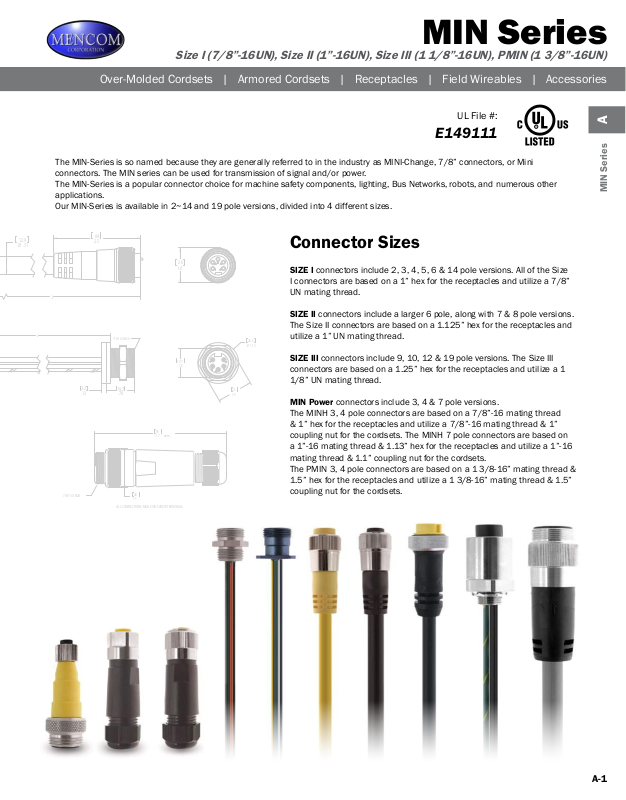

Mencom MIN Series General Product Line Information

MIN Series

.78

19.7

L

3.2
.13

7/8-16 UN2A

Ø

1.13

28.6

.78

19.7

1.0

25

64

2.5

L

12.9

Ø .51

26

1.0

ALL CONNECTIONS MADE VIA SCREW TERMINALS

3.7 nom.

95

28

1.1

7/8-16 UN2A

Size I (7/8”-16UN), Size II (1”-16UN), Size III (1 1/8”-16UN), PMIN (1 3/8”-16UN)

Over-Molded Cordsets | Armored Cordsets | Receptacles | Field Wireables | Accessories

UL File #:

E149111

The MIN-Series is so named because they are generally referred to in the industry as MINI-Change, 7/8” connectors, or Mini
connectors. The MIN series can be used for transmission of signal and/or power.
The MIN-Series is a popular connector choice for machine safety components, lighting, Bus Networks, robots, and numerous other
applications.
Our MIN-Series is available in 2~14 and 19 pole versions, divided into 4 different sizes.

Connector Sizes

SIZE I connectors include 2, 3, 4, 5, 6 & 14 pole versions. All of the Size

I connectors are based on a 1” hex for the receptacles and utilize a 7/8”
UN mating thread.

SIZE II connectors include a larger 6 pole, along with 7 & 8 pole versions.
The Size II connectors are based on a 1.125” hex for the receptacles and
utilize a 1” UN mating thread.

SIZE III connectors include 9, 10, 12 & 19 pole versions. The Size III
connectors are based on a 1.25” hex for the receptacles and utilize a 1
1/8” UN mating thread.

MIN Power connectors include 3, 4 & 7 pole versions.
The MINH 3, 4 pole connectors are based on a 7/8”-16 mating thread
& 1” hex for the receptacles and utilize a 7/8”-16 mating thread & 1”
coupling nut for the cordsets. The MINH 7 pole connectors are based on
a 1”-16 mating thread & 1.13” hex for the receptacles and utilize a 1”-16
mating thread & 1.1” coupling nut for the cordsets.
The PMIN 3, 4 pole connectors are based on a 1 3/8-16” mating thread &

1.5” hex for the receptacles and utilize a 1 3/8-16” mating thread & 1.5”
coupling nut for the cordsets.

AMIN Series

A-1

MIN Power Series Cordsets

MIN Power Series Cordset Part Number Matrix

Not all options available with all cordsets, please consult factory.

MINH

Number of Conductors

3
4
7

- -- -

R/A or Straight

Blank = Straight *
R = Right Angle **

* Unless the Connector Conguration is MFRP or MRFP
** If single ended cable, right angle connector to ying leads

If double ended cable, right angle on both connectors

Coupling Nut

Blank = Aluminum or
Nickel plated brass
SS = Stainless Steel

D

MIN Power Cordsets

Connector Conguration

MP = Male Plug
FP = Female Plug
MFP = Male / Female Extension
MFRP = Male Straight / Female Right Angle
MRFP = Male Right Angle / Female Straight

Length in Meter

1M
2M
4M
5M
6M
10M
15M

Other lengths are available by request.

D-1
