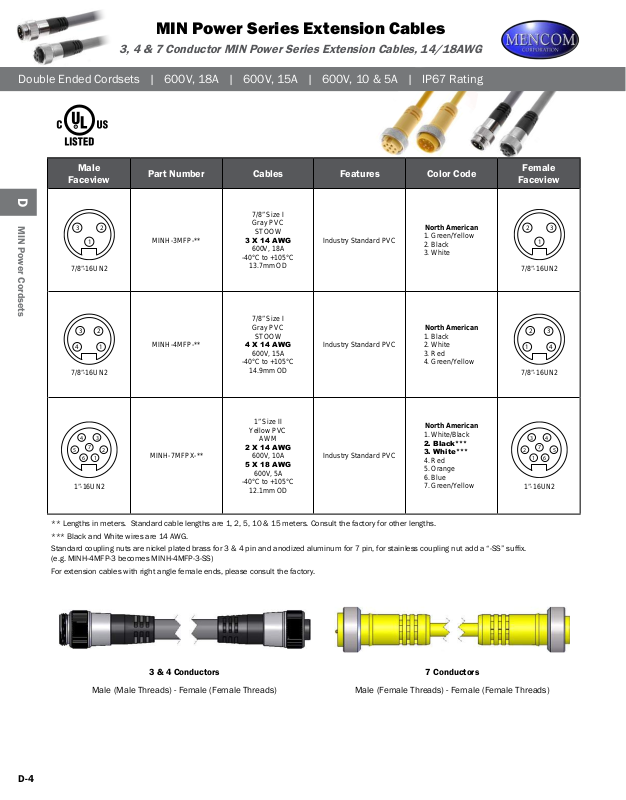

MIN Power Series Extension Cables
3, 4 & 7 Conductor MIN Power Series Extension Cables, 14/18AWG
Double Ended Cordsets | 600V, 18A | 600V, 15A | 600V, 10 & 5A | IP67 Rating
MIN Power CordsetsD
Male
Faceview
2
3
1
7/8”-16UN2
3
2
1
4
7/8”-16UN2
3
4
7
2
5
1
6
1”-16UN2 1”-16UN2
Part Number Cables Features Color Code
7/8” Size I
MINH-3MFP-**
MINH-4MFP-**
MINH-7MFPX-**
Gray PVC
STOOW
3 X 14 AWG
600V, 18A
-40°C to +105°C
13.7mm OD
7/8” Size I
Gray PVC
STOOW
4 X 14 AWG
600V, 15A
-40°C to +105°C
14.9mm OD
1” Size II
Yellow PVC
AWM
2 X 14 AWG
600V, 10A
5 X 18 AWG
600V, 5A
-40°C to +105°C
12.1mm OD
Industry Standard PVC
Industry Standard PVC
Industry Standard PVC
North American
1. Green/Yellow
2. Black
3. White
North American
1. Black
2. White
3. Red
4. Green/Yellow
North American
1. White/Black
2. Black***
3. White***
4. Red
5. Orange
6. Blue
7. Green/Yellow
Female
Faceview
2
7/8”-16UN2
2
1
7/8”-16UN2
3
2
1
3
1
3
4
4
7
5
6
D-4
** Lengths in meters. Standard cable lengths are 1, 2, 5, 10 & 15 meters. Consult the factory for other lengths.
*** Black and White wires are 14 AWG.
Standard coupling nuts are nickel plated brass for 3 & 4 pin and anodized aluminum for 7 pin, for stainless coupling nut add a “-SS” sufx.
(e.g. MINH-4MFP-3 becomes MINH-4MFP-3-SS)
For extension cables with right angle female ends, please consult the factory.
3 & 4 Conductors
Male (Male Threads) - Female (Female Threads)
Male (Female Threads) - Female (Female Threads)
7 Conductors
