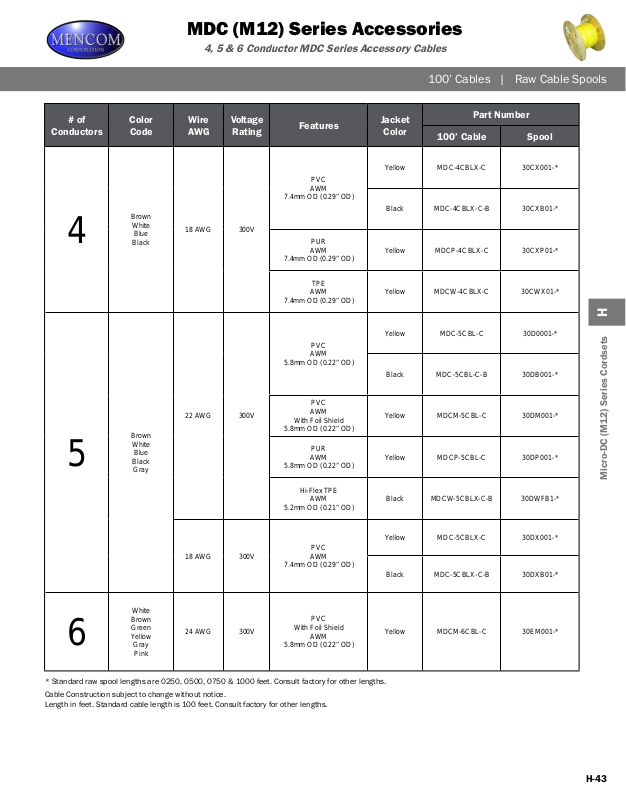

Mencom MDC Series Accessories Catalog

MDC (M12) Series Accessories

4, 5 & 6 Conductor MDC Series Accessory Cables

100’ Cables | Raw Cable Spools

# of

Conductors

4

5

Color
Code

Brown

White

Blue

Black

Brown

White

Blue

Black

Gray

Wire
AWG

18 AWG 300V

22 AWG 300V

Voltage

Rating

Features

PVC

AWM

7.4mm OD (0.29” OD)

PUR

AWM

7.4mm OD (0.29” OD)

TPE

AWM

7.4mm OD (0.29” OD)

PVC

AWM

5.8mm OD (0.22” OD)

PVC

AWM

With Foil Shield

5.8mm OD (0.22” OD)

PUR

AWM

5.8mm OD (0.22” OD)

Hi-Flex TPE

AWM

5.2mm OD (0.21” OD)

Jacket

Color

Yellow MDC-4CBLX-C 30CX001-*

Black MDC-4CBLX-C-B 30CXB01-*

Yellow MDCP-4CBLX-C 30CXP01-*

Yellow MDCW-4CBLX-C 30CWX01-*

Yellow MDC-5CBL-C 30D0001-*

Black MDC-5CBL-C-B 30DB001-*

Yellow MDCM-5CBL-C 30DM001-*

Yellow MDCP-5CBL-C 30DP001-*

Black MDCW-5CBLX-C-B 30DWFB1-*

100’ Cable Spool

Part Number

H

Micro-DC (M12) Series Cordsets

18 AWG 300V

White
Brown
Green

6

* Standard raw spool lengths are 0250, 0500, 0750 & 1000 feet. Consult factory for other lengths.

Cable Construction subject to change without notice.

Length in feet. Standard cable length is 100 feet. Consult factory for other lengths.

Yellow

Gray
Pink

24 AWG 300V

PVC

AWM

7.4mm OD (0.29” OD)

PVC

With Foil Shield

AWM

5.8mm OD (0.22” OD)

Yellow MDC-5CBLX-C 30DX001-*

Black MDC-5CBLX-C-B 30DXB01-*

Yellow MDCM-6CBL-C 30EM001-*

H-43
