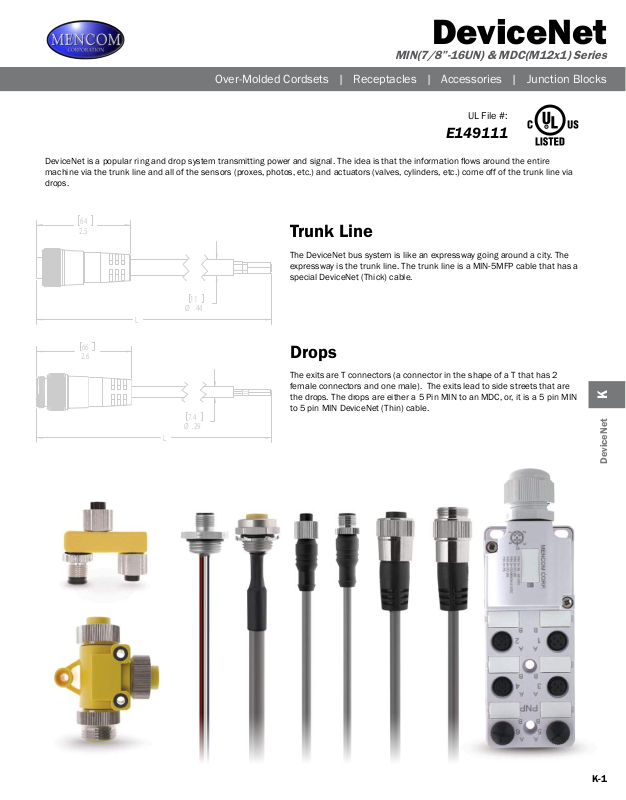

DeviceNet
Ø .44
11
L
64
2.5
Ø .29
7.4
L
2.6
66
MIN(7/8”-16UN) & MDC(M12x1) Series
Over-Molded Cordsets | Receptacles | Accessories | Junction Blocks
UL File #:
E149111

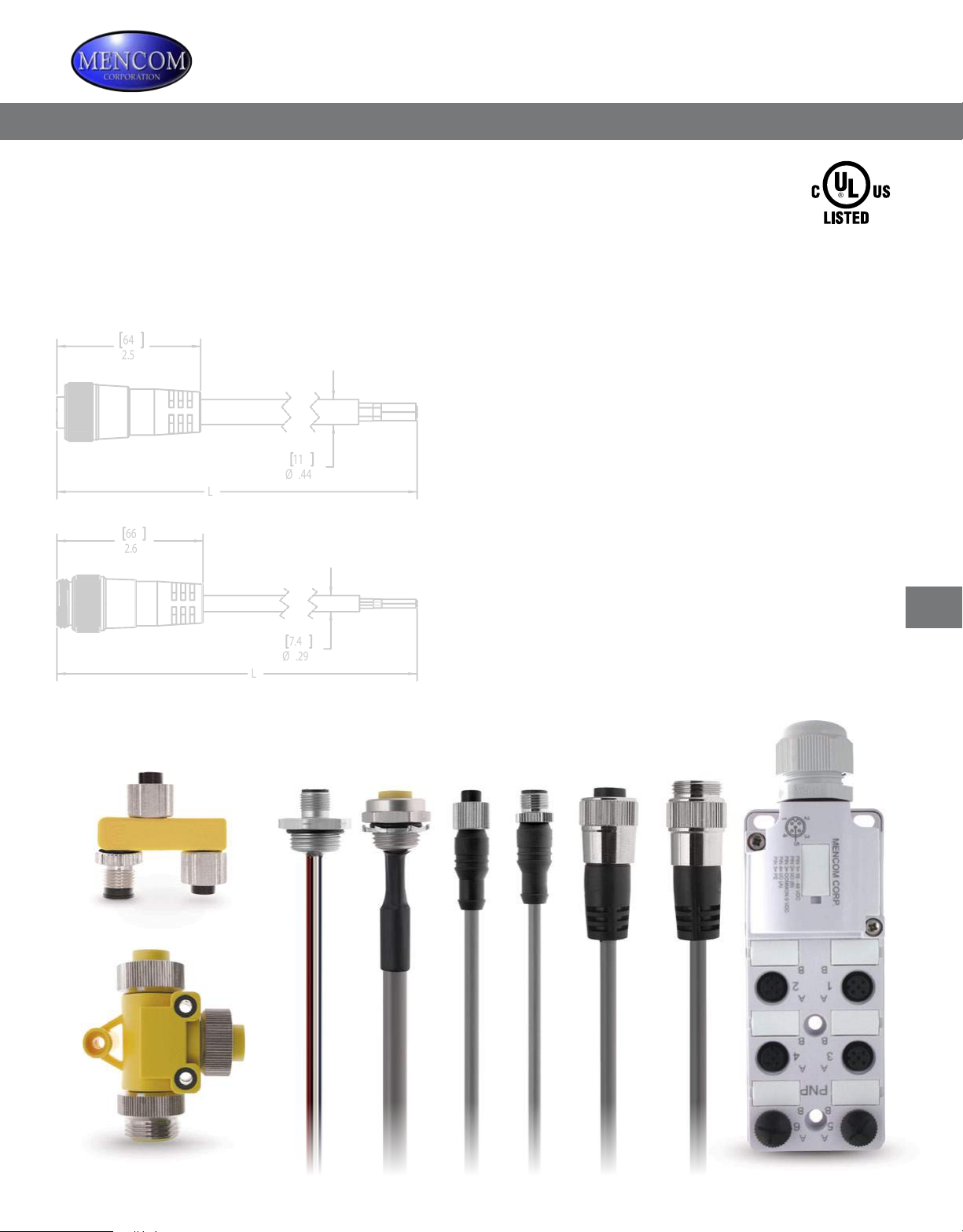

DeviceNet is a popular ring and drop system transmitting power and signal. The idea is that the information ows around the entire
machine via the trunk line and all of the sensors (proxes, photos, etc.) and actuators (valves, cylinders, etc.) come off of the trunk line via
drops.
Trunk Line
The DeviceNet bus system is like an expressway going around a city. The
expressway is the trunk line. The trunk line is a MIN-5MFP cable that has a
special DeviceNet (Thick) cable.
Drops
The exits are T connectors (a connector in the shape of a T that has 2
female connectors and one male). The exits lead to side streets that are
the drops. The drops are either a 5 Pin MIN to an MDC, or, it is a 5 pin MIN
to 5 pin MIN DeviceNet (Thin) cable.
K
DeviceNet
K-1
Page 2
DeviceNet Series Receptacles
DeviceNet Series Receptacle Part Number Matrix
Not all options available with all receptacles, please consult factory.
- - - -- - - -
5
Connector Type
MIN = MIN with Discrete Wires (7/8”-16UN)
MINDT = MIN with Trunk Cable (7/8”-16UN)
MINDD = MIN with Drop Cable (7/8”-16UN)
MDC = MDC with Discrete Wires (M12 x 1)
Connector Conguration
MR = Male Receptacle
FR = Female Receptacle
Shell Material
Blank = Aluminum or
Nickel plated brass
SS = Stainless Steel
Mounting Style
Blank = Front Mount 1/2”-14 NPT (Only MIN)
2 = Front Mount 1/2”-14 NPT (Only MDC)
4 = Front Mount 1/4”-18 NPT (Only MDC)
BM = Back Mount
BM-PCB = PCB Back Mount
Metric and PG threads are available by request.
Termination Type
Blank = Pre-Wired
PCB = PCB Mount
Length in Feet/Meter
Blank = 1’ (Only for MDC)
K
R/A or Straight
Blank = Straight
R = Right Angle
DeviceNet
Receptacle Type
Blank = Trunk/Drop Cable
DN = Discrete Wire Receptacle
Wire AWG
Blank = 16 AWG for MIN
= 15 & 18 AWG for MINDT
= 22 & 24 AWG for MINDD
18 = 18 AWG
22 = 22 AWG
K-11
