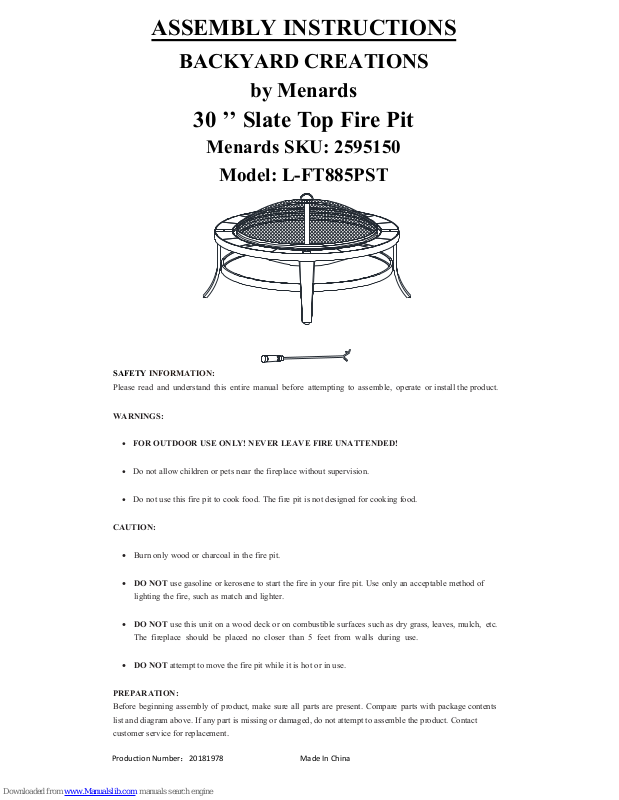

Page 1
Production Number：
20181978 Made In China
BACKYARD CREATIONS
by Menards
3
0 ’’ Slate Top Fire Pit
Menards SKU: 2595150
Model: L-FT885PST
SAFETY INFORMATION:
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNINGS:
• FOR OUTDOOR USE ONLY! NEVER LEAVE FIRE UNATTENDED!
• Do not allow children or pets near the fireplace without supervision.
• Do not use this fire pit to cook food. The fire pit is not designed for cooking food.
CAUTION:
• Burn only wood or charcoal in the fire pit.
• DO NOT use gasoline or kerosene to start th
e fire in your fire pit. Use only an acceptable method of
lighting the fire, such as match and lighter.
• DO NOT use this unit on a wood deck or on combustible surfaces such as dry grass, leaves, mulch, etc.
The fireplace should be placed no closer than 5 feet from walls during use.
• DO NOT attempt to move the fire pit while it is hot or in use.
PREPARATION:
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents
list and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact
customer service for replacement.
ASSEMBLY INSTRUCTIONS
Page 2
Parts details
No.
Description
Qty
A
Handle
1 B Lid 1 C
Log grate
1 D Bowl
1 E Table top
1 F Fixed frame
1 G feet
4
G1
Feet
pad(pre-attached)
4
H
Poker
1
AA
M6 nut
1
BB
M6*12 screw
4
CC
M6 nut
8
DD
M6 washer
12
EE
M6 wrench
1
Step 2: Place the Fixed frame (F) upright as
pictured below and connect Feet (G) with Fixed
frame (F) using screws (BB) and washers (DD).
Step 1: Fasten the handle (A) to lid (B) using
nut (AA).
Page 3
Please do not return this product to the store. For technical assistance on
assembly or replacement parts call Sunjoy Industries at 1(866) 578-6569 or Email
[email protected] or visit www.sunjoyonline.com to place your order or fax your
parts replacement order form together with your purchase receipt to 1 (740) 283-3549 for
assistance.
Step 3: Turn the Fixed frame (F) over like the
below picture and fasten the Feet (G) to the
Tabletop (E) with 8 nuts (CC) and washers (DD).
Step 4: Flip the tabletop back upright 180
like the below picture and place the Lid (B), Log
grate (C) and Bowl (D) on the Tabletop (E). Place
the Poker (H) aside until needed for the first use.
