Memorex MX4300RF Users Manual

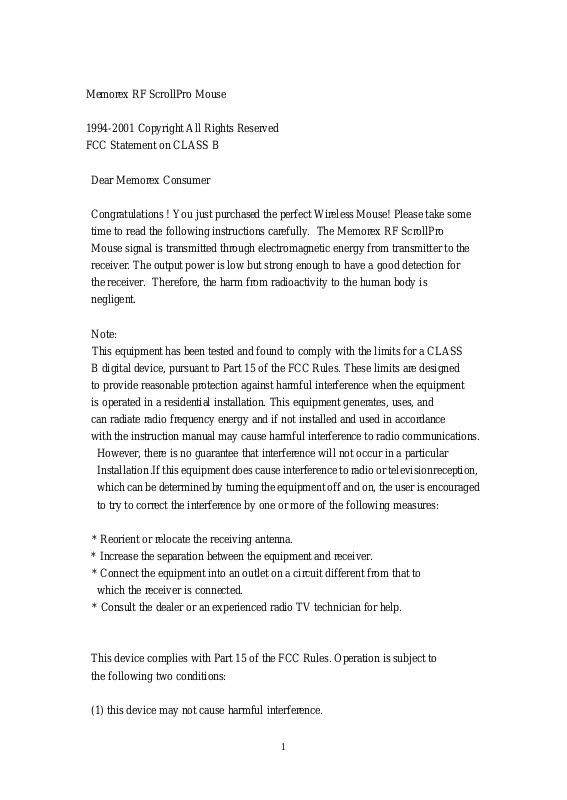

Memorex RF ScrollPro Mouse

Dear Memorex Consumer

Congratulations ! You just purchased the perfect Wireless Mouse! Please take some time to read the following instructions carefully. The Memorex RF ScrollPro Mouse signal is transmitted through electromagnetic energy from transmitter to the receiver. The output power is low but strong enough to have a good detection for the receiver. Therefore, the harm from radioactivity to the human body is negligent.

Note: This equipment has been tested and found to comply with the limits for a CLASS B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular Installation .If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference.

(2) this device must accept any interference received, including interference that may cause undesired operation.

1. Hardware Installation

1-1.Installing a Mouse with a PS/2 Connector Turn off the computer before connecting or disconnecting your mouse. Connect the PS/2 Mouse to the PS/2 port on your computer.

1-2.Installing a Combo (PS/2 to USB) Mouse Connect the PS/2 to USB adapter to the PS/2 Mouse Connector. Plug the USB adapter into an available USB port on your computer.

1-3.Select and Set ID 1-3-1.Plug in receiver connector to your computer to turn on LED indicator. After pressing the ID setting button on the back of receiver, the LED Light begins flashing. You are now ready to set the Mouse ID setting:

1-3-2.To set the Mouse ID setting do one of the following:

1)ID one: Press the ID defining button (on the back of mouse)

2)ID two: Press command key (usually the left button) first, then ID defining button. Release ID defining button first, then command key.

3)ID three: Press pop-up key (usually the right button) first, then ID defining

button. Release ID defining button first, then pop-up key.

4)ID four: Press wheel button first, then ID defining button. Release ID defining button first, then wheel button.

1-3-3.After you select the ID and send the signal from the mouse, the mouse receiver will receive and automatically detect and create a working link. After you successfully finish the ID setting, the LED indicator on the

receiver will confirm every move of the mouse by flashing.

If you want to re-define the ID, will simply begin the process again by pressing the ID button of the receiver first.

*Note: once you change the batteries, don't forget to reset the ID.

2. Mouse Driver Installation

Mouse software Windows 95, Windows 98, Windows NT 3.51, Windows NT 4.0, Windows 2000 and Windows ME.

Before installing any software under Windows NT 4.0, we strongly recommend you create an Emergency Repair Disk using the Repair Disk utility provided by the system (RDISK.EXE).

Please note that USB mice are only supported under Windows 98 , Windows 2000 and Windows ME.

2-1. Standard Installation for Windows 95, Windows 98, Windows NT 4.0, Windows 2000,and Windows ME.

Insert the CD into your computers CD-ROM drive. The program will auto-launch. Follow the on-screen instructions. If the program fails to auto launch Use Windows Explorer to locate Run Setup.exe on the CD. Double click the file to launch the installation. Follow the on-screen instructions.

2-2. Drivers Only Installation

You can load device drivers without running the Setup program. If you load the device drivers this way however, the Setup program will be loaded automatically after the drivers install.

Please execute the following steps to perform a drivers-only installation for Windows 2000:

1) Click on the "Start" button on the Windows Desktop.

2) Select "Settings", then "Control Panel".

3) From the Control Panel, double click on the "System" icon.

4) From the System Properties, click on the "Hardware" tab.

5) Click on the "Device Manager" button.

6) From the Device Manager, double click the "Mouse" icon.
