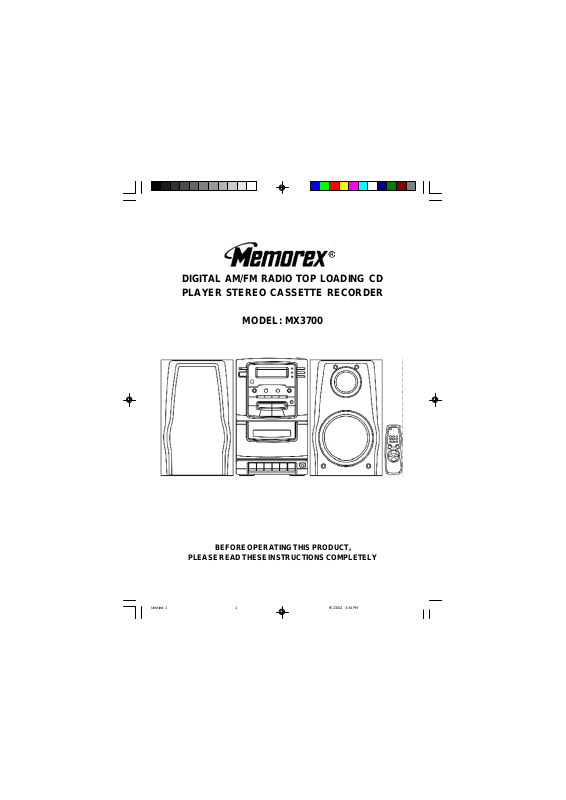

Memorex MX3700 User's Guide

DIGITAL AM/FM RADIO TOP LOADING CD
PLAYER STEREO CASSETTE RECORDER

MODEL: MX3700

BEFORE OPERATING THIS PRODUCT,

PLEASE READ THESE INSTRUCTIONS COMPLETELY

Untitled-1 9/23/02, 3:34 PM1

WARNING:

To reduce the risk of fire or electric shock, do not expose it is appliance to rain or moisture.

CAUTION:

Use of controls or adjustments or performance of procedures other than those specificed may result in
hazardous radiation exposure.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce the risk of electric shock, do not remove cover (or back).

No user serviceable parts inside. Refer servicing to qualified service personnel

The lightning flash with arrowhead symbol within an equilateral symbol, with an
equilateral triangle, is intended to alert user to the presence of uninsulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenace (servicing) instruction in the literature
accompanying the appliance.

CAUTION

For Compact Disc Units only.

INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCK FAILED OR DEFEATED.
AVOID DIRECT EXPOSURE TO LASER BEAM.

Untitled-1 9/23/02, 3:34 PM2

E-2

IMPORTANT SAFEGUARDS

CAUTION :

• Read all of these instructions.

• Save these instructions for later use.

• Follow all warnings and instructions marked on the audio equipment.

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the product and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. WATER AND MOISTURE

The product should not be used near water – for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool, etc.

6. CARTS AND STANDS

The product should be used only with a cart or stand that is
recommended by the manufacturer.

6A. An appliance and cart combination should be moved with care. Quick

stops, excessive force, and uneven surfaces may cause the appliance
and cart combination to overturn.

7. WALL OR CEILING MOUNTING

The product should be mounted to a wall or ceiling as recommended by the manufacturer.

8. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products ( including amplifiers ) that produce heat.

9. VENTILATION

The product should be situated so that its location or position does not interfere with its proper
ventilation. For example, the product should not be situated on a bed, sofa, rug, or similar surface that
may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet
that may impede the flow of air through the ventilation openings.

10. POWER SOURCES

The product should be connected to a power supply only of the type described in the operating
instructions or as marked on the product.

11. GROUNDING OR POLARIZATION

Precautions should be taken so that the grounding or polarization means of a product is not defeated.

12. POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.

13. CLEANING

The product should be cleaned only as recommended by the manufacturer.

14. POWER LINES

An outdoor antenna should be located away from power lines.

Untitled-1 9/23/02, 3:34 PM3

E-3

15. OUTDOOR ANTENNA GROUNDING

If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to
provide some protection against voltage surges and built up static charges. Section 810 of the National
Electrical Code, ANSI/NFPA 70 provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements
for the grounding electrode. See Figure.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

16. NONUSE PERIODS

The power cord of the product should be unplugged from the outlet when left unused for a long period
of time.

17. OBJECT AND LIQUID ENTRY

Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through
openings.

18. DAMAGE REQUIRING SERVICE

The product should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen or liquid has been spilled into the product; or
C. The product has been exposed to rain; or
D. The product does not appear to operate normally or exhibits a marked change in performance; or
E. The product has been dropped, or the enclosure damaged.

19. SERVICING

The user should not attempt to service the product beyond that described in the operating instructions.
All other servicing should be referred to qualified service personnel.

20. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.

PRINTED IN HONG KONG

E-4

Untitled-1 9/23/02, 3:34 PM4

LOCATION OF CONTROLS

1. SPEAKER

2. REMOTE SENSOR

3. POWER BUTTON

4. STANDBY INDICATOR

5. CD DOOR

6. DISPLAY

7. CLASSIC INDICATOR

8. POP INDICATOR

9. ROCK INDICATOR

10.CD DOOR OPEN BUTTON

11.ROCK BUTTON

12.POP BUTTON

13.CLASSIC BUTTON

14.CASSETTE DOOR

15.RECORD KEY

16.PLAY KEY

17.REWIND KEY

18.FAST FORWARD KEY

19.STOP/EJECT KEY

20.PAUSE KEY

21.HEADPHONE JACK

22.REPEAT / M.UP BUTTON

23.CD PROGRAM/TUNER MEMORY BUTTON /TIME SET

24.TUNER DOWN/CD SKIP TRACK (BACK) / TIME( )

25.STOP BUTTON

26.PLAY/PAUSE BUTTON

27.TUNER UP/CD SKIP TRACK (FORWARD) / TIME( )

28.BAND SELECTOR

29.RANDOM BUTTON

30.CD SYNCHO DUBBING BUTTON

31.AUX BUTTON

32.TAPE BUTTON

33.VOLUME UP/DOWN BUTTON

34.TUNER BUTTON

35.CD BUTTON

36.SPEAKER JACKS (L/R)

37.AUX INPUT

38.AC POWER CORD

39.FM ANTENNA LEAD

40.FM MODE/BEAT CUT SELECTOR

CAUTION

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE
PERSONNEL.

PRESET EQUALIZER

THE QUALITY OF TONE CAN BE ADJUSTED BY THE PRESET SOUND EQUALIZER WHICH HAS BEEN
SET INTO 3 MODES (ROCK, POP CLASSIC). BY PRESSING THE CORRESPONDING EQ BUTTON YOU
CAN CHOOSE ONE OF YOUR FAVORITE MODE ACCORDING TO YOUR MUSIC STYLE.

E-5
