Memorex MVT2139, MVT2140 User Manual

Page 1

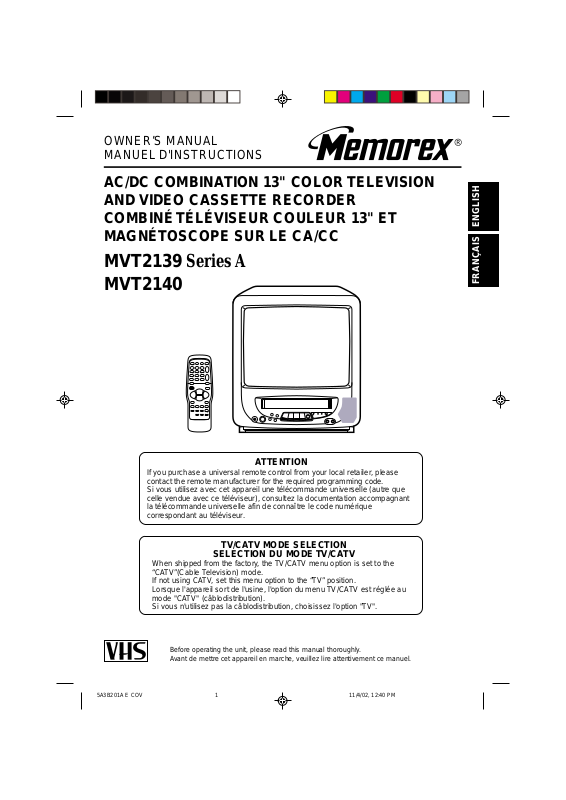

OWNER’S MANUAL MANUEL D'INSTRUCTIONS

AC/DC COMBINATION 13" COLOR TELEVISION AND VIDEO CASSETTE RECORDER COMBINÉ TÉLÉVISEUR COULEUR 13" ET MAGNÉTOSCOPE SUR LE CA/CC

MVT2139 Series A MVT2140

ATTENTION

If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. Si vous utilisez avec cet appareil une télécommande universelle (autre que celle vendue avec ce téléviseur), consultez la documentation accompagnant la télécommande universelle afin de connaître le code numérique correspondant au téléviseur.

ENGLISH

FRANÇAIS

When shipped from the factory, the TV/CATV menu option is set to the “CATV”(Cable Television) mode. If not using CATV, set this menu option to the “TV” position. Lorsque l'appareil sort de l'usine, l'option du menu TV/CATV est réglée au mode "CATV" (câblodistribution). Si vous n'utilisez pas la câblodistribution, choisissez l'option "TV".

Before operating the unit, please read this manual thoroughly. Avant de mettre cet appareil en marche, veuillez lire attentivement ce manuel.

5A3B201A E COV 11/4/02, 12:40 PM1

TV/CATV MODE SELECTION

SELECTION DU MODE TV/CATV

Page 2

ENGLISH

CAUTION:

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SER VICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

CAUTION:

NOTE:

Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memorex.

WARNING:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only .

6. ATTACHMENTS

The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.

7. WATER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

8. ACCESSORIES

Do not place this unit on an unstable cart, stand,

tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit.

8A. An appliance and cart

combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

5A3B201A E P02-11 11/4/02, 12:41 PM2

Page 3

IMPORTANT SAFEGUARDS

9. VENTILATION

Slots and openings in the cabinet back or bottom are provided for ventilation, and to ensure reliable operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instr uctions have been adhered to.

10. POWER SOURCES

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternatingcurrent line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug, if your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the groundingtype plug.

12. POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. LIGHTNING

To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

15. OVERLOADING

Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

17. OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

18. SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

ENGLISH

5A3B201A E P02-11 11/4/02, 12:41 PM3

Page 4

IMPORTANT SAFEGUARDS

19. DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen

into the unit. c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operat-

ing instructions, as an improper adjustment of

other controls may result in damage and will

often require extensive work by a qualified

technician to restore the unit to its normal

operation. e. If the unit has been dropped or the cabinet has

been damaged.

. When the unit exhibits a distinct change in

performance, this indicates a need for service.

20. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. SAFETY CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

22. WALL OR CEILING MOUNTING

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

23. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

24. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER THE

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

S2898A

5A3B201A E P02-11 11/4/02, 12:41 PM4

NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

Page 5

SAFETY PRECAUTIONS

MOISTURE CONDENSATION

DO NOT OPERATE ANY FUNCTIONS ON THIS UNIT FOR AT LEAST TWO OR THREE HOURS WHEN MOISTURE IN THE AIR CONDENSES ON IT. LET THE UNIT STAND WITH POWER ON (SEE BELOW).

■ WHAT IS MOISTURE CONDENSATION?

When a cold liquid is poured into a glass, for example, water vapor in the air will condense on the surface of the glass. This is called moisture condensation.

■ MOISTURE WILL CONDENSE ON THE UNIT IN

THE FOLLOWING CASES:

• When you move the unit from a cold to a warm place.

• After heating a cold room or under extremely humid

conditions.

■ WHEN YOU EXPERIENCE THE ABOVE CONDI-

TIONS,

"DEW" appears on the screen and all the function buttons except the EJECT button (or the STOP/ EJECT button on the unit) are made non-operational to protect the video heads. In this case, eject the video cassette, leave the unit turned on and let it remain at room temperature until moisture condensation disappears. Depending on the surrounding conditions, this may take two or three hours.

LOCATION AND HANDLE

• If you cause a static discharge when touching the unit,

and the unit fails to function, simply unplug the unit from the wall outlet, wait 10 minutes and plug it back in. The unit should return to normal operation.

• Avoid extreme heat or cold. (41˚F/5˚C-104˚F/40˚C)

• Do not place the unit on or near appliances which may cause electromagnetic interference (e.g. speakers, etc). Doing so may cause erratic operation of the unit including picture and/or sound distortion or noise.

• Avoid extreme moisture and dust.

• The ventilation holes prevent overheating. Do not

block or cover these holes. Especially avoid covering the holes with soft materials such as cloth or paper.

• Do not insert fingers or any other objects into the cassette loading slot. Do not spray cleaner or wax directly on the unit or use forced air to remove dust.

• Avoid places subject to strong vibration. Use in a horizontal (flat) position only.

• Keep the unit away from flower vases, sinks, etc. If liquids should be spilled into the unit, serious damage will result. If you spill an y liquids into the unit, unplug the AC power cord immediately and consult qualified service personnel before attempting to use it again.

• When you finish operating the unit, always unload the cassette and turn off the power.

• When you leave your home for a long time, unplug the AC power cord.

• To protect the unit from a lightning storm, unplug the AC power cord from the wall outlet and disconnect the antenna.

INSTALL THE TV/VCR IN YOUR CAR

• For a car equipped with air bags, be sure to follow the

manufacturer’s instructions whenever performing any electrical wiring work. Incorrect wiring can cause the air bag system of a car to malfunction.

• Never cut the insulation from the power supply lead in an attempt to draw power for another device. Doing so can overload the current capacity of the lead, creating the danger of fire and electric shock.

• For proper installation and wiring, special technical knowledge is required. If you have any doubts about where to position or how to install components, contact the retailer where you purchased the product, your automobile dealership, or an automotive service provider. Note that you will be charged separately for installation work.

• Use all of the components that come with this product only as directed. Improper use of components can damage interior components or result in improper anchoring of components, which creates the danger of accident and personal injury.

• Improper installation creates the danger of fire and accident.

• Take care so wires are not pinched between chassis parts, by screws, or by the seat as it slides on its rails, etc. Such conditions can cut wires and cause shorts, creating the danger of accident, electric shock, and fire.

• Avoid installation in areas subject to strong vibration and areas where secure anchoring cannot be achieved. Components installed in such areas can work loose, creating the danger of accident and personal injury.

• Never install the TV/VCR on the dashboard or in any other location where it obstructs forward vision.

• Never attach the stand to the roof of your car. Doing so creates the danger of the TV/VCR falling down.

• Ne v er attach the stand to a sharply angled surface or to a surface that causes the TV/VCR to face downwards. Such installation can cause the TV/VCR to fall.

• Be sure to turn the ignition key of the car to the “OFF” position before connecting or disconnecting wires and cables. Failure to do so creates the danger of electric shock and personal injury.

ENGLISH

5A3B201A E P02-11 11/4/02, 12:41 PM5

Page 6

SAFETY PRECAUTIONS

WARNING!

DRIVING SAFETY

• Ne v er w atch the TV/VCR or try to adjust settings while driv-

ing. Doing so creates the danger of traffic accident. Before operating the TV/VCR, be sure to stop the car in a safe area.

• Never install the unit on the dashboard or in any other location where it obstructs forward vision. Items that obstruct forward vision in a motor car may be illegal. Also, make sure that all components are installed where they do not interfere with operation of the steering wheel, shift lever , br ake pedal, etc., for example under the driver’s seat, and where they do not endanger passengers. Improper installation creates the danger of traffic accident and personal injury.

• Make sure all cables are bundled together so they do not interfere with car operation, as described in this manual. Improperly installed cables create the danger of entanglement with the steering wheel, shift lever, br ake pedal, etc.

IMPORTANT NOTES:

• The unit is designed for use with a 12V DC automotive

power supply. Never use it in a truck, bus, or any other car that has a 24V power supply.

• Be sure to stop your car in a safe area before watching or adjusting the TV/VCR.

• Operating the TV/VCR for a long time with the engine of your car stopped can run down your car’s battery.

• Never leave the TV/VCR in areas exposed to temperature extremes or strong direct sunlight. Leaving it in a closed car, in direct sunlight, near a heater, etc. can cause deformation of the case. Using this product in areas that are colder than 5°C (41°F) or hotter than 40°C (104°F) can result in poor image quality.

• Never use benzene or other chemical agents for cleaning. Chemicals can damage the case and remove markings. Use a soft cloth moistened with a weak solution of water and mild neutral detergent. Wring out all excess moisture from the cloth before wiping.

• Never drop the TV/VCR or otherwise subject it to strong impact.

• Should the TV/VCR ever begin to emit smoke, abnormal odor, or a strange noise, immediately turn off power and unplug the unit from the cigarette lighter socket. Continued use of the TV/VCR under any of these conditions creates the danger of fire and electric shock.

• Do not continue to use the TV/VCR if it is malfunctioning and does not produce a video image or sound. Whenever you notice such symptoms, immediately turn off power, unplug the TV/VCR from the cigarette lighter socket. Continued use of the TV/VCR creates the danger of fire and electric shock.

• When you leave your car unattended for long periods, be

sure to unplug the TV/VCR from the cigarette lighter socket. Leaving the TV/VCR plugged in can run down the car’s battery.

FEATURES

Color TV With Video Cassette Recorder - Unique space

saving design combines a color TV and a video cassette recorder.

High Quality Picture Technology - This TV/VCR equipped “HQ” incorporates VHS High Quality technology. A built-in detail enhancer is used to boost the recorded signal and provide maximum picture quality during playback. It is compatible with other VHS video cassette recorders.

120V AC or DC Operation - This TV/VCR is designed to operate from household AC current or from a 12V DC car cigarette lighter socket.

181 Channel Tuner - Receives standard VHF and UHF broadcast channels and up to 113 cable channels. The actual number of channels received depends upon channel reception in your area or your cable system.

Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers.

8-Programs/1-Month Programmable Timer With Everyday/Every Week Capability - The built-in timer allows

automatic absentee recording of up to 8 TV programs within 1 month. It is also possible to record a program which is broadcast at the same time everyday or ev ery week.

Automatic Clock Set - Once your TV/VCR is connected to an antenna or Cable TV, and also connected into the AC outlet, it automatically sets the correct date and time.

On-Screen TV Displa y And VCR Programming - When you select a channel or make other changes, the TV will sho w an indicator on the screen for a few seconds. Timer recording can be programmed and confirmed on the screen.

Picture Adjustments Using The Remote Control - The OnScreen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.

Automatic Playback/Rewind-Stop-Eject - When loading a cassette tape without the erase prevention tab, this TV/VCR will automatically play back the cassette tape at the correct speed. When a tape reaches its end during play-back, recording forward, it will automatically stop, re wind, stop and eject the tape.

(except during OTR and Timer Record) and fast

5A3B201A E P02-11 11/4/02, 12:41 PM6

Page 7

FEATURES

TABLE OF CONTENTS

Programmable ON/OFF Timer - Allows you to automatically

turn on or off the TV/VCR at a set time. Programmable TV Sleep Timer - Operable from the remote

control, the TV can be programmed up to 120 minutes to turn off automatically .

Automatic Repeat Play System - When Auto Repeat option is turned on, the TV/VCR will automatically play back the same cassette tape repeatedly.

One-touch Timer Recording (OTR) - Simply by pressing the REC/OTR button, the TV/VCR can be programmed for up to 5 hours of recording with an immediate start.

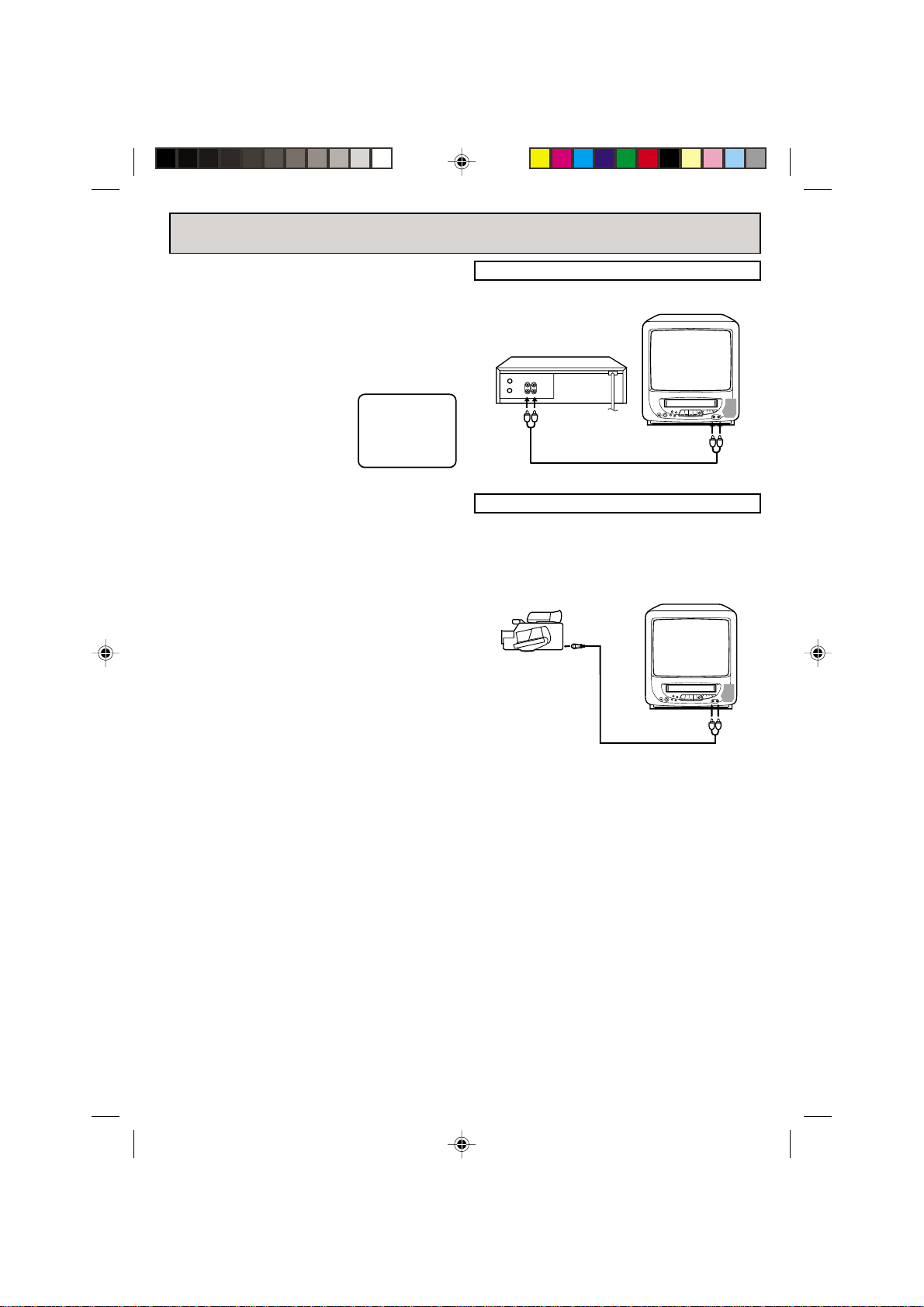

Audio/Video Input/Output Jacks - A VCR or other video device may be hooked up to this TV/VCR for dubbing or playback purposes.

Skip Search - When the SKIP SEARCH button on the remote control is pressed during playback, the TV/VCR will automatically search forward in 30 second increments to a maximum of 3 minutes with each press of the SKIP SEARCH button, and then return to normal playback.

2 Speed Picture Search - 3 or 5 times normal speed in SP mode (7X or 9X in LP and 9X or 15X in SLP).

3 Speed Playback - Plays three tape speeds (SP, LP, SLP). 2 Speed Record - Records two tape speeds (SP, SLP). Real Time Tape Counter With Zero Return - The counter

displays the real tape time and the zero return can be used to return the tape to a pre-selected position (00:00:00) while the counter can be used to locate programs.

Digital Auto Tracking - Automatically adjusts tracking during playback for the best possible picture.

On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-screen programming.

TV Monitor - When the TV MONI. button on the remote control is pressed during playback, the TV channel selected on the TV/VCR can be viewed.

CAUTIONS

IMPORTANT SAFEGUARDS...................................... 2

SAFETY PRECAUTIONS.......................................... 5

PREPARATION

FEATURES ................................................................. 6

LOCATION OF CONTROLS ....................................... 8

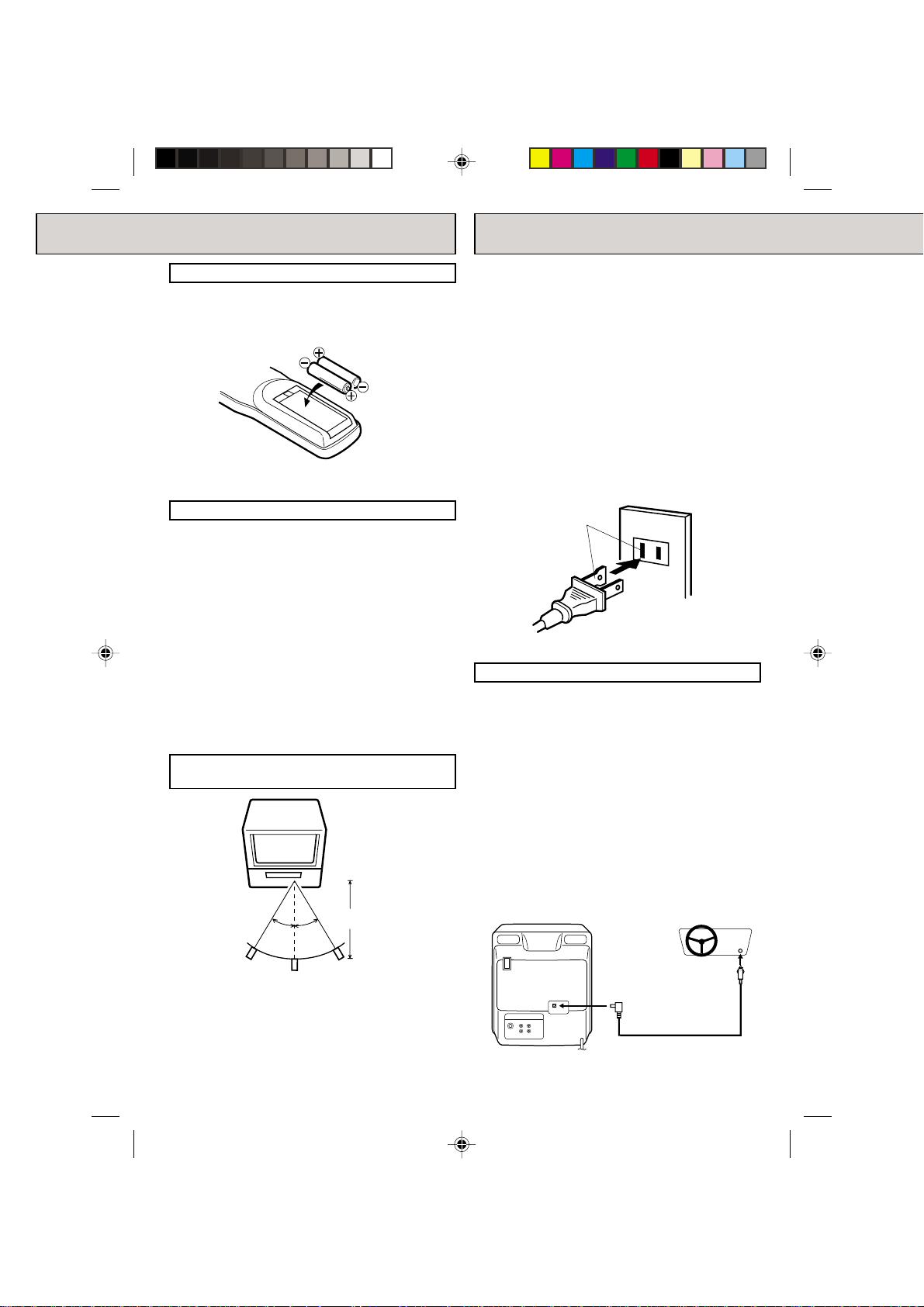

REMOTE CONTROL .................................................. 9

POWER SOURCES.................................................. 10

ANTENNA CONNECTIONS ..................................... 11

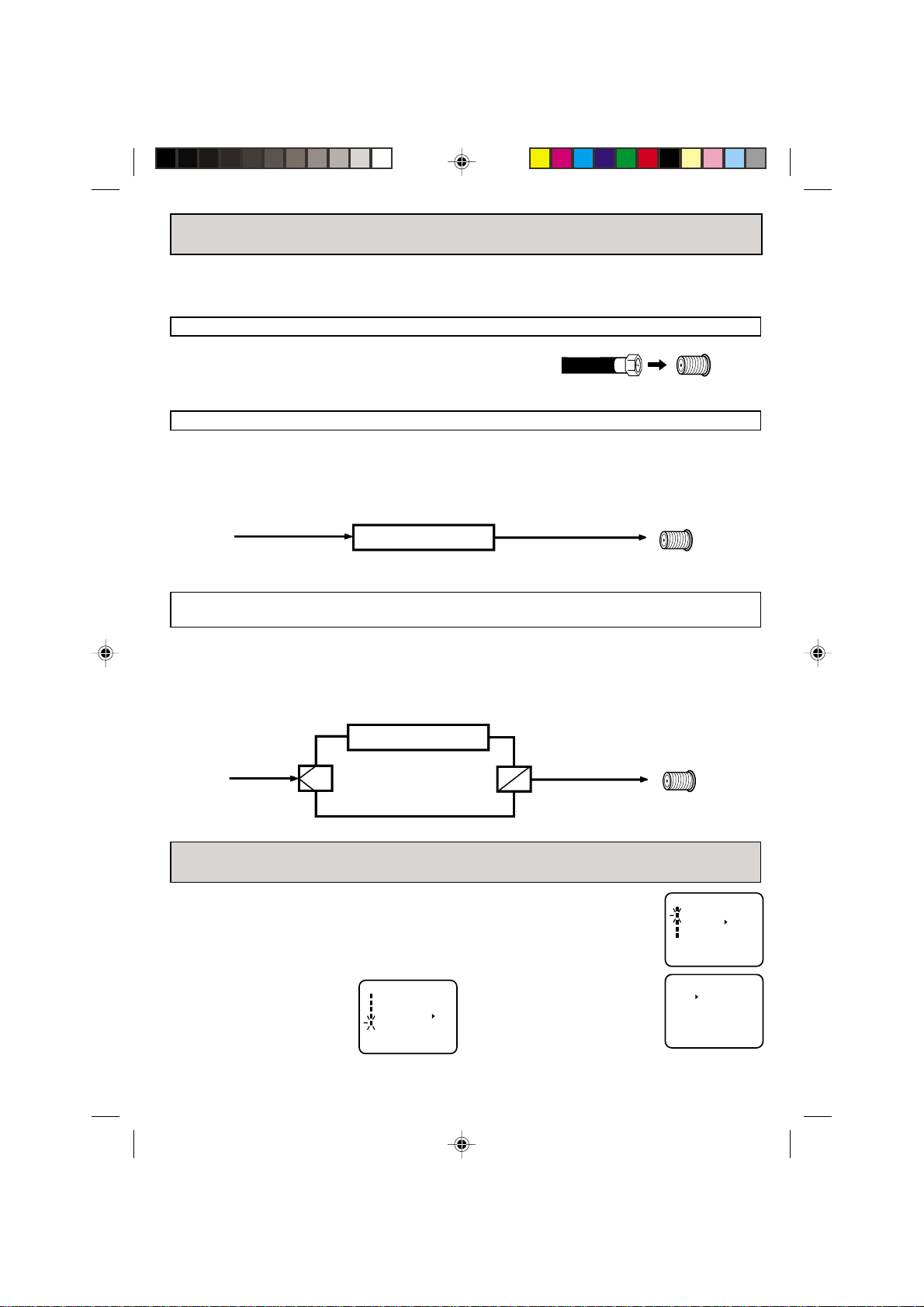

CABLE TV CONNECTIONS ..................................... 12

SETTING THE LANGUAGE ..................................... 12

AUTO CLOCK SETTING.......................................... 13

MANUAL CLOCK SETTING ..................................... 14

TV OPERATION

TV OPERATION ....................................................... 14

TO MEMORIZE CHANNELS .................................... 16

TO SET THE ON TIMER........................................... 17

TO SET THE OFF TIMER ......................................... 18

PICTURE CONTROL ADJUSTMENTS.................... 19

PLAYBACK

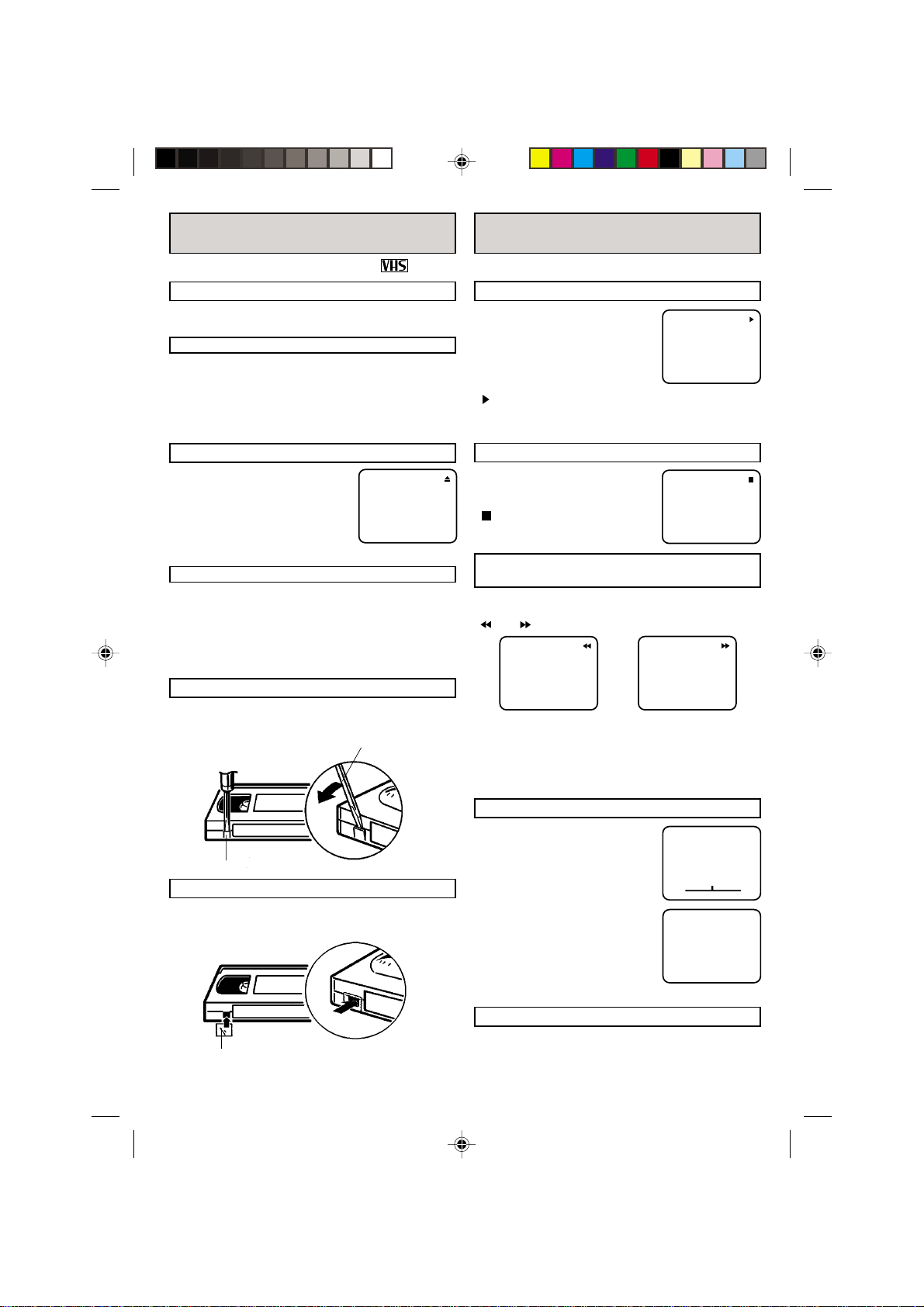

LOADING AND UNLOADING ....................................

PLAYBACK ............................................................... 20

SPECIAL PLAYBACK ............................................... 21

RECORDING

RECORDING A TV PROGRAM ............................... 21

ONE-TOUCH TIMER RECORDING (OTR) .............. 22

TIMER RECORDING................................................ 22

ADDITIONAL INFORMATION

USING THE REAL TIME TAPE COUNTER .............. 23

USING ZERO RETURN............................................ 23

DUPLICATING A VIDEO TAPE ................................. 24

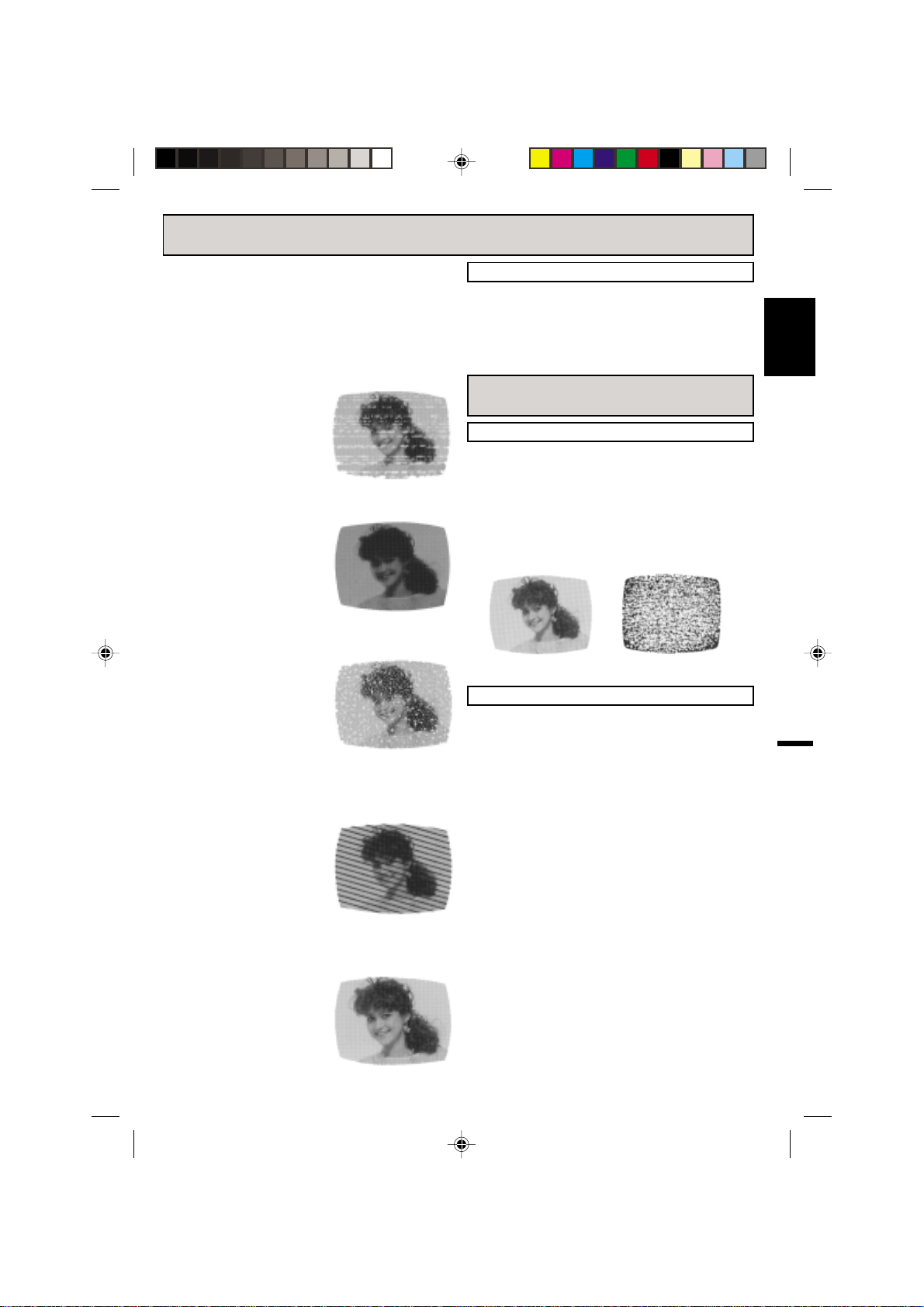

RECEPTION DISTURBANCES................................ 25

VIDEO HEAD CLEANING ........................................ 25

TROUBLESHOOTING GUIDE ................................. 26

SPECIFICATIONS .................................................... 28

ENGLISH

5A3B201A E P02-11 11/4/02, 12:41 PM7

Page 8

LOCATION OF CONTROLS

REARFRONT

Phones Power

Volum e

3104 5

Channel

Stop/ Eject

Rew Play F.Fwd

12 13

Rec/Otr

Rec/OtrPower

T-Re c

Video – In – Audio

DESCRIPTION OF CONTROLS

FRONT:

1. Cassette Loading Slot - T o insert or remov e a

video tape.

2. POWER Button - Press to turn the TV/VCR on or off.

3. STOP/EJECT Button - Press once to stop the tape

in any mode. Press again to eject the tape .

4. PLA Y Button - Press to play a prerecorded tape.

5. REC/OTR Button - Press once to start normal

recording. Additional presses activate One-touch Timer Recording.

6. POWER Indicator - Lights when the power is turned on.

7. REC/OTR Indicator - Lights when the TV/VCR is recording.

8. T-REC Indicator - This lights when the TIMER REC button is pressed.

9. PHONES Jack - Plug monaural headphones or an earphone with an 1/8" miniplug into this jack for private listening.

10. VOLUME ▲ / ▼ Buttons - Press to raise or lower the volume of the sound.

CHANNEL ▲ / ▼ Buttons -

11.

Press to select a

channel for viewing or recording.

VIDEO

UHF/

AUDIO

VHF

LINE1OUT

17 18

12. REW (Rewind) Button - In the Stop mode, this

button rapidly winds the tape backwards. In the Play mode, this button activates re v erse search.

13. F.FWD (Fast Forward) Button - In the Stop mode, this button rapidly winds the tape forward. In the Play mode, this button activates forward search.

14. Remote Sensor - Signals from the Remote Control are received here.

15. Audio/Video In Jacks - Audio and video signal cables from an external source can be connected here.

REAR:

16. VHF/UHF Antenna Jack - Connect the 75 ohm

coaxial cable from the antenna or Cable TV service to this jack.

17. AUDIO/VIDEO OUT Jacks - Used to output audio and video signals to a TV, amplifier or VCR.

18. AUDIO/VIDEO IN (LINE 1) Jacks - Audio and video signal cables from an external source can be connected here.

19. AC Power Cord - Connect to a 120V, 60Hz outlet.

20. DC Input Jack - Connect the 12V DC car cord

(supplied) here for DC operation.

5A3B201A E P02-11 11/4/02, 12:41 PM8

Page 9

POWER SLEEP TV MONI. EJECT

QUICK VIEW

MUTINGINPUT SELECT

REC/OTR

SPEED

PLAY

STOP

F.FWDREW

AUTO

TRACKING

TV/CAP/

TEXT

SKIP

COUNTER

RESET

ZERO

RETURN

PROGRAM

ENTER

TIMER REC

PAUSE/STILL

CHANNEL

CALL

123

456

7809

–

VOLUME

–

– +

SET/TRACKING

CANCEL

REMOTE CONTROL

7809

6 7

8 9

1. POWER Button - Press to turn the TV/VCR on.

Press again to turn the TV/VCR off.

2. Direct Channel Selection Buttons (0-9) - Allows direct access to any channel.

3. CALL Button - Displays the present time/day of the week, channel, counter, speed selection (and VCR mode if VCR is playing) on the TV screen.

4. REC/OTR Button - Press once to start normal recording. Additional presses activate One-touch Timer Recording.

5. REW (Rewind) Button - In the Stop mode, this button rapidly winds the tape backwards. In the Play mode, this button activates reverse search.

6. SPEED Button - Sets the tape speed for recording.

7. MENU Button - Press to display the On-Screen

menu function.

8. PROGRAM Button - Press to confirm the programmed timer recording and ON/OFF timer.

9. SKIP SEARCH Button - Press in the playback mode to search forward in 30 second increments to a maximum of 3 minutes.

10. TV MONI. Button - Used to temporarily view a TV channel selected on the TV/VCR while in the playback mode.

11. CHANNEL Up / Down Buttons - Press the Up button to change to a higher numbered channel set into memory. Press the Down button to change to a lower numbered channel set into memory.

12. QUICK VIEW Button - Switches between the present channel and the last channel selected.

13. MUTING Button - Press to turn off the sound. Press again to turn the sound back on.

14. F.FWD (Fast Forward) Button - In the Stop mode, this button rapidly winds the tape forward. In the Play mode, this button activates forward search.

5A3B201A E P02-11 11/4/02, 12:41 PM9

POWER SLEEP TV MONI. EJECT

123

456

CALL

QUICK VIEW

REC/OTR

PLAY

SPEED

STOP

SET/TRACKING

– +

AUTO

TV/CAP/

TRACKING

TEXT

PROGRAM

COUNTER

SKIP

RESET

CHANNEL

VOLUME

MUTINGINPUT SELECT

PAUSE/STILL

F.FWDREW

ENTER

CANCEL

TIMER REC

ZERO

RETURN

–

DESCRIPTION OF CONTROLS

15. AUTO TRACKING Button - Allows automatic

adjustment of tracking to minimize picture noise during playback.

16. TV/CAP/TEXT Button - Switches between Caption, Text and TV modes for Closed-Captioned programs.

17. SLEEP Button - Sets the TV to turn off automatically after up to 120 minutes.

18. INPUT SELECT Button - Switches the program for viewing between the TV/VCR and exter nal input sources.

19. PLAY Button - Press to play a prerecorded tape.

20. SET/TRACKING + / – Buttons - Used to set or

adjust in the menu mode. During playback, they are used to adjust tracking manually.

21. COUNTER RESET Button - Used to reset the counter to 00:00:00.

22. EJECT Button - Press to eject the tape.

23. VOLUME Up / Down Buttons - Press the Up

button to increase, or the Down button to decrease the volume level.

24. PAUSE/STILL Button - During recording, this button temporarily stops the tape. During playback, it stops the tape and displays a still image on the TV screen.

25. STOP Button - Press once to stop the tape.

26. ENTER Button - Press to enter or select information

for on-screen operations.

27. CANCEL Button - Used to clear the selected program and to move the cursor backward.

28. TIMER REC Button - Used to set the TV/VCR to start recording at a preset time (Timer program must be set).

29. ZERO RETURN Button - Use to stop the tape when the counter reaches 00:00:00.

ENGLISH

25 26

27 28 29

Page 10

REMOTE CONTROL

POWER SOURCES

BATTERY INSTALLATION

Slide the battery compartment cover. Install two “AAA” batteries (not supplied), paying

attention to the polarity diagram in the battery compartment.

Replace the compartment cover.

BATTERY PRECAUTIONS

The precautions below should be followed when using batteries in this device:

1 Use only the size and type of batteries specified. 2 Be sure to follow the correct polarity when installing

the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3 Do not mix different types of batteries together (e.g. Al-

kaline and Carbon-zinc) or old batteries with fresh ones.

4 If the device is not to be used for a long period of time,

remove the batteries to prevent damage or injury from possible battery leakage.

5 Do not try to recharge batteries not intended to be

recharged; they can overheat and rupture (Follow battery manufacturer’s directions).

EFFECTIVE DISTANCE OF THE REMOTE CONTROL

Use the AC polarized line cord provided for operation on AC. Insert the AC cord plug into a standard 120V 60Hz polarized AC outlet.

NOTES: • Never connect the AC line cord plug to

anything other than the specified voltage (120V 60Hz). Use the attached power cord only.

• If the polarized AC cord does not fit into a nonpolarized AC outlet, do not attempt to file or cut the blade. It is the user's responsibility to have an electrician replace the obsolete outlet.

• If you cause a static discharge when touching the unit, and the unit fails to function, simply unplug the unit from the wall outlet, wait 10 minutes and plug it back in. The unit should return to normal operation.

AC Outlet

Wider Hole and Blade

Polarized AC Cord Plug (One blade is wider than the other.)

TO USE DC POWER

By using the DC car cord supplied with the TV/VCR, you can operate this TV/VCR from a cigarette lighter socket in any car that utilizes a negative ground system. The fused 12V DC car cord has been designed to power the set from the external DC power (12 volt negative ground) through the TV/VCR DC input jack.

Connect the smaller plug on the end of the cord to the DC input jack on the rear of the TV/VCR, then insert the other end of the car cord into the cigarette lighter socket of your car. Make sure that the cord makes a firm connection. It may be necessary to try several insertions, rotating the plug for proper electrical connection.

15 PIES (5m)

15 FEET

30˚

NOTES: • When there is an obstacle between the TV/VCR

and the remote control, the remote control may not operate.

• When direct sunlight, an incandescent lamp, ﬂuorescent lamp or any other strong light shines on the Remote sensor of the TV/VCR, the remote operation may be unstable.

5A3B201A E P02-11 11/4/02, 12:41 PM10

TV/VCR

UHF/ VHF

CAR

To Cigarette

Lighter Socket

VIDEO

AUDIO

LINE1OUT

To DC Input Jack

Car Cord (supplied)

Page 11

NOTES: • ALW AYS TURN OFF TV/VCR FIRST BEFORE

SWITCH ON OR OFF THE IGNITION OF CAR ENGINE.

• Make sure that the negative terminal of the battery is grounded. This set is designed for use with negative ground system only.

• Use the supplied car cord only .

• When the TV/VCR is not in use, always

disconnect it from the car cigarette lighter socket to avoid a battery drain.

• If the TV/VCR is to be directly connected to a 12V DC power source, for example, recreational vehicle (RV) applications, make sure the power cord is connected after the ignition switch to avoid battery drain.

• Do not operate the TV/VCR if the car battery is weak. Peak current from the car alternator could blow the DC fuse.

• Check the battery’s charge level regularly when the TV/VCR is used in a vehicle.

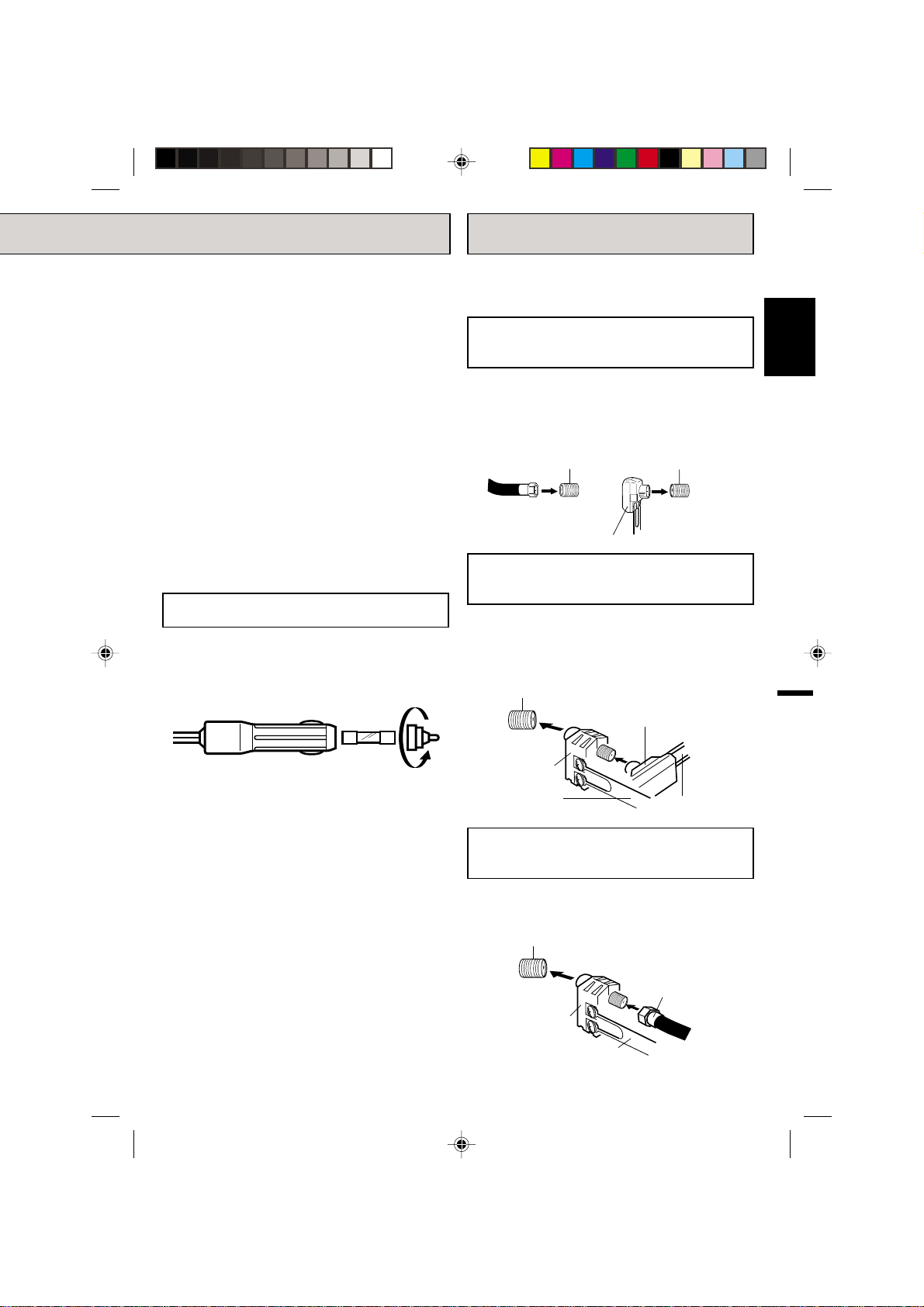

REPLACING THE FUSE IN THE CAR CORD PLUG

If the fuse in the car cord plug blows, replace it with a new 8 A fuse (Fast Blow Type) as shown below. Unscrew the tip of the plug to remove.

PLUG

8A FUSE

TIP

ANTENNA CONNECTIONS

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV service (CATV), see page 12 for Cable TV connections.

Combination VHF/UHF Antenna (

Single 75 ohm cable or 300 ohm

twin-lead wire

Connect the 75 ohm cable from the combination VHF/ UHF antenna to the Antenna Jack. If your combination VHF/UHF antenna has a 300 ohm twin-lead wire, the use of the 300-75 ohm Matching Transformer may be necessary. Connect the VHF 75 ohm cable and UHF 300 ohm

75 ohm Coaxial Cable

Combination VHF/UHF Antenna (

Separate VHF and UHF 300 ohm

twin-lead wires

Connect the UHF 300 ohm twin-lead wire to the Combiner (not supplied). Connect the VHF 300 ohm twin-lead wire to the 300-75 ohm Matching Transformer. Attach the Transformer to the Combiner, then attach the Combiner to the Antenna Jack.

Antenna Jack

ANT

Combiner

UHF 300 ohm

)

Antenna Jack Antenna Jack

300-75 ohm Matching Transformer

)

300-75 ohm Matching Transformer

VHF 300 ohm

ENGLISH

5A3B201A E P02-11 11/4/02, 12:41 PM11

Separate VHF/UHF Antennas (

75 ohm VHF cable and 300 ohm UHF

twin-lead wires

Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wire to the Combiner (not supplied). Attach the Combiner to the Antenna Jack.

Antenna Jack

ANT

Combiner

)

VHF 75 ohm

UHF 300 ohm

Page 12

CABLE TV CONNECTIONS

This TV/VCR has an extended tuning range and can tune most cable channels without using a Cable TV converter box. Some cable companies offer "premium pay channels" in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

For basic cable service not requiring a Converter/Descrambler box, connect the CATV 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV/VCR.

75 ohm Coaxial Cable

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE

If you subscribe to a cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV/VCR. Follow the connections shown below. Set the TV/VCR to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/ Descrambler box to select channels.

Incoming 75 ohm CATV cable

Converter/Descrambler

75 ohm Cable to TV/VCR

FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH SCRAMBLED PREMIUM CHANNELS

If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a signal splitter and an A/B Switch box (available from the Cable company or an electronics supply store). Follow the connections shown below. With the switch in the "B" position, you can directly tune any nonscrambled channels on your TV/VCR. With the switch in the "A" position, tune your TV/VCR to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/ Descrambler box to tune scrambled channels.

Antenna Jack

ANT

Antenna Jack

ANT

Incoming

Converter/Descrambler

75 ohm CATV cable

Splitter

SETTING THE LANGUA GE

This TV/VCR can display the on screen language in English, Spanish or French. On-screen language selection (step 3) will automatically appear on the screen when you press the MENU button initially. Select the language you prefer first, then proceed with the other menu options.

1 Press the MENU button.

Press the SET/TRACKING + or –

button to select the SYSTEM SET-UP option, then press the ENTER button.

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

5A3B201A E P12-19 11/4/02, 12:42 PM12

A/B Switch

〉

75 ohm cable

to TV/VCR

2 Press the SET/TRACKING + or

– button to select the LANGUAGE option, then press the ENTER button.

3 Press the SET/TRACKING + or

– button to select the desired language: English (ENGLISH), Spanish (ESPAÑOL) or French (FRANCAIS), then press the ENTER button.

4 Press the MENU button until the

MENU screen is cleared.

Antenna Jack

ANT

SYSTEM SET-UP CLOCK SET LANGUAGE/IDIOMA/LANGUE AUTO CLOCK ON OFF STANDARD TIME DAYLIGHT SAVING TIME

〈

+/–/ENTER/MENU

LANGUAGE/IDIOMA/LANGUE

ENGLISH ESPAÑOL FRANCAIS

〈

+/–/ENTER/MENU

〉

Page 13

AUTO CLOCK SETTING

The Auto Clock function will automatically set the built-in clock (Month, Day, Year and Time) when the TV/VCR is connected to an Antenna or Cable system and it is turned off. As the TV/VCR searches for a receivable station in your area, it will also receive a broadcast signal for Auto Clock which will automatically set the clock and date.The Auto Clock needs several minutes to set itself.

AUTO CLOCK SETTING

1 Connect the Antenna or Cable system.

• If you use a cable box, turn it on.

2 Plug the AC Power cord to the AC outlet. 3 Make sure the TV/VCR is turned off.

• If you press the POWER button, the Auto Clock set is

not effective.

4 Wait at least three minutes and press the POWER

button.

5 Press the CALL button to check the clock on the screen. 6 If the clock is not set, check the Antenna condition. The

Auto Clock may not function properly if the reception condition is not good.

AUTO CLOCK ADJUSTMENT

The Auto Clock Adjustment will be performed at 12:00 PM everyday if you turn off the TV/VCR.

• If you use a cable box and you want Auto Clock adjust-

ment to be performed, the cable box must be left on.

• The Auto Clock Adjustment is not effective when there

is a difference of more than 5 minutes between the built-in clock time and the actual time.

TO SET AUTO CLOCK TO OFF

When shipped from factory the AUTO CLOCK option is set to ON. But if you do not want Auto Clock set (Adjustment):

1 Turn on the TV/VCR. 2 Press the MENU button. 3 Press the SET/TRACKING + or – button to select the

SYSTEM SET-UP option, then press the ENTER button.

4 Press the SET/TRACKING + or – button to select the

AUTO CLOCK option.

5 Press the ENTER button to select OFF. 6 Press the MENU button repeatedly to return to the

normal screen.

• When the AUTO CLOCK is set to OFF, the Auto Clock

adjustment does not function.

• Set the clock manually (see page 14).

TO SET STANDARD TIME

In the rare event that you live within broadcast range of two stations in two different time zones, the TV/VCR may recognize the wrong station for the Auto Clock set. To correct the situation:

1 Press the MENU button. 2 Press the SET/TRACKING + or – button to select the

SYSTEM SET-UP option, then press the ENTER button.

3 Press the SET/TRACKING + or – button to select the

STANDARD TIME option, then Press the ENTER button.

4 Press the SET/TRACKING + or – button to select your

time zone, then press the ENTER button.

ATLANTIC : GMT – 4 hours

(GMT: Greenwich Mean Time)

EASTERN : GMT – 5 hours CENTRAL : GMT – 6 hours MOUNTAIN : GMT – 7 hours PACIFIC : GMT – 8 hours ALASKA : GMT – 9 hours HAWAII : GMT – 10 hours AUTO : AUTO SET

5 Press the MENU button twice to return to the normal

screen.

NOTES: • To be able to select the standard time, the

clock must first be set by “AUTO CLOCK” once.

• If you live in Newfoundland and the Auto Clock does not function properly, set the AUTO CLOCK menu option to OFF and set the clock manually.

DAYLIGHT SAVING TIME SETTING

You can set the Daylight saving time automatically or manually.

1 Press the MENU button. Press the

SET/TRACKING + or – button to select the SYSTEM SET-UP option, then press the ENTER button.

2 Press the SET/TRACKING + or –

button to select the DAYLIGHT SAVING TIME option, then press the ENTER button.

3 Press the SET/TRACKING + or –

button to select one of the options, then press the ENTER button. Press the MENU button until the MENU screen is cleared. ON: for manual setting

(forward one hour)

OFF: for manual setting

(back one hour)

AUTO: for automatic setting

(read XDS in the signal)

When you want to set the Daylight Saving Time manually, on the first Sunday in April you set to “ON”, and on the last Sunday in October you set to “OFF”.

NOTES: • When shipped from factory, the DAYLIGHT

SAVING TIME option is set to AUTO position.

• When the clock is not set, Daylight Saving

Time setting is not available.

• When there is no Daylight Sa ving Time in your

area, always select OFF position in step 3.

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

〈

+/–/ENTER/MENU

DAYLIGHT SAVING TIME

〈

+/–/ENTER/MENU

〉

SYSTEM SET-UP CLOCK SET LANGUAGE/IDIOMA/LANGUE AUTO CLOCK ON OFF STANDARD TIME DAYLIGHT SAVING TIME

〉

ON OFF AUTO

〉

ENGLISH

5A3B201A E P12-19 11/4/02, 12:42 PM13

Page 14

MANUAL CLOCK SETTING

TV OPERATION

You must set the date and time manually for Timer Recordings, ON/OFF Timer and Daylight Saving Time if the Auto Clock process did not set them correctly.

EXAMPLE: Setting the clock to “8:30 AM”, 26th (SAT)

October, 2002.

1 Press the MENU button.

Press the SET button to select the SYSTEM SET-UP option, then press the ENTER button.

/TRACKING

+ or –

2 Press the SET/TRACKING + or –

button to select the CLOCK SET option, then press the ENTER button.

3 Press the SET/TRACKING + or –

button to set the month, then press the ENTER button.

4 Set the day, year and time as in

step 3.

After setting the clock, time and date, the time starts functioning automatically.

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

〈

+/–/ENTER/MENU

CLOCK SET

〈

+/—/ENTER/CANCEL/MENU

CLOCK SET

〈

+/—/ENTER/CANCEL/MENU

〉

SYSTEM SET-UP CLOCK SET LANGUAGE/IDIOMA/LANGUE AUTO CLOCK ON OFF STANDARD TIME DAYLIGHT SAVING TIME

〉

MONTH

DAY

1 (SUN)

YEAR

2000

TIME

12 : 00 AM

MONTH

DAY

26 (SAT)

YEAR

2002

TIME

8 : 30 AM

8 : 30 AM SAT

NOTES: •After a power failure or disconnection of the

power plug, the time display will be lost. In this case, set the present time again if the Auto Clock did not set correctly.

•To move cursor backward, press the CANCEL

button.

1 To turn on the TV/VCR, press the POWER button. 2 Adjust the volume level by

pressing the VOLUME Up or Down button. The volume level will be indicated on the screen by green bars. As the volume level

VOLUME 32

increases, so do the number of bars. If the volume decreases, the number of green bars also decreases.

3 Set the TV/CATV menu option to the appropriate

position (See page 16).

TV - VHF/UHF Channels CATV - CABLE TV Channels

VHF/UHF/CATV CHANNELS

VHF 2-13

UHF

14-69

〉

CATV

VHF 2-13

STD/HRC/IRC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5) (A-1)

100-125 (100)(125)

01 (5A)

4 Press the Direct Channel selection buttons to select

the channel.

〉

• TV mode direct channel selection

When the TV/CATV menu option is in the TV position, all channels can be instantly selected by using two buttons (for example, to select channel 2, press "0", then "2". If you press only "2", channel selection will be delayed for a few seconds). For channels 10 and above, press the 2 digits in order.

• CATV mode direct channel selection

When the TV/CATV menu option is in the CATV position, channels can be selected as follows:

• TO SELECT CATV CHANNELS:

1-9 Press "0" twice, then 1-9 as needed. 10-12 Press "0", then the remaining 2 digits. 13-99 Press the 2 digits in order. 100-125 Press the 3 digits in order.

NOTE FOR CHANNELS 1-12:

If only 1 or 2 buttons are pressed, the corresponding channel will be selected in 2 seconds.

Example, to select channel 2, press "002". Example, to select channel 12, press "012". Example, to select channel 36, press "36". Example, to select channel 120, press "120".

CH 012

5A3B201A E P12-19 11/4/02, 12:42 PM14

NOTES: •If a channel with no broadcast is selected,

the sound will automatically be muted.

•If a station being viewed stops broadcasting,

the TV will automatically shut itself off after 15 minutes.

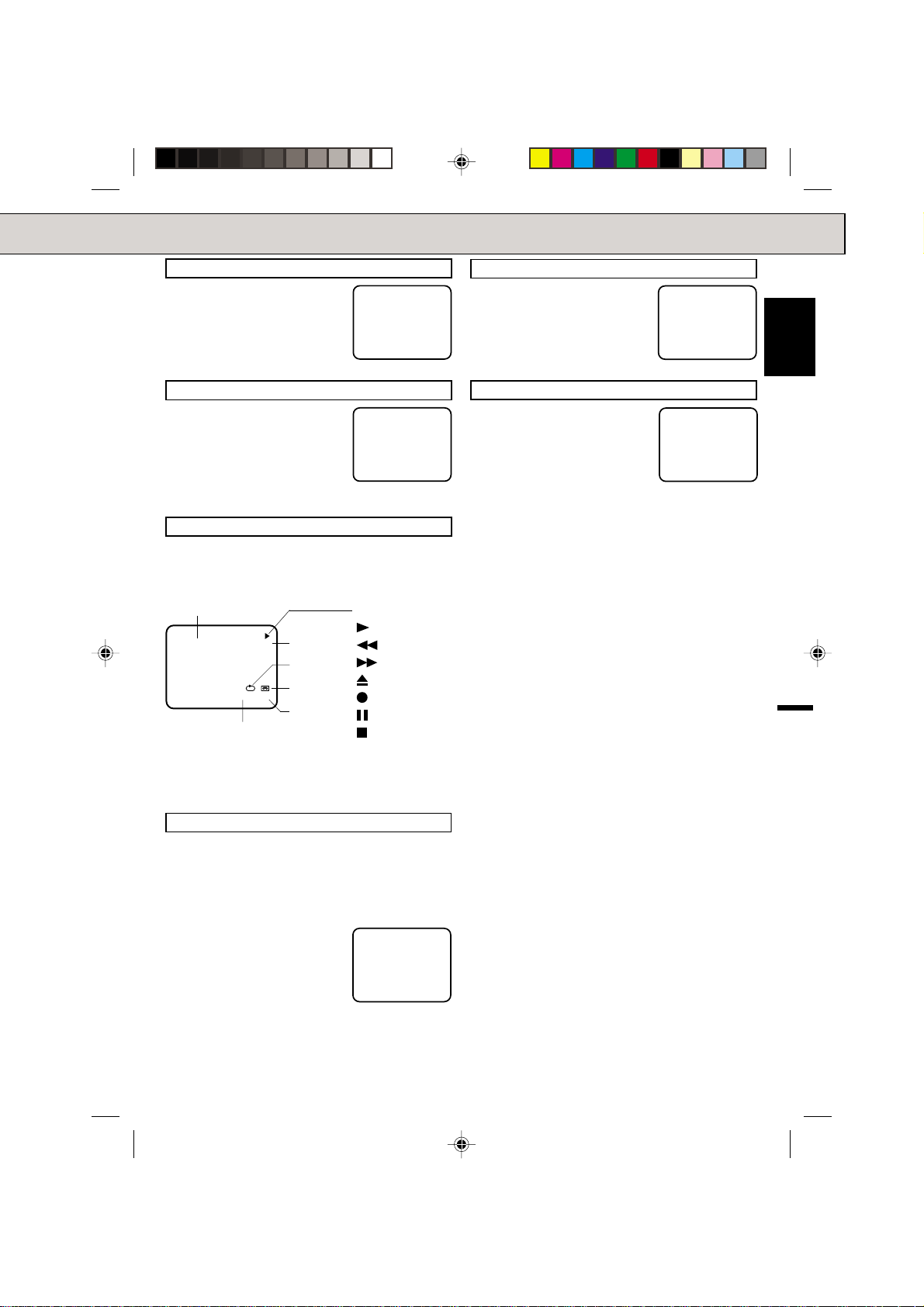

Page 15

TV OPERATION

MUTING

Press MUTING button to switch off the sound. The TV/VCR’s sound will be silenced and “MUTING” will briefly appear on the screen. The sound can be switched back on by pressing this button again or one of the VOLUME Up or Down buttons.

MUTING

CHANNEL UP / DOWN

Press and release the CHANNEL Up or Down button. The channel automatically stops at the next channel set into memory. For proper operation, before selecting channels, they should be set into the memory. See pages 16 and 17 “To memorize channels”.

CH 012

CALL

Press the CALL button. The clock, date, channel number, real time tape counter, tape speed and VCR operation will be indicated. Press CALL button again to remove the call display.

Current time

8:47AM THU CH 012

00:04:38 SP

Real Time Counter

NOTE: To listen through the headphone, insert a

headphone (not supplied) with a 1/8" mini plug into the PHONES jack on the front. The sound from the TV speaker is muted.

Channel No. Auto Repeat

Tape In

T ape Speed

VCR operation

: Play : Rewind : Fast-forward : Eject : Recording : Pause : Stop

SLEEP

To set the TV/VCR to turn off after a preset amount of time, press the SLEEP button on the remote control. The clock will count down 10 minutes for each press of the SLEEP button (120, 110, ...10, 0). After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press the SLEEP button and the remaining time will be momentarily displayed. To cancel the sleep timer, press the SLEEP button repeatedly until the display turns to 0.

SLEEP

120

QUICK VIEW

This button allows you to go back to the last channel selected by pressing the QUICK VIEW button. Press this button again to return to the last channel you were watching.

CH 012

TV/CAPTION/TEXT

Press TV/CAP/TEXT button to switch between normal TV and the two closed caption modes (captions and full screen text). Closed captioning will display text on the screen for hearing impaired viewers.

NOTES:

• If using an indoor antenna or if TV reception

is very poor, the Closed Caption Decoder text may not appear. In this case, adjust the antenna for better reception or use an outdoor antenna.

•When activating the Closed Captioned

Decoder, there will be a short delay before the Closed Captioned text appears on the screen.

•Closed Captioned TV programs can be

recorded and played back on a VCR with the Closed Captioned text intact. The Closed Captioning text will disappear during Cue, Rewind and Pause modes or if the VCR tracking is not adjusted properly.

•Closed Captioned text is only displayed in

locations where it is available.

•If the Call display is on, the Closed Captioning

text will not appear.

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language.

CLOSED CAPTIONING WITH A VCR

Closed Captioned programs can be recorded and played back on a VCR with the Closed Captioned text intact. The Closed Captioned text will disappear during Cue (Fast Forward Search), Review (Rewind Search) and Pause Modes or if the VCR tracking is not adjusted properly.

TO VIEW CLOSED CAPTIONS

Press the TV/CAP/TEXT button on the remote control to switch between normal TV and the two Closed Caption Modes (Captions and Full Screen Text).

CAPTION CH 1

ENGLISH

5A3B201A E P12-19 11/4/02, 12:42 PM15

Page 16

TV OPERATION

Captions: This Closed Caption Mode will display text on

the screen in English or another language (depending on the setting of the Closed Captions CH. 1 or 2). Generally, Closed Captions in English are transmitted on Captions Channel 1 and Closed Captions in other languages are transmitted on Captions Channel 2.

Text: The Text Closed Caption Mode will usually fill the screen with a programming schedule or other information. After selecting a Closed Caption Mode, it will stay in effect until it is changed, even if the channel is changed. If the Captions signal is lost due to a commercial or a break in the signal, the Captions will reappear when the signal is received again. If the channels are changed, the Captions will be delayed approximately 10 seconds. The Captions will appear in places on the screen where they will least interfere with the picture, usually on the bottom of the screen. News programs will usually show three-line Closed Captions which scroll onto the screen. Most other shows provide two or three lined Captions placed near the character who is speaking so the viewer can follow the dialogue. Words in italics or underlined describe titles, words in foreign languages or words requiring emphasis. Words that are sung usually appear enclosed by musical notes. For television programs broadcasting with Closed Captions, look in your TV guide for the Closed Captions symbol (CC).

TO MEMORIZE CHANNELS

This TV/VCR is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV/VCR’s memory. In addition to normal VHF and UHF channels, this TV/ VCR can receive up to 113 Cable TV channels. To use this TV/VCR with an antenna, set the TV/CATV menu option to the TV mode. When shipped from the factory, this menu option is in the CATV mode.

TV/CATV SELECTION

1 Press the MENU button. 2 Press the SET/TRACKING + or

– button to select the CH SET-UP mode, then press the ENTER button.

VHF/UHF/CATV CHANNELS

VHF 2-13

UHF

14-69

STD/HRC/IRC

14-36 (A) (W)

37-59 (AA) (WW)

60-85 (AAA) (ZZZ)

86-94 (86) (94)

95-99 (A-5) (A-1)

100-125 (100)(125)

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

CATV

VHF 2-13

01 (5A)

〉

• When selecting Closed Captions, the captioning will be delayed approximately 10 seconds.

• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.

• When Captions are being displayed, on-screen displays, such as volume and mute may not be seen or may interfere with Closed Captions.

• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.

• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.

• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

3 Press the SET/TRACKING + or

– button to select the TV/CATV mode.

4 Press the ENTER button to

select the TV or CATV mode.

CH SET-UP TV CATV AUTO CH MEMORY ADD/DELETE

〈

+/–/ENTER/MENU

〉

The arrow indicates the selected mode.

TV - VHF/UHF channels CATV - CABLE TV channels

5 Press the MENU button until the MENU screen is cleared.

AUTOMATIC MEMORY TUNING

1 Press the MENU button. 2 Press the SET/TRACKING + or

– button to select the CH SET-UP mode, then press the ENTER button.

3 Press the SET/TRACKING + or

– button to select the AUTO CH MEMORY mode, then press the ENTER button. The TV/VCR will begin memorizing all the channels available in your area. Channel numbers will remain red until auto memorizing is complete.

4 Press the MENU button until the MENU screen is

cleared.

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

〈

+/–/ENTER/MENU

〉

CH SET-UP TV CATV AUTO CH MEMORY ADD/DELETE

〉

5A3B201A E P12-19 11/4/02, 12:42 PM16

Page 17

TO MEMORIZE CHANNELS

TO SET THE ON TIMER

TO ADD/DELETE CHANNELS

1 Press the MENU button. 2 Press the SET/TRACKING + or

– button to select the CH SET-UP mode, then press the ENTER button.

3 Press the SET/TRACKING + or

– button to select the ADD/ DELETE mode, then press the ENTER button.

4 Select the desired channel to be

memorized or deleted using SET/ TRACKING + or – button, or using the Direct Channel.

Selection buttons (10 keys, 0-9),

or CHANNEL Up or Down button.

5 Press the ENTER button to

select the ADD or DELETE.

If you select an unmemorized channel, the Channel

indication will be red. If you select the ADD mode, the Channel indication changes from red to green and the channel will be memorized. If you select a memorized channel, the Channel indication will be green. If you select the DELETE mode, the Channel indication changes from green to red and the channel will be deleted fro m t h e memory.

6 Press the MENU button until the MENU screen is

cleared.

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

CH SET-UP TV CATV AUTO CH MEMORY ADD/DELETE

〈

+/–/ENTER/MENU

〈

0–9/+/–/ENTER/MENU

This feature allows you to have the TV/VCR automatically turn on at a predetermined time. If you program the ON TIMER once, the TV/VCR will turn on on the programmed day (daily/weekly) at the same time to the same channel. EXAMPLE: Turning on the TV to channel 12 at 7:00 AM,

〉

CH 003ADD

MONDAY-FRIDAY.

1 Press the MENU button.

Press the SET/TRACKING + or – button to select the TV SET-UP option, then press the ENTER button.

2 Press the SET/TRACKING + or

– button to select the ON/OFF TIMER option, then press the

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

TV SET-UP ON/OFF TIMER PICTURE

〉

ENGLISH

ENTER button.

〉

3 Press the SET/TRACKING + or

– button to select the ON TIMER option, then press the ENTER button.

4 Press the SET/TRACKING + or

– button to set the desired hour, then press the ENTER button.

5 Set the desired minute, channel

and daily or weekly timer date as in step 4.

6 Press the SET/TRACKING + or –

button to select the SET mode, then press the ENTER button. Press the MENU button repeatedly to return to normal screen.

〈

+/—/ENTER/MENU

ON/OFF TIMER ON TIMER

OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

〉

12:00AM CH001 MON-SAT CANCEL

12:00AM CANCEL

7:00AM CH001

MON-SAT CANCEL

12:00AM CANCEL

7:00AM CH012

MON-FRI CANCEL

12:00AM CANCEL

7:00AM CH012

MON-FRI SET

12:00AM CANCEL

〉

5A3B201A E P12-19 11/4/02, 12:43 PM17

NOTES: • The TV/VCR will automatically turn off approxi-

mately 1 hour later after the ON TIMER turns on if no OFF TIMER has been set. To continue watching the TV, press any button to cancel the one hour automatic shut off.

• To cancel ON timer, follow above steps 1-5, then press the SET/TRACKING + or – button to select the CANCEL. Press the MENU button repeatedly to return to the normal screen.

• After setting the ON TIMER, "

" of the OFF TIMER will flash on and off. If you wish to set the OFF TIMER, press the ENTER button then follow the steps 4-6 on " TO SET THE OFF TIMER" .

• If you want to correct the digits while setting, press the CANCEL button until the item you want to correct, then press the SET/TRACKING + or – button to correct the desired setting.

Page 18

TO SET THE OFF TIMER

ON/OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

〉

ON TIMER

7:00AM CH012

MON-FRI SET

OFF TIMER

11:00PM CANCEL

This feature allows you to have the TV/VCR turn “OFF” automatically at a predetermined time. If you program the OFF TIMER once, the TV/VCR will automatically turn off at the same time everyday.

EXAMPLE: Turning off the TV at 11:30 PM.

1 Press the MENU button.

Press the SET/TRACKING + or – button to select the TV SET-UP option, then press the ENTER button.

2 Press the SET/TRACKING + or

– button to select the ON/OFF TIMER option, then press the

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

TV SET-UP ON/OFF TIMER PICTURE

〉

ENTER button.

3 Press the SET/TRACKING + or –

button to select the OFF TIMER option, then press the ENTER button.

〈

+/—/ENTER/MENU

ON/OFF TIMER ON TIMER

OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

〉

7:00AM CH012

MON-FRI SET

12:00AM CANCEL

4 Press the SET/TRACKING + or –

button to set the desired hour, then press the ENTER button.

5 Press the SET/TRACKING + or –

button to set the desired minute, then press the ENTER button.

6 Press the SET/TRACKING + or –

button to select the SET mode, then press the MENU button repeatedly to return to the normal screen.

NOTES: • To cancel OFF timer, follow above steps 1-5, then

〉

• To confirm the ON/OFF TIMER:

press the SET/TRACKING + or – button to select the CANCEL. Press the MENU button to return to the normal screen.

Press the PROGRAM button twice to indicate the programs on the screen.

ON/OFF TIMER ON TIMER

OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

OFF TIMER

〈

+/–/ENTER/CANCEL/MENU

7:00AM CH012

MON-FRI SET

11:30PM CANCEL

7:00AM CH012

MON-FRI SET

11:30PM SET

〉

5A3B201A E P12-19 11/4/02, 12:43 PM18

Page 19

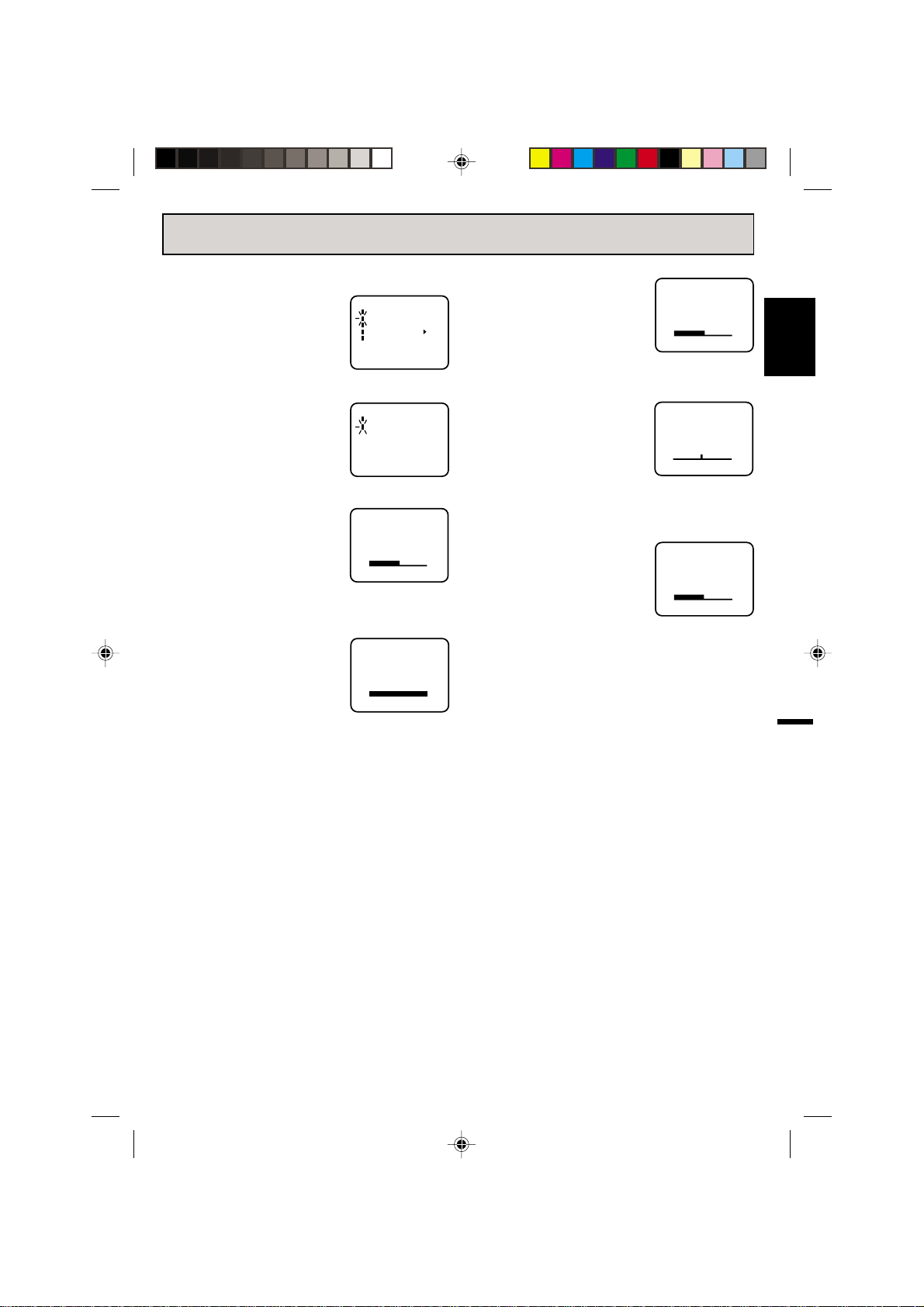

PICTURE CONTROL ADJUSTMENTS

Picture controls are factory preset but you can adjust them individually as follows:

1 To display the picture adjustment

screen, press the MENU button. Press the SET/TRACKING + or – button to select the TV SET-UP option, then press the ENTER button.

2 Press the SET/TRACKING + or –

button to select the PICTURE option, then press the ENTER

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

TV SET-UP ON/OFF TIMER PICTURE

〉

button.

〈

+/—/ENTER/MENU

〉

BRIGHTNESS

Press the ENTER button until “BRIGHTNESS” appears on the screen, then press the SET/ TRACKING + or – button to adjust the brightness of the picture. When the SET/TRACKING + button is

BRIGHTNESS 0

〈

+/–/ENTER/CANCEL/MENU

pressed, the darker portions of the picture become lighter.

CONTRAST

Press the ENTER button until “CONTRAST” appears on the screen, then press the SET/TRACKING + or – button to adjust the contrast of the picture. Pictures look sharpest in the daytime (bright light) by increasing the contrast. At night (dim light), the sharpest picture is obtained by reducing the contrast.

NOTE: The CONTRAST default setting is set to maximum

at the factory.

CONTRAST 32

〈

+/–/ENTER/CANCEL/MENU

COLOR

Press the ENTER button until “COLOR” appears on the screen, then press the SET/TRACKING + or – button to adjust the color intensity of the picture. The control should be set when colors appear normal in

COLOR 0

〈

+/–/ENTER/CANCEL/MENU

intensity and brilliance.

TINT

Press the ENTER button until “TINT” appears on the screen, then press the SET/TRACKING + or – button to adjust the tint of the picture. This determines how accurately the colors are reproduced by the TV.

TINT 0

〈

+/–/ENTER/CANCEL/MENU

Adjusting the tint for natural facial tone is the best method of obtaining accurate color reproduction of the entire picture.

SHARPNESS

Press the ENTER button until “SHARPNESS” appears on the

〉

screen, then press the SET/ TRACKING + or – button to adjust the sharpness of the picture.

SHARPNESS 0

〈

+/–/ENTER/CANCEL/MENU

CANCEL

Pressing the CANCEL button while making picture adjustments will return all adjustments to the factory preset levels.

〉

NOTE: The On-screen display will disappear 6 seconds

after finishing an adjustment or by pressing the MENU button three times. The settings can only be adjusted when they are displayed on the TV screen.

〉

ENGLISH

〉

5A3B201A E P12-19 11/4/02, 12:43 PM19

Page 20

LO ADING AND UNLOADING

PLAYBACK

Use only video cassette tapes marked

Push the center of the tape until it is automatically retracted into the TV/VCR.

AUTOMATIC POWER ON AND PLAY

When loading a cassette tape without the erase prevention tab intact, the TV/VCR will turn on automatically and playback will start immediately.

Insert the cassette with its labeled side facing you. An inverted video cassette cannot be inserted.

UNLOADING

To unload a video cassette, press the EJECT button on the remote control, or press the STOP/EJECT button on the TV/VCR twice. The first press will stop the tape in any mode. The second press will eject the tape.

AUTOMATIC EJECT

If the TV/VCR automatically rewinds the tape to the beginning (AUTO REWIND FEATURE), the tape will be ejected automatically (See NOTE on page 21).

NOTES: • Always eject the tape when not in use.

• The cassette tape can be ejected even if the

POWER is “OFF”.

TO PREVENT ACCIDENTAL ERASURE

After recording, break off the erase prevention tab if you do not wish to record over the tape.

Screwdriver

To play a prerecorded tape.

TO START PLAYBACK

Load a prerecorded tape (When loading a cassette tape without the erase prevention tab, playback will start automatically).

Press the PLAY button to begin playback. “

” will appear on the screen.

NOTE: This TV/VCR selects the playback tape speed

SP, LP or SLP automatically.

TO STOP PLAYBACK

Press the STOP button once. The tape will stop, but remain fully loaded and ready to play. “

” will appear on the screen.

TO REWIND OR FORWARD THE TAPE RAPIDLY

Press the REW (Rewind) or F.FWD (Fast Forward) button in the Stop mode.

” or “ ” will appear on the screen.

“

FORWARD/REVERSE PICTURE SEARCH

If you want to see the tape during REW or FWD mode, press and hold the REW or F.FWD button. The backward or forward visual search picture will be seen on the screen. Release to return to the REW or FWD mode.

Erase prevention tab

TO RECORD AGAIN

Cover the hole with adhesive tape. Be careful the tape does not extend past the edges of the video cassette housing.

Adhesive tape

5A3B201A E P20-Back 11/4/02, 12:43 PM20

DIGIT AL TRACKING CONTROLS

When a tape is played, the Digital Auto Tracking system automatically adjusts the tracking to obtain the best possible picture. If noise bars appear during playback, adjust the tracking manually as follows:

• Press the SET/TRACKING + or – button to obtain the best possible picture. “MANUAL TR. ” will appear for 4 seconds on the screen. To resume automatic tracking, press the AUTO TRACKING b utton. “AUTO TR.” will appear for 4 seconds on the screen.

MANUAL TR.

–

AUTO TR

TO MONITOR A TV PROGRAM

Press the TV MONI. button while in the playbac k mode.The video tape will continue to play while the picture switches to the TV channel selected on the TV/VCR. Press the button to return to the playback picture.

Page 21

SPECIAL PLAYBACK

RECORDING A TV PROGRAM

TO VISUALLY SEARCH FOR DESIRED POINTS

When either the F.FWD or REW button is pressed in the PLAYBACK mode, the speed search picture will appear. When pressed twice, the search picture will increase speed. Speed search time depends upon the speed used (SP, LP or SLP) during recording. See chart below. To visually search backward or forward, press the REW or F.FWD button once or twice in the PLAYBACK mode. Press the PLAY button to resume normal viewing speed.

SPEED SEARCH TIMES

TAPE SPEED

SP (Standard Play) LP (Long Play) SLP (Super Long Play)

PICTURE SEARCH SPEED

PRESS ONCE

3 X 7 X 9 X

PRESS TWICE

5 X 9 X

15 X

SKIP SEARCH

Press the SKIP SEARCH button in the PLAY mode. The VCR will search forward through approximately 30 seconds of the tape (e.g. unwanted commercial time) for each press of the SKIP SEARCH button (maximum six presses) and then resume normal playback.

TO WATCH STILL PICTURE

Press the PAUSE/STILL button in the PLAYBACK mode. Press the PLAY button or PAUSE/STILL button to resume normal playback.

NOTES: • The audio output is muted during Speed

Search and Still.

• A few noise bars will appear on the TV screen

during Speed Search and Still.

• T o prev ent damage to the tape, Still and Speed

Search mode is automatically changed to the Playback mode after 5 minutes.

TO WATCH A TAPE REPEATEDLY

1 Press the MENU button. 2 Press the SET/TRACKING + or

– button to select the AUTO REPEAT option.

3 Press the ENTER button to select

the ON position.

4 Press the MENU button. If you press the PLAY button,

the tape will play over and over until the repeat mode is canceled.

NOTE: To cancel repeat mode, follow above steps 1 and

2, then press the ENTER button to select the OFF position. Press the MENU button to return to the TV. The repeat function is canceled automatically when the unit is switched off or the tape is ejected.

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

〉

RECORDING AND VIEWING THE SAME TV PROGRAM

1 Load a cassette tape with the erase prevention tab

intact.

2 Press the SPEED button to

select the desired tape speed SP or SLP. The counter and SP or SLP will appear on the screen about 4 seconds.

00:00:00 SP

3 Set the TV/CATV option to the appropriate position

(See page 16).

TV - VHF/UHF channels CATV - CABLE TV channels

NOTES: • If power is switched off during recording,

the TV set goes off and the VCR continues to record. Press the STOP button to halt the recording and turn off the VCR.

• The TV/VCR Channel cannot be changed during recording.

4 Press the Direct Channel Selection buttons or

CHANNEL Up or Down button to select the channel to be recorded.

5 Press the REC/OTR button.

" ● " and the channel number will appear on the screen and the REC/OTR indicator will light.

CH 012

TO STOP RECORDING

Press the STOP button to stop recording. “ ■ ” will appear on the screen.

TO STOP RECORDING TEMPORARILY

Press the PAUSE/STILL button to avoid recording unwanted material.

“

” will appear on the screen and the REC/OTR

indicator will blink on and off. Press the PAUSE/STILL button or the REC/OTR button to continue the recording.

NOTE: The PAUSE mode will be changed to STOP mode

after five minutes to prevent damage to the tape.

NOTES: • AUTO REWIND FEATURE

This TV/VCR will automatically rewind the video cassette when the tape has ended (except during OTR and Timer Record). It will also eject the video cassette.

• If the erase prevention tab is removed, the tape will eject when the REC/OTR button is pressed for recording.

ENGLISH

5A3B201A E P20-Back 11/4/02, 12:43 PM21

Page 22

ONE-TOUCH TIMER

Press once twice 3 times 4 times 5 times 6 times 7 times 8 times 9 times

)

00:00:00 SP

OTR 0 : 30

Recording time

NORMAL REC

0:30 1:00 1:30 2:00 3:00 4:00 5:00

NORMAL REC

CH 012

RECORDING (OTR

The One-Touch Timer Recording feature provides a simple and convenient way to make a timed recording.

EXAMPLE: One-touch Timer Recording for 30 minutes.

1 Press the POWER button to turn on the TV/VCR. 2 Load a video cassette with the erase prevention tab

intact.

3 Press the SPEED button to

select the desired tape speed (SP or SLP). SP or SLP will appear on the screen.

4 Set the TV/CATV option to the

appropriate setting (See page 16).

TV - VHF/UHF channels CATV - CABLE TV channels

5 Press the Direct Channel Selection buttons or

CHANNEL Up or Down button to select the channel to be recorded.

6 Press the REC/OTR button to

begin recording. Press the button again to stop recording after 30 minutes. Each additional press of the REC/OTR button will increase recording time as shown below, up to a maximum of 5 hours. “OTR” will appear on the screen.

NOTES: • Press the REC/OTR

button to increase the time needed for recording (See the chart right).

• To cancel OTR, press the STOP button.

• The TV/VCR channel cannot be changed during recording.

TIMER RECORDING

Timer recording can be programmed on-screen with the remote control. The built-in timer allows automatic unattended recording of up to 8 programs within 1 month.

EXAMPLE: Program a timer recording for 23rd day, channel

007 (CATV), 7:00 - 9:30 PM (Tape speed : SLP).

• Load a video cassette with the erase prevention tab intact. The TV/VCR will automatically turn on.

• Set the TV/CATV selection to the appropriate position (See page 16).

1 Press the MENU button. 2 Check the TIMER REC SET

option is selected, then press the ENTER button.

M E N U TIMER REC SET TV SET-UP CH SET-UP AUTO REPEAT ON OFF SYSTEM SET-UP

〈

+/–/ENTER/MENU

〉

TIMER RECORDING

3 Press the SET/TRACKING + or –

button to select the PROGRAM position, then press the ENTER button.

4 Press the SET/TRACKING + or –

button to select the date, then press the ENTER button.

5 Set the start time, end time,

channel and tape speed as in step 4.

TIMER REC SET

DATE

23 (THU)

START

7 : 00 PM

END

9 : 30 PM

007

SPEED

SLP

〈

+/–/ENTER/CANCEL/MENU

〉

23 TH

----- --:-- --- -

----- --

----- --- -

〈

+/–/ENTER/CANCEL/MENU

6 To set the timer for another program, press the SET/

TRACKING + or – button until the number of the second program blinks, then press the ENTER button. Repeat steps 4 to 5 to set the second program.

7 Press the TIMER REC button. The T-REC indicator

will light. The Timer is programed, when the programed time is reached, the recording is automatically started.

To cancel timer recording, press the button again and T-REC indicator will go out.

NOTES: • If programming is performed without a tape in

the TV/VCR, or with a tape without an erase prevention tab, the Timer Recording is not possible. If a tape without an erase prevention tab is in the TV/VCR, the tape will be ejected.

• To record from the external equipment press the SET/TRACKING + or – button repeatedly until "L 1 (from AUDIO/VIDEO LINE1 jacks on the rear)" or "L 2 (from AUDIO/VIDEO IN jacks on the front)" appears when setting the channel in step 5.

• The VCR section cannot be used while the T-REC indicator is lit. If you want to use the VCR operation, press the TIMER REC button to deactivate the timer.

• After a power failure or disconnection of the power plug, all programmed recording setting and time display will be lost upon resumption of power. In this case, reset the clock (see pages 13-14) and reprogram any timer recordings.

• If you want to correct the digits while setting, press the CANCEL button until the item you want to correct, then press the SET/TRACKING + or – button to correct the desired setting.

-- --- ---:--

----- --

----- --:-- --- -

----- --

----- --- -

〈

+/–/ENTER/CANCEL/MENU

TIMER REC SET

〈

+/–/ENTER/CANCEL/MENU

7:00PM9:30

DATE START END CH SPEED

--:--

23 (THU) 8 : 30 AM

-- : -012 SP

007

SLP

--- -

〉

--- -

〉

5A3B201A E P20-Back 11/4/02, 12:43 PM22

Page 23

TO SET DAILY/WEEKLY TIMER

When setting the date in the step 4 on page 22, press the SET/ TRACKING – button repeatedly when the current day is displayed. The setting changes as follows:

Example

The current day (Friday) SUN-SAT (Sunday to Saturday)

MON-SAT (Monday to Saturday) One month later minus one day MON-FRI (Monday to Friday)

WKL-WED WKL-THU (Weekly Thursday) (Weekly Wednesday)

TO CONFIRM THE SETTINGS

Press the PROGRAM button once. The TV screen displays the timer program list. Press the PROGRAM button again. The TV screen displays the ON/OFF timer setting.

(once) (twice)

007

--:--

SLP

--- -

〉

23 TH

7:00PM9:30

----- --:-- --- -

----- --

----- --- -

〈

+/–/ENTER/CANCEL/MENU

ON/OFF TIMER ON TIMER

7:00AM CH012

MON-FRI SET

OFF TIMER

11:30PM SET

〈

+/–/ENTER/CANCEL/MENU

〉

Press the PROGRAM button 3 times. The screen returns to the normal screen.

TO CANCEL A PROGRAM

Press the SET/TRACKING + or – button to select the TIMER REC SET option in the MENU, then press the ENTER button. Press the SET/TRACKING + or – button to select the unnecessary program, and press the CANCEL button to cancel the program.

-- --- ---:--

----- --

----- --:-- --- -

----- --

----- --- -

〈

+/–/ENTER/CANCEL/MENU

--- -

〉

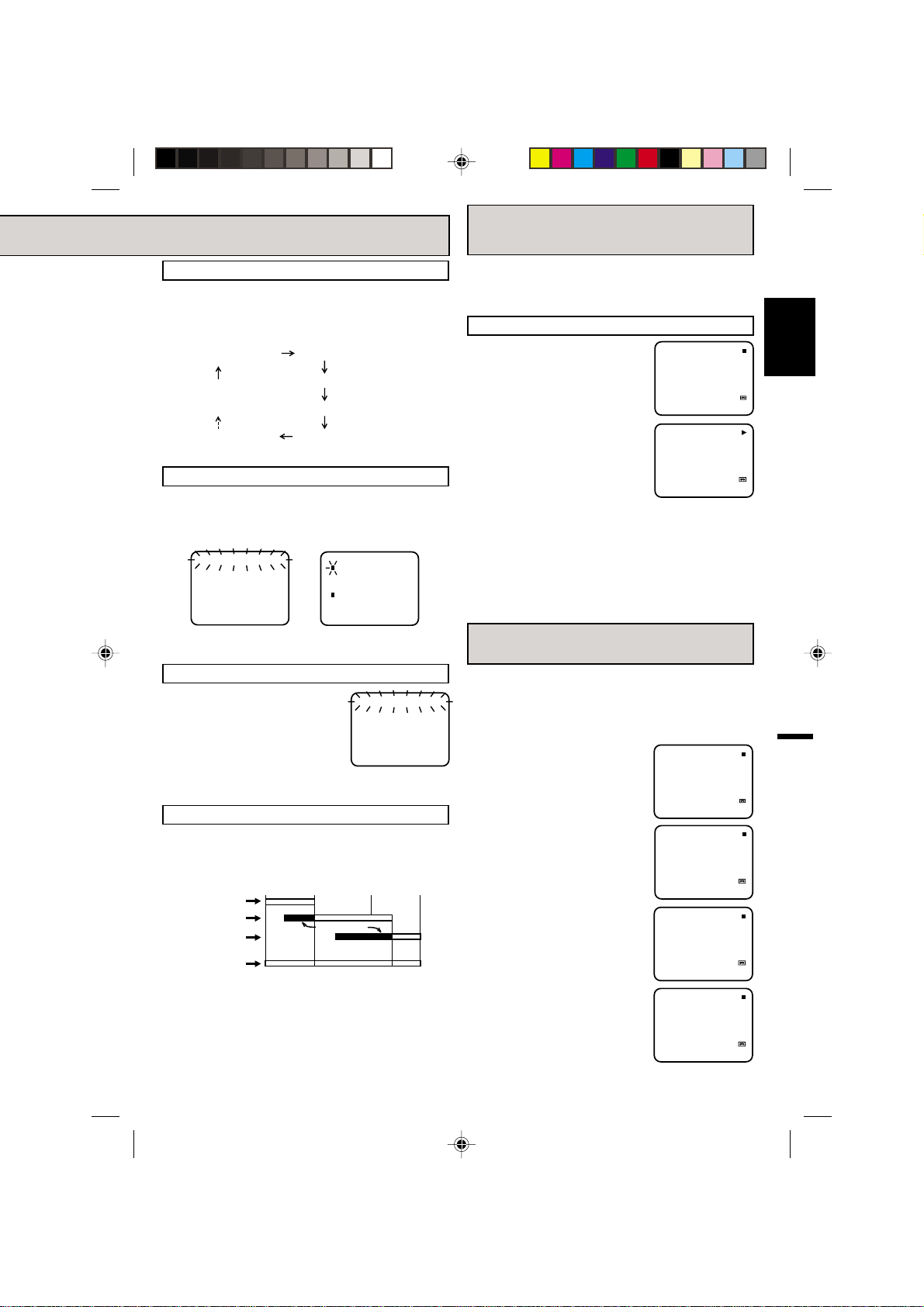

IF THE PROGRAM O VERLAPS ANOTHER

NOTE: Do not overlap programs as portions of the

conflicting programs will be lost. The first recording time has priority over the next recording time as shown in the diagram.

Program 1 Program 2

Program 3

Recording Control Settings

NOTES: • The everyday/every week recording can be

8 : 00

Prog.1

9 : 00

Deleted Parts

Non Recorded Portion Parts

Prog.2 Prog.3

10 : 00

11 : 00

made continuously until the recording is canceled or the tape reaches the end.

• During timer recording, the automatic rewinding mechanism does not function.

• You can correct or cancel the programmed setting in program confirm mode.

USING THE REAL TIME TAPE COUNTER

The On-Screen Real Time T ape Counter shows the tape running time in Hours, Minutes and Seconds. Y ou can easily determine how long the tape has been running or how much time is left on the tape.

TO VIEW THE COUNTER DISPLAY

1 Press the CALL button. 2 Press the COUNTER RESET

button to set the counter to “00:00:00”.

3 Begin Playback or Recording to

start the tape, the counter will display the elapsed time.

4 When you wish to make the

counter disappear, press the CALL button once again.

NOTES: • If you rewind the tape from “00:00:00”, a minus

sign (“–”) will be displayed in front of the time.

• When you load a tape, the counter will reset to “00:00:00”.

• The counter does not function on nonrecorded (blank) sections of the tape. When you rewind, fast forward or play tapes through blank sections, the counter stops.

8:40AM THU

9:00AM THU

CH 012

00:00:00

CH 012

00:30:00 SP

USING ZERO RETURN

The zero return function provides a convenient method of rapidly returning to the starting point of recording or playback. The starting point can be indexed for any location on the tape by pressing the COUNTER RESET button and ZERO RETURN button.

1 Press the CALL button.

2 Before playback or recording,

press the COUNTER RESET

8:40AM THU

00:30:50

CH 012

button to set the counter to “00:00:00”.

00:00:00 SP

3 Begin playback or recording. 4 Press the STOP button.

5 Press the ZERO RETURN

button. The tape will rewind

9:00AM THU

CH 012

00:20:00 SP

CH 012

and automatically stop at the “00:00:00” position.

00:00:00 SP

ENGLISH

5A3B201A E P20-Back 11/4/02, 12:43 PM23

Page 24

DUPLICATING A VIDEO TAPE

If you connect the TV/VCR to another VCR or Camcorder, you can duplicate a previously recorded tape. Make all connections before turning on the power .

1 Insert a blank cassette with the erase prevention tab

intact into the TV/VCR. Insert a previously recorded cassette into the playback VCR or Camcorder.

2 Press the INPUT SELECT button

twice to select AUDIO/VIDEO input position. The "LINE 2" will appear on the screen.

NOTE: You can also use the rear AUDIO/VIDEO

LINE1 Jacks. Select "LINE 1" by pressing the INPUT SELECT button.

LINE 2

3 Press the REC/OTR button on the remote control of

the TV/VCR, then press the PAUSE/STILL button.

4 Press the PLAY Button on the playback VCR, then

press the PAUSE/STILL button.

5 Press the PAUSE/STILL buttons on both units

simultaneously to begin the duplicating process.

NOTES: • It is recommended that the tape speed be set

to the SP mode on the TV/VCR for best result.

• Unauthorized recording of copyrighted television programs, films, video cassettes and other materials may infringe the rights of copyright owners and be contrary to copyright laws.

CONNECTION TO VCR

Recording TV/VCR

Playback VCR

To VIDEO

OUT

To AUDIO OUT

Audio/Video Cord (not supplied)

To Video In

To Audio In

CONNECTION TO CAMCORDER

For duplicating a previously recorded tape from a camcorder, follow the camcorder manufacturer’s instructions. A typical camcorder dubbing hookup is shown below.

Playback Camcorder

To AV Jack

Audio/Video Cord (not supplied)

Recording TV/VCR

To Video/Audio In

5A3B201A E P20-Back 11/4/02, 12:43 PM24

Page 25

RECEPTION DISTURBANCES

Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV/VCR is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps or AC powered tools and appliances such as drills or hair dryers.

GHOSTS

Ghosts are caused by the television signal following two paths. One is the direct path and the other is reflected by tall buildings, hills or other large objects. Changing the direction or position of the antenna may improve the reception.

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV/VCR from the AC power sources before cleaning. The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture. Use caution when cleaning or wiping the plastic parts.

ENGLISH

VIDEO HEAD CLEANING

VIDEO HEAD CLOGGING

The video heads are the means by which the TV/VCR reads the picture from the tape during playback. In the unlikely event that the heads become dirty enough to be clogged, no picture will be played back. This can easily be determined if, during playback of a known good tape, there is good sound, but no picture (picture is extremely snowy). If this is the case, use a high quality head cleaning system or have them cleaned professionally.

SNOW

If the TV/VCR is located far from the TV station, in a fringe reception area where the signal is weak, small dots may appear in the picture. If the signal is extremely weak, the installation of a larger external antenna may be necessary.

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving ripples or diagonal streaks in the picture. Some cases may cause a loss of contrast in the picture. Changing the direction and position of the antenna or installing an RFI filter may improve the picture.

PICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST or BRIGHTNESS settings.

Good Picture Snowy Picture

VIDEO HEAD CLEANING

Video head cleaning is needed when the playback picture becomes unclear. This signifies that the heads are getting dirty and can occur when playing poor quality or damaged tapes. If the heads require cleaning, use a equivalent high quality chemical non-abrasive (wet) head cleaning tape or have them cleaned professionally. If playing a head cleaning tape in the VCR once does not improve the picture, play it several times before requesting service.

DO NOT ATTEMPT TO CLEAN THE VIDEO HEADS OR SERVICE THE UNIT BY REMOVING THE TOP COVER.

NOTES: • Video heads may eventually wear out and

should be replaced when they fail to produce clear pictures.

• To help prevent video head clogging, use only good quality VHS tapes. Discard worn out tapes.

5A3B201A E P20-Back 11/4/02, 12:43 PM25

Page 26

TROUBLESHOOTING GUIDE

Check the following chart before requesting service.

SYMPTOM CAUSE POSSIBLE SOLUTION PAGE

POWER

No power. 10

Although the power is on, the TV/VCR does not operate.

TV BROADCAST RECEPTION

Poor or no picture.

Poor or no color.

Picture wobbles or drifts.

No CATV reception.

No reception above channel 13.

Poor or no sound.

The AC power cord is not connected. Connect the AC power cord to the

The DC car cord is not plugged into the cigarette lighter socket.

The DC car cord fuse is blown. Cassette is not inserted. TIMER REC button is depressed. Moisture condenses on the video

heads.

TV station experiencing problems. Picture control is not adjusted. Possible local interference.

Antenna (CATV) connector is not connected or possible localinterference.

TV station experiencing problems. Picture control is not adjusted. Possible local interference.

Antenna (CATV) connector is not connected or possible local interference.

TV station experiencing problems. Antenna (CATV) connector is not

connected or possible local interference.

Cable TV channel is scrambled. CATV connector is not connected. TV/CATV Mode menu option is set to

the TV mode. Cable TV service interrupted. TV/CATV Mode menu option is not

set to the appropriate mode. UHF antenna is not connected. TV station experiencing problems. Antenna (CATV) connector is not

connected or possible local interference.

Possible local interference.

MUTING button is depressed.

AC outlet. Connect the DC car cord to the

cigarette lighter socket. Replace fuse. Insert a video cassette. Press the TIMER REC button. "DEW" appears on the screen. Wait

two or three hours until it goes off.

Tr y another channel. Check picture control adjustments. Check for source of reception

disturbance. Check CATV connection or VHF/

UHF antenna, reposition or rotate antenna.

Tr y another channel. Check picture control adjustments. Check for source of reception

disturbance. Check CATV connection or VHF/

UHF antenna, reposition or rotate antenna.

Tr y another channel. Check CATV connection or VHF/

UHF antenna, reposition or rotate antenna.

Tr y another channel. Check all CATV connections. Set the TV/CATV Menu option to

the CATV mode. Contact your Cable TV company. Make sure TV/CATV menu option is

in the appropriate mode. Check UHF antenna. Tr y another channel. Check CATV connection or VHF/

UHF antenna, reposition or rotate antenna.

Check for source of reception disturbance.

Check that MUTING button has not been pressed.

10 11

20 22

14 19

11,12

14 19

11,12

14 12

16 12 16 11

11, 12

5A3B201A E P20-Back 11/4/02, 12:43 PM26

Page 27

SYMPTOM CAUSE POSSIBLE SOLUTION PAGE

TV shuts off.

Closed caption is not activated.

RECORDING

TV recording does not work.

Timer recording does not work.

PLAYBACK

Noise bars appear on the screen.

REMOTE CONTROL

Remote control does not operate.

TV station stopped broadcasting. Sleep timer is set. OFF timer is set.

TV station experiencing problems or program tuned is not closed captions.

TV signal is weak.

The TV/CAP/TEXT button is not depressed.

The video cassette's erase prevention tab is broken off.

The time is not set correctly. The recording start/end time is not

set correctly. The TIMER REC button has not been

pressed (The T -REC indicator is not lit).

Tape is old or worn. Tracking adjustment is beyond range

of automatic tracking circuit.

Video heads are dirty.

The remote control is not aimed at the sensor.

Distance is too far or too much light in the room.

There is an obstacle in the path of the beam.

The batteries are weak. The batteries are not inserted

correctly.

Tune new channel. Set Sleep Timer to "0". Cancel OFF timer.

Tr y another channel.

Check CATV connection of VHF/ UHF antenna, reposition or rotate antenna.

Press the TV/CAP/TEXT button to turn on the closed caption.

Place a piece of vinyl tape over the hole.

Reset the present time. Reset the start/end time.

Press the TIMER REC button (The T-REC indicator is lit).

Replace the tape. Adjust tracking manually using the

SET/TRACKING + or – buttons on the remote control.

Clean the video heads.

Aim the remote control at the remote sensor.

Operate within 15 feet or reduce the light of the room.

Clear the path of the beam.

Replace the batteries. Insert correctly.

14 15 18

11,12

20 14 22

—

10 10

ENGLISH

5A3B201A E P20-Back 11/4/02, 12:43 PM27

Page 28

SPECIFICATIONS

TELEVISION

Picture Tube: 13" (measured diagonally) Horizontal Resolution: 220 lines

Tuner Type: Quartz PLL Frequency Synthesized Receiving Channels: VHF 2-13

Antenna Input: VHF/UHF In 75 ohms coaxial Speaker: 1-1/2" x 2-1/2", 8 ohm x 1

Audio Output Power: 1.5W

VCR

Video System: VHS, 2 Rotary Heads Helical Scanning System. Video Signal: NTSC Color Cassette T ape: VHS Audio T r ack: 1 Trac k Tape Speed: SP: 33.35 mm/sec.

F.FWD/REW Time at 25˚C (77˚F): F.FWD: Approx. 4 minutes 50 seconds

Speed Search: SP 3 & 5 x Normal Speed

GENERAL

Power Source: AC 120V 60Hz

Power Consumption: 65 Watts (AC 120V), 54 Watts (DC 12V) Dimensions: W 14-1/4" x D 14-9/16" x H 15-1/16" Weight: 27.6 Ibs

Inputs: Video: (RCA) 1V p-p/75 ohm

Storage T emperature: –20°C to 60°C (–4°F to 140°F) Operating T emperature: 5°C to 40°C (41°F to 104°F) Remote Control: Infrared, Direct Access, 2 x AAA batteries (not supplied)

UHF 14-69 CATV 14-36 (A)-(W)

37-59 (AA)-(WW) 60-85 (AAA)-(ZZZ) 86-94 (86)-(94) 95-99 (A-5)-(A-1) 100-125 (100)-(125) 01 (5A)

LP: 16.67 mm/sec. SLP: 11.12 mm/sec.

REW: Approx. 2 minutes 30 seconds (T-120 Cassette)

LP 7 & 9 x Normal Speed SLP 9 & 15 x Normal Speed

DC 12V

Audio: (RCA) –8 dB/50K ohm

Accessories: Remote Control

Specifications are subject to change without notice.

T elescopic Antenna 12V DC Car Cord

5A3B201A E P20-Back 11/4/02, 12:43 PM28

Page 29

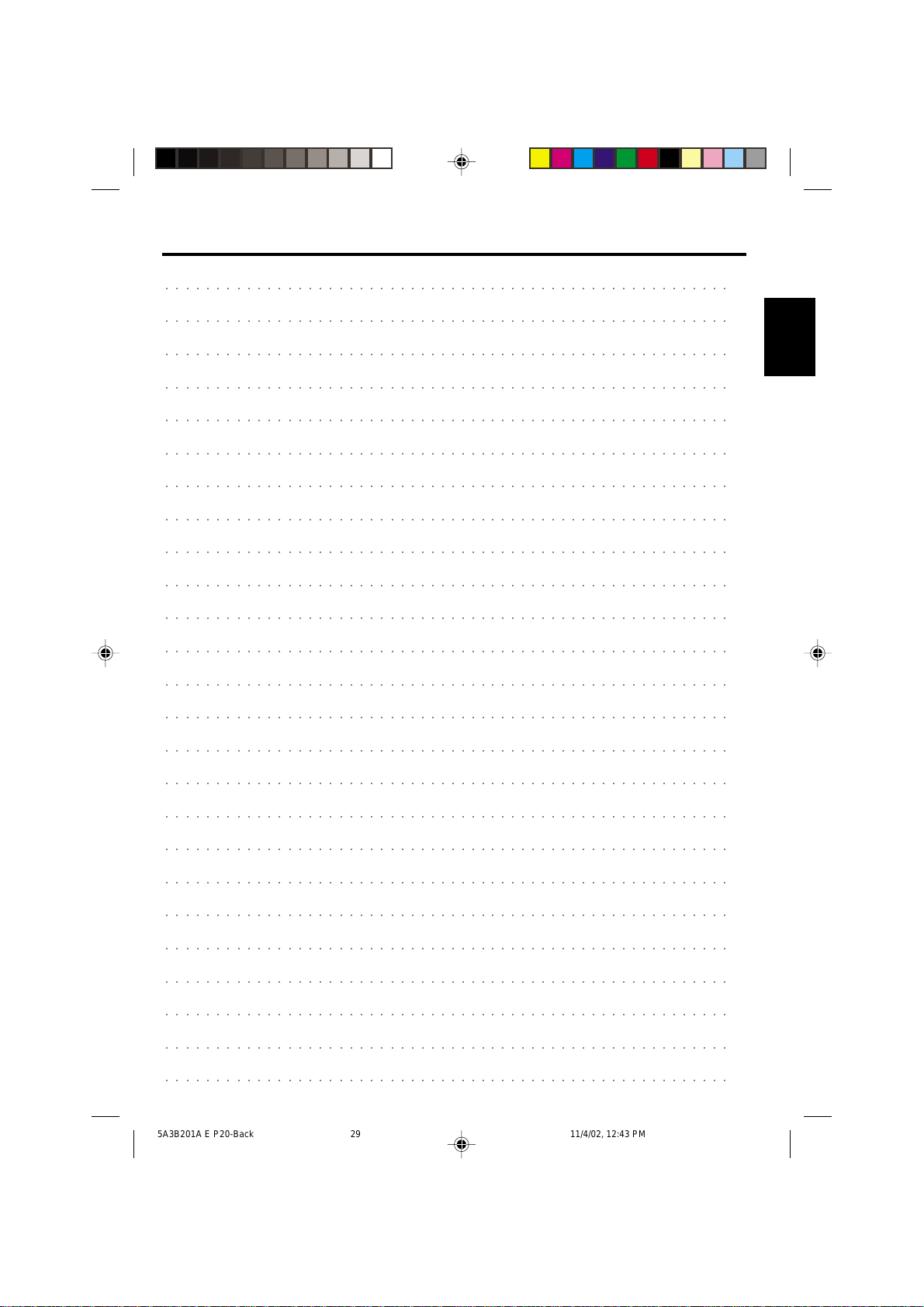

Memo

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

ENGLISH

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5A3B201A E P20-Back 11/4/02, 12:43 PM29
