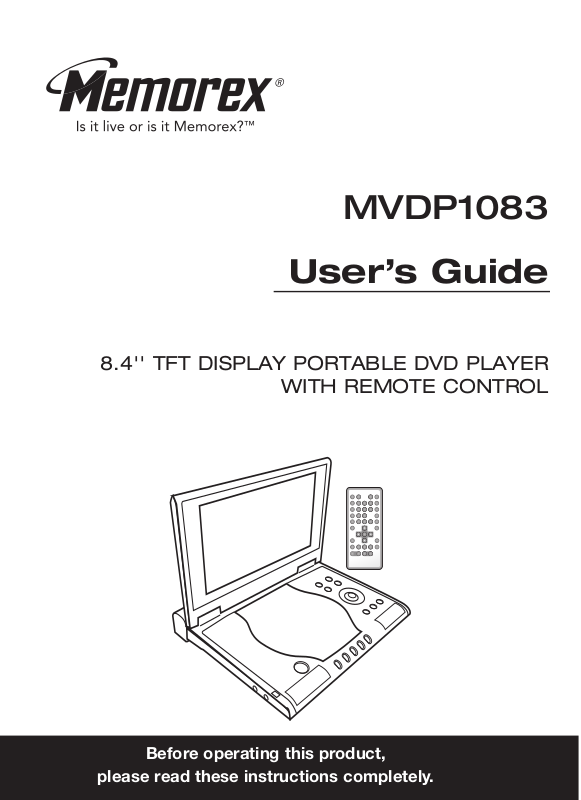

MVDP1083
User’s Guide
8.4'' TFT DISPLAY PORTABLE DVD PLAYER
WITH REMOTE CONTROL
Before operating this product,
please read these instructions completely.
TABLE OF CONTENTS
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Important Safety Instructions. . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . 5
Power Sources. . . . . . . . . . . . . . . . . . . . . 7
Location of Controls . . . . . . . . . . . . . . . . 9
• Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Remote . . . . . . . . . . . . . . . . . . . . . . . . . 10
Remote Control . . . . . . . . . . . . . . . . . . . 11
• Battery Installation . . . . . . . . . . . . . . . . . 11
• Effective Distance of the
Remote Control Transmitter. . . . . . . . . . 11
Connection . . . . . . . . . . . . . . . . . . . . . . . 12
• Connecting the DVD to a TV Using the
A/V Cable. . . . . . . . . . . . . . . . . . . . . . . . 12
• Connecting the DVD to a TV Using the
Component Cable . . . . . . . . . . . . . . . . . 13
• Connecting the DVD to a Home
Theater System (Audio Jack) . . . . . . . . 15
• Connecting the DVD to a Home
Theater System (Coaxial Jack) . . . . . . . 16
About Discs . . . . . . . . . . . . . . . . . . . . . . 17
Setup Menu. . . . . . . . . . . . . . . . . . . . . . . 19
• General Setup Menu . . . . . . . . . . . . . . . 20
• Audio Setup Menu . . . . . . . . . . . . . . . . . 21
• Dolby Setup Menu. . . . . . . . . . . . . . . . . 22
• Video Setup Menu . . . . . . . . . . . . . . . . . 23
• Preference Setup Menu. . . . . . . . . . . . . 24
• Parental . . . . . . . . . . . . . . . . . . . . . . . . . 25
• Password . . . . . . . . . . . . . . . . . . . . . . . . 26
Basic Operation . . . . . . . . . . . . . . . . . . . 27
• Mute. . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
• P/N (PAL/NTSC) Button . . . . . . . . . . . . 27
• Headphone Jack . . . . . . . . . . . . . . . . . . 27
• Screen Mode Button . . . . . . . . . . . . . . . 27
• LCD Mode Button . . . . . . . . . . . . . . . . . 27
• Display Button . . . . . . . . . . . . . . . . . . . . 28
• I/P (Interlace/Progressive
Scan) Button . . . . . . . . . . . . . . . . . . . . . 28
DVD Operation . . . . . . . . . . . . . . . . . . . . 29
• Playback of a DVD . . . . . . . . . . . . . . . . 29
• Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
• Search . . . . . . . . . . . . . . . . . . . . . . . . . .
• Slow Motion . . . . . . . . . . . . . . . . . . . . . . 31
• Pause/Step . . . . . . . . . . . . . . . . . . . . . . 31
• Title/Chapter Search . . . . . . . . . . . . . . . 32
• Title/Time Search. . . . . . . . . . . . . . . . . . 32
• Chapter/Time Search. . . . . . . . . . . . . . . 32
31
• Repeat Playback . . . . . . . . . . . . . . . . . . 33
• Repeat A-B Playback. . . . . . . . . . . . . . . 33
• Audio Menu . . . . . . . . . . . . . . . . . . . . . . 34
• Subtitle Menu. . . . . . . . . . . . . . . . . . . . . 34
• DVD Menu . . . . . . . . . . . . . . . . . . . . . . . 34
• Title Menu . . . . . . . . . . . . . . . . . . . . . . . 34
• Zoom In . . . . . . . . . . . . . . . . . . . . . . . . . 35
• Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
• Resume . . . . . . . . . . . . . . . . . . . . . . . . . 35
• Programmed Playback . . . . . . . . . . . . . 36
CD Operation . . . . . . . . . . . . . . . . . . . . . 37
• Playback of a CD. . . . . . . . . . . . . . . . . . 37
• Random Playback . . . . . . . . . . . . . . . . . 38
• Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
• Search . . . . . . . . . . . . . . . . . . . . . . . . . . 38
• Pause. . . . . . . . . . . . . . . . . . . . . . . . . . . 39
• Selecting Tracks Using the
Number Buttons. . . . . . . . . . . . . . . . . . . 39
• Repeat Playback . . . . . . . . . . . . . . . . . . 39
• Repeat A-B Playback. . . . . . . . . . . . . . . 39
Picture CD Operation . . . . . . . . . . . . . . 40
Troubleshooting Guide . . . . . . . . . . . . . 41
Care and Maintenance. . . . . . . . . . . . . . 43
Specifications. . . . . . . . . . . . . . . . . . . . . 44
1
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
CAUTION:
THIS DIGITAL VIDEO DISC PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER’S
MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT
REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE
SERVICE PROCEDURE.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE
ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE
IS OPENED. DO NOT STARE INTO BEAM.
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING:
ANNOYING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
INTERFERENCE, USE
THE RECOMMENDED
ACCESSORIES ONLY.
2
AND
IMPORTANT SAFETY INSTRUCTIONS (CONTINUED)
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection. Lightning and power surges
ARE NOT covered under warranty for this product.
LASER WARNING:
This unit employs a Laser only qualified service personal should attempt to service this device
due to possible eye injury.
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modification not authorized by the manufacture may void user authority to operated this
device.
FCC CAUTION:
To assure continued compliance, follow the attached installation instructions and use only
shielded cables when connecting to other devices. Also, any changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER
JUSQU’AU FOND.
IMPORTANT:
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE
YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE.
3
IMPORTANT SAFETY INSTRUCTIONS (CONTINUED)
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You
Dear Customer:
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of
your musical enjoyment. Now it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your equipment
by playing it at a safe level. One that lets the sound come through loud and clear without
annoying blaring or distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After
all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer and
the Electronic Industries Association’s Consumer Electronics Group recommend you avoid
prolonged exposure to excessive noise. This list of sound levels is included for your protection.
Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
4
PRECAUTIONS
NOTES ON HANDLING:
• When shipping the DVD player, always use the original shipping carton and
packing materials. For maximum protection, repack the unit as it was
originally packed at the factory.
• Do not use volatile liquids, such as insect spray, near the DVD player. Do not
leave rubber or plastic products in contact with the DVD player for a long
time. They will leave marks on the finish.
• The top and rear panels of the DVD player may become warm after a long
period of use. This is normal and not a malfunction.
• When the DVD player is not in use, be sure to remove the disc and turn off
the power.
• If you do not use the DVD player for a long period, the unit may not function
properly in the future. Turn on and use the DVD player occasionally.
NOTES ON LOCATING THE DVD PLAYER:
• When you place this DVD player near a TV, radio or VCR, the playback
picture may become poor and the sound may be distorted. In this case, move
the DVD player away from the TV, radio or VCR.
NOTES ON CLEANING:
Use a soft, dry cloth for cleaning.
• For stubborn dirt, soak the cloth in a weak detergent solution, wring well and
wipe. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as
thinner or benzene, as they may damage the surface of the DVD player.
• If you use a chemical-saturated cloth to clean the unit, follow that product’s
instructions.
Warning: Cleaning and adjustment of lenses and/or other components of
playback mechanism should be performed by a qualified service technician.
CAUTION:
To reduce the risk of injury, only charge with supplied rechargeable Battery Pack;
other types of batteries may burst causing personal injury or damage.
5
PRECAUTIONS (CONTINUED)
TO OBTAIN A CLEAR PICTURE:
The DVD player is a high technology, precision device. If the optical pick-up lens
and disc drive parts are dirty or worn down, the picture quality becomes poor. To
obtain a clear picture, we recommend regular inspection and maintenance
(cleaning or parts replacement) every 1,000 hours of use depending on the
operating environment. For details, contact your nearest dealer.
NOTES ON MOISTURE CONDENSATION:
Moisture condensation damages the DVD player. Please read the following
carefully.
• Moisture condensation occurs, for example, when you pour a cold drink into a
glass on a warm day. Drops of water form on the outside of the glass. In the
same way, moisture may condense on the optical pick-up lens inside this unit,
one of the most crucial internal parts of the DVD player.
Moisture condensation occurs during the following cases:
• When you bring the DVD player directly from a cold place to a warm place.
• When you use the DVD player in a room where you just turned on the heater,
or a place where the cold wind from the air conditioner directly hits the unit.
• In summer, when you use the DVD player in a hot and humid place just after
you moved the unit from an air conditioned room.
• When you use the DVD player in a humid place.
Do not use the DVD player when moisture condensation may occur.
• If you use the DVD player in such a situation, it may damage discs and
internal parts. Remove the disc, insert the small end of the AC adapter into
the DC IN jack on the side of the unit and insert the other end into a
conveniently located AC outlet having 120 AC, 60 Hz, turn on the DVD player
and leave it “ON” for two or three hours. After two or three hours, the DVD
player will have warmed up and evaporated any moisture. Keep the DVD
player connected to the wall outlet and moisture condensation will seldom
occur.
6
POWER SOURCES
AC Plug
AC Outlet
AC CONNECTION
Insert the small end of the AC adapter into the DC IN jack (located on the side of the
unit). Connect the AC cord to the adapter and connect the other end to a wall outlet
having 120V AC, 60 Hz.
AC Adapter, DC 9V
NOTES:
• The AC adapter supplied with the unit is polarized to help minimize the possibility
of electric shock. If the AC plug does not fit into a nonpolarized AC outlet, do not
file or cut the wide blade. It is the user’s responsibility to have an electrician
replace the obsolete outlet.
• Use the enclosed AC adapter for this product only.
• Remove both the DC plug and the AC-IN plug to disconnect the AC adapter when
not using.
Z
BATTERY PACK INSERTION/REMOVAL
Follow the diagram below to insert or remove the battery pack.
1
TO REMOVE: Slide the Battery Release
switch in the direction of arrow A, then slide
the Battery Pack in the direction of arrow B.
2
TO INSERT: Align tabs from the battery into
the holes in the unit, then slide the battery in
the direction of arrow
7
A.
POWER SOURCES (CONTINUED)
CHARGING THE BATTERY PACK
“LOW BATTERY” will appear on the screen when the battery is low and needs
recharging. The battery can be charged while attached or not attached to the unit
as follows:
WITH THE BATTERY ATTACHED TO THE UNIT:
With the Battery Pack attached, insert the small end of the AC adapter into the DC
IN CHARGE jack on the side of the Battery Pack or the DC IN jack on the side of
the unit. Insert the other end (with the 2 blades) into a conveniently-located AC
outlet having 120V AC, 60Hz. The CHARGE indicator will light red as the battery is
charging and green when charging has completed. Disconnect the AC adapter
plugs when charging has finished.
WITH THE BATTERY NOT ATTACHED TO THE UNIT:
You can also charge the Battery Pack when it is not attached to the unit by inserting
the small end of the AC adapter into the DC IN CHARGE jack on the side of the
Battery Pack. Insert the other end (with the 2 blades) into a conveniently-located AC
outlet having 120V AC, 60Hz. The CHARGE indicator will light red as the battery is
charging and green when charging has completed. Disconnect the AC adapter
plugs when charging has finished.
NOTE:
• Fully charge the Battery Pack for 12 hours before using it for the first time. After
the initial charge, it should take approximately five hours to charge.
• A fully-charged Battery Pack can operate for about 2.5 hours.
USING THE CAR ADAPTER
Plug the small end of the car adapter into the DC IN jack and then plug the other
end into the car cigarette lighter socket.
8
3
5
6
7
8
9
1
2
4
10
11
18
13
12
14
15
19
22
23
24
25
26
17
16
20
21
MAIN UNIT
LOCATION OF CONTROLS
1. Display
2. DC IN CHARGE Jack 9V
of the Rechargeable Battery)
3. CHARGE Indicator (Side of the
Rechargeable Battery)
4. DC IN Jack 9V
z (Side of the
Main Unit)
5. Disc Compartment
6. OPEN/CLOSE Button
7. Headphone 2 Jack
8. Headphone 1 Jack
9. Left Speaker
10. IP (Interlace/Progressive) Button
11. SCREEN MODE Button
12. ZOOM Button
13. LCD MODE Button
z (Side
14. ENTER Button
15. Navigation (
√,®, π,†) Buttons*
16. POWER Button
17. MENU Button
18. Right Speaker
19. SETUP Button
20. Power Indicator
21. Remote Sensor
22. Play (
23. Stop (
24. Pause (
®) Button
■) Button
p) Button
25. Search ®® Button
26. Search √√ Button
* During playback, the Navigation (
buttons will be used as Skip (
9
√,®)
o, n) buttons.
1
2
3
4
6
5
3
6
8
9
7
4
2
16
5
12
10
13
11
14
15
1
17
18
19
20
21
22
23
24
25
26
27
28
SIDE
LOCATION OF CONTROLS (CONTINUED)
1. COMPONENT OUT (Y/Pb/Pr) Jacks
2. VOLUME Control
3. AUDIO OUT Jack
4. VIDEO/COAXIAL OUT Jack
REMOTE
5. Battery Pack
6. Battery Release Switch
(Bottom of the Battery Pack)
1. DISPLAY Button
2. MENU Button
3. STANDBY Button
4. 0-9/10+ Number Buttons
5. PROGRAM Button
6. GOTO Button
7. TITLE Button
8. AUDIO Button
9. PLAY/ENTER Button
10. SETUP Button
11. STEP Button
12. SLOW Button
13. PAUSE Button
14. Skip (
15. Skip (
16. MUTE Button
17. REPEAT Button
18. REPEAT A-B Button
19. P/N (PAL/NTSC Button)
20. ANGLE Button
21. SUB-T Button
22. ZOOM Button
23. Navigation (
24. RESUME Button
25.
26. Stop (■) Button
27. Search
28. Search
10
o) Button
n) Button
SHUFFLE Button
√,®, π,†) Buttons
®® Button
√√ Button
REMOTE CONTROL
BATTERY INSTALLATION
1.
Remove the Battery Compartment by
pressing in on the tab and then sliding
the compartment out.
2. Install a CR2025 battery, paying attention
to the polarity diagram in the battery
compartment (positive side up).
3. Replace the Battery Compartment.
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated next to the battery
compartment. A reversed battery may cause damage to the device.
3. If the device is not to be used for a long period of time, remove the battery to prevent damage
or injury from possible battery leakage.
4. Do not try to recharge a battery not intended to be recharged; it can overheat and rupture.
(Follow battery manufacturer’s directions.)
BATTERY PRECAUTIONS
EFFECTIVE DISTANCE OF THE REMOTE CONTROL TRANSMITTER
NOTES:
• When there is an
obstacle between the
DVD and the transmitter,
the transmitter may not
operate.
• When direct sunlight, an
incandescent lamp,
fluorescent lamp or any
other strong light shines
on the Remote Sensor of
the DVD, the remote
operation may be
unstable.
11
CONNECTION
CONNECTING THE UNIT TO A TV USING THE A/V CABLE (INCLUDED)
NOTES FOR CONNECTING TO A TV:
• If your TV has Component (Y, Pb, Pr) inputs, connect the unit with them for best
results.
• Set the TV’s TV/VIDEO button or switch to the VIDEO setting.
• When connecting the unit, refer to the owner’s manual of the TV, as well as this
manual.
• When connecting the unit to the TV, make sure the power is off and both units are
unplugged before making any connections.
• Connect the unit to your TV directly. If you connect the unit through a VCR, the
playback picture will be distorted because DVD video discs are copy protected.
12
CONNECTION (CONTINUED)
CONNECTING THE UNIT TO A TV USING THE COMPONENT CABLE (INCLUDED)
Component Cable
NOTES FOR CONNECTING TO A TV:
• TV must have Component (Y/PB/PR or Y/CB/CR) Input jacks.
• Set the TV’s TV/VIDEO button or switch to the VIDEO setting.
• When connecting the unit, refer to the owner’s manual of the TV, as well as this
manual.
• When connecting the unit to the TV, make sure the power is off and both units
are unplugged before making any connections.
• Connect the unit to your TV directly. If you connect the unit through a VCR, the
playback picture will be distorted because DVD video discs are copy protected.
• When using the Component Output, you should set the Component Output to
YUV in the VIDEO SETUP menu. Otherwise, the picture on the TV screen will
be incorrectly or not colored. See page 23 to set the Component Output to YUV.
• When the Component Output is set to YUV, the main unit's screen display will
turn off automatically. To observe the pictures on the unit's display screen again,
turn off the unit and then turn the unit on again, the Component Output will reset
to LCD.
13
CONNECTION (CONTINUED)
PROGRESSIVE (Y, PB, PR) VIDEO OUT:
Use these jacks to connect to a TV with
progressive video input jacks, press the
IP (Interlace/Progressive) button to select
PROGRESSIVE SCAN. (
press the IP button again, the TV mode
setting will change back to INTERLACE.
Also, the Component Output will change
back to LCD mode and you will be able
to observe the pictures on the unit's
display screen again.) Progressive scan
is a video scanning system that displays
all lines in a frame in one pass, as opposed to the traditional system, interlaced
scan. This connection provides optimum quality. To ensure maximum picture quality,
use three video-grade cables for connections. Note that it is essential to match the
color-coded connectors with a compatible TV.
NOTE: If you
525 LINE DIGITAL PROGRESSIVE-SCAN COMPONENT VIDEO
OUTPUT
Compared to standard interlaced video, progressive scan effectively doubles the
amount of video information fed to your TV or monitor. The result is a stable, flickerfree image. (Check your TV/monitor for compatibility with this feature.)
For the very highest picture quality, try watching a movie on DVD-Video on a
progressive-scan compatible TV.
NOTES:
• If you connect a TV that is not compatible with a progressive scan signal, press
the IP button to select Interlace, and set the Component Output to YUV in the
VIDEO SETUP menu. See page 23 to set the Component Output to YUV.
• CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION
TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND
MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF
525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER NOT USE PROGRESSIVE SCAN.
14
CONNECTION (CONTINUED)
1
3
2
9
5
4
6
78
To Audio Inputs
From Audio Out
From Video Out
To Video
I
nput
Video Cable (Included)
Audio Cable (Included)
CONNECTING THE DVD TO A HOME THEATRE SYSTEM (AUDIO JACK)
Place the subwoofer, front, rear and center
speakers in locations as shown/described
here. After correctly positioning the
speakers, perform the Tone Test on the AV
Amplifier and adjust the Volume control(s)
until the desired sound is achieved. For best
results, sit in the viewing position and have
someone adjust the volumes for you; this will
enable you to set the optimal levels.
NOTE: The rear speakers can also be
located on the side wall facing the viewing
position and each other. Make sure the
viewing position is located between the two
speakers in this case. Experiment to find
optimal position.
1. Front Left Speaker
2. Television
3. Center Speaker–
below the Television.
4. Sub-woofer–can be located anywhere in the
room.
5. Front Right Speaker
can be located on top or
NOTES FOR CONNECTING TO A TV:
6. Viewing/Listening Position–
listening position is obtained by positioning the
chair, sofa, etc. in the middle of all the
speakers.
7. Rear Left Speaker
8. Rear Right Speaker
9. AV Amplifier w/Dolby Digital Decoder
The best
• Set the TV’s TV/VIDEO button or switch to the VIDEO setting.
• When connecting the
system, as well as this manual.
unit, refer to the owner’s manuals for the TV and the audio
• When connecting, make sure the power is off and all units are unplugged before making
any connections.
• Connect the
unit to your TV directly. If you connect the unit through a VCR, the playback
picture will be distorted because DVD video discs are copy protected.
15
CONNECTION (CONTINUED)
1
3
2
9
5
4
6
78
To PCM/BITSTREAM
From Video/Coaxial Out
To Video
Input
VIDEO/COAXIAL CABLE (INCLUDED)
CONNECTING THE DVD TO A HOME THEATRE SYSTEM (COAXIAL JACK)
Place the subwoofer, front, rear and center
speakers in locations as shown/described
here. After correctly positioning the
speakers, perform the Tone Test on the AV
Amplifier and adjust the Volume control(s)
until the desired sound is achieved. For best
results, sit in the viewing position and have
someone adjust the volumes for you; this will
enable you to set the optimal levels.
NOTE: The rear speakers can also be
located on the side wall facing the viewing
position and each other. Make sure the
viewing position is located between the two
speakers in this case. Experiment to find
optimal position.
1. Front Left Speaker
2. Television
3. Center Speaker–can be located on top or
below the Television.
4. Sub-woofer–can be located anywhere in the
room.
5. Front Right Speaker
6. Viewing/Listening Position–
listening position is obtained by positioning the
chair, sofa, etc. in the middle of all the
speakers.
7. Rear Left Speaker
8. Rear Right Speaker
9. AV Amplifier w/Dolby Digital Decoder
The best
NOTES FOR CONNECTING TO A TV:
• Set the TV’s TV/VIDEO button or switch to the VIDEO setting.
• When connecting the
unit, refer to the owner’s manuals for the TV and the audio
system, as well as this manual.
• When connecting, make sure the power is off and all units are unplugged before making
any connections.
• Connect the
unit to your TV directly. If you connect the unit through a VCR, the playback
picture will be distorted because DVD video discs are copy protected.
• Set the SPDIF option to PCM, see page 20.
16
ABOUT DISCS
1
The region number for this DVD Player is:
See the following page for information regarding region numbers.
PLAYABLE DISCS:
The following discs can be played back on this DVD player:
DISC TYPES:
DVD
Data on most DVDs is divided into sections
called “titles” and then into subsections called
“chapters”, each of which is given a title or
chapter number. Some features of this DVD
player will not operate with some DVD discs
as they are preset. If a function you selected
does not run as desired, refer to the manual
accompanying the DVD disc.
AUDIO CD
Data on an audio CD is divided into sections
called “tracks”, each of which is given a track
number.
IMPORTANT:
It is important that you read the manual that accompanies the DVD disc, as there are
features that are on the DVD player that cannot be used with certain DVDs. There are also
extra features on the DVD disc that are different for each DVD disc, so they are not
explained in this owner’s manual.
17
ABOUT DISCS (CONTINUED)
Notes on Copyright:
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public
and rent copyrighted material without permission. DVD video discs are copy
protected, and any recordings made from these discs will be distorted. This product
incorporates copyright protection technology that is protected by method claims of
certain U.S. patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended for home and other
limited viewing uses only, unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
Region Management Information:
This DVD Player is designed and manufactured to respond to the Region
Management Information that is recorded on a DVD disc. If the Region number
described on the DVD disc does not correspond to the Region number of this DVD
player, this DVD player cannot play that disc. You may not be able to play back
some DVD video discs on this player if they were purchased from outside your
geographic area or made for business purposes. When you try to play back an
unauthorized disc, "Wrong Region" appears on the TV screen.
18
SETUP MENU
2
1
3
The Setup Menu lets you customize the DVD player by allowing you to select
various language preferences, set up a parental level, turn screen saver on and off,
adjust what type of television screen you have and more.
Use the following instructions to navigate and change the options as described on
the upcoming pages.
1. While in the Stop mode, press the
SETUP button
Menu.
2. Select one of the Setup icons at the
top of the screen using the Navigation
(√,®) buttons 2, then press the
PLAY/ENTER button 3 to select it.
3. Use the Navigation (π,†) buttons 2 to
select one of the Setup options, then
press the PLAY/ENTER button 3 to
select it.
4. Use the Navigation (π,†) buttons 2 to
change the desired setting, then press
the PLAY/ENTER button 3 to make the
change.
5. Exit by pressing the SETUP button 1
again. To return to the previous menu,
simply press the Navigation (√)
button 2.
1 to enter the Setup
NOTE:
• To turn on the unit, press the STANDBY button on the remote or press the
POWER button on the main unit. To turn off the unit, press the STANDBY button
on the remote or press and hold the POWER button on the main unit for two
seconds.
19
SETUP MENU (CONTINUED)
- - General Setup Page - Normal/PS
Normal/LB
Wide
General Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Set TV Display Mode
- - General Setup Page - -
Normal/PS
Normal/LB
Wide
General Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Set TV Display Mode
- - General Setup Page - -
On
Off
General Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Set Angle Mark
- - General Setup Page - -
Normal/PS
Normal/LB
Wide
General Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Set TV Display Mode
- - General Setup Page - -
On
Off
General Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Set Angle Mark
- - General Setup Page - -
English
Spanish
French
Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Set Osd Language
General
- - General Setup Page - -
On
Off
General Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Set Angle Mark
- - General Setup Page - -
English
Spanish
French
Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Set Osd Language
- - General Setup Page - -
Off
Raw
Pcm
General Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
Screen Saver
Setup Spdif
General
General
GENERAL SETUP MENU:
Press the SETUP button to enter the menu, select GENERAL SETUP using the Navigation
√,®) buttons, then press the PLAY/ENTER button on the remote (ENTER button on main unit)
(
to select it. Select/change the Setup option as described on page 19.
TV DISPLAY
1
NORMAL/PS: Pan Scan. Select when the unit is
connected to a conventional TV. Video material
formatted in the Pan Scan style is played back in that
style (the left and right edges are cut off).
NORMAL/LB: Letter Box. Select when the unit is
connected to a normal TV. Wide-screen images
are shown on the screen with a black band at the
top or bottom.
WIDE: Select when the unit is connected to a widescreen TV.
OSD LANGUAGE
1
ANGLE MARK
1
Select ON to turn the anglemarks on and
OFF to turn them off.
SPDIF OUTPUT
1
Select the desired language (ENGLISH,
SPANISH, FRENCH) for the On-Screen
display to display text. Note that the DVD must
have the language included in order to display
it.
OFF: An analog surround sound format is
output through the rear connectors for two
channel audio out or 5.1 channel audio out.
RAW or PCM: These surround sound
formats are output to a Dolby Digital decoder
through the COAXIAL OUT jack.
20
SETUP MENU (CONTINUED)
- - General Setup Page - -
On
O
ff
General Audio Dolby Video Preference
TV Display
Angle Mark
OSD Lang
Spdif Output
Captions
S
creen Saver
Closed Caption
General
- - General Setup Page - -
On
Off
General Audio Dolby Video Preference
TV Display
A
ngle Mark
OSD Lang
S
pdif Output
Captions
Screen Saver
Screen Saver
General
- - Speaker Setup Page - Lt/Rt
Stereo
General Audio Dolby Video Preference
Downmix
Set Downmix Mode
General
CAPTIONS
1
When this option is set to ON, Closed
Captions will appear on the screen for the
hearing impaired (if originally recorded on
the DVD). When this option is OFF, the
Closed Captions will not appear.
SCREEN SAVER
1
When this option is set to ON, the screen
saver will come on when the unit stops or
the image is paused for approximately 3.5
minutes.
When this option is OFF, the screen saver will
not come on.
AUDIO SETUP MENU:
Press the SETUP button to enter the menu, select AUDIO SETUP using the Navigation (√,®)
buttons, then press the PLAY/ENTER button on the remote (ENTER button on main unit) to
select it. Select/change the setup option as described on this page using the Navigation
(
√,®,π,†) buttons and the PLAY/ENTER button.
DOWNMIX
1
LT/RT: Select to hear the sound in theatrical
downmix mode.
STEREO: Select to hear the sound in
Stereo downmix mode.
21
SETUP MENU (CONTINUED)
- - Dolby Digital Setup - Stereo
L-Mono
R-Mono
Mix-Mono
General Audio Dolby Video Preference
Dual Mono
Dynamic
Dual Mono (1 + 1) Setup
General
Stereo
L-Mono
R-Mono
Mix-Mono
G
Dual Mono
Dynamic
Dual Mono (1 + 1) Setup
G
- - Dolby Digital Setup - -
General Audio Dolby Video Preference
Dual Mono
Dynamic
General
FULL
3/4
1/2
1/4
OFF
DOLBY SETUP MENU:
Press the SETUP button to enter the menu, select DOLBY SETUP using the Navigation (√,®)
buttons,
select it. Select/change the Setup option as described on this page using the Navigation
√,®,π,†) buttons and the PLAY/ENTER button.
(
then press the PLAY/ENTER button on the remote (ENTER button on main unit) to
DUAL MONO
1
STEREO: Select this to set the Dolby Digital
output to Stereo mode.
L-MONO: Select this to set the Dolby Digital
output to left mono mode, meaning it will
reproduce the left mono signal to the Left
and Right channels.
R-MONO: Select this to set the Dolby
Digital output to right mono mode, meaning
it will reproduce the right mono signal to the
Left and Right channels.
MIX-MONO: Select this to reproduce both
channels mixed together.
DYNAMIC
1
Use to slider to set the Dynamic Range.
Set to OFF to turn Dynamic Range Off.
22
SETUP MENU (CONTINUED)
- - Video Setup Page - -
LCD
Y
uv
General Audio Dolby Video Preference
C
omponent
TV Mode
Sharpness
Brightness
Contrast
Component
General
Component
G
-
- Video Setup Page - -
High
M
edium
Low
General Audio Dolby Video Preference
Component
TV Mode
S
harpness
Brightness
Contrast
Sharpness
General
- - Video Setup Page - -
LCD
Yuv
General Audio Dolby Video Preference
Component
TV Mode
Sharpness
Brightness
Contrast
Component
General
- - Video Setup Page - -
High
Medium
Low
General Audio Dolby Video Preference
Component
TV Mode
Sharpness
Brightness
Contrast
Sharpness
General
- - Video Setup Page - -
General Audio Dolby Video Preference
Component
TV Mode
Sharpness
Brightness
Contrast
Brightness
General
- - Video Setup Page - -
High
Medium
Low
General Audio Dolby Video Preference
Component
TV Mode
Sharpness
Brightness
Contrast
Sharpness
General
- - Video Setup Page - -
General Audio Dolby Video Preference
Component
TV Mode
Sharpness
Brightness
Contrast
Contrast
General
- - Video Setup Page - -
General Audio Dolby Video Preference
Component
TV Mode
Sharpness
Brightness
Contrast
Brightness
General
VIDEO SETUP MENU:
Press the SETUP button to enter the menu, select VIDEO SETUP using the Navigation
(
√,®) buttons, then press the PLAY/ENTER button on the remote (ENTER button on main
unit) to select it. Select/change the setup option as described on this and the following page
using the Navigation (
COMPONENT
1
√,®,π,†) buttons and the PLAY/ENTER button.
SHARPNESS
1
LCD: Select to see the image on the built-in screen. (You
can connect to an external TV to see the image using the
Video cable.)
YUV: Select for Component (Y/PB/PR or Y/CB/CR)
Output. (You will need to connect to an external TV to see
the image using the Component cable.)
NOTE: When you select YUV, the built-in screen will turn
off automatically and you can see the image on the
external TV using the Component cable. To see the
image on the built-in screen again, turn off the unit and
then turn on again, the Component Output will reset to
LCD.
TV MODE
The TV Mode setting is for Component Output only. Once
you have set Component Out to YUV, you can select the
TV Mode setting:
P-Scan: Select for Progressive Scan Component Video
Output.
Interlace: If you connect a TV (using the Component
Cable) that is not compatible with a progressive scan
signal, select Interlace for the Component Video Output.
BRIGHTNESS
1
Adjust to sharpen or soften the picture.
Adjust for the desired sharpness (HIGH,
MEDIUM, LOW).
CONTRAST
1
Adjust to increase or decrease the contrast.
23
SETUP MENU (CONTINUED)
General Audio Dolby Video Preference
Preferred Audio Language
General
- - Preference Page - English
German
French
Spanish
Chinese
Japanese
Korean
Russian
Audio
Subtitle
Disc Menu
Parental
Password
Default
Preferred Audio Language
G
Spanish
Chinese
Japanese
Korean
Russian
A
P
arental
Password
Default
General Audio Dolby Video Preference
Preferred Subtitle Language
General
- - Preference Page - English
German
French
Spanish
Chinese
Japanese
Korean
Russian
Audio
Subtitle
Disc Menu
Parental
Password
Default
General Audio Dolby Video Preference
Preferred Audio Language
General
- - Preference Page - -
English
German
F
rench
Spanish
Chinese
Japanese
Korean
Russian
Audio
Subtitle
Disc Menu
Parental
Password
Default
General Audio Dolby Video Preference
Preferred Subtitle Language
G
eneral
- - Preference Page - -
English
German
French
Spanish
Chinese
Japanese
Korean
Russian
Audio
Subtitle
Disc Menu
Parental
Password
Default
General Audio Dolby Video Preference
Preferred Menu Language
General
- - Preference Page - English
German
French
Spanish
Chinese
Japanese
Korean
Russian
Audio
Subtitle
Disc Menu
Parental
Password
Default
Preferred Subtitle Language
G
English
German
French
Spanish
Chinese
Japanese
Korean
Russian
Audio
Subtitle
Disc Menu
Parental
Password
Default
General Audio Dolby Video Preference
Preferred Menu Language
General
- - Preference Page - -
English
German
French
Spanish
Chinese
Japanese
Korean
Russian
Audio
Subtitle
Disc Menu
Parental
Password
Default
General Audio Dolby Video Preference
Load Factory Setting
General
- - Preference Page - -
Reset
Audio
Subtitle
Disc Menu
Parental
Password
Default
PREFERENCE SETUP MENU:
Press the SETUP button to enter the menu, select PREFERENCE SETUP using the
Navigation (
on main unit) to select it. Select/change the setup option as described on this and the
following page using the Navigation (
AUDIO
1
√,®) buttons, then press the PLAY/ENTER button on the remote (ENTER button
√,®,π,†) buttons and the PLAY/ENTER button.
SUBTITLE
1
Select the language the DVD will be played
back in (ENGLISH, GERMAN, FRENCH,
SPANISH, CHINESE, JAPANESE,
KOREAN, RUSSIAN, THAI or OTHERS).
The DVD must be recorded in the selected
language, otherwise the default language of
the DVD will be played.
DISC MENU
1
Select the language the DISC MENU will be
in (ENGLISH, GERMAN, FRENCH,
SPANISH, CHINESE, JAPANESE,
KOREAN, RUSSIAN, THAI or OTHERS).
The DVD’s DISC MENU must be made in
the selected language, otherwise the default
language of the DVD will be shown.
Select the language the Subtitle (OSD) will
be in (ENGLISH, GERMAN, FRENCH,
SPANISH, CHINESE, JAPANESE,
KOREAN, RUSSIAN, THAI, OFF or
OTHERS). The DVD must be recorded in
the selected language, otherwise the default
language of the DVD will be shown. Select
OFF to select without any language
showing on the TV screen.
DEFAULT
1
Select this option to reset all the preferences
(except PASSWORD) to their original factory
settings. This is useful to reset the NTSC
System.
24
SETUP MENU (CONTINUED)
General Audio Dolby Video Preference
General
- - Preference Page - 1 KID SAF
2 G
3 PG
4
PG 13
5 PGR
6 R
7 NC17
8 ADULT
Audio ENG
Subtitle ENG
Disc Menu ENG
Parental
Password
Default
Set Parental Control
2
1
2
1
3
PARENTAL
The Parental option enables parents to prevent their children from watching inappropriate
material on a DVD. It reads the ratings for programming, then denies access to programming
if the program’s rating meets the limitations you select. In this case, the user will have to
enter a password.
1
Press the SETUP button 1 to enter the
menu, select PREFERENCE SETUP using
the Navigation
the PLAY/ENTER button
the Navigation (
PARENTAL. Press the PLAY/ENTER button
3 followed by the Navigation (π,†) buttons
2 to select the desired rating (SEE BELOW).
1 (KID SAF): Kid Safe.
2 (G): All ages.
3 (PG): Parental Guidance.
4 (PG13): Parental Guidance less than 13
5 (PGR): Under 17 years old, Parental
(√,®) buttons 2, then press
3 to select it. Use
π,†) buttons 2 to select
years old.
Guidance suggested.
2
Press the PLAY/ENTER button 1 to select
the rating. Input your password using the
Number buttons
press the PLAY/ENTER button
The desired rating will then be set, and if
DVDs with this new rating or above are
played, the user will require a password.
If an incorrect password is entered, access
will not be allowed.
If you forget your password, contact
customer service at the number listed on
page 42.
6 (R): Under 17 years old, Parental
7 (NC17): 17 years old and above.
8 (ADULT):Adult only.
2 (see note below), then
1 again.
Guidance strongly
suggested.
NOTE: The default password is 1234.
25
SETUP MENU (CONTINUED)
General Audio Dolby Video Preference
General
- - Preference Page - -
1 KID SAF
2 G
3
PG
4 PG 13
5 PGR
6 R
7 NC17
8 ADULT
Audio ENG
Subtitle ENG
Disc Menu ENG
Parental
Password
Default
Set Parental Control
General Audio Dolby Video Preference
General
- - Preference Page - -
C
hange
Audio ENG
Subtitle ENG
Disc Menu ENG
Parental
P
assword
Default
Change Password
General Audio Dolby Video Preference
General
- - Preference Page - -
Change
Audio ENG
Subtitle ENG
Disc Menu ENG
Parental
Password
Default
Change Password
G
eneralAudioDolbyVideoPreference
General
Please Enter Old Password
Old Password
New Password
Confirm PWD
1
2
2
1
PASSWORD
Select this option to change the password. You must know the old password in order to
change it. If you have forgotten the password, call customer service at the number listed on
page 42.
1
At the PREFERENCE MENU, use the
Navigation (
PASSWORD. Press the PLAY/ENTER
button
π,†) buttons 1 to select
2 to select CHANGE.
2
Press the PLAY/ENTER button 1 to change
the password. Input your old password (see
previous page), then the new password and
then confirm the new password using the
Number buttons
PLAY/ENTER button
new password will then be set, be sure to
write it down for future reference.
2, then press the
1 again. The desired
26
BASIC OPERATION
2
1
IMPORTANT:
When “ ” appears while pressing a button, this means that the
corresponding function cannot be performed either on the disc inserted, or
in the selected mode.
MUTE BUTTON
1
Press the MUTE button once to mute the
sound; “MUTE” will appear on the screen.
Press the MUTE button again to restore the
sound; “MUTE OFF” will appear temporarily
on the screen.
HEADPHONE JACK(S)
1
For private listening, plug headphones into
one or both of the Headphone jacks. The
speakers will be disconnected when
headphone(s) are connected.
LCD MODE BUTTON
P/N BUTTON
1
Press the P/N button to switch back and
forth between NTSC and PAL. In the USA,
the standard is NTSC.
SCREEN MODE BUTTON
1
Press to cycle between standard 4:3 size
(TV) and full screen (will fill the LCD
screen).
NOTE: The Screen Mode button is just for
adjusting the built-in screen’s display only,
not for the Video Output.
1
Press the LCD MODE button 1 to access the
On-Screen picture display menu. Use the
Navigation (
screen display’s Brightness, Contrast, Saturation
and/or Hue. When finished, press the LCD
MODE button
display menu.
27
√,®,π,†) buttons 2 to adjust the
1 to exit the On-screen picture
DISPLAY BUTTON
BASIC OPERATION (CONTINUED)
1
While playing a DVD, press the DISPLAY
button to cycle as follows:
1st press: Title elapsed time
2nd press: Title remaining time
3rd press: Chapter elapsed time
4th press: Chapter remaining time
5th press: Display off
I/P (INTERLACE/PROGRESSIVE) BUTTON
1
2
While playing a CD, press the DISPLAY
button to cycle between single elapsed time
and single remaining time.
Press this button repeatedly to select between
Interlace or P-Scan (Progressive Scan).
Interlace: To see the image through the built-in
screen or through an external TV using the Video
Cable.
P-Scan (Progressive Scan): The built-in screen
will turn off and you can only see the image through
an external TV (the TV must be compatible with
Progressive Scan signal) using the Component
Cable.
NOTE: For the Component Output connection, if
your TV is not compatible with the progressive scan
signal, set the Component setting to YUV and set
the TV Mode setting to Interlace as described on
page 23.
28
DVD OPERATION
IMPORTANT NOTES:
• After plugging in, the unit will be in the Power Off mode. Press the Power button on the
main unit to turn on the unit; the ENTER button will light briefly. You can also press the
STANDBY button on the remote to turn on the unit.
• “ ” will appear on the screen during operation if you try to access a function that is
not available on the disc.
• Some discs may take a few seconds to load.
• If a disc is inserted incorrectly, dirty, damaged, or is not present at all, “NO DISC” will
appear in the display.
• Always hold the disc without touching either of its surfaces. When inserting a disc,
position it with the printed title side facing up, align it with the guides and place it in its
proper position.
• It is important that you read the manual that accompanies the DVD disc as there are
features that are on this DVD player that cannot be used with certain DVDs. There are
also extra features that are different for each DVD disc, so they are not explained in this
owner’s manual.
• If the unit is in the Stop mode or if there is no disc in the disc tray, the unit will power off
automatically after seven minutes.
PLAYBACK OF A DVD
1
Press the STANDBY button on the remote
to turn on the unit.
NOTE:
You can also press the POWER button on
the main unit to turn on the unit.
CONTINUED ON THE NEXT PAGE
2
Press the OPEN/CLOSE button to open the
disc tray, “OPEN” will appear on the screen.
Insert a disc with the label side facing up on
the disc tray.
29
DVD OPERATION (CONTINUED)
1
2
1
2
3
3
3
Close the disc tray. After loading, the menu
screen of the DVD should appear. Use the
Navigation (
the desired option and press the
PLAY/ENTER button
VOLUME control
NOTE:
If the menu screen does not appear, press
the MENU button to access it.
NOTES:
• If a MENU appears on the TV screen, press the Navigation (√,®,π,†) buttons to select
the desired option/item, then press the PLAY/ENTER button. Please make sure to refer
to the disc’s jacket or case for additional information.
• Resuming playback may not work on all discs.
√,®,π,†) buttons 1 to select
2 to select it. Adjust the
3 as desired.
4
To stop playback, press the Stop (■) button
1; “PRESS PLAY KEY TO CONTINUE” will
appear on the screen. Because the unit will
remember where you stopped, simply press
the PLAY/ENTER button
3 to resume playback where you left
button
off (resuming playback).
If the Stop (
the screen shows “(
stop completely.
■) button 1 is pressed twice,
2 or the RESUME
■)” and the unit will
30
DVD OPERATION (CONTINUED)
1
2
1
2
3
2
1
1
2
3
SKIP
1
Press the Skip (n) button 1 to advance the
DVD to the beginning of the next chapter.
Press the Skip (
DVD to the beginning of the current or
previous chapters.
o) button 2 to move the
SLOW MOTION
Use this feature to move the DVD in slow motion.
1
SEARCH
1
During playback, press either the Search ®®
button 1 or Search√√ button 2 to move the
DVD forward or backward at double (x2) speed to
locate a specific section. Repeatedly press these
buttons and the speed will increase to x4, x8, x16
and resume normal playback.
The DVD will move forward or backward at high
speed until the PLAY/ENTER button
again; normal playback will resume at that point.
3 is pressed
PAUSE/STEP
1
During playback, press the SLOW button 1
to move the DVD forward in slow motion
speeds of 1/2, 1/4, 1/8, 1/16 and resume
normal playback. The sound will be muted.
You can also resume normal playback by
pressing the PLAY/ENTER button
2.
Press the PAUSE button 1 once to pause
the picture.
Repeatedly press the STEP button
play the DVD one frame at a time.
Press the PLAY/ENTER button
normal playback.
31
3 to resume
2 to
DVD OPERATION (CONTINUED)
2
1
3
2
1
3
2
1
3
TITLE/CHAPTER SEARCH
Use this feature to directly go to a specific title
and/or chapter.
1
Press the GOTO button 1 once. Press the
Navigation (
TITLE, then use the Number buttons
select the desired title number. Playback will
start immediately.
Press the Navigation (
select CHAPTER, then use the Number
buttons
number. Playback will start immediately.
√, ®) buttons 2 to select
3 to
√,®) buttons 2 to
3 to select the desired chapter
TITLE/TIME SEARCH
Use this feature to directly go to a specific title
and/or time.
1
Press the GOTO button 1 twice. Press the
Navigation (
then use the Number buttons
desired title number. Playback will start
immediately.
Press the Navigation (
select TIME, then use the Number buttons
to select the desired time (Hour/Minutes/
Seconds). Playback will start immediately.
√,®) buttons 2 to select TITLE,
3 to select the
√,®) buttons 2 to
3
CHAPTER/TIME SEARCH
Use this feature to directly go to a specific chapter and/or time.
1
NOTE:
To enter the TITLE/CHAPTER number, for numbers 10-19, press the +10 button once for the
first digit and then enter the second digit using the Number (0-9) buttons; for 20-29, press the
+10 button twice for the first digit and then enter the second digit using the Number (0-9)
buttons, etc.
Press the GOTO button 1 three times.
Press the Navigation (
select CHAPTER, then use the Number
buttons
number. Playback will start immediately.
Press the Navigation (
select TIME, then use the Number buttons
to select the desired time (Hour/Minutes/
Seconds). Playback will start immediately.
32
3 to select the desired chapter
√,®) buttons 2 to
√,®) buttons 2 to
3
DVD OPERATION (CONTINUED)
REPEAT PLAYBACK
While playing back a DVD, this unit can
repeatedly playback a chapter or title.
1
While in the Playback mode, press the
REPEAT button once; “ CHAPTER” will
appear on the screen and the currently
playing Chapter will repeat continuously.
Press the REPEAT button a second time;
“ TITLE” will appear on the screen and
the currently playing Title will repeat
continuously.
Press the REPEAT button a third time; “
ALL” will appear on the screen and all
chapters/titles will play continuously.
Press the REPEAT button once more to
cancel Repeat mode.
A-B REPEAT PLAYBACK
While playing back a DVD, this unit can
repeatedly playback a specific section.
1
While in the Playback mode, press the
Repeat A-B button to define where you want
the section to start. Press the Repeat A-B
button again to define where you would like
the section to end, the unit will then play the
selected area continuously.
Press the Repeat A-B button again to cancel
Repeat A-B mode.
NOTE:
• Repeat may not work properly with some discs.
33
DVD OPERATION (CONTINUED)
2
1
3
2
1
3
AUDIO MENU
1
Press the AUDIO button repeatedly to
change the audio language. This feature is
not available on all discs.
DVD MENU
1
SUBTITLE MENU
1
Press the SUB-T button repeatedly to select
a subtitle language, and to turn the subtitle
menu on/off. This feature is not available on
all discs.
TITLE MENU
1
Press the MENU button 1, and the Main
Menu of the disc will appear. Use the
Navigation (
the desired option, and then press the
PLAY/ENTER button
This is not available on all discs.
√,®,π,†) buttons 2 to select
3.
Press the TITLE MENU button 1, and the
Title Menu of the disc will appear. Use the
Navigation (
the desired option, and then press the
PLAY/ENTER button
This is not available on all discs.
34
√,®,π,†) buttons 2 to select
3.
DVD OPERATION (CONTINUED)
2
1
1
2
3
ZOOM IN
The image on the screen can be magnified
as follows:
ANGLE
Some discs may contain scenes which have
been shot simultaneously from a number of
different camera angles. This feature only
works on discs with more than one camera
angle. The jacket will be marked with “ ”.
1
Press the ZOOM button 1 once during Normal,
Slow or Still playback modes, and the unit will
zoom x2. Press once or twice more and the unit
will zoom x3/x4. Press yet again to resume
normal view. Use the Navigation (
2 to move the image on the TV screen.
buttons
This is not available on all discs.
√,®,π,†)
RESUME
1
1
Press the ANGLE button repeatedly to select
an alternate angle. This feature is not
available on all discs.
During playback, press the STOP button 1;
“PRESS PLAY KEY TO CONTINUE” will
appear on the screen, simply press the
PLAY/ENTER button
button
3 to resume playback where you left
off (resuming playback).
2 or the RESUME
35
DVD OPERATION (CONTINUED)
1
2
PROGRAMMED PLAYBACK
The DVD player in this unit has a 20 chapter programmable memory that allows you to
program up to 20 chapters on any disc for playback in any desired order. You may program 20
different chapters or you may also program certain chapters to play more than once. To
perform Programmed Playback, proceed as follows:
1
During playback of a DVD disc, press the
PROGRAM button; the Program menu will
appear on the TV screen.
3
2
Select the first title and chapter to be played back
using the Number buttons to input two numbers for
each program track, one for the title and one for the
chapter. After inputting the two numbers, the cursor
will jump to the next program.
NOTE: For numbers 10-19, press the +10 button
once for the first digit and then enter the second
digit using the Number (0-9) buttons; for 20-29,
press the +10 button twice for the first digit and
then enter the second digit using the Number (0-9)
buttons, etc.
4
Repeat step 2 until all desired chapters
have been programmed (up to 20).
If you would like to program more than 10
chapters, press the SKIP
the next screen.
n button to go to
Use the Navigation (√,®,π,†) button 1 to
select "Start" at the bottom of the Program
menu; then press the PLAY/ENTER button
2 to begin Programmed playback. Playback
will begin on the first chapter that you
programmed and the player will continue to
play all of the chapters that you
programmed in the order in which you
programmed them.
TO CANCEL AND STOP THE PROGRAM FUNCTION:
Press the STOP (■) button twice.
36
PLAYBACK OF A CD
CD OPERATION
1
Press the STANDBY button on the remote
to turn on the unit.
NOTE: You can also press the POWER
button on the main unit to turn on the unit.
3
2
Press the OPEN/CLOSE button to open the
disc tray, “OPEN” will appear on the screen.
Insert a disc with the label side facing up on
the disc tray.
Close the disc tray. After loading, playback
will start automatically. To stop playback,
press the Stop (
X) button.
37
2
1
RANDOM PLAYBACK
1
2
1
2
3
CD OPERATION (CONTINUED)
1
SKIP
1
Press the Skip (n) button 1 to advance to
the beginning of the next file.
Press the Skip (
beginning of the previous file.
o) button 2 to move to the
While in the Stop mode, press the
SHUFFLE button
appear on the screen; press the
PLAY/ENTER button
randomly playback all the tracks on the CD.
To cancel Random, press the SHUFFLE
1 until “FOLDER” appears on the
button
screen.
1 once, “SHUFFLE” will
2 and the unit will
SEARCH
1
During playback, press either the Search ®®
button 1 or Search√√ button 2 to move the disc
forward or backward at double (x2) speed to
locate a specific section. Repeatedly press these
buttons and the speed will increase to x4, x8, x16
and resume normal playback.
The disc will move forward or backward at high
speed until the PLAY/ENTER button
again; normal playback will resume at that point.
3 is pressed
38
PAUSE
CD OPERATION (CONTINUED)
SELECTING TRACKS USING THE
NUMBER BUTTONS
1
Press the PAUSE button to pause playback;
the Pause indicator will appear on the
screen. Press again to resume playback;
the Pause indicator will turn into the Play
indicator again.
REPEAT PLAYBACK
While playing back a disc, this unit can
repeatedly playback one or all track(s) on a
disc.
1
1
During playback, press the Number buttons
corresponding to the track number to select your
desired track, and the unit will playback the desired
track automatically.
NOTE: Enter a three-digit number to select a track,
i.e. for the first track, press "0", "0" and then "1" or
for the tenth track, press "0", "1", "0", etc.
A-B REPEAT PLAYBACK
While playing back a disc, this unit can
repeatedly play back a specific section.
1
While in the Playback mode, press the REPEAT
button once; “REPEAT ONE” will appear briefly
on the screen and the currently playing track will
repeat continuously.
Press the REPEAT button a second time;
“REPEAT FOLDER” will appear on the screen
and all of the tracks on the disc will play
continuously.
Press the REPEAT button once more to cancel
Repeat mode; “FOLDER” will appear on the
screen.
While in the Playback mode, press the
Repeat A-B button to define where you want
the section to start. Press the Repeat A-B
button again to define where you would like
the section to end, the unit will then play the
selected area continuously.
Press the Repeat A-B button again to cancel
Repeat A-B mode.
39
PICTURE CD OPERATION
4
1
2
3
5
1
Press the STANDBY button to turn on the
unit.
3
2
Press the OPEN/CLOSE button to open the
disc tray, “OPEN” will appear on the screen.
Insert a disc with the label side facing up on
the disc tray. Close the disc tray.
After loading a picture CD, the pictures will automatically show as a slideshow on the
screen. Press the Skip (
slideshow is done, it will stop. Press the Stop (
finished; then the Picture menu will appear. Press the Navigation (
the desired picture then press the PLAY/ENTER button
n) 1 or (o) 2 button to select the previous or next picture. After the
X) button 3 to stop the slideshow before it is
π,†) button 4 to select
5 to view it.
40
TROUBLESHOOTING GUIDE
SYMPTOM
GENERAL
No power.
Power on, but unit not functioning
properly.
No picture.
No sound.
Playback picture rolls.
The playback picture is poor.
The Search feature is not working.
The picture is not fitting properly.
The remote control is not working.
POSSIBLE SOLUTION
Recharge battery pack.
Unplug the unit and wait about one to
two hours to allow the player to dry.
This unit cannot play discs, other than
DVD, standard CDs or picture CDs.
Press the STANDBY ON/OFF button,
then unplug the power cord. Wait one
minute and then plug the unit back in.
Clean disc and insert label side-up.
This is normal, try another function.
Connect the equipment according to the
instructions in this manual.
Select the appropriate video input
mode, usually VIDEO or AV.
Connect the video cables securely.
Connect the equipment according to the
instructions in this manual.
Select the appropriate audio input
mode.
Connect the audio cables securely.
Turn the audio receiver on.
Press P/N button.
Clean the disc.
This is normal on some discs.
Select the correct TV type (PS, LB, WIDE)
which matches the TV you are using.
Install a fresh battery.
Install battery according to the diagram.
Aim the remote at the sensor.
Operate within 20ft, or reduce the light
in the room.
Move obstacle.
POSSIBLE CAUSE
Battery pack is empty.
Condensation has formed.
Wrong type of CD inserted.
Unit needs to be reset.
The disc is dirty or inserted incorrectly.
Some features and functions are not
available on all discs.
The equipment is not connected properly.
The INPUT of the TV is not set to receive
the DVD signal output.
The video cables are not securely
connected.
The equipment is not connected properly.
The equipment connected with the audio
cable is not set to receive the DVD signal
input.
The audio cables are not securely
connected.
The connected receiver’s power is off.
Unit needs to be reset to NTSC.
The disc is dirty.
Some discs have sections that do not
allow searching.
Wrong menu option is selected in the
SETUP MENU.
The battery is weak or dead.
The battery is not installed properly.
The remote is not aimed at the sensor.
Distance is too far or there is too much
light in the room.
There is an obstacle in the path of the
beam.
Check the following before requesting service:
41
TROUBLESHOOTING GUIDE (CONTINUED)
SYMPTOM
D
VD
The unit does not start playback.
Some functions do not operate as
stated.
Selected language is not being
shown in the subtitles, or spoken.
Subtitles are not working properly.
Angle cannot be changed.
The Rating Level password has
been forgotten.
POSSIBLE SOLUTION
Enter your password, and/or change
t
he rating level.
Insert DVD correctly.
M
ake sure to insert a DVD; “DVD
V
IDEO” will appear in the display.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
This is normal; try another function.
This is normal; try another disc.
This is normal; try another disc.
Turn the subtitles on.
Try another disc, or wait for a scene
which allows a different camera angle.
The default password is "1234". If you
changed and forgot it, contact customer
service at the number listed on the
back cover of this manual.
POSSIBLE CAUSE
Rating level set to block the DVD.
DVD not inserted, or inserted upside-down.
A non-playback disc is inserted.
The disc is not placed in the guide.
The disc is dirty.
Some features and functions are not
available on all discs.
If the audio or subtitle language does not
appear on the disc, then the initial setting
will not be seen/heard.
Subtitles appear only when the discs
contain them.
Subtitles not turned on.
Angles may not be recorded on the disc
(see disc jacket/case), or they may only
be recorded on certain scenes.
Password forgotten.
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE
VISIT OUR WEBSITE AT WWW.MEMOREXELECTRONICS.COM OR
CONTACT CUSTOMER SERVICE AT
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN
CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF
PURCHASE OR MEMOREX.
FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT
1-800-321-6993.
(954) 660-7100
42
CARE AND MAINTENANCE
B
E
N
Z
E
N
E
C
L
E
A
N
E
R
Caring for Discs
• Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to
come in contact with the shiny, unprinted side of the disc.
• Do not attach adhesive tape,
stickers, etc. to the disc label.
• Clean the disc periodically with a
soft, lint-free, dry cloth. Never use
detergents or abrasive cleaners to
clean the disc. If necessary, use a
CD cleaning kit.
• If a disc skips or gets stuck on a
section of the disc, it is probably dirty or damaged (scratched).
• When cleaning the disc, wipe in straight lines from the center of the disc to the
outer edge of the disc. Never wipe in circular motions.
• Discs should be stored in their cases after each use to avoid damage.
• Do not expose discs to direct sunlight,
high humidity, high temperatures or
dust, etc. Prolonged exposure or
extreme temperatures can warp the
disc.
• Do not stick or write anything on either
side of the disc. Sharp writing
instruments, or the ink, may damage
the surface.
Cleaning the Unit
• To prevent fire or shock hazard, disconnect your unit from the AC power source
when cleaning.
• The finish on your unit may be cleaned with a dust cloth and cared for as other
furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a damp cloth may be used on the front panel.
43
SPECIFICATIONS
Power Requirements ...........................................................DC IN 9V (Center Positive z)
Battery Pack ..........................................Li-Polymer Rechargeable Battery DC 7.4V 3700mAh
Power Consumption............................................................................................................11W
Weight ............................................................................................................................2.2 Lbs
Dimensions........................(Main unit without battery pack) 9.5 (W) x 6.5 (H) x 1.2 (D) inches
Operating Temperature..........................................................................................+5° to +35°C
Operating Humidity Range .........................................................5% to 90% (no condensation)
Accessories AC cord, AC Adapter, Rechargeable Battery Pack, Remote Control, Remote
battery, Car Adapter, Audio Cable, Audio(Coaxial)/Video Cable, Component Cable
Discs Played:
DVD-VIDEO Disc
12cm single-sided, single layer
12cm single-sided, dual layer
12cm double-sided, single layer
8cm single-sided, single layer
8cm single-sided, dual layer
8cm double-sided, single layer
COMPACT DISC
12cm disc
8cm disc
Video Output Level ...........................................................................................................1Vp-p
Audio Output Level......................................................................................2Vrms (1KHz, 0dB)
Audio Signal Output Characteristics:
Frequency Responses:
DVD (Linear Audio) ......................................................20Hz-20KHz (48KHz/96KHz sampling)
CD Audio................................................................................................................20Hz-20KHz
S/N Ratio............................................................................................................................70dB
Wow and Flutter..................................................................................Below Measurable Level
Pickup:
Wavelength......................................................................................................................655nm
Laser Power ...................................................................................................................Class 1
Specifications are subject to change without notice.
44
Memcorp, Inc.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
Loading...
