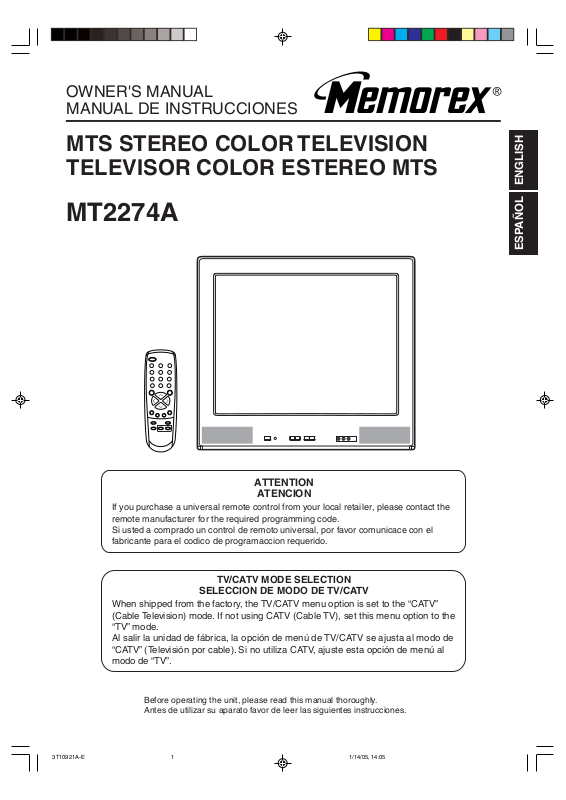

Memorex MT2274A User Manual

OWNER'S MANUAL MANUAL DE INSTRUCCIONES

MTS STEREO COLOR TELEVISION TELEVISOR COLOR ESTEREO MTS

MT2274A

ENGLISH

ESPAÑOL

If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. Si usted a comprado un control de remoto universal, por favor comunicace con el fabricante para el codico de programaccion requerido.

When shipped from the factory, the TV/CATV menu option is set to the “CATV” (Cable Television) mode. If not using CATV (Cable TV), set this menu option to the “TV” mode. Al salir la unidad de fábrica, la opción de menú de TV/CATV se ajusta al modo de “CATV” (Televisión por cable). Si no utiliza CATV, ajuste esta opción de menú al modo de “TV”.

Before operating the unit, please read this manual thoroughly. Antes de utilizar su aparato favor de leer las siguientes instrucciones.

3T10921A-E 1/14/05, 14:051

ATTENTION

ATENCION

TV/CATV MODE SELECTION

SELECCION DE MODO DE TV/CATV

ENGLISH

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

CAUTION:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PA RTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Rules could void the user's authority to operate this equipment.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

NOTE:

Please keep all packaging material for at least 90 days in case you need to return this product to your place of purchase or Memorex.

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning the exterior cabinet only.

6. ATTACHMENTS

The manufacturer of this unit does not make any recommendations for attachments, as they may cause hazards.

7. WATER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

8. ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit.

8A. An appliance and cart combination should be moved with care. Quick stops, excessive

force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. VENTILATION

Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation, such as a bookcase, or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. POWER SOURCE

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

12. POWERCORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

3T10921A-E 1/14/05, 14:052

13. LIGHTNING

To protect your unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines, other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15. OVERLOADING

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

17. OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

18. SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the unit. c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the

operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work

by a qualified technician to restore the unit to its normal operation. e. If the unit has been dropped or the cabinet has been damaged.

f. When the unit exhibits a distinct change in performance, this indicates a need for service.

20. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or

those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

21. SAFETY CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the

unit is in proper operating condition.

22. WALL OR CEILING MOUNTING

If mounting this unit to a wall or ceiling follow the installation recommended by the manufacturer of a mounting bracket

specifically designed for this type of product. Use only a mounting device that can handle the weight and size of your unit.

Should your bracket require drilling holes into this unit, this would void the manufacturers warranty.

23. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including

amplifiers) that produce heat.

24. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building,

as close to the point of cable entry as practical.

ENGLISH

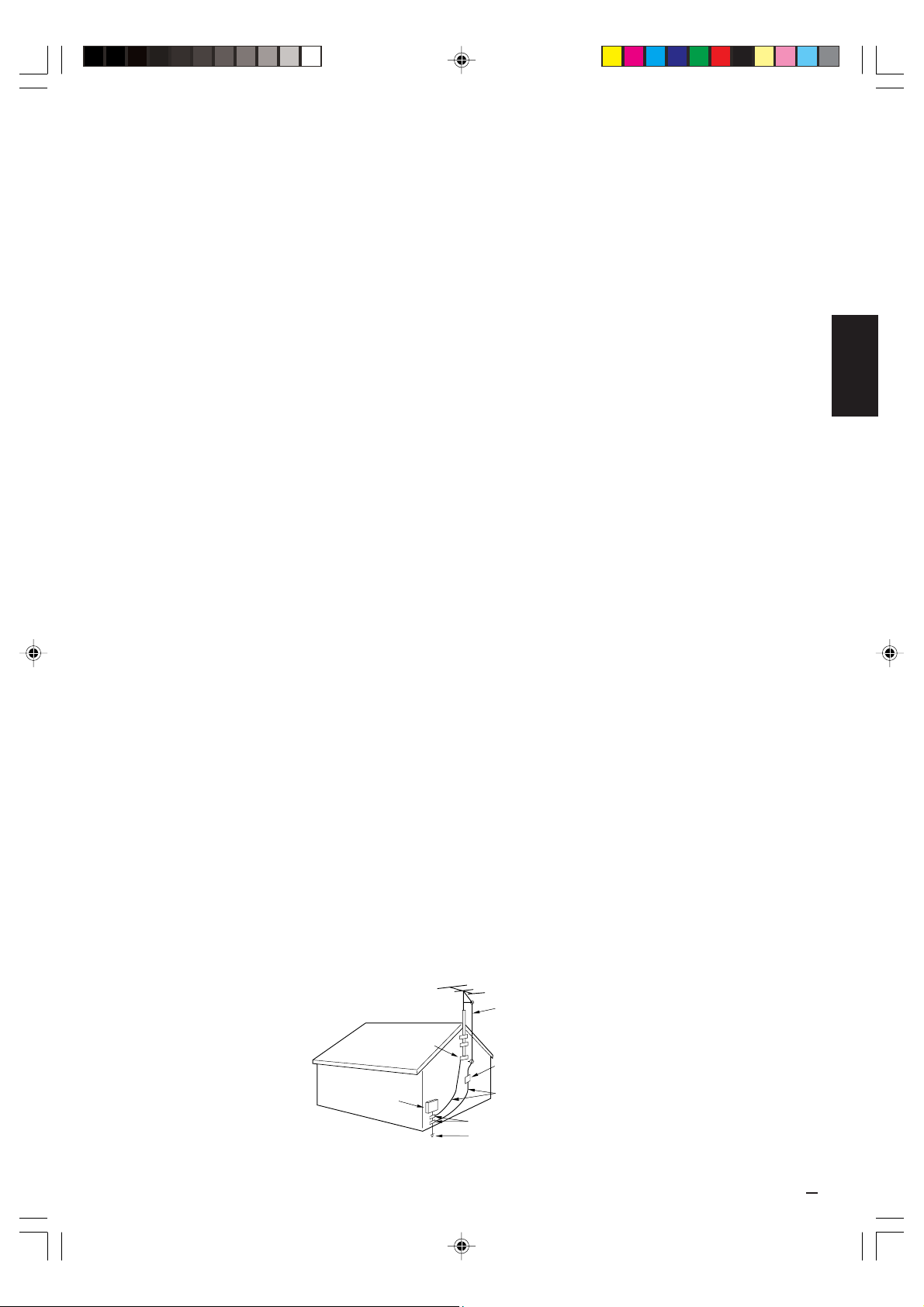

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

NEC-NATIONAL ELECTRICAL CODE S2898A

3T10921A-E 1/14/05, 14:053

GROUND CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H)

FEATURES

• 181 Channel Tuner - The tuning system is capable of receiving all 68 VHF/UHF standard broadcast channels that

are available in your area. When operating on a cable system, it can tune to the standard VHF channel frequencies plus up to 113 cable channel frequencies. The actual number of channels received depends upon channel reception in your area or your cable system.

• On-Screen 3 Language Display - This TV can display the on screen language in English, Spanish or French.

• Sleep Timer - Operable from the remote control, this TV can be programmed up to 120 minutes to turn off automatically.

• Memory Back Up - This system prevents loss of memorized channel selections in case a power interruption to the

TV should occur.

•V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded with

this information. The V-Chip will allow you to set a restriction level.

Picture Control Adjustments - The On-Screen display allows precise remote control adjustment of BRIGHTNESS,

•

COLOR, CONTRAST, SHARPNESS and TINT.

• Closed Captioned Decoder - Displays text captions or 1/2 of full screen text on the screen for hearing impaired viewers.

• Stereo/SAP Reception - This TV is designed to receive stereo and second audio program (SAP) broadcasts

where available.

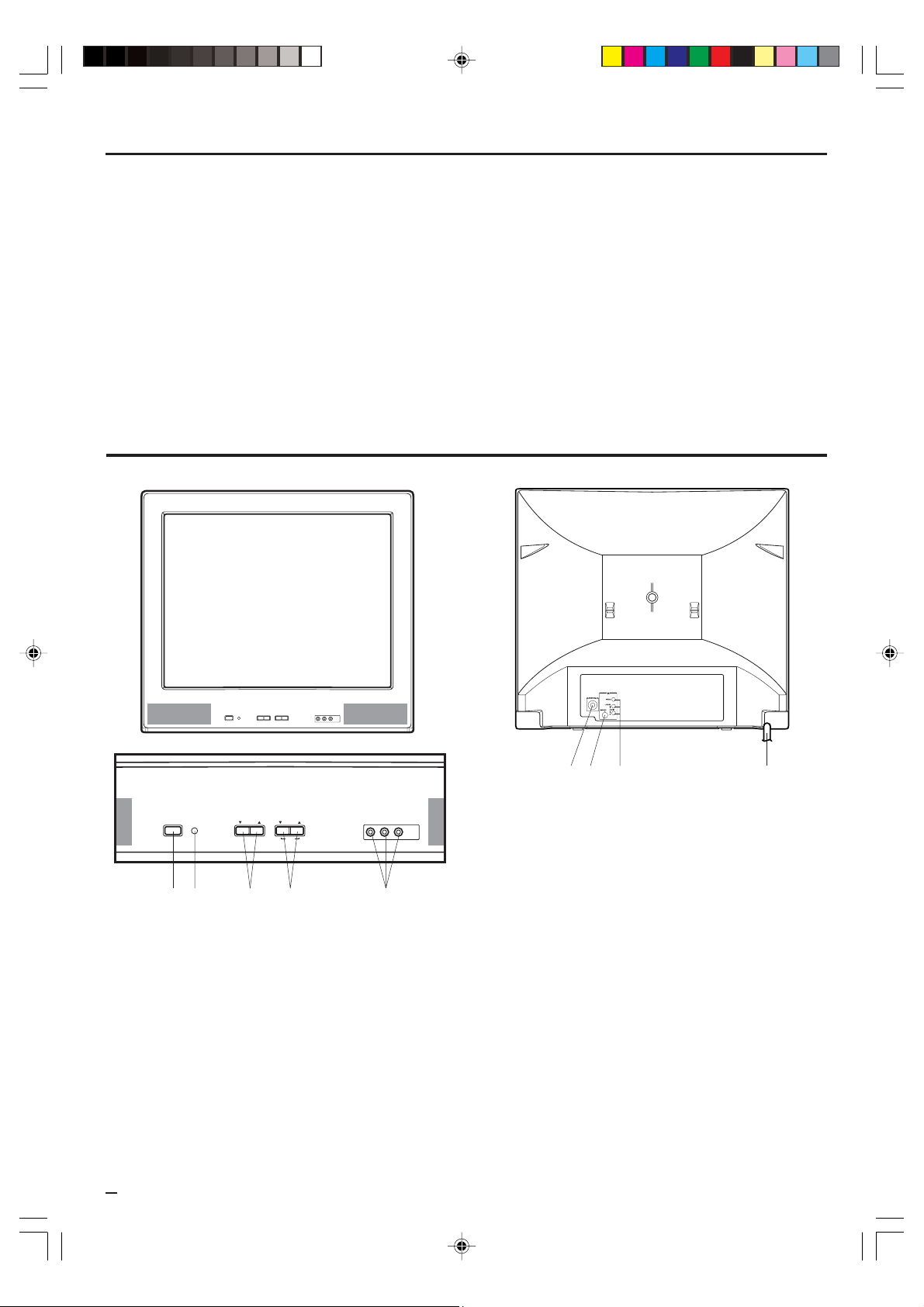

LOCATION OF CONTROLS

FRONT

POWER

BACK

697

– SET +

CHANNEL

VOLUME

ENTER RESET

(MONO)

VIDEO IN

L – AUDIO IN – R

1. POWER Button - Press to turn the TV on or off.

2. Remote Sensor - Signals from the Remote Control

unit are received here.

3. CHANNEL ▼ / ▲ Buttons - Press to select a higher

or lower numbered channel set into memory. (ENTER Button) - Press to enter or select information for On-Screen operations. (RESET Button) - Press to reset the On-Screen picture. Press to reset a password in the V-CHIP Password setting mode.

4. VOLUME ▼ / ▲ Buttons - Press to raise or lower the

level of the sound. (MENU Buttons) - Press both VOLUME ▼ / ▲ buttons at the same time to display the On-Screen menu function. (SET – / + Buttons) - Press to select the desired setting during On-Screen operations.

3T10921A-E 1/14/05, 14:054

5. FRONT AUDIO (L / R) / VIDEO IN Jacks (AUX2) -

Audio and video signal cables from an external source can be connected here.

6. VHF/UHF IN (ANT.) Jack - Connect a VHF/UHF

antenna or CATV cable to this jack.

7. S-VIDEO IN Jack - S-Video signal cable from an

external source can be connected here.

8. REAR AUDIO (L / R) / VIDEO IN Jacks (AUX1) -

Audio and video signal cables from an external source can be connected here.

9. AC Power Cord - Plug into an outlet having 120V,

60 Hz AC power only.

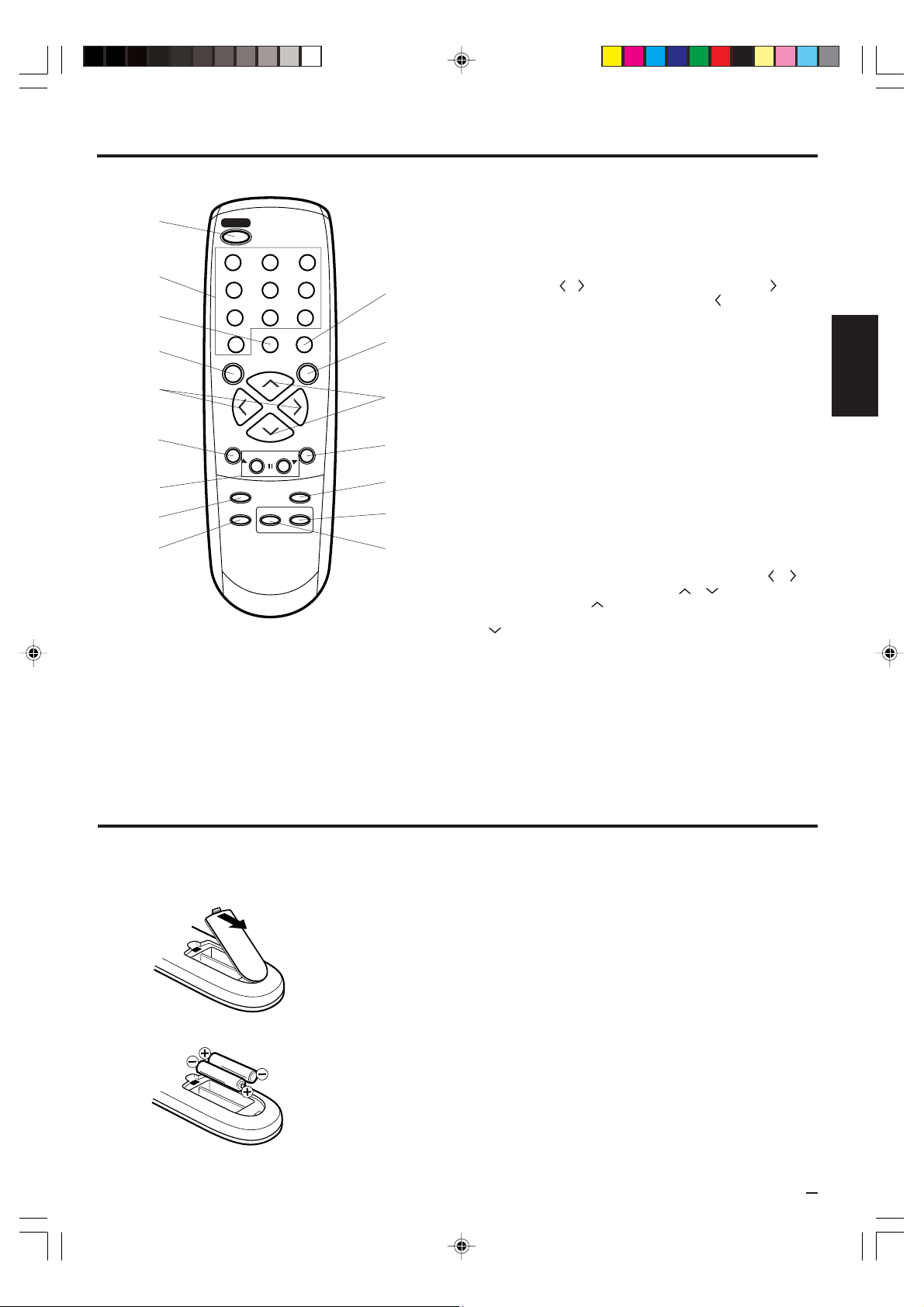

REMOTE CONTROL

1. POWER Button - Press to turn the TV on. Press again to

turn the TV off.

2. Direct Channel Selection Buttons (0-9) - Allows direct

access to any channel.

3. QUICK VIEW Button - This button allows you to go back

to the previous channel selected by just pressing the QUICK VIEW button. Press this button again to return to the channel you were watching.

POWER

123

456

7089

QUICK VIEW CALL

SLEEP

VOL

RESET

TV/AV

–

SET

CAP/TEXT

MUTE

ENTER

AUDIO

SELECT

CH.1/2

VOL

4. SLEEP Button - To set the TV to turn off after a preset

amount of time, press the SLEEP button on the remote control. The clock will count down 10 minutes each time the button is pressed in the order of 120, 110, 100, ······ 20, 10, 0. After the sleep time is programmed, the display will disappear then reappear momentarily every ten minutes to remind you the sleep timer function is operating. To confirm the sleep time setting, press the SLEEP button once and the remaining time will be momentarily displayed. To cancel sleep time, press the SLEEP button repeatedly until the display turns to 0.

5. VOL (VOLUME) / Buttons - Press the button to

increase, or the button to decrease the volume level.

6. MENU Button - Press to display the On-Screen menu

function.

7. SET – / + Buttons - Press to select the desired setting during

On-Screen operations.

8. RESET Button - Press to reset the On-Screen picture. Press

to reset a password in the V-CHIP Password setting mode.

9. TV/AV Button - Switches between TV and external inputs.

10. CALL Button - When you press this button, the channel

number will appear in the upper right corner of the screen. Press the button again to remove display from the screen.

11. MUTE Button - To turn off the sound, press this button

once. The TV will be silenced and the symbol “MUTE” will appear on the screen. The muting feature can be released by pressing the MUTE button again or one of the VOL or button.

12. CH (CHANNEL) / Buttons - Press the button to

change to a higher numbered channel set into memory. Press the button to change to a lower numbered channel set into memory.

13. ENTER Button - Press to enter or select information for On-

Screen operations.

14. AUDIO SELECT Button - Switches sound between mono

and stereo when receiving broadcasts in stereo or SAP.

15. CH.1/2 Button - Switches between Channel 1 and Channel 2

in the Closed Caption mode.

16. TV/CAP/TEXT Button - Press this button to switch between

normal TV and the two Closed Caption modes (captions and 1/2 of full screen text). Closed Captioning will display text on screen for hearing impaired viewers.

ENGLISH

Before using the remote control, batteries must first be installed.

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover.

2. Install two “AAA” batteries (not supplied).

3. Replace the battery compartment cover.

3T10921A-E 1/14/05, 14:055

Use two “AAA” size batteries. The batteries may last approximately one year depending on how much the remote control is used. For best performance, it is recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types.

BATTERY PRECAUTIONS

These precautions should be followed when using batteries in this device:

• Use only the size and type of batteries specified.

• Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture (Follow battery manufacturer's directions).

ANTENNA/CATV CONNECTIONS

Combination VHF/UHF Antenna

Single 75 ohm Cable

300 ohm Twin-lead Wire

Splitter

UHF Antenna

300 ohm Twin-lead Wire

Take off the Splitter

300-75 ohm Matching Transformer (not supplied)

VHF Antenna

Single 75 ohm Cable

300 ohm Twin-lead Wire

Incoming CATV

Converter/ Descrambler

B SwitchSplitter

300-75 ohm Matching Transformer (not supplied)

Combiner

(not supplied)

Combination VHF/UHF Antenna (Single 75 ohm Cable or 300 ohm Twin-lead Wire)

Connect the 75 ohm cable from a combination VHF/UHF antenna to the Antenna Jack. If your combination antenna has a 300 ohm Twinlead Wire, use the 300-75 ohm Matching Transformer (not supplied).

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm Twin-leads)

Connect the UHF Twin-lead Wire to a Combiner (not supplied). Connect the VHF Twin-lead to the 300-75 ohm Matching Transformer (not supplied).

Attach the Transformer to the Combiner.

Attach the Combiner to the Antenna Jack.

This television has an extended tuning range and can tune most cable channels without using a cable company supplied converter box. Some cable companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.

Separate VHF/UHF Antennas

Connect the 75 ohm Cable from the VHF antenna and the UHF antenna Twin-lead to a combiner (not supplied). Attach the Combiner to the Antenna Jack.

NOTE: If your VHF antenna has a Twin-lead Wire, use the 300-75

ohm Matching Transformer (not supplied), then connect the Transformer to the Combiner.

For Subscribers to Basic Cable TV Service

For basic cable service not requiring a Converter/Descrambler box, connect the CATV 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the television.

For Subscribers to Scrambled Cable TV Service

If you subscribe to a cable service which requires the use of a Converter/Descrambler box, connect the incoming cable to the Converter/Descrambler box and connect the output of the box to the Antenna Jack on the back of the television. Follow the connections shown left. Set the television to the output of the Converter/ Descrambler box (usually channel 3 or 4) and use the Converter/ Descrambler box to select channels.

For Subscribers to Unscrambled Basic Cable with Scrambled Premium Channels

If you subscribe to a cable service in which basic cable channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a two-set signal splitter (sometimes called a “two-set coupler”) and an A/B Switch box from the cable installer or an electronics supply store. Follow the connections shown left. With the switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the “A” position, tune your TV to the output of the Converter/ Descrambler box (usually channel 3 or 4) and use the box to tune scrambled channels.

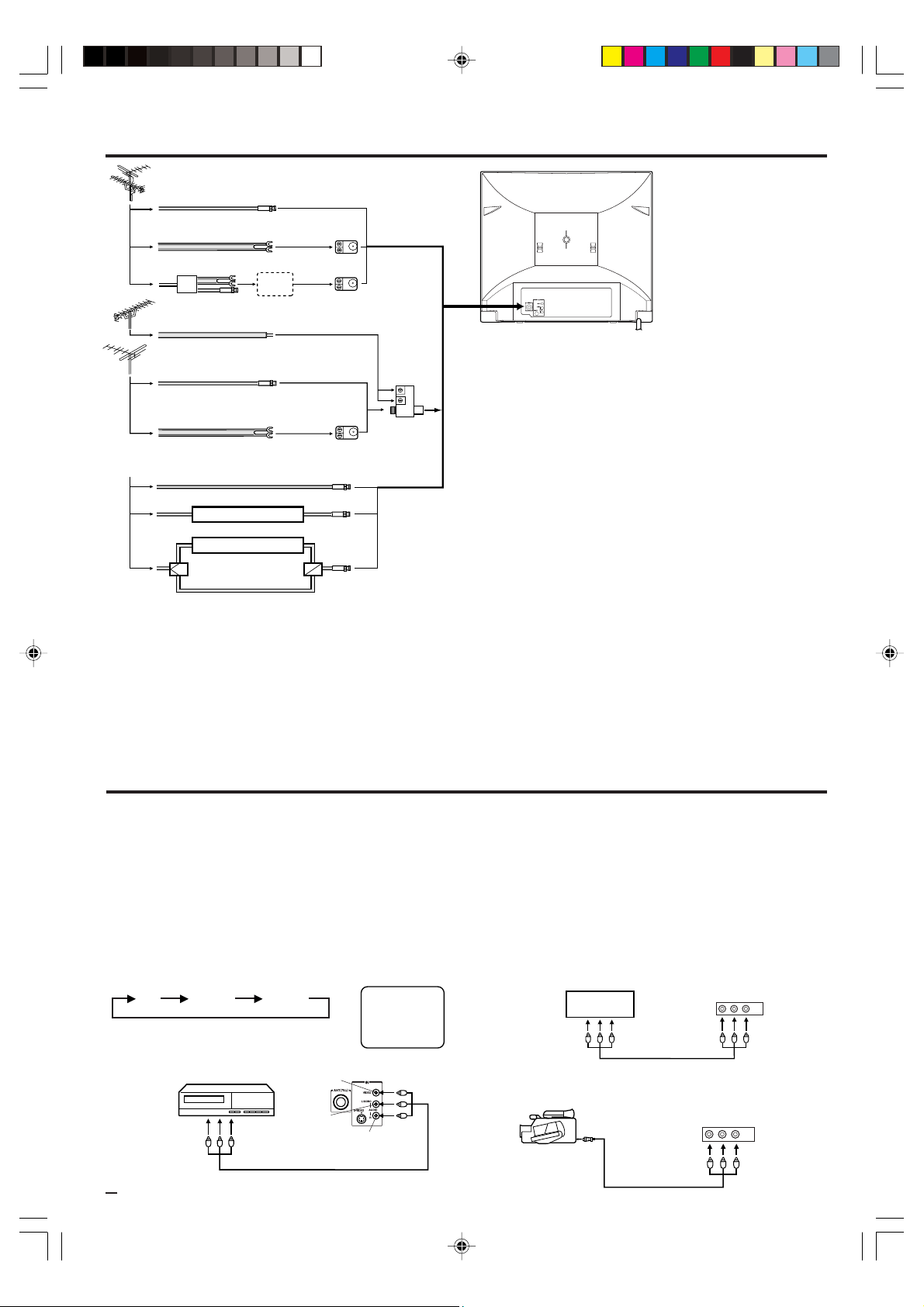

AUDIO/VIDEO JACK CONNECTIONS

The exact arrangement you use to interconnect various video and audio components to the TV is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs.

The connection diagrams below are offered as suggestions. You may need to modify them to accommodate your particular assortment of components. The diagrams are intended to show component video and audio interconnections only.

Press the TV/AV selector button to select the AV mode to use the TV as a monitor. Operate your VCR as usual.

TV/AV SELECTION

If you connect the TV to a VCR, camcorder, or TV game, through the audio/video in jacks, use the TV/AV button to make your selection.

Press the TV/AV button repeatedly to select the desired mode. “AUX1” or “AUX2” will display on the screen for 4 seconds.

AUX 1

TV AUX 1 AUX 2

1. To connect the TV to a VCR

VCR

VIDEO

Rear of TV

AUDIO (L)

To Audio/Video OUT

AUDIO (R)

(not supplied)

2. To connect the TV to a TV Game

The TV can also be used as a display device for many video games. However, due to the wide variety of different types of signal generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for additional information.

To Audio/Video OUT

(MONO)

VIDEO IN

TV GAME

L – AUDIO IN – R

Front of TV

(not supplied)

3. To connect the TV to the camcorder

To playback from the camcorder, connect the camcorder to the TV as shown.

(MONO)

VIDEO IN

To AV OUT jack

L – AUDIO IN – R

Front of TV

(not supplied)

3T10921A-E 1/14/05, 14:056

AUDIO/VIDEO JACK CONNECTIONS (CONTINUED)

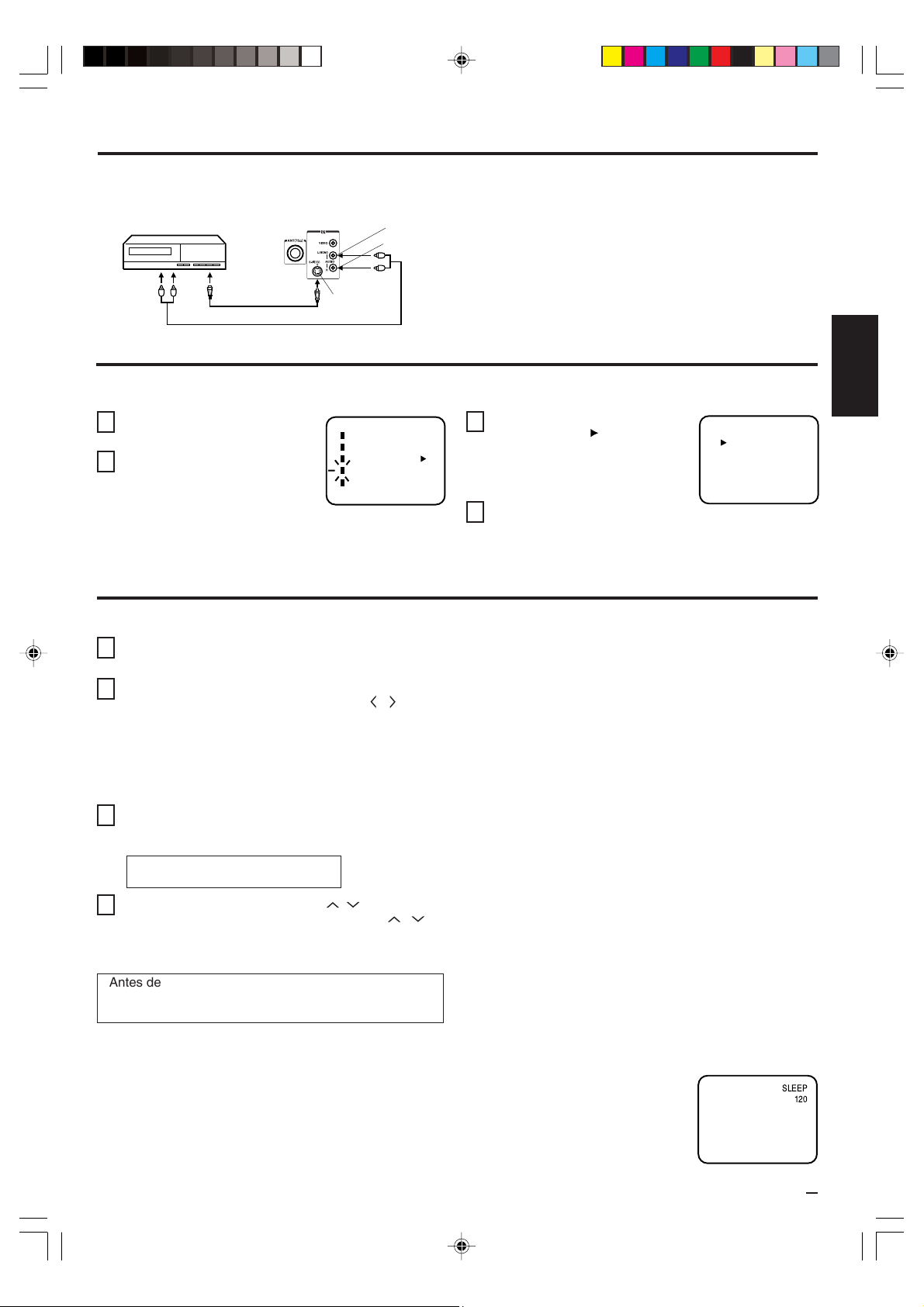

4. To connect the TV to a VCR with an S-VIDEO jack

If you connect a VCR with an S-video jack to the S-VIDEO jack on the rear of TV, you must also connect the audio cables to the AUDIO IN jacks on the rear of the TV. The S-video cable only carries the video signal; the audio signal is separate.

VCR

(not supplied)

SETTING LANGUAGE

This TV can display the on-screen language in English, Spanish or French. On-screen language selection (step 3) will automatically appear on the screen when you press the MENU button initially. Select the language you prefer first, then proceed with the other menu options.

Press the MENU button.

Press the SET + or – button to

select the LANGUAGE mode, then press the ENTER button.

NOTE:

If Spanish or French is chosen, the Closed Caption indicators will be in the selected language, but the Closed Caption text will not be affected by the language selection.

Rear of TV

S-VIDEO

CH SETUP PICTURE STABLE SOUND ON OFF LANGUAGE V-CHIP SET

〈

/ — / ENTER / MENU

AUDIO (L) AUDIO (R)

〉

NOTE: When the S-video cable and the video cable

are connected to each jack at the same time, the S-video cable takes precedence over the video cable.

Press the SET + or – button to select

the desired language: English (ENGLISH), Spanish (ESPAÑOL) or French (FRANCAIS), then press the ENTER button.

Press the MENU button until the menu screen is cleared.

LANGUAGE / IDIOMA / LANGUE

ENGLISH ESPAÑOL FRANCAIS

〈

/ – / ENTER / MENU

〉

ENGLISH

TV OPERATION

To turn on the TV, press the POWER button.

The VOLUME can be adjusted to a desired level by

pressing the VOL (VOLUME)

The sound level will be indicated on the TV screen by green bars and a number. As the sound level increases, so do the number of bars and the number on the screen. The same is true for decreasing the level.

Set the TV/CATV menu option to the appropriate position. When shipped from the factory, this menu option is in the CATV setting. See “MEMORIZING CHANNELS”.

TV - VHF/UHF channels CATV - CABLE TV channels

CH (CHANNEL) and buttons

Press and release the CH (CHANNEL) button. The channel automatically stops at the next channel set into memory. Press and hold the button down to change channels more quickly.

For proper operation, before selecting channels, they should be set into the TV's memory. See “MEMORIZING CHANNELS”.

Direct Channel Selection buttons (0-9)

Press these buttons to select a channel. The channel number will appear on the upper right corner of the TV screen. If an invalid channel number is selected, the display will revert to the original channel.

TV Mode Direct Channel Selection

When the TV/CATV menu option is in the TV setting, all channels can be instantly selected by using two buttons. (For example, to select channel 2, press “0”, then “2”. If you press only “2”, channel selection will be delayed for a few seconds). For channels 10 and above, press the 2 digits in order.

or button.

CATV Mode Direct Channel Selection

When the TV/CATV menu option is in the CATV setting, channels can be selected as follows:

CH. 1-9

Press “0” twice, then 1-9 as needed. Example, to select channel 2, press “002”.

CH. 10-12

Press “0”, then remaining 2 digits. Example, to select channel 12, press “012”.

CH. 13-99

Press the 2 digits in order. Example, to select channel 36, press “36”.

CH. 100-125

Press the 3 digits in order. Example, to select channel 120, press “120”.

NOTE: If the station being viewed stops broadcasting, the

TV will automatically shut off after 15 minutes.

SLEEP

To set the TV to turn off after a preset amount of time, press the SLEEP button on the remote control. The clock will count down 10 minutes each time the button is pressed in the order of 120, 110, 100, ······ 20, 10, 0. After the sleep time is programmed, the display will disappear then reappear momentarily every ten minutes to remind you the sleep timer function is operating. To confirm the sleep time setting, press the SLEEP button once and the remaining time will be

SLEEP

120

momentarily displayed. To cancel sleep time, press the SLEEP button repeatedly until the display turns to 0.

3T10921A-E 1/14/05, 14:057

MEMORIZING CHANNELS

This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV's memory. In addition to normal VHF and UHF channels, this TV can receive up to 113 Cable TV channels. To use this TV with an antenna, set the TV/CATV menu option to the TV setting. When shipped from the factory, this menu option is in the CATV setting.

TV/CATV SELECTION

Press the MENU button.

Press the SET + or – button until the

indicator next to “CH SETUP” begins to flash, then press the ENTER button.

Press the SET + or – button until the

indicator next to “TV/CATV” begins to flash.

Press the ENTER button to select the TV or CATV

mode. The arrow indicates the selected mode.

Press the MENU button twice to return to normal TV

viewing.

The chart below is typical of many cable system channel allocations.

CATV CHART

Number on this TV Corresponding CATV channel

23J24K25L26M27N28O29P30Q31

41EE42FF43GG44HH45II46JJ47KK48LL49

59WW60

AAA61BBB62CCC63DDD64EEE65FFF66GGG67HHH

RRR78SSS79TTT80UUU81VVV82WWW83XXX84YYY85ZZZ

95 A-596A-497A-398A-299A-1

113

114

115

113

114

115

100

101

102

100

101

116

117

116

117

102

118

120

119

118

120

119

NOTE: Contact your cable company to determine the

type of cable system used in your area.

14A15B16C17D18E19F20G21H22

32S33T34U35V36W37AA38BB39CC40

50NN51OO52PP53QQ54RR55SS56TT57UU58

68 III69JJJ70KKK71LLL

8686878788888989909091919292939394

104

103 103

121 121

105

104

105

122

123

122

123

106 106

124 124

CH SETUP PICTURE STABLE SOUND ON OFF LANGUAGE V-CHIP SET

〈

/ — / ENTER / MENU

AUTO CH MEMORY

ADD / DELETE

〈

/ — / ENTER / MENU

NNN74OOO75PPP76QQQ

MMM

107

108

109

107

108

109

125 125015A

CATV

110 110

〉

111

112

111

112

AUTOMATIC CHANNEL MEMORY

Press the MENU button.

Press the SET + or – button until the

indicator next to “CH SETUP” begins to flash, then press the ENTER button.

Press the SET + or – button until the

indicator next to “AUTO CH MEMORY” begins to flash, then press the ENTER button. The TV will begin memorizing all the channels available in your

CH SETUP PICTURE STABLE SOUND ON OFF LANGUAGE V-CHIP SET

〈

/ — / ENTER / MENU

AUTO CH MEMORY

ADD / DELETE

〈

/ — / ENTER / MENU

area. Channel numbers will remain red until auto memorizing is complete.

Press the MENU button twice to return to normal TV

viewing.

TO ADD/DELETE CHANNELS

Press the MENU button.

Press the SET + or – button until the

indicator next to “CH SETUP” begins to flash, then press the ENTER button.

Press the SET + or – button until the indicator next to “ADD/DELETE” begins to flash, then press the ENTER button.

Select the desired channels to be added or deleted

using the Direct Channel Selection buttons (10 keys, 0-9), the CH

Press the ENTER button to select ADD or DELETE.

or button or the SET + or – button.

If an unmemorized channel was selected (step 4), the channel indication will be red. Press the ENTER button if you wish to ADD the unmemorized channel. The channel indicator will change from red to green when a channel is added and the channel will be memorized. If a memorized channel was selected (step 4), the channel indication will be green.

Press the ENTER button if you wish to DELETE the channel from memory. The channel indicator will change from green to red when a channel is deleted. Repeat steps 4 and 5 for each channel to be added or deleted.

CH SETUP

PICTURE STABLE SOUND ON OFF LANGUAGE V-CHIP SET

〈

/ — / ENTER / MENU

AUTO CH MEMORY

ADD / DELETE

〈

/ — / ENTER / MENU

ADD CH 012

〈

0-9 / + / – / ENTER / MENU

〉

CATV

〉

CATV

〉

3T10921A-E 1/14/05, 14:058

Press the MENU button three times after adding or

deleting all of the desired channels, to return to normal TV viewing.

+ 16 hidden pages
