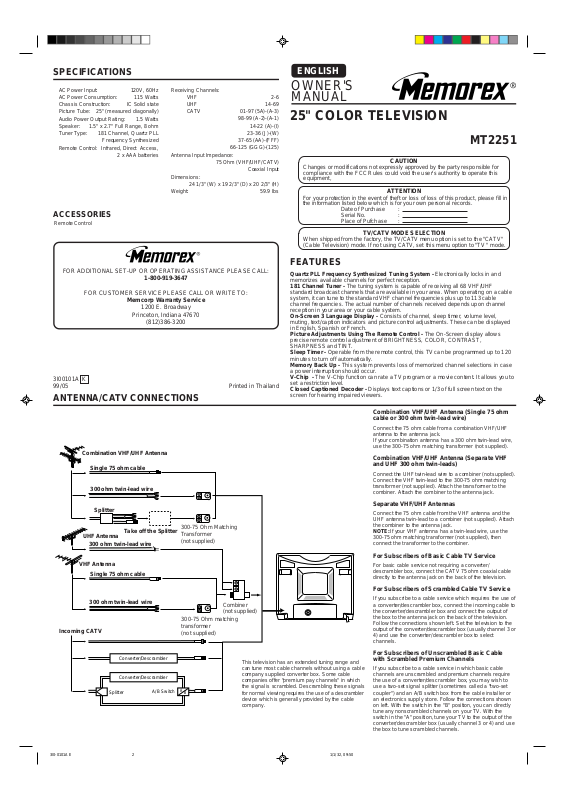

Memorex MT2251 User Manual

SPECIFICATIONS

ENGLISH

AC Power Input: AC Power Consumption: Chassis Construction: Picture Tube: Audio Power Output Rating: Speaker: Tuner Type:

Remote Control:

25" (measured diagonally)

1.5" x 2.7" Full Range, 8 ohm 181 Channel, Quartz PLL

Frequency Synthesized

Infrared, Direct Access,

2 x AAA batteries

120V, 60Hz

115 Watts

IC Solid state

1.5 Watts

Receiving Channels:

VHF 2-6 UHF 14-69 CATV 01-97 (5A)-(A-3)

98-99 (A-2)-(A-1)

37-65 (AA)-(FFF)

66-125 (GGG)-(125)

Antenna Input Impedance:

75 Ohm (VHF/UHF/CATV)

Dimensions:

24 1/3" (W) x 19 2/3" (D) x 20 2/3" (H)

Weight:

ACCESSORIES

Remote Control

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE PLEASE CALL:

1-800-919-3647

FOR CUSTOMER SERVICE PLEASE CALL OR WRITE TO:

Memcorp Warranty Service

1200 E. Broadway

Princeton, Indiana 47670

(812)386-3200

3I00101A K 99/05

Printed in Thailand

ANTENNA/CATV CONNECTIONS

14-22 (A)-(I)

23-36 (J)-(W)

Coaxial Input

59.9 Ibs

OWNER'S MANUAL

25" COLOR TELEVISION

MT2251

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment,

ATTENTION

For your protection in the event of theft or loss of loss of this product, please fill in the information listed below which is for your own personal records.

Date of Purchase : Serial No. : Place of Pufchase :

TV/CATV MODE SELECTION

When shipped from the factory, the TV/CATV menu option is set to the "CATV" (Cable Television) mode. If not using CATV, set this menu option to "TV " mode.

FEATURES

Quartz PLL Frequency Synthesized Tuning System - Electronically locks in and

memorizes available channels for perfect reception. 181 Channel Tuner - The tuning system is capable of receiving all 68 VHF/UHF standard broadcast channels that are available in your area. When operating on a cable system, it can tune to the standard VHF channel frequencies plus up to 113 cable channel frequencies. The actual number of channels received depends upon channel reception in your area or your cable system. On-Screen 3 Language Display - Consists of channel, sleep timer, volume level, muting, text/caption indicators and picture control adjustments. These can be displayed in English, Spanish or French. Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, COLOR, CONTRAST, SHARPNESS and TINT. Sleep Timer - Operable from the remote control, this TV can be programmed up to 120 minutes to turn off automatically. Memory Back Up - This system prevents loss of memorized channel selections in case a power interruption should occur. V-Chip - The V-Chip function can rate a TV program or a movie content. It allows you to set a restriction level. Closed Captioned Decoder - Displays text captions or 1/3 of full screen text on the screen for hearing impaired viewers.

Combination VHF/UHF Antenna

Single 75 ohm cable

300 ohm twin-lead wire

Splitter

UHF Antenna

300 ohm twin-lead wire

VHF Antenna

Single 75 ohm cable

300 ohm twin-lead wire

Incoming CATV

Take off the Splitter

300-75 Ohm Matching Transformer (not supplied)

Combiner (not supplied)

300-75 Ohm matching transformer (not supplied)

Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)

Connect the 75 ohm cable from a combination VHF/UHF antenna to the antenna jack. If your combination antenna has a 300 ohm twin-lead wire, use the 300-75 ohm matching transformer (not supplied).

Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-leads)

Connect the UHF twin-lead wire to a combiner (not supplied). Connect the VHF twin-lead to the 300-75 ohm matching transformer (not supplied). Attach the transformer to the combiner. Attach the combiner to the antenna jack.

Separate VHF/UHF Antennas

Connect the 75 ohm cable from the VHF antenna and the UHF antenna twin-lead to a combiner (not supplied). Attach the combiner to the antenna jack. NOTE:If your VHF antenna has a twin-lead wire, use the 300-75 ohm matching transformer (not supplied), then connect the transformer to the combiner.

For Subscribers of Basic Cable TV Service

For basic cable service not requiring a converter/ descrambler box, connect the CATV 75 ohm coaxial cable directly to the antenna jack on the back of the television.

For Subscribers of Scrambled Cable TV Service

If you subscribe to a cable service which requires the use of a converter/descrambler box, connect the incoming cable to the converter/descrambler box and connect the output of the box to the antenna jack on the back of the television. Follow the connections shown left. Set the television to the output of the converter/descrambler box (usually channel 3 or

4) and use the converter/descrambler box to select channels.

Converter/Descrambler

Splitter

3I0-0101A E 1/1/32, 09:502

A/B Switch

For Subscribers of Unscrambled Basic Cable

This television has an extended tuning range and can tune most cable channels without using a cable company supplied converter box. Some cable companies offer "premium pay channels" in which

the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.

with Scrambled Premium Channels

If you subscribe to a cable service in which basic cable channels are unscrambled and premium channels require the use of a converter/descrambler box, you may wish to use a two-set signal splitter (sometimes called a "two-set coupler") and an A/B switch box from the cable installer or an electronics supply store. Follow the connections shown on left. With the switch in the "B" position, you can directly tune any nonscrambled channels on your TV. With the switch in the "A" position, tune your TV to the output of the converter/descrambler box (usually channel 3 or 4) and use the box to tune scrambled channels.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SER VICING

TO QUALIFIED SERVICE PERSONNEL.

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

shock to persons. The exclamation point within an equilateral triangle

is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFEGUARDS

READ INSTRUCTIONS- All the safety and

operating instructions should be read before the unit is operated.

RETAIN INSTRUCTIONS- The safety and

operating instructions should be retained for future reference.

HEED WARNINGS-All warnings on the unit

and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS- All operating

instructions should be followed.

CLEANING- Unplug this unit from the wall

outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

ATTACHMENTS- Do not use attachments not

recommended by the unit's manufacturer as they may cause hazards.

WATER AND MOISTURE- Do not use this

unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

ACCESSORIES- Do not place this unit on an

unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

REMOTE CONTROL

An appliance and cart combination should be

8A.

moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

VENTILATION- Slots and openings in the

cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation, such as a bookcase, or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

POWER SOURCE- This unit should be

10.

operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

GROUNDING OR POLARIZATION- This unit

11.

is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (grounding) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

POWER-CORD PROTECTION- Power-supply

12.

cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

LIGHTNING- To protect your unit during a

13.

lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.

POWER LINES- An outside antenna system

14.

should not be located in the vicinity of overhead power lines, or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

OVERLOADING- Do not overload wall outlets

15.

and extension cords as this can result in a risk of fire or electric shock.

OBJECT AND LIQUID ENTRY- Do not push

16.

objects through any openings in this unit as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

OUTDOOR ANTENNA GROUNDING- If an

17.

outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

SERVICING- Do not attempt to service this

18.

unit yourself as opening or removing cover may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

DAMAGE REQUIRING SERVICE- Unplug this

19.

unit from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is

damaged.

b. If liquid has been spilled, or objects have

fallen into the unit.

c. If the unit has been exposed to rain or water.

d. If the unit does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating in structions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation.

e. If the unit has been dropped or the

cabinet has been damaged.

f. When the unit exhibits a distinct change

in performance, this indicates a need for service.

REPLACEMENT PARTS- When replace-

20.

ment parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

SAFETY CHECK- Upon completion of any

21.

service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

WALL OR CEILING MOUNTING- The

22.

product should be mounted to a wall or ceiling only as recommended by the manufacturer.

HEAT- The product should be situated away

23.

from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

NOTE TO CATV SYSTEM INSTALLER

24.

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

S2898A

WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE

GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

Before using the remote control transmitter, first install the batteries.

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover.

2. Install two "AAA" (penlight size) batteries.

3. Replace the battery compartment cover.

Use two "AAA" size penlight batteries (not supplied) for the remote control. The batteries may last approximately one year depending on how much the remote control is used. For best performance, it is recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types.

BATTERY PRECAUTIONS

These precautions should be followed when using batteries in this device:

1. Use only the size and type of batteries specified.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer's directions.)

POWER SOURCE

TO USE AC POWER SOURCE

Use the AC polarized line cord provided for operation on AC. Insert the AC cord plug into a standard 120V 60Hz polarized AC outlet.

NOTES:

WIDER HOLE AND BLADE

Polarized AC Cord (One blade is wider than the other.)

1. Never connect the AC line cord plug to other than the specified voltage (120V 60Hz). Use the attached power cord only.

2. If the polarized AC cord does not fit into a nonpolarized AC outlet, do not attempt to file or cut the blade. It is the user's responsibility to have an electrician replace the obsolete outlet.

3. If you cause a static discharge when touching the unit, and the unit fails to function, simply unplug the unit from the AC outlet, wait an hour, and plug it back in. The unit should return to normal operation.

POWER

234

5 9

MUTING

3 4

SLEEP

6 0

VOL

QUICK VIEW CALL

5 6

RESET

POWER Button - Press to turn the TV on.

SET ENTER

CH.1/2

CAPTION/TEXT

Press again to turn the TV off.

Direct Channel Selection Buttons (0-9) -

Allows direct access to any channel.

MUTING Button - To turn off the sound,

press this button once. The TV will be silenced and the symbol "MUTING" will appear on the screen. The muting feature can be released by pressing the MUTING button again or one of the VOL ▲/▼ button.

VOL (VOLUME) ▲/▼ Buttons - Press the

▲ button to increase, or the ▼ button to decrease the volume level.

9 10

12 13

SLEEP Button - To set the TV to turn off

after a preset amount of time, press the SLEEP button on the remote control. The clock will count down 10 minutes each time the button is pressed in the order of 120, 110, 100, ······ 20, 10, 0. After the sleep time is programmed, the display will disappear then reappear momentarily every ten minutes to remind you the sleep timer function is operating. To confirm the sleep time setting, press the SLEEP button once and the remaining time will be momentarily displayed. To cancel sleep time, press the SLEEP button repeatedly until the display turns to 0.

MENU Button - Press to display the On-

Screen menu function.

SET +/– Buttons - Press to select the

desired setting during On-Screen operations.

RESET Button - Press to reset the On-

Screen picture adjustments to their factory preset positions.

QUICK VIEW Button - This button allows

you to go back to the previous channel selected by just pressing the QUICK VIEW button. Press this button again to return to the channel you were watching.

10.

CALL Button - When you press this

button, the channel number tuned will appear on the upper right corner of the screen. Press the button again to remove display from the screen.

11.

CH (CHANNEL) ▲/▼ Buttons - Press the

▲ button to change to a higher numbered channel set into memory. Press the ▼ button to change to a lower numbered channel set into memory.

12.

ENTER Button - Press to enter or select

information for On-Screen operations.

13.

CH.1/2 Button - Switches between

Channel 1 and Channel 2 in the Closed Caption mode.

14.

TV/CAPTION/TEXT Button - Press this

button to switch between normal TV and the two Closed Caption modes (captions and 1/3 of full screen text). Closed Captioning will display text on screen for hearing impaired viewers.

3I0-0101A E 1/1/32, 09:503
