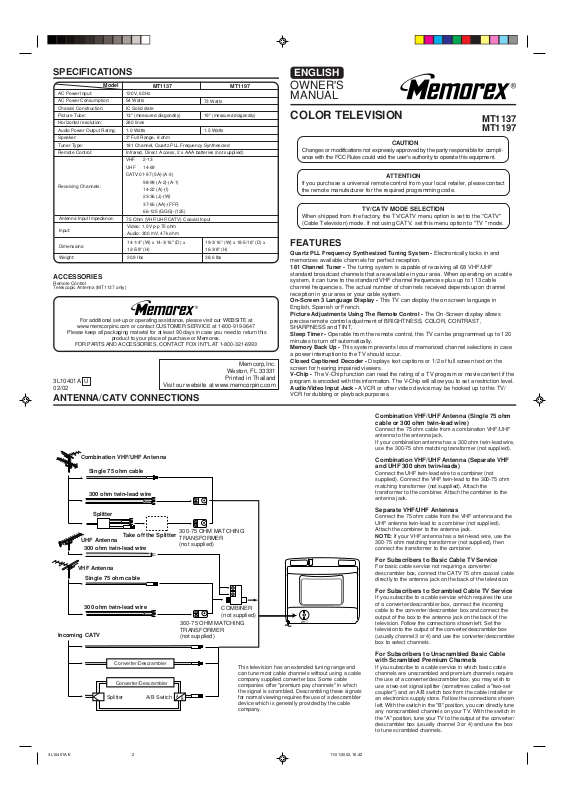

Memorex MT1137, MT1197 User Manual

Converter/Descrambler

Splitter

A/B Switch

A

B

Converter/Descrambler

SPECIFICATIONS

Model

AC Power Input:
AC Power Consumption:
Chassis Construction:
Picture Tube:
Horizontal resolution:
Audio Power Output Rating:
Speaker:
Tuner Type:
Remote Control:

Receiving Channels:

Antenna Input Impedance:

Input:

Dimensions:

Weight:

120V, 60Hz
54 Watts
IC Solid state
13" (measured diagonally)
260 lines

1.0 Watts
3" Full Range, 8 ohm
181 Channel, Quartz PLL Frequency Synthesized
Infrared, Direct Access, 2 x AAA batteries (not supplied)
VHF 2-13
UHF 14-69
CATV 01-97 (5A)-(A-3)

75 Ohm (VHF/UHF/CATV) Coaxial Input

Video: 1.0 Vp-p 75 ohm
Audio: 300 mV, 47k ohm

14-1/4" (W) x 14-3/16" (D) x
12-5/8" (H)

20.9 Ibs

MT1137

73 Watts

19"

1.5 Watts

98-99 (A-2)-(A-1)
14-22 (A)-(I)
23-36 (J)-(W)
37-65 (AA)-(FFF)
66-125 (GGG)-(125)

19-3/16" (W) x 18-5/16" (D) x
16-3/8" (H)

38.6 Ibs

ACCESSORIES

Remote Control
Telescopic Antenna (MT1137 only)

For additional set-up or operating assistance, please visit our WEBSITE at

www.memcorpinc.com or contact CUSTOMER SERVICE at 1-800-919-3647

Please keep all packaging material for at least 90 days in case you need to return this

FOR PARTS AND ACCESSORIES, CONTACT FOX INT'L AT 1-800-321-6993

3L10401A U
02/02

product to your place of purchase or Memorex.

Visit our website at www.memcorpinc.com

MT1197

(measured diagonally)

Weston, FL 33331

Printed in Thailand

ANTENNA/CATV CONNECTIONS

Memcorp,Inc.

ENGLISH

ENGLISH

OWNER'S
MANUAL

COLOR TELEVISION

CAUTION

Changes or modifications not expressly approved by the party responsible for compli­ance with the FCC Rules could void the user's authority to operate this equipment.

ATTENTION

If you purchase a universal remote control from your local retailer, please contact
the remote manufacturer for the required programming code.

TV/CATV MODE SELECTION

When shipped from the factory, the TV/CATV menu option is set to the "CATV"
(Cable Television) mode. If not using CATV, set this menu option to "TV " mode.

FEATURES

Quartz PLL Frequency Synthesized Tuning System - Electronically locks in and

memorizes available channels for perfect reception.
181 Channel Tuner - The tuning system is capable of receiving all 68 VHF/UHF
standard broadcast channels that are available in your area. When operating on a cable
system, it can tune to the standard VHF channel frequencies plus up to 113 cable
channel frequencies. The actual number of channels received depends upon channel
reception in your area or your cable system.
On-Screen 3 Language Display - This TV can display the on screen language in
English, Spanish or French.
Picture Adjustments Using The Remote Control - The On-Screen display allows
precise remote control adjustment of BRIGHTNESS, COLOR, CONTRAST,
SHARPNESS and TINT.
Sleep Timer - Operable from the remote control, this TV can be programmed up to 120
minutes to turn off automatically.
Memory Back Up - This system prevents loss of memorized channel selections in case
a power interruption to the TV should occur.
Closed Captioned Decoder - Displays text captions or 1/2 of full screen text on the
screen for hearing impaired viewers.
V-Chip - The V-Chip function can read the rating of a TV program or movie content if the
program is encoded with this information. The V-Chip will allow you to set a restriction level.
Audio/Video Input Jack - A VCR or other video device may be hooked up to this TV/
VCR for dubbing or playback purposes.

MT1137
MT1197

Combination VHF/UHF Antenna

Single 75 ohm cable

300 ohm twin-lead wire

Splitter

UHF Antenna

300 ohm twin-lead wire

VHF Antenna

Single 75 ohm cable

300 ohm twin-lead wire

Incoming CATV

Take off the Splitter

300-75 OHM MATCHING
TRANSFORMER
(not supplied)

COMBINER
(not supplied)

300-75 OHM MATCHING
TRANSFORMER
(not supplied)

ANT

Combination VHF/UHF Antenna (Single 75 ohm
cable or 300 ohm twin-lead wire)

Connect the 75 ohm cable from a combination VHF/UHF
antenna to the antenna jack.
If your combination antenna has a 300 ohm twin-lead wire,
use the 300-75 ohm matching transformer (not supplied).

Combination VHF/UHF Antenna (Separate VHF
and UHF 300 ohm twin-leads)

Connect the UHF twin-lead wire to a combiner (not
supplied). Connect the VHF twin-lead to the 300-75 ohm
matching transformer (not supplied). Attach the
transformer to the combiner. Attach the combiner to the
antenna jack.

Separate VHF/UHF Antennas

Connect the 75 ohm cable from the VHF antenna and the
UHF antenna twin-lead to a combiner (not supplied).
Attach the combiner to the antenna jack.
NOTE: If your VHF antenna has a twin-lead wire, use the
300-75 ohm matching transformer (not supplied), then
connect the transformer to the combiner.

For Subscribers to Basic Cable TV Service

For basic cable service not requiring a converter/
descrambler box, connect the CATV 75 ohm coaxial cable
directly to the antenna jack on the back of the television.

For Subscribers to Scrambled Cable TV Service

If you subscribe to a cable service which requires the use
of a converter/descrambler box, connect the incoming
cable to the converter/descrambler box and connect the
output of the box to the antenna jack on the back of the
television. Follow the connections shown left. Set the
television to the output of the converter/descrambler box
(usually channel 3 or 4) and use the converter/descrambler
box to select channels.

Converter/Descrambler

Converter/Descrambler

Splitter

3L10401A E 11/01/2002, 16:422

A/B Switch

This television has an extended tuning range and
can tune most cable channels without using a cable
company supplied converter box. Some cable
companies offer "premium pay channels" in which
the signal is scrambled. Descrambling these signals
for normal viewing requires the use of a descrambler
device which is generally provided by the cable
company.

For Subscribers to Unscrambled Basic Cable
with Scrambled Premium Channels

If you subscribe to a cable service in which basic cable
channels are unscrambled and premium channels require
the use of a converter/descrambler box, you may wish to
use a two-set signal splitter (sometimes called a "two-set
coupler") and an A/B switch box from the cable installer or
an electronics supply store. Follow the connections shown
left. With the switch in the "B" position, you can directly tune
any nonscrambled channels on your TV. With the switch in
the "A" position, tune your TV to the output of the converter/
descrambler box (usually channel 3 or 4) and use the box
to tune scrambled channels.

MENU

VOL

SLEEP

MUTING

QUICK VIEW CALL

VOL

ENTER

CH

CH

123

456

7

0

89

–

SET

+

CH.1/2

TV/CAP/

TEXT

RESET

TV/AV

POWER

The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product's
enclosure that may be of sufficient magnitude

CAUTION:

WARNING:

NOTE:

Please keep all packaging material for at least 90 days in case you need to return this product to your place
of purchase or Memorex.

TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

to constitute a risk of electric shock.
The exclamation point within an equilateral

triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS- All the safety and

operating instructions should be read before
the unit is operated.

2. RETAIN INSTRUCTIONS- The safety and
operating instructions should be retained for
future reference.

3. HEED WARNINGS-All warnings on the unit
and in the operating instructions should be
adhered to.

4. FOLLOW INSTRUCTIONS- All operating and
use instructions should be followed.

5. CLEANING- Unplug this unit from the wall
outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp
cloth for cleaning the exterior cabinet only.

6. ATTACHMENTS- The manufacturer of this
unit does not make any recommendations for
attachments, as they may cause hazards.

7. WATER AND MOISTURE- Do not use this
unit near water. For example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.

8. ACCESSORIES- Do not place this unit on an
unstable cart, stand, tripod, bracket, or table.
The unit may fall, causing serious injury, and
serious damage to the unit.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

REMOTE CONTROL

8A. An appliance and cart combination should be

moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance
and cart combination to overturn.

9. VENTILATION- Slots and openings in the
cabinet back or bottom are provided for
ventilation, to ensure reliable operation of the
unit and to protect it from overheating. These
openings must not be blocked or covered. The
openings should never be blocked by placing
the unit on a bed, sofa, rug, or other similar
surface. This unit should never be placed near
or over a radiator or heat source. This unit
should not be placed in a built-in installation,
such as a bookcase, or rack unless proper
ventilation is provided or the manufacturer's
instructions have been adhered to.

10. POWER SOURCE- This unit should be
operated only from the type of power source
indicated on the rating plate. If you are not
of the type of power supply to your home,
consult your appliance dealer or local power
company. For units intended to operate from
battery power, or other sources, refer to the
operating instructions.

11. GROUNDING OR POLARIZATION- This unit
is equipped with a polarized alternating current
line plug (a plug having one blade wider than
the other). This plug will fit into the power outlet
only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug still fails to fit,
contact your electrician to replace your
obsolete outlet. Do not defeat the safety
purpose of the polarized plug. If your unit is
equipped with a 3-wire grounding-type plug, a
plug having a third (grounding) pin, this plug
will only fit into a grounding-type power outlet.
This too, is a safety feature. If you are unable
to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do
not defeat
the safety purpose of the grounding-type plug.

sure

12. POWER-CORD PROTECTION- Power­supply cords should be routed so that they
are not likely to be walked on or pinched by
items placed upon or against them, paying
particular attention to cords at plugs,
convenience receptacles, and the point
where they exit from the appliance.

13. LIGHTNING- To protect your unit during a
lightning storm, or when it is left unattended
and unused for long periods of time, unplug it
from the wall outlet and disconnect the
antenna or cable system. This will prevent
damage to the unit due to lightning and
power line surges.

14. POWER LINES- An outside antenna system
should not be located in the vicinity of
overhead power lines, or other electric light
or power circuits, or where it can fall into
such power lines or circuits. When installing
an outside antenna system, extreme care
should be taken to keep from touching such
power lines or circuits as contact with them
might be fatal.

15. OVERLOADING- Do not overload wall
outlets and extension cords as this can result
in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY- Do not push
objects through any openings in this unit as
they may touch dangerous voltage points or
short out parts that could result in fire or
electric shock. Never spill or spray any type
of liquid into the unit.

17. OUTDOOR ANTENNA GROUNDING- If an
outside antenna or cable system is con­nected to the unit, be sure the antenna or
cable system is grounded to provide some
protection against voltage surges and built-up
static charges. Section 810 of the National
Electrical Code, ANSI/NFPA 70, provides
information with respect to proper grounding
of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna discharge unit, connec­tion to grounding electrodes, and require­ments for the grounding electrode.

18. SERVICING- Do not attempt to service this
unit yourself as opening or removing covers
may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified
service personnel.

19. DAMAGE REQUIRING SERVICE- Unplug
this unit from the wall outlet and refer
servicing to qualified service personnel under
the following conditions:
a. When the power-supply cord or plug is

damaged.

b. If liquid has been spilled, or objects have

fallen into the unit.

c. If the unit has been exposed to rain or water.

d. If the unit does not operate normally by

following the operating instructions.
Adjust only those controls that are
covered by the operating instructions, as
an improper adjustment of other controls
may result in damage and will often
require extensive work by a qualified
technician to restore the unit to its normal
operation.

e. If the unit has been dropped or the cabinet

has been damaged.

f. When the unit exhibits a distinct change

in performance, this indicates a need for
service.

20. REPLACEMENT PARTS- When replacement
parts are required, be sure the service
technician uses replacement parts specified
by the manufacturer or those that have the
same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.

21. SAFETY CHECK- Upon completion of any
service or repairs to this unit, ask the service
technician to perform safety checks to
determine that the unit is in proper operating
condition.

22. HEAT- The product should be situated away
from heat sources such as radiators, heat
registers, stoves, or other products (including
amplifiers) that produce heat.

23. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV
system installer's attention to Article 820-40
of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the
cable ground shall be connected to the
grounding system of the building, as close to
the point of cable entry as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND CLAMP

ELECTRIC

SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE
S2898A

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING
CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

Before using the remote control transmitter, batteries must first be installed.

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover.

2. Install two "AAA" (penlight size) batteries.

3. Replace the battery compartment cover.

POWER SOURCE

TO USE AC POWER SOURCE

Use the AC polarized line cord provided for operation on AC. Insert the AC cord plug into a
standard 120V 60Hz polarized AC outlet.

Wider Hole
and Blade

3L10401A E 08/01/2002, 17:423

AC outlet

Polarized AC Cord Plug
(One blade is wider than
the other)

Use two "AAA" size penlight batteries (not
supplied) for the transmitter.The batteries may
last approximately one year depending on how
much the remote control is used. For best
performance, it is recommended that batteries
should be replaced on a yearly basis, or when
the remote operation becomes erratic. Do not
mix old and new batteries or different types.

BATTERY PRECAUTIONS

These precautions should be followed when
using batteries in this device:

1. Use only the size and type of batteries
specified.

2. Be sure to follow the correct polarity when
installing the batteries as indicated in the
battery compartment. Reversed batteries
may cause damage to the device.

3. Do not mix different types of batteries
together (e.g. Alkaline and Carbon-zinc) or
old batteries with fresh ones.

4. If the device is not to be used for a long
period of time, remove the batteries to
prevent damage or injury from possible
battery leakage.

5. Do not try to recharge batteries not intended
to be recharged; they can overheat and
rupture.
(Follow battery manufacturer's directions.)

NOTE:

1. Never connect the AC line cord plug to other than
the specified voltage (120V 60Hz). Use the attached
power cord only.

2. If the polarized AC cord does not fit into a non­polarized AC outlet, do not attempt to file or cut the
blade. It is the user's responsibility to have an
electrician replace the obsolete outlet.

3. If you cause a static discharge when touching the
unit, and the unit fails to function, simply unplug the
unit from the AC outlet, wait a few minutes, and plug
it back in. The unit should return to normal operation.

1

2

3

4

5

6

7

8

9

1.

POWER Button - Press to turn the TV on.

Press again to turn the TV off.

2.

Direct Channel Selection Buttons (0-9) -

Allows direct access to any channel.

3.

QUICK VIEW Button - This button allows

you to go back to the previous channel
selected by just pressing the QUICK VIEW
button. Press this button again to return to
the channel you were watching.

4.

SLEEP Button - To set the TV to turn off

after a preset amount of time, press the
SLEEP button on the remote control.
The clock will count down 10 minutes
each time the button is pressed in the
order of 120, 110, 100, ······ 20, 10, 0.

10

11

12

13

14

15

After the sleep time is programmed,
the display will disappear then reappear
momentarily every ten minutes to remind
you the sleep timer function is operating.
To confirm the sleep time setting, press
the SLEEP button once and the remaining
time will be momentarily displayed. To
cancel sleep time, press the SLEEP button
repeatedly until the display turns to 0.

5.

VOL (VOLUME) / Buttons - Press the

button to increase, or the button to
decrease the volume level.

MENU Button - Press to display the On-

6.

Screen menu function.

7.

SET – / + Buttons - Press to select the

desired setting during On-Screen operations.

8.

RESET Button - Press to reset the On-

Screen picture adjustments to their
factory preset positions.

TV/AV Button - Switches between TV and

9.

external inputs.

10.

CALL Button - When you press this

button, the channel number will appear in
the upper right corner of the screen. Press
the button again to remove display from
the screen.

11.

MUTING Button - To turn off the sound,

press this button once. The TV will be
silenced and the symbol "MUTING" will
appear on the screen. The muting feature
can be released by pressing the MUTING
button again or one of the VOL or
buttons.

12.

CH (CHANNEL) / Buttons - Press

the button to change to a higher
numbered channel set into memory. Press
the button to change to a lower numbered
channel set into memory.

13.

ENTER Button - Press to enter or select

information for On-Screen operations.

TV/CAP/TEXT Button - Press this

14.

button to switch between normal TV
and the two Closed Caption modes
(captions and 1/2 of full screen text).
Closed Captioning will display text on
screen for hearing impaired viewers.

CH.1/2 Button - Switches between

15.

Channel 1 and Channel 2 in the Closed
Caption mode.
