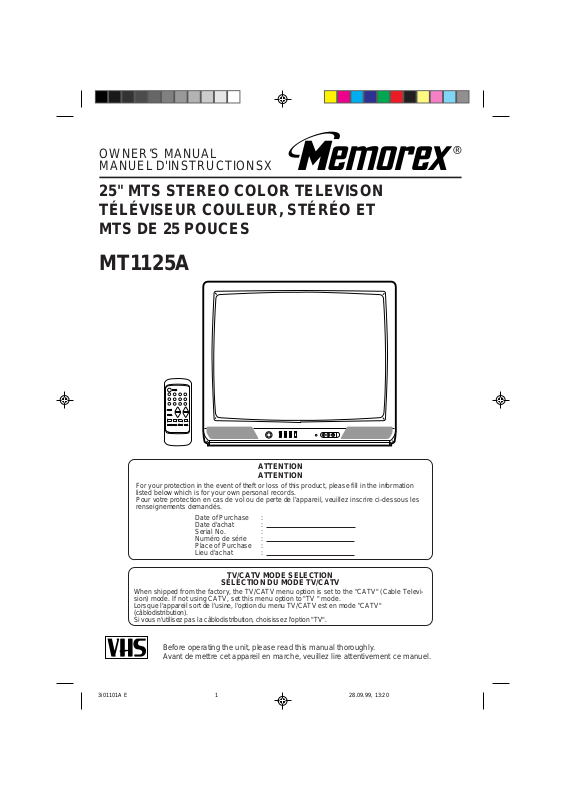

OWNER’S MANUAL MANUEL D'INSTRUCTIONSX
25" MTS STEREO COLOR TELEVISON TÉLÉVISEUR COULEUR, STÉRÉO ET MTS DE 25 POUCES
MT1125A
For your protection in the event of theft or loss of this product, please fill in the information listed below which is for your own personal records. Pour votre protection en cas de vol ou de perte de l'appareil, veuillez inscrire ci-dessous les renseignements demandés.
Date of Purchase : Date d'achat : Serial No. : Numéro de série : Place of Purchase : Lieu d'achat :
When shipped from the factory, the TV/CATV menu option is set to the "CATV" (Cable Televi­sion) mode. If not using CATV, set this menu option to "TV " mode. Lorsque l'appareil sort de l'usine, l'option du menu TV/CATV est en mode "CATV" (câblodistribution). Si vous n'utilisez pas la câblodistribution, choisissez l'option "TV".
Before operating the unit, please read this manual thoroughly. Avant de mettre cet appareil en marche, veuillez lire attentivement ce manuel.
3i01101A E 28.09.99, 13:201
ATTENTION ATTENTION
SÉLECTION DU MODE TV/CATV
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficienconstitute a risk of electric shock to persons.
CAUTION:
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could
WARNING:
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
void the user's authority to operate this equipment.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte­nance (servicing) instructions in the literature accompanying the appliance.
IMPORTANT SAFEGUARDS
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by the unit's manufacturer as they may cause hazards.
7. WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.
8. ACCESSORIES
Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer.
8A. An appliance and cart combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and cart combination to overturn.
9. VENTILATION
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the unit and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installation, such as a bookcase, or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
10. POWER SOURCE
This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (ground­ing) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.
12. POWERCORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
PORTABLE CART WARNING
(symbol provided by RETAC)
S3126A
2
3i01101A E 28.09.99, 13:202
13. LIGHTNING
To protect your unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines, or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Do not push objects through any openings in this unit as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/ NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
18. SERVICING
Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
19. DAMAGE REQUIRING SERVICE
Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the unit. c . If the unit has been exposed to rain or water. d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by
the operatingin structions, as an improper adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the unit to its normal operation. e. If the unit has been dropped or the cabinet has been damaged. f . When the unit exhibits a distinct change in performance, this indicates a need for service.
20. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
21. SAFETY CHECK
Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.
22. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
23. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
24. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
ENGLISH
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE
NEC-NATIONAL ELECTRICAL CODE S2898A
3i01101A E 28.09.99, 13:203
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
3
FEATURES
• 181 Channel Tuner - The tuning system is capable of receiving all 68 VHF/UHF standard broadcast channels that
are available in your area. When operating on a cable system, it can tune to the standard VHF channel frequencies plus up to 113 cable channel frequencies. The actual number of channels received depends upon channel reception in your area or your cable system.
• On-Screen 3 Language Display - Consists of channel, sleep timer, volume level, muting, text/caption indicators and picture control adjustments. These can be displayed in English, Spanish or French.
• Sleep Timer - Operable from the remote control, this TV can be programmed up to 120 minutes to turn off automatically.
• Memory Back Up - This system prevents loss of memorized channel selections in case a power interruption to the TV should occur.
• V-Chip - The V-Chip function can rate a TV program or movie content. It allows you to set a restriction level.
• Picture Control Adjustments - The On-Screen display allows precise remote control adjustment of
BRIGHTNESS, COLOR, CONTRAST, SHARPNESS and TINT.
• Closed Captioned Decoder - Displays text captions or 1/2 of full screen text on the screen for hearing impaired viewers.
• Stereo/SAP Reception - This TV designed to receive stereo and separate audio program (SAP) broadcasts where available.
LOCATION OF CONTROLS
FRONT BACK
POWER
1
– SET +
VOLUME ▲
CHANNEL
MENU ENTER RESET
2
34
(MONO)
VIDEO IN
L–AUDIO IN–R
5
1.POWER Button - Press to turn the TV on or off.
2.VOLUME ▲ / ▼ Buttons - Press to raise or lower
the volume of the sound. (MENU Buttons) - Press the both buttons to display the On-Screen menu function. (SET+/– Buttons) - Press to select the desired setting during On-Screen operations.
3.CHANNEL / Buttons - Press to select a higher
or lower numbered channel set into memory. (ENTER Button) - Press to enter or select informa­tion for On-Screen operations. (RESET Button) - Press to reset the On-Screen picture adjustments to their factory preset positions.
4
3i01101A E 28.09.99, 13:204
OUT IN
VIDEO
MONO
L
AUDIO
R
6 7 8 9
4.Remote Sensor - Signals from the Remote Control unit are received here.
5. AUDIO (L / R) / VIDEO IN Jacks - Audio and video signal cables from an external source can be connected here.
6. VHF/UHF IN (ANT) Jack - Connect a VHF/UHF antenna or CATV cable to this jack.
7. AUDIO (L / R) /VIDEO OUT Jacks - Used to output audio and video signals to a TV, amplifier or VCR.
8. AUDIO (L / R) /VIDEO IN Jacks - Audio and video signal cables form an external source can be connected hear.
9. AC Power Cord - Plug into an outlet haveing 120V, 60 Hz AC power only.
REMOTE CONTROL
POWER
MUTING
SLEEP
MENU
RESET
1
5
9
SELECT
TV/AV
234
678
QUICK VIEW CALL
0
VOL
SET ENTER
AUDIO
TV
CAPTION/TEXT
CH
CH.1/2
1
2
3 4
5 6
7 8
9
1. POWER Button - Press to turn the TV on. Press again to turn the TV off.
2. Direct Channel Selection Buttons (0-9) - Allows direct access to any channel.
3. MUTING Button - To turn off the sound, press this button once. The TV will be silenced and the symbol "MUTING" will appear on the screen. The muting feature can be released by pressing the MUTING button again or one of the VOL or button.
4. VOL (VOLUME) / Buttons - Press the button to increase, or the button to decrease the volume level.
10
11 12
13
14 15 16
5. SLEEP Button - To set the TV to turn off after a preset amount of time, press the SLEEP button on the remote control. The clock will count down 10 minutes each time the button is pressed in the order of 120, 110, 100, ······ 20, 10, 0. After the sleep time is programmed, the display will disappear then reappear momentarily every ten minutes to remind you the sleep timer function is operating. To confirm the sleep time setting, press the SLEEP button once and the remaining time will be momentarily displayed. To cancel sleep time, press the SLEEP button repeatedly until the display turns to 0.
6. MENU Button - Press to display the On-Screen menu function.
7. SET + / – Buttons - Press to select the desired setting during On-Screen operations.
8. RESET Button - Press to reset the On-Screen picture adjustments to their factory preset positions. Press to reset a password in the V-CHIP Password setting mode.
9. AUDIO SELECT Button - Switches sound between mono and stereo, and SAP when receiveing broadcasts in stereo or SAP.
10. TV/AV Button - Switches between TV and external inputs.
11. QUICK VIEW Button - This button allows you to go back to the previous channel selected by just pressing the QUICK VIEW button. Press this button again to return to the channel you were watching.
12. CALL Button - When you press this button, the channel number tuned will appear on the upper right corner of the screen. Press the button again to remove display from the screen.
13. CH (CHANNEL) / Buttons - Press the button to change to a higher numbered channel set into memory. Press the button to change to a lower numbered channel set into memory.
14. ENTER Button - Press to enter or select information for On-Screen operations.
15. CH.1/2 Button - Switches between Channel 1and Channel 2 in the Closed Caption mode.
16. TV/CAPTION/TEXT Button - Press this button to switch between normal TV and the two Closed Caption modes (captions and 1/2 of full screen text). Closed Captioning will display text on screen for hearing impaired viewers.
ENGLISH
Before using the remote control, batteries must first be installed into it.
HOW TO INSTALL BATTERIES
1. Open the battery compartment cover.
Use two "AAA" size batteries. The batteries may last approximately one year depending on how much the remote control is used. For best performance, it is recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types.
BATTERY PRECAUTIONS
These precautions should be followed when using batteries
2. Install two "AAA" batteries.
3. Replace the battery compartment cover.
3i01101A E 28.09.99, 13:205
in this device:
• Use only the size and type of batteries specified.
• Be sure to follow the correct polarity when installing the
batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g.
Alkaline and Carbon-zinc) or old batteries with fresh ones.
• If the device is not to be used for a long period of time,
remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries not intended to be re-
charged; they can overheat and rupture. (Follow battery manufacturer's directions.)
5
ANTENNA/CATV CONNECTIONS
Combination VHF/UHF Antenna
Single 75 ohm Cable
300 ohm Twin-lead Wire
Splitter
UHF Antenna 300 ohm Twin-lead Wire
Take off the Splitter
300-75 ohm Matching Transformer (not supplied)
VHF Antenna
Single 75 ohm Cable
300 ohm Twin-lead Wire
Incoming CATV
Converter/ Descrambler
Converter/ Descrambler
Combination VHF/UHF Antenna (Single 75 ohm Cable or 300 ohm Twin-lead Wire)
Connect the 75 ohm cable from a combination VHF/UHF antenna to the Antenna Jack. If your combination antenna has a 300 ohm Twin-lead Wire, use the 300-75 ohm Matching Transformer (not supplied).
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm Twin-leads)
Connect the UHF Twin-lead Wire to a Combiner (not supplied). Connect the VHF Twin-lead to the 300-75 ohm Matching Transformer (not supplied). Attach the Combiner to the Antenna Jack.
300-75 ohm Matching Transformer (not supplied)
A
A
/
B SwitchSplitter
B
Attach the Transformer to the Combiner.
Combiner
(not supplied)
Separate VHF/UHF Antennas
Connect the 75 ohm Cable from the VHF antenna and the UHF antenna Twin-lead to a combiner (not supplied). Attach the Combiner to the Antenna Jack.
NOTE: If your VHF antenna has a Twin-lead Wire, use the 300-75
ohm Matching Transformer (not supplied), then connect the Transformer to the Combiner.
For Subscribers to Basic Cable TV Service
For basic cable service not requiring a Converter/Descrambler box, connect the CATV 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the television.
For Subscribers to Scrambled Cable TV Service
If you subscribe to a cable service which requires the use of a Converter/Descrambler box, connect the incoming cable to the Converter/Descrambler box and connect the output of the box to the Antenna Jack on the back of the television. Follow the connections shown left. Set the television to the output of the Converter/ Descrambler box (usually channel 3 or 4) and use the Converter/ Descrambler box to select channels.
For Subscribers to Unscrambled Basic Cable with Scrambled Premium Channels
If you subscribe to a cable service in which basic cable channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a two-set signal splitter (sometimes called a "two-set coupler") and an A/B Switch box from the cable installer or an electronics supply store. Follow the connections shown left. With the switch in the "B" position, you can directly tune any nonscrambled channels on your TV. With the switch in the "A" position, tune your TV to the output of the Converter/ Descrambler box (usually channel 3 or 4) and use the box to tune scrambled channels.
This television has an extended tuning range and can tune most cable channels without using a cable company supplied converter box. Some cable companies offer "premium pay channels" in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.
AUDIO/VIDEO JACK CONNECTIONS
The exact arrangement you use to interconnect various video and audio components to the TV is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs.
The connection diagrams in the following are offered as suggestions. You may need to modify them to accommodate your particular assortment of components. The diagrams are intended to show component video and audio interconnections only.
Press the TV/AV selector button to select the AV mode to use the TV as a monitor. Operate your VCR as usual.
TV/AV SELECTION
If you connect the TV to VCR, camcorder or TV game, you can select by pressing the TV/AV button.
Press the TV/AV button repeatedly to select the desired mode. "AUX1" or "AUX2" will display on the screen for 4 seconds.
TV AUX 1 AUX 2
2. To connect the TV to a TV Game
The TV can also be used as a display device for many video games. However, due to the wide variety of different types of signal generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for additional information.
AUX 1
To Audio/Video OUT
TV GAME
Front of TV
(MONO)
VIDEO IN
L–AUDIO IN–R
1. To connect the TV to a VCR
VCR
To Audio/Video
OUT
6
3i01101A E 28.09.99, 13:216
AUDIO (L)
AUDIO (R)
(Not supplied)
Rear of TV
VIDEO
INOUT
3. To connect the TV to the camcorder
To playback from the camcorder, connect the camcorder to the TV as shown.
(Not Supplied)
To AV OUT jack
Front of TV
(MONO)
VIDEO IN
L–AUDIO IN–R
(Not Supplied)
SETTING LANGUAGE
This TV can display the channel number, on screen displays and picture adjustments on the screen in English, Spanish or French. On-screen language selection (step 3) will automatically appear on the screen when you press the MENU button initially. Select language to use the other menu options.
Press the MENU button.
1
Press the SET + or – button to
2
select the LANGUAGE mode, then press the ENTER button.
MENU
CH SET PICTURE AUDIO LANGUAGE V-CHIP SET
+
/ – / ENTER / MENU
Press the SET + or – button until
3
the "
" indicator points to the desired language: English (ENGLISH), Spanish (ESPAÑOL) or French (FRANCAIS), then press the ENTER button.
Press the MENU button again.
4
LANGUAGE / IDIOMA / LANGUE
ENGLISH ESPAÑOL FRANCAIS
+
/ – / ENTER / MENU
NOTE:
If Spanish or French is chosen, the Closed Caption indicators will be in the selected language, but the Closed Caption text will not be affected by the language selection.
TV OPERATION
ENGLISH
To turn on the TV, press the POWER button.
1
The VOLUME can be adjusted to a desired level by
2
pressing the VOL (VOLUME) or button.
The sound level will be indicated on the TV screen by green bars and a number. As the sound level in­creases, so do the number of bars and the number on the screen. The same is true for decreasing the level.
Set the TV/CATV menu option to the appropriate
3
position. When shipped from the factory, this menu option is in the CATV setting. See "TO MEMORIZE CHANNELS".
TV - VHF/UHF channels CATV - CABLE TV channels
CH (CHANNEL) and buttons
4
Press and release the CH (CHANNEL) or button. The channel automatically stops at the next channel set into memory. Press and hold the button down to change channels more quickly.
For proper operation, before selecting channels, they should be set into the TV's memory. See "TO MEMORIZE CHANNELS".
Direct Channel Selection buttons (0-9)
Press these buttons to select a channel. The channel number will appear on the upper right corner of the TV screen. If an invalid channel number is selected, the display will revert to the original channel.
TV Mode Direct Channel Selection
When the TV/CATV menu option is in the TV position, all channels can be instantly selected by using two buttons. (For example, to select channel 2, press "0", then "2". If you press only "2", channel selection will be delayed for a few seconds). For channels 10 and above, press the 2 digits in order.
CATV Mode Direct Channel Selection
When the TV/CATV menu option is in the CATV position, channels can be selected as follows:
CH. 1-9
Press "0" twice, then 1-9 as needed. Example, to select channel 2, press "002".
CH. 10-19
Press "0", then remaining 2 digits. Example, to select channel 13, press "013".
CH. 20-99
Press the 2 digits in order. Example, to select channel 36, press "36".
CH. 100-125
Press the 3 digits in order. Example, to select channel 120, press "120".
NOTE: If the station being viewed stops broadcasting, the
TV will automatically shut off after 15 minutes.
3i01101A E 28.09.99, 13:217
7
TO MEMORIZE CHANNELS
This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV's memory. In addition to normal VHF and UHF channels, this TV can receive up to 113 Cable TV channels. To use this TV with an antenna, set the TV/CATV menu option to the TV setting. When shipped from the factory, this menu option is in the CATV setting.
TV/CATV SELECTION
Press the MENU button.
1
Press the SET + or – button until the
2
indicator next to "CH SET" begins to flash, then press the ENTER button.
Press the SET + or – button until the
3
indicator next to "TV/CATV" begins to flash.
Press the ENTER button to select
4
the TV or CATV mode. The arrow indicates the selected mode.
Press the MENU button twice to
5
return to normal TV viewing.
The chart below is typical of many cable system channel allocations.
CATV CHART
Number on this TV Corresponding CATV channel
23J24K25L26M27N28O29P30Q31 41EE42FF43GG44HH45II46JJ47KK48LL49 59WW60
AAA61BBB62CCC63DDD64EEE65FFF66GGG67HHH
77
RRR78SSS79TTT80UUU81VVV82WWW83XXX84YYY85ZZZ
95
A-596A-497A-398A-299A-1 113
114
113
114
100
101
100
115 115
101
116
117
118
119
116
117
118
119
14A15B16C17D18E19F20G21H22 32S33T34U35V36W37AA38BB39CC40
R
50NN51OO52PP53QQ54RR55SS56TT57UU58
MM
68
III69JJJ70KKK71LLL
8686878788888989909091919292939394
104
102 102
120 120
105
103
104
105
103
122
123
121
122
123
121
NOTE: Contact your cable company to determine the
type of cable system used in your area.
MENU
CH SET PICTURE AUDIO LANGUAGE V-CHIP SET
+
/ – / ENTER / MENU
TV
CATV AUTO CH MEMORY ADD / DELETE
+
/ – / ENTER / MENU
DD VV
73
72
NNN74OOO75PPP76QQQ
MMM
106
107
108
109
106
107
108
109
124
125
124
125015A
94
110
111
112
110
111
112
AUTOMATIC CHANNEL MEMORY
Press the MENU button.
1
Press the SET + or – button until the
2
indicator next to "CH SET" begins to flash, then press the ENTER button.
Press the SET + or – button until the
3
indicator next to "AUTO CH MEMORY" begins to flash, then press the ENTER button. The TV will begin memorizing all the channels available in your area.
Press the MENU button twice to
4
return to normal TV viewing.
TO ADD/DELETE CHANNELS
Press the MENU button.
1
Press the SET + or – button until the
2
indicator next to "CH SET" begins to flash, then press the ENTER button.
Press the SET + or – button until the
3
indicator next to "ADD/DELETE" begins to flash, then press the ENTER button.
Select the desired channels to be
4
I
memorized or deleted using the Direct Channel Selection buttons (10 keys, 0-9), the CH or button or the SET + or – button.
Press the ENTER button to select ADD or DELETE.
5
If an unmemorized channel was selected (step 4), the channel indication will be red. Press the ENTER button if you wish to ADD the unmemorized channel. The channel indicator will change from red to green when a channel is added and the channel will be memorized. If a memorized channel was selected (step 4), the channel indication will be green.
Press the ENTER button if you wish to DELETE the channel from memory. The channel indicator will change from green to red when a channel is deleted. Repeat Steps 4 and 5 for each channel to be added or deleted.
Press the MENU button three times after adding or
6
deleting all of the desired channels, to return to normal TV viewing.
MENU
CH SET PICTURE AUDIO LANGUAGE V-CHIP SET
+
/ – / ENTER / MENU
CATV
TV AUTO CH MEMORY ADD / DELETE
+
/ – / ENTER / MENU
MENU
CH SET PICTURE AUDIO LANGUAGE V-CHIP SET
+
/ – / ENTER / MENU
TV
CATV AUTO CH MEMORY ADD / DELETE
+
/ – / ENTER / MENU
ADD CH 012
+
/ – / ENTER / MENU
8
3i01101A E 28.09.99, 13:218
Loading...
+ 16 hidden pages
