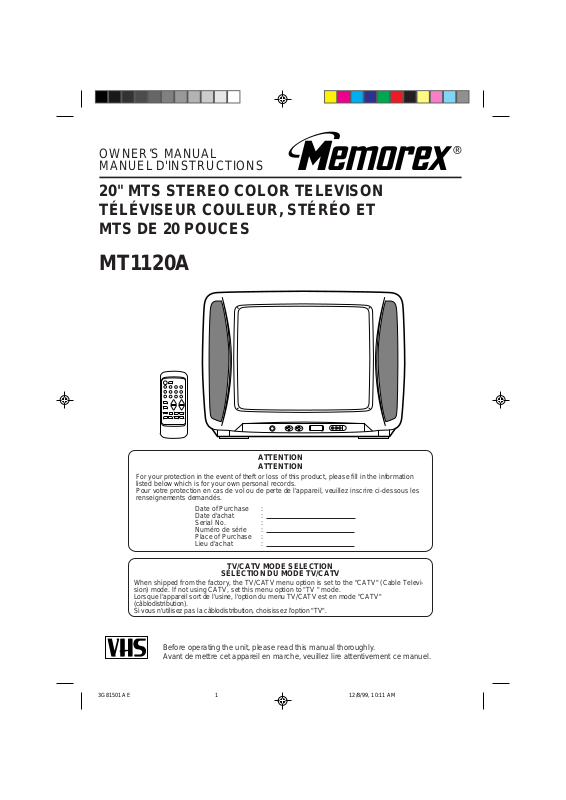

Memorex MT1120A User Manual

OWNER’S MANUAL
MANUEL D'INSTRUCTIONS

20" MTS STEREO COLOR TELEVISON
TÉLÉVISEUR COULEUR, STÉRÉO ET
MTS DE 20 POUCES

MT1120A

For your protection in the event of theft or loss of this product, please fill in the information
listed below which is for your own personal records.
Pour votre protection en cas de vol ou de perte de l'appareil, veuillez inscrire ci-dessous les
renseignements demandés.

Date of Purchase :
Date d'achat :
Serial No. :
Numéro de série :
Place of Purchase :
Lieu d'achat :

When shipped from the factory, the TV/CATV menu option is set to the "CATV" (Cable Televi­sion) mode. If not using CATV, set this menu option to "TV " mode.
Lorsque l'appareil sort de l'usine, l'option du menu TV/CATV est en mode "CATV"
(câblodistribution).
Si vous n'utilisez pas la câblodistribution, choisissez l'option "TV".

Before operating the unit, please read this manual thoroughly.
Avant de mettre cet appareil en marche, veuillez lire attentivement ce manuel.

3G81501A E 12/8/99, 10:11 AM1

ATTENTION
ATTENTION

TV/CATV MODE SELECTION

SÉLECTION DU MODE TV/CATV

The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficienconstitute
a risk of electric shock to persons.

CAUTION:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could

WARNING:

CAUTION:

TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

void the user's authority to operate this equipment.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.

The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and mainte­nance (servicing) instructions in the literature accompanying the
appliance.

IMPORTANT SAFEGUARDS

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the unit is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the unit and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. CLEANING

Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. ATTACHMENTS

Do not use attachments not recommended by the unit's manufacturer as they may cause hazards.

7. WATER AND MOISTURE

Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool.

8. ACCESSORIES

Do not place this unit on an unstable cart, stand, tripod, bracket,
or table. The unit may fall, causing serious injury, and serious damage to the unit.
Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer.

8A. An appliance and cart combination should be moved with care. Quick stops, excessive

force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. VENTILATION

Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the unit
and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by
placing the unit on a bed, sofa, rug, or other similar surface. This unit should never be placed near or over a radiator or heat
source. This unit should not be placed in a built-in installation, such as a bookcase, or rack unless proper ventilation is provided
or the manufacturer's instructions have been adhered to.

10. POWER SOURCE

This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of
power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery
power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This unit is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will
fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug. If your unit is equipped with a 3-wire grounding-type plug, a plug having a third (ground­ing) pin, this plug will only fit into a grounding-type power outlet. This too, is a safety feature. If you are unable to insert the plug
into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

12. POWERCORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

2

3G81501A E 12/8/99, 10:11 AM2

13. LIGHTNING

To protect your unit during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and power line
surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines, or other electric light or power circuits,
or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken
to keep from touching such power lines or circuits as contact with them might be fatal.

15. OVERLOADING

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Do not push objects through any openings in this unit as they may touch dangerous voltage points or short out parts that could
result in fire or electric shock. Never spill or spray any type of liquid into the unit.

17. OUTDOOR ANTENNA GROUNDING

If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to
provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/
NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.

18. SERVICING

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.

19. DAMAGE REQUIRING SERVICE

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c . If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by

the operatingin structions, as an improper adjustment of other controls may result in damage and will often require extensive

work by a qualified technician to restore the unit to its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f . When the unit exhibits a distinct change in performance, this indicates a need for service.

20. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or
those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.

21. SAFETY CHECK

Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the
unit is in proper operating condition.

22. WALL OR CEILING MOUNTING

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

23. HEAT

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.

24. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.

ENGLISH

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

NEC-NATIONAL ELECTRICAL CODE
S2898A

3G81501A E 12/8/99, 10:11 AM3

GROUND CLAMP

ELECTRIC
SERVICE
EQUIPMENT

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC
SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE
SYSTEM (NEC ART 250, PART H)

3

FEATURES

• 181 Channel Tuner - The tuning system is capable of receiving all 68 VHF/UHF standard broadcast channels that

are available in your area. When operating on a cable system, it can tune to the standard VHF channel frequencies
plus up to 113 cable channel frequencies. The actual number of channels received depends upon channel
reception in your area or your cable system.

• On-Screen 3 Language Display - Consists of channel, sleep timer, volume level, muting, text/caption indicators
and picture control adjustments. These can be displayed in English, Spanish or French.

• Sleep Timer - Operable from the remote control, this TV can be programmed up to 120 minutes to turn off
automatically.

• Memory Back Up - This system prevents loss of memorized channel selections in case a power interruption to the
TV should occur.

• V-Chip - The V-Chip function can rate a TV program or movie content. It allows you to set a restriction level.

• Picture Control Adjustments - The On-Screen display allows precise remote control adjustment of

BRIGHTNESS, COLOR, CONTRAST, SHARPNESS and TINT.

• Closed Captioned Decoder - Displays text captions or 1/2 of full screen text on the screen for hearing impaired
viewers.

• Stereo/SAP Reception - This TV designed to receive stereo and separate audio program (SAP) broadcasts where
available.

LOCATION OF CONTROLS

FRONT

POWER VOLUME CHANNEL

1

2

3

REMOTE SENSOR

4

1.POWER Button - Press to turn the TV on or off.

2.VOLUME ▲ / ▼ Buttons - Press to raise or lower

the volume of the sound.

3.CHANNEL ▲ / ▼ Buttons - Press to select a higher

or lower numbered channel set into memory.

4.Remote Sensor - Signals from the Remote Control

unit are received here.

5. AUDIO (L / R) / VIDEO IN Jacks - Audio and video

signal cables from an external source can be
connected here.

VIDEO IN L–AUDIO

(MONO)

5

IN–R

BACK

OUT IN

VIDEO

MONO

L

AUDIO

R

7 8 96

6. AC Power Cord - Plug into an outlet haveing 120V,
60 Hz AC power only.

7. VHF/UHF IN (ANT) Jack - Connect a VHF/UHF
antenna or CATV cable to this jack.

8. AUDIO (L / R) /VIDEO OUT Jacks - Used to output
audio and video signals to a TV, amplifier or VCR.

9. AUDIO (L / R) /VIDEO IN Jacks - Audio and video
signal cables form an external source can be
connected hear.

4
