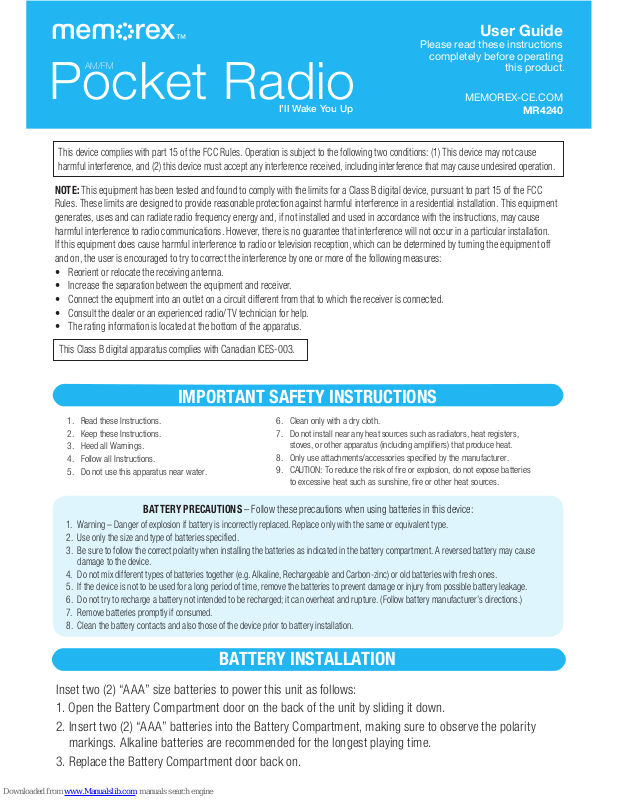

Pocket Radio
AM/FM
I’ll Wake You Up
User Guide
Please read these instructions
completely before operating
this product.
MEMOREX-CE.COM
MR4240
Inset two (2) “AAA” size batteries to power this unit as follows:
1. Open the Battery Compartment door on the back of the unit by sliding it down.
2. Insert two (2) “AAA” batteries into the Battery Compartment, making sure to observe the polarity
markings. Alkaline batteries are recommended for the longest playing time.
3. Replace the Battery Compartment door back on.
BATTERY INSTALLATION
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
8. Only use attachments/accessories specified by the manufacturer.
9. CAUTION: To reduce the risk of fire or explosion, do not expose batteries
to excessive heat such as sunshine, fire or other heat sources.
IMPORTANT SAFETY INSTRUCTIONS
BATTERY PRECAUTIONS – Follow these precautions when using batteries in this device:
1. Warning – Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
2. Use only the size and type of batteries specified.
3. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. A reversed battery may cause
damage to the device.
4. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or old batteries with fresh ones.
5. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
6. Do not try to recharge a battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer’s directions.)
7. Remove batteries promptly if consumed.
8. Clean the battery contacts and also those of the device prior to battery installation.
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The rating information is located at the bottom of the apparatus.
1. Headphone Jack
2. Station Display / Indicator
3. Volume Control Dial
4. DBS (Bass) On/Off Switch
5. Function Switch
6. Radio Tuning Dial
7. Belt Clip
8. Battery Compartment
1. Insert the 3.5mm earbuds/headphones plug into the Headphone Jack.
2. Slide the Function Switch to FM or AM position.
3. Adjust the Radio Tuning Dial to select a desired station.
4. Adjust the Volume Dial to comfortable listening level.
5. To turn the radio off when finished listening, slide the Function Switch to the OFF position.
DBS FUNCTION Slide the DBS switch to the ‘On’ position to enhance the bass during playback.
ANTENNA INFORMATION When listening to FM radio, the headphones cord serves also as an antenna.
Extending the cord will help improve reception. When listening to AM, place the unit in an upright position
and rotate or adjust location for best reception.
Frequency Range .................................................................... AM (530-1710kHz); FM (87.5-108MHz)
Battery ............................................................................................. 2 x ‘AAA’ Batteries (not included)
Weight ...................................................................................................................................1.76 oz
Dimensions (with belt clip) ........................................................... 1.97 (W) x 1.02 (D) x 3.66 (H) inches
Specifications are subject to change without notice.
LIMITED WARRANTY MEM-CE, LLC. warrants this product against defects for 90 days from the date of original
purchase. MEM-CE, LLC. shall not be responsible for any lost data or other incidental or consequential damages related to
this product. Some jurisdictions do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation
of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This limited warranty
gives you specic legal rights, and you may have other rights which may vary from one state, province or country to another.
LOCATION OF CONTROLS
OPERATION INSTRUCTIONS
SPECIFICATIONS
MEM-CE, LLC. 11485 Valley View Road, Eden Prairie, MN 55344 USA MEMOREX-CE.COM
Memorex and the Memorex logo are trademarks of Imation Corp and its affiliates. For additional setup, operating assistance
or an electronic version of this user manual, please visit www.memorex.com.
1
3
4
5
6
7
8
2
