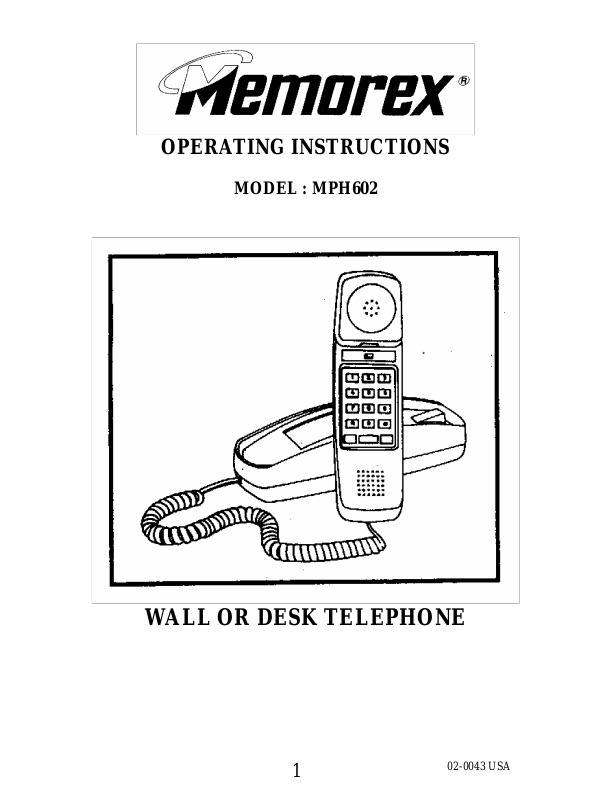

OPERATING INSTRUCTIONS

MODEL : MPH602

WALL OR DESK TELEPHONE

1

02-0043 USA

When using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury to
persons, including the following :

1. Do not use this product near water, for example, near a bath tub, wash

bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming
pool.

2. Avoid using a telephone ( other than a cordless type ) during an

electrical storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not

dispose of batteries in a fire. They may explode. Check with local codes for
possible special disposal instructions.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This equipment complies with Part 68 of the FCC rules and the requirements

adopted by the ACTA. On the bottom of this equipment is a label that contains,
among other information, a product identifier in the format
US:AAAEQ##TXXXX. If requested, this number must be provided to the
telephone company.

An applicable certification jacks Universal Service Order Codes (USOC) for

the equipment is provided (i.e., RJ11C) in the packaging with each piece of
approved terminal equipment.

A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant telephone cord and modular
plug is provided with this product. It is designed to be connected to a compatible
modular jack that is also compliant. See installation instructions for details.

The REN is used to determine the number of devices that may be connected to
a telephone line. Excessive RENs on a telephone line may result in the devices
not ringing in response to an incoming call. In most but not all areas, the sum of
RENs should not exceed five (5.0). To be certain of the number of devices that
may be connected to a line, as determined by the total RENs, contact the local
telephone company. [For products approved after July 23, 2001, the REN for this
product is part of the product identifier that has the format
US:AAAEQ##TXXXX. The digits represented by ## are the REN without a
decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is
separately shown on the label.]

If this telephone causes harm to the telephone network, the telephone company
will notify you in advance that temporary discontinuance of service may be

Consumer Information:

2

02-0043 USA

required. But if advance notice isn't practical, the telephone company will notify
the customer as soon as possible. Also, you will be advised of your right to file a
c mplaint with the FCC if you believe it is necessary. o

The telephone company may make changes in its facilities, equipment,
operations or procedures that could affect the operation of the equipment. If this
happens the telephone company will provide advance notice in order for you to
make necessary modifications to maintain uninterrupted service.

Please follow instructions for repairing if any (e.g. battery replacement section);
otherwise do not alternate or repair any parts of device except specified.

Connection to party line service is subject to state tariffs. Contact the state
public utility commission, public service commission or corporation commission
for information.

T his equipment is hearing aid compatible.

NOTICE: If your home has specially wired alar m equipment connected to the
telephone line, ensure the installation of this telephone does not disable your
alarm equipment. If you have questions about what will disable alarm equipment,
consult your telephone company or a qualified installer.

Should you experience trouble with this equipment, please contact Memorex

for repair or warranty information. If the equipment is causing harm to the

telephone network, the telephone company may request that you disconnect the

quipment until the problem is resolved. e

[NOTICE: According to telephone company reports, AC electrical surges,
typically resulting from lightning strikes, are very destructive to telephone
equipment connected to AC power sources. To minimize damage from these
types of surges, a surge arrestor is recommended.]

[To comply with state tariffs, the telephone company must be given notification
prior to connection for customer-owned coin or credit card phone. In some states,
the state public utility commission, public service commission or corporation
commission must give prior approval of connection.]

INSTALLATION

Install handset :

Use the coiled cord to connect the handset to the cradle. Insert either plug into
either jack.

3

02-0043 USA

For desk top :

z Simply insert either plug into the modular jack in the telephone base.
z Tuck the cord into the prefitted slot on the underside of cradle
z Insert the other end into the wall jack

Reversible hook :

This telephone has a reversible hook to hold the handset in the cradle
when the unit is wall mounted. Pull the hook out from the base and rotate it.
When the hook is in the upright position it will hold the handset in the cradle.

z Pull up the Handset Hanger, reverse and replace it. This will

hold the handset in place during wall use.

Description of Components

For your convenience, an index card is included for you to list your most important
telephone numbers

4

02-0043 USA

OPERATION

A) Setting the Tone / Pulse switch

Please ask your local telephone company whether your phone service is

PULSE (Rotary) dialing or TONE dialing. Set the switch at TONE position for
TONE type, or set the switch at PULSE position for PULSE (Rotary) type

B) To Receive a Call

Whenever your phone rings, pick it up and use it as you would with any standard
telephone

C) Dialing a Call

Pick up your telephone, and listen for dial tone, then press the keys for the

number you want to call.

D) Ringer ON / OFF switch

When you don't want to be disturbed by incoming calls, slide the ringer switch
on the base to the "OFF" position; you can still use the phone to make out-going
calls, but any in-coming call will not activate the ringer. Remember to return the
switch to the "ON" position when you are ready to receive calls.

E) Ending a Call

After you have finished your conversation just hang up the handset. If you want
to make another call immediately, press the “ FLASH” button once,
and the line is ready for another call

F) MUTE Button

Holding down the MUTE button during a telephone call turns off the
microphone. You can then talk privately to someone else in the room without the
person on the phone hearing you. When you hold down the MUTE button, you
can still hear the other person, but anything you say will be not heard. When you
release the button, your caller will again be able to hear your voice

G) To Redial the Last number

This telephone always remembers the last number you called
If the line is busy and you wish to try again, first press the 'FLASH' button, then
press the 'REDIAL' button, and the last number will be redialed again

For additional set-up or operating assistance, please visit our website at

www.memorexelectronics.com or contact customer service at

Please keep all packaging material for at least 90 days in case you need to

return this product to your place of purchase or MEMOREX.
For parts and accessories, contact FOX INT’L at 1-800-321-6993

PHONE:[phone]

Memcorp Inc

Weston, FL
