Memorex MPH4495 user Manual

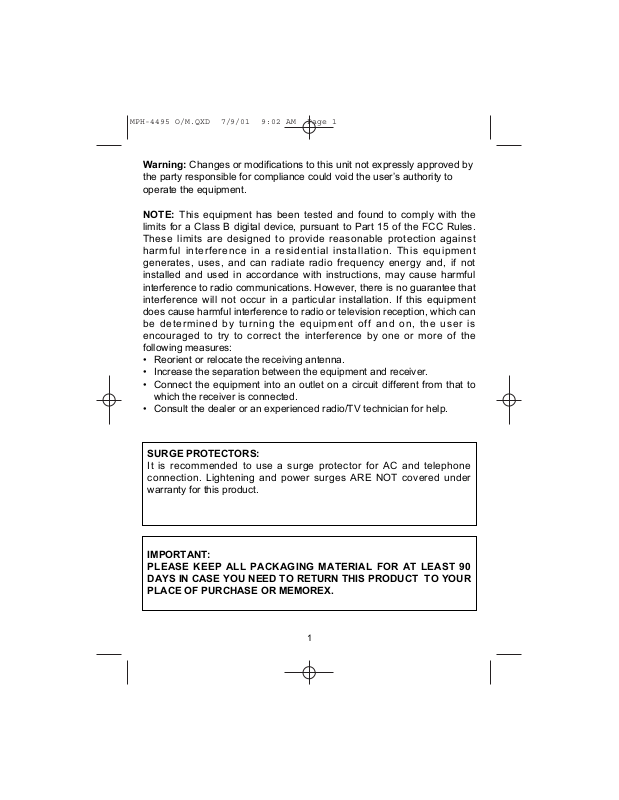

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT: PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC and telephone connection. Lightening and power surges ARE NOT covered under warranty for this product.

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 1

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on this product.

3. Do not use this product near water- for example, near a bath tub, wash bowl, kitchen

sink, or laundry tub, in a wet basement, or near a swimming pool.

4. Do not place this product on an unstable cart, stand, or table. The product may fall,

causing serious injury and serious damage to the product.

5. Slots and openings in the cabinet and in the back or bottom are provided for ventilation

and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation unless proper ventilation is provided.

6. Never push objects of any kind into this product through cabinet slots as they may

touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill or spray any type of liquid on the product.

7. To reduce the risk of electric shock, do not disassemble this product, but take it to a

qualified service personnel under the following conditions:

A. If liquid has been spilled into the product. B. If the product has been exposed to rain or water. C. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as an adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

D. If the product has been dropped or the cabinet has been

damaged.

E. If the product exhibits a distinct change in performance.

8. Avoid using a telephone (other than a cordless type) during an electrical storm. There

may be a remote risk of electric shock from lightning.

9. Do not use the telephone to report a gas leak in the vicinity of the leak.

10. Do not allow anything to rest on the telephone cord. Do not locate this product where the

cord will be abused by persons walking on it.

11. Never install telephone wire during a lightning storm.

12. Never install telephone jacks in wet locations unless the jack is specifically designed for

wet locations.

13. Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

14. Use caution when installing or modifying telephone lines.

SAVE THESE INSTRUCTIONS

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 2

IMPORTANT SAFETY INSTRUCTIONS

1. If your local telephone exchange only accepts Pulse dialing, you may have to switch the Tone/Pulse switch to Tone to access certain services that require Tone signalling (such as home banking). After the initial line is connected to the number you are calling, switch the Tone/Pulse switch to Tone to access Tone signalling. When you have completed your call, please switch the Tone/Pulse switch back to Pulse.

2. Hearing aid compatibility - Your telephone is compatible for use with hearing aids.

FCC and Phone Company Information

Your telephone company is required by the Federal Communications Commission to allow you to connect FCC registered telephones to their lines. The FCC requires you to provide information, if requested by the local telephone company, about the connection of an FCC registered telephone to their lines. They may ask you for the FCC registration number and the ringer equivalence number (REN); both are at the bottom of the base. They may also ask for the Universal Service Order Code (USOC), which is the RJ-11C. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive REN’s on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the REN’s should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total REN’s, contact the telephone company to determine the maximum REN for the calling area. Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practical, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in of Part 68 of FCC Rules and Regulations. The telephone company may make changes in its communication facilities, equipment operations or procedures where such action is required in the operation of its business and not consistent with FCC Rules and Regulations. If these changes are expected to affect the use of performance of your telephone equipment, the telephone company must give you adequate notice in writing, to allow you to maintain uninterrupted service. This equipment cannot be used on telephone company provided coin service. Connection to Party Line Service is subject to state tariffs. Any changes or modifications not expressly approved by (state party responsible for compliance) can void the user’s authority to operate the equipment.

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 3

LOCATION OF CONTROLS

1. Handset

2. TIME Button

3. DC Jack (rear of unit)

4. MEMO Button

5. RINGER (HI/LO/OFF) Switch

(rear of unit)

6. Display

7. OGM (Outgoing Message)

Button

8. DELETE Button

9. TONE/PULSE Switch (rear of

unit)

10. Telephone Line Jack (rear of unit)

11. FLASH Button

12. Battery Compartment (bottom

of unit)

13. ERASE Button

14. SEARCH UP Button

15. DIAL Button

16. SEARCH DOWN Button

17. ANSWER/NEW MESSAGE Indicator

18. ANSWER ON/OFF Button

19. MEMORY Buttons (M1,M2,M3)

20. REDIAL/PAUSE Button

21. SPEED DIAL Button

22. PROGRAM Button

23. Key Buttons (0–9,#,*)

24. HOLD Indicator

25. HOLD Button

26. SPEAKERPHONE Indicator

27. SPEAKERPHONE Button

28. PLAY/STOP Button

29. Handset HI/LO Switch

30. SKIP/DOWN and UP Button

31. SPEAKER VOLUME Control

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 4

31 30

29 28

52 41

6 7

3 108 9

12 13

14 15 16

17 18

19 20

21 22

24 25

26 27

E–5

This section has been designed to provide a reference guide to help set up the unit.

1. Unpack and make sure all the items have been included: Base Unit, Power Adaptor and Telephone Line Cord(s).

2. Connect one end of the provided telephone line cord into the LINE jack on the rear of the unit and the other end into a modular telephone jack. If using a telephone splitter to connect the unit AND an additional phone, plug the telephone splitter into the modular phone jack and connect the provided telephone line cord into one jack of the telephone splitter and the additional telephone’s line cord into the other jack.

3. Insert the small plug on the end of the AC adaptor into the DC power jack located on the rear of your unit. Use only the Center Negative AC adaptor provided with your unit: INPUT: 120VAC, 60Hz OUTPUT: 8.4V DC

4. Plug the AC adaptor into a standard 120V AC wall outlet. Once plugged in, the display will count up from 0 to 6. After a beep, the unit will say, “ANNOUNCEMENT ON”. The battery indicator will light if the battery is dead, weak, or not installed. Page 7 describes how to install the batteries.

5. This unit uses digital technology, so a microcassette is not used. Follow the instructions on the following pages to operate your unit.

6. During AC power failure, four (4) AA batteries provides battery backup so the unit can maintain the memory information. However, the unit cannot answer incoming calls without AC power.

DC 9V POWER JACK

AC POWER

ADAPTOR

TELEPHONE LINE JACK

TELEPHONE LINE CORD

INSTALLATION

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 5

INSTALLATION

This unit can be used on a desk, or other level surface or mounted on the wall away from excessive heat or direct sunlight.

Desk or Table Use

1. Set the RINGER switch to LO or HI to have the ringer sound when receiving a phone call.

2. Set the TONE/PULSE switch to TONE or PULSE to match the service provided on your telephone line. If you are not sure of your service, please contact your telephone company.

3. Connect the coiled cord to the handset and base. Connect the straight cord to the base and telephone jack as shown in Figure 1.

Figure 1

Wall Mounting

1. Attach the supplied Wall Mount adapter to the rear of the telephone.

2. Drill two holes with a vertical distance between the two marked positions of 83mm as shown in Figure 2.

3. Drive a screw into each of the holes. Tighten them to the end of the screw lines, only leaving the smooth part of the screw head outside the wall.

4. Plug the telephone line cord into the modular wall jack.

5. Reverse the position of the Wall Mount Hook on the base as shown in Figures 3 and 4.

6. Hang the unit onto the screws, then slide it down firmly to fasten the base securely.

7. When using this phone as a wall mount phone, be sure to route the short line cord on the back of the base unit and plug the other end into the wall mount jack.

Figure 3 Figure 4

Figure 2

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 6

TO TELEPHONE BASE

TELEPHONE LINE CORD

83mm

POWER SOURCES

AC Power Adapter

To operate the unit using AC power, connect the AC adapter to the DC jack on the rear of the unit and to a wall outlet having 120V, 60Hz only. CAUTION: Use only the AC adapter provided with the unit. Using another AC adapter may damage the unit. When not using AC power, disconnect the AC adapter from the wall outlet by pulling the plug (not the cord). Do not touch the AC adapter with wet hands.

Battery Installation

To protect the memory if there is a power failure, insert 4 “AA” size batteries (not included). To install the batteries, open the battery compartment with a slotted screwdriver as shown in the figure, insert the batteries following the diagram and replace battery compartment cover.

Replace the batteries when the Battery indicator lights in the display.

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries speciﬁed.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 7

AC Outlet

AC Adapter's Plug

TELEPHONE OPERATION

Programming the Time, Flash Time, Language, Number of Rings, Area Code, and Remote Code:

When you receive a call, the unit will automatically set the time and date.

Press and hold the DIAL button for 3 seconds to access the Options Menu, the display will show “SET HOUR”.

Within 8 seconds, press the UP or DOWN button ❶ to select the desired hour, then press the DIAL button ❷ to confirm. Repeat this step for setting the minute, month, day, and day of week.

After setting the day of the week, press the DIAL button ❷ again. Press the UP or DOWN button ❶ to select the desired flash time (100MS, 300MS or 600MS), then press the DIAL button ❷ to confirm.

Press the UP or DOWN button ❶ to select the desired language (ENGLISH, SPANISH or FRENCH), then press the DIAL button ❷ to confirm.

• When setting the information, make sure to press a button within 8 seconds, otherwise the display will revert back to normal operation.

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 8

TELEPHONE OPERATION

SPEAKERPHONE

1. Press the SPEAKERPHONE button.

2. Press the key buttons (0-9) for the specified number you wish to call.

3. Slide the SPEAKERPHONE VOLUME control on the base unit to adjust the volume of the speaker.

NOTES:

• When you receive a call, the unit will automatically set the time and date.

• The caller ID memory can store up to 64 name/numbers.

• When setting the information, make sure to press a button within 8 seconds, otherwise the display will revert back to normal operation.

Press the UP or DOWN button ❶ to select the first digit of the area code, then press the DIAL button ❷. Repeat this procedure for the second and third digits of the area code.

Press the UP or DOWN button ❶ to set the Remote Code (code you will use to access your answering machine from a remote location), then press the DIAL button ❷. The unit will now be set.

Press the UP or DOWN button ❶ to select the desired number of rings before the answering machine picks up. Select 2 for 2 rings, 4 for 4 rings or 2-4 to select Toll Saver. Toll Saver will answer the call after 4 rings until a message (ICM) is left and then it will answer after 2 rings. This is useful when calling in to determine if you have messages. Press the DIAL button ❷ to confirm.

MPH-4495 O/M.QXD 7/9/01 9:02 AM Page 9
