Memorex MPH2410 User Manual

MODEL: MPH2410

BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY.

CORDLESS TELEPHONE WITH CALLER ID

OPERATING INSTRUCTIONS

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 37

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT: PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC and telephone connection. Lightning and power surges ARE NOT covered under warranty for this product.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

The Owner’s Manual contains important operating and maintenance instructions. For your safety, it is necessary to refer to the manual.

IMPORTANT SAFETY PRECAUTIONS

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 1

IMPORTANT SAFETY PRECAUTIONS (CONTINUED)

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on this product.

3. Do not use this product near water- for example, near a bath tub, wash bowl,

kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

4. Do not place this product on an unstable cart, stand, or table. The product may fall,

causing serious injury and serious damage to the product.

5. Slots and openings in the cabinet and in the back or bottom are provided for ventilation

and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation unless proper ventilation is provided.

6. Never push objects of any kind into this product through cabinet slots as they may

touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill or spray any type of liquid on the product.

7. To reduce the risk of electric shock, do not disassemble this product, but take it to a

qualified service personnel under the following conditions: A. If liquid has been spilled into the product. B. If the product has been exposed to rain or water. C. If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions, as an adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal

operation. D. If the product has been dropped or the cabinet has been damaged. E. If the product exhibits a distinct change in performance.

8. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

9. Do not use the telephone to report a gas leak in the vicinity of the leak.

10. Do not allow anything to rest on the telephone cord. Do not locate this product where the cord will be abused by persons walking on it.

11. Never install telephone wire during a lightning storm.

12. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

13. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.

14. Use caution when installing or modifying telephone lines.

15. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 2

1. If your local telephone exchange only accepts Pulse dialing, you may have to

switch the Tone/Pulse switch to Tone to access certain services that require Tone signalling (such as home banking). After the initial line is connected to the number you are calling, switch the Tone/Pulse switch to Tone to access Tone signalling. When you have completed your call, please switch the Tone/Pulse switch back to Pulse.

2. Hearing aid compatibility - Your telephone is compatible for use with hearing aids.

FCC and Phone Company Information

Your telephone company is required by the Federal Communications Commission to allow you to connect FCC registered telephones to their lines. The FCC requires you to provide information, if requested by the local telephone company, about the connection of an FCC registered telephone to their lines. They may ask you for the FCC registration number and the ringer equivalence number (REN); both are at the bottom of the base. They may also ask for the Universal Service Order Code (USOC), which is the RJ-11C. The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive REN’s on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the REN’s should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total REN’s, contact the telephone company to determine the maximum REN for the calling area. Should your equipment cause trouble on your line which may harm the telephone network, the telephone company shall, where practical, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in of Part 68 of FCC Rules and Regulations. The telephone company may make changes in its communication facilities, equipment operations or procedures where such action is required in the operation of its business and not consistent with FCC Rules and Regulations. If these changes are expected to affect the use of performance of your telephone equipment, the telephone company must give you adequate notice in writing, to allow you to maintain uninterrupted service. This equipment cannot be used on telephone company provided coin service. Connection to Party Line Service is subject to state tariffs. Any changes or modifications not expressly approved by (state party responsible for compliance) can void the user’s authority to operate the equipment.

IMPORTANT SAFETY PRECAUTIONS (CONTINUED)

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 3

Important Safety Precautions ........................1

Contents ........................................................4

Location of Controls and Indicators ...............5

Installation Instructions ..................................6

Wall Mounting the Unit (Standard

Wall Jack) ..................................................7

Wall Mounting the Unit (No Standard

Wall Jack) ..................................................8

Uninstalling the Wall Mount Bracket..........8

Headset Connection..................................8

Installation of the Rechargeable Battery ...9

Charging the Rechargeable Battery ..........9

Set-Up Instructions ......................................10

Setting the Ringer Volume.......................10

Setting the Language ..............................11

Setting the First Ring...............................12

Setting the Time and Date.......................13

Setting the LCD Contrast.........................14

Setting the PBX Number .........................15

Setting the Flash Time.............................16

Setting the Pause Time ...........................17

Setting the Voice Mail..............................18

Setting the Message Waiting...................19

Setting the Area Code .............................20

Telephone Operation ...................................21

Tone/Pulse Switch...................................21

Placing a Call...........................................21

Receiving a Call.......................................22

What Appears in the Caller ID Display ....22

Redialing a Number.................................23

Channel Selection ...................................23

Ending a Call ...........................................23

Adjusting Earphone Volume....................23

Out of Range ...........................................23

Using the Temporary Tone......................24

Call Waiting .............................................24

Paging the Handset.................................24

Inserting a Pause.....................................24

Message Waiting Function ......................25

Digital Security System............................25

Checking the Caller ID Log......................26

Deleting One Name/Number from

the Caller ID Log......................................26

Deleting All Name(s)/Number(s) from

the Caller ID Log......................................27

Dialing a Number in the Caller ID

Display.....................................................27

Storing Names & Telephone

Numbers in the Phonebook.....................28

Character Map Chart...............................29

Viewing the Phonebook...........................29

Saving Caller ID Information to

the Phonebook ........................................30

Dialing a Number from the Phonebook ...30 Editing Telephone Number(s)/Name(s)...31 Deleting a Number from the Phonebook .32

Preferred Calls.........................................32

Blocked Calls...........................................32

Troubleshooting Guide ................................33

Care and Maintenance ................................35

CONTENTS

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 4

LOCATION OF CONTROLS AND INDICATORS

HANDSET

BASE

1. Handset Antenna

2. NEW CALL/MSG WTG Indicator

3. Display

4. TALK Button

5. Scroll Up/Down/Left/Right Buttons

6. VOICE MAIL/MENU Button

7. Key Buttons (0-9)

8. HEADSET Jack (Side of Handset)

9. Temporary Tone/ Button

10. EDIT/FLASH Button

11. Handset Receiver

12. DIR (Directory) Button

13. SAVE/RE (Redial)/PA (Pause) Button

14. Receiver Volume Switch (Side of Handset)

15. Option/# Button

16. DEL (Delete)/CHAN (Channel) Button

17. TONE/PULSE Switch (Rear of Base)

18. DC 9V Jack (Rear of Base)

19. Telephone LINE Jack (Rear of Base)

20. Charging Contacts

21. PAGE Button

22. IN USE/CHARGE Indicator

23. Base Unit Antenna

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 5

17 18

4 5

7 8

1. Carefully unpack and remove your unit from the box.

2. Make sure all of the following items have been included:

3. Make sure the Rechargeable Battery is installed or install the Rechargeable Battery as described on page 9.

PLEASE REFER TO FIGURE 1 FOR STEPS 4 THROUGH 7:

4. Slide the TONE/PULSE switch on the side of the Base unit to TONE or PULSE to match the service provided on your telephone line. If you are not sure of your service, please contact your telephone company. The factory preset position for this switch is TONE.

5. Connect one end of the telephone line cord into the TEL LINE jack on the rear of the base unit and the other end into a modular telephone jack.

6. Insert the small plug at the end of the DC adapter into the DC 9V jack located at the rear of the base unit.

NOTE: Use only the center-positive 9V DC adapter provided with your unit.

7. Plug the AC adapter into a standard 120V AC wall outlet.

8. If desired, install the belt clip by inserting the belt clip hook into the matching slots at the top side of the handset as shown in figure 2. Slide the other hook until it locks into place from the opposite side of the handset.

9. If desired mount on a wall as described on the next two pages.

INSTALLATION INSTRUCTIONS

• Base Unit

• Handset Unit

• Rechargeable Ni-Cd Battery Pack (3.6V, 600mAH)

• AC Adapter

(AC120V, 60Hz/DC9V, 300mA)

•2 Telephone Cords (Short and Long)

• Belt Clip

• Mounting Bracket with Screws

Figure 1

Figure 2

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 6

DC 9V Jack

Base

Adaptor

Adaptor Plug

Outlet

Belt Clip Hook

INSTALLATION INSTRUCTIONS (CONTINUED)

WALL MOUNTING THE UNIT (STANDARD WALL JACK)

Follow the instructions below to install the base onto a standard telephone wall jack:

1. Connect the short telephone line cord to the TEL LINE jack on the rear of the base unit.

2. Insert the free end of the short line cord through the hole of the mounting bracket.

3. Insert the hooks of the mounting bracket into the matching slots on the back of the unit as shown in Figure 3. Press the two locks located on the side of the mounting bracket until the locking hooks snap into the inner slots of the base unit as shown in Figure 4.

4. Press the middle locking hooks of the mounting bracket while pushing the back of the mounting bracket until it snaps to lock as shown in Figure 5.

NOTE: Ensure that the lock guide stays in place on the hole provided on the base unit as shown in Figure 6.

5. Plug the free end of the short line cord into the modular wall jack.

6. Align the upper keyhole on the mounting bracket with the upper stud of the wall plate, so that the opening end of the mounting bracket matches the lower stud, pull the mounting bracket down until it is securely seated as shown in Figure 7.

Figures 3 through 6

Figure 7

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 7

Base (Side View)

Wall Mount Stud

Telephone Modular Jack

Wall Mount Stud

Wall Mount Bracket

WALL MOUNTING THE UNIT (NO STANDARD WALL JACK)

1. Drill two holes with a vertical distance between the two marked positions of 3 15/16" (100mm).

2. Drive a screw into each of the holes. Tighten them to the end of the screw lines, only leaving the smooth part of the screw head outside the wall.

3. Install the wall mount bracket into the base unit as previously discussed in Figures 3-6 on the previous page.

4. Hang the unit onto the screws, then slide it down firmly to fasten the base securely, as shown in Figure 8.

UNINSTALLING THE WALL MOUNT BRACKET

To remove the wall mount bracket from the base unit, pull it back as shown in Figure 9.

HEADSET CONNECTION

One of the special features of your phone is that your handset could utilize a headset (not included) for hands-free communication. Insert the small plug at the end of your headset cord to the headset jack at the side of the handset. Follow the procedures discussed in “Placing a Call” and “Receiving a Call” to place and receive a call.

NOTE: The headset jack of your cordless telephone is compatible with 2.5 mm headset plugs only. When you plug in the headset into the headset jack, it automatically mutes the microphone and speaker of the handset. Unplug the headset to return the handset to normal use.

INSTALLATION INSTRUCTIONS (CONTINUED)

Figure 8

Figure 9

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 8

Base (Side View)

Screws

Wall Mount Bracket

INSTALLATION INSTRUCTIONS (CONTINUED)

Remove the battery cover located on the rear of the handset by pressing on the top cover and sliding it downward.

Connect the Ni-Cd battery pack plug into the battery connector; the LCD display will turn on in the Standby mode. Insert the Ni-Cd battery pack into the battery compartment.

Put the battery cover back on by sliding it upward until it clicks into place.

INSTALLATION OF THE RECHARGEABLE BATTERY

CHARGING THE RECHARGEABLE BATTERY

Be sure the rechargeable battery is fully charged 12 hours prior to initial use.

The handset’s rechargeable battery will be charged when it’s on the base’s charge contacts; the CHARGE indicator will light when it is placed in the base.

NOTES:

• The Low battery indicator will appear in the display when the battery power is low and needs recharging. If the battery becomes weak while you are on a call, the Battery Low indicator in the LCD display will blink and a beep will be heard every 12 seconds. In this case, end the call immediately and return to the base for recharging.

• Every few months, or when charging becomes abnormal, clean the contacts of the handset and the base with a standard pencil eraser.

• To maximize battery life, fully discharge the battery every month or two. To do this, simply unplug the telephone line cord and press the TALK button until the battery is discharged, and then recharge it.

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 9

 

  

 

 

 

SET-UP INSTRUCTIONS

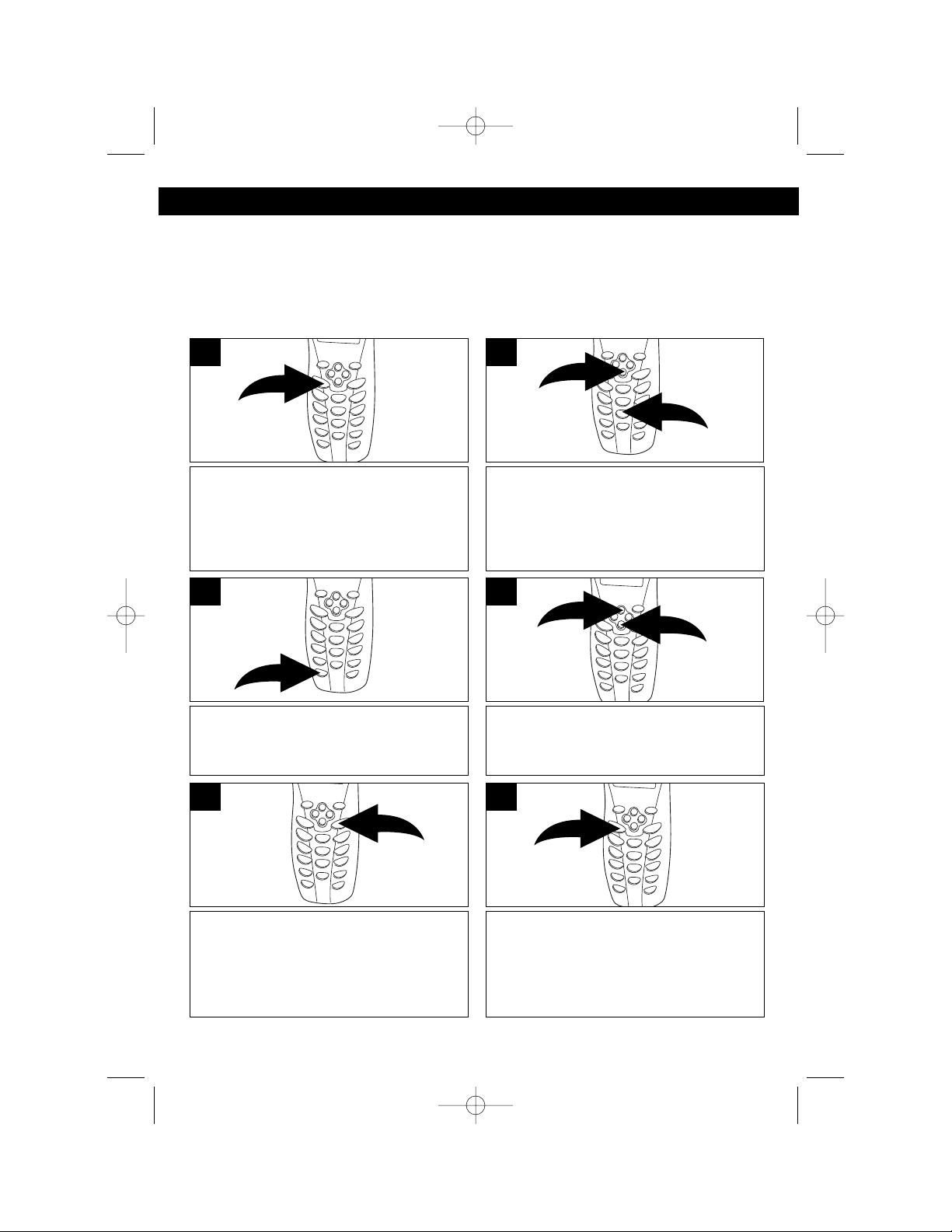

SETTING THE RINGER VOLUME

Set the ringer volume (HI, LOW, OFF) while in the Standby mode as follows:

Press and hold the VOICE MAIL/ MENU button for more than two seconds; the Ringer Volume setting will appear in the display.

Press the EDIT/FLASH button to change the setting; the Ringer Volume setting will blink.

Press the Scroll Up ❶ or Down ❷

button to select a desired ringer volume (HI, LOW or OFF).

When the desired Ringer Volume setting appears, press and hold the SAVE/RE/PA button for more than two seconds; a long beep will be heard to confirm the setting has been saved.

You can continue with programming or press the VOICE MAIL/MENU button to return to the Standby mode.

NOTE:

A button must be pressed within 20 seconds, or the unit will revert back to the Standby mode.

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 10

SET-UP INSTRUCTIONS (CONTINUED)

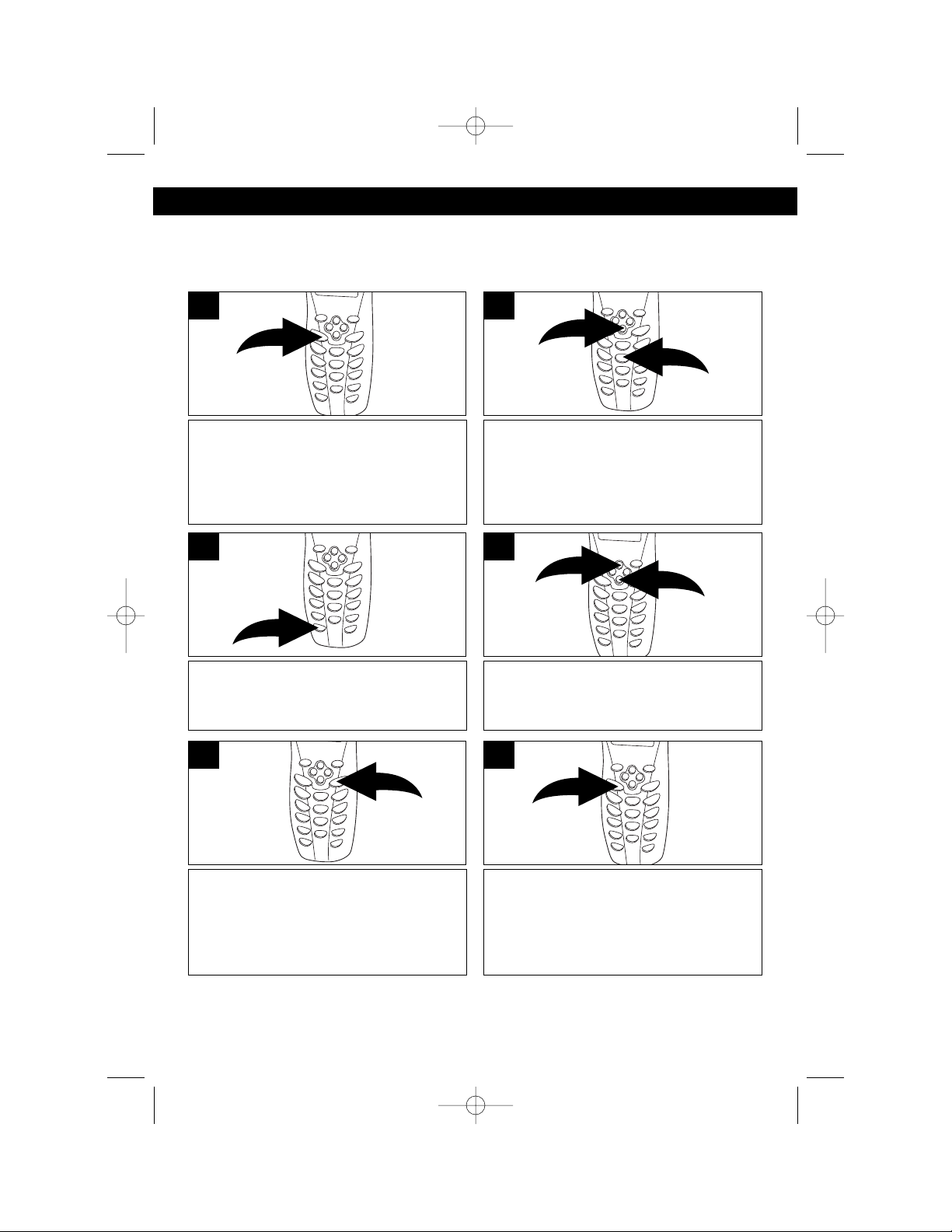

SETTING THE LANGUAGE

Set the language (ENGLISH, SPANISH, FRENCH) while in the Standby mode as follows:

Press and hold the VOICE MAIL/ MENU button for more than two seconds; the Ringer Volume setting will appear in the display.

Press the Scroll Down button ❶ once or the 2 key button ❷ once; the

Language setting will appear.

Press the EDIT/FLASH button to change the setting; the Language setting will blink.

Press the Scroll Up ❶ or Down ❷

button to select the desired language (ENGLISH, SPANISH or FRENCH).

When the desired Language setting appears, press and hold the SAVE/ RE/PA button for more than two seconds; a long beep will be heard to confirm the setting has been saved.

You can continue with programming or press the VOICE MAIL/MENU button to return to the Standby mode.

MPH2410.O/M.QXD 3/7/03 9:35 AM Page 11

+ 25 hidden pages
