User’s Guide
Personal AM/FM Stereo
Compact Disc MP3/WMA Player
MPD8860
“A”
Before operating this product,
please read these instructions completely.
1
SAFETY PRECAUTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
DANGER:
This product utilizes a Class 1 laser to read Compact Discs.
This laser Compact Disc Player is equipped with safety
switches to avoid exposure when the CD door is open and the
safety interlocks are defeated. Invisible and hazardous laser
radiation when open and interlock failed or defeated. Avoid
direct exposure to beam. Please do not attempt to defeat or
bypass the safety switches.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty for this
product.
2
INFORMATION:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Do not open the CD compartment while the CD is rotating.
• Always keep the CD compartment closed when not in use.
• Keep all foreign objects out of the CD compartment.
• Place the unit on a stable surface.
• Avoid installing the unit in locations described below:
• Places exposed to direct sunlight or close to heat radiating
appliances such as electric heaters.
• On top of other stereo equipment that radiates too much
heat.
• Places lacking ventilation or dusty places.
• Places subject to constant vibration.
• Humid or moist places.
SAFETY PRECAUTIONS
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES
ET POUSSER JUSQU’AU FOND.
This Class B digital apparatus complies with Canadian ICES-003. / Cet appareil
numérique de la classe B est conforme à la norme NMB-003 du Canada.
3
Dear Customer:
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of
your musical enjoyment. Now it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your equipment
by playing it at a safe level. One that lets the sound come through loud and clear without
annoying blaring or distortion and, most importantly, without affecting your sensitive
hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer
and the Electronic Industries Association’s Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise. This list of sound levels is included for your
protection.
Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT
EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You
4
LOCATION OF CONTROLS
10
9
2
11
12
13
14
17
18
16
15
3
4
1
7
6
5
8
1. DC 4.5V Jack (Rear of Unit)
z
2. Display
3. ESP/MENU/PRESET Button
4. PROGRAM/ENTER Button
5. Battery Compartment (Under
CD Compartment)
6. CD Compartment
7. FUNCTION (CD/RADIO)
Switch
8. CD Door Open Switch
9. HOLD (ON/OFF) Switch
10. MODE/CLEAR Button
11. Skip/TUNING UP
n / ®
Button
12. PLAY/PAUSE (
®p) / POWER
ON / BAND /
▲ Button
13. Skip/TUNING DN o / √
Button
14. STOP (
■) / POWER OFF / ▼
Button
15. LINE OUT Jack (Side of Unit)
16. PHONES (Headphones) Jack
(Side of Unit)
17. VOLUME Control
18. DBBS (Bass Boost) (ON/OFF)
Switch
5
This CD player requires either two (2) “AA” cell batteries (not included) or
an AC adapter (not included).
BATTERY INSTALLATION
“Low Battery” will appear in the CD display when the batteries need
replacing.
1. Open the CD compartment, then open the
Battery Compartment door by pressing in
on the tab and then lifting it. To prevent
the possibility of losing the cover, it
cannot be removed.
2. Insert two (2) “AA” cell batteries (not
included) according to the polarity diagram
inside the battery compartment. Alkaline
batteries are recommended for the longest
playing time.
AC OPERATION
To operate the unit using AC power, connect an AC adapter (not included) to
an AC outlet having 120V, 60Hz AC only. Plug the small end into the DC
4.5V jack on the rear of the unit and connect the other end into the AC outlet.
The batteries are automatically disconnected when the AC adapter is used.
CAUTION: When not using AC power, disconnect the AC adapter from
the wall outlet by pulling the plug (not the cord). Do not touch the AC
adapter with wet hands. Fully insert the plug without exposing any part of
the blade.
DC4.5V
z
POWER SOURCES
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery
compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Carbon-zinc or Rechargeable) or old
batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or
injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)
–
+
–
+
–
+
–
+
6
OPERATION
To emphasize the bass, slide the
DBBS switch to the ON position. For
normal bass, slide the DBBS switch to
the OFF position.
1
To turn the unit on, press the
PLAY/PAUSE (
®p)/POWER ON/BAND/
▲ button ❶.
To turn the unit off, Press the STOP (■)
/POWER OFF/
▼ button ❷ while in the
Stop mode.
1
2
1
BASS BOOST TURNING POWER ON/OFF
AUTO POWER OFF
When the unit is stopped (Standby mode) for approximately one minute, the
power will automatically turn off.
Audio Sound Through a Home Audio System
By using a home audio connection cable (not included), superb audio sound can
be heard through your home audio system. Before making any connections, turn
off the power to all equipment.
Plug a connection cable (not included) between the LINE OUT jack on the side
of the CD player and the amplifier’s AUX or CD input jack. (Do not connect it to
the amplifier’s PHONO jack.)
NOTE: If the radio interferes with TV reception, move the unit away from the TV
or turn off the power to this unit.
Slide to the ON position to disable the buttons; “Hold” will briefly appear in the
display. When pressing the buttons on the CD compartment lid, "Hold" will briefly
appear in the display. Slide to the OFF position to enable the buttons. For the HOLD
function, only the buttons on the CD compartment lid will be disabled, not the other
controls/switches.
1
HOLD
7
RADIO OPERATION
Set the VOLUME control 1 to minimum
and plug headphones into the PHONES
jack. Press the PLAY/PAUSE (
®p)/
POWER ON/BAND/
▲ button 2 to turn
the unit on.
1
2
1
TO LISTEN TO THE RADIO
Slide the FUNCTION switch 1 to the RADIO
position. Press the PLAY/PAUSE (®p)/
POWER ON/BAND/▲ button 2 to select a band
(AM or FM). If listening to FM, press the
MODE/CLEAR button 3 to select Stereo or
Mono.
2
1
3
2
Press and release the Skip/TUNING DN
o / √ 1 or UP n / ® 2 button to tune a
station. Press and hold the
Skip/TUNING DN
o / √ 1 or UP n / ®
2
button for rapid search tuning.
2
1
3
Adjust the VOLUME control 1 and DBBS
switch
2 as desired. If FM STEREO
reception is weak/noisy, press the
MODE/CLEAR button 3 to select Mono, in
this case the reception will be monaural.
1
2
3
4
To turn the radio, and the unit, off, press
the STOP (
■)/POWER OFF/▼ button.
5
ANTENNAS
AM–This unit has a built-in ferrite bar
antenna, which provides adequate reception
in most areas. If reception is weak, turn the
unit to improve reception.
FM–The headphones act as an antenna for
FM. Extend the headphones wire for best FM
reception.
AUTO SEEK
Press and hold the Skip/TUNING DN o / √
or UP n / ® button for approximately 1
second and the unit will automatically search
for the next available station.
8
RADIO OPERATION (CONTINUED)
Tune a desired station as described in
the previous section. Press the
PROGRAM/ENTER button; the preset
number will blink.
1
TO SET AND RECEIVE A STATION INTO MEMORY
Within approx. ten seconds, select the
desired preset using the ESP/MENU/
PRESET button
1. Press the
PROGRAM/ENTER button
2 to confirm.
2
1
2
To receive a preset station, simply press
the
ESP/MENU/PRESET button to
select the desired preset.
3
9
CD OPERATION
Open the CD compartment lid by
sliding the CD OPEN switch
1 to the
right. Gently press a disc, label side
up, onto the spindle until it locks in
place. Close the CD compartment lid.
Insert headphones into the PHONES
jack. Slide the FUNCTION switch
2 to
the CD position.
1
2
1
TO INSERT AND PLAY A CD
This CD player is designed to play all kinds of Audio Discs and
MP3/WMA CD Roms, such as CD recordables and rewritables. Do not
try to play CDI, CDV, DVD or computer CDs in this unit.
Press the PLAY/PAUSE (®p)/POWER
ON/BAND/
▲ button to turn on the unit
and begin playback; the current track
and elapsed playing time (CD
information and folder will also appear,
if using MP3/WMA) will appear in the
display.
2
Adjust the VOLUME control 1 and
DBBS switch
2 as desired.
1
2
3
When the disc is through playing, it will
stop. Press the STOP (
■)/POWER
OFF/
▼ button to stop the disc before it
is finished. Press the STOP
(
■)/POWER OFF/▼ button again to
turn the unit off.
4
10
CD PLAYBACK NOTES:
• See page 17 for more information on MP3s/WMAs.
• When recording (“burning”) CDs, make sure the session is “finalized”, or simply
record/“burn” only one session. You can find more information in your recorder’s
manual.
• This unit is capable of playing standard CDs or 3” singles; no adapter is
required.
• If a disc is inserted incorrectly, dirty, damaged or not present at all, “No Disc”
will appear in the display.
• If a disc is not recorded properly, a disc error will occur and “Invalid Disc” will
appear in the display.
• Playback will stop when you open the CD compartment, but it is not
recommended to open the compartment before the STOP (
■)/POWER OFF/▼
button is pressed.
• If there is no activity for 60 seconds, the unit will turn itself off to save the batteries.
• It may take 10 to 30 seconds for the player to read an MP3/WMA CD and begin
playback, depending on the number of tracks burned on the CD.

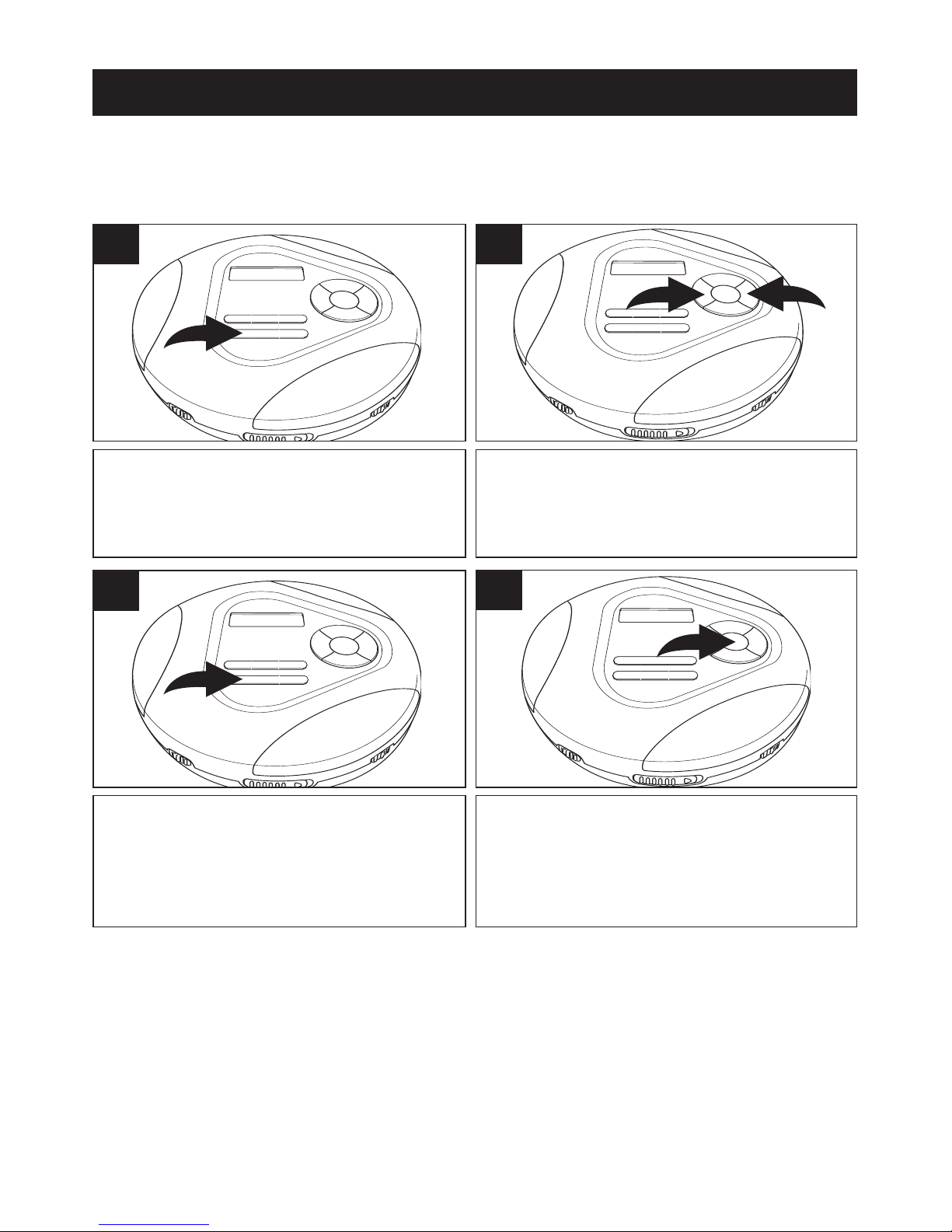

CD OPERATION (CONTINUED)
During CD playback, if you wish to
pause the disc momentarily, press the
PLAY/PAUSE (®p)/POWER ON/
BAND/
▲ button. Playback stops but
the disc continues to spin, the elapsed
time will blink and “PAUSE” will
appear in the display.
1
Press the PLAY/PAUSE (®p)/POWER
ON/BAND/
▲ button again to release
pause and resume playback. The
sound returns, “PAUSE” will disappear
and the elapsed time in the display
stops blinking.
2
TO PAUSE A CD
11
CD OPERATION (CONTINUED)
After you insert the disc into the CD
player and the total number of tracks
appear in the display, you may press
either the Skip/TUNING DN
o / √ 1
or UP n / ® 2 button to select a specific track for playback and it will play-
back automatically.
2
1
1
TO BEGIN PLAYBACK FROM A SPECIFIC TRACK
During playback, press and release
the Skip/TUNING UP
n / ® button
once to advance the player to the
beginning of the next track. Press the
Skip/TUNING UP
n / ® button repeatedly to advance the player to highernumbered tracks.
1
FORWARD/REVERSE SKIP TRACK
During playback, press and release the
Skip/TUNING DN
o / √ button once to
move the player back to the beginning
of the currently playing track. Press the
Skip/TUNING DN
o / √ button repeat-
edly to move the player back to lowernumbered tracks.
2
12

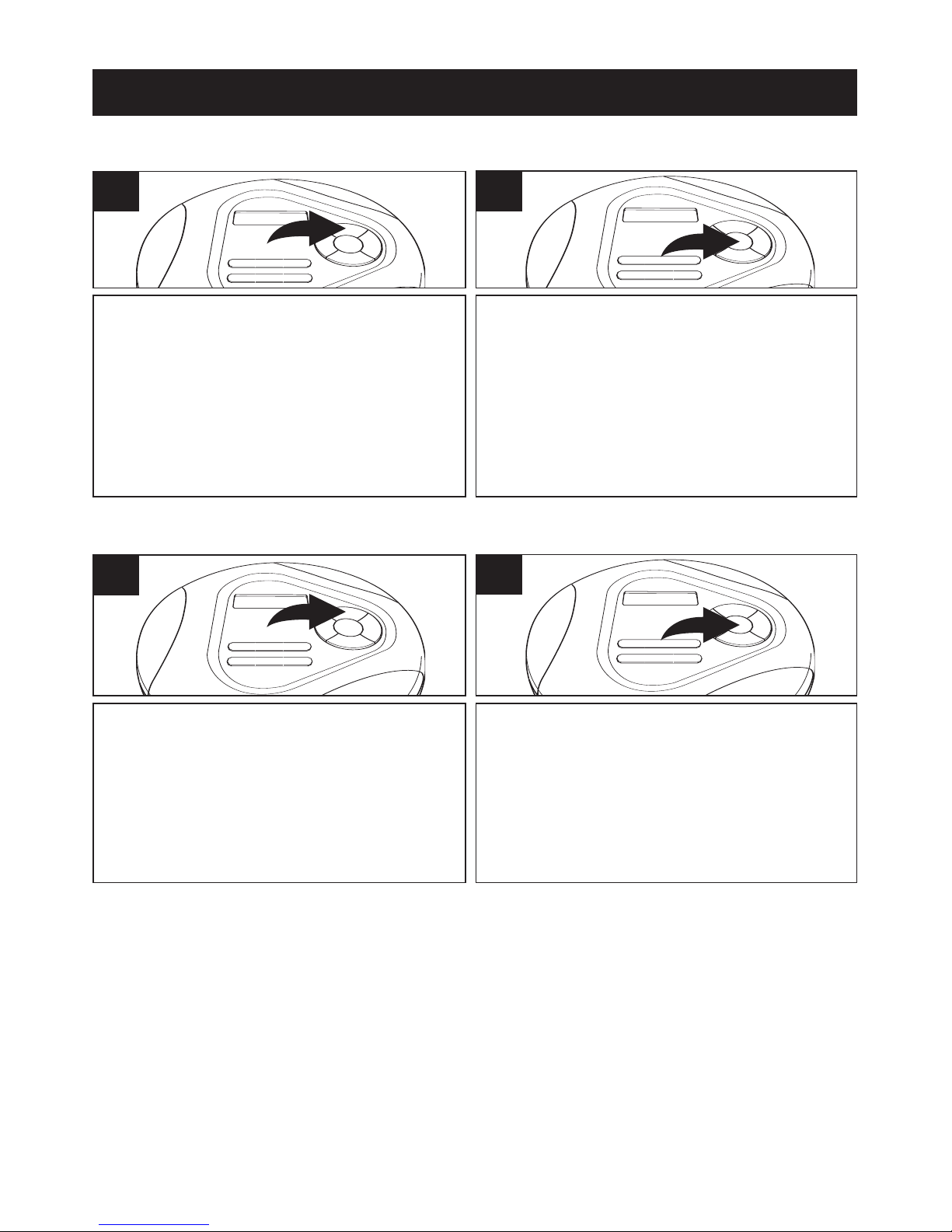

CD OPERATION (CONTINUED)
During playback, depress and hold
either the Skip/TUNING DN
o / √ 1 or
UP
n / ® 2 button to move the player
forward or backward within a track to
locate a specific musical passage. The
player will move forward or backward at
high speed as long as the buttons are
depressed. When you release the
Skip/TUNING DN o / √ 1 or UP n / ®
2 button, normal playback will resume.
2
1
1
HIGH-SPEED MUSIC SEARCH
To repeat a single track, while in the
Stop mode, press the MODE/CLEAR
button
1 once; “REP 1” will appear in
the display. Press the Skip/TUNING
DN
o / √ 2 or UP n / ® 3 button to
select the specific track that you wish
to repeat.
3
2
1
1
REPEAT PLAYBACK OF ONE TRACK
When the desired track number
appears in the display, press the
PLAY/PAUSE (
®p)/POWER ON/
BAND/
▲ button to begin playback. The
"REP 1" indicator will disappear from
the display after a few seconds and the
specific track you selected will be
repeated continuously.
2
TO CANCEL REPEAT PLAYBACK OF ONE TRACK:
1. Press the STOP (■)/POWER OFF/▼ button to stop playback, "REP 1" will
appear again, press the MODE/CLEAR button repeatedly until the MODE
indicators disappear from the display.
OR
2. Press the MODE/CLEAR button once during playback, “REP A” will appear in
the display. Press the MODE/CLEAR button repeatedly until the Mode
indicators disappear from the display to return to normal playback.
13
CD OPERATION (CONTINUED)
To repeat all the tracks on the CD,
while in the Stop mode, press the
MODE/CLEAR button twice; “REP A”
will appear in the display.
1
REPEAT PLAYBACK OF ALL TRACKS
Press the PLAY/PAUSE (®p)/POWER
ON/BAND/
▲ button to begin playback.
The "REP A" indicator will disappear
from the display after a few seconds and
all tracks on the disc will be repeated
continuously.
2
To repeat all files in a directory
(MP3/WMA CD only), while in the Stop
mode, press the MODE/CLEAR button
1
three times; “REP D” will appear in the
display. Press the Skip/TUNING DN
o /
√ 2 or UP n / ® 3 button to select the
specific directory that you wish to repeat.
3
2
1
1
REPEAT PLAYBACK OF A FOLDER (MP3/WMA w/folders only)
Press the PLAY/PAUSE (®p)/POWER
ON/BAND/▲ button to begin playback.
The "REP D" indicator will disappear from
the display after a few seconds and all
files in the selected directory will be
repeated continuously.
2
TO CANCEL REPEAT PLAYBACK:
1. Press the STOP (■)/POWER OFF/▼ button to stop playback, "REP A" or
“REP D” will appear again, press the MODE/CLEAR button repeatedly until
the MODE indicators disappear from the display.
OR
2. Press the MODE/CLEAR button once during playback, “REP D” or “INTRO”
will appear in the display. Press the MODE/CLEAR button repeatedly until the
Mode indicators disappear from the display to return to normal playback.
14
CD OPERATION (CONTINUED)
While in the Stop mode, press the
MODE/CLEAR button 3 times (4 times
if an MP3/WMA CD with multiple
directories is inserted); “INTRO” will
appear in the display.
1
INTRO PLAYBACK (Will play the first 10 seconds of each track)
Press the PLAY/PAUSE (®p)/POWER
ON/BAND/
▲ button to begin Intro play-
back. The "INTRO" indicator will disappear from the display after a few seconds and the first 10 seconds of all
tracks on the disc will be played in
sequence.
2
While in the Stop mode, press the
MODE/CLEAR button 4 times (5 times
if an MP3/WMA CD with multiple
directories is inserted); “RANDOM”
will appear in the display.
1
TO RANDOMLY PLAY BACK A CD
Press the PLAY/PAUSE (®p)/POWER
ON/BAND/
▲ button to begin playback.
The "RANDOM" indicator will disappear
from the display after a few seconds and
the unit will play all the tracks in random
order. When all the tracks have been
played, the unit will stop.
2
TO CANCEL INTRO OR RANDOM PLAYBACK:
1. Press the STOP (■)/POWER OFF/▼ button to stop playback, the selected
indicator will appear again, press the MODE/CLEAR button repeatedly until
the MODE indicators disappear from the display.
OR
2. If in INTRO mode, press the MODE/CLEAR button once during playback,
“RANDOM” will appear in the display. Press the MODE/CLEAR button until
the Mode indicators disappear from the display to return to normal playback.
In Random mode, press the MODE/CLEAR button once to return to normal
playback.
15
CD OPERATION (CONTINUED)
While in the Stop mode, press the PRO-
GRAM/ENTER
button. The track number will blink and “P-01” will appear in the
display.
1
TO PROGRAM THE MEMORY (UP TO 24 TRACKS)
Programming is the ability to preselect the order in which a series of tracks will be
played.
Select a track to be programmed using the
Skip/TUNING DN
o / √ 1 or UP n / ® 2
button. If using a MP3/WMA disc, see
note below.
2
1
2
Press the PROGRAM/ENTER button
to memorize the track. Repeat steps 2
and 3 to program additional tracks up
to a maximum of 24 tracks.
3
Press the PLAY/PAUSE (®p)/POWER
ON/BAND/
▲ button to begin Program
playback.
4
NOTES:
• While in the Stop mode and “P” is in the display, press and hold the
MODE/CLEAR button for 2 seconds to clear the memory.
• MP3/WMA: If an MP3/WMA CD is inserted, you will first select the directory
number in step 1, press the PROGRAM/ENTER button and then enter the
file/track number.
SEE TOP OF NEXT PAGE FOR MORE NOTES ON PROGRAMMING
THE MEMORY.
NOTES ON PROGRAM PLAYBACK
• You can review the program by pressing the PROGRAM/ENTER button
repeatedly while in the Stop mode.
• To add a track to the program memory, simply press the
PROGRAM/ENTER button repeatedly until the track (directory if using an
MP3/WMA) appears and “00” blinks in the display, then continue as per
Steps 2 and 3 on the previous page.
• Press the STOP (
■)/POWER OFF/▼ button to stop the program before it
is finished (the program memory will be kept).
• Each file may be stored in the program memory as many times as desired
(up to 24 files).
• You can scroll through the program while it is playing using the
Skip/TUNING DN
o / √ or UP n / ® button.
16
CD OPERATION (CONTINUED)
ESP (ELECTRONIC SKIP PROTECTION)
This feature protects against loss of sound caused by vibrations and shocks.
Continuous playback is ensured once some of the music has been stored into
memory.
ESP will automatically be activated when listening to standard or MP3/WMA
CDs. You cannot deactivate ESP while listening to an MP3/WMA CD. However,
you can deactivate it when playing a standard CD by simply pressing the
ESP/MENU/PRESET button; the ESP indicator will disappear from the display.
Deactivating the ESP will conserve battery life.
MP3/WMA FAQs–Frequently Asked Questions
Please read before playing an MP3/WMA CD.
Does the unit support packet write CD-RW?
Yes, it can. You can add or delete MP3/WMA files without
reformatting. It appears like a PC hard drive.
Can the unit read regular music CDs?
Yes, it can. However you can not mix MP3/WMAs and WAV
files on the same CD. If you do this your Portable MP3/WMA
CD Player will play only the MP3/WMA files.
Does the unit have Electronic Skip Protection built-in?
Yes, it has an anti-shock buffer (45 seconds for standard CD
and 120 seconds for MP3/WMA CD). What it means for the
everyday user is that it can withstand road bumps, shaking,
etc. There will be no skipping when you jog or run on a treadmill or drive on a bumpy road.
Can I use the MP3/WMA extension for non-audio data files?
No, this may result in serious malfunction and harmful noise
interference.
Can I mix MP3/WMA files with other file types on the CDR?
Yes, but your Portable MP3/WMA CD Player will ignore those
files and read only the MP3/WMA files on the CDR.
Does the unit support multi-session CDRs?
If the MP3/WMA CD is not finalized, you can burn a new
group of MP3/WMA files until the CD is full.
Does the unit support subdirectories (subfolders)?
Yes, the unit can read MP3/WMA files from subfolders.
What appears on the display when playing MP3/WMA CDs?
The album, title and artist (if set when MP3/WMA was
recorded).
17
CD OPERATION (CONTINUED)
18
With an MP3/WMA disc inserted, press
the ESP/MENU/PRESET button; the
alphabet will appear in the display for
ten seconds.
1
SELECTING SONGS BY MP3/WMA TITLE
You can search for a song by title as follows:
Select the first letter of a file you would like
to listen to using the Skip/TUNING DN
o /
√ 1 or UP n / ® 2 button. Press the
STOP (
■)/POWER OFF/▼ 3 or
PLAY/PAUSE (
®p)/POWER ON/BAND/▲
button 4 to access the lower letters, higher
letters or special mark.
2
1
3
4
2
Press the PROGRAM/ENTER button
1 and a list of files starting with the
selected letter will appear. Press the
Skip/TUNING DN
o / √ 2 or UP n /
® 3 button to scroll through the list.
3
2
1
3
When the desired file appears, press
the PROGRAM/ENTER button and the
file will automatically start playing.
4
CD OPERATION (CONTINUED)
NOTE:
If you select a letter that does not contain any files, “NO File” will appear
in the display.
19
Press the ESP/MENU/PRESET button
twice; the first directory will appear in
the display for ten seconds, as well as
its contents.
1
SEARCHING THROUGH MP3/WMA DIRECTORIES
You can search the contents of the directories (if burned on CD) as
follows:
To select a file from the directory, use
the Skip/TUNING DN
o / √ 1 or UP n
/ ® 2 button.
2
1
2
If you would like to change directories,
use the
STOP (■)/POWER OFF/▼ 3 or
PLAY/PAUSE (®p)/POWER ON/BAND/
▲ button 4.
2
1
3
When the desired file appears, press
the PROGRAM/ENTER button and the
file will automatically start playing.
4
CD OPERATION (CONTINUED)
20
SINGLE SESSION
The chart below is an example of a Windows Explorer display that will
appear on your computer monitor for a single session MP3/WMA CD
ROM with directories/albums. Check the added notes to help you
understand the MP3/WMA CD unit display and the playback sequence of
directories/albums and tracks on a single session MP3/WMA CD.
MULTI SESSION
The computer user does not need to finalize the CDR disc as music is
burned on the CD. Because of this, the music can be downloaded at
different times until the whole CD is full.
NOTES:
• The arrow pathway shows the sequence of MP3/WMA directory and file
playback.
• This example has a total of one WMA and six MP3 directories.
• Based on this layout, the first file will be “Blur01.mp3” and the last file
will be “Twain15.mp3”.
• “Skipped” denotes a directory which contains non-audio files only, e.g.
jpg, wav, etc. These cannot be detected nor played on this player.
When an album contains mixed format files, the non-MP3/WMA files
will be skipped.
CD OPERATION (CONTINUED)
21
CARE AND MAINTENANCE
Caring for Compact Discs
• Treat the compact disc carefully. Handle the
compact disc only by its edges. Never allow your
fingers to come in contact with the shiny, unprinted
side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to
the compact disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use
detergents or abrasive cleaners to clean the compact disc. If necessary, use a
CD cleaning kit.
• If a compact disc skips or gets stuck on a section of the compact disc, it is
probably dirty or damaged (scratched).
• When cleaning the compact disc, wipe in straight lines from the center of the
compact disc to the outer edge of the compact disc. Never wipe in circular
motions.
• Compact discs should be stored in their cases after each use to avoid
damage.
• Do not expose compact discs to direct sunlight, high humidity, high
temperatures or dust, etc. Prolonged exposure or extreme temperatures can
warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing
instruments, or the ink, may damage the surface.
Cleaning the Unit
• To prevent fire or shock hazard, disconnect your unit from the AC power
source when cleaning.
• The finish on your unit may be cleaned with a dust cloth and cared for as other
furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a dry cloth may be used on the front panel.
22
TROUBLESHOOTING GUIDE
If you experience a problem with this unit, check the chart below before
calling for service.
SYMPTOM CAUSE SOLUTION
Unit will not Dead batteries, or not Replace batteries, and install
turn on. installed properly. properly.
Weak or dead
If using rechargeables, recharge.
batteries.
If using standard batteries, replace.
AC adapter Check AC adapter
not connected. connection.
Disc will not play. CD compartment Close CD compartment.
not closed.
Disc inserted Reinsert disc correctly.
incorrectly.
Dirty or defective Clean or replace disc.
disc.
Moisture Wipe disc with soft
condensation cloth.
on disc.
Erratic CD playback. Dirty or defective Clean or replace disc.
disc.
No sound from Headphones Reinsert headphones
headphones. plug not inserted plug correctly.
correctly.
VOLUME control Increase volume.
set to minimum.
Weak batteries. Replace batteries.
Defective disc. Try another disc.
ESP not working. ESP is not activated.
Press the ESP/MENU/PRESET button.
Noise or sound Station not tuned Retune AM or FM
distorted on radio.
properly for AM or FM
. broadcast station.
FM: Headphones wire Extend Headphones wire.
not extended.
AM: Unit is not Rotate unit until best
positioned correctly. reception is obtained.
FM STEREO indicator Poor FM signal. Retune station.
does not light. MODE/CLEAR button Press MODE/CLEAR button to
not set to Stereo. turn on Stereo.
No sound. FUNCTION switch is not Set FUNCTION switch to the
in the desired position. desired function.
Power Requirement DC............................2 x AA (LR6) Alkaline batteries
Power Requirement AC .................DC IN 4.5 V adapter (Center positive)
Weight. ..............................................................8 ounces (without battery)
Dimensions..........................................................5.5 (D) x 1.25 (H) inches
Output level (Line out) ..............................................0.6VMS (47K Ohms)
Output level (Headphones)............................................16mW (32 Ohms)
MPEG Rate ............................................................................32-384Kbps
Sampling Frequency ..................................8/11.025/12KHz for MPEG2.5
16/22.05/24KHz for MPEG2
32/44.1/48KHz for MPEG1
MP3 Playback ................................................ISO9660 format compatible
WMA Playback...............................Windows Media Audio (without DRM)
Frequency Range (FM) .......................................................87.5–108MHz
Frequency Range (AM) .......................................................530–1720kHz
Check the CD burner/recorder’s documentation to see if it complies with
these specifications.
23
SPECIFICATIONS
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE
VISIT OUR WEBSITE AT
WWW.MEMOREXELECTRONICS.COM
OR CONTACT CUSTOMER SERVICE AT (954) 660-7100.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90
DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR
PLACE OF PURCHASE OR MEMOREX.
FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT
1-800-321-6993.
Memcorp, Inc.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
Loading...
