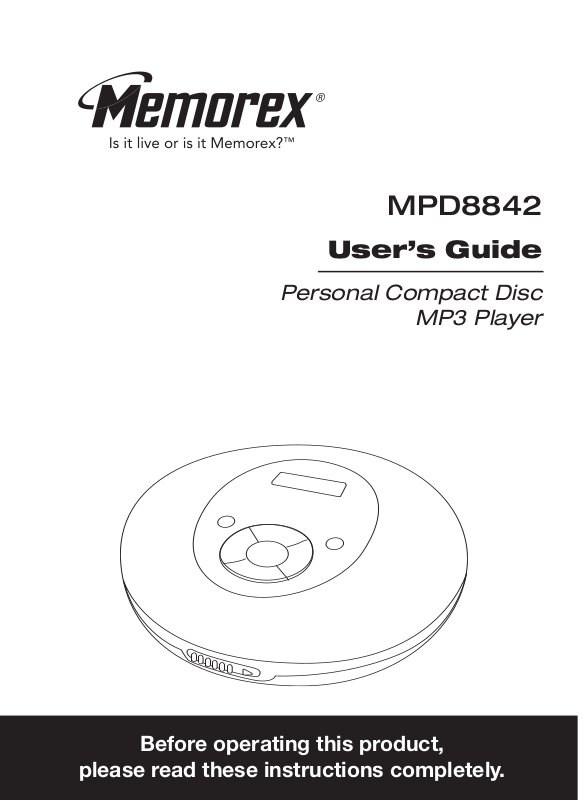

Memorex MPD8842 User Manual

MPD8842

User’s Guide

Personal Compact Disc

MP3 Player

Before operating this product,

please read these instructions completely.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. (This Caution Marking is located at the rear enclosure of the unit.)

DANGEROUS VOLTAGE:

The lightning ﬂash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER:

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. Please do not attempt to defeat or bypass the safety switches.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modiﬁcations to this equipment may cause harmful interference unless the modiﬁcations are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void user’s authority to operate this device.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

SAFETY PRECAUTIONS (CONTINUED)

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• Do not open the CD compartment while the CD is rotating.

• Always keep the CD compartment closed when not in use.

• Keep all foreign objects out of the CD compartment.

• Place the unit on a stable surface.

• Avoid installing the unit in locations described below:

• Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters.

• On top of other stereo equipment that radiates too much heat.

• Placed lacking ventilation or dusty places.

• Places subject to constant vibration.

• Humid or moist places.

Dear Customer:

EST. 1924

EIA

LISTENING

For A Lifetime

Want You

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers 40 Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant 80 Average city traffic, garbage disposals, alarm clock at two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:

90 Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet engine 180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

LOCATION OF CONTROLS

21 43

5 6 7 8 9 10 11 12 13 14 15 16

1. Battery Compartment (Inside CD Compartment)

2. DC 4.5V Jack (Rear of Unit)

3. MODE/CLEAR Button

4. Display

5. CD Door OPEN Switch

6. ESP/MENU Button

7. Skip (o)/√ Button

8. STOP ( Button

9. PLAY/PAUSE ( ON/

10. Skip (n)/® Button

11. PROG/EQ/ENTER Button

■)/POWER OFF/▼

®p)/POWER

▲ Button

12. CD Compartment

13. VOLUME Buttons (Side of Unit)

14. Headphones Jack

15. LINE OUT Jack

16. HOLD Switch

POWER SOURCES

–

This unit requires either two (2) “AA” batteries (not included) or an AC adapter (not included).

BATTERY INSTALLATION

“Low Battery” will light in the display when batteries are low (when using battery power).

1. Open the battery compartment door inside the CD Compartment by pressing in on the tab and then lifting it. To prevent the

possibility of losing the cover, it cannot be removed.

2. Insert two (2) “AA” batteries (not included) according to the polarity diagram inside the battery compartment. Alkaline batteries are recommended for the longest playing time.

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries speciﬁed.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)

AC OPERATION

To operate the unit using AC power, connect an AC adapter (not included) to an AC outlet having 120V, 60Hz AC only. Plug the small end into the DC 4.5V jack on the rear of the unit and connect the other end into the AC outlet. The batteries are automatically disconnected when the

AC adapter is used. DC4.5V

CAUTION: When not using AC power, disconnect the AC adapter from the wall outlet by pulling the plug (not the cord). Do not touch the AC adapter with wet hands. Fully insert the plug without exposing any part of the blade.

CD OPERATION

TURNING POWER ON/OFF

Press the ON/ the unit off, press the STOP ( OFF/ automatically shut off if stopped (CD Standby) for one minute.

PRESET EQUALIZER

PLAY/PAUSE (®p)/POWER

▲ button 1

▼ button 2. The unit will

to turn the unit on.

■)/POWER

To turn

Repeatedly press the PROG/EQ/ENTER button to cycle through the preset EQ settings: NORMAL, CLASSIC, POP, JAZZ and ROCK. The CD must be playing to change the EQ setting.

ADJUSTING THE VOLUME

You can adjust the digital volume level from Minimum "MIN" to Maximum "MAX" by pressing the VOLUME buttons.

NOTE: If there is no disc in the CD compartment or the CD door is open, you cannot adjust the volume.

HOLD

Slide to the ON position to disable the buttons; “Hold” will appear briefly in the display. When pressing the buttons on the CD compartment lid, “Hold” will briefly appear in the display. Slide to the OFF position to enable the buttons. For the HOLD function, only the buttons on the CD compartment lid and the VOLUME UP/DOWN buttons will be disabled, not the other controls/switches.

Radio Sound Through a Home Audio System

By using a home audio connection cable (not included), superb radio sound can be heard through your home audio system. Before making any connections, turn off the power to all equipment. Plug a connection cable (not included) between the LINE OUT jack on the side of the CD player and the ampliﬁer’s AUX or CD input jack. (Do not connect it to the ampliﬁer’s PHONO jack.) NOTE: If the radio interferes with TV reception, move the unit away from the TV or turn off the power to this unit.
