Memorex MMG-CR3810 User Manual

Download

MODEL: MMG-CR3810

BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY.

UNDERCABINET CD CLOCK RADIO

OPERATING INSTRUCTIONS

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 21

SAFETY PRECAUTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER:

Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modiﬁcations to this equipment may cause harmful interference unless the modiﬁcations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modiﬁcation is made.

LASER SAFETY: This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury.

CAUTION: USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURE HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 1

Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.

1. READ INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

2. RETAIN INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED WARNINGS

All warnings on the product and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS

All operating and use instructions should be followed.

5. CLEANING

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. ATTACHMENTS

Do not use attachments not recommended by the product's manufacturer as they may cause hazards.

7. WATER AND MOISTURE

Do not use this product near water- for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

8. ACCESSORIES

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

8A. An appliance and cart combination

should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. VENTILATION

Slots and openings in the cabinet and in the back or bottom are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

IMPORTANT SAFETY INSTRUCTIONS

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 2

PORTABLE CART WARNING (symbol provided by RETAC)

10. POWER SOURCES

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION

This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. POWER-CORD PROTECTION

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. LIGHTNING

To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

14. POWER LINES

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15. OVERLOADING

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

16. OBJECT AND LIQUID ENTRY

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.

17. SERVICING

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. REPLACEMENT PARTS

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

19. SAFETY CHECK

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

20. WALL OR CEILING MOUNTING

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

21. DAMAGE REQUIRING SERVICE

Unplug the product from the wall outlet and refer servicing to qualified service personnel under the

following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen

into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions, as an adjustment of other controls

may result in damage and will often require

extensive work by a qualified technician to restore

the product to its normal operation. e. If the product has been dropped or the cabinet

has been damaged.

f. When the product exhibits a distinct change in

performance - this indicates a need for service.

22. HEAT

The product should be situated away from heat

sources such as radiators, heat registers, stoves,

or other products (including amplifiers) that

produce heat.

23. NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV

system installer's attention to Article 820-40 of the

NEC that provides guidelines for proper

grounding and, in particular, specifies that the

cable ground shall be connected to the grounding

system of the building, as close to the point of

cable entry as practical.

24. NONUSE PERIODS

The power cord of the appliance should be

unplugged from the outlet when left unused for a

long period of time.

IMPORTANT SAFETY INSTRUCTIONS (CONTINUED)

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 3

Dear Customer:

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel Level

Example

30 Quiet library, soft whispers 40 Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant 80 Average city traffic, garbage disposals, alarm clock at two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:

90 Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet engine 180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 4

We Want You

LISTENING

For A Lifetime

EIA

EST. 1924

LOCATION OF CONTROLS

1. AC Cord (Rear of Unit)

2. Remote Sensor

3. Mounting Screw Holes (Top of Unit)

4. RADIO/BAND Button

5. CD Button

6. CD Compartment Door

7. Display

8. TIMER Button

9. PLAY/PAUSE ( ) Button

10. STOP (■) Button

11. SKIP/TUNING / Buttons

12. OPEN/CLOSE Button

13. POWER Button

14. DISPLAY Button

15. MEMORY/CLOCK SET Button

16. Remote Stand

17. MEMORY DOWN/RANDOM Button

18. MEMORY UP/REPEAT Button

19. VOLUME +/– Buttons

POWER SOURCE

Unravel the AC cord and connect it to a conveniently located AC outlet having 120V and 60Hz only. The Clock Display will blink.

NOTE: The AC plug supplied with the unit is polarized to help minimize the possibility of electric shock. If the AC plug does not ﬁt into a nonpolarized AC outlet, do not ﬁle or cut the wide blade. It is the user’s responsibility to have an electrician replace the obsolete outlet.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 5

21 4 5 9 10 12113 6

7 8

AC Outlet

AC Plug

14 1516 17 18 19

LOCATION OF CONTROLS (CONTINUED)

BATTERY INSTALLATION

The remote control transmitter is designed to operate with two (2) “AAA” size batteries (not included). To install the batteries, slide the battery compartment cover open on the back of the remote control and insert two (2) “AAA” size batteries observing the polarity (see figure to the right). Replace the battery compartment cover.

1. OPEN/CLOSE Button

2. Number Buttons

3. OVER Button

4. STOP (■) Button

5. PLAY/PAUSE ( ) Button

6. SKIP/TUNING Button

7. SKIP/TUNING Button

8. MEM DOWN/ RANDOM Button

9. MEM UP/REPEAT Button

10. TUNER/BAND Button

11. CD Button

12. POWER Button

13. MUTE Button

14. VOLUME +/– Buttons

15. MEM/CLOCK SET Button

16. TIMER Button

17. DISPLAY Button

18. Battery Compartment (Rear)

BATTERY PRECAUTIONS

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries speciﬁed.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)

BATTERY INSTALLATION

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 6

4 5 6 7 8

9 10 11

17 18

This under the cabinet CD clock radio has been designed to be installed underneath a wooden cabinet by using the Mounting Template, four (4) Screws, four (4) Washers and four (4) Spacers (see Figure 1).

MOUNTING THE UNIT

Locate a desired space for the CD clock radio (it is recommended to mount the unit at the front edge of the cabinet) and follow the instructions below and on the next few pages to mount.

1. Empty the contents of the cabinet where the unit will be mounted. Clean under the cabinet before mounting.

NOTE: For optimal mounting, the screws must go into the unit to a depth of at least 3/8”. If the overall length from the bottom of the cabinet shelf to the bottom of the overhang is more than 1-3/4”, a wood shim must be used. A shim can be made from a small sheet of plywood, using the template to locate the central lines for drilling 1/4” mounting holes. The shim can be located between the cabinet shelf bottom and spacers. Make sure the shim is at least as thick as the excess over 1-3/4”. If a shim is necessary, longer screws are required. Longer screws (type #10-32) are available at most hardware stores.

2. Cut out the template on the line indicated on the template. The template size and screw hole positions are identical to the top of the unit.

3a. IF YOUR CABINET DOES NOT HAVE AN OVERHANG:

Position the template in the desired location underneath the cabinet, flush with the front edge. Then, tape the template in place (see Figure 2), and continue to step 4.

MOUNTING

Figure 1

Figure 2

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 7

Mounting Template

1/2"

Screws (4 of each size)

2-3/4" and 1-5/8"

4 WashersSpacers (4 of each size)

1/4"

Template

3b. IF YOUR CABINET HAS AN OVERHANG:

Measure the thickness of the overhang (see Figure

3). Fold the front of the template down along the printed guideline that is closest to the thickness of your cabinet. Tape the folded portion to the backside of the overhang, then tape the template underneath the cabinet (see Figure 4).

NOTE: If the cabinet has glue blocks or other obstructions, cut out corresponding areas on the template to clear them. Do not cut through the screw holes indicated on the template.

4. Drill 1/4” diameter holes underneath the cabinet using the four points marked on the template.

TIPS:

• On a wooden cabinet, you may want to mark and start the drill holes with a nail

or an awl.

• Make sure to hold the drill very firmly against the cabinet to reduce “walking” of

the drill bit from the markers.

• Use masking tape above the hole locations on the inside of the cabinet to

reduce splintering.

• If installing the unit under a wood cabinet, you may wish to countersink the

drilled holes from the inside. This will eliminate the use of washers and allow the screwheads to be flush with the floor of the cabinet. If you cannot countersink the holes, use the supplied washers.

• Always wear goggles.

• DO NOT mount above a sink or stove.

5. Remove the template and clean the drill shavings from inside and underneath the cabinet.

If your cabinet does not have an overhang, skip this step. If your cabinet has an overhang,

select the spacer or combination of spacers that is equal to or longer than the cabinet overhang (see Figure 5 on the next page).

MOUNTING (CONTINUED)

Figure 3

Figure 4

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 8

Template

Measure Thickness of Cabinet Overhang

Fold at Dotted Line

7. Insert screws from the INSIDE of the cabinet. The washers must be used on metal cabinets and wood cabinets if the drilled holes were not countersunk. Position the washers, flatside down, and insert the screws into the holes.

If your cabinet does not have an overhang, skip this step. If your cabinet has an overhang,

hold the screwheads down while you push the selected spacers upward onto the screws under the cabinet. Make sure to push up spacers until they are firmly against the cabinet bottom and/or fully nested (if more than one are used).

9. Align the unit under the screws. Hold the unit so its mounting screw holes (on the top of the unit) are against the mounting screws (see Figure 6) , then partially tighten the screws.

NOTE: Do not fully tighten until all 4 screws have been started. The top edge of the unit should clear the overhang.

10. Extend the cord towards the AC outlet (see page 5) and secure it by using cord hooks (not supplied) to keep the cord out of the way. For more attractive appearance, place the cord hooks at the back edge of the cabinet, directly over the AC outlet. It is recommended that the line cord be fully extended for best FM reception.

11. Connect the Remote Stand to the bottom of the unit by sliding it towards the rear of the unit.

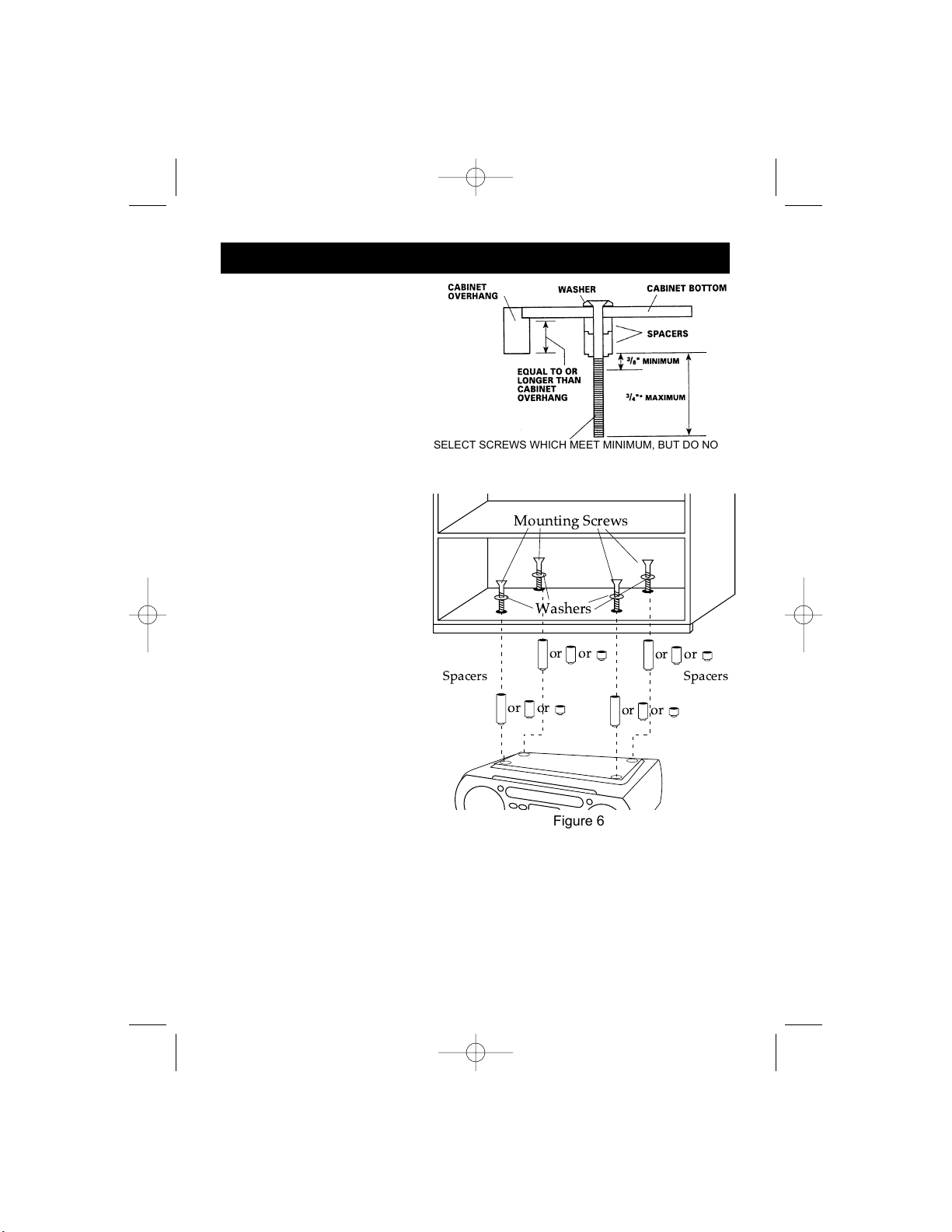

MOUNTING (CONTINUED)

Figure 5

Figure 6

SELECT SCREWS WHICH MEET MINIMUM, BUT DO NOT EXCEED MAXIMUM LENGTH

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 9

Spacers Spacers

Mounting Screws

or or

Washers

or or

OPERATION

TO SET OR RESET THE ACTUAL TIME

Press and hold the TIMER button ❶; the display will show “00:00” and the hour digits will blink. Use the SKIP/TUNING / buttons ❷ to select the amount of hours in the countdown.

Press the TIMER button ❶ again and the minute digits will blink. Use the SKIP/TUNING / buttons ❷ to select the amount of minutes in the countdown. Press the TIMER button ❶ to return to the actual time.

When the unit is off, press the MEMORY/CLOCK SET button.

Press the SKIP/TUNING / buttons ❶ to set the hour, then press the MEMORY/CLOCK SET button ❷. Press

the SKIP/TUNING / buttons ❶ to set the minutes, then press the MEMORY/CLOCK SET button ❷ again.

TO SET THE COUNTDOWN TIMER

IMPORTANT NOTE ON THE COUNTDOWN TIMER:

The above procedure will set the amount of time that the timer will countdown EVERY TIME THE TIMER IS PRESSED. To activate the countdown timer, or to change the countdown timer, see the following page.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 10

OPERATION (CONTINUED)

TO START THE COUNTDOWN TIMER

Once the countdown time has been entered (see previous page), press the TIMER button and the display will start counting down the preset countdown time.

When the countdown timer reaches “00:00:oo”, the unit will beep. Press the TIMER button again to turn off the beeps.

NOTES:

• During the countdown, if you press the TIMER button again, the countdown timer will revert back to the original timer.

• If no countdown time has been set as shown on the previous page, and the TIMER button is pressed and released, the unit will turn on and beep.

• After the countdown timer has gone off, each subsequent press of the TIMER button will set the countdown timer for the time as previously set. To change the countdown timer time to a different time, simply repeat the instructions on the previous page (“TO SET THE COUNTDOWN TIMER”).

• When the countdown timer is counting down, press the DISPLAY button to cycle from the clock to the timer.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 11

OPERATION (CONTINUED)

Press the POWER button ❶ to turn the unit on. Press the RADIO/BAND button once ❷ to select radio. Repeatedly press to select the desired band (AM, FM).

Tune a station by pressing the SKIP/TUNING or button ❶. To scan for strong station(s), press and hold the the SKIP/TUNING or

button ❶; the unit will then scan

and stop on the next strong station. Adjust the volume using the VOLUME +/– buttons ❷ .

TO LISTEN TO THE RADIO

Antennas

FM: Extend the AC cord for better FM reception. AM: Turn the unit for better AM reception.

Turn the unit on and press the RADIO/BAND button ❶ to select radio and band. Press the SKIP/TUNING

or button ❷ to find the

desired station.

Press the MEM/CLOCK SET button ❶ to confirm. Then select the Memory Preset (up to 20) using the Number buttons ❷. Simply press the Number buttons ❷ to directly enter the Memory Preset. For Memory Presets over 9, press the OVER button ❸, followed by the Number buttons ❷ (i.e. to select 12, press the OVER button, followed by “1” then “2”).

SETTING RADIO PRESETS (UP TO 20 PRESETS)

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 12

2 3

OPERATION (CONTINUED)

Open the CD compartment door by pressing the OPEN/CLOSE button. Insert a disc, label side up, onto the spindle and close the CD compartment door.

Pressing the DISPLAY button will cycle the display as follows: 1st press: Clock 2nd press: Timer 3rd press: CD or Radio display

TO INSERT A CD

DISPLAY

To recall the Memory Presets, simply press the MEMORY UP/REPEAT button ❶ or MEMORY DOWN/ RANDOM button ❷, or directly select them using the Number buttons ❸. For Memory Presets over 9, press the OVER button ❹ , followed by the Number buttons ❸ (i.e. to select 12, press the OVER button, followed by “1” then “2”).

To temporarily mute the sound, press the MUTE button ❶ on the remote, the sound will be muted. Press the MUTE button ❶ again or one of the VOLUME +/– buttons ❷ to restore the sound.

TO RECALL MEMORY PRESETS

MUTE

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 13

OPERATION (CONTINUED)

Insert a CD as described on the previous page. Press the POWER button ❶ to turn the unit on and press the CD button ❷. The total playing time and number of tracks will appear in the display.

Press the PLAY/PAUSE

(

) button to start playback; the Play indicator will appear. TO PAUSE PLAYBACK,

press the PLAY/PAUSE

(

) button again; the display will blink and the Pause indicator will appear. Press again to resume playback.

TO PLAY A CD

To skip forward or backward through the tracks on the disc, press the CD SKIP/TUNING or button. To search forward or backward through the tracks on the disc, press and hold the SKIP/TUNING or button.

Adjust the volume using the VOLUME +/– buttons ❶ as desired. When the disc is through playing, it will stop. Press the STOP (■) button ❷ to stop the disc before it is ﬁnished.

NOTES:

• If a disc is inserted incorrectly, dirty, damaged or not present at all, the display will show “no dISC”

• To remove the CD, press the OPEN/CLOSE button and remove the CD.

• Most buttons are both on the main unit and the remote control.

FAQS: Do I need an adapter to play 3” singles?

No, simply insert the 3” single into the groove.

What is the maximum time for a CD in this unit?

The maximum time is 74 minutes.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 14

When a CD is playing, simply press the Number buttons ❶ to directly select a track. For tracks over 9, press the OVER button ❷, followed by the Number buttons ❶ (i.e. to select track 12, press the OVER button, followed by “1” then “2”.

DIRECT TRACK ACCESS

OPERATION (CONTINUED)

Press the POWER button ❶ to turn the unit on and press the CD button ❷. Press the MEMORY UP/REPEAT button ❸ twice; Repeat ONE will appear in the display.

Press the SKIP/TUNING or button ❶ to select a track. Press the

PLAY/PAUSE

(

) button ❷ to start

playback and the unit will play the same track over and over until the STOP ( ) button ❸ is pressed.

TO REPEATEDLY PLAY BACK ONE TRACK

Press the POWER button ❶ to turn the unit on and press the CD button ❷. Press the MEMORY UP/REPEAT button ❸ once; Repeat ALL will appear in the display.

Press the PLAY/PAUSE () button ❶ to start playback and the unit will then play all the tracks on the CD over and over until the STOP ( ) button ❷ is pressed.

TO REPEATEDLY PLAY BACK ALL TRACKS ON A CD

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 15

OPERATION (CONTINUED)

Press the POWER button ❶ to turn the unit on and press the CD button ❷. Press the MEMORY DOWN/RANDOM button ❸; “RANDOM” will appear in the display.

Press the PLAY/PAUSE () button

❶ to begin playback. The unit will play

all the tracks in random order. Adjust the volume using the VOLUME +/– buttons ❷ as desired. When all the tracks have been played, the unit will stop.

TO RANDOMLY PLAY BACK TRACKS ON A CD

Press the POWER button ❶ to turn the unit on and press the CD button ❷. Press the MEMORY/CLOCK SET button ❸; “P-01” will appear indicating the program number, “00” will appear indicating the track number and and “MEMORY” will blink in the display.

Select the first track to be played back using the SKIP/TUNING or button ❶ , then press the MEMORY/CLOCK SET button ❷ again. Repeat this step to program additional tracks up to a maximum of 30 tracks.

TO PROGRAM THE MEMORY (UP TO 30 TRACKS)

Programming continued on the next page.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 16

OPERATION (CONTINUED)

Press the PLAY/PAUSE

(

) button to begin playback. The unit will play all the tracks in the order you programmed them.

Adjust the volume using the VOLUME +/– buttons ❶ as desired. When the disc is through playing, it will stop. Press the STOP (■) button ❷ to stop the disc before it is ﬁnished.

To skip forward or backward through the programs, press the SKIP/TUNING

or button. When the disc is

through playing, it will stop.

NOTES:

• Press the STOP ( ) button to stop the disc before it is ﬁnished.

• Programming is the ability to preselect the order in which a series of tracks will be played.

• If you attempt to program more than 30 tracks, “FULL” will appear in the display.

FAQ:

Can I program a track more than once?

Each track may be stored in the program memory as many times as desired (up to 30 tracks).

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 17

CARE AND MAINTENANCE

Caring for Compact Discs

• Treat the disc carefully. Handle the compact disc only by its edges. Never allow your ﬁngers to come in contact with the shiny, unprinted side of the disc.

• Do not attach adhesive tape, stickers, etc. to the compact disc label.

• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit.

• If a compact disc skips or gets stuck on a section of the compact disc, it is probably dirty or damaged (scratched).

• When cleaning the compact disc, wipe in straight lines from the center of the compact disc to the outer edge of the compact disc. Never wipe in circular motions.

• This unit is designed to play only compact discs bearing the identification logo as shown here. Other discs may not conform to the CD standard and may not play properly.

• Compact Discs should be stored in their cases after each use to avoid damage.

• Do not expose compact discs to direct sunlight, high humidity, high temperatures, or dust, etc. Prolonged exposure or extreme temperatures can warp the disc.

• Do not stick or write anything on either side of the disc. Sharp writing instruments, or the ink may damage the surface.

Cleaning the unit

• To prevent ﬁre or shock hazard, disconnect your unit from the AC power source when cleaning.

• The ﬁnish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use caution when cleaning and wiping the plastic parts.

• Mild soap and a damp cloth may be used on the front panel.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 18

COMPACT

DIGITAL AUDIO

TROUBLESHOOTING GUIDE

SYMPTOM CAUSE SOLUTION

Unit will not AC cord not Check AC cord

turn on. connected. connection.

Disc will not play. CD compartment Close CD compartment

not closed. door.

Disc inserted Reinsert disc correctly.

incorrectly.

Dirty or defective disc. Try another disc.

Moisture Wipe disc with soft cloth.

condensation on disc.

No sound. Volume is set to Increase volume.

minimum.

Defective disc. Try another disc.

Erratic playback. Dirty or defective Clean or replace disc.

disc.

Time display blinks. Clock not set. Set the clock.

AM or FM, no sound. Power is not on. Press the POWER

button to turn the unit on.

Volume is set to Increase volume.

minimum.

If you experience a problem with this unit, check the chart below before calling for service.

FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT

OUR WEBSITE AT WWW.MEMCORPINC.COM

OR CONTACT CUSTOMER SERVICE AT 1-800-919-3647.

PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX.

FOR PARTS AND ACCESSORIES, CONTACT FOX INT’L AT 1-800-321-6993.

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 19

Memcorp, Inc.

Weston, Fl

Printed in Hong Kong

Visit our website at www.memcorpinc.com

MMG-CR3810.OM.QXD 7/15/02 7:09 AM Page 20

Memorex MMG-CR3810 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
