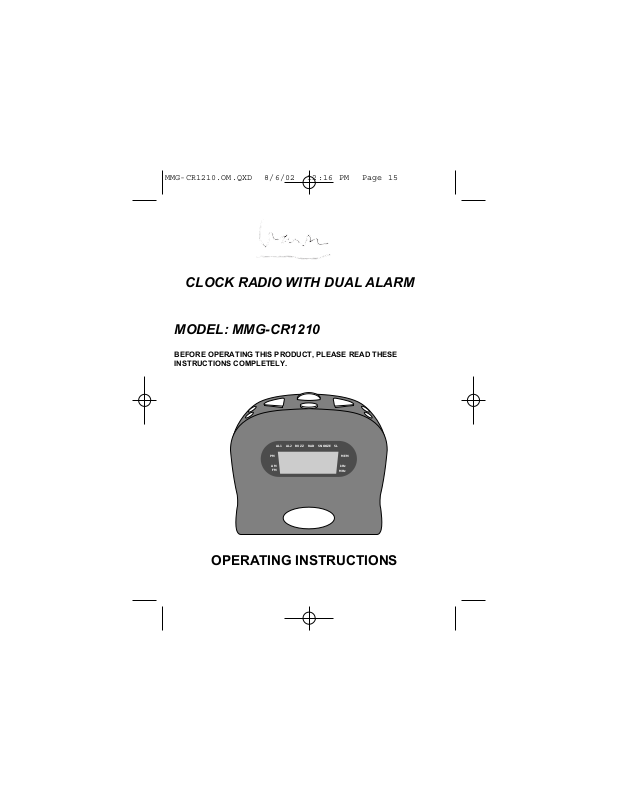

CLOCK RADIO WITH DUAL ALARM
MODEL: MMG-CR1210
BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE
INSTRUCTIONS COMPLETELY.
OPERATING INSTRUCTIONS
AL1 AL2 BUZZ RAD SNOOZE SL
MEM
kHz
MHz
FM
AM
PM
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 15
1
SAFETY PRECAUTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
Uninsulated Dangerous Voltage, that may be of sufficient
magnitude to constitute a risk of electric shock to persons is
present within this product’s enclosure.
ATTENTION:
The Owner’s Manual contains important operating and
maintenance instructions.
For your safety, it is necessary to refer to the manual.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes
or modifications to this equipment may cause harmful interference
unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN
CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF
PURCHASE OR MEMOREX.
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 1
Before using the unit, be sure to read all operating
instructions carefully. Please note that these are
general precautions and may not pertain to your
unit. For example, this unit may not have the
capability to be connected to an outdoor antenna.
1. READ INSTRUCTIONS
All the safety and operating instructions should be
read before the product is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be
retained for future reference.
3. HEED WARNINGS
All warnings on the product and in the operating
instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be
followed.
5. CLEANING
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by the
product's manufacturer as they may cause
hazards.
7. WATER AND MOISTURE
Do not use this product near water- for example,
near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a
swimming pool.
8. ACCESSORIES
Do not place this product on an unstable cart,
stand, tripod, bracket, or table. The product may
fall, causing serious injury and serious damage to
the product. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer or sold with the product. Any
mounting of the product should follow the
manufacturer’s instructions, and should use a
mounting accessory recommended by the
manufacturer.
8A. An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
9. VENTILATION
Slots and openings in the cabinet and in the back
or bottom are provided for ventilation and to
ensure reliable operation of the product and to
protect it from overheating. These openings must
not be blocked or covered. The openings should
never be blocked by placing the product on a
bed, sofa, rug, or other similar surface. This
product should never be placed near or over a
radiator or heat source. This product should not
be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is
provided or the manufacturer's instructions have
been adhered to.
10. POWER SOURCES
This product should be operated only from the
2
IMPORTANT SAFETY INSTRUCTIONS
INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 2
PORTABLE CART WARNING
(symbol provided by RETAC)
type of power source indicated on the marking
label. If you are not sure of the type of power
supply to your home, consult your appliance
dealer or local power company. For products
intended to operate from battery power, or other
sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This product is equipped with a polarized
alternating-current line plug (a plug having one
blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit from
the appliance.
13. LIGHTNING
To protect your product from a lightning storm, or
when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will
prevent damage to the product due to lightning
and power-line surges.
14. POWER LINES
An outside antenna system should not be located
in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall
into such power lines or circuits. When installing
an outside antenna system, extreme care should
be taken to keep from touching such power lines
or circuits as contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords
as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Never push objects of any kind into this product
through openings as they may touch dangerous
voltage points or short out parts that could result in
fire or electric shock. Never spill or spray any type
of liquid on the product.
17. SERVICING
Do not attempt to service this product yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
18. REPLACEMENT PARTS
When replacement parts are required, be sure
the service technician uses replacement parts
specified by the manufacturer or those that have
the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
19. SAFETY CHECK
Upon completion of any service or repairs to this
product, ask the service technician to perform
safety checks to determine that the product is in
proper operating condition.
20. WALL OR CEILING MOUNTING
The product should be mounted to a wall or
ceiling only as recommended by the
manufacturer.
21. DAMAGE REQUIRING SERVICE
Unplug the product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen
into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions, as an adjustment of other controls
may result in damage and will often require
extensive work by a qualified technician to restore
the product to its normal operation.
e. If the product has been dropped or the cabinet
has been damaged.
f. When the product exhibits a distinct change in
performance - this indicates a need for service.
22. HEAT
The product should be situated away from heat
sources such as radiators, heat registers, stoves,
or other products (including amplifiers) that
produce heat.
23. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV
system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper
grounding and, in particular, specifies that the
cable ground shall be connected to the grounding
system of the building, as close to the point of
cable entry as practical.
24. NONUSE PERIODS
The power cord of the appliance should be
unplugged from the outlet when left unused for a
long period of time.
3
IMPORTANT SAFETY INSTRUCTIONS (CONTINUED)
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 3
Dear Customer:
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your
musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic Industries Association’s
Consumer Electronics Group want you to get the most out of your equipment by playing it at a
safe level. One that lets the sound come through loud and clear without annoying blaring or
distortion and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard
against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After
all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer and
the Electronic Industries Association’s Consumer Electronics Group recommend you avoid
prolonged exposure to excessive noise. This list of sound levels is included for your protection.
Decibel
Level
Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
4
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 4
We
Want You
LISTENIN G
For A Lifetime
I
N
O
R
T
C
E
L
EIA
E
A
EST. 1924
S
S
O
I
C
N
D
U
S
T
R
I
E
S
N
O
I
T
C
A
I
5
LOCATION OF CONTROLS
1. VOLUME Control
2. REV (Reverse)
Button
3. BAND Button
4. MODE Button
5. Indicators
6. Display
7. SNOOZE Button
8. Battery/FM
Antenna Wire
Compartment
(Bottom of Unit)
9. FWD (Forward)
Button
10. PRESET Button
11. MEMORY Button
12. ON/OFF Button
13. ALARM 1 ON/OFF
Button
14. ALARM 2 ON/OFF
Button
15. AC Cord
16. DIMMER Button
17. SLEEP Button
18. RADIO/BUZZ
Button
FRONT
REAR
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 5
1
2
3
4
5
6
7
8
13
14
15
AL1 AL2 BUZZ RAD SNOOZE SL
PM
AM
FM
9
10
11
12
MEM
kHz
MHz
16
17
18
6
INSTALLATION
Unravel the AC cord and connect it to a
conveniently located AC outlet having 120V
and 60Hz only. The Clock Display will
illuminate and “12:00” will blink in the window.
NOTE: If the AC plug does not fit into a
nonpolarized outlet, do not file or cut the wide
blade. If the AC plug does not fit into a
nonpolarized AC outlet, do not file or cut the
wide blade. It is the user’s responsibility to
have an electrician replace the obsolete outlet.
If the AC cord is disconnected or if there is a power failure, this electronic clock is
designed to continue operating internally (without showing the time on the Clock
Display) with two (2) AA size batteries (not included).
To install the batteries:
• Remove the battery compartment door by sliding it out.
• Insert two (2) AA size batteries into the battery
compartment to the right. Be sure to observe the
polarity markings which are engraved inside the
battery compartment. If the batteries are inserted
incorrectly, the unit will not operate.
• Replace the battery compartment door.
Be sure to check the condition of the batteries periodically by disconnecting the
AC cord and connecting it again two or three minutes later. The preset times
should continue operating. If the present time does not appear, it indicates the
battery is dead or not connected properly.
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery
compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old
batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent
damage or injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 6
AC Outlet
AC Plug
+Ð
+Ð
7
OPERATION
Press the ON/OFF button ❶ to turn
the unit on; the AM or FM indicator will
light. Press the BAND button ❷ to
select AM or FM.
1
Tune a station by pressing the REV ❶
or FWD ❷ button. Press and hold the
REV ❶ or FWD ❷ button and the unit
will scan and stop on the next strong
station.
2
TO LISTEN TO THE RADIO
Antennas
FM: Extend the FM antenna wire (located in the battery compartment) for best
reception.
AM: Turn the unit for better AM reception.
Adjust the volume using the VOLUME
control ❶.
Press the ON/OFF button ❷ to turn
the unit off.
3
Tune a station as described in step 1
above, then press the MEMORY
button ❶ once; the MEM indicator will
blink. Press the PRESET button ❷ to
select a radio preset number, then
press the MEMORY button ❶ again to
confirm and the radio preset will be
set.
1
SETTING RADIO PRESETS
(10 PRESETS FOR AM, 10 FOR FM))
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 7
2
AL1 AL2 BUZZ RAD SNOOZE SL
PM
1
AL1 AL2 BUZZ RAD SNOOZE SL
PM
AM
2
1
MEM
1
PM
AL1 AL2 BUZZ RAD SNOOZE SL
AM
FM
2
MEM
AL1 AL2 BUZZ RAD SNOOZE SL
PM
MEM
2
MEM
kHz
MHz
1
8
OPERATION (CONTINUED)
TO SET OR RESET THE ACTUAL TIME
With the unit off, press the MODE
button once to set the time and the
display will blink.
1
Press the REV ❶ to set the hour and
the FWD ❷ button to set the minute.
Make sure the PM indicator is lit if you
are setting to PM, and make sure it is
not lit if setting to AM. Wait 10 seconds,
or press the MODE button ❸ three
times and the time will be set.
2
To recall a Radio Preset, press the
PRESET button repeatedly until the
desired Radio Preset appears in the
display.
1
TO RECALL RADIO PRESETS
To change a Radio Preset, simply
tune a radio station as described on
the previous page, then press the
MEMORY button ❶ ; the MEM
indicator will blink. Repeatedly press
the PRESET button ❷ until the desired
Radio Preset appears in the display,
then press the MEMORY button ❶
again to memorize.
1
TO CHANGE A RADIO PRESET
NOTE: Once a radio frequency is selected, the display will revert to the time
display after 10 seconds.
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 8
AL1 AL2 BUZZ RAD SNOOZE SL
PM
AM
FM
AL1 AL2 BUZZ RAD SNOOZE SL
PM
AM
FM
2
MEM
kHz
MHz
MEM
kHz
MHz
AL1 AL2 BUZZ RAD SNOOZE SL
PM
1
3
AL1 AL2 BUZZ RAD SNOOZE SL
PM
AM
FM
1
MEM
2
MEM
kHz
MHz
9
OPERATION (CONTINUED)
With the unit off, press the MODE
button twice to set Alarm 1, or three
times to set Alarm 2, “AL1” or “AL2”
will appear in the display
1
Press the REV ❶ to set the alarm hour
and the FWD ❷ button to set the
alarm minute. Make sure the PM
indicator is lit if you are setting to PM,
and make sure it is not lit if setting to
AM. Wait 10 seconds, or press the
MODE button ❸ until the WAKE
indicator disappears from the display to
set the Alarm 1 or 2.
2
TO SET OR RESET THE ALARM TIME(S)
Set the alarm time as previously
instructed. Select a radio station as
described on page 7 and make sure
the VOLUME control ❶ is set as
desired. Press the desired ALARM 1
ON/OFF ❷ or ALARM 2 ON/OFF ❸
button until the respective AL indicator
lights.
1
Press the RADIO/BUZZ button until
the RAD indicator lights. When the
actual time matches the selected
preset alarm time, the radio will
automatically turn on.
To shut off the alarm, see TO SHUT
THE ALARM OFF section on the next
page.
2
TO SET THE ALARM TO WAKE TO RADIO
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 9
AL1 AL2 BUZZ RAD SNOOZE SL
PM
AM
FM
1
3
AL1 AL2 BUZZ RAD SNOOZE SL
PM
MEM
kHz
MHz
AM
FM
2
MEM
kHz
MHz
1
2
3
10
OPERATION (CONTINUED)
TO SET THE ALARM TO WAKE TO BUZZER
To shut the alarm off, press the
ALARM 1 ❶ or 2 ❷ ON/OFF button
once to turn off the alarm and not set
it for the next day. Press the ALARM
1 ❶ or 2 ❷ ON/OFF button again until
the respective AL indicator lights and
the alarm time will be reset for the
next day.
1
TO SHUT THE ALARM OFF
The alarm can be temporarily turned
off manually by pressing the
SNOOZE button; the alarm will turn
back on automatically nine minutes
later.
1
SNOOZE
Set the alarm time as previously
instructed. Press the desired ALARM
1 ON/OFF ❶ or ALARM 2 ON/OFF ❷
button until the respective AL indicator
lights.
1
Press the RADIO/BUZZ button until
the BUZZ indicator lights. When the
actual time matches the selected
preset alarm time, the buzzer will
automatically sound.
To shut off the alarm, see TO SHUT
THE ALARM OFF section below.
2
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 10
1
1
AL1 AL2 BUZZ RAD SNOOZE SL
PM
AM
FM
2
2
MEM
kHz
MHz
11
OPERATION (CONTINUED)
Tune the desired radio station as
described on page 7.
Press the
SLEEP button; the SL indicator will
light and “10” will appear on the clock
display, then release the button. The
unit will turn on for 10 minutes and
then turn off.
1
To adjust the sleep time up to 90
minutes in 10 minute intervals,
repeatedly press the SLEEP button.
2
TO ACTIVATE THE SLEEP FUNCTION
To cancel sleep time, press the
ON/OFF button.
3
This unit has four levels of brightness
for the display. Repeatedly press the
DIMMER button until the desired
brightness appears in the display.
1
DIMMER
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 11
12
TROUBLESHOOTING GUIDE
If you experience a problem with this unit, check the chart below before
calling for service.
SYMPTOM
POSSIBLE POSSIBLE
CAUSE SOLUTION
GENERAL
Power does AC line cord not Insert plug firmly
not come on. plugged in. into AC outlet.
RADIO
No sound. ON/OFF button was Press the ON/OFF button
not pressed. to turn the unit on.
VOLUME control at Increase the VOLUME.
minimum position.
Noise or sound AM - Interference from Turn the radio for
distorted on AM traffic. better AM reception.
or FM. FM - Antenna Wire Extend Antenna Wire.
not extended.
CLOCK
Flashing time. Batteries connected Check the batteries
improperly, not con- and replace if
nected or dead. necessary.
Clock not set. Set the clock.
Alarm does not Appropriate ALARM 1 Press the ALARM 1 or
turn on. or 2 ON/OFF button 2 button until the respect-
is not pressed. iv AL indicator lights.
Clock is not set. Set the clock.
Alarm time not set. Set alarm time.
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 12
13
SPECIFICATIONS
AUDIO
Frequency Range (AM) ..................................................530–1720KHz
Frequency Range (FM)...................................................87.5–108MHz
GENERAL
Power Supply ...........AC 120V, 60Hz (2 AA size batteries for back-up)
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE
VISIT OUR WEBSITE AT:
WWW.MEMCORPINC.COM
OR CONTACT CUSTOMER SERVICE AT 1-800-919-3647.
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90
DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR
PLACE OF PURCHASE OR MEMOREX.
FOR PARTS AND ACCESSORIES, CONTACT FOX INT’L AT
1-800-321-6993.
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 13
Memcorp, Inc.
Weston, FL
Printed in Hong Kong
Visit our website at www.memcorpinc.com
MMG-CR1210.OM.QXD 8/6/02 12:16 PM Page 14
Loading...
