Chapter 1 Introducing the LCD TV
Key Features ............................................................................................................... 5
Package Contents ....................................................................................................... 6
Setting Your LCD TV.................................................................................................... 7
Your LCD TV...............................................................................................................10
Your Remote Control ................................................................................................. 13
Chapter 2 Installing the LCD TV
Connecting a TV Cable or an Antenna...................................................................... 17
Connecting a VCR..................................................................................................... 22
Connecting a Video Camera or Game Console ........................................................ 23
Connecting a DVD Player.......................................................................................... 24
Connecting a Digital TV Cable Box or Digital Satellite Receiver ............................... 26
Connecting an AV Equipment with HDMI Connector................................................. 27
Connecting an AV Equipment with DVI Connector.................................................... 28
Connecting a PC........................................................................................................ 29
Connecting an Audio Receiver or a Dolby Digital 5.1 Sound System........................ 30
Chapter 3 USING THE FEATURES
Using The Built-in DVD....................................................................................31
Using The USB Storage and SD/MMC Card Reader .........................................35
Wide Screen Viewing ...................................................................................... 38
Using the Program Guide ................................................................................39
Operating the Menu ........................................................................................40
Customizing the VIDEO Settings ......................................................................42
Customizing the AUDIO Settings ..................................................................... 44
Customizing the TV Settings ........................................................................... 46
Customizing the SETUP Settings......................................................................48
ENGLISHENGLISH
Troubleshooting ................................................................................................... 56
Specifications......................................................................................................... 57
1
2
Warnings and Precautions
Warnings and Precautions
ENGLISHENGLISH
3
Warnings and Precautions
4
Various Audio/Video terminals for external equipment connection
▪ 2 sets of composite A/V input terminals
▪ 1 set of S-VIDEO terminals
▪ 2 sets of component Video input terminals
▪ 1 VGA/ Audio input terminals
▪ 2 HDMI/Audio input terminals
▪ 1 set of Audio(L/R) output terminals
▪ 2 SPDIF output terminals (Optical x 1 /Coaxial x 1)
▪ 1 Headphone terminal
Built-In Slot-type DVD Player
▪ Supports DVD/CD/CD-R/CD-RW/JPEG/KODAK PICTURE CD/DVD+R/RW/
DVD-R/RW compatibility.
Built-in SD/MMC Card Reader
▪ Allows access to digital content stored on a SD/MMC card.
Built-In USB Connector
The built-in TV tuner to receive HD ATSC
▪ This function allows the reception of HD broadcasting without the addition of a set top
box.
High Definition Multimedia Interface (HDMI)
▪ High Definition Multimedia Interface (HDMI) is a small, user-friendly interconnect that
can carry up to 5 Gbps of combined video and audio in a single cable. This system
eliminates the cost, complexity and confusion of multiple cables used to connect
current A/V systems.
HDTV Component Video Inputs
▪ Offers the best video quality for DVD(1080i, 720p) and digital set-top-box
(1080i, 720p) connections.
3D Digital Noise Reduction
▪ This function can digitally reduce image noise to provide better picture quality.
Film-Mode Detection (3:2 Reverse Pull Down)
▪ This function can automatically detect content derived from film and adjust the
interlacer’s frame matching to provide a more natural-looking, clearer image of the
moving picture.
Chapter 1
Introducing the LCD TV
Key Features
Chapter 1 Introducing the LCD TV
ENGLISHENGLISH
5
Chapter 1 Introducing the LCD TV
Make sure all of the above contents are included in the package. If you are missing
any items, please contact the customer service department.
Make sure all of the following contents are included.
Power Cord
600-181-3200-LIH
These items are all you need to set up and operate the LCD TV in its basic configuration.
Package Contents
VIDEO Cable
621-181-2000JH
Remote Control/
845-D47-BT1DVDB-MEH
User’s Guide
LCD TV Bottom Stand 154-700-BF269RH /
Screw Driver and Screws 4
101-025-5013H
.
Quick Set Up Guide
Warranty Card
Warranty Card
AUDIO Cable
621-181-60002JH
USER MANUAL
Quick Start Guide
*Consumer Replaceable Part
(See page 59 to order.)
6
Chapter 1 Introducing the LCD TV
Setting Up Your LCD TV
How to install the TV Stand
Read all instructions before continuing with the stand installation.
Attach the Stand the TV with the bottom foam packaging material still
attached.
a b
Stand
Shipping box
Protective bag
Table
c. Remove protective bag from LCD unit, but DO NOT remove the bottom foam packaging
material from the TV.
d. Locate the place on the back of the TV to attach the stand. Secure the stand to the LCD
with all four screws.
c
d
Packaging material
Packaging material
Stand
Unit
Table
Unit
Table
Stand
Screws
a. Lift foam packaging material from the top of the LCD out of the box.
b. Lift LCD out of the box, with the bottom foam packaging material still attached, and place
onto a stable surface.
ENGLISH
7
Chapter 1 Introducing the LCD TV
If you prefer to mount your new TV on a wall instead of attaching it to the stand, please reference
the instructions included in the wall mounting kit (sold separately).
Remove the screws of the table stand and detach the table stand from the TV.
Soft cloth
Align the holes on the wall mounting hook units with the corresponding holes on the rear
of the TV and fasten four screws.
Soft cloth
Table stand

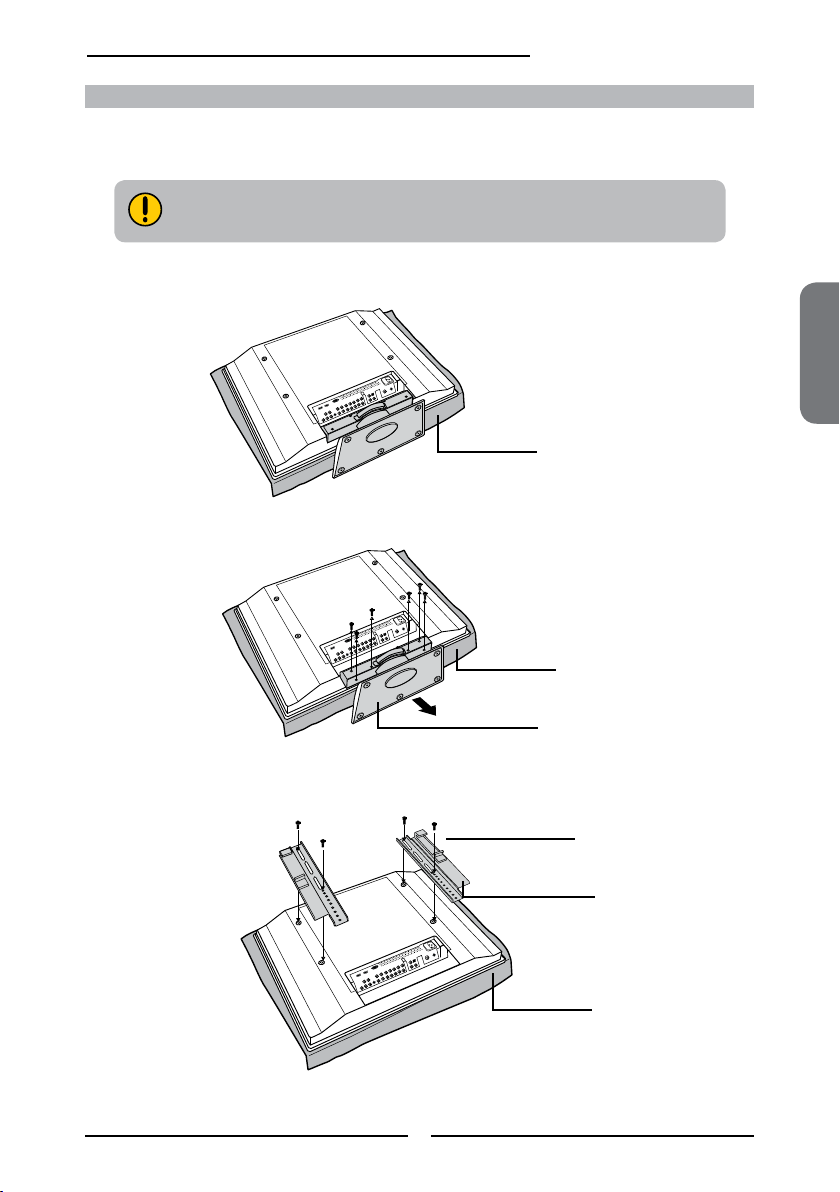

How to remove the TV Stand
Soft cloth
Wall mounting hook
unit (supplied with the
wall mount kit)
To prevent damaging the surface of the LCD TV, place the TV on a soft cloth.
Verify your TV’s model and be sure to use the wall mounting kit specified
for your TV model only. Contract your technician for assistance when
installing the wall mounting kit.
4 screws (supplied
with the wall mount
kit)
8
Chapter 1 Introducing the LCD TV
How to setup the TV
Use an antenna cable(not included) to connect the VHF/UHF signal to the LCD TV’s ANT.
Terminal(refer to page17-21).
Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.
Insert the two batteries in remote control(battery not included).
Step1 Slide the back cover up to open the
battery compartment of the remote
control.
Step2 Insert two AAA size batteries.
Make sure to match the (+) and
( - ) ends of the batteries with
the (+) and ( - ) ends indicated
in the battery compartment.
Slide the cover back into place.
ENGLISH
Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner
etc.) on the remote, as it may suffer damage.
Connect other an external AV device (refer to page22-30).
9
Chapter 1 Introducing the LCD TV

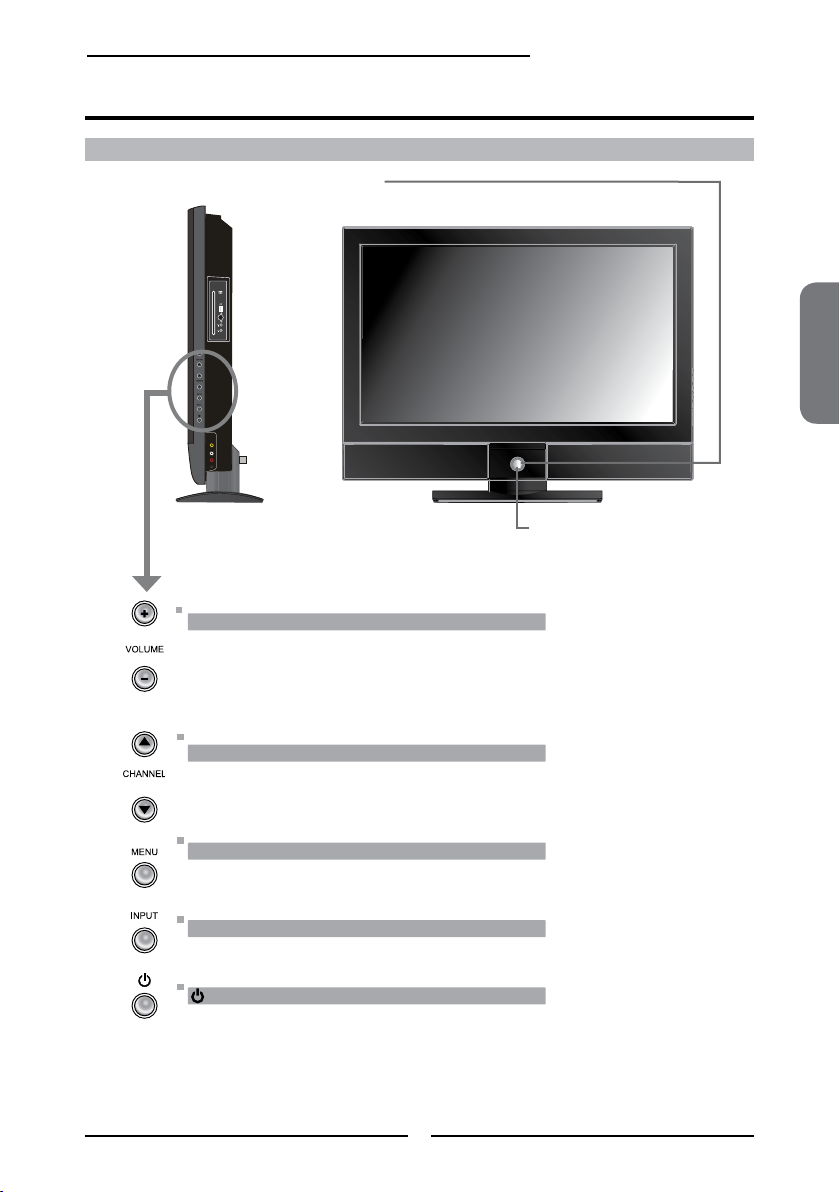

Your LCD TV
LED
The LED light is red when the LCD TV is in standby and the
LED light is blue when powered up.
IR
Infrared
Receiver
MENU
Press once to display the OSD (on screen display),
press again to turn the OSD off.
VOLUME+-
Adjusts the volume up and down. Selects the mainmenu item and change values for items when in the
OSD mode.
Turns the LCD TV on and into standby mode.
CHANNEL▲▼
Scans up and down through channels. Selects submenu item when in the OSD mode.
INPUT
Chooses from different input signal sources.
Front/Right Side View and Controls
10
Right Side View and Controls
USB
SLOT-TYPE DVD PLAYER
Allows access to digital content stored on
a USB storage : AVI/JPEG/WMA (Up to 4 GB)
EJECT
Any of the following disc types canbe played
on the DVD player: DVD/CD/CD-R/CD-RW/
JPEG/KODAK PICTURE CD/DVD+R/RW/
DVD-R/RW
BUILT-IN SD/MMC CARD READER
Allows access to digital content stored on a
SD/MMC card : AVI/JPEG/WMA (Up to 4 GB)
/
PLAY/PAUSE
L
R
VIDEO1 IN
VIDEO
HEADPHONE
Connects to the external headphone
for private listening.
VIDEO1 IN
Connects to the composite Video and
Audio output jacks on external video
equipment.
Chapter 1 Introducing the LCD TV
ENGLISH
11
Chapter 1 Introducing the LCD TV
HDMI2 INHDMI1 IN
AUDIO
L R
L R L R
L R
L
R
L R
L R
AUDIO
PC/VGAIN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr
AUDIO
PC/VGA IN
Connects the PC, or other AV equipment with VGA and
AUDIO(L/R) output jacks.
YPbPr1 IN/YPbPr2 IN
Connects to the DVD player, Digital Set-Top-Box, or other AV
equipment with component(YPbPr) video and audio output jacks.
VIDEO2 IN
Connects to the composite VIDEO and AUDIO(L/R) output jacks on external video equipment.
HDMI1 IN/HDMI2 IN
Connects the all digital AV equipment with HDMI connector.HDMI supports enhanced,
high-definition video and two-channel digital audio. The AUDIO(L/R) of HDMI IN is for
DVI connection.
AC IN
Connects to the AC power cord.
S-VIDEO IN
Connects to the S-VIDEO and AUDIO(L/R) output jacks on external
video equipment.
AUDIO OUT-STEREO
Connects to the AUDIO(L/R) input jacks on AV equipment.
AUDIO OUT-DIGITAL-OPTICAL/COAXIAL
Connects to the DIGITAL AUDIO jack on the digital/standard 5.1
audio system.
HDTV/TV AIR/CABLE
Connects RF input from VHF/UHF antenna or cable
to receive high/standard definition television.

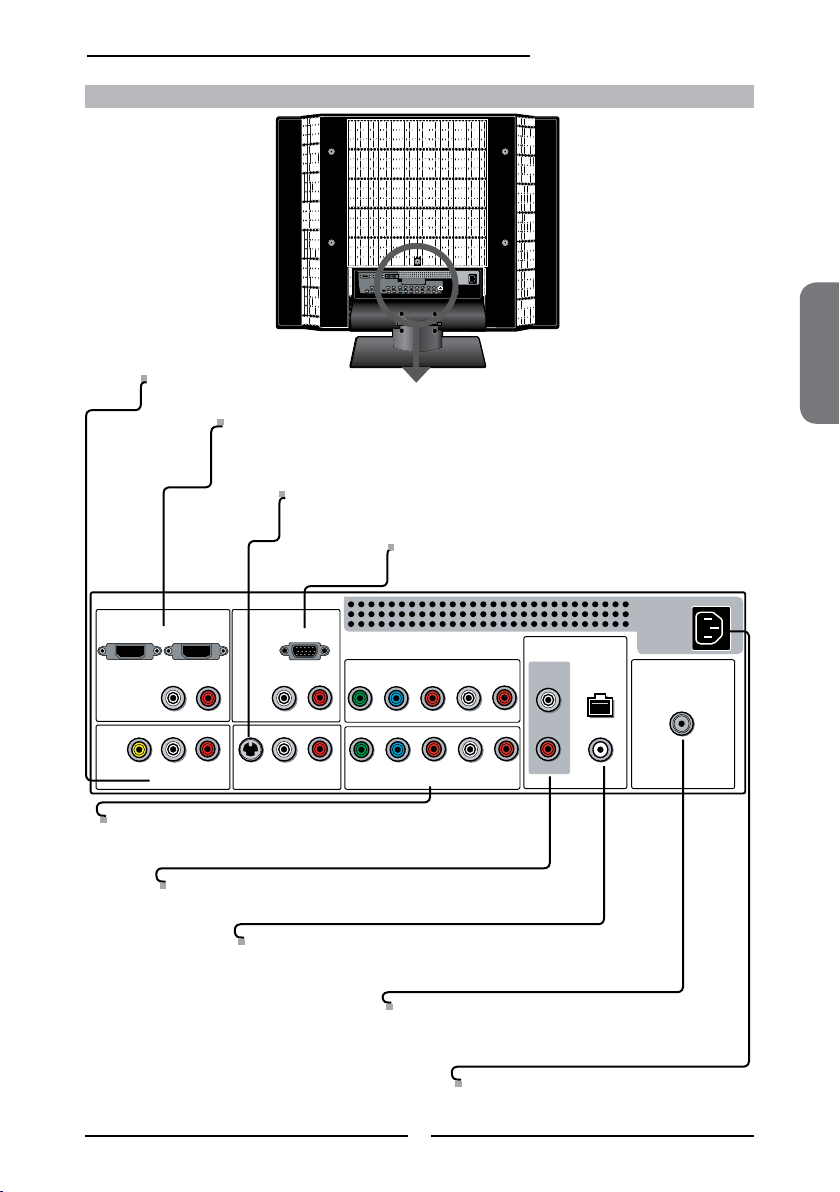

Rear View and Jacks
12
.
Input Source
TV(CABLE/AIR)
VIDEO1 (SIDE)
VIDEO2 (REAR)
VIDEO3 (S-VIDEO)
VIDEO4 (YPbPr1)
VIDEO5 (YPbPr2)
DVD
USB
CARD READER
VIDEO6 (HDMI1)
VIDEO7 (HDMI2)
COMPUTER(VGA)

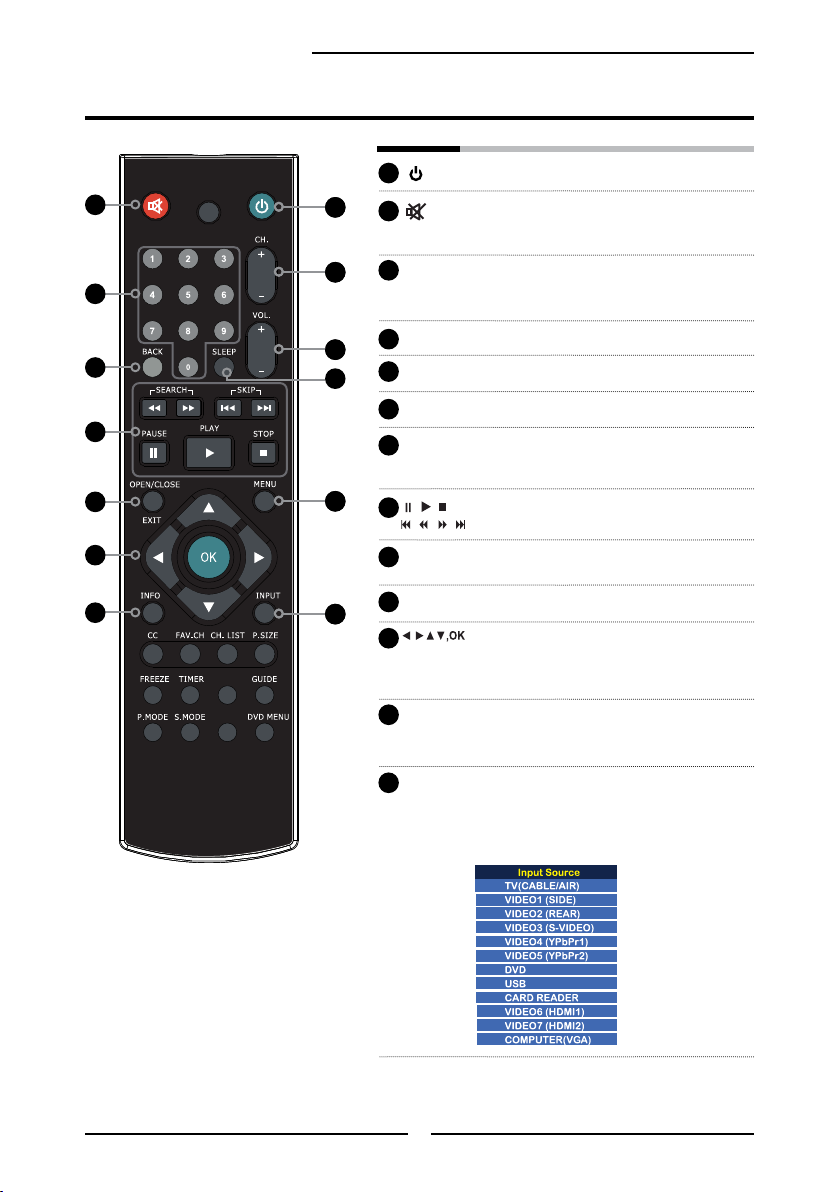

Your Remote Control
Turns the LCD TV on and off
Pressing once mutes audio. Pressing
again restores audio
0-9 Pressing a number selects a channel.
Following selection, the channel
activates automatically in 3 seconds
BACK Returns to previously selected channel
CH+- Change channel up and down
VOL+- Increases and decreases volume
SLEEP Cycles through the LCD TV sleep time:
OFF/10/20/30/40/50/60/90/120 mins
► The built-in DVD/USB/SD/MMC
function keys
OPEN/CLOSE
EXIT
Exits the OSD menu
MENU Displays the OSD menu on the
screen.
◄ ►▲▼,OK Cycles through OSD options and selects
individual menu items. OK confirms option
settings
INFO Displays information on the LCD TV
screen such as input source, channel,
program title.
INPUT Pressing INPUT to display a source list,
use ▲▼ to select the video equipment
connected to the video inputs of your
LCD TV and press OK to confirm:
1
2
2
3
4
5
6
7
8
9
10
11
2
4
8
3
9
12
1
5
6
7
13
10
11
12
13
Chapter 1 Introducing the LCD TV
ENGLISH
13
Chapter 1 Introducing the LCD TV
.
Effective range:
The remote can control the LCD TV from up to 5m away, if pointed directly at the receiver.
FAV.CH Pressing FAV.CH display favorite
channels.
CC Cycles through the Closed Caption:
Analog Closed Caption:OFF/CC1/
CC2/CC3/CC4/Text1/Text2/Text3/
Test4
Digital Closed Caption:
Allow to set the digital closed caption
CH.LIST In TV mode, pressing CH. LIST to display
the channel list, press the ▲▼ buttons to
select the channel and press OK to confirm.
P.SIZE Cycles through Wide mode settings:
NORMAL/FULL/WIDE/ZOOM
FREEZE Pressing FREEZE to freeze the current
picture, press again to restore the
TIMER Displays the current time on the
screen.
GUIDE In TV mode, pressing GUIDE displays
the Program Guide on the screen
P.MODE Selects picture mode: Vivid/Hi-Bright/
Cinema/Sport/User
S.MODE Selects sound effect options: Surround/
Live/Dance/Techno/Classic/Soft/Rock/
Pop/Off.
DVD MENU The built-in DVD/USB function keys
16
17
18
19
21
15
20
22
23
16
15
19
20
24
18
17
21
22
24
23
14
.
1
2
2
3
4
6
7
5
8
9
10
11
12
13
Pressing once mutes audio. Pressing
again restores audio.
VOL+- Increases and decreases volume.
While playing, press to jump to the
previous/next chapter or track.
Pressing this button during playback
advances/reviews playback; speed
increases with each pressing:
2x/4x/8x/16x/32x
Normal playback.
While playing, press this button once to
pause playing, press once again to
resume playing.
While playing, press this button to stop
playing.
OPEN/
EXIT
CLOSE
P
Exits the OSD menu.
ress this button to open or close the disc.a
◄ ►▲▼,OK Cycles through Built-in DVD OSD
options and selects individual menu
items. OK confirms option settings
INFO Displays current information on screen
during playback.
P.SIZE Cycles through Wide mode settings:
NORMAL/FULL/WIDE/ZOOM
GUIDE Displays the Built-in DVD Setup Menu
on the screen.
DVD MENU Press to display the menu of a DVD
disc.
Controlling The Built-in DVD
Press the TV button once to activate the built-in DVD control keys, the following functions are preset to
operate the built-in DVD, For more information on setting up your DVD, please see the "Using the
Built-in DVD" section.
6
10
7
2
11
9
8
5
13
4 3
7
1
12
Chapter 1 Introducing the LCD TV
ENGLISH
15
Chapter 1 Introducing the LCD TV
.
1
2
3
4
6
7
5
8
9
Pressing once mutes audio. Pressing
again restores audio.
VOL+- Increases and decreases volume.
Press to go to the next or previous
image.
Press to display the thumbnail album.
Normal playback.
While Slide show, press this button
once to pause playing, press once
again to resume playing.
◄ ►▲▼,
▲▼
OK In FILE MENU and thumbnail album,
Press to move the highlight bar to a file,
then press OK to confirm the selected
file.
◄ ► While image displaying, press to rotate
While image displaying, press to flip the image.
an image 90 degrees in a clockwise or
counterclockwise.
P.SIZE Cycles through Wide mode settings:
NORMAL/FULL/WIDE/ZOOM
DVD MENU Press to display FILE MENU.
Controlling The USB Storage and SD/MMC Card Reader(Up to 4 GB)
Press the TV button once to activate the built-in USB and SD/MMC Card Reader control keys, the following
functions are preset to operate the JPEG file inside USB Storage and SD/MMC Card: For more information
on setting up your USB storage and card reader, please see the “Using the USB Storage and SD/MMC
Card reader” section.
6
7
2
8
7
5
9
3
4
1
16
Chapter 2 Installing the LCD TV
Chapter 2
Installing the LCD TV
Refer to the owner’s manual of any external equipment to be connected.
When connecting any external equipment, do not connect any AC power cords to wall outlets
until all other connections are completed.
Antenna Connection
The antenna requirements for good color TV reception are more important than those for a black &
white TV reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connection that is provided with the various antenna
systems.
75-ohm coaxial cable (round)
F-type connector
300-ohm twin-lead cable (flat)
■ A 75-ohm system is generally a round cable (not included) with Ftype connector that can easily be attached to a terminal without
tools.
■ A 300-ohm system is a flat twin-lead cable (not included) that can
be attached to a 75-ohm terminal through a
300-75-ohm adapter
(not included).
Connecting a TV Cable or an Antenna
ENGLISH
17
18
Chapter 2 Installing the LCD TV
OUT
IN
300-ohm twinlead cable
300-ohm twinlead cable
75-ohm
coaxial cable
UHF
Antenna
VHF
Antenna
Combiner
(not included)
A. Combination VHF/UHF antenna
300-ohm twinlead cable
75-ohm
coaxial cable
VHF/UHF
Antenna
VHF/UHF
Antenna
300/75-ohm adapter
(not included)
B. Separate VHF and/or UHF antennas
Use one of the following two diagrams when connecting an outdoor antenna.
A: Shows how to use a VHF/UHF combination outdoor antenna.
B: Shows how to use a separate VHF and/or UHF outdoor antenna.
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the
National Electrical Code (NEC) that provides guidelines for proper grounding and, in particular,
species that the cable ground shall be connected to the grounding system of the building
accurately, or as close to the point of cable entry as possible. Use of this TV for other than
private viewing of programs broadcasted on UHF, VHF or transmitted by cable companies for
the use of the general public may require authorization from the broadcast/cable company, and/
or program owner.
A
IN
B
OU T
Cable TV Line
2 set signal
splitter
(not included)
RF switch
(not included)
Cable TV converter/
descrambler
(not included)
Cable TV (CATV) Connection
■
The RF switch (not included) is required to provide two inputs (A and B). Setting
the RF switch to position A allows viewing of all unscrambled channels by using
the TV channel keys.
■ Setting the RF switch to position B allows viewing of all scrambled channels via
the converter/descrambler by using the converter channel keys.
■ A 75-ohm coaxial cable connector is built into the set for easy hookup.
When connecting the 75-ohm coaxial cable to the set, connect the 75-
ohm cable into the ANT. terminal.
■
Some cable TV companies offer premium pay channels. Since the
signals of these premium pay channels are scrambled, a cable TV
converter/descrambler is generally provided to the subscriber by the
cable TV company.
This converter/descrambler is necessary for normal viewing of scrambled channels.
(Set your TV to channel 3 or 4, typically one of these channels is used. If this is unknown,
consult your cable TV company.)
For more specic instructions on installing cable TV, consult your cable TV company.
One possible method of connecting the converter/descrambler provided by your cable TV
company is shown in the diagram below.
VHF/UHF IN
Chapter 2 Installing the LCD TV
ENGLISH
19
20
Chapter 2 Installing the LCD TV
Use an antenna cable to connect the TV signal to the LCD TV’s TV CABLE terminal.
Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.
HDTV/TV
AIR/CABLE
VHF/UHFIN
HDTV/TV
AIR/CABLE
VHF/UHFIN
BE SURE TO UNPLUG AC POWER CORD BEFORE REMOVING THE FUSE.
This TV is equipped with a safety fuse. In the event of an electrical storm or power outage
the safety fuse is designed to protect your TV. If your TV has no power, check the fuse by
prying the cover off, following the illustration below.
If the fuse is blown, visit your local hardware store and ask for a 4A 250V - 5x20mm Time
Lag Fuse (Slow Blow) to replace the fuse.
Back of TV
4A 250V
5x20mm
Fuse
Firm Plastic Prying Tool
(Using a metal tool may cause shock)
Press the button on the remote to turn on the LCD TV.
Always disconnect the LCD TV from the main voltage when the LCD TV will not
be used for a long period of time. The POWER button on the front panel is only
used for switching the LCD TV into standby, it does not disconnect the device
from the main voltage. To completely disconnect the main voltage, please
remove the power plug from the socket.
Chapter 2 Installing the LCD TV
TV
Channel Scan
Tuner Mode Cable
Channel Skip
Favorite List
Time Zone Eastern Time
Enter Select
Exit

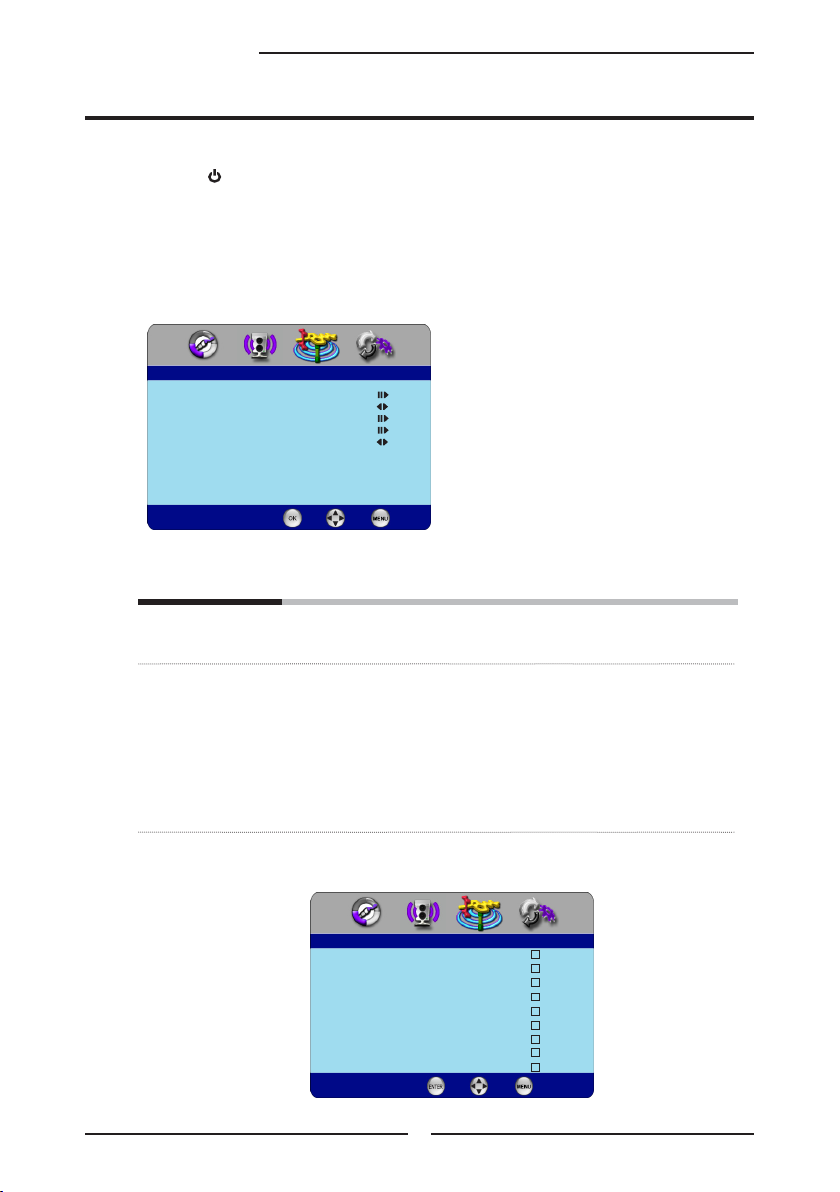

Press the INPUT button on the remote to display the Input List. Use the ▲▼ buttons to
select TV and press the OK button.

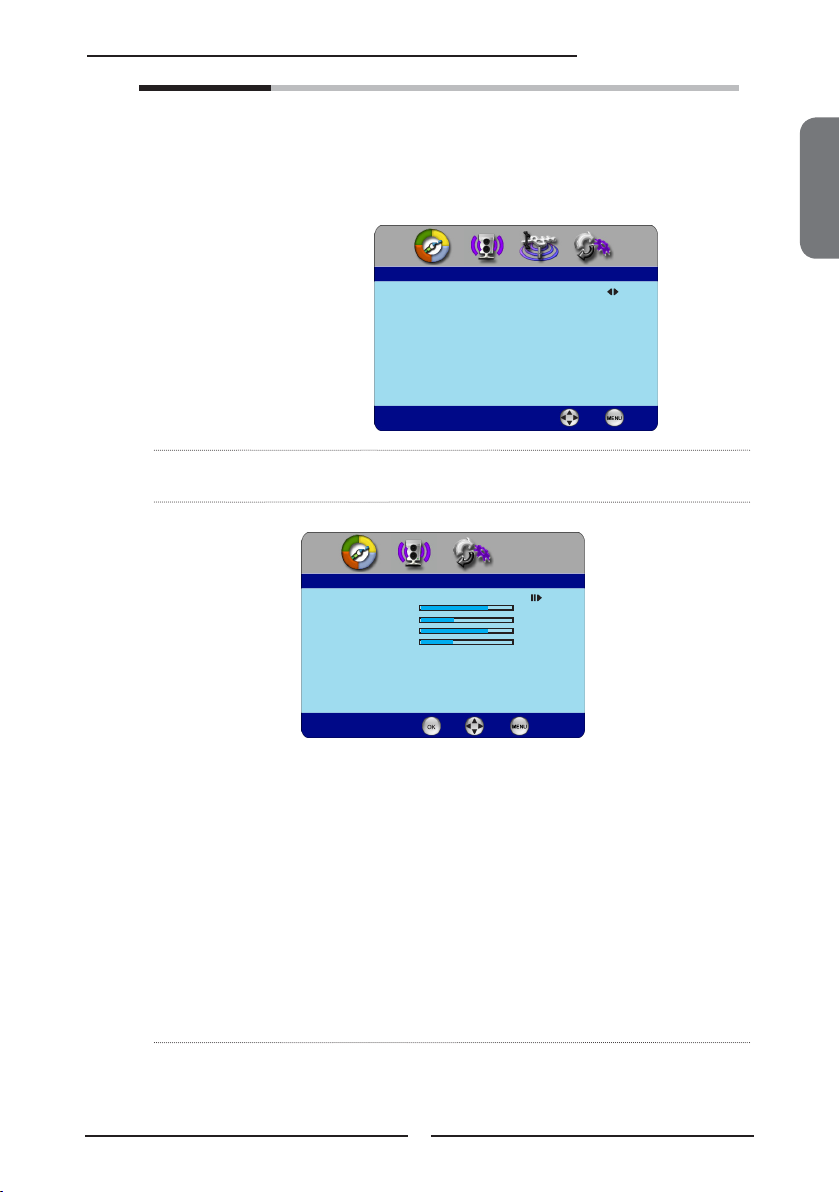

Press the MENU button on the remote control to display the Main menu, and use the ◄►
buttons to select the TV.
Main
TV(CABLE/AIR)
VIDEO1 (SIDE)
VIDEO2 (REAR)
VIDEO3 (S-VIDEO)
VIDEO4 (YPbPr1)
VIDEO5 (YPbPr2)
DVD
USB
CARD READER
VIDEO6 (HDMI1)
VIDEO7 (HDMI2)
COMPUTER(VGA)
ENGLISH
Press the ▼ button to select Channel Scan, and press the OK button.
The Channel Scan automatically creates a list of receivable channels. Press the MENU
button at any time to interrupt the memorization process.(the list cannot be created if
.
interrupted)
Status: Scanning..... Cable
Analog Channels: 25
Digital Channels: 0
47%
The Channel Scanning will create a list of receivable channels for the current
input (antenna or cable). You will be required to run Channel Scanning for each
RF input to create a list of available channels from both inputs.
Press the OK button to display the received channel list, then press ▲▼ to select a
channel at press OK button to confirm. Or, use the▪ (INPUT button) with 0-9 buttons
to select digital channel(for example 9.1)
Channel List
5-2 RF5-2
9-1 KQED-HD
9-2 KOED-SD
8 CCT
12
13
15
The digital main channel might include many subchannels (for example 9-1, 9-
2..) that are showing program at the same time.
21
Chapter 2 Installing the LCD TV
METHOD A:
Use a composite cable to connect the VCR’s composite video/audio jacks to the LCD TV’s
VIDEO2 IN jacks.
METHOD B:
Use an audio cable to connect the VCR’s audio output jacks to the LCD TV’s audio
inputs. Use a S-Video cable to connect the VCR’s s-video output jack to the LCD TV’s
S-VIDEO IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch a videotape, press the INPUT button on the remote , then using the ▲ or ▼
button on the remote to select VIDEO
then press OK button.
2( METHOD A), or VIDEO3 (METHOD B),
Connecting a VCR
A B
HDMI2 INHDMI1 IN
AUDIO
L R
L R L R
L R
L
RL R
L R
AUDIO
PC/VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr
AUDIO
Rear of TV
AUDIO Cable
S-VIDEO Cable
AV Cable
22
L
R
VIDEO1 IN
VIDEO
HDMI2 INHDMI1 IN
AUDIO
L R
L R L R
L R
L
RL R
L R
AUDIO
PC/VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr
AUDIO
Connecting a Video Camera or Game console
GAME CONSOLE
Chapter 2 Installing the LCD TV
Right Side
METHOD A:
Use a composite cable to connect the video camera’s or game console’s composite
video/audio jacks to the LCD TV’s VIDEO2 IN jacks or VIDEO1 IN jacks.
Rear of TV
or
AUDIO Cable
ENGLISH
S-VIDEO Cable
B
AV Cable
A
METHOD B:
Use an audio cable to connect the video camera’s or game console’s audio output
jacks to the LCD TV’s audio inputs. Use an S-Video cable to connect the video
camera’s or game console’s s-video output jack to the LCD TV’s S-VIDEO IN input
jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch a video vis camera or game console, press the INPUT button on the remote,
then using the ▲ or ▼ button on the remote to select VIDEO2/VIDEO1( METHOD A),
or VIDEO3 (METHOD B), then press OK button.
Not all cameras have the ability to connect to a TV. Please check your video camera
user guide for compatibility.
23
Chapter 2 Installing the LCD TV
ENGLISH
C
Rear of TV
A
B
HDMI2 INHDMI1 IN
AUDIO
L R
L R L R
L R
L
R
L R
L R
AUDIO
PC/VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr
AUDIO
or
METHOD A:
Use a composite cable to connect the DVD player’s composite video/audio jacks to the
LCD TV’s VIDEO2 IN jacks.
METHOD B:
Use an audio cable to connect the DVD player’s audio output jacks to the LCD TV’s
audio inputs. Use an S-Video cable to connect the DVD player’s s-video output jack
to the LCD TV’s S-VIDEO IN input jack.
METHOD C:
Use a component cable to connect the DVD player’s component output jacks to the LCD
TV’s YPbPr1 IN or YPbPr2 IN input jacks.
Use an audio cable to connect the DVD player’s component audio jacks to the LCD TV’s
audio input jacks.
DVD PLAYE R
bP rP
bP rP
Connecting a DVD Player
The component video jacks on your DVD player are sometimes labeled
YPbPr, or YCbCr. For an explanation of component video, see your DVD
player’s user guide.
AUDIO Cable
S-VIDEO Cable
AV Cable
COMPONENT/AUDIO Cable
HDMI Cable
D
METHOD D:
Use a HDMI cable to connect the DVD player’s HDMI output jacks to the LCD TV’s
HDMI 1 IN or HDMI 2 IN input jacks.
24
Chapter 2 Installing the LCD TV
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
T
o watch a DVD, press the INPUT button on the remote, then using the ▲ or ▼ button
on the remote to select VIDEO2( METHOD A), or VIDEO3 ( METHOD B), or VIDEO4/
VIDEO5 (METHOD C), or VIDEO6/VIDEO7 (METHOD D), then press OK button.
For best picture quality, if your equipment has component video output, use
a component cable instead of a composite video or S-video cable.
25
Chapter 2 Installing the LCD TV
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch programs via satellite receiver or TV Cable Box, press the INPUT button on
the remote, then using the ▲ or ▼ button on the remote to select VIDEO4/VIDEO5
(METHOD A) or VIDEO6/VIDEO7 (METHOD B), then press OK button.
Connecting a Digital TV Cable Box or Digital Satellite Receiver
PrPb
PrPb
Rear of TV
B
HDMI Cable
HDMI 2 INHDMI 1 IN
AUDIO
L R
L R
VIDEO AUDIO
VIDEO2 IN
PC/VGA IN
AUDIO
Y Pb Pr AUDIO
L R L R
L R
S-VIDEO AUDIO
S-VIDEO IN
COMPONENT/AUDIO Cable
Y Pb Pr AUDIO
A
YPbPr1 IN
YPbPr2 IN
L R
STEREO
AUDIO OUT
L
R
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
Air/Cable
VHF/UHF IN
METHOD A:
Use a component cable to connect the satellite receiver’s/TV Cable Box’s component
(YPbPr1) output jacks to the LCD TV’s component input jacks.
Use an audio cable to connect the satellite receiver’s/TV Cable Box’s component audio
jacks to the LCD TV’s audio input jacks.
METHOD B:
Use a HDMI cable to connect the satellite receiver’s/TV Cable Box’s HDMI output jacks
to the LCD TV’s HDMI 1 IN or HDMI 2 IN input jacks.
26
HDMI2 INHDMI1 IN
AUDIO
L R
L R L R
L R
L
R
L R
L R
AUDIO
PC/VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr
AUDIO
Rear of TV
Connecting an AV Equipment with HDMI Connector
AV EQUIPMENT
Rear of TV
Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI IN
jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the
VIDEO 6 or VIDEO7, then press OK button.
INPUT button on the remote, then using the ▲ or ▼ button on the remote to select
The HDMI connector provides both video and audio signals, it’s not
necessary to connect the audio cable.
HDMI Cable
Chapter 2 Installing the LCD TV
ENGLISH
27
Chapter 2 Installing the LCD TV
HDMI2 INHDMI1 IN
AUDIO
L R
L R L R
L R
L
R
L R
L R
AUDIO
PC/VGA IN
VIDEO2 IN
VIDEO AUDIO
S-VIDEO IN
S-VIDEO AUDIO
YPbPr1 IN
AUDIO OUT
STEREO
DIGITAL
OPTICAL
COAXIAL
HDTV/TV
AIR/CABLE
VHF/UHF IN
Y Pb Pr AUDIO
YPbPr2 IN
Y Pb Pr
AUDIO
Rear of TV
Connecting an AV Equipment with DVI Connector
If the LCD TV is connected to AV equipment’s DVI connector, you will need
an HDMI-to-DVI cable or an HDMI adapter(not suplied) and an audio cable.
AV EQUIPMENT
DVI IN
AUDIO
L R
Rear of TV
Use a HDMI-to-DVI cable to connect the AV equipment’s DVI output jack to the LCD TV’s
HDMI IN jacks.
Use an audio cable to connect the AV equipment’s audio output jacks to LCD TV’s HDMI
AUDIO jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the
VIDEO6 or VIDEO7, then press OK button.
INPUT button on the remote, then using the ▲ or ▼ button on the remote to select
HDMI-to-DVI Cable
AUDIO Cable
28
Loading...
