Memorex MLT2022 User Manual

MLT2022
User’s Guide
20" Wide-screen LCD Stereo
Monitor with Integrated TV Tuner
* High Definition (HDTV) monitors require an optional set-top box to receive true digital high definition broadcasts.
Before operating this product,
please read these instructions completely.
CONTENTS
Contents ................................................................................................................................................................................1
ower Source........................................................................................................................................................................5
P
Location of Controls ............................................................................................................................................................5
• Front...................................................................................................................................................................................5
• Rear Panel .........................................................................................................................................................................6
Remote...............................................................................................................................................................................6
Remote Control.....................................................................................................................................................................7
• Battery Installation .............................................................................................................................................................7
• Effective Distance of the Remote
Control Transmitter ............................................................................................................................................................7
Cable (CATV)/Satellite Connections ...................................................................................................................................8
Outdoor Antenna Connections ...........................................................................................................................................9
VCR Connections ...............................................................................................................................................................10

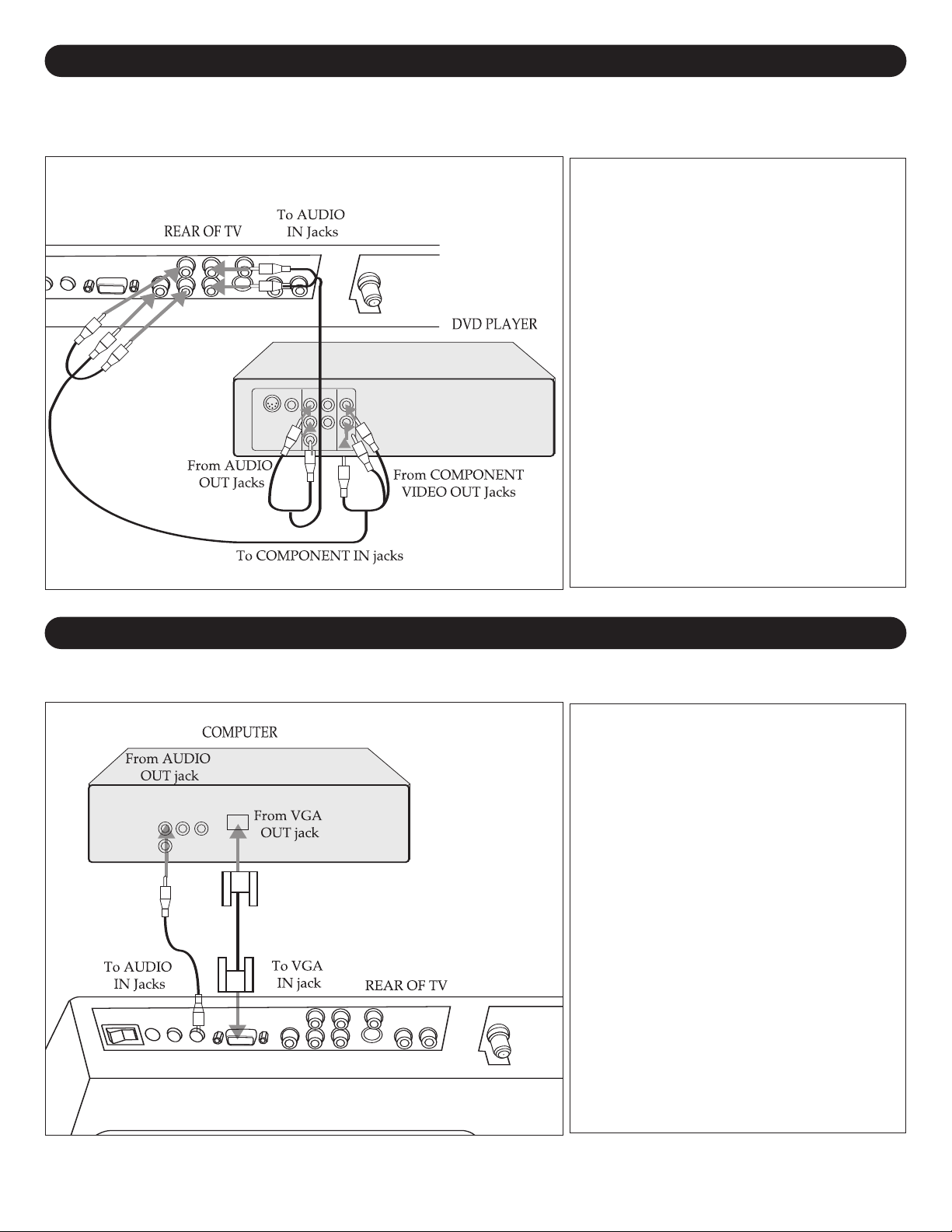

DVD Connections ...............................................................................................................................................................12
Computer Connection........................................................................................................................................................13
Setting the Menu.................................................................................................................................................................14
• Turning the Main Power On.............................................................................................................................................14
• Setting the Video..............................................................................................................................................................14
• Picture in Picture..............................................................................................................................................................15
• Image Setup.....................................................................................................................................................................16
• Audio Setup .....................................................................................................................................................................18
• Feature Setup ..................................................................................................................................................................20

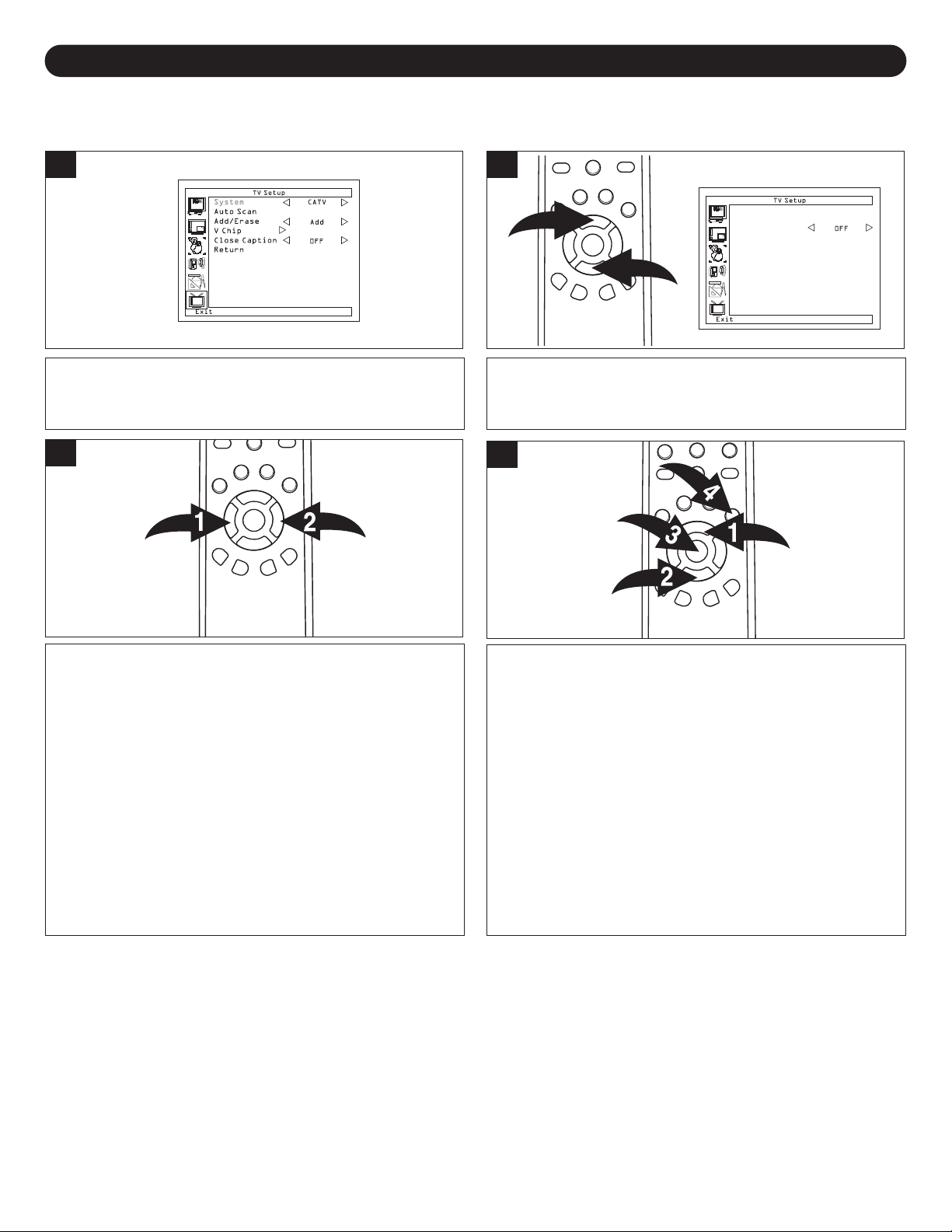

Setting the System and Setting the Channels into Memory ..........................................................................................22
Adding and Skipping Channels ........................................................................................................................................23
TV Operation .......................................................................................................................................................................24
• Mute .................................................................................................................................................................................25
• Channel Return................................................................................................................................................................25
• TV/Video ..........................................................................................................................................................................25
• MTS..................................................................................................................................................................................25
• EQ....................................................................................................................................................................................25
• Sleep Timer......................................................................................................................................................................25
• Info ...................................................................................................................................................................................26
• Theme..............................................................................................................................................................................26
• Freeze..............................................................................................................................................................................26
• Earphone..........................................................................................................................................................................26
• Bright................................................................................................................................................................................26
Closed Captions .................................................................................................................................................................
Setting V-Chip.....................................................................................................................................................................28
• V-Chip Set-up...................................................................................................................................................................28
AA Rating Set-up ........................................................................................................................................................29
MP
• TV Rating Set-up .............................................................................................................................................................30
• Changing the Password...................................................................................................................................................31
Troubleshooting Guide ......................................................................................................................................................32
Reception Disturbances.....................................................................................................................................................33
Specifications .....................................................................................................................................................................34
Care and Maintenance .......................................................................................................................................................35
27
1
IMPORTANT SAFETY INSTRUCTIONS
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
O NOT EXPOSE THIS PRODUCT TO RAIN OR
D MOISTURE.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection. Lightning and power surges under warranty for this product.
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER JUSQU’AU FOND.
ARE NOT covered
FCC WARNING:
To assure continued compliance, follow the attached installation instructions and use only shielded cables when connecting to other devices. Modifications not authorized by the manufacturer may void user’s authority to operate this device.
2
IMPORTANT SAFETY INSTRUCTIONS (CONTINUED)
P
ORTABLE CART WARNING
(symbol provided by RETAC)
he lightning flash with arrowhead symbol
T
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
ARTS INSIDE. REFER SERVICING TO QUALIFIED
P SERVICE PERSONNEL.
ARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
W
TO PREVENT ELECTRIC SHOCK, MATCH THE WIDE BLADE OF THE PLUG TO THE WIDE SLOT AND FULLY INSERT.
Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the product is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the product and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by the product's manufacturer as they may cause hazards.
7. WATER AND MOISTURE
Do not use this product near water–for example: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool.
8. ACCESSORIES
Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
8A. An appliance and cart combination should be moved with care. Quick stops, excessive force and
uneven surfaces may cause the appliance and cart combination to overturn.
9. VENTILATION
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
10. POWER SOURCES
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
GROUNDING OR POLARIZA
1.
1
This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
POWER-CORD PROTECTION
12.
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
TION
within an equilateral triangle is intended to alert
he user to the presence of uninsulated
t dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
3
IMPORTANT SAFETY INSTRUCTIONS (CONTINUED)
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
NEC - NATIONAL ELECTRICAL CODE
ELECTRIC SERVICE EQUIPMENT
GROUND CLAMP
S2898A
13. LIGHTNING
To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
4. POWER LINES
1
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electric Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge product, size of grounding conductors, location of antenna discharge product, connection to grounding electrodes and requirements for grounding electrodes.
18. SERVICING
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
19. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
20. SAFETY CHECK
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
21. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
DAMAGE REQUIRING SERVICE
22.
Unplug the product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled or objects have fallen into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered
by the operating instructions, as an adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the product to its normal operation. e. If the product has been dropped or the cabinet has been damaged. f. When the product exhibits a distinct change in performance–this indicates a need for service.
23. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.
24. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
4
1 2 3 4 56
121110987
POWER SOURCE
3-pronged Receptacle
Receptacle Box Cover
3-pronged plug
When using a 3-pronged plug
o operate the unit using AC power, connect the AC adapter (included) to the DC 12V
T IN jack (
connect the other end to a wall outlet having 120V AC, 60Hz only.
OTE:When you turn on the unit, the AC adapter will become warm or hot. This is
N
normal and it is suggested to put the AC adapter in a cool place.
z) on the rear of the unit. Connect the AC cord to the adapter and
LOCATION OF CONTROLS
FRONT
VOLUME Down/Navigation Left Button -
1.
to lower the volume or navigate left in the setting menu.
2. MENU/ENTER Button - Press to access the on­screen menu or press to enter the setting.
3. VOLUME UP/Navigation Right Button - Press to raise the volume or navigate right in the setting menu.
4. POWER Button - Press to turn the TV on; the POWER indicator will light green. Press again to turn the
TV of
f; the POWER indicator will light red.
5. CHANNEL/NAVIGATION Down Button - Press to select a lower-numbered channel or navigate down in the setting menu.
Press
6.
7. Left Speaker
8. Screen
9. Base Stand
10. REMOTE SENSOR
11. POWER Indicator–Lights green when the unit is
12. Right Speaker
5
TION Up Button -
CHANNEL/NA
VIGA
Press to select a higher-numbered channel or navigate up in the setting menu.
on, and lights red when the unit is off.
1 2 3 4 5 116 7 8 9 10
1
11
2
3
4
5 6 7 8
9
10
12
13 14
15
16 17 18
REAR PANEL
LOCATION OF CONTROLS (CONTINUED)
1. Main POWER Switch
z
2. DC 12V IN Jack (
3. Earphone Jack
4. VGA (PC) AUDIO IN Jack VGA (PC) IN Jack
5.
6. COMPONENT IN Jacks (CR/CB/Y)
z
REMOTE
7. COMPONENT IN Audio Left/Right Jacks
)
8. VIDEO IN Jack
9. S-VIDEO IN Jack
10. AUDIO Left/Right IN Jacks
11. UHF/VHF Antenna IN Jack
1. POWER Button
2. Direct Channel Selection/Number (0-9) Buttons
3. 1-- Button
4. TV/VIDEO Button
5. SLEEP Button
6. CHANNEL/Navigation Up Button
7. VOLUME Down/Navigation Left Button
8. ENTER/MENU Button
9. BRIGHT Button
10. EQ Button
11. MUTE Button
12. CHRTN (Channel Return) Button
13. MTS Button
14. FREEZE/EXIT MENU Button
15. VOLUME UP/Navigation Right Button
16. CHANNEL/Navigation Down Button
17. INFO Button
18. THEME Button
6
BATTERY INSTALLATION
30° 30°
15 ft
REMOTE CONTROL
1
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)
Slide to open the battery compartment cover.
Install two “AAA” batteries (not included), paying
ttention to the polarity diagram in the battery
a compartment.
Replace the battery compartment cover.
EFFECTIVE DISTANCE OF THE REMOTE CONTROL TRANSMITTER
NOTES:
• When there is an obstacle between the TV and the transmitter, the transmitter may not operate.
• When direct sunlight, incandescent lamp, fluorescent lamp or any other strong light shines on the REMOTE SENSOR of the unstable.
FAQs:
Why is the remote control not working properly?
The remote control is not aimed at the sensor.
The remote control is too far away from the remote sensor.
There is too much light in the room.
There is an obstacle in the path of the beam.
The batteries are weak or dead.
The batteries are inserted incorrectly.
The TV/Video button is not set to the desired function, see page 25.
The TV is not plugged in.
7
, the remote operation may be
TV
CABLE (CATV)/SATELLITE CONNECTIONS
INCOMING 75 OHM CATV CABLE
SPLITTER A/B SWITCH
75 OHM CABLE
CONVERTER/ DESCRAMBLER
CONVERTER/
DESCRAMBLER OR
SATELLITE BOX
75 OHM CABLE
TO TV/VCR
INCOMING
75 OHM
CATV CABLE
This TV has an extended tuning range and can tune most cable channels without using a Cable TV converter box. Some Cable TV companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.
FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE
For basic cable tv service not requiring a converter/descrambler box, connect the CATV 75 ohm coaxial cable to the VHF/UHF jack on the rear of the TV.
FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE OR SATELLITE
If you subscribe to a satellite service or a cable TV service which requires the use of a converter/descrambler box, connect the incoming 75 ohm coaxial cable to the converter/descrambler or satellite box. Using another 75 ohm cable, connect the output of the converter/descrambler or satellite box to the antenna jack on the TV. Follow the connections shown below. Set the TV/VCR to the output channel of the converter/descrambler or satellite box (usually 3 or 4) and use the converter/descrambler or satellite box to select channels.
FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH SCRAMBLED
PREMIUM CHANNELS
If you subscribe to a satellite service or a cable TV service in which basic channels are unscrambled and premium channels require the use of a converter/descrambler box, you may wish to use a signal splitter and an A/B switch box (available from the cable company or an electronic supply store). Follow the connections shown below
ith the switch in the “A” position, tune your
directly tune any nonscrambled channels on your TV converter/descrambler box (usually channel 3 or 4) and use the converter/descrambler box to tune scrambled channels.
FAQS:
I connected my cable, why can’t I get channels above 69?
Make sure range you are searching.
Are the cables included?
No, the cables are sold separately; visit your local electronics store.
AIR/CABLE is set to CABLE, see page 22. Also, make sure your cable company broadcasts channels in the
. W
. With the switch in the “B” position, you can
TV to the output of the
8
OUTDOOR ANTENNA CONNECTIONS
V
HF/UHF 75 Ohm
UHF 300 Ohm
VHF 75 Ohm
Combiner
UHF 300 Ohm
VHF 300 Ohm
Combiner
OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT SUPPLIED)
Follow the instructions for the type of antenna system you intend to use.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Connect the 75 ohm cable from the combination VHF/UHF antenna to the antenna jack.
OR
If your combination antenna has a 300 ohm twin-lead wire, use a 300-75 ohm matching transformer (NOT SUPPLIED).
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-leads)
Connect the UHF twin-lead wire to a combiner (NOT SUPPLIED). Connect the VHF twin-lead to a 300-75 ohm matching transformer (NOT Attach the transformer to the combiner. Attach the combiner to the antenna jack.
SUPPLIED).
Separate VHF/UHF Antennas
Connect the 75 ohm cable from the VHF antenna and the UHF antenna twin-lead wire to a combiner (NOT SUPPLIED). Attach the combiner to the antenna jack. NOTE: If your VHF antenna has a twin-
lead wire use a 300-75 ohm matching transformer, then connect the transformer to the combiner.
9
VCR CONNECTIONS
VCR
REAR OF TV
INCOMING CATV CABLE
From VCR OUT jack
CONNECTION USING COAXIAL CABLE:
Follow the instructions below to connect a VCR to your television using a 75 ohm coaxial cable. (CABLES NOT INCLUDED.)
1. Connect the cable, satellite or incoming antenna to the VHF/UHF IN jack on the rear of the VCR.
2. Connect a 75 ohm coaxial cable from the VCR’s 75 Ohm OUT jack to the ANT jack on the rear of the TV.
3. Press the TV/VIDEO button until a channel appears on the TV screen and press PLAY on the VCR to watch a tape.
CONNECTION USING AUDIO/VIDEO CABLES:
Follow the instructions below to connect a VCR to your television using Audio/Video cables. (CABLES NOT INCLUDED.)
1. Connect the cable, satellite or incoming antenna to the VHF/UHF IN jack on the rear of the VCR.
2. Connect the left and right audio cable from the VCR’s Audio OUT jacks to the TV’s audio left and right Connect the VCR’s video OUT jack to the TV’s VIDEO IN jack.
3. Press the TV/VIDEO button until AV appears on the TV screen and press PLAY on the VCR to watch a tape.
AUDIO IN jacks.
AQ:
F
My VCR has only 1 Audio jack, but this TV has two Audio input jacks, how do I connect it?
Simply connect it to the “L (Mono)” Audio input jack, but the sound will be monaural.
10
VCR CONNECTIONS (CONTINUED)
CONNECTION USING S-VIDEO CABLE:
Follow the instructions below to connect an S-VIDEO VCR to your television using an S-video cable. (CABLES NOT INCLUDED.)
1. Connect the cable, satellite or incoming antenna to the ANT jack on the rear of the VCR.
2. Connect the left and right audio cable from the VCR’s Audio OUT jacks to the TV’s audio left and right IN jacks.
3. Connect the VCR’s S-VIDEO OUT jack to the TV’s S-VIDEO IN jack.
4. Press the TV/VIDEO button until SV appears on the TV screen and press PLAY on the VCR to watch a tape.
11
Loading...
+ 25 hidden pages
