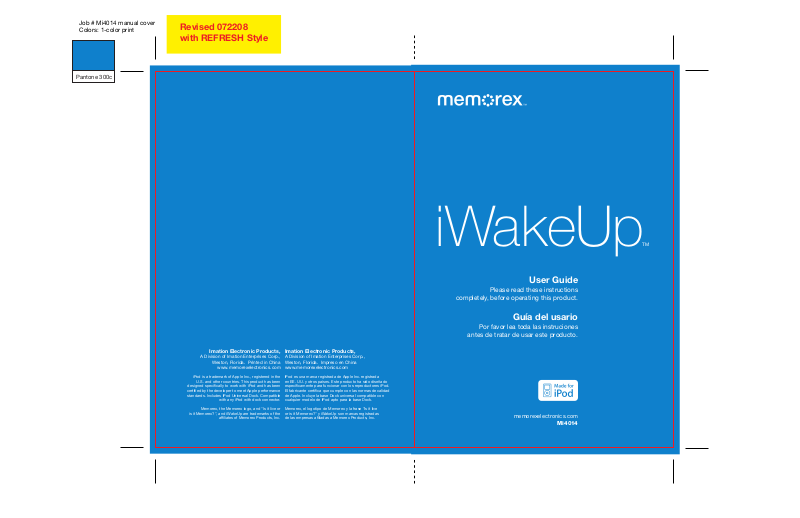

Memorex Mi4014 User Manual

iWakeUp

User Guide

Please read these instructions

completely, before operating this product.

Guía del usario

Por favor lea toda las instruciones

antes de tratar de usar este producto.

memorexelectronics.com

Mi 4 014

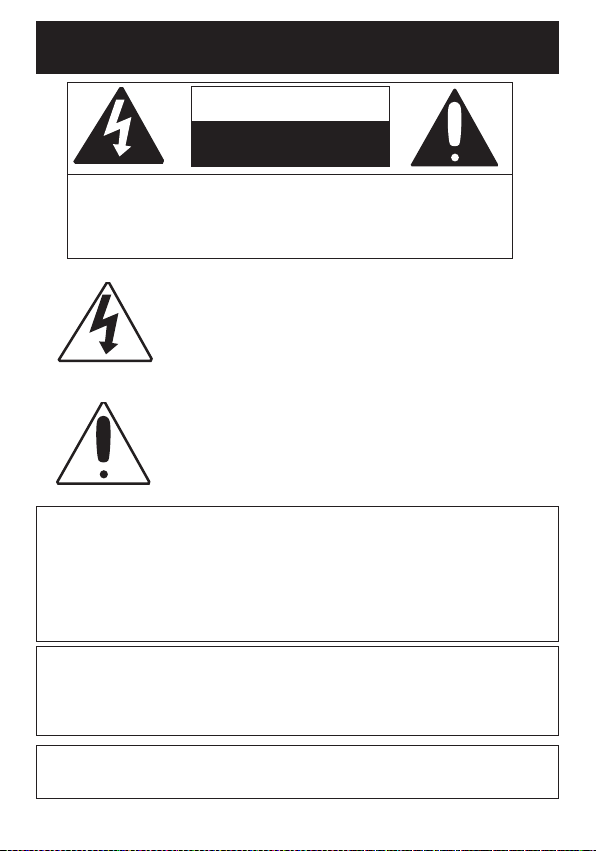

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE:

The lightning ﬂash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modiﬁcations to this equipment may cause harmful interference unless the modiﬁcations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modiﬁcation is made.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER JUSQU’AU FOND.

iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

SAFETY PRECAUTIONS

INFORMATION:

This equipment complies with Class B digital device regulations. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Dear Customer:

EST. 1924

EIA

LISTENING

For ALifetime

Want You

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal”can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level

30 Quiet library, soft whispers 40 Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant 80 Average city traffic, garbage disposals, alarm clock at two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:

90 Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet engine 180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

Example

NOOZE

2 3 4 5 6 7 8 9

10 11 12 13

14 15 16 17 18 19

FRONT

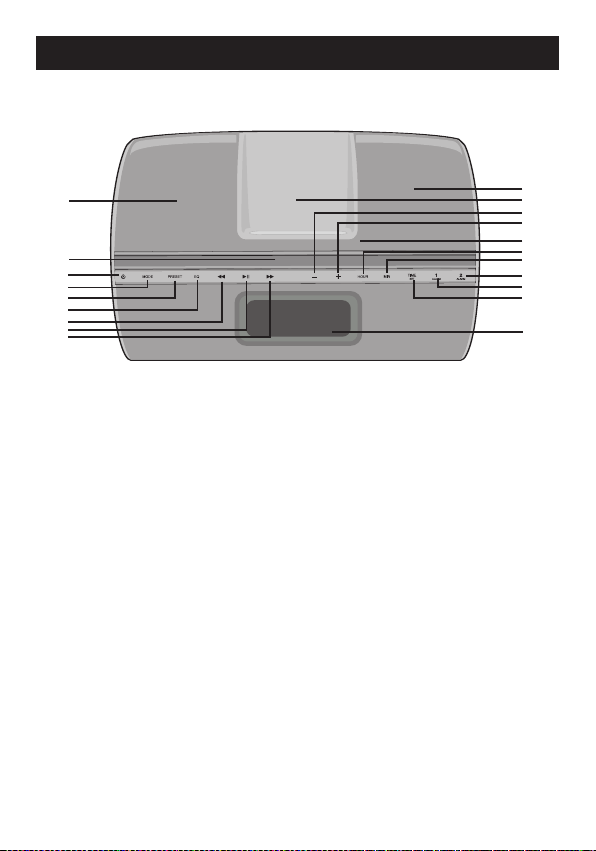

LOCATION OF CONTROLS

1. Left Speaker

2. SNOOZE/SLEEP Button

3. Power Button

4. MODE Button (AM/FM)

5. PRESET/SET Button

6. EQ Button

7. Tune/Skip/Search o Button

8. PLAY/PAUSE (®p) Button

9. Tune/Skip/Search n Button

10. Right Speaker

11. iPod Compartment with Connector (for use with Universal Docks)

12. Volume Down Button

13. Volume Up Button

14. Remote Sensor

15. HOUR Button

16. MIN (Minute) Button

17. ALARM 2 Button

18. ALARM 1 Button

19. TIME SET/Display Button

20. LCD Display

LOCATION OF CONTROLS (CONTINUED)

1 2 3

4 5

REAR

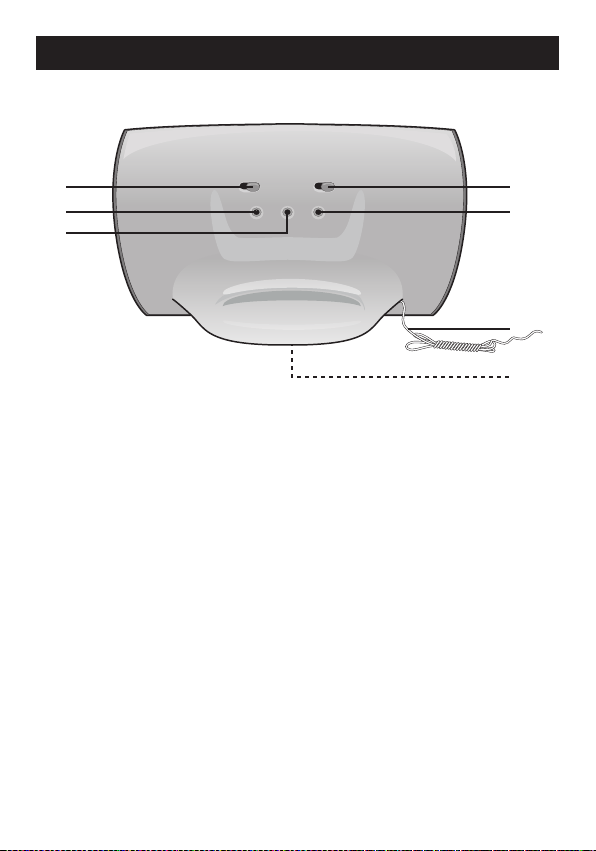

1. DIMMER Switch (OFF/L/M/H)

2. DC 12V Jack

(AC ADAPTER PART NO. 0251-207200-10103*)

3. LINE IN Jack

4. DST (Daylight Savings Time) Switch (-1/+1)

5. Headphones Jack

6. FM Wire Antenna

7. Battery Compartment (Bottom of Unit)

(BATTERY COVER PART NO. 3051-002206-10000*)

*Consumer Replaceable Part (See page 20 to order.)

LOCATION OF CONTROLS (CONTINUED)

2 3

4 5

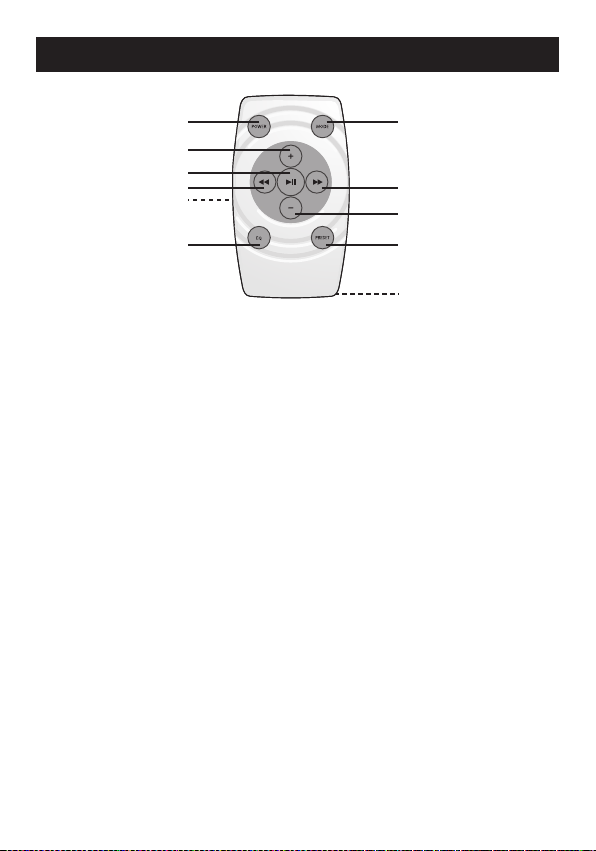

REMOTE

1. Power Button

2. Volume Up Button

3. PLAY/PAUSE (®p) Button

4. Tune/Skip/Search o Button

5. Battery Compartment (Side of Unit)

REMOTE CONTROL PART NO. RC-F00022001*

*Consumer Replaceable Part (See page 20 to order.)

6. EQ Button

7. MODE Button

8. Tune/Skip/Search n Button

9. Volume Down Button

10. PRESET/SET Button

11. Strap Hole (Bottom of Unit)

NOTE:

• The remote buttons function in the same way as the buttons on

the main unit.

POWER SOURCE

front of unit

AC CONNECTION

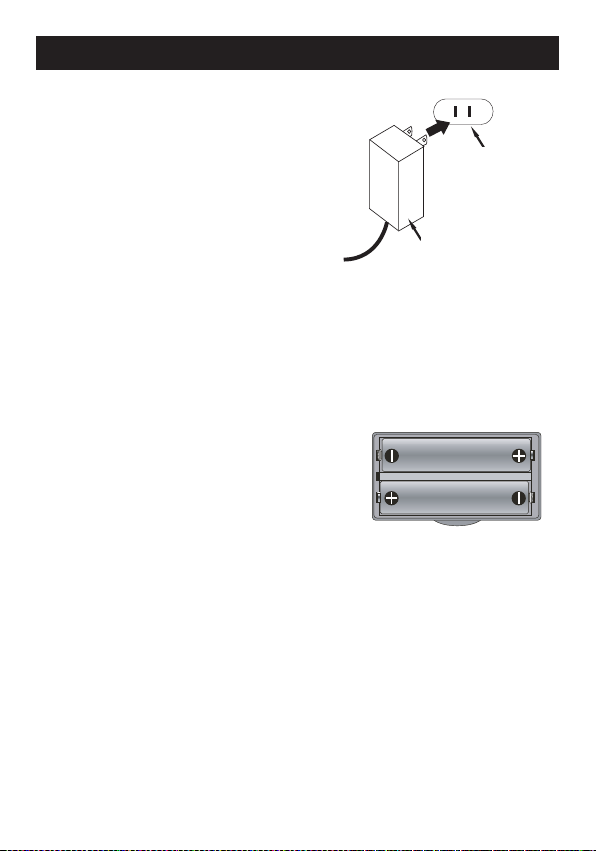

Insert the small end of the AC adapter into the DC IN 12V jack (located on the rear of the unit). Connect the other end to a wall outlet having 120V AC, 60 Hz.

AC Adapter, DC 12V Z

NOTES:

• Remove both the DC plug and the AC-IN plug to disconnect the AC adapter when not in use.

• Only use the supplied AC adapter which has the following specs: DC 12V Z

BATTERY INSTALLATION

Two (2) “AAA” size batteries can also be used to power and/or to provide a backup for the clock and alarm time for this unit as follows:

1. Open the battery door by pushing in on the tab, then removing the door.

2. Insert two (2) “AAA” batteries as shown. Alkaline batteries are recommended for the longest playing time.

3. Place the battery door back on the compartment.

NOTES:

• The batteries are used to back-up the clock and alarm times when the AC

adapter is disconnected or there is a power failure.

• The battery indicator will appear or blink in the display when there are no

batteries or the batteries are low and need replacing.

IMPORTANT! See BATTERY PRECAUTIONS on the next page.

POWER SOURCE (CONTINUED)

REMOTE BATTERY INSTALLATION

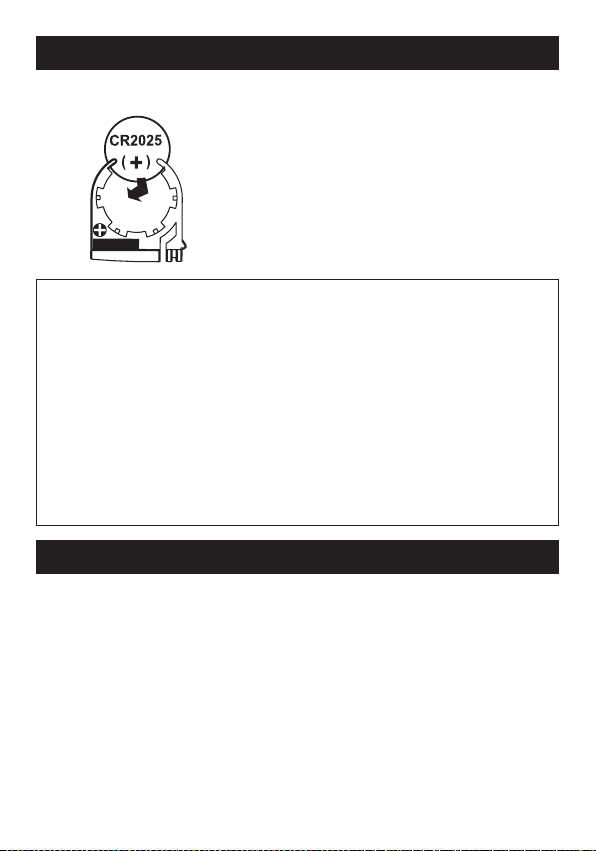

2. Install a CR2025 battery, by popping it in

3. Replace the Battery Compartment.

Remove the Battery Compartment by pressing in on the tab and then sliding the compartment out.

through the back of the compartment, paying attention to the polarity diagram in the compartment (positive side up).

Follow these precautions when using batteries in this device:

1. Warning–Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

2. Use only the size and type of batteries speciﬁed.

3. Be sure to follow the correct polarity when installing the batteries as indicated in the Battery Compartment. A reversed battery may cause damage to the device.

4. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable and Carbon-zinc) or old batteries with fresh ones.

5. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

6. Do not try to recharge a battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer’s directions.)

BATTERY PRECAUTIONS

OPTIONAL CONNECTION

LINE IN JACK (REAR OF UNIT)

Insert one end of the audio cable (not included) into the LINE OUT jack on your external audio unit and the other end into the LINE IN jack on the rear of this unit. To listen to the external audio unit, turn this unit on using the Power button, and turn on the external unit as well. Repeatedly press the MODE button to select LINE IN mode; “LINE IN” will appear in the display. The external audio unit’s output sound will be heard through this unit’s speakers. If you wish to listen to the iPod in the iPod compartment, repeatedly press the MODE button to select iPod mode; iPod will appear in the display. NOTE: If this unit is turned on and in FM/AM/iPod mode, once the external unit is connected, this unit will change to LINE IN mode automatically. Then, if you disconnect the FM/AM/iPod mode.

external unit from the LINE IN jack, this unit will revert back to

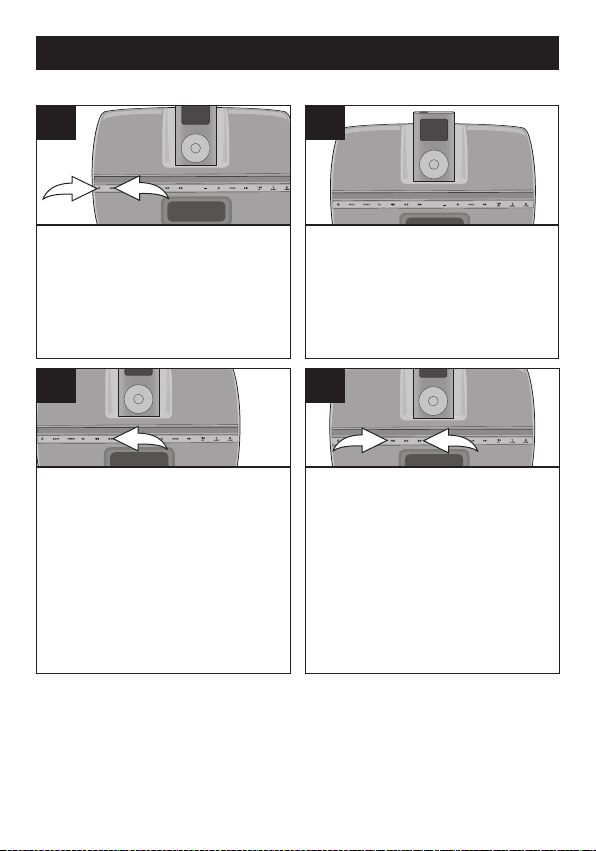

INSERTING AN iPod

(

(B)

(

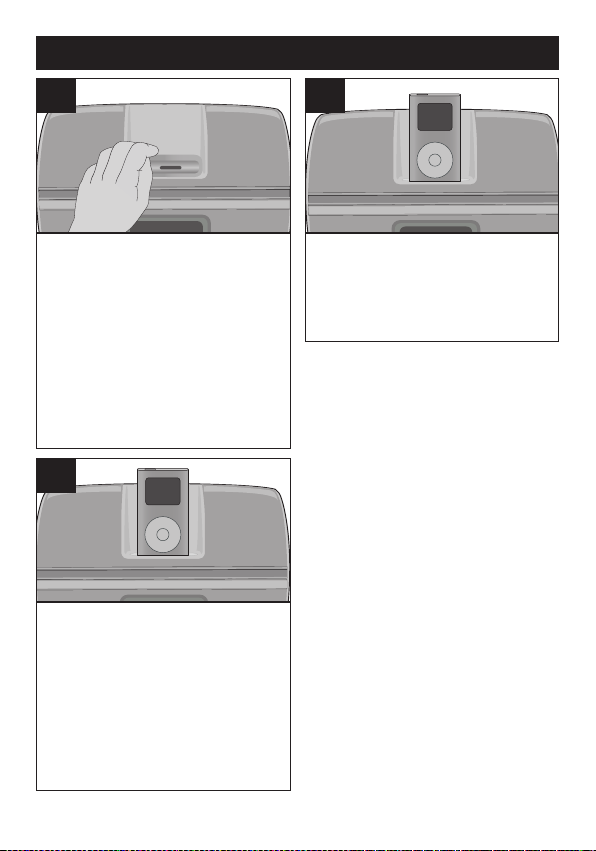

Insert the Universal Dock included with your iPod (A) into the iPod compartmen t (B) (as shown) , making sure the tabs are facing front, and slip the tabs into place. Press the rear side of the Universal Dock until it is positioned inside the iPod compartment.

The iPod will charge as long as this unit is connected with the AC adapter. Please see t he ne xt pa ge for instructions on using an iPod with this unit.

Sl i de the i Pod (A) i nto th e Universal Dock (B) (as shown). Ge n tly pus h down so t h e connector on the iPod slides onto the connector on this unit.

NOTES:

• If this unit is turned on and in FM/AM/LINE IN mode, once the iPod is connected, this unit will change to iPo d mode automat icall y. Then, i f you disconnect the iPod, this unit will revert ba ck to FM/ AM/LINE IN mode.

• When the iPod is connected to this unit, i t will be in the Pause mode.

• To remove the Universal Dock, insert your finger (or other object) into the gap in the Universal Dock, then gently pull the Univers al Dock out to remove it.

• CHARGING: When the iPod is inserted into the dock, whether this unit is on or off, the iPod’s battery will charge until it is full.

• You will not be able to select iPod or LINE IN mode, if there is no device or iPod connected to the LINE IN jack or the iPod dock.

OPERATION

SNOOZE

USING AN iPod WITH THIS UNIT

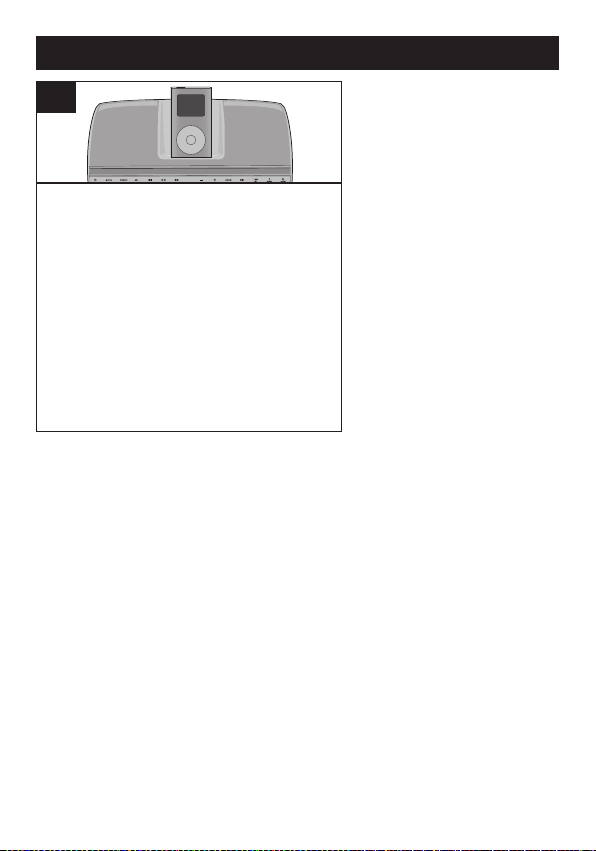

With an iPod connected (see previous page), if this unit is not already on, turn this unit on by pressing the Power button 1. Repeatedly press the MODE button 2 to select iPod mode; “iPod” will appear in the display.

To play/pause the iPod:

Press the PLAY/PAUSE (®p) button to start playback on your iPod. Press again to pause playback and press yet again to resume playback.

NOTES:

• See the next page for how to adjust the volume.

• To turn this unit off, press the Power button. This unit will turn off automatically if the iPod is disconnected while the unit was in iPod mode.

You can operate the iPod using its own controls, as per its owner’s manual, or you can use the controls on this unit to operate the iPod.

To skip forward or backward on the i Pod: P ress the Tune/

Skip/Search o 1 or n 2 button to skip to the beginning of the current track/previous or next track.

To search forward or backward on the iPod: Press and hold the

Tune/Skip/Search o 1 or n 2 button to search wit hin the currently-playing track.

OPERATION (CONTINUED)

SNOOZE

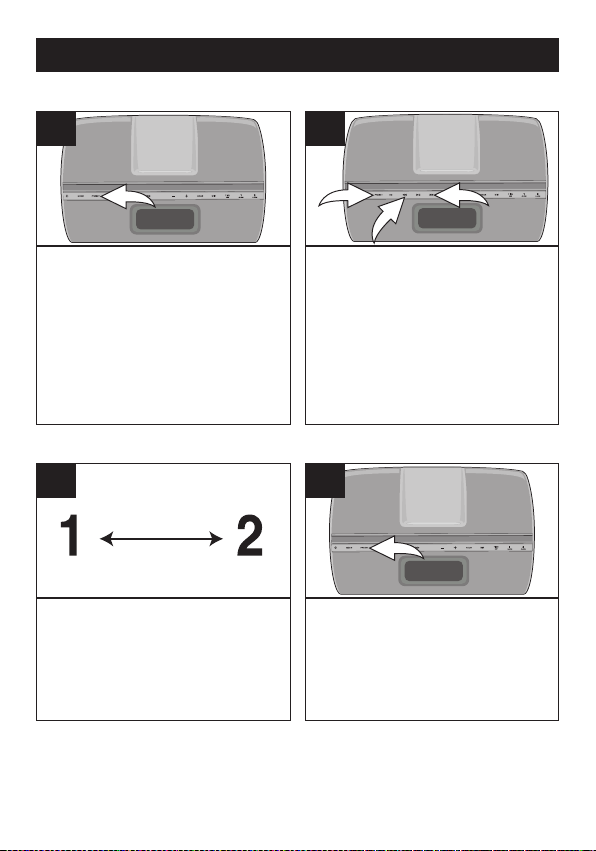

ADJUSTING THE VOLUME AND EQ (Equalizer)

To adjust the main volume:

Press the Volume Up 1 and/or Down 2 button to increase and/or decrease the volume.

NOTES:

• After you have adjusted the volume setting, if you turn the unit off and then on again, the volume level will be set to the level you selected prior to turning the unit off.

• For private listening, plug in headphones into the Headphones jack on the rear of this unit. The speakers will be disconnected when headphones are plugged in.

• To turn this unit off, press the Power button.

To adjust the EQ (Equalizer):

Press the EQ b utton to cycle

through the following options: EQ1, EQ2, EQ3, EQ4 or Off (Normal).

OPERATION (CONTINUED)

SNOOZE

USING THE RADIO

Turn this unit on by pressing the Power button.

Repeate dly press th e Tu ne/

Skip/Search o 1 or n 2 button to

manually advance the frequency in the display up or down until the desired frequency appears. For auto tuning, press and hold the

Tune/Skip/Search o 1 or n 2 button until the frequency in the

display starts to scan and then release; the tuner will search and then stop on the next strong station it finds. Repeat this step until the desired freq uency appe ars in the display.

Antennas

FM: Unravel and extend the FM wire antenna for best reception. AM: Turn the unit for better AM reception. Also, move the AC adapter 1.5ft. away from the main unit to prevent interference to the AM signal.

Repeatedly press the MODE button to select AM or FM mode; “AM” or “FM” will appear in the display.

NOTES:

• When a station is tuned, after five seconds, the radio frequency will disappear and the actual time will reappear in the display.

• See the previous page for how to adjust the volume.

• To turn this unit off, press the Power button.

+ 29 hidden pages
