Memorex Mi4004 User Manual

Mi4004 Suffix A

User’s Guide

iWake Clock Radio

with Dual Alarm

Before operating this product,

please read these instructions completely.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE:

The lightning ﬂash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modiﬁcations to this equipment may cause harmful interference unless the modiﬁcations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modiﬁcation is made.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER JUSQU’AU FOND.

SAFETY PRECAUTIONS

INFORMATION:

This equipment complies with Class B digital device regulations. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FRONT/TOP

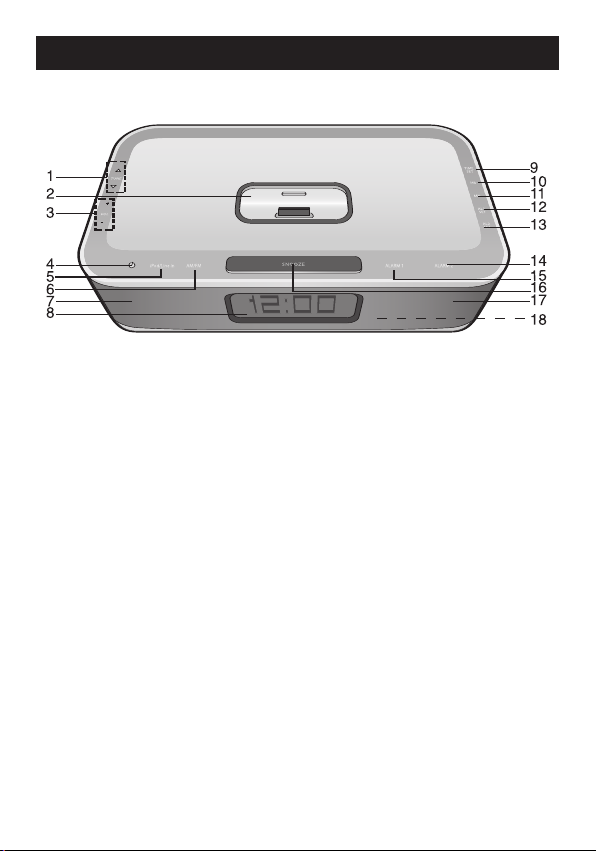

LOCATION OF CONTROLS

1. TUNE Up/Down/Skip n / o

Buttons

2. iPod

Dock with Connector & Interchangeable Universal Docks

3. VOLUME Up/Down Buttons

4. Power Button

5. iPod

/LINE IN Button

6. AM/FM Button

7. Left Speaker

8. Display

9. TIME SET Button

10. HR (Hour) Button

11. MN (Minute) Button

12. AL1 SET Button

13. AL2 SET Button

14. ALARM 2 Button

15. ALARM 1 Button

16. SNOOZE/SLEEP Button

17. Right Speaker

18. Remote Sensor

LOCATION OF CONTROLS (CONTINUED)

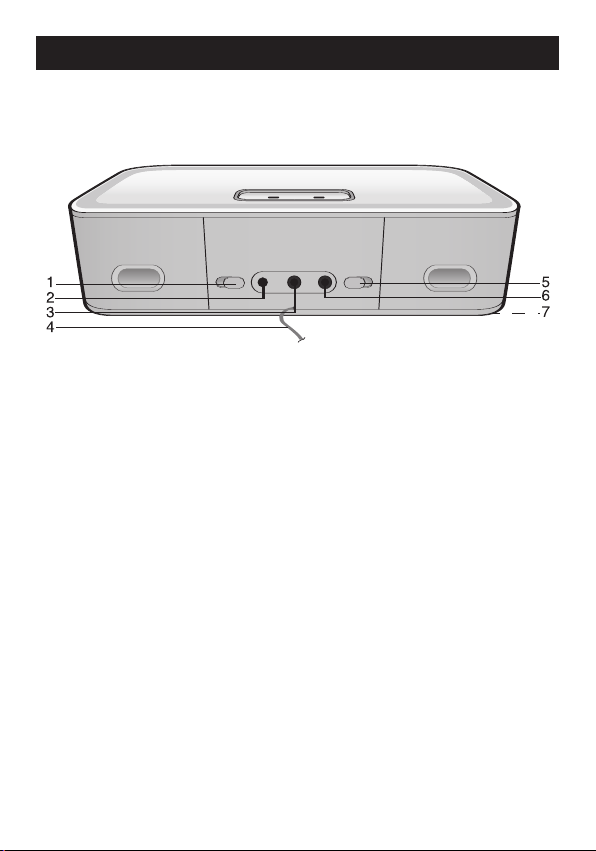

REAR

1. DIMMER Switch

2. DC 13.5V IN Jack

3. LINE IN Jack

4. FM Wire Antenna

5. DST (Daylight Savings Time) Switch

6. Headphones Jack

7. Battery Compartment (Bottom of Unit)

LOCATION OF CONTROLS (CONTINUED)

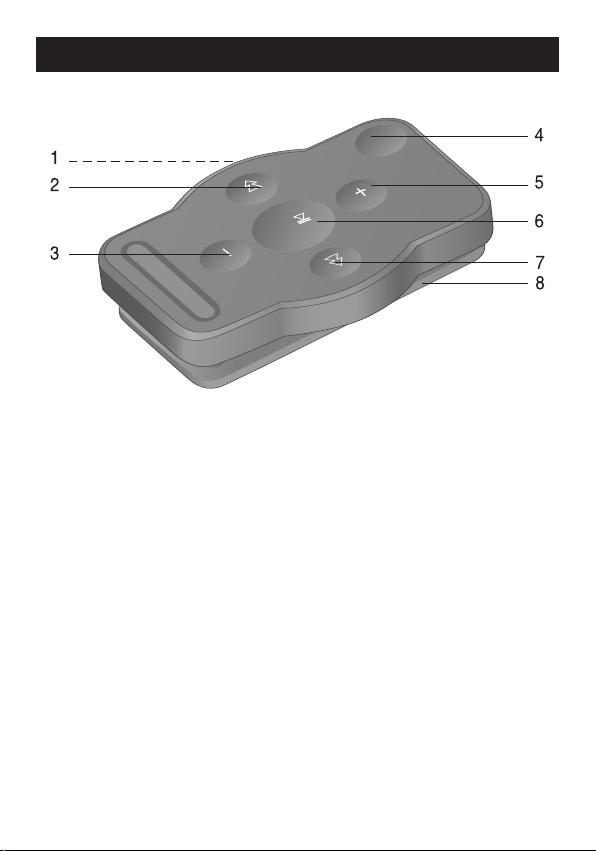

REMOTE

1. Battery Compartment (Side of Unit)

2. TUNE Down/Skip o Button

3. VOLUME Down Button

5. VOLUME Up Button

6. Power/PLAY/PAUSE (®p) Button

7. TUNE Up/Skip n Button

8. Belt Clip

4. MODE Button

NOTES:

• The remote buttons function in the same way as the buttons on

the main unit.

• To switch between modes (AM/FM, LINE IN or iPod

MODE button.

• To turn on the unit, press the Power/PLAY/PAUSE (®p) button.

To turn the unit off, press and hold the Power/PLAY/PAUSE

®p) button until the unit turns off, then release the button.

(

• For the Belt Clip, simply clip it to a non-slip location such as

your belt, purse or backpack.

, use the

POWER SOURCE

Receptacle

Receptacle Box Cover

Grounding

Adapter

rounding Lead

crew

AC CONNECTION

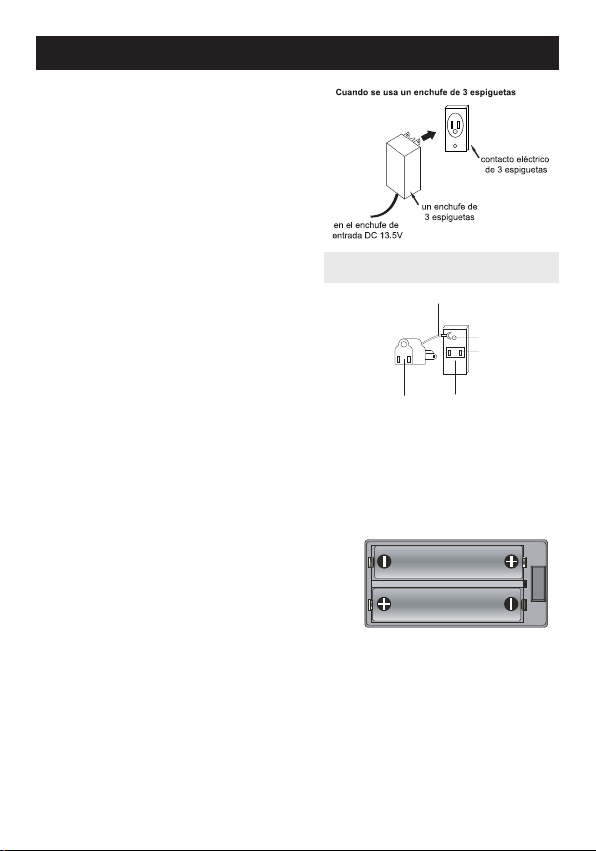

Insert the small end of the AC adapter into the DC 13.5V IN jack (located on the rear of the unit). Connect the other end to a wall outlet having 120V AC, 60 Hz. AC Adapter, DC 13.5V

NOTES:

• The AC adapter supplied with the unit

• Remove both the DC plug and the AC-

• Only use the supplied AC Adapter

BACKLIGHT

When the AC adapter is connected to the unit, the LCD backlight will always be on.

BATTERY INSTALLATION

Two (2) “AAA” size batteries can also be used to power and/or to provide a backup for the clock and alarm time for this unit as follows:

1. Open the battery door by pushing in on the

2. Insert two (2) “AAA” batteries as shown.

3. Place the battery door back on the

NOTES:

• The batteries are used to back-up the clock and alarm times when the AC

• The battery indicator will appear or blink in the display when there are no

IMPORTANT! See BATTERY PRECAUTIONS on the next page.

is polarized to help minimize the possibility of electric shock. If the AC plug does not ﬁt into a nonpolarized AC outlet, do not ﬁle or cut the wide blade. It is the user’s responsibility to have an electrician replace the obsolete outlet.

IN plug to disconnect the AC adapter when not in use.

which has the following specs: DC 13.5V

tab, then removing the door

When using a grounding adapter, make sure the receptacle box is fully grounded.

Alkaline batteries are recommended for the longest playing time.

compartment.

adapter is disconnected or there is a power failure.

batteries or the batteries are low and need replacing.

POWER SOURCE (CONTINUED)

REMOTE BATTERY INSTALLATION

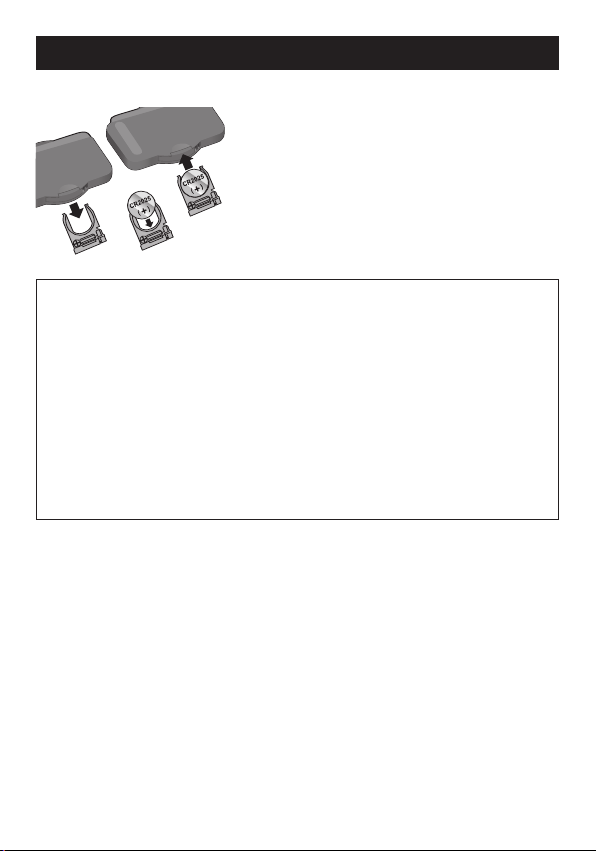

2. Install a CR2025 battery, paying attention

3. Replace the Battery Compartment.

Remove the Battery Compartment by pressing in on the tab and then sliding the compartment out.

to the polarity diagram in the Battery Compartment (positive side up).

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries speciﬁed.

2. Be sure to follow the correct polarity when installing the batteries as indicated in the Battery Compartment. A reversed battery may cause damage to the device.

3. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

4. Do not try to recharge a battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer’s directions.)

BATTERY PRECAUTIONS

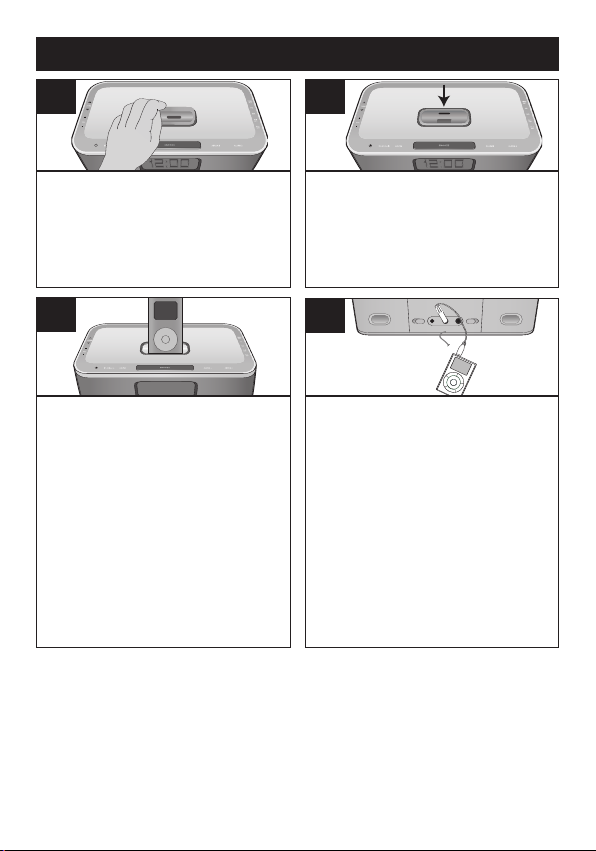

INSERTING AN IPOD

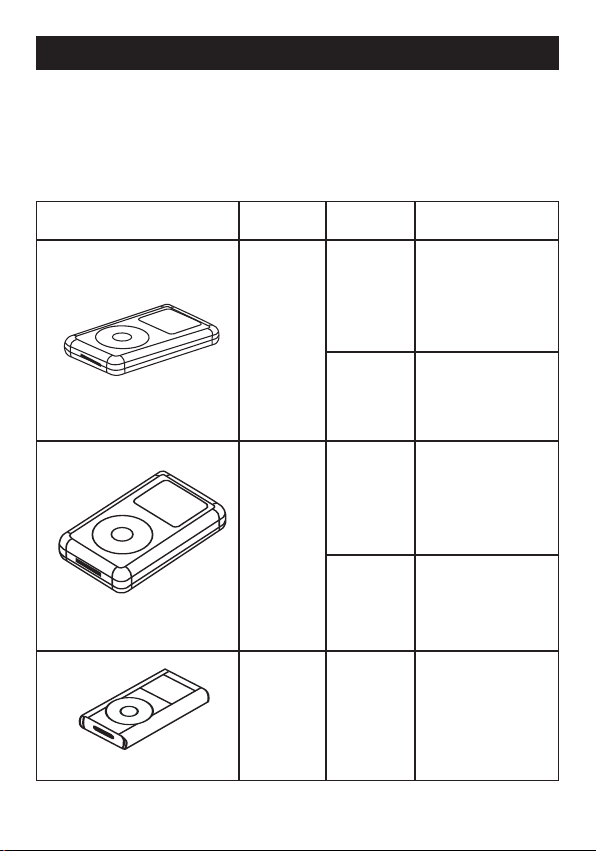

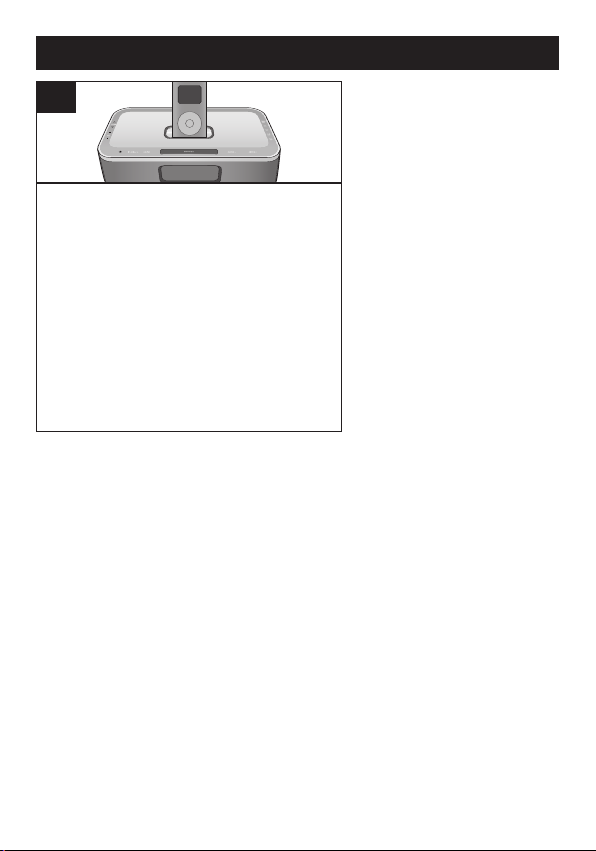

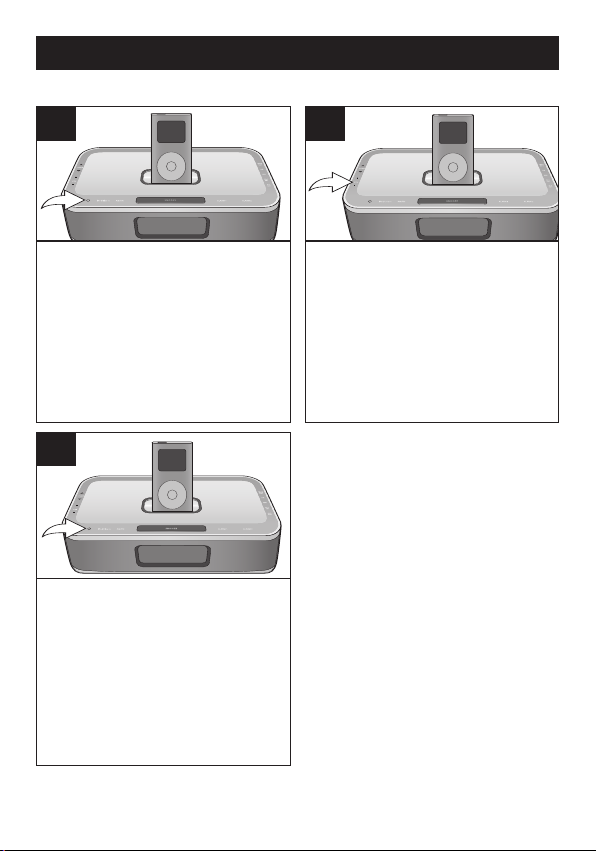

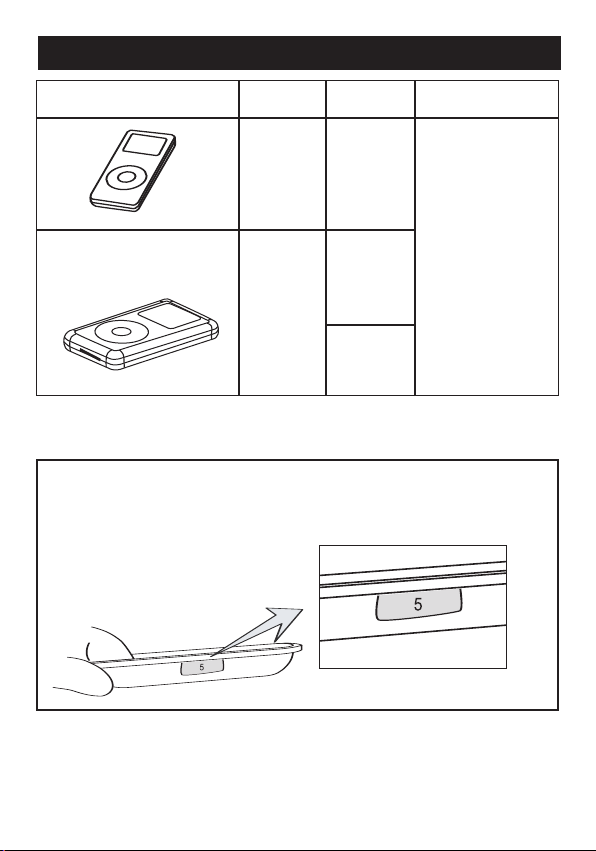

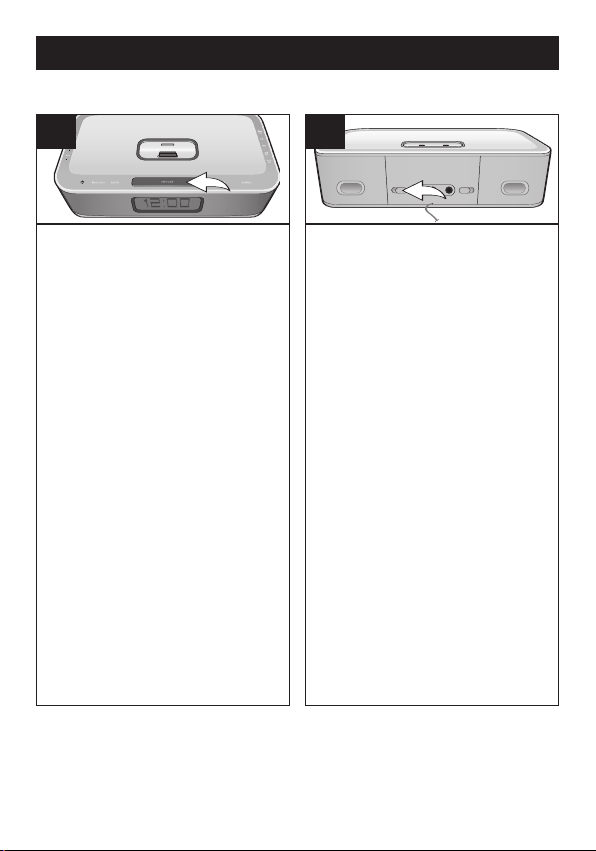

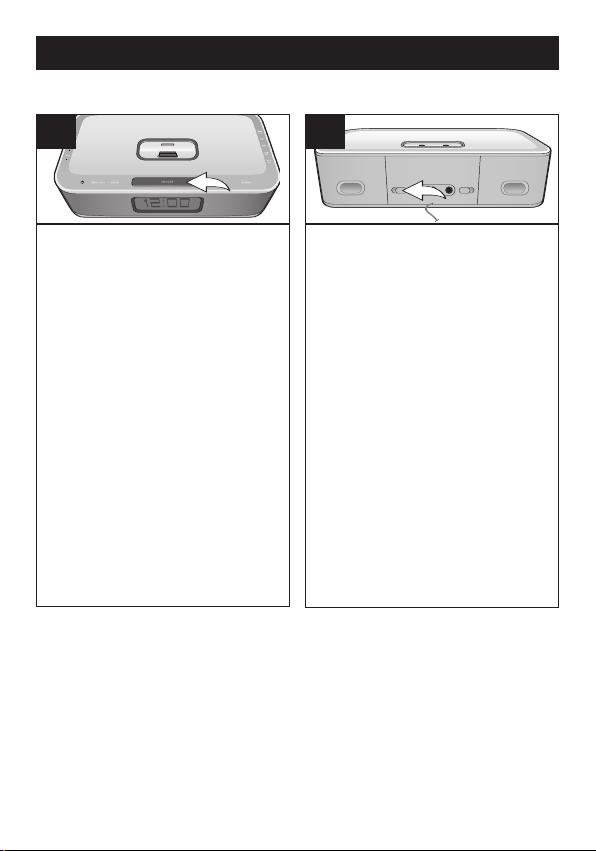

Locate the correct iPod®Universal Dock to use as shown on pages 16-17. Insert the dock into the cavity (as shown), making sure the tabs are facing front, and slip the tabs into place.

If using the dock: Insert the iPod®onto

the holder. Gently push down so the connector on the iPod connector on the Mi4004. If the Mi4004 is turned off, once you connect the iPod will start charging the battery until it is full. If the Mi4004 is turned on and in AM/FM/LINE IN mode, once the iPod connected, the Mi4004 will change to

mode automatically. Then, if you

iPod disconnect the iPod®, the Mi4004 will revert back to the AM/FM/LINE IN mode. When the iPod Mi4004, it will be in the Pause mode.

NOTES:

• CHARGING: When the iPod®is inserted into the dock, whether the Mi4004 is on or

off, the iPod’s®battery will charge until it is full. CHANGING THE MODE: If units are connected to the dock AND the LINE IN jack,

• you can press the iPod®/LINE IN or AM/FM button repeatedly to select between iPod (dock)/LINE IN/AM/FM mode as desired. (Y iPod/LINE IN mode, if there is no device or iPod®dock.) To turn off the unit, press the Power button.

slides onto the

is connected to the

Press the rear side of the holder until it is positioned inside the cavity. NOTE: To remove the holder, insert your finger (or other object) into the gap in the holder, then gently pull the holder out to remove it.

If using the LINE IN jack: Insert an audio

cable (not included) into the LINE OUT on your player and the other end into the LINE IN jack on the rear of the Mi4004.

Press the Power button to turn this unit on,

, it

then press the iPod select the LINE IN mode. The external player’s output sound will be heard through

the Mi4004's speakers. If the Mi4004 is already on, when you connect the external unit to it, the Mi4004 will change to LINE IN mode automatically. If you disconnect the external unit from the LINE IN jack, the Mi4004 will revert back to the AM/FM/iPod mode.

ou will not be able to select between

iPod

connected to the LINE IN jack or the

/LINE IN button to

jack

OPERATION

USING AN IPOD®WITH THIS UNIT

With an iPod®connected (see previous page), turn the Mi4004 on by pressing the Power button (if it is not on already); “iPod” will appear in the display. NOTE: If the Mi4004 is in a mode other than iPod®, press the iPod®/LINE IN button to select iPod mode.

For private listening, plug in headphones into the Headphones jack on the rear of the Mi4004. The speakers will be disconnected when headphones are plugged in. When done, press the Power button and also turn off the iPod

Operate the iPod®as per its owner’s manual and the sound will be heard through the Mi4004’s speakers. Adjust the volume as desired by pressing the Volume Up/Down buttons.

NOTES:

• When the iPod®is inserted into the dock, you can press the TUNE Up/Down/Skip buttons to skip to the beginning of the current track/previous or next track.

• The default volume setting level is 6. After you have adjusted the volume setting, if you turn the unit off and then on again, the volume level will be set back to the default level

of 6.

n / o

OPERATION (CONTINUED)

USING THE RADIO

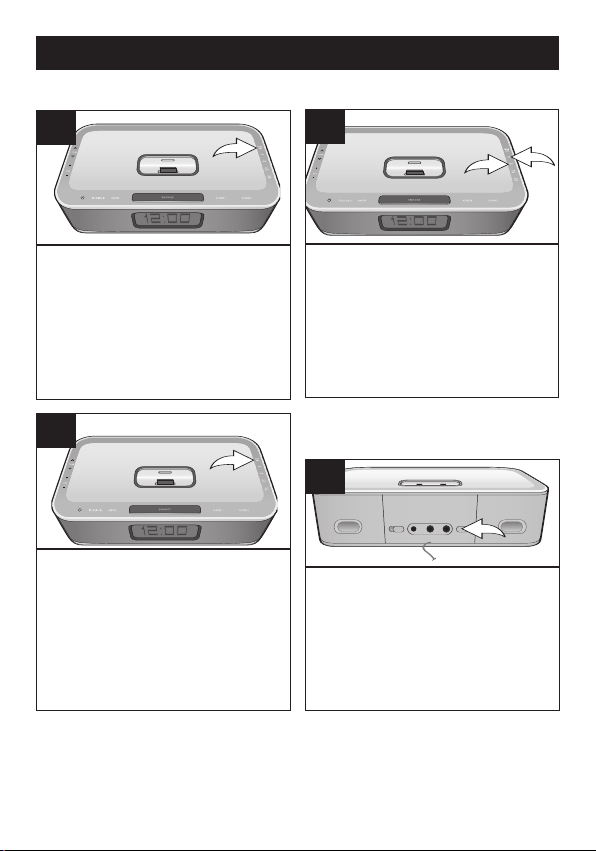

Turn the Mi4004 on by pressing the Power button; "AM" or "FM" will appear in the display.

Repeatedly press the TUNE Up/Down/Skip advance the frequency in the display up or down until the desired frequency appears. For auto tuning, press TUNE Up/Down/Skip the frequency in the display starts to scan and then release; the tuner will search and then stop on the next strong station it finds. Repeat this step until the desired frequency appears in the display. NOTE: When a station is tuned, after five seconds, the radio frequency will disappear and the actual time will reappear in the display. If you press the TUNE Up/Down/Skip radio frequency will appear in the display again.

Antennas

FM: Unravel and extend the FM wire antenna for best reception. AM: Turn the unit for better AM reception. Also, move the AC adapter 1.5ft. away from the main unit to prevent interference to the AM signal.

n / o buttons to manually

and hold the

n / o buttons until

n / o buttons, the

Press the AM/FM button repeatedly to select the desired band (AM or FM).

Adjust the volume as desired by pressing the Volume Up/Down buttons. For private listening, plug in headphones into the Headphones jack on the rear of the Mi4004. The speakers will be disconnected when headphones are plugged in.

OPERATION (CONTINUED)

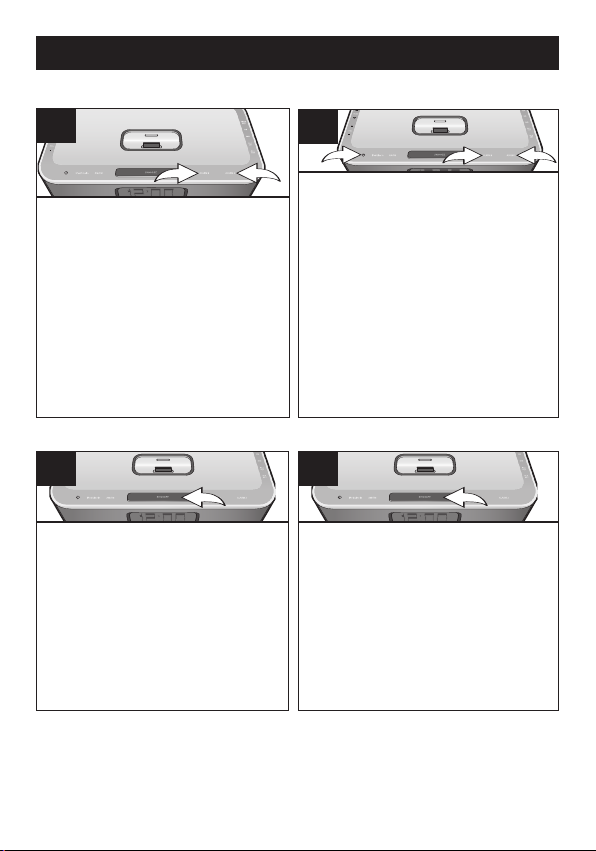

TO SET OR RESET THE ACTUAL TIME

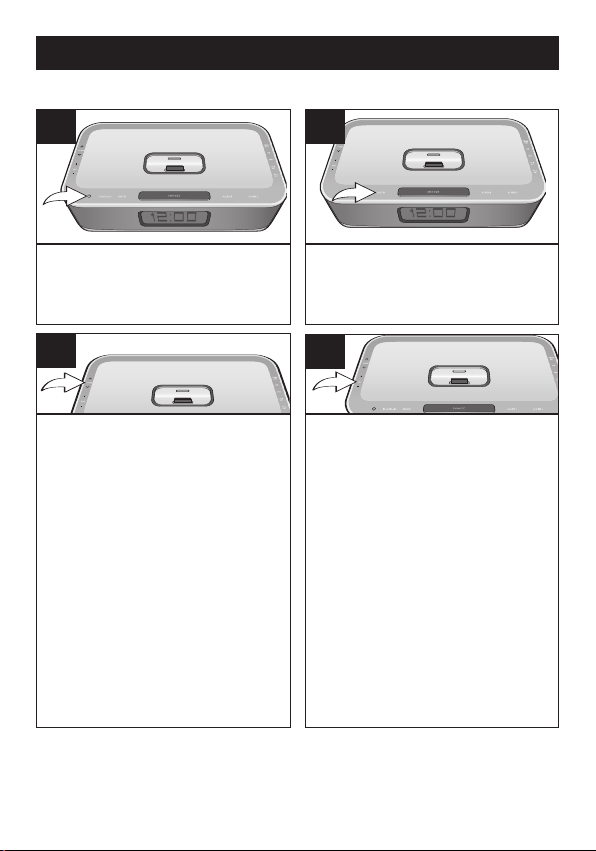

With the power off, press the TIME SET button; the time will blink.

Press the TIME SET button (or wait approx. 5 seconds) and the time will be set.

Within 5 seconds, press the MN (Minute) button present minute and the HR (Hour) button 2 to set the present hour. Make sure to set the correct AM/PM setting.

DST (DAYLIGHT SAVINGS TIME)

1 to set the

For your convenience, there is a

(Daylight Savings Time) switch

DST located on the rear of the unit. Slide the switch to +1 to add an hour to the actual time or slide the switch to

-1 to subtract an hour from the actual time.

OPERATION (CONTINUED)

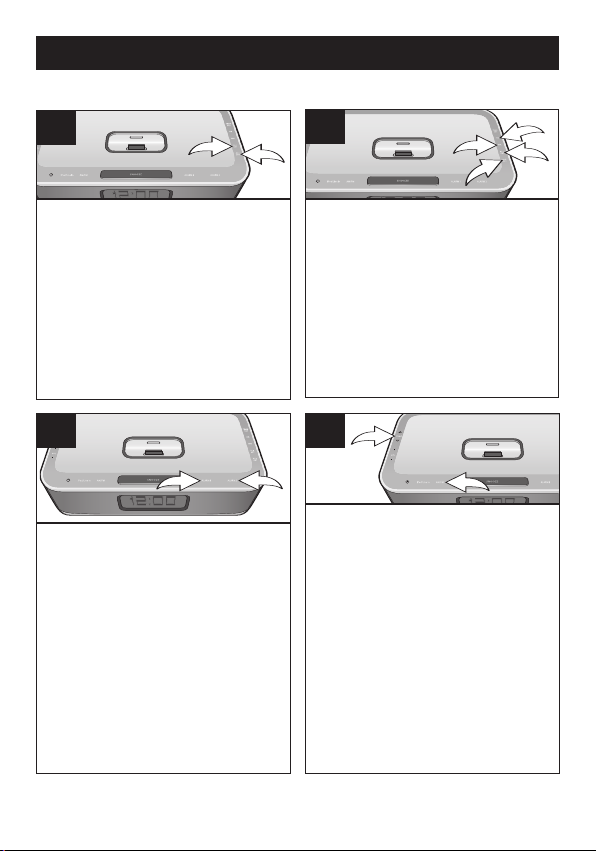

TO SET OR RESET THE ALARM TIME

With the power off, press either the AL1 SET button 1 (to set Alarm 1) or AL2 SET button

2) ; the Alarm time will blink in the display.

2 (to set Alarm

Repeatedly press the ALARM 1 1 or ALARM 2 2 button to select alarm off, alarm on for buzzer, radio or iPod®. NOTE: Make sure the corresponding indicator (BUZZ/ RADIO/iPod) appears in the display.

CONTINUED ON THE NEXT PAGE

Within 5 seconds, press the MN (Minute) button minute and the HR (Hour) button to set the alarm hour. Make sure to set the correct AM/PM setting. Press the AL1 SET button 3 or AL2 SET button approx. 5 seconds); the alarm time will stop blinking.

1 to set the alarm

4 again (or wait

If set to Radio, within 5 seconds, set

the band (AM or FM) using the AM/FM button using the Tune/Skip/Search button 2. When the alarm time is reached, the unit will turn on the band (AM or FM) and the frequency that you selected. NOTE: When you have selected the radio band and frequency, after 5 seconds, the radio frequency will be set and the actual time will appear in the display again.

1 and the frequency

l or m
