1
SAFETY PRECAUTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL. This Caution Marking and Rating Label are located at
the bottom enclosure of the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless
the modifications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an unauthorized
change or modification is made.
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISES ET POUSSER JUSQU’AU FOND.
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and
other countries.
INFORMATION:
This equipment complies with Class B digital device regulations.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
2
SAFETY PRECAUTIONS
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty
for this product.
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
3
LOCATION OF CONTROLS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1. LINE IN and DC IN 15V Z Jacks (Rear of Unit)
(AC Adapter Part No. 295-05220-E000*)
2. Left Speaker (1 of 2)
3. iPod Compartment with Connector
& Interchangeable Universal Docks
4. Left Speaker (2 of 2)
5. Power Button
6. VOL -/HR (Hour) Button
7. TIME SET/Skip/Search o Button
8. Remote Sensor
9. ALARM Button
10. Right Speaker (1 of 2)
11. ALARM SET/Skip/Search n Button
12. Right Speaker (2 of 2)
13. VOL +/MIN (Minute) Button
14. Play/Pause (®p) Button
15. SNOOZE/Dimmer Button
16. Display
17. Battery Compartment (Bottom of Unit)
(Battery Cover Part No. 622-05220-0010*)
*Consumer Replaceable Part (See page 18 to order.)
4
LOCATION OF CONTROLS (CONTINUED)
1
2
7
6
11
3
8
4
9
5
10
1. Power Button
2. VOL - Button
3. Skip/Search o Button
4. Play/Pause (®p) Button
5. DIMMER Button
6. Remote Transmitter (Top of Unit)
7. VOL + Button
8. Skip/Search n Button
9. MUTE Button
10.SLEEP Button
11.Battery Compartment (Rear of Unit)
Remote Control Part No. 239-04358-E000*
*Consumer Replaceable Part (See page 18 to order.)
REMOTE
5
POWER SOURCE
AC CONNECTION
Insert the small end of the AC adapter into
the DC IN 15V jack (located on the rear of
the unit). Connect the other end to a wall
outlet having 120V AC, 60 Hz.
AC Adapter, DC 15V
Z
NOTES:
• Remove both the DC plug and the AC-
IN plug to disconnect the AC adapter
when not in use.
• Only use the supplied AC adapter which has the following specs: DC 15V
Z
Two (2) “AAA” size batteries can be used to
provide a backup for the clock and alarm time for
this unit as follows:
1. Open the battery door by pushing in on the
tab, then removing the door.
2. Insert two (2) “AAA” batteries as shown.
Alkaline batteries are recommended for the
longest playing time.
3. Place the battery door back on
the compartment.
NOTES:
• The batteries are used to back-up the clock and alarm times when the AC
adapter is disconnected or there is a power failure.
• The battery indicator will blink in the display when there are no batteries or the
batteries are low and need replacing.
IMPORTANT! See BATTERY PRECAUTIONS on the next page.
BATTERY INSTALLATION
6
OPTIONAL CONNECTION
LINE IN JACK (REAR OF UNIT)
Insert one end of the audio cable (not included) into the LINE
OUT jack on your external audio unit and the other end into the
LINE IN jack on the rear of this unit.
To listen to the external audio unit, turn this unit on using the
Power button on the remote control or main unit; “LINE-IN” will
appear in the display. Turn on the external unit as well. The
external audio unit’s output sound will be heard through this
unit’s speakers. If you wish to listen to the iPod in the iPod
compartment, unplug the audio cable from this unit.
REMOTE BATTERY INSTALLATION
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Warning–Danger of explosion if batteries are incorrectly replaced.
Replace only with the same or equivalent type.
2. Use only the size and type of batteries specified.
3. Be sure to follow the correct polarity when installing the batteries as
indicated next to the battery compartments. A reversed battery may
cause damage to the device.
4. If the device is not to be used for a long period of time, remove the
batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge a battery not intended to be recharged; it can
overheat and rupture. (Follow battery manufacturer’s directions.)
1.
Remove the Battery Compartment by
pressing in on the tab and then sliding the
compartment out.
2. Install a CR2025 battery, paying attention
to the polarity diagram in the Battery
Compartment (positive side up).
3. Replace the Battery Compartment.
POWER SOURCE (CONTINUED)
7
INSERTING AN iPod
Locate the correct Universal Dock
to use as shown on page 15.
Insert the Universal Dock (A) into
the iPod compartment (B) (as
shown), making sure the tabs are
facing front, and slip the tabs into
place. Press the rear side of the
Universal Dock until it is
positioned inside the iPod
compartment.
(A)
(B)
1
The iPod will charge as long as
this unit is connected with the
AC adapter.
Please see the next page for
instructions on using an iPod with
this unit.
3

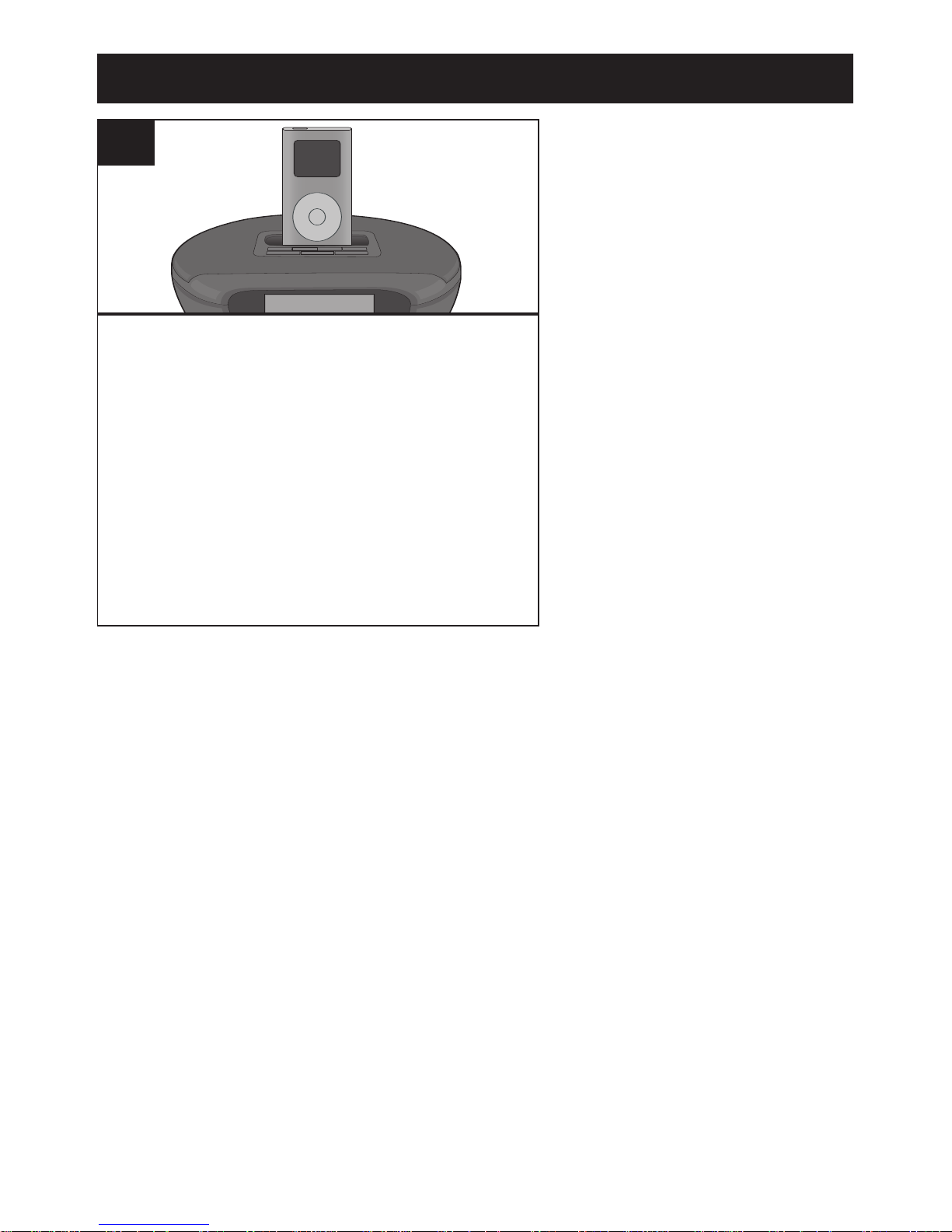

Slide the iPod (A) into the
Universal Dock (B) (as shown).
Gently push down so the
connector on the iPod slides onto
the connector on this unit.
(A)
(
B)
2
NOTE:
To remove the Universal Dock,
insert your finger (or other object)
into the gap in the Universal Dock,
then gently pull the Universal Dock
out to remove it.
8
OPERATION
With an iPod connected (see previous
page), if this unit is not already on, turn
this unit on by pressing the Power button
on the remote (shown) or on the main
unit; “iPod” will appear in the display.
1
You can operate the iPod using its
own controls, as per its owner’s
manual, or you can use the controls
on the included remote or main unit
to operate the iPod.
2
USING AN iPod WITH THIS UNIT
To play/pause the iPod:
Press the Play/Pause (®p)
button on the remote (shown) or
on the main unit to start playback
on your iPod. Press again to
pause playback and press yet
again to resume playback.
3
To skip forward or backward on the
iPod:
Press the Skip/Search o 1 or n
2
button to skip to the beginning of the
current track/previous or next track.
To search forward or backward on
the iPod:
Press and hold the
Skip/Search
o 1 or n 2 button to
search within the currently-playing track.
NOTE: You can also use the TIME
SET/Skip/Search
o or ALARM
SET/Skip/Search
n button on the
main unit.
1
2
4
NOTES:
• Once an iPod is inserted, this unit will turn on automatically and the iPod
will be in Pause mode.
• See the next page for how to adjust the volume.
• To turn this unit off, press the Power button or unplug the LINE IN cable/
disconnect the iPod from this unit while in LINE IN/iPod mode.
9
OPERATION (CONTINUED)
To adjust the main volume: Press
the VOL +
1 and/or - 2 button on
the remote (shown) or the VOL
+/MIN and/or -/HR button on the
main unit to increase and/or
decrease the volume.
To mute the main volume: Press
the MUTE button 3 on the remote;
“MUTE” will appear in the display.
Press this button again to unmute.
2
1
3
1
ADJUSTING THE VOLUME
NOTE:
• The volume default level is 6. If backup batteries are NOT inserted,
whenever you unplug and then plug back in the AC adapter, the
volume will revert to level 6.
10
OPERATION (CONTINUED)

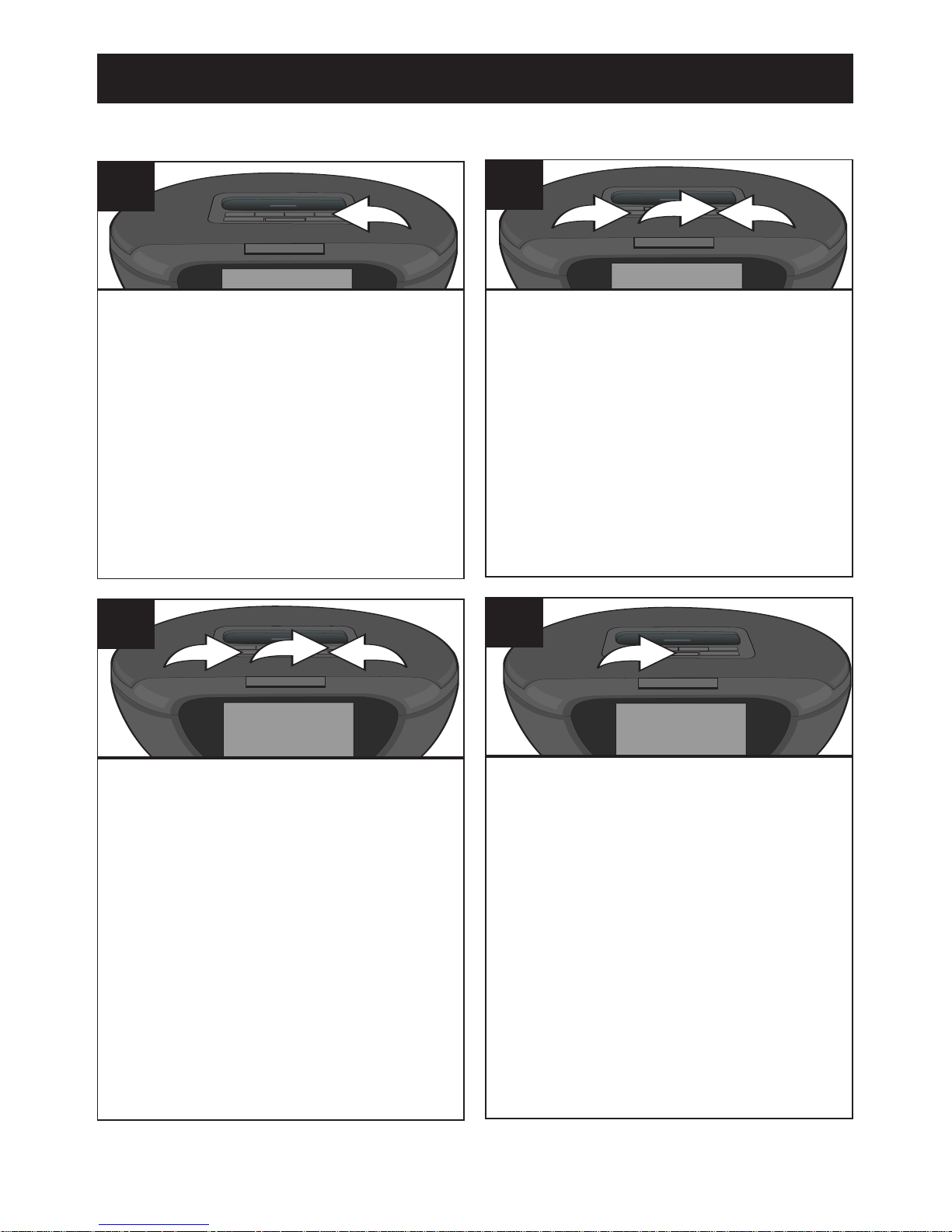

With the power off, press the
TIME SET/Skip/Search o button;
the time will blink.
1
Press the TIME SET/Skip/Search
o button (or wait approx. 15
seconds) and the time will be set.
3
TO SET OR RESET THE ACTUAL TIME
Within 15 seconds, press the VOL
+/MIN button
1 to set the present
minute and the VOL -/HR button
2 to set the present hour. Make
sure to set the correct AM/
PM setting.
2
1
2
11
OPERATION (CONTINUED)
With the power off, press the
ALARM SET/Skip/Search n
button; the Alarm time will blink in
the display.
1
The volume setting will appear in
the display. Select a desired
maximum volume level (level 1 to
15) to wake to using the VOL
+/MIN
1 and/or -/HR 2 button.
Press the ALARM SET/
Skip/Search
n button 3 again (or
wait approx. 15 seconds) to save
your settings.
2
1
3
3
Repeatedly press the ALARM
button to select alarm off, alarm on
for buzzer or alarm on for iPod.
NOTE: Make sure the
corresponding indicator (iPod or
BUZZER) appears in the display.
4
TO SET OR RESET THE ALARM TIME
Within 15 seconds, press the VOL
+/MIN button
1 to set the alarm
minute and the VOL -/HR button
2 to set the alarm hour. Make sure
to set the correct AM/PM setting.
Press the ALARM SET/Skip/
Search n button 3 again.
2
1
3
2
CONTINUED ON THE NEXT PAGE
12
OPERATION (CONTINUED)
NOTES:
• When the actual time matches the selected preset alarm time, if set to
Buzzer, the unit will automatically turn on for 60 minutes and then shut off.
If set to iPod, the unit will start playback on the track that you selected and
the tracks following it in the playlist.
• When the alarm time is reached, the alarm volume level will be set to the
minimum (Level 1) and it will increase one level continuously until the
desired maximum volume level (see Step 3 on the previous page)
is reached.
• When the actual time matches the selected preset alarm time (set to iPod or
Buzzer), press the VOL + and/or - button on the remote, VOL +/MIN and/or
-/HR button on the main unit or MUTE button on the remote to stop the
volume level from increasing and also to perform the button’s function. The
alarming function will still be active.
•
TO SHUT OFF THE ALARM, see TO SHUT THE ALARM OFF section on
the next page.
If set to iPod, insert the iPod as shown on
page 7. Select your desired track and then
make sure both your iPod and this unit are
turned off. When the alarm time is reached,
this unit will start playback on the track that
you selected and the tracks following it in the
playlist. This unit will playback for 60 minutes
then turn off automatically or, if the remaining
playlist has less than 60 minutes of playback
time remaining, this unit will just playback the
remaining time of the playlist.
5
Loading...
