User’s Guide
iListen with AM/FM Radio
Mi1006
Before operating this product,
please read these instructions completely.
1
SAFETY PRECAUTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless
the modifications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an unauthorized
change or modification is made.
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISES ET POUSSER JUSQU’AU FOND.
INFORMATION:
This equipment complies with Class B digital device regulations.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
2
SAFETY PRECAUTIONS
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty
for this product.
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
3

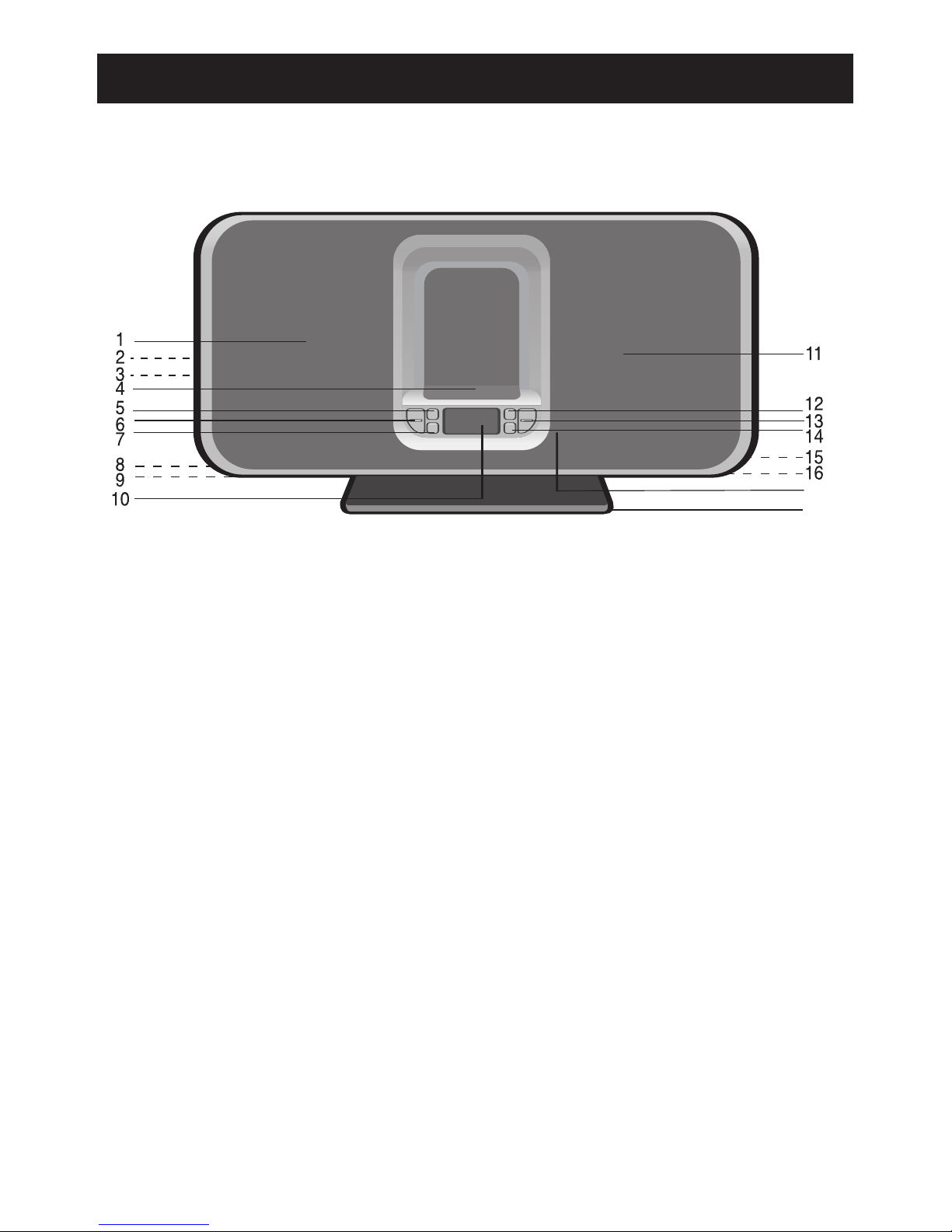

LOCATION OF CONTROLS
17
18
1. Left Speaker
2. Headphones Jack
(Side of Unit)
3. LINE IN Jack
(Side of Unit)
4. iPod®Dock with
Connector &
Interchangeable Holders
5. MODE Button
6. VOLUME Up/Down
Buttons
7. Power Button
8. S-Video Jack
(Rear of Unit)
9. AM Loop Antenna Jack
(Rear of Unit)
10.Display
11.Right Speaker
12.PRESET Button
13.TUNE Up/Down/Skip n
/ o Buttons
14.SET Button
15.POWER IN Jack
(Rear of Unit)
16.FM Wire Antenna
(Rear of Unit)
17.Remote Sensor
18.Stand (Removable)
MAIN UNIT
4

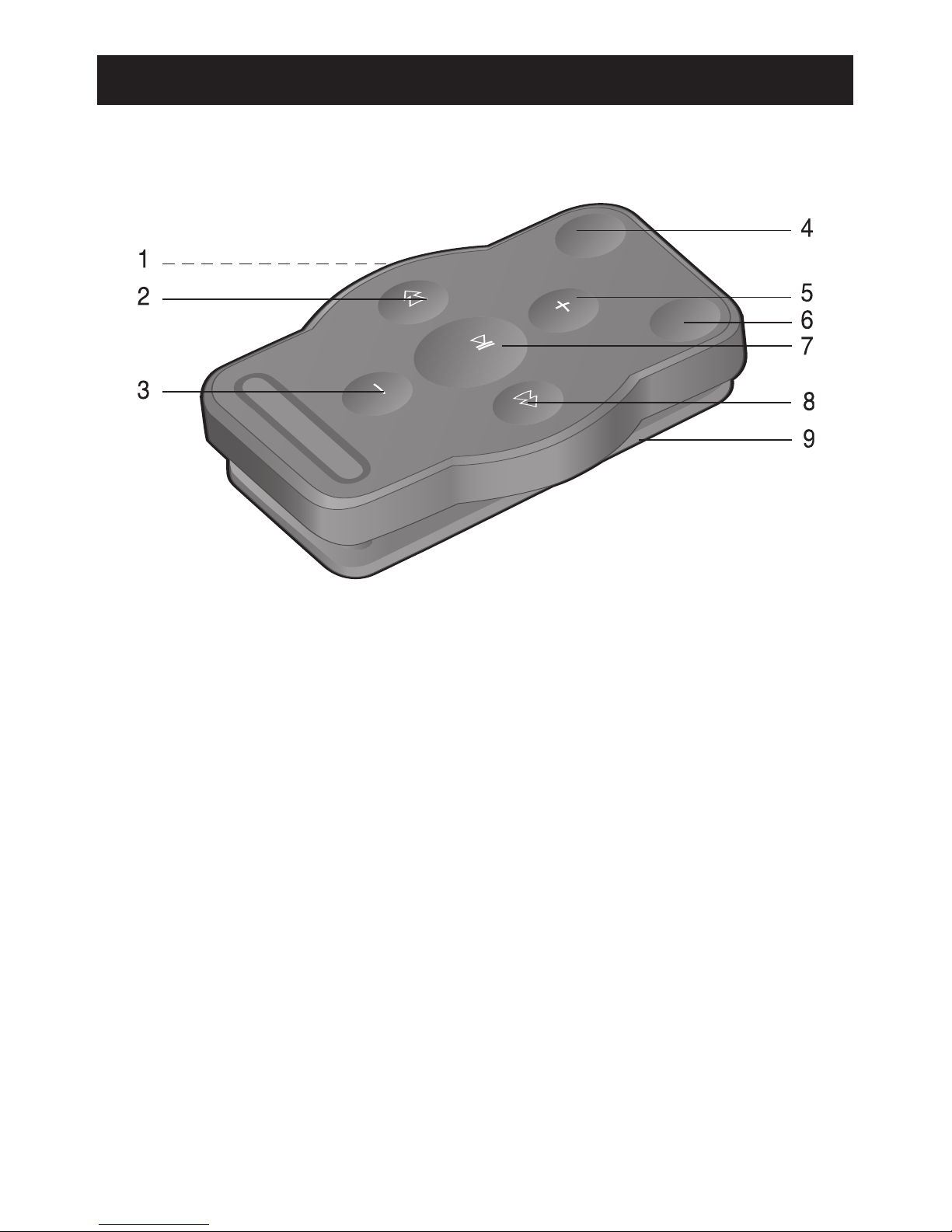

LOCATION OF CONTROLS (CONTINUED)
1. Battery Compartment
(Side of Unit)
2. TUNE Down/Skip o
Button
3. VOLUME Down Button
4. MODE Button
5. VOLUME Up Button
6. PRESET Button
7. Power/PLAY/PAUSE
(®p) Button
8. TUNE Up/Skip n Button
9. Belt Clip
REMOTE
NOTES:
• The remote buttons function in the same way as the buttons on
the main unit.
• For the Belt Clip, simply clip it to to a non-slip location such as
your belt, purse or backpack.
• To turn on the unit, press the Power/PLAY/PAUSE (®p) button.
To turn the unit off, press and hold the Power/PLAY/PAUSE
(
®p) button until the display turns off, then release the button.
5
POWER SOURCE
AC CONNECTION
Insert the small end of the AC adapter into the POWER IN jack (located on the rear of
the unit). Connect the AC cord to the adapter and connect the other end to a wall outlet
having 120V AC, 60 Hz. AC Adapter, DC 20V
Z
NOTES:
• The AC adapter supplied with the unit is polarized to help minimize the possibility
of electric shock. If the AC plug does not fit into a nonpolarized AC outlet, do not
file or cut the wide blade. It is the user’s responsibility to have an electrician replace
the obsolete outlet.
• Remove both the DC plug and the AC-IN plug to disconnect the AC adapter when
not in use.
• Only use the supplied AC Adapter which has the following specs: DC 20V
Z
AC Plug
AC Outlet
REMOTE BATTERY INSTALLATION
BATTERY PRECAUTIONS
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as
indicated in the Battery Compartment. A reversed battery may cause
damage to the device.
3. If the device is not to be used for a long period of time, remove the
battery to prevent damage or injury from possible battery leakage.
4. Do not try to recharge a battery not intended to be recharged; it can
overheat and rupture. (Follow battery manufacturer’s directions.)
1.
Remove the Battery Compartment by
pressing in on the tab and then sliding the
compartment out.
2. Install a CR2025 battery, paying attention
to the polarity diagram in the Battery
Compartment (positive side up).
3. Replace the Battery Compartment.
6
OPTIONAL FEATURES
S-VIDEO JACK (Rear of Unit)
If you are using an iPod®that has photo/video capability, and your TV has an S-Video
input, you can connect the Mi1006 to the external TV with an S-Video cable. You will
then be able to view the photos/videos from the iPod
®
on your external TV.
NOTES:
• Set the TV’s TV/VIDEO button or switch to the VIDEO setting.
• When connecting the Mi1006, refer to the owner’s manual of the TV, as well as
this manual.
• When connecting the Mi1006 to the TV, make sure the power is off and both
units are unplugged before making any connections.
• Make sure to go into the Settings menu of your iPod
®
and set the TV Out setting
to ON; otherwise, you may not be able to view the videos/photos on your
external TV.

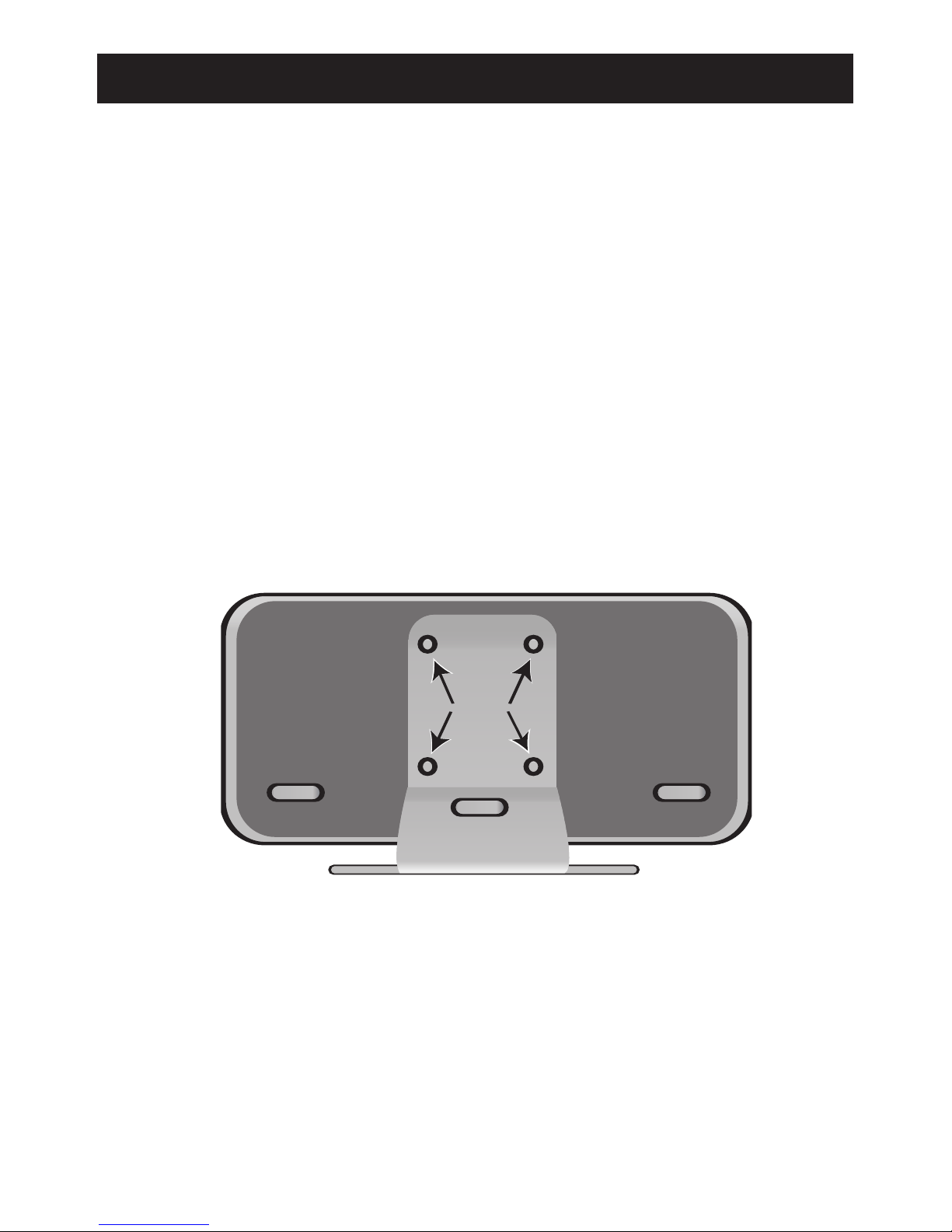

MOUNTING ON A WALL
If desired, you can remove the stand by unscrewing the four Hexagon head screws at
the rear of the unit (see figure below). You can then mount the unit on a wall. (The
wall mount is not included.)
screws
location
7

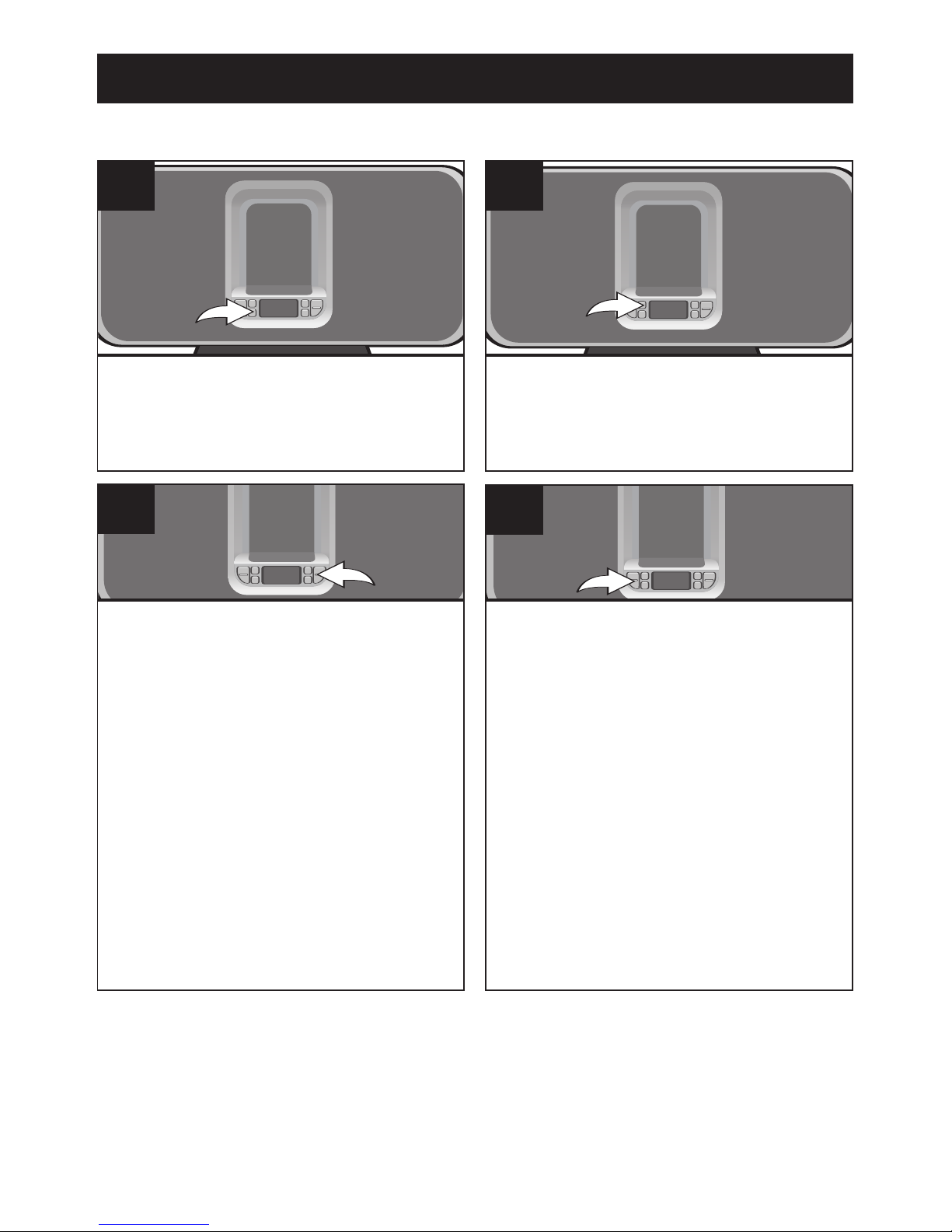

INSERTING AN IPOD
®
Locate the correct iPod®holder to
use as shown on pages 12-13. Insert
the holder into the cavity (as shown),
making sure the tabs are facing front,
and slip the tabs into place.
1
Press the rear side of the holder until
it is positioned inside the cavity.
NOTE: To remove the holder, insert
your finger (or other object) into the
gap in the holder, then gently pull the
holder out to remove it.
2
If using the dock: Insert the iPod®onto
the holder. Gently push down so the
connector on the iPod®slides onto the
connector on the Mi1006. If the Mi1006 is
turned off, once you connect the iPod®, it
will start charging the battery until it is full. If
the Mi1006 is turned on and in
AM/FM/LINE IN mode, once the iPod®is
connected, the Mi1006 will change to
iPod
®
mode automatically
. Then, if you
disconnect the iPod®, the Mi1006 will
revert back to the AM/FM/LINE IN mode.
When the iPod®is connected to the
Mi1006, it will be in the Pause mode.
3
If using the LINE IN jack: Insert an audio cable
(not included) into the LINE OUT jack on your
player and the other end into the LINE IN jack
on the side of the Mi1006. Press the Power
button to turn this unit on, then repeatedly press
the MODE button to select the LINE IN mode.
The external player’s output sound will be heard
through the Mi1006's speakers. If the Mi1006 is
already on, when you connect the external unit
to it, the Mi1006 will change to LINE IN mode
automatically. If you disconnect the external unit
from the LINE IN jack, the Mi1006 will revert
back to the AM/FM mode.
4
NOTES:
• CHARGING: When the iPod®is inserted into the dock, the iPod’s®battery will charge until it is
full.
• If the unit is already turned on and in AM/FM mode, if you insert the iPod
®
into the dock or
connect an external unit to the LINE IN jack, the unit will automatically switch to iPod or LINE IN
mode. If you disconnect the external unit or iPod®, this unit will revert back to the AM/FM mode.
• CHANGING THE MODE: If units are connected to the dock AND the LINE IN jack, you can
press the MODE button repeatedly to select between iPod (dock)/LINE IN/AM/FM mode as
desired. (You will not be able to select between iPod/LINE IN mode, if there is no device or
iPod
®
connected to the LINE IN jack or the iPod®dock.) To turn off the unit, press the Power
button.
• BACKLIGHT: When the unit is on, the LCD backlight will always be on.
8
OPERATION
With an iPod®connected (see
previous page), turn the Mi1006
on by pressing the Power button
(if it is not on already).
1
Operate the iPod®as per its
owner’s manual and the sound
will be heard through the
Mi1006’s speakers.
Adjust the volume as desired by
pressing the Volume Up/Down
buttons.
2
For private listening, plug in
headphones into the
Headphones jack on the side of
the Mi1006. The speakers will be
disconnected when headphones
are plugged in.
When done, press the Power
button and also turn off the
iPod
®
.
3
USING AN IPOD®WITH THIS UNIT
NOTES:
• When the iPod®is inserted
into the dock, you can press
the TUNE Up/Down/Skip n / o
buttons to skip to the
beginning of the current
track/previous or next track.
• The default volume setting
level is 6. After your have
adjusted the volume setting, if
you turn the unit off and then
on again, the volume level will
be set back to the default level
of 6.
9
OPERATION (CONTINUED)
Extend the AM Loop Antenna wire
(length is approx. 3 ft).
1
USING THE RADIO
For FM reception, fully extend the FM Wire Antenna for best FM reception.
For AM reception, there is an AM Loop Antenna included; connect the AM
Loop Antenna, as shown below, before listening to the AM radio for better
reception.
Connect the AM Loop Antenna
adapter to the AM Loop Antenna
jack at the rear of the main unit.
Make sure the adapter is inserted
correctly into the jack, as shown.
2
At the bottom of the AM Loop
Antenna, rotate the stand to the
rear and then push the stand to
the front.
3
Insert the tabs into the gaps in the
stand. Remember to fully extend
the AM Loop Antenna wire and
locate it approx. 3 ft. away from the
main unit for better reception.
4
10
OPERATION (CONTINUED)
Turn the Mi1006 on by pressing the
Power button; the display will light.
1
Press the MODE button repeatedly
to select the desired band (AM or
FM).
2
Repeatedly press the TUNE
Up/Down/Skip
n / o buttons to
manually advance the frequency in
the display up or down until the
desired frequency appears.
For auto tuning, press
and hold the
TUNE Up/Down/Skip
n / o buttons
until the frequency in the display
starts to scan and then release; the
tuner will search and then stop on
the next strong station it finds.
Repeat this step until the desired
frequency appears in the display.
3
Adjust the volume as desired by
pressing the Volume Up/Down
buttons.
For private listening, plug in
headphones into the Headphones
jack on the rear of the Mi1006. The
speakers will be disconnected
when headphones are plugged in.
4
USING THE RADIO (Continued)
Loading...
