Memorex MDF0738-BLK User Manual
82-258-00171

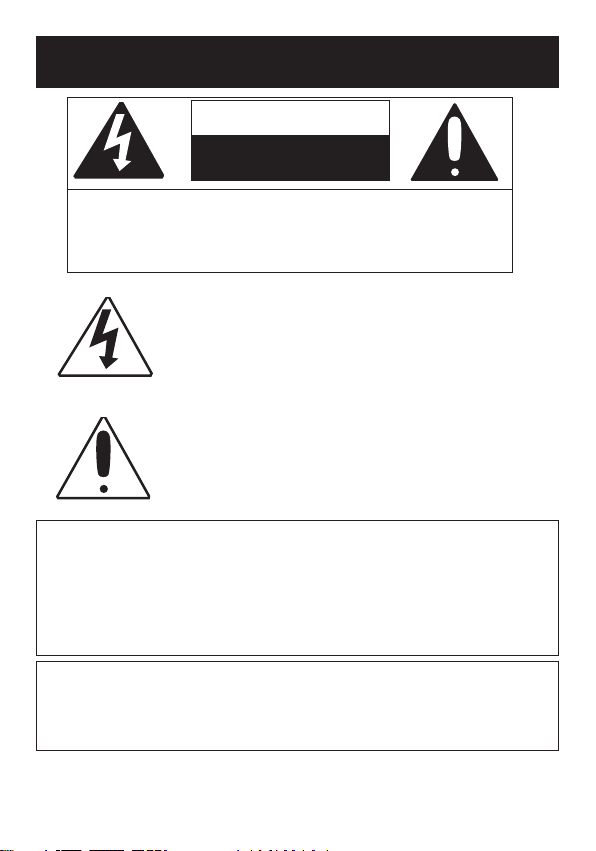

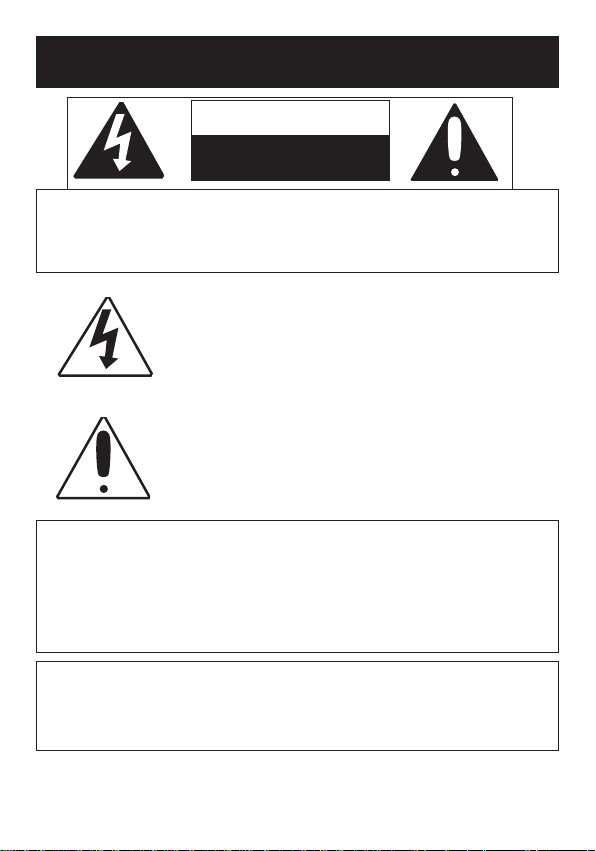

SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless
the modifications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an unauthorized
change or modification is made.
ATTENTION:
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISES ET POUSSER JUSQU’AU FOND.
1
SAFETY PRECAUTIONS
INFORMATION:
This equipment complies with Class B digital device regulations.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause har mful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty
for this product.
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
2
LOCATION OF CONTROLS
1
2
3
4
5
6
7
8
9
10
11
1. Screen
2. SD/SDHC/MMC/MS/MS
Pro/xD Card Slot
(Side of Unit)
3. USB Flash Drive Jack
(Side of Unit)
4. Navigation Up/Rotate Button
5. MODE/Stop (I) Button
6. Select/Play/Pause (®p)
Button
7. Navigation Down/Brightness
Button
8. Navigation Right/Skip (n)
Button
9. Navigation Left/Skip (o)
Button
10. Stand
(PART NO. 60-258-C0201*)
11. DC 5V IN Jack
(Bottom of Unit)
(AC ADAPTER PART NO. 43-
111-00278*)
*Consumer Replaceable Part
(See page 11 to order.)
3
POWER SOURCE
AC CONNECTION
Insert the small end of the AC adapter into
the DC 5V IN jack (located on the bottom of
this unit). Connect the other end to a wall
outlet having 120V AC, 60 Hz.
AC Adapter, DC 5V Z
NOTES:
• Remove both the DC plug and the ACIN plug to disconnect the AC adapter
when not in use, because this unit will
always be ON when the DC plug and the AC-IN plug are connected.
• Only use the supplied AC adapter which has the following specs: DC 5V Z

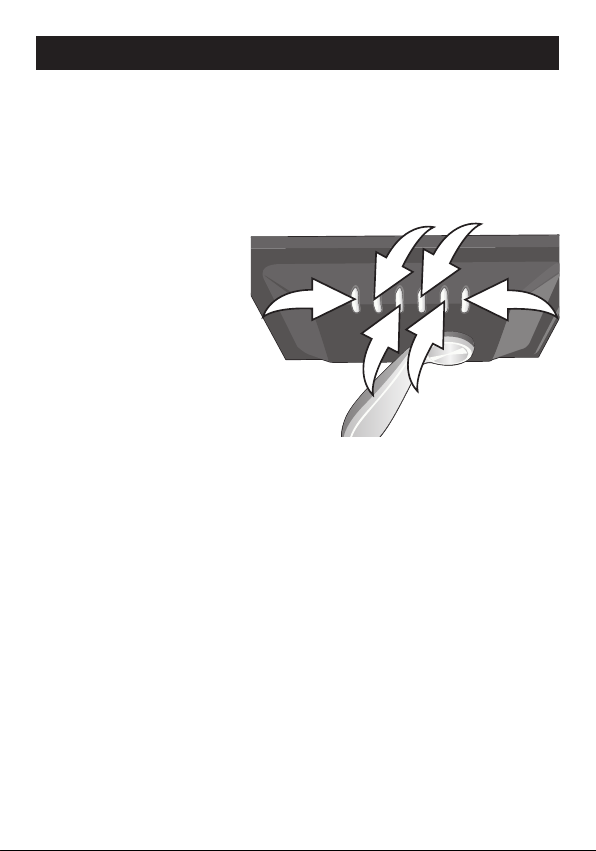

USING THE STAND
STAND (REAR OF UNIT)
To use the stand, place the stand’s knob into the hole in the back of the
frame. Push the stand either to the left (for a vertical display) or to the
right (for a horizontal display) until the stand locks into place.
4
GETTING STARTED
USING A MEMORY CARD AND/OR USB FLASH DRIVE
You can access media files from an external memory card and/or USB flash
drive as described below. This unit accepts memory cards and/or USB flash
drives up to 4GB.
1
2
NOTES:
• It is highly recommendedto insert only a memory card OR a USB flash drive. If you
insert both a memory card and a USB flash drive, this unit will only read the photos
from the memory card.
• Please place under 1,000 photo files on the memory card, otherwise some photos
may not appear in the frame.

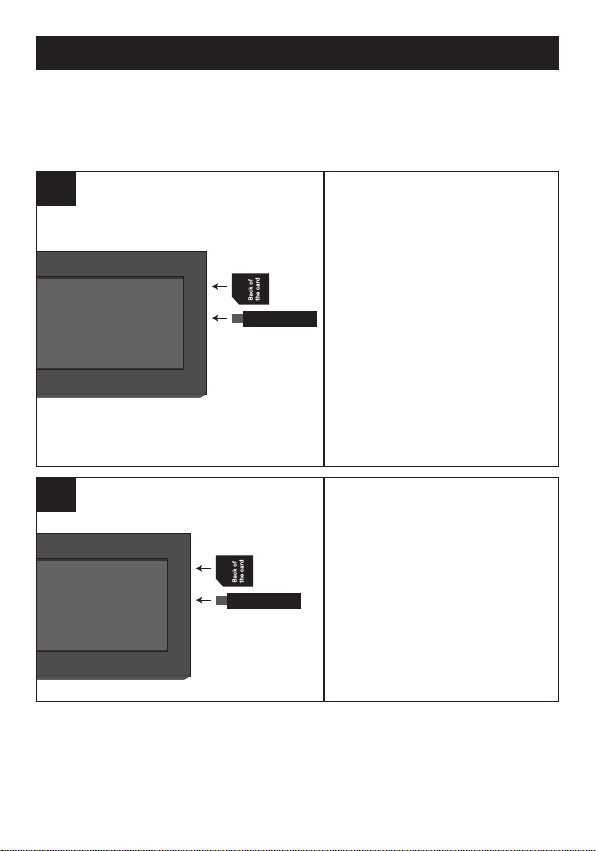

TO INSERT A MEMORY CARD:
This unit can support SD (Secure
Digital), SDHC (Secure Digital
Hi gh Ca pacit y), M MC (M ulti Me d i a C ard), MS ( M emory
Stick), MS Pro (Memory Stick
Pro) or xD memory cards. Simply
insert the SD, MMC, MS or xD
card into the card slot located at
the right side of the unit, with the
card facing towards the rear of
the unit (as shown).
TO I NSERT A USB FLA S H
DRIVE: Simply insert the USB
flash drive into the USB Flash
Drive jack located at the right
side of the unit (as shown).
TO REMOVE A M E M O RY
CARD: Remove the memory
card by pulling it out gently.
You may need t o w i g g l e it
back and forth to dislodge it
from the frame.
TO REMOVE A USB FLASH
DRIVE: Remove the USB flash
drive by pulling it out gently.
5
OPERATION
1
3
2
2
4
3
1
BASIC PHOTO PLAYBACK (Supported format: JPEG)
1
With a memory card or USB flash
drive inserted (as shown on the
previous page), connect the unit
to a n A C power source ( a s
shown on page 4).
Selec t Photo using the
Navigation Left/Skip (o) 1 and/or
Right/Skip (n) 2 b utto n; then
press th e Se l e ct/Play/Pause
(®p) button 3 to enter the Photo
Slideshow mode.
NOTES:
• A photo may take a longer time to load if the file resolution is high.
• See page 8 for how to adjust the slideshow settings.
• While in Photo Thumbnail mode, press the MODE/Stop (I) button
again to return to the Main menu.
2
Press the MODE/Stop (I) button
1 to stop the s lideshow a n d
enter Photo Thumbnail mode.
Select t h e desired p h o t o , or
page of photos, to view using the
Navigation L e f t / S ki p (o ) 2
and/or Right/Skip (n) 3 button.
To sea rch t hrough the pho tos
more quickly, press and hold the
Navigation L e f t / S ki p (o ) 2
and/or Right/Skip (n) 3 button.
Pres s the Select/Play/Pa u s e
(®p ) b u t t o n 4 t o e n t e r t h e
Photo Slideshow mode ; t h e
sl i d eshow will b e g in with the
photo you selected.
6

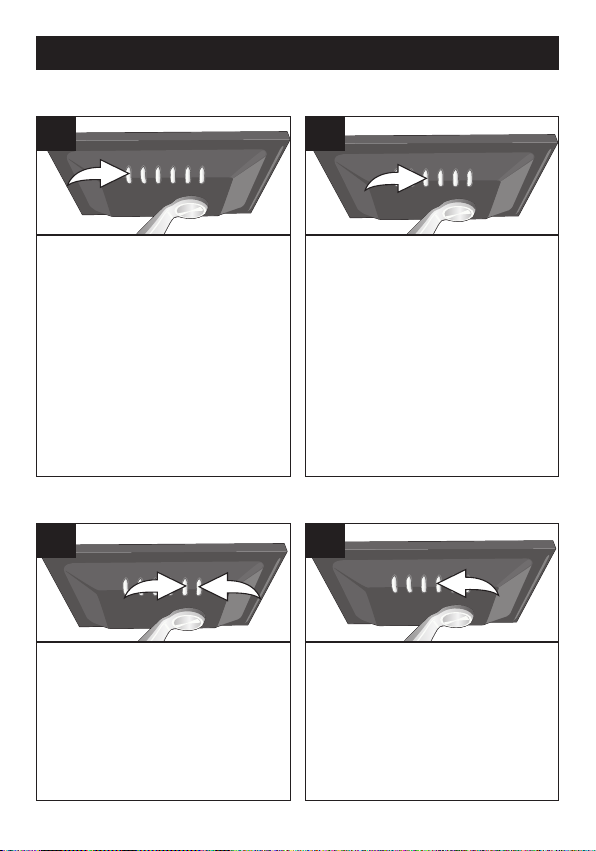

OPERATION (Continued)
1
2
PAUSE
1
While viewing a slideshow (see
the pr evious p age), pr ess the
Select/Play/Pause (®p) button to
pause the slideshow. Press again
to resume the slideshow.
SKIP
1
While viewing a slideshow (see
th e p revious pag e ) , press t h e
Navigation Left/Skip (o) 1 and/or
Right/Skip (n) 2 button
the previous or next picture.
to skip to
ROTATE
2
While viewing a slideshow or a
th u m b nail (s e e the pr evious
page), press the Navigation Up/
Ro t a te but t o n to ro tate th e
se l e cted ph o t o 90 deg r e es
co u n tercloc k w ise. Re peat to
continue to rotate as desired.
BRIGHTNESS
1
At any time (except while in the
Setup menu), press the
Down/Brightness button to adjust
the brightness (0-6).
Navigation
7
OPERATION (Continued)
1
3
2
6
4
5
SETUP MENU
The Setup menu lets you customize this digital frame by allowing you to
set the effects between your photos, adjust the speed of the slideshow
and more!
Use the following instructions to navigate and change the options which
are described on the following page.
1. Connect the unit to an AC
power source (as shown
on page 4). In the main
menu, select Setup using
the Navigation Left/Skip
(o) 1 and/or Right/Skip
(n) 2 button; then press
the Select/Play/Pause
(®p) button 3 to enter
the Setup menu.
2. Use the Navigation Up/
Rotate 4 and/or Down/Brightness 5 to select one of the Setup
options (i.e. “Interval Time”), then press the Select/Play/Pause (®p)
button 3 or Navigation Right/Skip (n) button 2 to select it; the Setup
option will change to gray from yellow.
3. Use the Navigation Up/Rotate 4 and/or Down/Brightness 5 to
change the desired option setting (i.e. choose between 5 Sec., 15
Sec., etc.), then press the Select/Play/Pause (®p) button 3 to make
the change.
4. Press the Navigation Left/Skip (o) button 1 to go back to the
previous Setup option. Exit by pressing the MODE/Stop (I) button 6.
(NOTE: You can also exit by selecting the Exit Setup Mode option.)
CONTINUED ON THE NEXT PAGE
8
OPERATION (Continued)
SETUP OPTIONS
Interval Time:
Use this Setup option to select the speed for your slideshow by setting the
interval time between photos. Choose from 5, 15 or 30 seconds; 1, 5 or
30 minutes; 1, 4 or 12 hours; or 1 day.
Transition:
Use this Setup option to select the transition effect between your slides.
Choose from No Effect, Random (will randomly select among the other
modes to transition between the photos), Cover Up, Cover Down,
Uncover Left, Push Right, Wipe Up or Wipe Down.
Contrast:
Use this Setup option to adjust the contrast of the screen. Choose from 4 to +4.
OSD Language:
Use this Setup option to select the desired language for the menus.
Choose from English, French, German, Italian, Spanish, Portuguese,
Dutch or Polish.
Panel:
Use this Setup option to select the mode in which the photos will be
displayed. Choose from Full Screen (which will stretch the picture to
fill the screen) or Original (which will display the photo with its
original proportions).
Reset:
Use this Setup option to reset the frame to the default settings.
9
TROUBLESHOOTING GUIDE
If you experience a problem with this unit, check the chart below before
calling for service.
SYMPTOM CAUSE SOLUTION
Main unit, no power. AC adapter is not Connect AC adapter
connected. as shown on page 4.
No photos in frame. External media source Insert external media
not inserted. source, see page 5.
The files on the ext. Resave the files on the
media source aren’t in ext. media source in
JPEG format. JPEG format.
Photo takes too long The file resolution is Use a lower resolution
to load. too high. file.
10
