Memorex MD6460 User Manual

MD6460

User’s Guide

PERSONAL COMPACT DISC PLAYER

WITH 60 SECOND DIGITAL MOTION

PROOF ANTI-SHOCK PROTECTION

Before operating this product,

please read these instructions completely.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE:

The lightning ﬂash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

ATTENTION:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER:

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. Please do not attempt to defeat or bypass the safety switches.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modiﬁcations to this equipment may cause harmful interference unless the modiﬁcations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modiﬁcation is made.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

SAFETY PRECAUTIONS (CONTINUED)

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER JUSQU’AU FOND.

• Do not open the CD compartment while the CD is rotating.

• Always keep the CD compartment closed when not in use.

• Keep all foreign objects out of the CD compartment.

• Place the unit on a stable surface.

• Avoid installing the unit in locations described below:

• Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters.

• On top of other stereo equipment that radiates too much heat.

• Places lacking ventilation or dusty places.

• Places subject to constant vibration.

• Humid or moist places.

Dear Customer:

EST. 1924

EIA

LISTENING

For A Lifetime

Want You

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers 40 Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant 80 Average city traffic, garbage disposals, alarm clock at two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:

90 Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet engine 180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

LOCATION OF CONTROLS

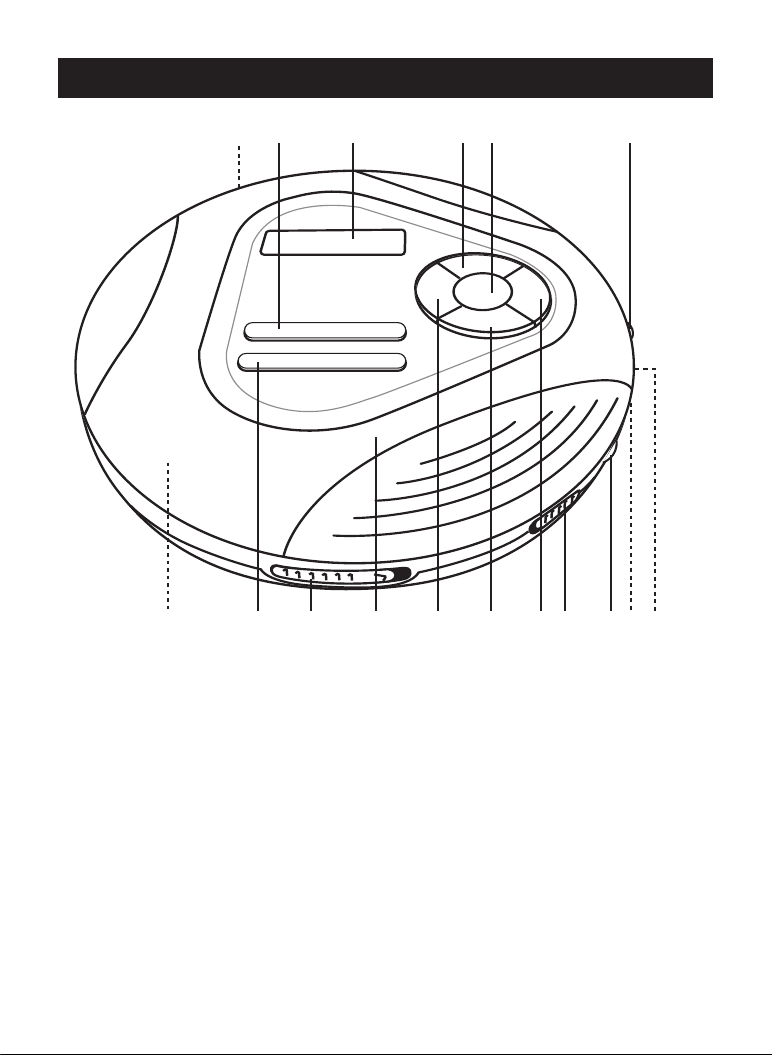

9 13 14 15 167 17121110

1 3 4 5 6

1. DC 4.5V Jack

2. ESP Button

3. Display

4. PROG (Program) Button

5. PLAY/PAUSE ( ON Button

6. HOLD (ON/OFF) Switch

7. Battery Compartment (Under CD Compartment)

8. MODE Button

9. CD Door OPEN Switch

10. CD Compartment

(Rear of Unit)

®p)/POWER

11. Skip/Search

12. STOP ( Button

13. Skip/Search

14. DBBS (Bass Boost) Switch

15. VOLUME Control

16. Headphones Jack (Side of Unit)

17. LINE OUT Jack (Side of Unit)

o Button

■)/POWER OFF

n Button

POWER SOURCES

–

This CD player requires either two (2) “AA” cell batteries (not included) or an AC adapter (not included).

BATTERY INSTALLATION

The battery indicator ( ) will blink or appear in the CD display when the batteries need replacing.

1. Open the CD compartment, then open the battery compartment door by pressing in on the tab and then lifting it.

possibility of losing the cover, it cannot be removed.

2. Insert two (2) “AA” cell batteries (not included) according to the polarity diagram inside the battery compartment. Alkaline batteries are recommended for the longest playing time.

To prevent the

Follow these precautions when using batteries in this device:

1. Use only the size and type of batteries speciﬁed.

2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery compartment. Reversed batteries may cause damage to the device.

3. Do not mix different types of batteries together (e.g. Alkaline, Carbon-zinc or Rechargeable) or old batteries with fresh ones.

4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.)

AC OPERATION

To operate the unit using AC power, connect an AC adapter (not included) to an AC outlet having 120V, 60Hz AC only. Plug the small end into the DC

4.5V jack on the unit and connect the other end into the AC outlet. The batteries are automatically disconnected when the AC adapter is used. CAUTION: When not using AC power, disconnect the AC adapter from the wall outlet by pulling the plug (not the cord). Do not touch the AC adapter with wet hands. Fully insert the plug without exposing any part of the blade.

DC4.5V

BATTERY PRECAUTIONS

OPERATION

BASS BOOST TURNING POWER ON/OFF

To emphasize the bass, slide the DBBS switch to the ON position. For normal bass, slide the DBBS switch to the OFF position.

To turn the unit on, press the

PLAY/PAUSE ( ❶.

To turn the unit off, Press the STOP (

■)/POWER OFF button ❷ while in the

Stop mode.

®p)/POWER ON button

HOLD

Slide to the ON position to disable the buttons; “Hold” will briefly appear in the display. When pressing the buttons on the CD compartment lid, "Hold" will briefly appear in the display. Slide to the OFF position to enable the buttons. For the HOLD function, only the buttons on the CD compartment lid will be disabled, not the other controls/switches.

AUTO POWER OFF

When the unit is stopped (Standby mode) for approximately one minute, the power will automatically turn off.

Radio Sound Through a Home Audio System

By using a home audio connection cable (not included), superb radio sound can be heard through your home audio system. Before making any connections, turn off the power to all equipment. Plug a connection cable (not included) between the LINE OUT jack on the side of the CD player and the ampliﬁer’s AUX or CD input jack. (Do not connect it to the ampliﬁer’s PHONO jack.) NOTE: If the radio interferes with TV reception, move the unit away from the TV or turn off the power to this unit.

CD OPERATION

TO PLAY A CD (Standard, CD-R and CD-RW)

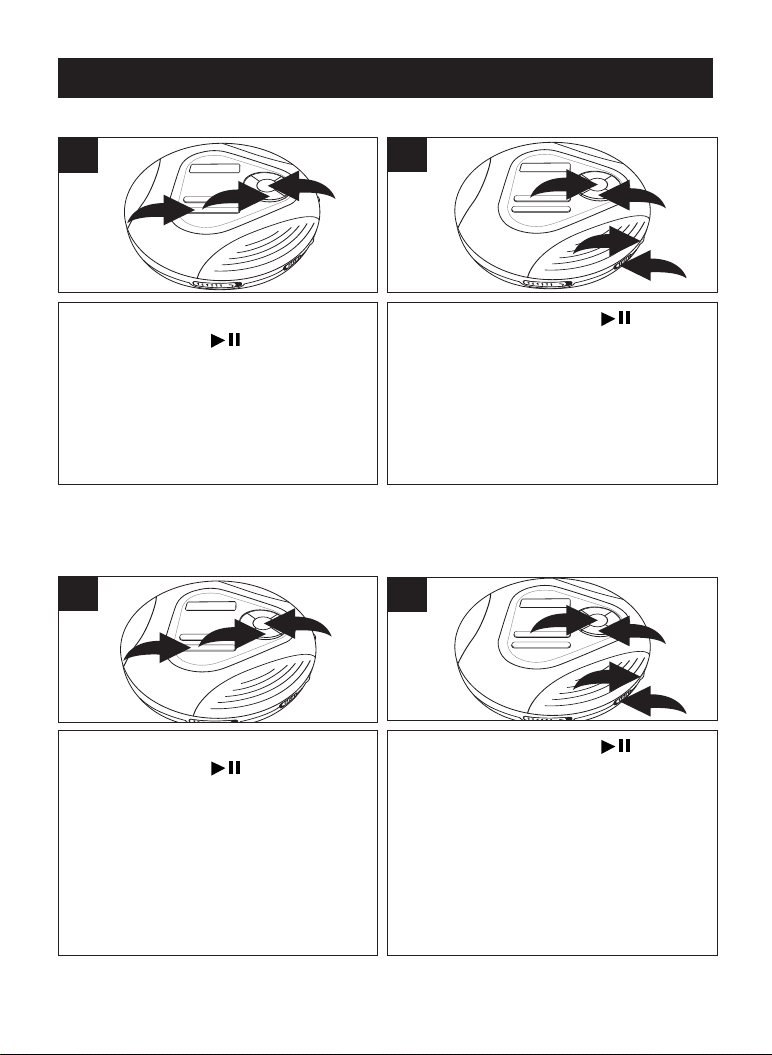

Open the CD compartment lid by sliding the CD OPEN switch to the right. Gently press a disc, label side up, onto the spindle until it locks in place. Close the CD compartment lid. Insert headphones into the PHONES jack.

Adjust the VOLUME control ❶ and DBBS switch forward or backward through the tracks on the disc, press the SKIP/SEARCH o 3 or n 4 button. To search forward or backward through the tracks on the disc, press and hold the SKIP/SEARCH o 3 or n4button.

❷ as desired. To skip

Press the PLAY/PAUSE (®p)/POWER ON button to start playback. To pause

playback

(

®p)/POWER ON button again, the

elapsed time will blink. Press once again to resume playback.

, press the PLAY/PAUSE

When the disc is through playing, it will stop. Press the STOP ( button to stop the disc before it is ﬁnished; the total number of tracks will appear. Press the STOP ( OFF button again while in the Stop mode to turn the unit off or wait approximately 60 seconds and the unit will automatically turn off.

■)/POWER OFF

■)/POWER

NOTES:

• This unit is capable of playing standard CDs or 3” singles; no adapter is required.

• If a disc is inserted incorrectly, dirty, damaged or not present at all, the display will show “no disc”.

• As each track is played, the track number and elapsed time are shown in the display.

• To remove the disc, open the CD compartment, hold the edge of the CD, gently press the center pivot and lift the CD.

• The maximum play time for a CD in this unit is 74 minutes.

• “- - - -” will appear in the display when the CD door is open.

CD OPERATION (CONTINUED)

60 SECOND MOTION PROOF ELECTRONIC ANTI-SHOCK SYSTEM

This CD player has a built-in Anti-Shock System that cuts down on CD skipping, which is useful when using the CD player in the car or while jogging/walking. Follow the steps below to activate and understand the Anti-Shock System:

With a CD inserted, press the PLAY/PAUSE ( button to turn the unit on.

®p)/POWER ON

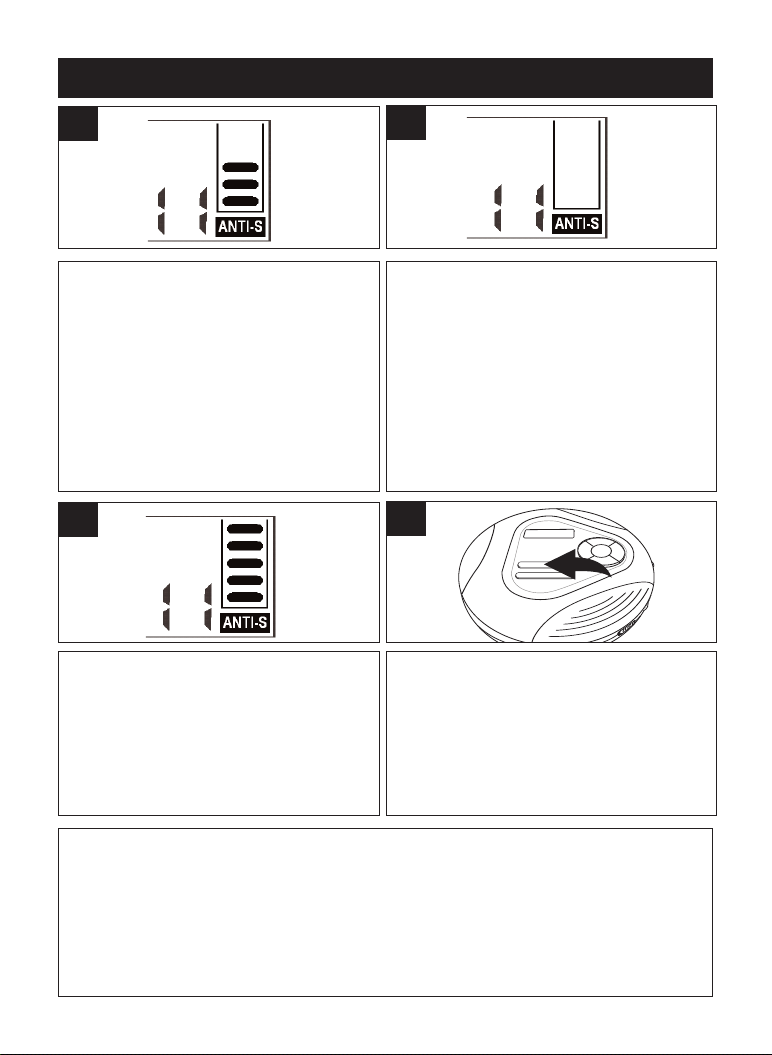

The Anti-Shock System will start automatically, the sound will mute for a moment and the display will show the Anti-Shock indicator with no bars in it.

CONTINUED ON THE NEXT PAGE

Within a few seconds, the Anti-Shock indicator will fill to indicate music signals are stored in memory.

CD OPERATION (CONTINUED)

If the CD player is subject to vibration during playback, the bars will disappear one by one. During the vibration, the music should continue to play the signals stored in the memory until the CD player can read the music data properly from the disc. At this time, the indicator will probably show fewer bars indicating the music signals stored in memory are low.

If no more vibration occurs, the music signals are once again stored into the memory and the indicator returns to full. When the memory is full, the top bar will blink and the disc rotation speed will drop to save power consumption.

If all the bars disappear and the CD player is subject to immediate vibration, the unit may skip.

To turn the Anti-Shock System off, press the ESP button. To turn the Anti-Shock System on, press the ESP button again.

NOTES:

• When the CD player is used in a stable location, turn the Anti-Shock System

off by pressing the ESP button. When the Anti-Shock System is off, battery consumption is less.

• The Anti-Shock System provides for continuous sound output when the unit

is subject to vibration, but it will not correct errors, such as a defective or dirty CD.

CD OPERATION (CONTINUED)

ALL

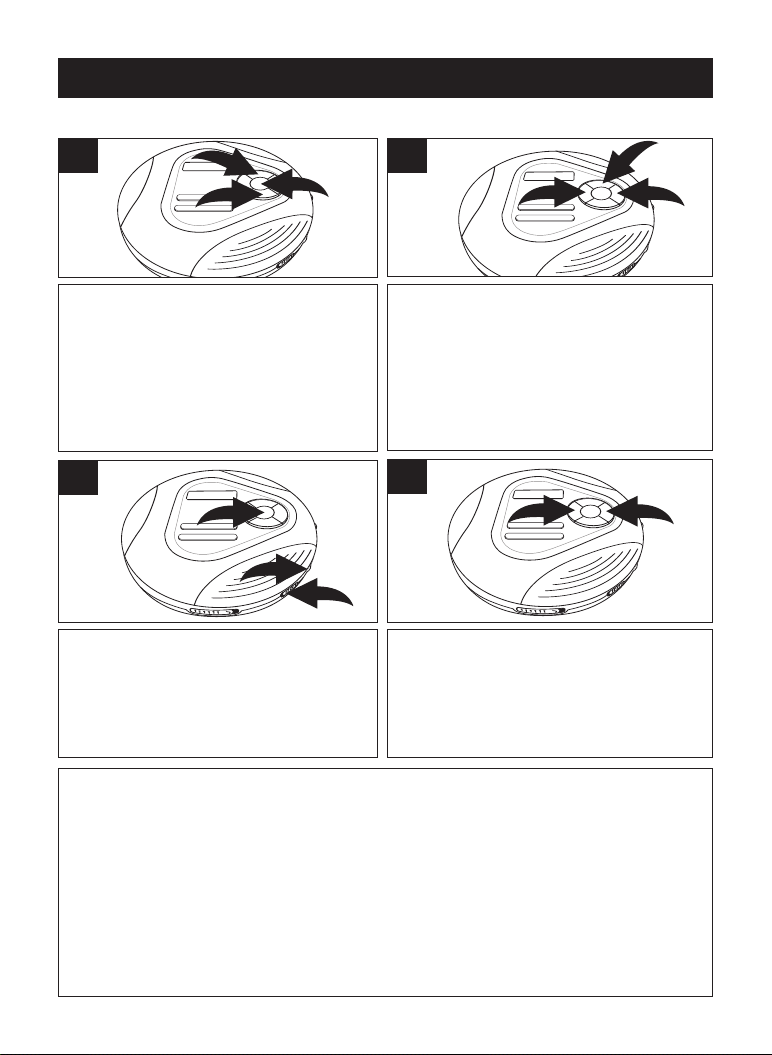

TO REPEATEDLY PLAY BACK ONE TRACK

With a CD inserted, press the PLAY/PAUSE ( button

❶ to turn the unit on, then select

a track using the SKIP/SEARCH or n3button. Press the MODE button

❹ once; the Repeat 1 indicator 1 will appear in the display.

®p)/POWER ON

The unit will then play the same track over and over until the STOP (■)/POWER OFF button ❶ is pressed. Adjust the VOLUME control

o 2

DBBS switch

❸ as desired.

TO REPEATEDLY PLAY BACK ALL TRACKS

With a CD inserted, press the PLAY/PAUSE (

❶ to turn the unit on. Press the

button MODE button indicator will appear in the display.

®p)/POWER ON

❷ twice; the Repeat All

The unit will then play all the tracks on the CD over and over until the STOP (■)/POWER OFF button ❶ is pressed. Adjust the VOLUME control DBBS switch

❸ as desired.

❷ and

TO CANCEL REPEAT PLAYBACK, press the MODE button four times if in Repeat 1 mode, or three times if in Repeat All mode. The unit will continue normal playback.
